O9C-WL56511g 54Mbps Building to Building Bridge

3Com 802.11g 54Mbps Wireless LAN Building to Building Bridge User’s Guide Version 2.0 Outdoor: 3CRWEASYG73 Indoor: 3CRWE920G73 Part No. DUA-ASYG73-AAA02 Published January 2005 3Com Corporation Page 2 3Com Corporation 350 Campus Drive Marlborough MA USA 01752-3064 Copyright © 2005, 3Com Technologies. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com Technologies. 3Com Technologies reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of 3Com Technologies to provide notification of such revision or change. 3Com Technologies provides this documentation without warranty, term, or condition of any kind, either implied or expressed, including, but not limited to, the implied warranties, terms or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. 3Com may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation, or on the removable media in a directory file named LICENSE.TXT or !LICENSE.TXT. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you. UNITED STATES GOVERNMENT LEGEND If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following: All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered as “Commercial Computer Software” as defined in DFARS 252.227-7014 (June 1995) or as a “commercial item” as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in 3Com’s standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide. Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries. 3Com and the 3Com logo are registered trademarks of 3Com Corporation. XRN is a trademark of 3Com Corporation IEEE and 802 are registered trademarks of the Institute of Electrical and Electronics Engineers, Inc. Intel and Pentium are registered trademarks of Intel Corporation. Microsoft, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Novell and NetWare are registered trademarks of Novell, Inc. UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company, Ltd. Netscape Navigator is a registered trademark of Netscape Communications. HP OpenView is a registered trademark of Hewlett Packard. JavaScript is a trademark of Sun Microsystems. All other company and product names may be trademarks of the respective companies with which they are associated. ENVIRONMENTAL STATEMENT It is the policy of 3Com Corporation to be environmentally-friendly in all operations. To uphold our policy, we are committed to: Establishing environmental performance standards that comply with national legislation and regulations. Conserving energy, materials and natural resources in all operations. Reducing the waste generated by all operations. Ensuring that all waste conforms to recognized environmental standards. Maximizing the recyclable and reusable content of all products. Ensuring that all products can be recycled, reused and disposed of safely. Ensuring that all products are labelled according to recognized environmental standards. Improving our environmental record on a continual basis. End of Life Statement 3Com processes allow for the recovery, reclamation and safe disposal of all end-of-life electronic components. Regulated Materials Statement 3Com products do not contain any hazardous or ozone-depleting material. Environmental Statement about the Documentation The documentation for this product is printed on paper that comes from sustainable, managed forests; it is fully biodegradable and recyclable, and is completely chlorine-free. The varnish is environmentally-friendly, and the inks are vegetable-based with a low heavy-metal content. 3Com Corporation Page 3 CONTENTS ABOUT THIS GUIDE 5 Purpose 5 Prerequisite Skills and Knowledge 5 Conventions Used in this Document 6 3Com Corporation Technical Support 6 1 INTRODUCTION 7 Product Overview 7 Operating Modes 8 2 INSTALLING THE WIRELESS BRIDGE 9 Overview 9 Scope of Delivery 9 Hardware Installation 10 Installing the 3CRWE920G73 Indoor Wireless Bridge 10 Installing the 3CRWEASYG73 Outdoor Wireless Bridge 14 Install ing the 3CRWEASYG73/3CRWE920G73 Antenna 16 Antenna Specification 17 Connect to the Power Source and the Local Network 18 LED Indicators 19 Software Installation 20 Find your New Wireless Bridge 21 Using the Diagnostic Utility 23 Contents of CD 28 3 WIRELESS BRIDGE CONFIGURATION 29 Initialization 29 The first login 29 Accessing the Web Manager Interface 30 Setup Wizard 31 Wireless Setup 31 Security Setup 32 WDS Links Setup 34 Setup Finished 35 Device Summary 36 General 36 Internet 37 Wireless 38 Security 39 Save Configuration 40 Internet Settings 41 IP Setup 41 DHCP Server 42 Wireless Settings 43 3Com Corporation Page 4 Wireless 43 Security 45 WDS links 48 Device Management 52 Device Information 52 System Access 53 STP 55 Time 56 SNMP 57 System tools 59 Backup/Restore 59 Upgrade 62 Reboot 65 Reset 65 Event Logs 66 Event Log Status 66 Event …

Text truncated - open the document above for the full version.

3Com Corporation 350 Campus Drive, Marlborough, MA 01752 Tel: +1 508-323-5000 Fax: +1 508-323-1111 Colin Smith Manager, Global Product Compliance Group Regulatory Affairs & Approvals E-mail: [email protected] March 14, 2005 Professional Installation Attestation CKC Certification Service 4933 Sierra Pines Drive Mariposa, CA 95338 To Whom It May Concern: Please be advised that due to the unique function supplied by this product, this device is intended for use as a Wireless LAN bridge only and will be distributed through controlled distribution channel which has trained professional to install this product and will not be sold directly to the general public through retail store. Thank you for your attention. Yours sincerely, Colin Smith Manager, Global Product Compliance Group Regulatory Affairs & Approvals 3Com Corporation

TCB Review Comments for (3Com FCC ID:O9C-WL565) -EMC- Question #1: User manual p43; Power show on the page are 20dBm, but report measured 17dBm (50.12mw) max. Please clarify and make necessary correction. Question #2: Test report P7; Per FCC part 15.203, all intentional radiator shall use unique coupling device on antenna jack or connector. However, this device seems incorporated a non- unique standard N-type connector on the antenna port. Please confirm and make necessary change. Question #3: FRN not matching the Form 731 info. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best Regards Steve Cheng / Technical Reviewer TCB/FCB/NB North American EMC Certification Service Inc. Email: [email protected] Tel: 403-241-8826

Dear Steve I correct the FRN no on 731 form. And reply your comments as below: Question #1: User manual p43; Power show on the page are 20dBm, but report measured 17dBm (50.12mw) max. Please clarify and make necessary correction. Answer: This is a typo and we have modified the power in p43 and, also, the FCC and Canada statement in the last page of the user's manual. Question #2: Test report P7; Per FCC section 15.203, all intentional radiator shall use unique coupling device on antenna jack or connector. However, this device seems incorporated a non-unique standard N-type connector on the antenna port. Please confirm and make necessary change. Answer: This is for professional installation only product. Please refer of revised "Professional Installation Attestation" and the new section of professional installation instruction in the revised user's manual. Question #3: FRN not matching the Form 731 info. Corrected. Please check the revised manual for FCC project and Canada project. Thanks for your assistance! Best Regards Wendy Liao Wendy Liao (廖意紋)/ ADT Corp. TEL: 03-318-3232 EXT 1625 FAX: 03-318-5050 Email: [email protected] 地址:桃園縣龜山鄉文化村華亞二路１９號

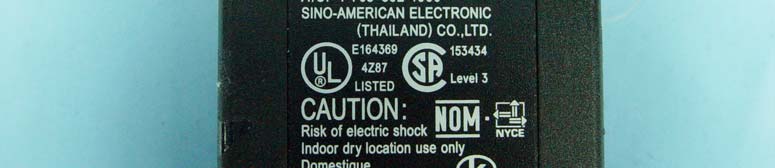

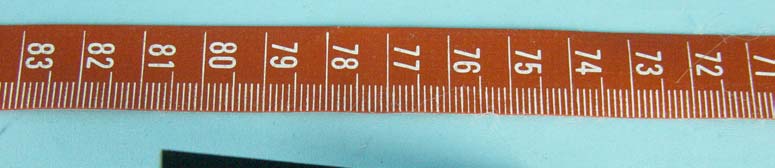

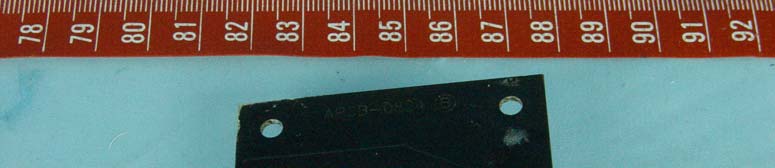

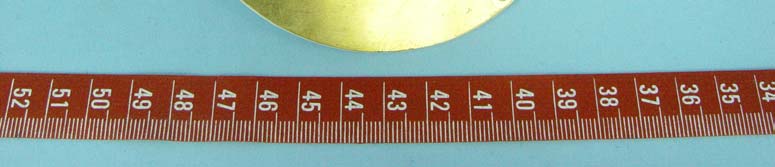

Page 1 CONSTRUCTION PHOTOS OF EUT (Model no.: WL-565) Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 (Model no.: WL-565B) Page 8 Page 9 Page 10 ANT 1 (Patch Ant.) Page 11 Page 12 Page 13 ANT 2 (Dipole Ant.) Page 14 Page 15 Page 16 ANT 3 (Dipole Ant.) Page 17 ANT 4 (Dipole Ant.) Page 18 ANT 5 (Patch Ant.) Page 19 Page 20 Page 21 ANT 6 (Patch Ant.) Page 22 Page 23 Page 24 ANT 7 (Patch Ant.) Page 25 Page 26

(2) this device must accept any interference received, Operation is subject to the following two conditions: Patents Pending. a trademark of 3Com Corporation. 3Com is a registered trademark and the 3Com logo is This device complies with Part 15 of the FCC Rules. (1) This device may not cause harmful interference, and including interference that may cause undesired operation. Copyright 2004 3Com Corporation. All rights reserved. 3CRWE920G73-US Model: WL-565 Made in Taiwan FCC ID: O9C-WL565 IC: 2299Q-WL565 WAPI-121G

⇑ ⇑ ⇑ ⇑ 3CRWEASYG73-US Model: WL-565B IC: 2299Q-WL565 FCC ID: O9C-WL565 (2) this device must accept any interference received, Operation is subject to the following two conditions: Patents Pending. a trademark of 3Com Corporation. 3Com is a registered trademark and the 3Com logo is This device complies with Part 15 of the FCC Rules. (1) This device may not cause harmful interference, and including interference that may cause undesired operation. Copyright 2004 3Com Corporation. All rights reserved. Made in Taiwan

Page 27 (Model no.: WL-565) Page 28 Page 29 Page 30 Page 31 Page 32 Page 33 (Model no.: WL-565B) Page 34 Page 35 Page 36 Page 37 Page 38

FCC ID: O9C-WL565 Report No.: RF930920L09 Operational Description This device is a Indoor 11g 54Mbps Building to Building Bridge, Outdoor 11g 54Mbps Building to Building Bridge which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by Power over Ethernet. The antennas are Dipole and Patch antenna with N -Type connector. The other instruction, please have a look at the users manual.

FCC ID: O9C-WL565 Report No: SA930920L09 1 RF EXPOSURE REPORT REPORT NO.: SA930920L09 MODEL NO.: WL-565, WL-565B ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: 3Com Corporation ADDRESS: 350 Campus Drive, Marlborough, MA 01752- 3064, U.S.A. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: O9C-WL565 Report No: SA930920L09 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: O9C-WL565 Report No: SA930920L09 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 200cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 200cm far away from the body of the user. Warning statement to the user for keeping at least 200cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: O9C-WL565 Report No: SA930920L09 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 18.0dBi or 63.095 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance: For 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 12.62 0.0016 1.0 6 2437 50.12 0.0063 1.0 11 2462 12.65 0.0016 1.0 For 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 7.94 0.001 1.0 6 2437 50.12 0.006 1.0 11 2462 7.98 0.001 1.0

FCC ID: O9C-WL565 Report No.: RF930920L091Report Format Version 2.0. FCC TEST REPORT REPORT NO.: RF930920L09 MODEL NO.: WL-565, WL-565B RECEIVED: Aug. 23, 2004 TESTED: Aug. 23 ~ Sep. 30, 2004 ISSUED: Oct. 03, 2004 APPLICANT: 3Com Corporation ADDRESS: 350 Campus Drive, Marlborough, MA 01752- 3064, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 118 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: O9C-WL565 Report No.: RF930920L092Report Format Version 2.0. Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 2.1MEASUREMENT UNCERTAINTY.............................................................................5 3GENERAL INFORMATION........................................................................................6 3.1GENERAL DESCRIPTION OF EUT ..........................................................................6 3.2DESCRIPTION OF TEST MODES ............................................................................8 3.2.1CONFIGURATION OF SYSTEM UNDER TEST .......................................................9 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: .........................10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .........................................12 3.4DESCRIPTION OF SUPPORT UNITS ....................................................................12 4TEST TYPES AND RESULTS .................................................................................13 4.1CONDUCTED EMISSION MEASUREMENT ..........................................................13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................13 4.1.2TEST INSTRUMENTS.............................................................................................13 4.1.3TEST PROCEDURES .............................................................................................14 4.1.4DEVIATION FROM TEST STANDARD ...................................................................14 4.1.5TEST SETUP...........................................................................................................15 4.1.6EUT OPERATING CONDITIONS ............................................................................15 4.1.7TEST RESULTS ......................................................................................................16 4.2RADIATED EMISSION MEASUREMENT ...............................................................28 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................28 4.2.2TEST INSTRUMENTS.............................................................................................29 4.2.3TEST PROCEDURES .............................................................................................30 4.2.4DEVIATION FROM TEST STANDARD ...................................................................30 4.2.5TEST SETUP...........................................................................................................31 4.2.6EUT OPERATING CONDITIONS ............................................................................31 4.2.7TEST RESULTS ......................................................................................................32 4.36dB BANDWIDTH MEASUREMENT.......................................................................72 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT ...................................................72 4.3.2TEST INSTRUMENTS.............................................................................................72 4.3.3TEST PROCEDURE................................................................................................73 4.3.4DEVIATION FROM TEST STANDARD ...................................................................73 4.3.5TEST SETUP...........................................................................................................73 4.3.6EUT OPERATING CONDITIONS ............................................................................73 4.3.7TEST RESULTS ......................................................................................................74 4.4MAXIMUM PEAK OUTPUT POWER ......................................................................82 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................82 4.4.2TEST INSTRUMENTS.............................................................................................82 4.4.3TEST PROCEDURES .............................................................................................83 4.4.4DEVIATION FROM TEST STANDARD ...................................................................83 4.4.5TEST SETUP...........................................................................................................83 4.4.6EUT OPERATING CONDITIONS ............................................................................83 4.4.7TEST RESULTS ......................................................................................................84 FCC ID: O9C-WL565 Report No.: RF930920L093Report Format Version 2.0. 4.5POWER SPECTRAL DENSITY MEASUREMENT..................................................86 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ...............................86 4.5.2TEST INSTRUMENTS.............…

Text truncated - open the document above for the full version.

FCC ID: O9C-WL565 Report No.: RF930920L09112Report Format Version 2.0. 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Test Mode 1) FCC ID: O9C-WL565 Report No.: RF930920L09113Report Format Version 2.0. (Test Mode 4) FCC ID: O9C-WL565 Report No.: RF930920L09114Report Format Version 2.0. RADIATED EMISSION TEST (Test Mode 1) FCC ID: O9C-WL565 Report No.: RF930920L09115Report Format Version 2.0. (Test Mode 2) FCC ID: O9C-WL565 Report No.: RF930920L09116Report Format Version 2.0. (Test Mode 3) FCC ID: O9C-WL565 Report No.: RF930920L09117Report Format Version 2.0. (Test Mode 4)
