1 User Manual Wireless Communication Device May 07, 2020 1 Introduction 2 The device comes pre‐configured from the factory. It is ready to use. The Flex2‐L appears to a user or a server application as an endpoint device. It can be queried, updated and configured either through a serial connection, an over the air IP connection, or through SMS messaging. The Flex2‐L presents itself over these connections as an enhanced cellular modem with attached functional elements. These elements include:  GPS location engine  Accelerometer  Input/outputs dedicated for ignition, relay, buzzer, and general purpose  Serial UART port  Timers  Watchdog lockup protection  Power management  Event reporting  Voltage monitoring Access to these elements and general purpose interface is done through an extended AT command set. Configuration parameters are stored to flash memory and are automatically used on the next power up event. For more details, please reference the AT Command document. 2 Hardware Design 2.1 Basic Hardware Items Requirement Cellular Modem Based on Quectel EC21‐A Module Cellular Network Interface Support for LTE B2, B4, B12 WCDMA B2 B5 3 Frequency B2:TX (1850‐‐1910) MHZ RX (1930‐‐1990) MHZ B4:TX (1710‐‐1755) MHZ RX (2110‐‐2155) MHZ B12:TX (699‐‐716) MHZ RX (729‐‐746) MHZ WCDMA B2:1900MHz WCDMA B5:850MHz Cellular Antenna Internal single antenna GPS Antenna Dedicate high performance ceramic antenna UIM requirement Support： 3FF SIM Interrupt Mode No Support：Hot Plug/Unplug Battery Monitor Internal analog input Build in battery manager Yes Interface Debug UART 12V DC Input（1A current）, Ground Relay Drive (Open Drain , 500mA current) Dedicated Output for buzzer control Ignition Input GPIO Dedicate Timers Yes Watchdog External HW via MCU Motion DetectSupported（GPS/G‐Sensor） LED 3 LED Supported 1‐ RED; 1‐ Green;1‐Orange Battery built in battery（4400mAH Lion） Working Time6 months Power switchNo Power Cable color 4 or 6 colors Power Cable connector type 12‐pin connector+5pin Power Consumption < 5Watts The Flex2‐L provides support for specialized hardware features through extended AT commands. The features supported include the following: Accelerometer The accelerometer can be used for motion detection and driver behavior monitoring. 4 3.2 Remote Update The Flex2‐L supports OTA field upgrades of the resident application. An over the air FTP connection is made over an IP connection. A replacement file is then transferred from a server to the Flex2‐L and that file replaces the previous application image. 3.3 Power Modes The Flex2‐L device supports several power modes that are set by AT commands. In full power mode the GPS is active and the cellular subsystem will maintain a persistent cellular connection whenever service is available. IP connection is maintained according to the configuration of the device. The device can be put in low power mode whenever it runs on a backup battery or if the external battery is low or if it is not moving. In low power mode the GPS is not running and the LED’s are off. The device would return to full power whenever an event occurs that triggers a report. Those events include:  Periodic report  GPIO change  IP change  Battery threshold  Heartbeat  Watchdog  Power‐up  Ignition  Trip start and stop Any hardware or software reset will return the device to full power mode. 5 4 Test Method 4.1 Hardware Test Item Description Baseband Function Test • Power Input Test • Power Consumption and Current Test • Heat Dissipation Test • UART Stability Test • GPIO Level Test • LED Stability Test • Drop Down Test • ESD Test • High/Low Temperature Test •HumidityTest RF Test • RF Performance Test • GPS Performance Test • Antenna Per formanceTest 4.2 Software Test Test Environment Construct Message Test environment 1. USB dongle and PC as message server 2. Send message to Flex2‐L UDP Test environment 1. Connect dongle to PC and create dialup as ip server 2. Flex2‐L create IP connection to server UART Test environment 1. Connect Flex2‐L to PC with com serial cable 2. Open Terminal tool and send at command 3. Response can be shown at terminal window 6 Mechanical Structure (mm) eopar d 7 FCC IC Statement This device complies with part 15 of the FCC rules and RSS-247 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect…

Text truncated - open the document above for the full version.

Spireon Inc Agent Authorization Company: Spireon Inc Address: 9724 Kingston Pike,Suite 800 Knoxville,TN37922 United States Product Name: GPS tracker Model Number(s): Flex2-L Product Description: GPS tracker with WCDMA/LTE bands We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun-11-2020 Name: Jason Penkethman Title: Chief President & strategy officer Company: Spireon Inc

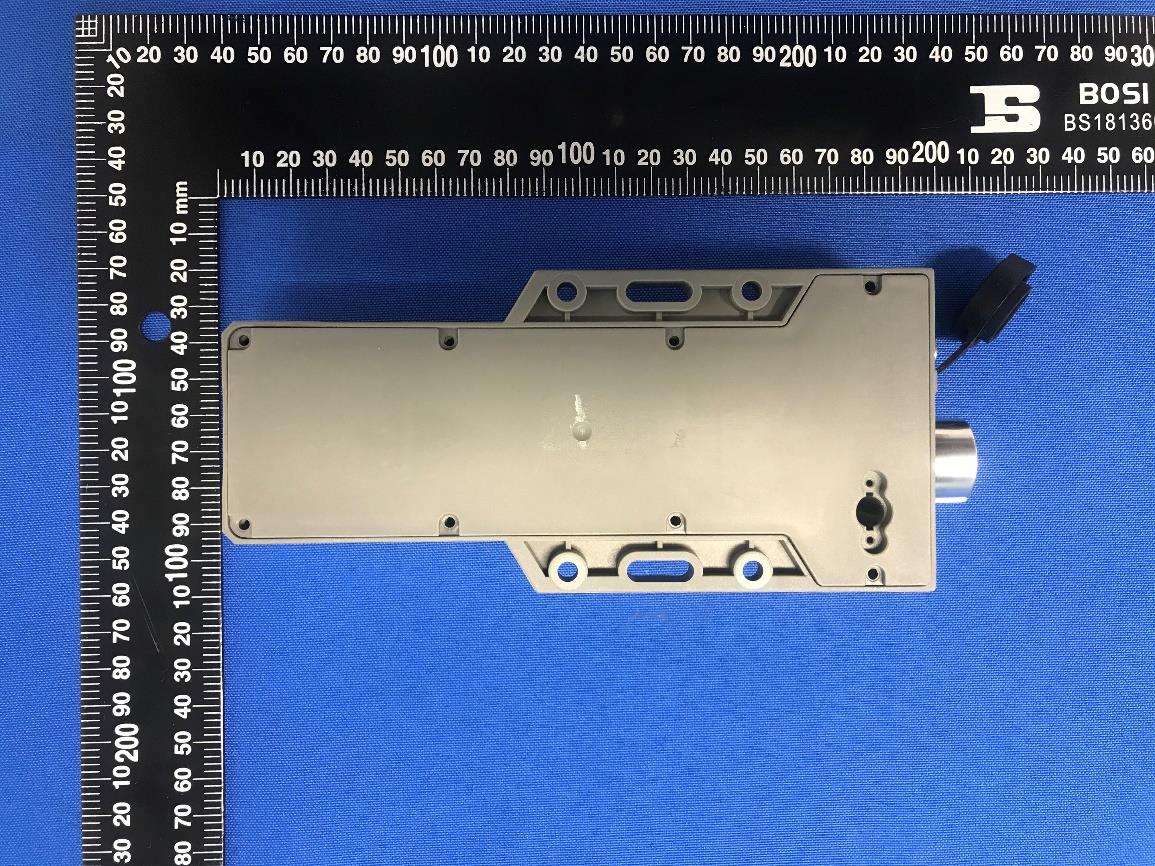

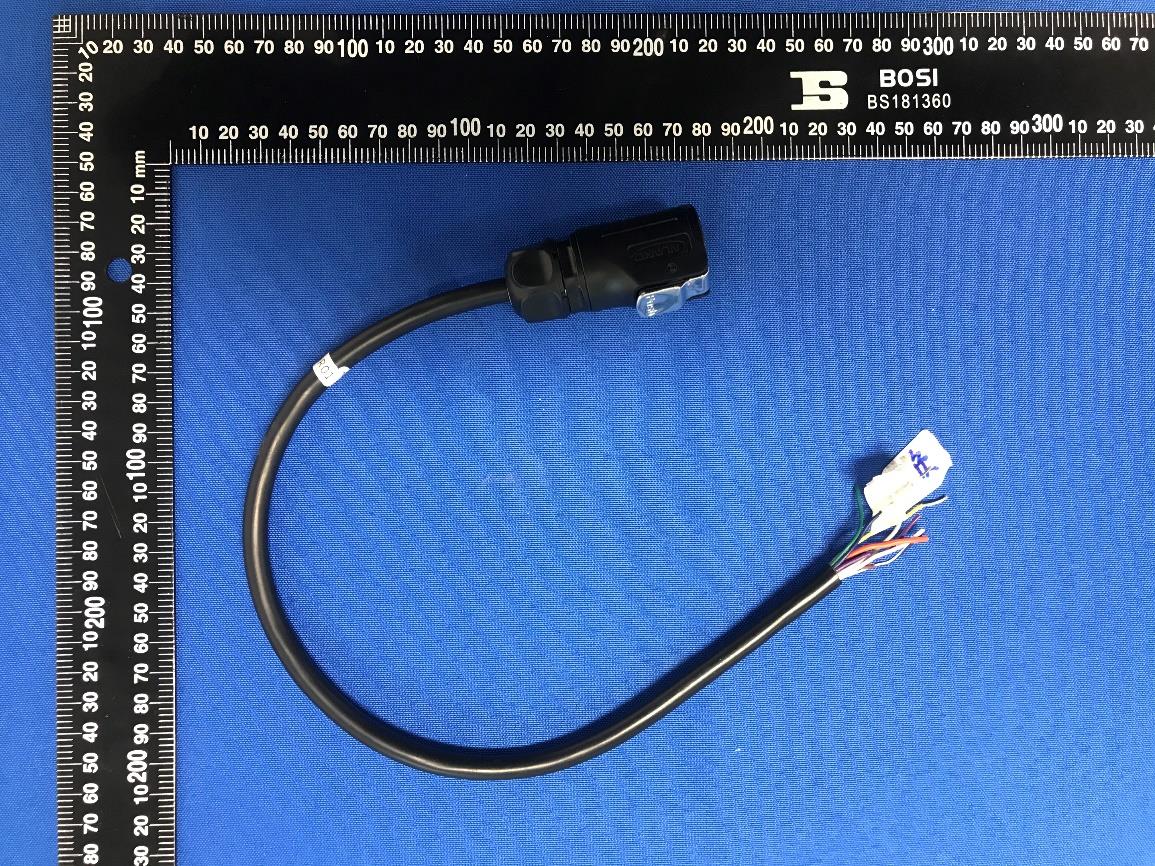

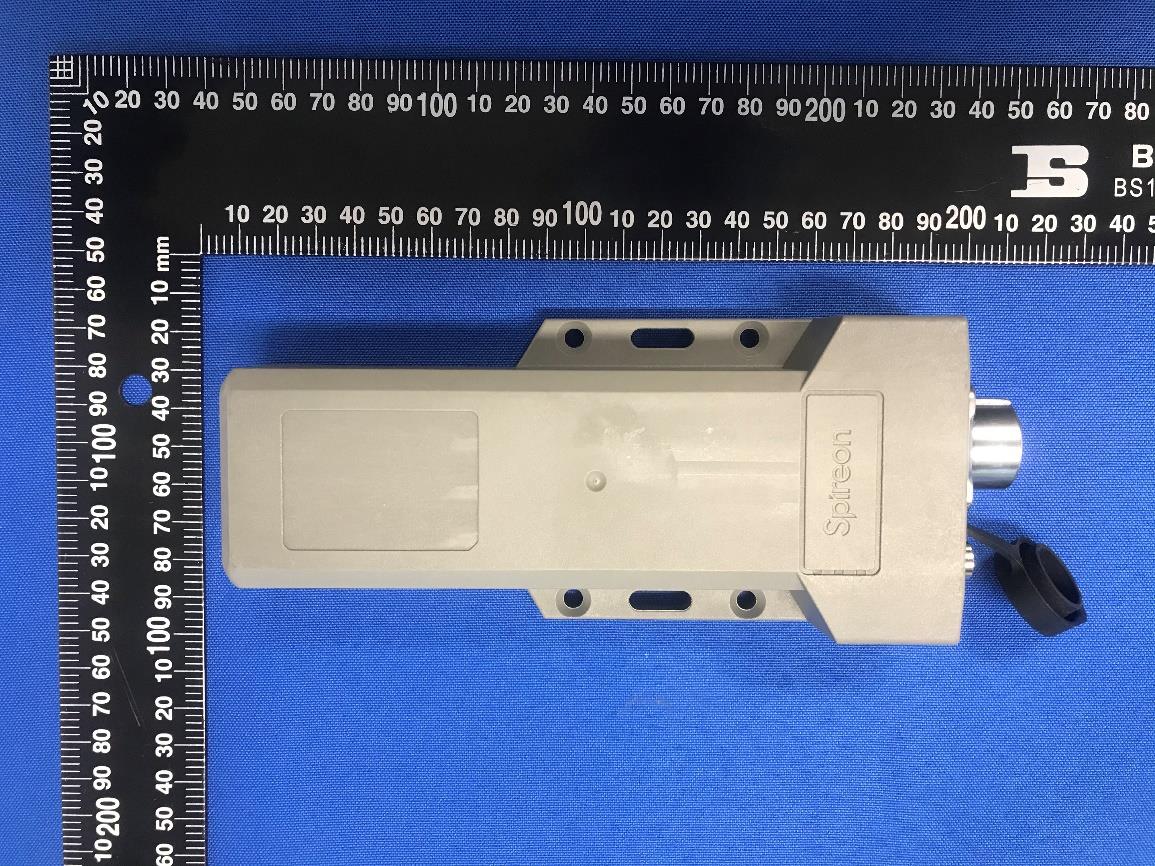

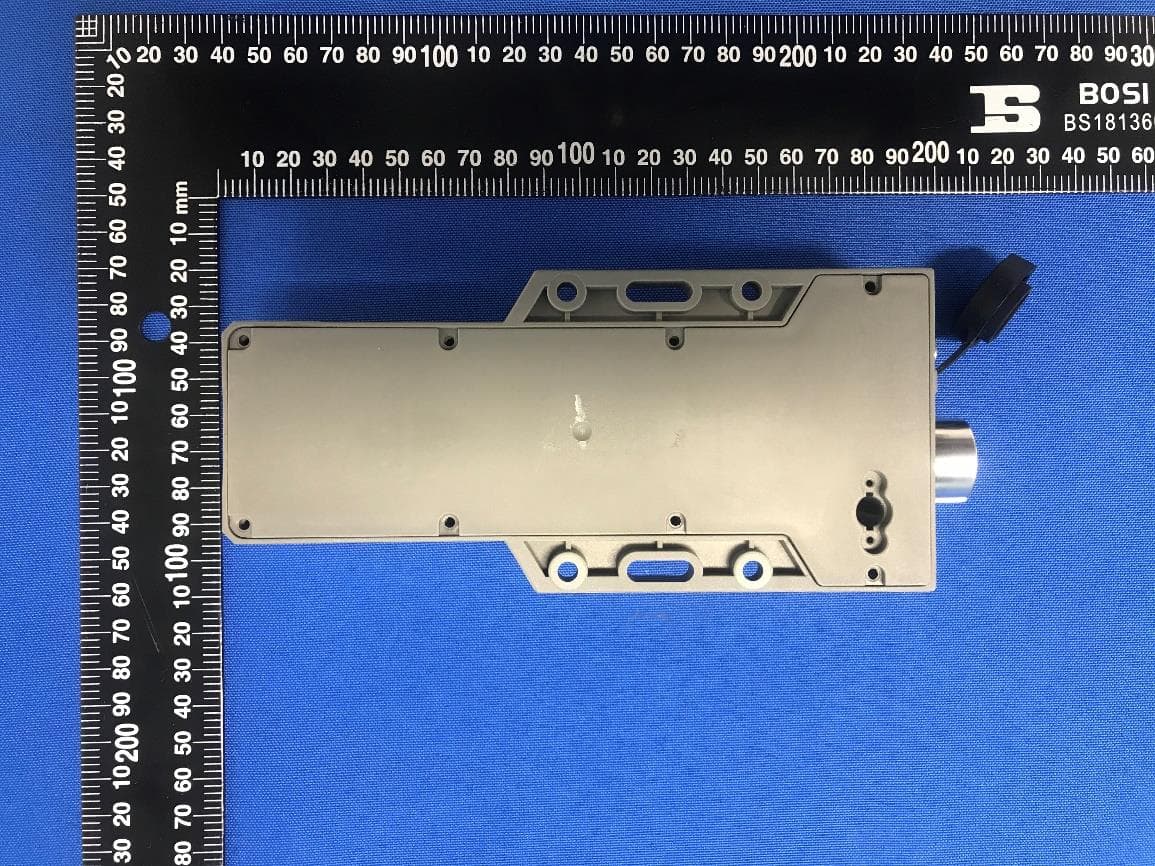

Annex No.: BL-EC2040071-AW 1 / 4 ANNEX C EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-EC2040071-AW 2 / 4 LEFT VIEW OF EUT vvv RIGHT VIEW OF EUT Annex No.: BL-EC2040071-AW 3 / 4 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-EC2040071-AW 4 / 4 Power Supply Cable Power Supply Cable

Label: Location:

Annex No.: BL-EC2040071-AI 1 / 5 ANNEX D EUT INTERNAL PHOTOS EUT UNCOVER VIEW 1 MAIN BOARD TOP VIEW 3G/4G ANTENNA Annex No.: BL-EC2040071-AI 2 / 5 MAIN BOARD REAR VIEW Annex No.: BL-EC2040071-AI 3 / 5 MAIN BOARD TOP VIEW Annex No.: BL-EC2040071-AI 4 / 5 MAIN BOARD REAR VIEW Annex No.: BL-EC2040071-AI 5 / 5 BATTERY BATTERY

RF Exposure Evaluation For FCC ID: O9YFLF2L Refer user manual this device is a Mini Router, and this device was designed used in Mobile devices that the minimum distance between human’s body is 20cm. Based on the 47CFR 2.1091, this device belongs to Mobile device. The definition of the category as following: Mobile Derives: CFR Title 47 §2.1091(b) (b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. FCC KDB 447498 D01 General RF Exposure Guidance v06 Limit Devices operating in standalone mobile exposure conditions may contain a single transmitter or multiple transmitters that do not transmit simultaneously. A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. The minimum test separation distance required for a device to comply with mobile exposure conditions must be clearly identified in the installation and operating instructions, for all installation and exposure conditions, to enable users and installers to comply with RF exposure requirements. For mobile devices that have the potential to operate in portable device exposure conditions, similar to the configurations described in § 2.1091(d)(4), a KDB inquiry is required to determine the SAR test requirements for demonstrating compliance. When the categorical exclusion provision of § 2.1091(c) applies, the minimum test separation distance may be estimated, when applicable, by simple calculations according to plane-wave equivalent conditions, to ensure the transmitter and its antenna(s) can operate in manners that meet or exceed the estimated distance. The source-based time-averaged maximum radiated power, according to the maximum antenna gain, must be applied to calculate the field strength and power density required to establish the minimum test separation distance. When the estimated test separation distance becomes overly conservative and does not support compliance, MPE measurement or computational modeling may be used to determine the required minimum separation distance. According to FCC Part 1.1307, systems operating under the provisions of this section shall be operated in a manner the ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidelines. Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength(E)(V/m) Magnetic Field Strength (H)(A/m) Power Density (S)(mW/cm 2 ) 0.3-1.34 614 1.63 (100)* 1.34-30 824/f 2.19/f (180/f2)* 30-300 27.5 0.073 0.2 300-1500 f/1500 1500-100,000 1.0 MPE calculation formula Where: S = power density P = output power (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = Separation distance between radiator and human body (cm) Test Data WCDMA Band2 Mode Low Channel Middle Channel High Channel EIRP (dBm) 22.24 22.09 22.33 WCDMA Band5 Mode Low Channel Middle Channel High Channel ERP (dBm) 19.55 19.63 19.72 Note: This report listed the worst case ERP/EIRP power value, please refer to RF report BL-EC2010026-501. LTE Band2 Bandwidth (MHz) 20 UL Channel Middle Channel UL Modulation QPSK EIRP (dBm) 23.78 LTE Band4 Bandwidth (MHz) 3 UL Channel Low Channel UL Modulation 16-QAM EIRP (dBm) 22.74 LTE Band12 Bandwidth (MHz) 3 UL Channel Low Channel UL Modulation QPSK ERP (dBm) 22.39 Note: This report listed the worst case ERP/EIRP power value, please refer to RF report BL-EC2040071-501. Turn-up power Mode ERP/EIRP Tune up Limit (dBm) WWAN WCDMA Band2 24.00 WCDMA Band5 21.00 LTE Band2 26.00 LTE Band4 24.00 LTE Band12 24.00 Assessment result Evolution mode Maximum ERP/EIRP power (dBm) Total Power (mw) Distance (cm) Limit of Power Density (mW /cm²) Power Density (mW /cm²) Power Density/Limit Verdict WCDMA Band2 24.00 251.19 20 1 0.050 0.050 Pass WCDMA Band5 21.00 125.89 20 0.551 0.025 0.045 Pass LTE Band2 26.00 398.11 20 1 0.079 0.079 Pass LTE Band4 24.00 251.19 20 1 0.050 0.050 Pass LTE Band12 24.00 251.19 20 0.466 0.050 0.107 Pass Note: 1. The worst-case situation is 0.107, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. Conclusion: RF exposure Evaluation Results: Compliance

Annex A.7. Field Strength of Spurious Radiation WCDMA 1 WCDMA Band 2 1.1 WCDMA Band 2 Middle Channel RSE-V&H WCDMA Band 2 CH9400 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 39.700 -72.02 -17.18 -13.0 -59.02 153.00 Vertical Horizontal Pass 75.348 -74.07 -18.63 -13.0 -61.07 244.00 Vertical Horizontal Pass 1746.000 -48.66 -3.89 -13.0 -35.66 302.00 Vertical Horizontal N/A 1959.500 -38.11 -1.71 -13.0 -25.11 154.00 Vertical Horizontal N/A 5636.000 -39.32 8.92 -13.0 -26.32 231.00 Vertical Horizontal Pass 19343.499 -27.09 34.99 -13.0 -14.09 237.00 Vertical Horizontal Pass RSE-H&H WCDMA Band 2 CH9400 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 58.373 -85.21 -16.60 -13.0 -72.21 56.00 Horizontal Horizontal Pass 249.947 -77.91 -13.89 -13.0 -64.91 245.00 Horizontal Horizontal Pass 350.100 -72.31 -11.63 -13.0 -59.31 217.00 Horizontal Horizontal Pass 1960.500 -25.76 -1.87 -13.0 -12.76 31.00 Horizontal Horizontal N/A 5637.000 -43.77 8.65 -13.0 -30.77 349.00 Horizontal Horizontal Pass 18209.249 -27.75 34.41 -13.0 -14.75 7.00 Horizontal Horizontal Pass 2 WCDMA Band 5 2.1 WCDMA Band 5 Middle Channel RSE-V&H WCDMA Band 5 CH4182 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 40.428 -73.05 -16.48 -13.0 -60.05 360.00 Vertical Horizontal Pass 62.495 -75.69 -15.21 -13.0 -62.69 60.00 Vertical Horizontal Pass 834.615 -49.53 2.81 -13.0 -36.53 170.00 Vertical Horizontal N/A 881.175 -37.04 1.77 -13.0 -24.04 340.00 Vertical Horizontal N/A 1672.000 -53.84 -2.69 -13.0 -40.84 201.00 Vertical Horizontal Pass 6996.000 -42.44 16.81 -13.0 -29.44 102.00 Vertical Horizontal Pass RSE-H&H WCDMA Band 5 CH4182 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 249.947 -77.31 -13.14 -13.0 -64.31 291.00 Horizontal Horizontal Pass 350.100 -73.32 -10.95 -13.0 -60.32 60.00 Horizontal Horizontal Pass 835.343 -39.56 2.82 -13.0 -26.56 255.00 Horizontal Horizontal N/A 880.690 -32.45 1.67 -13.0 -19.45 262.00 Horizontal Horizontal N/A 1671.500 -45.85 -2.69 -13.0 -32.85 215.00 Horizontal Horizontal Pass 6744.000 -43.04 14.31 -13.0 -30.04 327.00 Horizontal Horizontal Pass LTE 3 LTE Band 2 3.1 LTE Band 2 BW1.4, QPSK Middle Channel RSE-V&H LTE Band 2 BW1.4 CH18900 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 35.093 -72.69 -19.45 -13.0 -59.69 104.00 Vertical Horizontal Pass 68.315 -74.65 -16.93 -13.0 -61.65 115.00 Vertical Horizontal Pass 1960.000 -53.78 -1.70 -13.0 -40.78 152.00 Vertical Horizontal N/A 3759.000 -50.16 5.96 -13.0 -37.16 322.00 Vertical Horizontal Pass 5639.000 -38.90 8.64 -13.0 -25.90 225.00 Vertical Horizontal Pass 18144.250 -27.58 33.96 -13.0 -14.58 358.00 Vertical Horizontal Pass RSE-H&H LTE Band 2 BW1.4 CH18900 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 249.947 -77.30 -13.89 -13.0 -64.30 346.00 Horizontal Horizontal Pass 350.100 -73.17 -11.63 -13.0 -60.17 241.00 Horizontal Horizontal Pass 1352.000 -58.16 -3.52 -13.0 -45.16 240.00 Horizontal Horizontal Pass 1959.500 -41.97 -1.71 -13.0 -28.97 253.00 Horizontal Horizontal N/A 5639.000 -43.48 8.64 -13.0 -30.48 356.00 Horizontal Horizontal Pass 18170.249 -27.09 34.18 -13.0 -14.09 204.00 Horizontal Horizontal Pass 3.2 LTE Band 2 BW1.4, 16-QAM Middle Channel RSE-V&H LTE Band 2 BW1.4 CH18900 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 40.670 -72.10 -16.56 -13.0 -59.10 149.00 Vertical Horizontal Pass 62.495 -75.05 -15.87 -13.0 -62.05 120.00 Vertical Horizontal Pass 249.947 -80.34 -13.89 -13.0 -67.34 134.00 Vertical Horizontal Pass 1960.000 -54.02 -1.70 -13.0 -41.02 360.00 Vertical Horizontal N/A 5640.000 -39.15 8.74 -13.0 -26.15 282.00 Vertical Horizontal Pass 18121.501 -28.10 33.86 -13.0 -15.10 176.00 Vertical Horizontal Pass RSE-H&H LTE Band 2 BW1.4 CH18900 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 249.947 -77.67 -13.89 -13.0 -64.67 331.00 Horizontal Horizontal Pass 350.100 -73.00 -11.63 -13.0 -60.00 309.00 Horizontal Horizontal Pass 1755.500 -41.92 -4.46 -13.0 -28.92 44.00 Horizontal Horizontal Pass 1960.000 -40.70 -1.70 -13.0 -27.70 5.00 Horizontal Horizontal N/A 5640.000 -44.60 8.74 -13.0 -31.60 -1.00 Horizontal Horizontal Pass 18124.751 -27.80 33.84 -13.0 -14.80 135.00 Horizontal Horizontal Pass 4 LTE Band 4 4.1 LTE Band4 BW1.4, QPSK Middle Channel RSE-V&H LTE Band 4 BW1.4 CH20175 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 40.670 -74.26 -16.56 -13.0 -61.26 260.00 Vertical Horizontal Pass 62.495 -74.94 -15.69 -13.0 -61.94 297.00 Vertical Horizontal Pass 1732.000 -48.47 -2.16 -13.0 -35.47 170.00 Vertical Horizontal N/A 1957.000 -38.21 -2.06 -13.0 -25.21 219.00 Vertical Horizontal N/A 5197.000 -42.19 8.54 -13.0 -29.19 361.00 Vertical Horizontal Pass 18098.749 -27.89 33.68 -13.0 -14.89 16.00 Vertical Horizontal Pass RSE-H&H LTE Band4 BW1.4 CH20175 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 249.947 -76.98 -13.84 -13.0 -63.98 77.00 Horizontal Horizontal Pass 350.100 -73.53 -11.41 -13.0 -60.53 276.00 Horizontal Horizontal Pass 1732.500 -46.69 -2.16 -13.0 -33.69 222.00 Horizontal Horizontal N/A 2132.500 -46.88 -1.04 -13.0 -33.88 236.00 Horizontal Horizontal N/A 6729.000 -43.76 13.74 -13.0 -30.76 359.00 Horizontal Horizontal Pass 18108.500 -28.14 33.83 -13.0 -15.14 145.00 Horizontal Horizontal Pass 4.2 LTE Band4 BW1.4, 16-QAM Middle Channel RSE-V&H LTE Band 4 BW1.4 CH20175 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 40.670 -73.11 -16.56 -13.0 -60.11 361.00 Vertical Horizontal Pass 62.495 -73.42 -15.69 -13.0 -60.42 9.00 Vertical Horizontal Pass 1732.000 -49.54 -2.16 -13.0 -36.54 170.00 Vertical Horizontal N/A 21…

Text truncated - open the document above for the full version.

Report No.: BL-EC2040071-501 2/ 40 Revision History Version Issue Date Revisions Content Rev. 01 Jun. 04, 2020 Initial Issue TABLE OF CONTENTS 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) ....................................................................... 4 1.1 Identification of the Testing Laboratory .......................................................................................... 4 1.2 Identification of the Responsible Testing Location ......................................................................... 4 1.3 Laboratory Condition .................................................................................................................... 4 1.4 Announce ..................................................................................................................................... 5 2 PRODUCT INFORMATION ................................................................................................................ 6 2.1 Applicant Information .................................................................................................................... 6 2.2 Manufacturer Information .............................................................................................................. 6 2.3 Factory Information ....................................................................................................................... 6 2.4 General Description for Equipment under Test (EUT) .................................................................... 6 2.5 Technical Information ................................................................................................................... 7 3 SUMMARY OF TEST RESULTS......................................................................................................... 8 3.1 Test Standards ............................................................................................................................. 8 3.2 Test Verdict .................................................................................................................................. 9 4 GENERAL TEST CONFIGURATIONS .............................................................................................. 10 4.1 Test Environments...................................................................................................................... 10 4.2 Test Equipment List .................................................................................................................... 10 4.3 Test Configurations .................................................................................................................... 12 4.4 Test Setup .................................................................................................................................. 13 5 TEST ITEMS .................................................................................................................................... 16 5.1 Transmitter Radiated Power (EIRP/ERP) .................................................................................... 16 5.2 Peak to Average Ratio ................................................................................................................ 19 5.3 Occupied Bandwidth ................................................................................................................... 21 5.4 Frequency Stability ..................................................................................................................... 23 5.5 Spurious Emission at Antenna Terminals .................................................................................... 25 5.6 Band Edge ................................................................................................................................. 28 Report No.: BL-EC2040071-501 3/ 40 5.7 Field Strength of Spurious Radiation ........................................................................................... 31 ANNEX A TEST RESULTS .................................................................................................................. 35 A.1 Transmitter Radiated Power (EIRP/ERP) .................................................................................... 35 A.2 Peak to Average Ratio ................................................................................................................ 38 A.3 Occupied Bandwidth ................................................................................................................... 38 A.4 Frequency Stability ..................................................................................................................... 38 A.5 Spurious Emission at Antenna Terminals .................................................................................... 38 A.6 Band Edge ................................................................................................................................. 38 A.7 Field Strength of Spurious Radiation ........................................................................................... 39 ANNEX B TEST SETUP PHOTOS ....................................................................................................... 40 ANNEX C EUT EXTERNAL PHOTOS .................................................................................................. 40 ANNEX D EUT INTERNAL PHOTOS ................................................................................................... 40 Report No.: BL-EC2040071-501 4/ 40 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) 1.1 Identification of the Testing Laboratory Company Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1st FL, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China. Phone Number +86 755 6685 0100 1.2 Identification of the Responsible Testing Location Test Location Shenzhen BALUN Technology Co., Ltd. Address Block B, 1st FL, Baisha Science and Technology Park, Shahe Xi Road, Nanshan Distri…

Text truncated - open the document above for the full version.

Annex No.: BL-EC2040071-AR ANNEX B TEST SETUP PHOTOS 1 Radiated Test Photo 30 MHz-1 GHz Above 1GHz Annex No.: BL-EC2040071-AR Close-Up
