OAJFR1500XTMFamily Radio Transceiver

FR1500XTM Operating Manual J Communications Co., Ltd. KEY Definition (1) POWER KEY 1) Short key - Press the Power button shortly to turn the unit on. 2) Long key (In case of pressing and holding more than 1.2sec) - After saving all information to EEPRO, the unit is turned off. (2) MODE KEY J COMMUNICATIONS CO., LTD. FCC ID : OAJFR1500XTM JOB # : 298AK1 EXHIBIT # : 6 1) Short key – increasing a Mode up. 2) Long key - turning to the TWO-WAY mode, first mode. (3) MENU KEY 1) Short key – increasing a Menu up. 2) Long key - making the Key locked and disabled. (4) Shift/Key lock 1) Short key – shifting Cursor. 2) Long key - releasing Key lock function. (5) UP 1) Short key – increasing Volume or current item. 2) Long key - increasing Volume or current item at a more rapid rate. (6) DOWN 1) Short key – decreasing Volume or current item. 2) Long key - decreasing Volume or current item at a more rapid rate. (7) MONITOR - This key is used to check the active channel before transmitting. If you press and hold the monitor key for more than 3 seconds, the unit monitors the receiving signal continuously. To stop auto monitoring, press the monitor key shortly. (8) PTT - Pressing and holding this button will allow you to speak to any transceiver that is set to the same channel and privacy code setting as yours. - Pressing the button twice quickly will allow you to transmit a calling to another party on the same channel. LCD icon display : VOX icon – appears when VOX mode is activated. : SCAN icon –appears when Scan mode is activated. : WEATEHR ALERT icon –appears when Weather alert is selected : ALARM icon - appears when Alarm mode is On : VIBRATOR CALL icon –appears VIB in the call mode is selected. : BUSY icon – appears carrier detect in the two way channel : KEY LOCK icon –appears when key lock mode is activated. : CHANNEL icon –appears when Two way channel is displayed : CTCSS Code icon –appears when code of Two way channel is displated. :BATTERY strengtt icon –indicates the battery charge strength. ! POWER ON AND OFF OPERATION 0.POWER ON OPERATION If you press the Power key, user’s name is shown on LCD for a second with an initial beeping. 1. POWER OFF OPERATION To turn it off, press and hold the Power key for more than 1.2 seconds. The unit will save the set data before it shuts off. 2. AFTER POWER ON INITIAL DISPLAY Indicates channel, code, Battery balance ! DETAILED MENU BY MODE 1. TWO WAY MODE After 1 second TWO WAY mode. TWO WAY standby display 1) Pressing the mode key in the set up mode allows you to enter the two-way mode. Current channel and code are shown on LCD 2) Detailed function in the two-way mode. (1) Channel/Code selection menu - Pressing the menu key in the standby display of Two way mode allows you to enter the channel selection menu with beeping and the current channel is blinking. You can select the channel by using up and down key. - Pressing the shift key allows you to enter the code selection menu with key beeping and the current code is blinking. You can select the code by using up and down key. - Pressing the shift key allows you to return to the channel selection menu. (2) Scan selection menu - Pressing the menu key in the channel/code selection menu allows you to enter the scan selection menu with key beeping. If there is no key entering for 10 seconds in the scan selection menu, returns to the TWO WAY standby display. - You can select scan mode in the off, Normal scan and priority scan by using up / down key while Scan is blinking. - If you select the Normal scan, it starts to scan the channel from the current channel. - If you select the priority scan, it scans the current channel and priority channel in turn. (3) VOX selection menu - Pressing the menu key in the scan selection menu allows you to enter VOX selection menu with key beeping. - You can select one out of off/Hi/Mid/Low by using up or down key. (4) Scrambler selection menu - Pressing the menu key in the VOX selection menu allows you to enter scrambler selection menu with key beeping. - You can select one out of off/1/2/3/4 by using up or down key. 2. FM RADIO MODE FM RADIO MODE FM standby display After 1 second Menu key Menu key 1) Pressing the mode key in the two-way mode allows you to enter FM radio mode and enter FM standby mode showing current FM operating status after 1 second. 2) Detailed function by menu. (1) FM Seek - Pressing the menu key in the FM Standby display allows you to enter FM seek menu and you can scan the FM radio frequency by using up/down key. If an active broadcast signal is detected, it receives a signal in that channel. (2) FM Tune - Pressing the menu key in the FM seek menu allows you to enter FM tuning menu. You can increase and decrease FM broadcast frequency by 0.1KHz using up/down key. (3) FM Preset menu - Pressing the menu key in the FM Tune menu allows you to enter FM preset menu. You can preset the broadcast channel up • 9 channels by using the shift key. You can change a broadcast frequency by using up/down key. (4) FM selection menu - Pressing the menu key in the FM Preset allows you to enter FM selection menu. You can select one out of FM off/FM only/FM +2WAY 3. WEATHER MODE WEATHER Mode Weather standby display 1) Pressing the mode key in the FM MODE allows you to enter weather radio mode shows weather channel operation status after 1 second. 2) Detailed function by menu. (1) Weather Channel selection menu - Pressing the menu key in the Weather Standby allows you to enter weather channel selection menu. You can select the weather channel out of WEA 1/~/WEA 10. (Default=1) (2) Weather Alert selection menu - Pressing the menu key in the Weather Channel Selection menu allows you to enter the Weather alert selection menu. You can select ALERT ON/OFF by using up/down key. (Default=OFF) - If the WEA Alert On, this radio always detects the weather alert signal (=1050Hz) of weather channel. 4. COMPASS MODE COMPASS Mode Compass standby display After 1 second After 1 second Menu key …

Text truncated - open the document above for the full version.

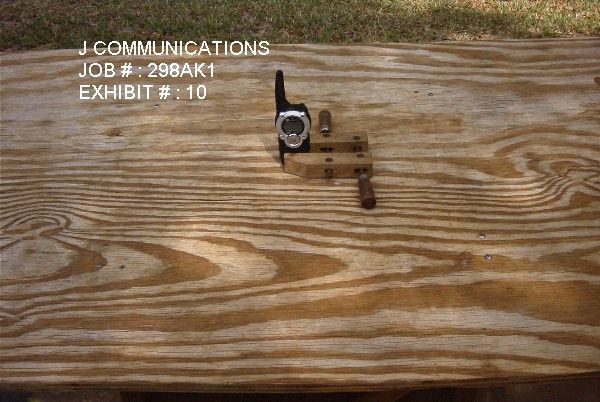

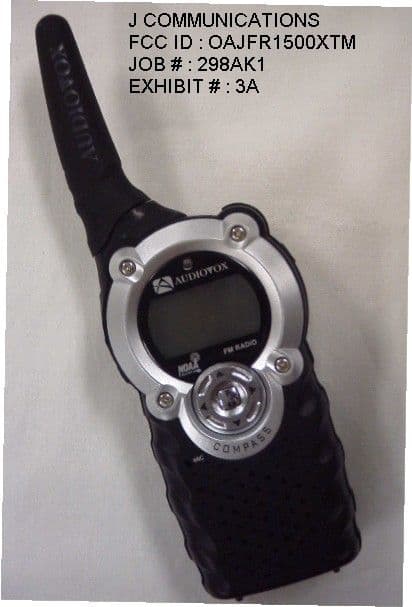

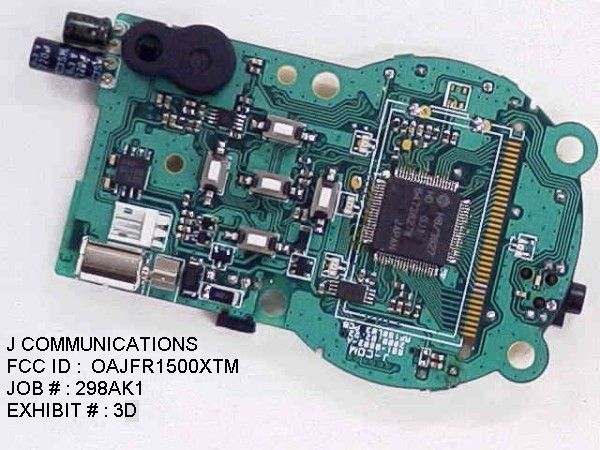

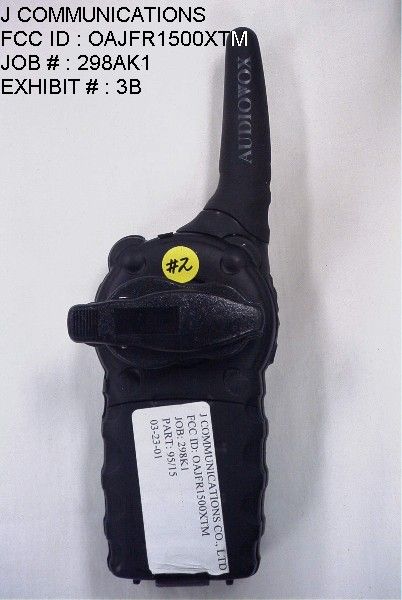

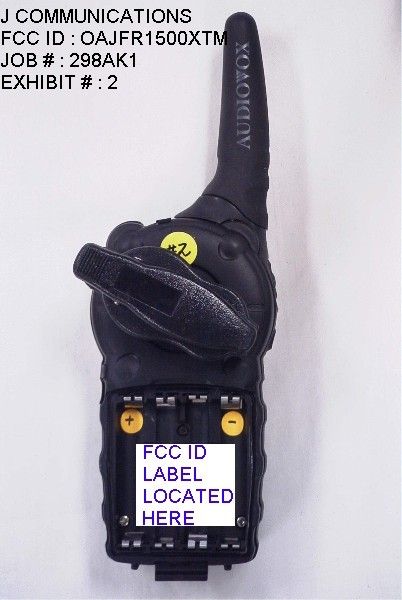

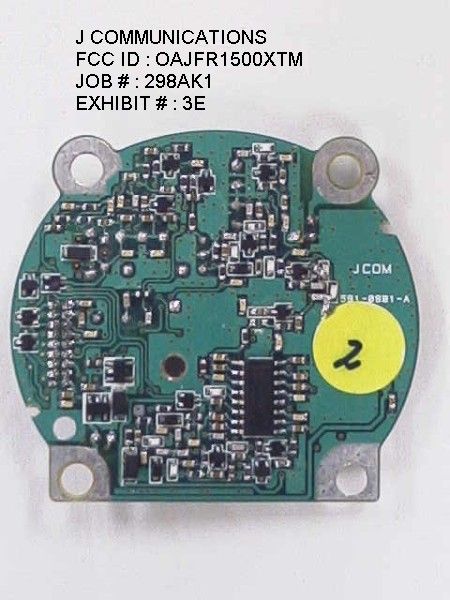

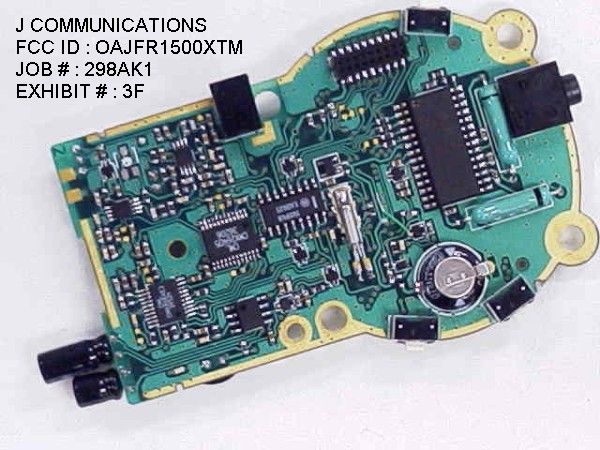

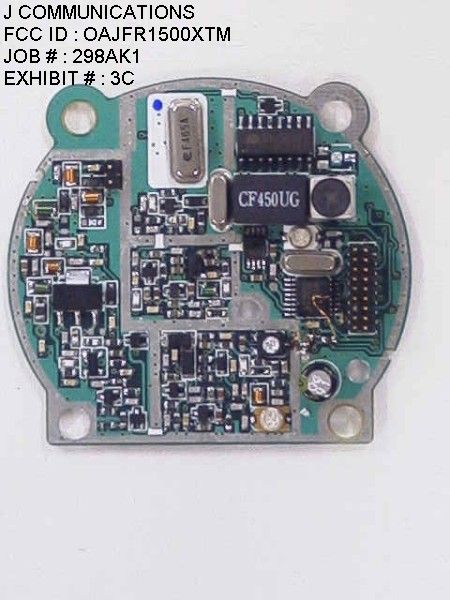

TABLE OF CONTENTS LIST APPLICANT: J COMMUNICATIONS CO., LTD. FCC ID: OAJFR1500XTM TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS AND OCCUPIED BANDWIDTH PAGE 4......METHOD OF MEASURING OCCUPIED BANDWIDTH PAGE 5......OCCUPIED BANDWIDTH PLOT – CW PAGE 6......OCCUPIED BANDWIDTH PLOT PAGE 7......UNWANTED RADIATION PAGE 8......METHOD OF MEASURING UNWANTED RADIATION PAGE 9......FREQUENCY STABILITY PAGE 10......LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 3A........EXTERNAL PHOTO - FRONT VIEW EXHIBIT 3B........EXTERNAL PHOTO - REAR VIEW EXHIBIT 3C........INTERNAL PHOTO - COMPONENT VIEW 1 EXHIBIT 3D........INTERNAL PHOTO - COMPONENT VIEW 2 EXHIBIT 3E........INTERNAL PHOTO - COPPER VIEW 1 EXHIBIT 3F........INTERNAL PHOTO - COPPER VIEW 2 EXHIBIT 4.........BLOCK DIAGRAM EXHIBIT 5.........SCHEMATIC EXHIBIT 6.........USERS MANUAL EXHIBIT 7.........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 8A........MODULATION LIMITING PLOT - 300 Hz EXHIBIT 8B........MODULATION LIMITING PLOT - 1000 Hz EXHIBIT 8C........MODULATION LIMITING PLOT - 3000 Hz EXHIBIT 9.........AUDIO LOW PASS FILTER GRAPH EXHIBIT 10........TEST SET UP PHOTO APPLICANT: J COMMUNICATIONS CO., LTD. FCC ID: OAJFR1500XTM REPORT #: T:\CUS\J\JCOM\298AK1\298ak1rpt.doc PAGE: TABLE OF CONTENTS GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033(c)(1)(2)J COMMUNICATIONS CO., LTD. will manufacture the FCCID: OAJFR1500XTM FAMILY RADIO SERVICES 14 CHANNEL TRANSCEIVER in quantity, for use under FCC RULES PART 95. The UUT is a PTT Radio with a maximum duty cycle of 50%. J COMMUNICATIONS CO., LTD. #401 CHANJAE B/L 192-21, ANYANG 7-DONG MANAN-KU, ANYANG-CITY, KYUNGKI-DO, KOREA 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 6. 2.1033(c) (4) Type of Emission: 10K6F3E 95.631 Bn = 2M + 2DK M = 3000 D = 2.3K Bn = 2(3.0)+2(2.3) = 10.6K Authorized Bandwidth 12.5KHz 2.1033(c)(5) Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.1033(c)(6)(7) Power Output shall not exceed 0.500Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varing the power. The Maximum Output Power Rating: 500 milliWatts effective radiated power. 95.647 The antenna is an integral part to the unit, it cannot be removed without rendering the unit inoperative. In order to remove the antenna the case must unscrewed, then the PCB assemblies must be removed then the antenna can be removed. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 6.0 Volts DC Ice = 0.18A. Pin = 1.08 Watts FCC ID: OAJFR1500XTM REPORT #: T:\CUS\J\JCOM\298AK1\298ak1rpt.doc PAGE #: 1 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included as EXHIBIT #9. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 5 of this report. The block diagram is included as EXHIBIT 4 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included as exhibit No. 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields - See EXHIBIT 3A-3F. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046(a) RF power output. 95.639 RF power is measured by measuring the radiated power at 3 meters and then replacing the transmitter with a signal generator to determine the effective radiated power. The ERP shall not exceed 0.500 Watts. MEASURED POWER OUTPUT = 500 milliWatts ERP R.F. POWER OUTPUT HP TEST SET UP Spectrum Analyzer /-------\ /-----------------\ | | | | TRANSMITTER | | | | | UNDER TEST WITH | \--| | | INTERNAL ANTENNA| | | | \-----------------/ | | | | | \-------/ | | |<-- 3.0 meters-->| /-------------\ | SIGNAL | DIPOLE | Tuned, Calibrated | GENERATOR | ANTENNA | Antenna which may | |----------/ be raised from 1 \-------------/ to 4 meters above ground and changed in polarization Equipment placed 80cm above ground on a rotatable platform. APPLICANT: J COMMUNICATIONS CO., LTD. FCC ID: OAJFR1500XTM REPORT #: T:\CUS\J\JCOM\298AK1\298ak1rpt.doc PAGE #: 2 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See Exhibit 7. 2.1047(b) Audio input versus modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. Curves are provided for audio input frequencies of 300, 1000, and 3000 Hz. See Exhibit 8a-8c. 95.637(b) Post Limiter Filter The filter must be between the modulation limiter and the modulated stage. At any frequency between 3 & 20KHz the filter must have an attenuation of 60log (f/3) greater that the attenuation at 1KHz. See Exhibit 9. 2.9895c) EMISSION BANDWIDTH: 95.633(b)(1)(3)(7) Data in the plots shows that the sidebands from greater than 50% to 100% of the authorized bandwidth must be attenuated by at least 25dB and from 100% to 250% the sidebands must be attenuated by at least 35dB. Beyond 250% the sidebands must be attenuated by at least 43+log10(TP). The transmitter was modulated with 2500 Hz, and adjusted for 50% modulation plus 16 dB.The spectrum analyzer was set with the unmodulated carrier at the top of the s…

Text truncated - open the document above for the full version.

J Comm. Co. LTD 1500XTM -10 0 10 20 30 40 50 60 100100010000 Freque ncy rms mVolts audio response J COMMUNICATIONS FCC ID : OAJFR1500XTM JOB # : 298AK1 EXHIBIT # : 7

Modulation Limiting J Comm. Co. LTD 1500XTM 0 200 400 600 800 1000 1200 1400 050100150200 rms mVolts Deviation 300 Hz J COMMUNICATIONS FCC ID : OAJFR1500XTM JOB # : 278AK1 EXHIBIT # : 8A

Modulation Limiting J Comm. Co. LTD 1500XTM 0 500 1000 1500 2000 2500 051015 rms mVolts Deviatio n 1000 Hz J COMMUNICATIONS FCC ID : OAJFR1500XTM JOB # : 298AK1 EXHIBIT # 8B

Modulation Limiting J Comm. Co. LTD 1500XTM 0 200 400 600 800 1000 1200 1400 1600 0123456 rms mVolts Deviatio n 3000 Hz J COMMUNICATIONS FCC ID : OAJFR1500XTM JOB # : 298AK1 EXHIBIT # : 8C
