August 25, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:J COMMUNICATIONS CO., LTD. FCC ID: OAJJDF-414-EU-HU Part 95 Certification Gentlemen: Submitted herewith, on behalf of J Communications Co., Ltd., is an application for Part 95 Certification of the following 2-Way Portable FM Handheld Radio Transceiver (FRS): FCC ID:OAJJDF-414-EU-HU Trade Name/Model(s):J COM JDF-14H/M, JDF-14E EUT Classification:Family Radio Face-Held Transmitter (FRF) Tx Freq. Range:462.5625 – 467.7125 MHz Max. Output Power:0.5 Watts Attached is the letter of authorization, measurement report data and plots, FCC ID label and location, test setup photographs, internal and external photographs, block diagram, schematic diagrams, operational description, parts list, tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Jong-Oh Kim, President J Communications Co., Ltd.

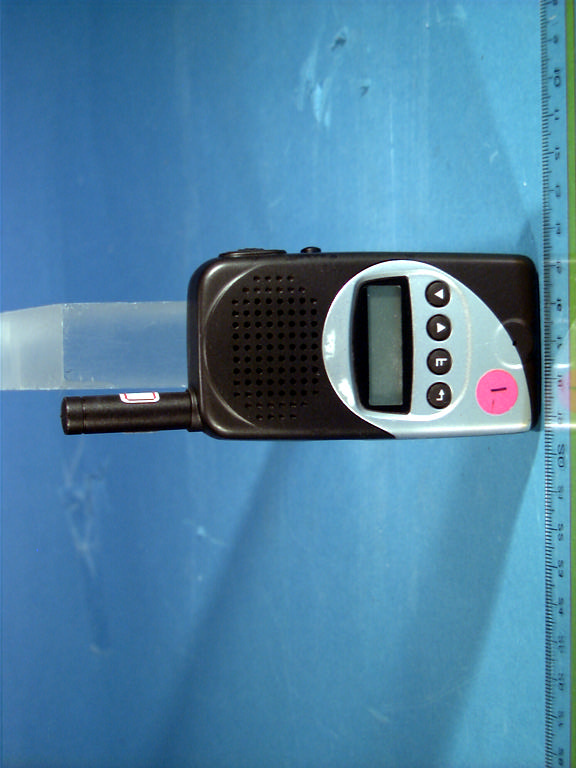

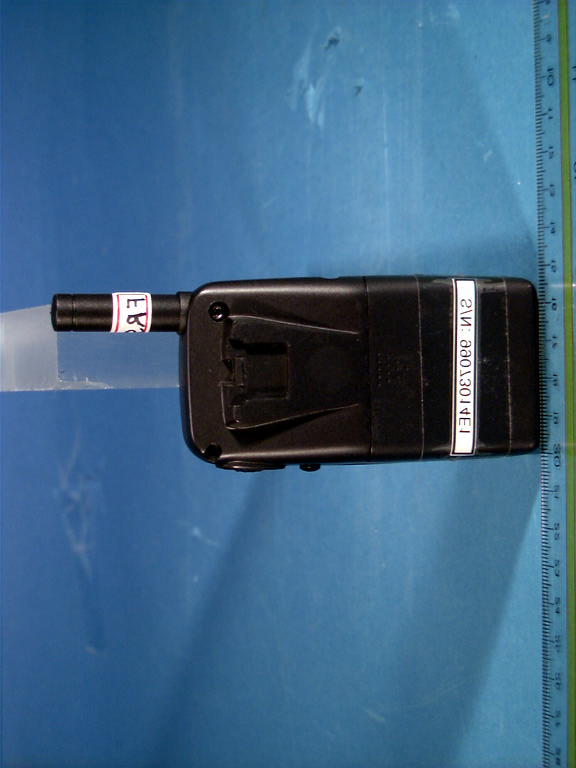

Test Report S/N: 95.990803472.OAJFCC Part 95 Test Date(s): August 16-20, 1999Certification © 1999 PCTEST Lab FCC ID: OAJJDF-414-EU-HU NVLAP Lab Code: 100431-0 J COMMUNICATIONS CO., LTD. Test Report S/N: 95.990803472.OAJFCC Part 95 Test Date(s): August 16-20, 1999Certification © 1999 PCTEST Lab FCC ID: OAJJDF-414-EU-HU NVLAP Lab Code: 100431-0 J COMMUNICATIONS CO., LTD. Test Report S/N: 95.990803472.OAJFCC Part 95 Test Date(s): August 16-20, 1999Certification © 1999 PCTEST Lab FCC ID: OAJJDF-414-EU-HU NVLAP Lab Code: 100431-0 J COMMUNICATIONS CO., LTD.

© 1999 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & 15.19(a)(3) The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. SEE NEXT PAGE JW / COMMUNICA TION§ C0.J TD+ No.71 5 Yuchun Factopia, 196 Anyang7-Dong, Manan-Ku, Anyang-City, Kyungki-Do, Korea Tel : (82)0343-467-3190 Fax : (82)0343-467-3191 1 FCC ID: OAJJDF-414-EU-HU 1 THIS DNlCE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. AND 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEMD. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Test Report S/N: 95.990803472.OAJFCC Part 95 Test Date(s): August 16-20, 1999Certification © 1999 PCTEST Lab FCC ID: OAJJDF-414-EU-HU NVLAP Lab Code: 100431-0 J COMMUNICATIONS CO., LTD. Test Report S/N: 95.990803472.OAJFCC Part 95 Test Date(s): August 16-20, 1999Certification © 1999 PCTEST Lab FCC ID: OAJJDF-414-EU-HU NVLAP Lab Code: 100431-0 J COMMUNICATIONS CO., LTD. Test Report S/N: 95.990803472.OAJFCC Part 95 Test Date(s): August 16-20, 1999Certification © 1999 PCTEST Lab FCC ID: OAJJDF-414-EU-HU NVLAP Lab Code: 100431-0 J COMMUNICATIONS CO., LTD. Test Report S/N: 95.990803472.OAJFCC Part 95 Test Date(s): August 16-20, 1999Certification © 1999 PCTEST Lab FCC ID: OAJJDF-414-EU-HU NVLAP Lab Code: 100431-0 J COMMUNICATIONS CO., LTD. Test Report S/N: 95.990803472.OAJFCC Part 95 Test Date(s): August 16-20, 1999Certification © 1999 PCTEST Lab FCC ID: OAJJDF-414-EU-HU NVLAP Lab Code: 100431-0 J COMMUNICATIONS CO., LTD. Test Report S/N: 95.990803472.OAJFCC Part 95 Test Date(s): August 16-20, 1999Certification © 1999 PCTEST Lab FCC ID: OAJJDF-414-EU-HU NVLAP Lab Code: 100431-0 J COMMUNICATIONS CO., LTD. Test Report S/N: 95.990803472.OAJFCC Part 95 Test Date(s): August 16-20, 1999Certification © 1999 PCTEST Lab FCC ID: OAJJDF-414-EU-HU NVLAP Lab Code: 100431-0 J COMMUNICATIONS CO., LTD.

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 95 Certification J COMMUNICATIONS CO., LTD. Dates of Tests: August 16-20, 1999 #715 Yuchun Factopia, 196 Anyang7-Dong Test Report S/N: 95.990803472.OAJ Manan-Ku, Anyang-City, Kyungki-do, KOREA Test Site: PCTEST Lab, MD U.S.A. Attention: Jong-Oh Kim, President FCC ID OAJJDF-414-EU-HU APPLICANT J COMMUNICATIONS CO., LTD. Classification: Family Radio Face-Held Transmitter (FRF) FCC Rule Part(s): §§§ 95(B), 2(J) EUT Type: 2-Way Portable Handheld Radio Transceiver (FRS) Trade Name(s): J COM Model(s): JDF-14H/M, JDF-14E Tx Frequency Range: 462.5625 ~ 467.7125 MHz Rx Frequency Range: 462.5625 ~ 467.7125 MHz Max Output Power: 0.5 W Frequency Tolerance: 0.0025% (2.5 ppm) Emission Designator: 8K0F3E Channel Capacity: 14 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 990803472.OAJ Certification © 1999 PCTEST Engineering Laboratory, Inc.FCC Part 95 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 1 INTRODUCTION 2 2.1033 INSERTS 3 DESCRIPTION OF TESTS 4-6 RADIATED MEASUREMENTS 7-8 FREQUENCY STABILITY 9-10 PLOTS OF EMISSIONS 11 LIST OF TEST EQUIPMENT 12 SAMPLE CALCULATIONS 13 RECOMMENDATION / CONCLUSION 14 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL DESCRIPTION ATTACHMENT L:PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M:USER’S MANUAL Test Report S/N: 95.990803472.OAJFCC Part 95 Dates of Tests: August 16-20, 1999Certification © 1999 PCTEST Lab FCC ID: OAJJDF-414-EU-HU (Tx 462.5625 – 467.7125MHz)1 J COM 2-Way Portable FM Handheld Radio Transceiver (FRS) MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name:J COMMUNICATIONS CO., LTD. Address:#715 Yuchun Factopia, 196 Anyang7-Dong, Manan-Ku, Anyang-City, Kyungki-do, 430-017, KOREA Attention:Jong-Oh Kim, President • FCC ID:OAJJDF-414-EU-HU • Model(s):JDF-14H/M, JDF-14E • Quantity:Quantity production is planned • Emission Designator:8K0F3E • Tx Freq. Range:462.5625 – 467.7125 MHz Rx Freq. Range:462.5625 – 467.7125 MHz • Equipment Class:Family Radio Face-Held Transmitter (FRF) • Equipment Type:2-Way Portable FM Handheld Radio Transceiver (FRS) • Modulation:FM • Frequency Tolerance:± 0.0025% (2.5 ppm) • Max. Power:0.5W • FCC Rule Part(s):§§§§ 95(B), 2(J) • Power Supply:(4) 1.5 VDC Alkaline batteries • D.C. Voltage into Final RF Amplifier:6.0 VDC • Dates of Tests:August 16-20, 1999 • Place of Tests:PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N:95.990803472.OAJ Test Report S/N: 95.990803472.OAJFCC Part 95 Dates of Tests: August 16-20, 1999Certification © 1999 PCTEST Lab FCC ID: OAJJDF-414-EU-HU (Tx 462.5625 – 467.7125MHz)2 J COM 2-Way Portable FM Handheld Radio Transceiver (FRS) 1.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at 3-meter test range (see Figure2). The equipment under test is placed on the turntable connected to a RF wattmeter and a dummy RF load, and then its power is adjusted to its rated output. A receiving antenna located 2 meters from the turntable picks up any signal radiated from the transmitter. The turntable containing the system was rotated; the receiving antenna height was varied 1 to 4 meters and stopped at the azimuth or height producing the maximum emission. The testing procedure is repeated for both horizontal and vertical polarization of the receiving antenna. The actual radiated signal strength is obtained by substitution method with a signal generator with a calibrated output. The signal generator is adjusted in output until its reading is identical to that obtained when the receiving antenna is connected to the receiver. Signal strength is then read …

Text truncated - open the document above for the full version.

PCTEST Engineering Lab., Inc. SUBJECT:Audio Limiter CharacteristicsTest Report No.:95.990803472.OAJ FCC Part 95Test Date:08.17.1999 EUT:J COM 2-Way Radio (FRS) Transceiver FCC ID:OAJJDF-414-EU-HU Audio Limiter Characteristics 0.0 0.5 1.0 1.5 2.0 2.5 3.0 -80-75-70-65-60-55-50-45-40-35-30-25-20-15-10-505 Audio Input Level (dBm) Deviation (kHz) Deviation (@ 0.3kHz) Deviation (@ 1.5kHz) Deviation (@ 2.5kHz) FCC Limit J Communications Co., Ltd. FCC ID: OAJJDF-414-EU-HU PCTEST Engineering Lab., Inc. SUBJECT:Audio Low Pass Filter ResponseTest Report No.:95.990803472.OAJ FCC Part 95Test Date:08.17.1999 EUT:J COM 2-Way Radio (FRS) Transceiver FCC ID:OAJJDF-414-EU-HU Frequency Response of Audio Low Pass Filter -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0.0 10.0 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 10k 1k 100k J Communications Co., Ltd. FCC ID: OAJJDF-414-EU-HU PCTEST Engineering Lab., Inc. SUBJECT:Modulation Frequency ResponseTest Report No.:95.990803472.OAJ FCC Part 95Test Date:08.17.1999 EUT:J COM 2-Way Radio (FRS) Transceiver FCC ID:OAJJDF-414-EU-HU Modulation Frequency Response -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0.0 5.0 10.0 15.0 20.0 AUDIO FREQUENCY (Hz) RELATIVE RESPONSE (dB) 100 1k 10k J Communications Co., Ltd.

Test Report S/N: 95.990803472.OAJ Test Dates: August 16-20, 1999 FCC Part 95 Certification Test Data ERP Test Results Freq. Tuned LEVELAFCLF/SERPERP (MHz)(dBm)(dB) (dBμV/m) (dBm)(W) 462.56-7.8525.2016503460.4994126.97 NOTES: The EUT is placed 3m. away from the receiving antenna and the ERP is calculated using the formula: Level m/Vm @ 3 meters = Log 10 -1 (dBm + 107 + AFCL) 20 ERP (dBm) = 10 Log 10 (((r(mV/m)/1 x 10 6 ) 2 / 49.2/1 x 10 -3 ) ERP (dBm) = 10 Log 10 [ (3 x FS/1 x 10 6 ) 2 / (49.2) x 1000] ERP (Watts) = {(3 x FS)/1 x 10 6 } 2 / 49.2 © 1998 PCTEST Lab FCC ID: OAJJDF-414-EU-HU (Tx 462.5625-467.7125MHz) J Com 2-Way Portable FM Handheld Radio Transceiver (FRS)

Test Report S/N: 95.990803472.OAJFCC Part 95 Dates of Tests: August 16-20, 1999Certification © 1999 PCTEST Lab FCC ID: OAJJDF-414-EU-HU (Tx 462.5625 – 467.7125MHz)5 J COM 2-Way Portable FM Handheld Radio Transceiver (FRS) 3.1 DESCRIPTION OF TESTS (CONTINUED) 3.4 §2.1049 Occupied Bandwidth The audio signal generator is adjusted to 1kHz. The output level is set to +/- 6kHz deviation. With the level constant, the freq. Is set to 2,500Hz. Then the audio signal level is increased by 16dB. The limits are specified in Section 2.1049. Bandwidth Calculations (2M + 2D): 2(3) + 2 (2.20) 6 + 4.4 = 10.4 kHz Emission Designator = 10K4F3E M = maximum modulation frequency D = maximum deviation from modulating limiting plot 3.5 §2.1051 Spurious and Harmonic Emissions at Antenna Terminal The level of the carrier and the various conducted spurious and harmonic frequencies is measured by means of a calibrated spectrum analyzer. The spectrum is scanned from the lowest frequency generated in the equipment up to the tenth harmonic. 3.6 §2.1053 Radiation Spurious and Harmonic Emissions Radiation and harmonic emissions above 1 GHz is measured at out 3-meter indoor site. The EUT is placed on the turntable connected to a dummy load in normal operation using the intended power source. A receiving antenna located 3 meters from the turntable receives any signal radiated from the transmitter and its operating accessories. The antenna is varied from 1 to 4 meters and the polarization is varied (horizontal and vertical) to determine the worst-case emission level. To obtain actual radiated signal strength, a signal generator is adjusted in output until a reading identical to that obtained with the actual transmitter is obtained at the receiver. Signal strength is read directly from the generator and recorded on the attached table.
