OAJJF-414HU-MU

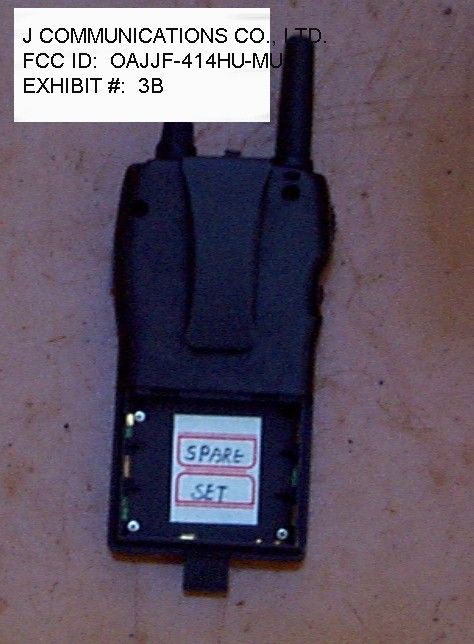

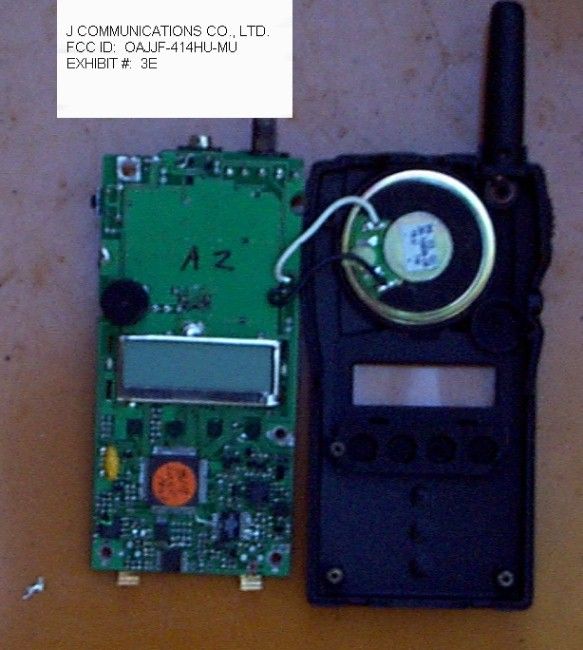

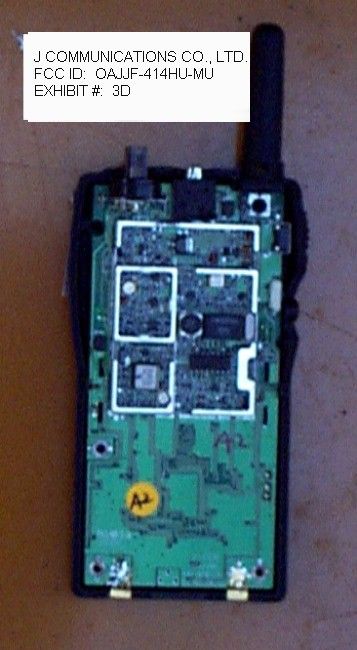

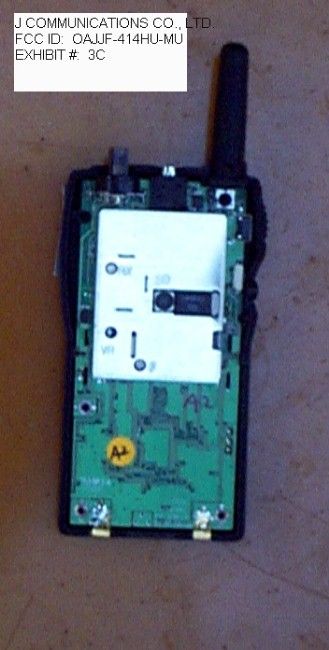

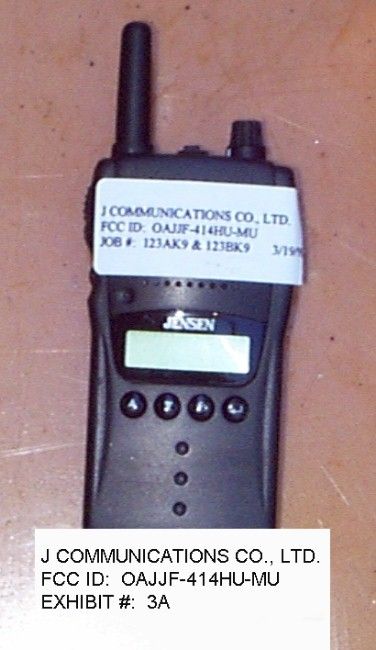

TABLE OF CONTENTS LIST APPLICANT: J COMMUNICATIONS CO., LTD. FCC ID: OAJJF-414HU-MU TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTD. & RF POWER OUTPUT PAGE 3......RF POWER OUTPUT CONTD. & MODULATION CHARACTERISTICS PAGE 4......OCCUPIED BANDWIDTH PAGE 5......SPURIOUS EMISSIONS AT ANTENNA TERMINALS AND FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 6......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 7......FREQUENCY STABILITY PAGE 8......CERTIFICATION OF TECHNICAL DATA AND LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........POWER OF ATTORNEY LETTER EXHIBIT 2.........FCC ID LABEL SAMPLE AND SKETCH OF LOCATION EXHIBIT 3A........EXTERNAL FRONT VIEW PHOTOGRAPH EXHIBIT 3B........EXTERNAL REAR VIEW PHOTOGRAPH EXHIBIT 3C........INTERNAL COMPONENT SIDE PHOTOGRAPH EXHIBIT 3D........INTERNAL SOLDER SIDE PHOTOGRAPH EXHIBIT 3E........INTERNAL SOLDER SIDE W/TUNER UNCOVERED PHOTO EXHIBIT 4.........BLOCK DIAGRAM EXHIBIT 5A-5C.....PARTS LIST EXHIBIT 6.........SCHEMATIC EXHIBIT 7A-7H.....CIRCUIT DESCRIPTIONS EXHIBIT 8A-8I.....USER'S MANUAL EXHIBIT 9.........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 10A-10C...AUDIO INPUT VS DEVIATION GRAPHS EXHIBIT 11........AUDIO LOW PASS FILTER GRAPH EXHIBIT 12........OCCUPIED BANDWIDTH CW PLOT EXHIBIT 13........OCCUPIED BANDWIDTH With DEVIATION PLOT APPLICANT: J COMMUNICATIONS CO., LTD. FCC ID: OAJJF-414HU-MU REPORT #: F:\CUS\J\JCOM\JCO123A9.RPT PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.983 (a,b,c) J COMMUNICATIONS CO., LTD. will manufacture the FCCID: OAJJF-414HU-MU FAMILY RADIO SERVICES 14 CHANNEL TRANSCEIVER in quantity, for use under FCC RULES PART 95. 2.983 (d) TECHNICAL_DESCRIPTION 2.983 (d) (1) Type of Emission: 9K6F3E 95.629 Bn = 2M + 2DK M = 3000 D = 1.9K Bn = 2(3.0)+2(1.9) = 9.8K Authorized Bandwidth 12.5KHz 2.983 (d) (2) Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.983 (d) (3) Power Output shall not exceed 0.500Watts effective 95.637 radiated power. There can be no provisions for 95.647 increasing the power. 2.983 (d) (4) Maximum Output Power Rating: 500 milliWatts 95.637 effective radiated power. 95.645 The antenna is an intergral part to the unit, it cannot be removed without rendering the unit inoperative. In order to remove the antenna the case must unscrewed, then the PCB assemblies must be removed then the antenna can be removed. 2.983 (d) (5) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 4.5 Volts DC Ice = 0.19A. Pin = 0.85 Watts APPLICANT: J COMMUNICATIONS CO., LTD. FCC ID: OAJJF-414HU-MU REPORT #: F:\CUS\J\JCOM\JCO123A9.RPT PAGE #: 1 2.983 (d) (6) Function of each electron tube or semiconductor device or other active circuit device: 2.983(d) (7) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6 of this report. The block diagrams are included as EXHIBIT 4 of this report. 2.983(d) (8) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 8A-8I. 2.983 (d) (9) Tune-up procedure. The tune-up procedure is included 7A-7H. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is given in EXHIBIT 8A-8I. The crystal specifications are included as PAGES NA. 2.983 (d)(11) Description of any circuits or devices employed for suppression of spurious radiation, for limit- ing modulation, and for limiting power will be 7A-7H. (12) Digital modulation. This unit does not use digital modulation. 2.983(e) The data required by 2.985 through 2.997 is submit ted below. 2.985(a) RF_power_output. 95.637 RF power is measured by measuring the radiated power at 3 meters and then replacing the transmitter with a signal generator to determine the effective radiated power. The ERP shall not exceed 0.500 Watts. MEASURED POWER OUTPUT = 500 milliWatts ERP APPLICANT: J COMMUNICATIONS CO., LTD. FCC ID: OAJJF-414HU-MU REPORT #: F:\CUS\J\JCOM\JCO123A9.RPT PAGE #: 2 R.F. POWER OUTPUT HP TEST SET UP Spectrum Analyzer /-------\ /-----------------\ | | | | TRANSMITTER | | | | | UNDER TEST WITH | \--| | | INTERNAL ANTENNA| | | | \-----------------/ | | | | | \-------/ | | |<-- 3.0 meters-->| /-------------\ | SIGNAL | DIPOLE | Tuned, Calibrated | GENERATOR | ANTENNA | Antenna which may | |----------/ be raised from 1 \-------------/ to 4 meters above ground and changed in polarization Equipment placed 1 meter above ground on a rotatable platform. 2.987(a)(b) Modulation_characteristics: AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. 2.987(b) 1 Audio_input_versus_modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 3000 Hz. 95.635(b) Post Limiter Filter The filter must be between the modulation limiter and the modulated stage. At any frequency between 3 & 20KHz the filter must have an attenuation of 60log (f/3) greater tha the attenuation at 1KHz. see the proceeding page. APPLICANT: J COMMUNICATIONS CO., LTD. FCC ID: OAJJF-414HU-MU REPORT #: F:\CUS\J\JCOM\JCO123A9.RPT PAGE #: 3 2.989(c) EMISSION BANDWIDTH: 95.633(b)(1)(3)(7) Data in the plots shows that the sidebands from greater than 50% to 100% of the authorized bandwidth must be attenuated by at least 25dB and from 100 to 250% the sidebands must be attenuated by at least 35dB. Beyond 250% the sidebands must be attenuated by at least 43+log10(TP).…

Text truncated - open the document above for the full version.

APPLICANT: J COMMUNICATIONS CO., LTD. FCC ID: OAJJF-414HU-MU EXHIBIT#: 9 FCC ID: OAJJF-414HU-MU 0 20 40 60 80 100 120 01000200030004000 audio response

APPLICANT: J COMMUNICATION CO., LTD. FCC ID: OAJJF-414HU-MU EXHIBIT #: 10A Modulation Limiting FCC ID: OAJJF-414HU-MU 0 200 400 600 800 1000 1200 1400 00.050.10.150.20.25 rms Volts Deviation 300 Hz

APPLICANT: J COMMUNICATIONS CO., LTD. FCC ID: OAJJF-414HU-MU EXHIBIT #: 10B Modulation Limiting FCC ID: OAJJF-414HU-MU 0 200 400 600 800 1000 1200 1400 1600 1800 00.020.040.060.080.1 rms Volts Deviation 1000 Hz

APPLICANT: J COMMUNICATIONS CO., LTD. FCC ID: OAJJF-414HU-MU EXHIBIT #: 10C Modulation Limiting FCC ID: OAJJF-414HU-MU 0 200 400 600 800 1000 1200 1400 00.010.020.030.040.050.06 rms Volts Deviation 3000 Hz
