OAJJGG2002GMRS Transceiver

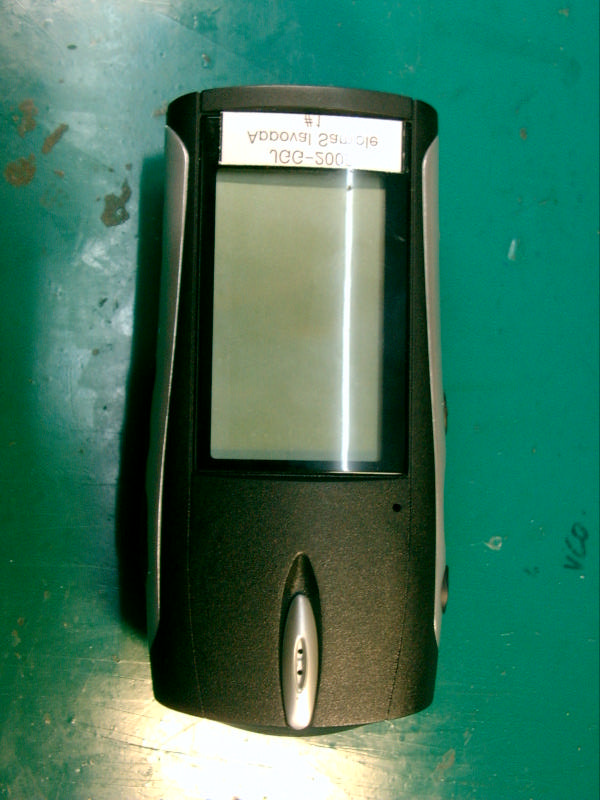

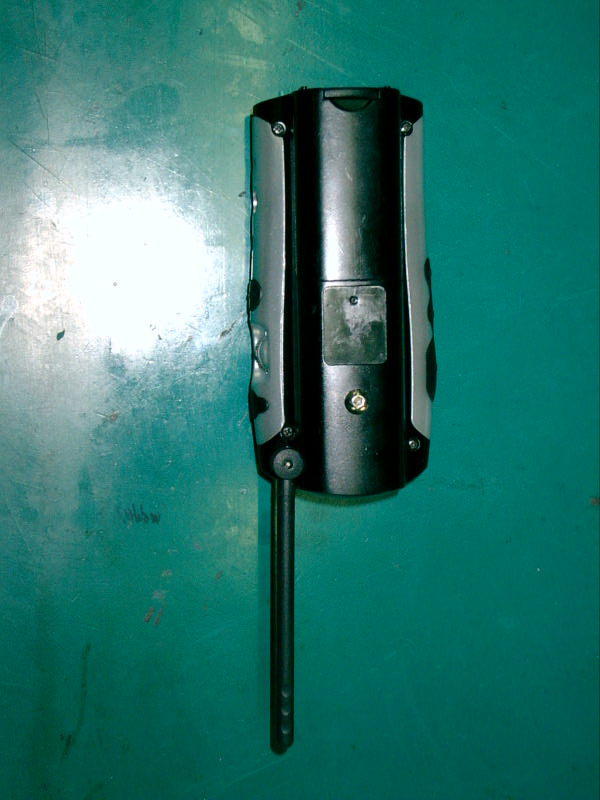

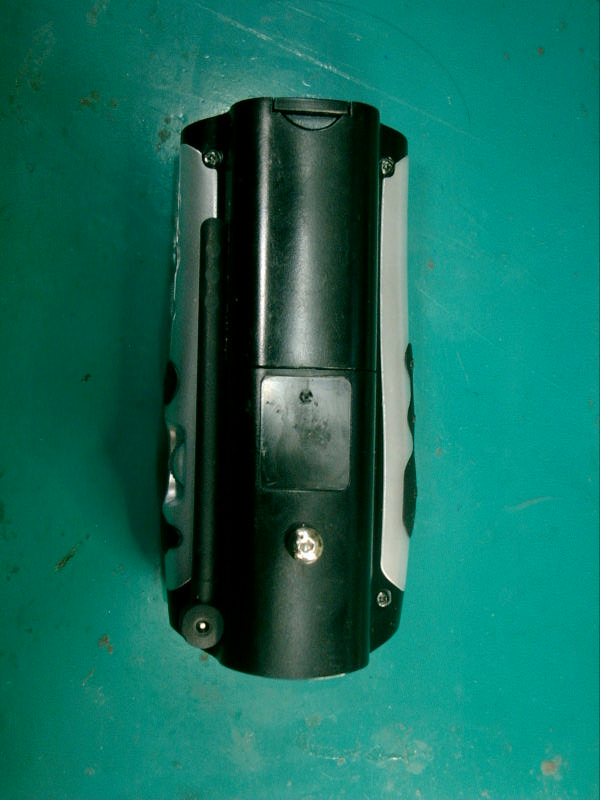

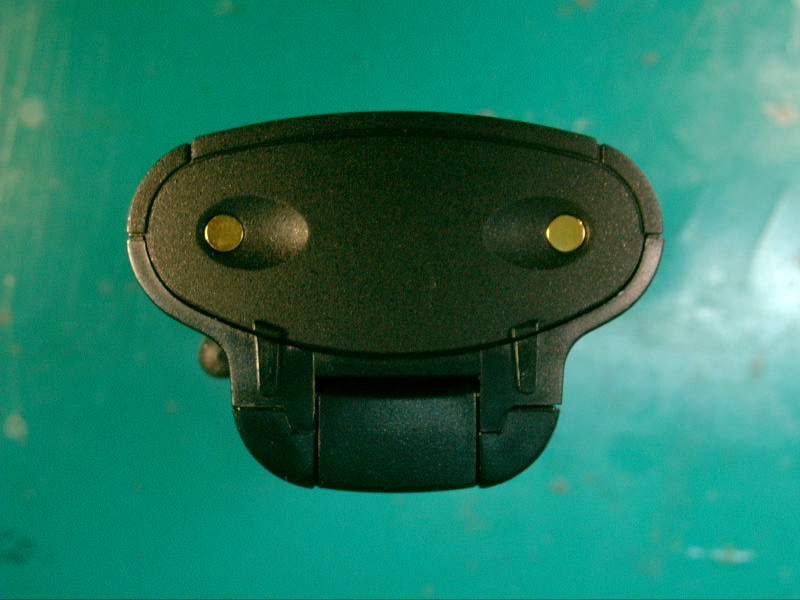

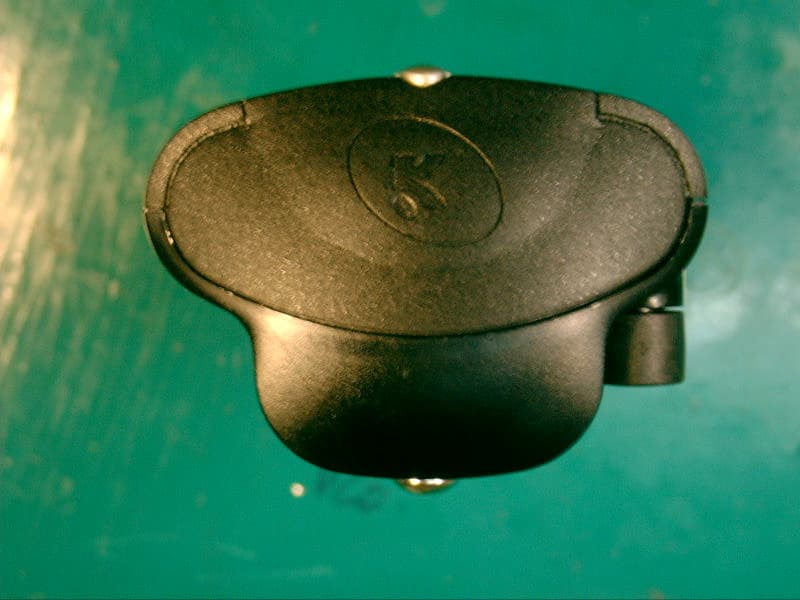

3. INSTRUCTION MANUAL 3.1 Key Name FUNCTIONS AND CONTROLS 1) Antenna 2) Push-To-Talk (PTT) Button 3) Monitor Button 4) Mark & Power Button 5) External MIC / Speaker 6) Up/Down/Enter Button & Volume Control 7) Page Button 8) Charging Jack 9) Built-in Speaker 10) Built-in Microphone 11) LCD Panel 12) Battery Door Button 3.2 ICONS on LCD 132 * 64 dots with ICONS 1) TX Indicator Appears when a signal is being transmitted. 2) RSSI (Receiving Signal Strength Indicator) Indicates the receiving signal strength 3) CTCSS Indicator Blinks when the correct CTCSS tone is entered. 4) Seek Scan Indicator Appears in the seek scan mode or when the seek scan mode is activated. 5) Priority Scan Indicator Appears in the priority scan mode or when the priority scan mode is activated. 132 * 64 Dots 6) VOX Indicator Blinks in VOX selection mode or appears when VOX is activated. 7) Key Lock Indicator Blinks in auto lock selection mode or when the key lock is activated. 8) GMRS Indicator Appears GMRS is activated. 9) GPS Indicator Appears GPS is activated. 10) Battery Level Indicator Battery Level Meter indicates the remaining battery strength. 3.3 Key Function 3.3-1 Power On/Off & Mark Button(#4) 1) Short Touch a) Under Power off Press this button (#4) briefly to turn the unit on. A short Confirming melody will play. b) Under Power on Press this button (#4) briefly to go Mark Page. 2) Long Touch a) Pressing this button (#4) for more than 1.5 seconds to turn the unit off. 3.3-2 Up/Confirm/Down Button (#6) 1) Up Button a) Short Touch – In the Standby page, press this button briefly to move to the next higher main volume level. – In the Map page, press this button briefly to view a larger area. – In the Pointer page, press this button briefly to cycle through other trip computer information such as average speed, maximum speed, moving direction (heading), bearing, location, eleva- tion, time of sunrise/sunset, trip timer and trip odometer. – In the GPS menu page & Setup page, press this button briefly to shift the current item in each menu to the next item in the same menu. b) Long Touch  Pressing this button for more than 1.5 seconds will allow you to navigate at a more rapid rate through different items in the each page. 2) Down Button a) Short Touch - In the Standby page, press this button briefly to move to the next lower main volume level. - In the Map page, press this button briefly to view a smaller area. - In the Pointer page, press this button briefly to cycle through other trip computer information such as average speed, maximum speed, moving direction (heading), bearing, location, elevation, time of sunrise/sunset, trip timer and trip odometer. - In the GPS menu page & Setup page, press this button briefly to shift the current item in each menu to the previous item in the same menu. b) Long Touch Pressing this button for more than 1.5 seconds will allow you to navigate at a more rapid rate through different items in the each page 3) Confirm Button - In the Standby page, Map Page, & Pointer page, press this button briefly to move to the option selection mode. - In the GPS menu page & Setup page, press this button briefly to confirm the required option for respective functions or to go enter the sub-menu. 3.3-3 Page Button(#7) 1) Short Touch  In the Standby Page, Map Page, Pointer Page, GPS Menu Page & Setup Page, Press this button briefly to move to the next Page. In the Sub-menu for GPS Menu Page & Setup Page, Press this button briefly to shift from current sub-menu to the higher sub-menus or pages in the each sub-menus. 2) Long Touch - Pressing this button for more than 1.5 seconds will allow you to navigate at a more rapid rate through different pages. 3.3-4. PUSH-TO-TALK (PTT) BUTTON (#2)  Press it firmly and speak into the Built-in Microphone (#10) to transmit.  Release it to revert to receive mode.  2 Way Call Ringer  Press the PTT button twice quickly to call another party on the same channel and the user selected call ringer melody will play. 3.3-5 MONITOR BUTTON (#3) - Press it to check activity on the current channel before you try to transmit. - Adjust the Volume Control if necessary. - If you press and hold the Monitor button (#3) for more than 3 seconds. - To stop the monitoring press the Monitor Button (#2) and return to the standby mode. 3.3-6 EXTERNAL MIC/SPEAKER (#5) - This jack accepts an optional headset/microphone for totally handsfree operation. - Please refer to the enclosed Accessory Order Form to order accessories. - See also section regarding VOX SELECTION MODE. 3.4 Setting and Operation 3.4-1 Common function setting 1) Mode setting You can activate the GPS only / GMRS only / GMRS+GPS / mode. Default mode : GMRS+GPS 2) GPS Information Coordinates, Time & Date, Odometer, TTG(Time To Go), Speed, moving direction(Heading), Sunrise/Sunset, Elevation. When you press Up/Confirm/Down Button (#6), GPS position, GPS signal length, GPS status appears in the LCD panel(#11) 3.4-2 GPS function 1) Map Page This feature provides where you are (the animated figure) and provides a real picture of where you are going. As you travel and leaves a trail (track log). Waypoint names and symbols are also shown on the map. 2) Pointer Page This feature helps guide you to a destination. When you are moving with no particular destination in mind, the Pointer Page shows you your moving direction and speed. When you’re moving towards a specific destination, the Pointer page shows you the name of the location, the distance, and time to go. 3) Mark Page This feature provides you to inform or transmit your current position to the another party 3.4-3 GMRS function setting 1) Basic channel selection In order to communicate with other GMRS units, both you and the receiving party must be on the same channel. JGG-2002 has 15 channels for GMRS as indicated by the large digits in the LCD Display Panel(#11). Before, trying to transmit on the selected channel, you should press the Monitor Button to check the acti…

Text truncated - open the document above for the full version.

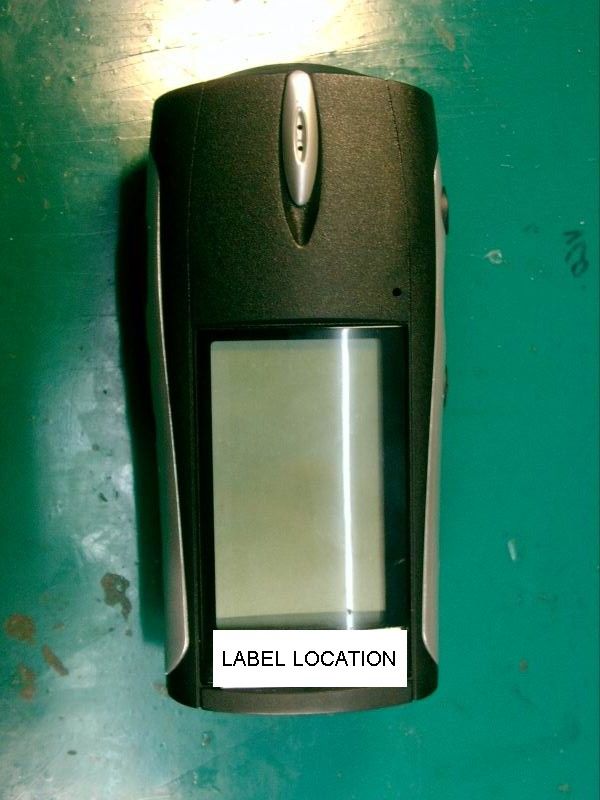

FCC MARKING/LABEL FOR PART 15 FCC ID : OAJJGG2002 Brand Name : KENERGY MODEL NO.: JGG-2002 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

4. CIRCUIT DESCRIPTION 4.1 Frequency synthesizer Frequency synthesizer consists of VCO, PLL IC (built in PRESCALER) and loop filter. a) VCO VCO is composed of ONE VCO. Oscillation circuit takes colpitts circuit using variable Diode. And VCO is composed of D1, Q8, Q9, C81, C75, VC1, L1, C74, C76. VCO control voltage through loop filter adjusts frequency and Microphone signal through Modulation terminal makes modulation. b) PLL IC PLL IC is adjustable IC to produce the wished frequency which VCO provides through loop filter. It has internal counter using 21.25MHz reference frequency to make 6.25kHz as reference Signal. VCO frequency from prescaled input is divided signal is compared with Reference signal phase in phase comparator. Built-in charger pump changes voltage (until two signals are in phase) and charged voltage supplies VCO through loop filter to produce the desired frequency. Frequency data associated with channel goes to PLL IC by CPU through CLOCK, DATA. PLL IC enables by strobe line of CPU. c) Loop Filter Loop filter is composed of R48, R49, C84, C85 and changes pulse from pin14 to DC. and eliminates harmonic component in pulse. It helps VCO oscillate clearly as DC voltage is supplied into Varicap. 4.2 RECEIVER This is composed of Dual Conversion Super Heterodyne. First IF is 21.7MHz. Local oscillator frequency is lower in 1'st IF than Rx frequency. It is called low side injection. Second IF is 450kHz. 2nd local oscillator frequency comes to 21.25MHz. a) Rx/Tx Conversion Circuit Rx signal goes to Rx/Tx conversion circuit through FIXED antenna connector, low pass filter(L5,L6,L7,C42,C43,C46,C47) and receiver resonance circuit composed of L8,C1 When transmitting, voltage through R25,L12,D6 supplies,D7 of receive input is short and Tx is on condition. When PIN diode is off in condition of Rx, L8 and C1 resonate serially and make impedance matching at receiver band pass filter (SF1). b) Front End Front End has Q1 to provide a high sensitivity and low noise feature. It employs Saw filter as band pass filter to eliminate image frequency and to produce enough pass band by Q1 input and output. c) Mixer Mixer has one base BFQ 67W(Q2) to feature high low noise quality. It has RF signal through L7, L8, SF1, SF2 and Q1 RF signal from Local oscillator mixed. It develops 1'st IF 21.7MHz. 1st IF goes to 1st IF amplifier Q3(2SC4083) base through X-tal filter XF1. IF of mixing signals is selected and taken into X-tal filter. Output impedance of mixer is direct matched with input impedance of X-tal filter. Matching of filter satisfies pass bandwidth of filter, ripple elimination with in pass band, and attenuation characteristic of stop band. X-tal filter is composed of two pole monolithic X-tal filter, 8kHz of IF bandwidth R11 is used as impedance matching with 1'st IF Amp Q3. d) IF AMP and Detection 1'st IF AMP Q3 supplies IF(U12) mixer input pin16 through output resistor R13 and C21 to need gain in insertion loss of X-tal filter and last stage circuit. Multi-use IF IC makes up of mixer IF AMP. pin1 2'nd local frequency enter to pin 1. It supplies mixer of internal IC. Mixer output of IC through pin3 passes 450kHz ceramic filter, supplies 2'nd IF amplifier and limits. After 2'nd IF AMP has a process of enough gain and AM rejection, it comes to quadrature detection. Demodulated audio signal by T1 (Quad Coil) is amplified and comes out to pin9. Detected audio signal through R22, VR1 and input in audio amp. IC U4 through C22. e) Squelch Circuit Noise component of detected outputs has amplification Squelch threshold is controlled by Resistor R18,C31,R15 f) Audio Amplifier Demodulated audio signal enters to pin2 of U4. After above signal amplies in U4 pin5 through C220. It comes out to pin5 Then, It reaches at speaker. 4.3 Transmitter When Tx develops with pressing PTT switch, VCO output amplifies through Q4,Q5 transmits by antenna through low pass filter. Tx RF signal produced from Tx VCO is amplified by DRIVER Q5 through C53 and entered Q4 POWER TR input terminal with final amplification. After this stage, the signal is emitted at antenna through 50Ù matching circuit to low pass filter(L7, L6, L5, C42, C43, C44, C46, C47) to eliminate harmonic. 4.3-1 Audio Modulation and Audio Amplification Audio signal produced by external or internal microphone, limits amplification by IC U7.. It enters to VCO through low pass filter and U2. Max. Frequency modulation deviation is adjusted by VR1 keeps noise and audio from entering to VCO at time of Tx. Audio modulation and Audio Amplification has characteristic of 6dB/OCT pre-emphasis by U7(NJM324V).

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525G G CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: GMRS(General Mobile Radio Service) Model(s): JGG-2002 Tx Frequency: 462.5500 MHz – 462.7250 MHz Max. SAR Measurement(s): 0.740mW/g(1g) Face SAR ; 1.120mW/g(1g) Body SAR Max. RF Output Power: 0.98 W ERP(29.91dBm) Conducted Power: 1.88 W (32.74dBm) Emission Designator: 10K5F3E Channel Capacity: 22 Application Type: Certification Trade Name(s): J COM FCC Rule Part(s): ­95(A), 2(J) {šGž™Œ“ŒššG—–™›ˆ‰“ŒG‹ŒŠŒGˆšG‰ŒŒ•Gš–ž•G›–G‰ŒGŠˆ—ˆ‰“ŒG–GŠ–”—“ˆ•ŠŒG–™G“–Šˆ“¡Œ‹Gš—ŒŠŠGˆ‰š–™—›–•G™ˆ›ŒG OzhyPG–™Gœ•Š–•›™–““Œ‹Gl•™–•”Œ•›GvŠŠœ—ˆ›–•ˆ“GŒŸ—–šœ™ŒG“”›šGš—ŒŠŒ‹G•GhuzpVGplllGz›‹UGj`\UXTGX``YGˆ•‹G ˆ‹G‰ŒŒ•G›Œš›Œ‹G•GˆŠŠ–™‹ˆ•ŠŒGž›G›ŒG”Œˆšœ™Œ”Œ•›G—™–ŠŒ‹œ™ŒšGš—ŒŠŒ‹G•GhuzpVGplllGz›‹UGj`\UZTGX``YUGOzŒŒG {Œš›GyŒ—–™›PUG G pGˆ››Œš›G›–G›ŒGˆŠŠœ™ˆŠ G–G‹ˆ›ˆUGh““G”Œˆšœ™Œ”Œ•›šG™Œ—–™›Œ‹GŒ™Œ•GžŒ™ŒG—Œ™–™”Œ‹G‰ G”ŒG–™GžŒ™ŒG ”ˆ‹ŒGœ•‹Œ™G” Gšœ—Œ™š–•Gˆ•‹Gˆ™ŒGŠ–™™ŒŠ›G›–G›ŒG‰Œš›G–G” G’•–ž“Œ‹ŽŒGˆ•‹G‰Œ“ŒUGpGˆššœ”ŒGœ““G™Œš—–•š‰“› G –™G›ŒGŠ–”—“Œ›Œ•ŒššG–G›ŒšŒG”Œˆšœ™Œ”Œ•›šGˆ•‹G–œŠG–™G›ŒG˜œˆ“Šˆ›–•šG–Gˆ““G—Œ™š–•šG›ˆ’•ŽG›Œ”UG G o œ•‹ˆGjT{ŒŠGj–USGs›‹UGjŒ™›ŒšG›ˆ›G•–G—ˆ™› G›–G›šGˆ——“Šˆ›–•GˆšG‰ŒŒ•G‹Œ•Œ‹GmjjG‰Œ•Œ›šG G —œ™šœˆ•›G›–GšŒŠ›–•G\ZWXG–G›ŒGh•›TGk™œŽGh‰œšŒGhŠ›G–GX``_SGYXG|UzUGjUG_\ZOˆPG Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Manufacture; J COMMUNICATIONS CO., LTD. 124-4 Ojeon-Dong, Uiwang-City, Kyungki-Do, KOREA FRN: 0005- 8390- 59 Date of Issue: November 20, 2002 Test Report No.: HCT-SAR02-1102 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005-8642- 21 FCC ID : APPLICANT : OAJJGG-2002 J COMMUNICATIONS CO., LTD. Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002 Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 7.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 8.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 9.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 10.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 11.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 12.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 13.1 CONCLUSION ------------------------------------------------------------------------------------------------ 14.1 REFERENCES -------------------------------------------------------------------------------------------- APPENDIX A – SAR TEST PLOTS APPENDIX B – TEST SETUP PHOTOGRAPHS APPENDIX C – EUT PROFILE PHOTOGRAPHS APPENDIX D – DIPOLE VALIDATION PLOTS APPENDIX E – PROBE CALIBRATION DATA APPENDIX F – DIPOLE CALIBRATION DATA 3 4 5 6-7 8 9 10 11 12 13 14 15-16 17 18 Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002 Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency(RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant • FCC ID: OAJJGG-2002 • EUT Type: GMRS(General Mobile Radio Service) • Trade Name: J COM • Model(s): JGG-2002 • Tx Frequency: 462.5500 MHz – 462.7250 MHz (GMRS) • Application Type: Certification • Classification: Licensed Portable Transmitter • Modulation(s): FM • Max SAR Measurement: 0.740mW/g(1g) GMRS Face SAR ; 1.120mW/g(1g) GMRS Body SAR • Max. RF Output Power: 0.98 W ERP(29.91dBm) GMRS ; • Conducted Power: 1.88 W (32.74dBm) GMRS ; Figure 1. SAR System • Power Supply: (x4) AA Alkaline batteries (1.5VDC) Manufacture(: Rocket / : Bexxel / : Toshiba) • Place of Test(s): Hyundai C- TECH. EMC Lab. • Date(s) of Tests: November 18, 2002 • Report No.: HCT-SAR02-1102 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62 GCompany Name: J COMMUNICATIONS CO., LTD. Address: 124-4 Ojeon-Dong, Uiwang-City, Kyungki-Do, KOREA Attention: MR. GS OH – Marketing Manager Tel. / Fax : 82- 31- 428- 2221 / 82- 451- 2994 E-Mail : [email protected] G GG G Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002 Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002 Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 7.1 SYSTEM SPECIFICATIONS 7.2 Robotic System Specifications Specifications POSITIONER: Stäubli Unimation Corp. Robot Model: RX90LB Repeatability: 0.02 mm No. of axis: 6 Data Acquisition Electronic (DAE) System Cell Controller Processor: Pentium III Clock Speed: 450 MHz Operating System: Windows NT 4.0 Data Card: DASY3 PC-Board Data Converter Features: Signal Amplifier, multiplexer, A/D converter, and control logic Software: DASY3 software Connecting Lines: Optical downlink for data and status info. Optical uplink for commands and clock PC Interface Card Function: 24 bit (64 MHz) DSP for real time processing Link to DAE3 16 bit A/D converter for surface detection system serial link to robot direct emergency stop output for robot E-Field Probes Model: ET3DV6 S/N: 1608, S/N: 1609 Construction: Triangular core fiber optic detection system Frequency: 10 MHz to 6 GHz Linearity: ± 0.2 dB (30 MHz to 3 GHz) Phantom Phantom: SAM Shell Material: Fiberglass Thickness: 2.0 ± 0.1 mm Tissue Parameters Freq. [MHz] Liquid Liquid Temp [°C] Parameters Target Value Measured Value Deviation [%] Limit [%] ε

43.5 45.1842 +3.87 ·5% Head 21.8 σ 0.87 0.8536 -1.89 ·5% G ε
56.7 56.1397 -0.99 ·5%G 450MHz Body 21.8 σ 0.94 0.9420 +0.21 ·5% G Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002 Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 8.1 MEASUREMENT PROCESS 8.2 System Verification Prior to assessment, the system is verified to the ±10% of the specifications at 450MHz by using the system validation kit. (Graphic Plots Attached) Freq. [MHz] Liquid Liquid Temp [°C] SAR Average Target Value (mW/g) Measured Value (mW/g) Deviation [%] Limit [%] 450 MHz D450V2, S/N: 1007 Head 21.8 1 g 4.9 4.7 -4.08 ·10% 8.3 Dosimetric Assessment Setup The evaluation was performed with the following procedure: 1. The SAR value at a fixed location above the ear point was measured and was used as a reference value for assessing the power drop. 2. The SAR distribution at the exposed side of the head was measured at a distance of 3.9mm from the inner surface of the shell. The area covered the entire dimension of the head and the horizontal grid spacing was 20mm x 20mm. Based on this data, the area of the maximum absorption was determined by spline interpolation. 3. Around this point, a volume of 32mm x 32mm x 34mm was assessed by measuring 5 x 5 x 7 points. On this basis of this data set, the spatial peak SAR value was evaluated with the following procedure: a. The data at the surface were extrapolated, since the center of the dipoles is 2.7mm away from the tip of the probe and the distance between the surface and the lowest measuring point is 1.2mm. The extrapolation was based on a least square algorithm [13]. A polynomial of the fourth order was calculated through the points in z-axes. This polynomial was then used to evaluate the points between the surface and the probe tip. b. The maximum interpolated value was searched with a straight-forward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1g or 10g) were computed using the 3D-Spline interpolation algorithm. The 3D-spline is composed of three one-dimensional splines with the “Not a knot” condition (in x,y, and z directions) [13][14]. The volume was integrated with the trapezoidal algorithm. One thousand points (10 x 10 x 10) were interpolated to calculate the average. c. All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Fig. 10. SAR Measurement Point in Area Scan Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002 Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 9.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS HUMAN EXPOSURE UNCONTROLLED ENVIRONMENT General Population (W/kg) or (mW/g) CONTROLLED ENVIRONMENT Occupational (W/kg) or (mW/g) SPATIAL PEAK SAR * (Brain) 1.60 8.00 SPATIAL AVERAGE SAR ** (Whole Body) 0.08 0.40 SPATIAL PEAK SAR *** (Hands / Feet / Ankle / Wrist) 4.00 20.00 Table 2. Safety Limits for Partial Body Exposure G NOTES: * The Spatial Peak value of the SAR averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube) and over the appropriate averaging time. ** The Spatial Average value of the SAR averaged over the whole-body. *** The Spatial Peak value of the SAR averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube) and over the appropriate averaging time. Uncontrolled Environments are defined as locations where there is the exposure of individuals who have no knowledge or control of their exposure. Controlled Environments are defined as locations where there is exposure that may be incurred by persons who are aware of the potential for exposure, (i.e.as a result of employment or occupation). Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002 Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 10.1 MEASUREMENT UNCERTAINTIES Measurement uncertainties in SAR measurements are difficult to quantify due to several variables including biological, physiological, and environmental. However, we estimate the measurement uncertainties in SAR to be less than 15-25 % [16]. According to ANSI/IEEE C95.3, the overall uncertainties are difficult to assess and will vary with the type of meter and usage situation.…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr G

Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525www.hctec.co.kr G G G G G G G Report No.: HCT-SAR02-1102 FCC ID : OAJJGG-2002Date : November 20, 2002 G HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL …

Text truncated - open the document above for the full version.
