OBIG7071RXKeyless Entry Receiver for Vehicle

February 5, 1999 Federal Communications Commission Equipment Approval Services P.O.Box 358315 Pittsburgh, PA 15251-5315 U.S.A. Subject : Certification Application for Part 15 Equipment Authorization Applicant : U-shin Ltd. Product : Keyless entry system for vehicle, Receiver Model No.: G7071 FCC ID : OBIG7071RX Dear Sir/Madame: We are submitting application documents through electronic filing for Certification of FCC Part 15 Equipment Authorization for the above-mentioned product. FCC Form 159 with a check for application fee will be mailed within a couple of days. We shall appreciate your immediate attention to this application and awaiting your approval. Sincerely K.O. Kyozo Ouchi Application Service Div. Product Safety Center Japan Quality Assurance Organization 21-25, Kinuta 1-chome, Setagaya-ku Tokyo, 157-8573 Japan FCC ID : OBIG7071RX List of Submitted Documents (02/01/1999) (1) Name and Address of the Applicant : U-shin Ltd. 5217, Nakaze, Hamakita-shi, Shizuoka, 434-0012 Japan (2) Name and Address of the Manufacturer : The same as (1) (3) FCC ID : OBIG7071RX (4) EXHIBIT A : FCC ID Label (5) EXHIBIT B : User’s Manual (6) EXHIBIT C : Equipment Description and Brief Description of Circuit Function (7) EXHIBIT D : Report of Measurements (8) EXHIBIT E: Photographs (9) Section 2.1033 (b) (8) requirement : N/A (10) Section 2.1033 (b) (9) requirement : N/A (11) Section 2.1033 (b) (10) requirement : N/A (12) Section 2.1033 (c) requirement : N/A

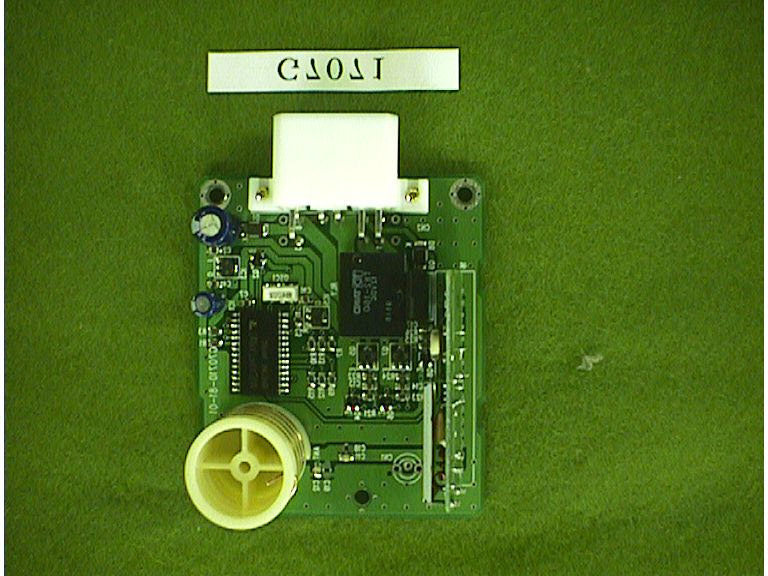

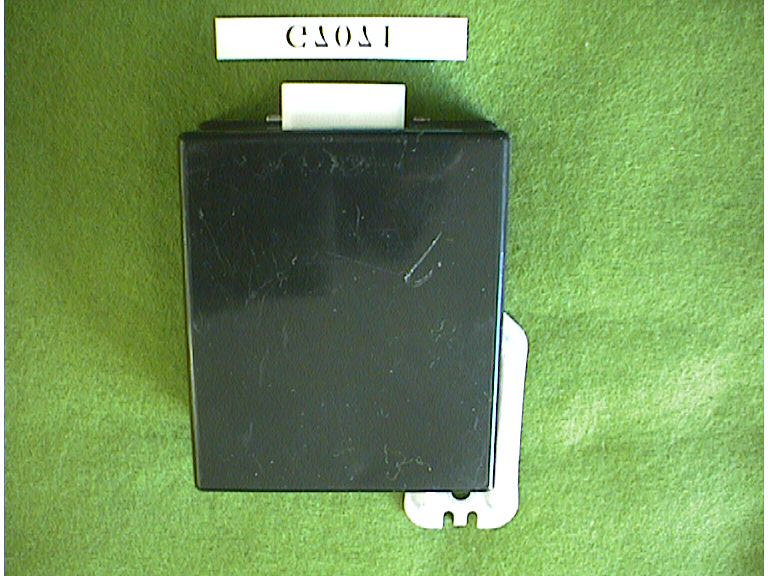

FCC ID : OBIG7071RX The Keyless Entry System for Vehicles This system is to be installed on motor vehicles as OEM item. It consists of a transmitter (C9483) and a receiver (G7071), that locks and unlocks of the car door by the remote control unit with microwave. The transmitter is very small and is integrated with an ignition key. The receiver has a coil antenna. The transmitter produces output of ID Code, Control Code and Custom Code by the lock /unlock switching as electric wave signal. The receiver drives the corresponded actuator to the control code after reception and detection of the electric signal from the transmitter. But it is unable to drive when IG is ON or the door is open.

REPORT OF MEASUREMENTS Date : January 28, 1999 Issue in : Tokyo, Japan JQA APPLICATION NO.: 80-80629 Applicant : U-shin Ltd. 5217, Nakaze, Hamakita-shi, Shizuoka 434-0012, Japan Manufacturer : U-shin Ltd. 5217, Nakaze, Hamakita-shi, Shizuoka 434-0012, Japan Description of Equipment : Keyless Entry System (Receiver) FCC ID : OBIG7071RX Trade Name : U-shin Model No. : G7071 Serial No. : - Tuning Frequency : 315 MHz Power Supply : 12 VDC Applicable Rule : FCC Rules & Regulations Part 15 Subpart B (June 23, 1989) Place of Measurement : JQA EMC Engineering Dept. Date of Measurement : November 17, 1998 Total Pages of This Report : 7 (including this page) I certify that I am authorized to sign for the report and that all the statement in this report and in the exhibits hereto are true and correct to the best my knowledge and belief. Shigeru Osawa, Assistant Manager Testing Div. EMC Engineering Dept. JQA Application No.: 80-80629 FCC ID : OBIG7071RX Sheet 2 of 7 sheets 1. Radiated Spurious Emissions: [15.109(a)] Measurement Method Employed: Measurements were made under the conditions specified ANSI C63.4. The field strength measurements of the equipment under test were made at the distance of 3 meters away from the device which was placed on the wooden turntable 0.8 meter in height. The receiving antenna polarized horizontally was varied from 1 to 4 meters and the wooden turntable was rotated through 360 degrees to obtain the highest reading on the field strength meter. These measurements were repeated with the receiving antenna polarized vertically. The internal pre-amplifier was used from 30 MHz up to 2000 MHz. Measurement Results: Tuning Frequency : 315 MHz Distance of Measurement : 3.0 meters Antenna Meter Reading Field Strength at 3 m Frequency Factor Horizontal Vertical Horizontal Vertical (MHz) (dB) (dB/uV) (dB/uV) (uV/m) (uV/m) 50.717 4.3 < -5.0 < -5.0 < 0.9 < 0.9 101.433 11.0 < -5.0 < -5.0 < 2.0 < 2.0 152.150 15.2 < -5.0 < -5.0 < 3.2 < 3.2 202.867 18.2 < -5.0 < -5.0 < 4.6 < 4.6 253.583 20.6 < -5.0 < -5.0 < 6.0 < 6.0 304.300 22.6 < -5.0 < -5.0 < 7.6 < 7.6 355.017 24.3 < -5.0 < -5.0 < 9.2 < 9.2 405.733 25.8 < -5.0 < -5.0 < 11.0 < 11.0 456.450 27.1 < -5.0 < -5.0 < 12.7 < 12.7 507.167 28.3 < -5.0 < -5.0 < 14.6 < 14.6 557.883 29.6 < -5.0 < -5.0 < 17.0 < 17.0 608.600 30.7 < -5.0 < -5.0 < 19.3 < 19.3 659.317 31.8 < -5.0 < -5.0 < 21.9 < 21.9 710.033 32.8 < -5.0 < -5.0 < 24.5 < 24.5 760.750 33.7 < -5.0 < -5.0 < 27.2 < 27.2 811.467 34.6 < -5.0 < -5.0 < 30.2 < 30.2 862.183 35.4 < -5.0 < -5.0 < 33.1 < 33.1 912.900 36.2 < -5.0 < -5.0 < 36.3 < 36.3 963.617 36.9 < -5.0 < -5.0 < 39.4 < 39.4 JQA Application No.: 80-80629 FCC ID : OBIG7071RX Sheet 3 of 7 sheets Note: 1.The spectrum was checked from 30 MHz to 1000 MHz All emissions not listed were found to be more than 20 dB below the limits. 2.The symbol of “<” means “or less”. 3.The cable loss was included in the antenna factor. 4.Sample calculation : At 50.717 MHz 10 (Af+Mr)/20 = 10 (-5+4.3)/20 = 0.9 uV/m Where, Af = Antenna Factor including the cable loss. Mr = Meter Reading 6.Measuring Instrument Setting: Detector function : CISPR quasi-peak IF Bandwidth : 120 kHz JQA Application No.: 80-80629 FCC ID : OBIG7071RX Sheet 4 of 7 sheets JQA Application No.: 80-80629 FCC ID : OBIG7071RX Sheet 5 of 7 sheets MEASUREMENT SET-UP FOR RADIATED EMISSIONS Turn Table EUT 3 m 1 m 0.8 m Half-wave Dipole Antenna Field Strength Meter Ground Plane 4 m JQA Application No.: 80-80629 FCC ID : OBIG7071RX Sheet 6 of 7 sheets Configuration of EUT JQA Application No.: 80-80629 FCC ID : OBIG7071RX Sheet 7 of 7 sheets LIST OF MEASUREMENT EQUIPMENT Equipment (Model No.) Manufacturer Date of Cal. 1. Field Strength Meter ESVP Rohde & Schwarz May 1998 2. Tuned Dipole Antenna KBA-511 Kyoritsu Electrical Works November 1998 KBA-611 Kyoritsu Electrical Works November 1998

REPORT OF MEASUREMENTS Date : January 28, 1999 Issue in : Tokyo, Japan JQA APPLICATION NO.: 80-80629 Applicant : U-shin Ltd. 5217, Nakaze, Hamakita-shi, Shizuoka 434-0012, Japan Manufacturer : U-shin Ltd. 5217, Nakaze, Hamakita-shi, Shizuoka 434-0012, Japan Description of Equipment : Keyless Entry System (Receiver) FCC ID : OBIG7071RX Trade Name : U-shin Model No. : G7071 Serial No. : - Tuning Frequency : 315 MHz Power Supply : 12 VDC Applicable Rule : FCC Rules & Regulations Part 15 Subpart B (June 23, 1989) Place of Measurement : JQA EMC Engineering Dept. Date of Measurement : November 17, 1998 Total Pages of This Report : 7 (including this page) I certify that I am authorized to sign for the report and that all the statement in this report and in the exhibits hereto are true and correct to the best my knowledge and belief. Shigeru Osawa, Assistant Manager Testing Div. EMC Engineering Dept. JQA Application No.: 80-80629 FCC ID : OBIG7071RX Sheet 2 of 7 sheets 1. Radiated Spurious Emissions: [§15.109(a)] Measurement Method Employed: Measurements were made under the conditions specified ANSI C63.4. The field strength measurements of the equipment under test were made at the distance of 3 meters away from the device which was placed on the wooden turntable 0.8 meter in height. The receiving antenna polarized horizontally was varied from 1 to 4 meters and the wooden turntable was rotated through 360 degrees to obtain the highest reading on the field strength meter. These measurements were repeated with the receiving antenna polarized vertically. The internal pre-amplifier was used from 30 MHz up to 2000 MHz. Measurement Results: Tuning Frequency : 315 MHz Distance of Measurement : 3.0 meters Antenna Meter Reading Field Strength at 3 m Frequency Factor Horizontal Vertical Horizontal Vertical (MHz) (dB) (dB/uV) (dB/uV) (uV/m) (uV/m) 50.717 4.3 < -5.0 < -5.0 < 0.9 < 0.9 101.433 11.0 < -5.0 < -5.0 < 2.0 < 2.0 152.150 15.2 < -5.0 < -5.0 < 3.2 < 3.2 202.867 18.2 < -5.0 < -5.0 < 4.6 < 4.6 253.583 20.6 < -5.0 < -5.0 < 6.0 < 6.0 304.300 22.6 < -5.0 < -5.0 < 7.6 < 7.6 355.017 24.3 < -5.0 < -5.0 < 9.2 < 9.2 405.733 25.8 < -5.0 < -5.0 < 11.0 < 11.0 456.450 27.1 < -5.0 < -5.0 < 12.7 < 12.7 507.167 28.3 < -5.0 < -5.0 < 14.6 < 14.6 557.883 29.6 < -5.0 < -5.0 < 17.0 < 17.0 608.600 30.7 < -5.0 < -5.0 < 19.3 < 19.3 659.317 31.8 < -5.0 < -5.0 < 21.9 < 21.9 710.033 32.8 < -5.0 < -5.0 < 24.5 < 24.5 760.750 33.7 < -5.0 < -5.0 < 27.2 < 27.2 811.467 34.6 < -5.0 < -5.0 < 30.2 < 30.2 862.183 35.4 < -5.0 < -5.0 < 33.1 < 33.1 912.900 36.2 < -5.0 < -5.0 < 36.3 < 36.3 963.617 36.9 < -5.0 < -5.0 < 39.4 < 39.4 JQA Application No.: 80-80629 FCC ID : OBIG7071RX Sheet 3 of 7 sheets Note: 1.The spectrum was checked from 30 MHz to 1000 MHz All emissions not listed were found to be more than 20 dB below the limits. 2.The symbol of “<” means “or less”. 3.The cable loss was included in the antenna factor. 4.Sample calculation : At 50.717 MHz 10 (Af+Mr)/20 = 10 (-5+4.3)/20 = 0.9 uV/m Where, Af = Antenna Factor including the cable loss. Mr = Meter Reading 6.Measuring Instrument Setting: Detector function : CISPR quasi-peak IF Bandwidth : 120 kHz JQA Application No.: 80-80629 FCC ID : OBIG7071RX Sheet 4 of 7 sheets JQA Application No.: 80-80629 FCC ID : OBIG7071RX Sheet 5 of 7 sheets MEASUREMENT SET-UP FOR RADIATED EMISSIONS Turn Table EUT 3 m 1 m 0.8 m Half-wave Dipole Antenna Field Strength Meter Ground Plane 4 m JQA Application No.: 80-80629 FCC ID : OBIG7071RX Sheet 6 of 7 sheets Configuration of EUT JQA Application No.: 80-80629 FCC ID : OBIG7071RX Sheet 7 of 7 sheets LIST OF MEASUREMENT EQUIPMENT Equipment (Model No.) Manufacturer Date of Cal. 1. Field Strength Meter ESVP Rohde & Schwarz May 1998 2. Tuned Dipole Antenna KBA-511 Kyoritsu Electrical Works November 1998 KBA-611 Kyoritsu Electrical Works November 1998
