OBIH7079TXTransmitter, Keyless Entry

User’s Manual TRANSMITTER,KEYLESS ENTRY Model No.: H7079 There is no User’s Manual because this equipment will not be sold to end- user directly. OWNER’S MANUAL Keyless Entry System Transmitter & Receiver Model Number : H7079 (Transmitter), H7078 (Receiver) Operating instructions for this system: Keyless Entry System; will be included in the owner’s manual of the vehicle and its contents will be as follow: Function explanation 1. Door lock control A lock or unlocking state of the doors is remote-controlled by the micro wave sent from the transmitter. 2. Answer back function The information of lock or unlocking of the doors by the micro wave remote control can be confirmed from the sign of the room lamp and the hazard lamp. 3. Distance of keyless entry operation It works within approximately 3 meters from the cabin center. Caution : The distance of operation will be affected by the electromagnetic circumstance in which this system is located, i.e. in the neighborhood of broadcasting station or power plant. 4. Burglary prevention If a door is not opened after unlocking by the transmitter, the door is automatically locked 30 seconds later. 5. Safe function When the starter key has been inserted into the starter switch or the door is opened, keyless entry system does not work. 6. Function to prevent for the starter key from being shut into the cabin When the starter key has been inserted into the starter switch, the door is not locked for prevent for the starter key from being shut into the cabin. page 1 of 5 7. Registration function This keyless entry system can use three transmitters for one receiver. One transmission code is registered by one registration operation. The oldest code is erased by the registration operation. When a transmitter is newly added, the registration will be made by the following procedure: REGISTRATION METHOD 1. REGISTRATION OPERATION START (STARTER KEY IS PULLED OUT, CONDITION OF ALL DOOR CLOSE.) 2. OPENNING ONLY DRIVER'S SIDE DOOR. 3. IT IS TAKEN ON CONDITION FOR OPERATION SW OF TRANSMITTER THAT WANTS TO REGISTER MAX.10s AFTER IT OPENED DOOR. (EITHER OF LOCK AND UNLOCK IS POSSIBLE.) 4. STARTER KEY IS PUT IN STARTER SW AND IT IS ON CONDITION OF STARTER SW (M CONTACT), IN CASE OF REGISTRATION LESS THAN 10s AFTER OPENNING DRIVER'S SIDE DOOR. 5. IT IS OFF CONDITION OF STARTER SW (M CONTACT), AND STARTER KEY IS PULLED OUT IN CASE OF REGISTRATION LESS THAN 10s AFTER STARTER SW (M CONTACT) IS ON CONDITION. 6. REPEAT MORE THAN SIX TIMES OF DOOR LOCK ON AND OFF BY DRIVER'S SIDE DOOR SW ON AND OFF LESS THAN 30s FROM M CONTACT OFF CONDITION. 7. TRANSMITTER UNLOCK SW FOR REGISTRATION IS KEEPING ON TILL DOOR LOCK IS OPERATED (MORE THAN 5s) LESS THAN 5s AFTER TWO TIMES OF DOOR LOCK ON AND OFF. 8. REGISTRATION COMPLETION *IF THE RKE RECEIVER HAS ANOTHER INPUT DURING A SERIES OF ACTION 1-8, IT RECEASES REGISTRATION MODE. Caution : When registering a new transmitter is made for the loss and so on, repeat registration operation three times for deleting the old code. page 2 of 5 The Operation Point 1. Door locking Push the lock switch on the transmitter. 2. Door unlocking Push the unlock switch on the transmitter. Caution : The micro wave signal sent from the transmitter is exclusive use for each product. Cautions on Handling 1. The transmitter must keep dry. 2. It causes the trouble to drop, to bump or to step on the transmitter. 3. Don’t leave the transmitter in high temperature place, more than 60 degrees, such as on the dashboard. The lifetime of the battery will be decline and make trouble. 4.When doing the lock/the unlocking of the door by the keyless entry confirm the condition always. page 3 of 5 If Trouble Happened Proceed through the following checklist. Should any problem consulted your sales shop or dealer. Is a starter key inserted in the starter switch? Pull out a starter key. Are all doors closed surely? Close all doors. Consult the sales shop of the finding. YES NO NO YES Battery Replacement When the battery of the transmitter became weak replace the battery with a new one by the following procedure. ( use one coin type lithium battery CR2032 ) 1. Remove a screw. 2. Hold a case then divide a ditch of circumference up and down and take it off. The upper side : The side of operation switches The bottom side : The side of label pasting (When it is hard to come off, insert a minus screwdriver in a ditch of circumference, and please remove it.) 3. Install a new battery. (The battery is set in an inside case.) 4. Reassemble the transmitter properly. Notice : Check the battery’s polarity as to correspond with the positive(+) and the negative( -) marks. page 4 of 5 This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For RECEIVER (H7078) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separatio…

Text truncated - open the document above for the full version.

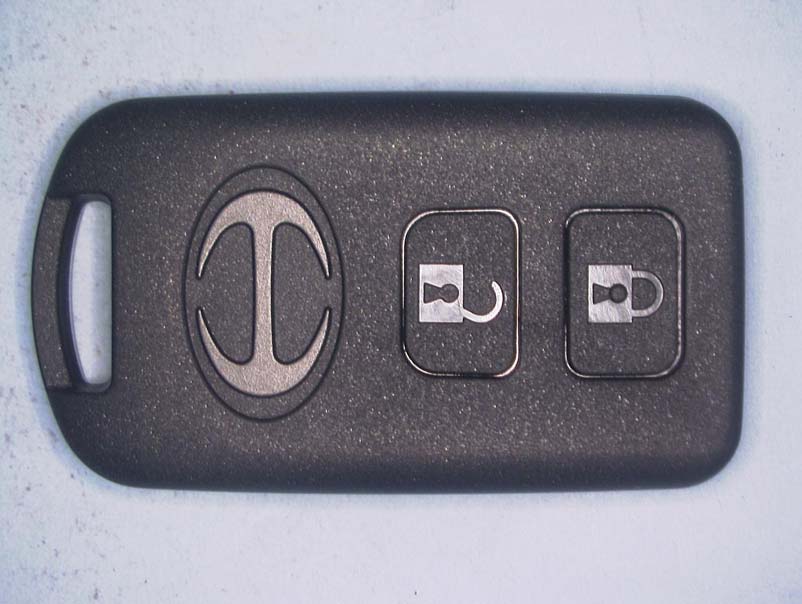

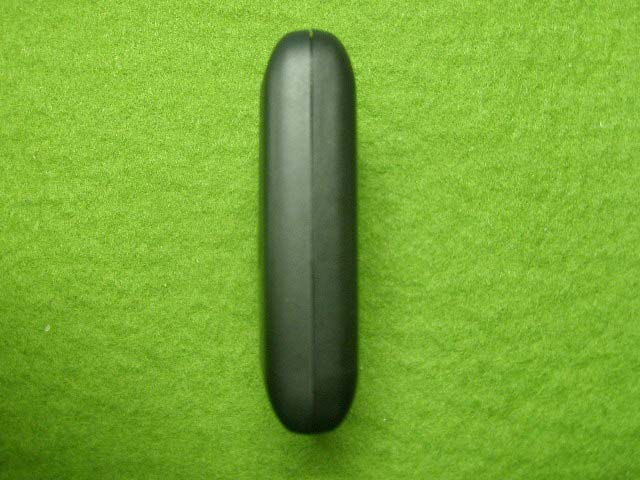

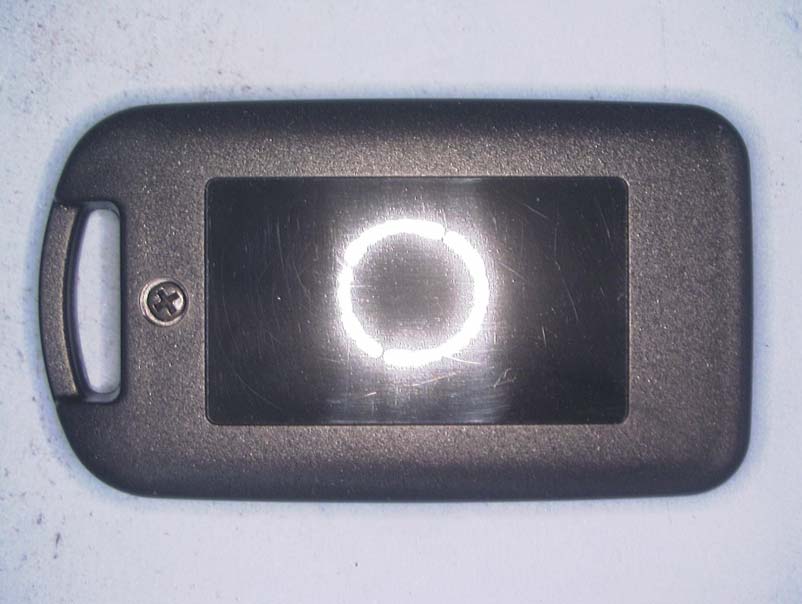

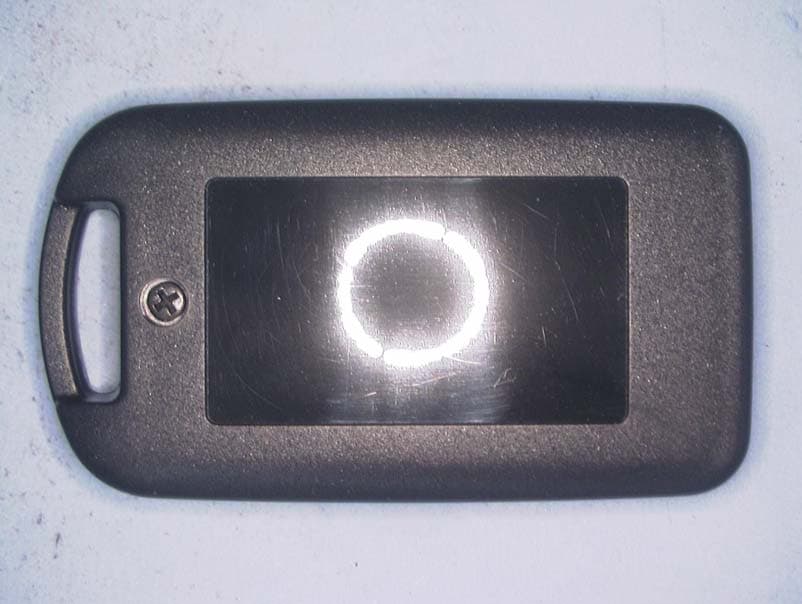

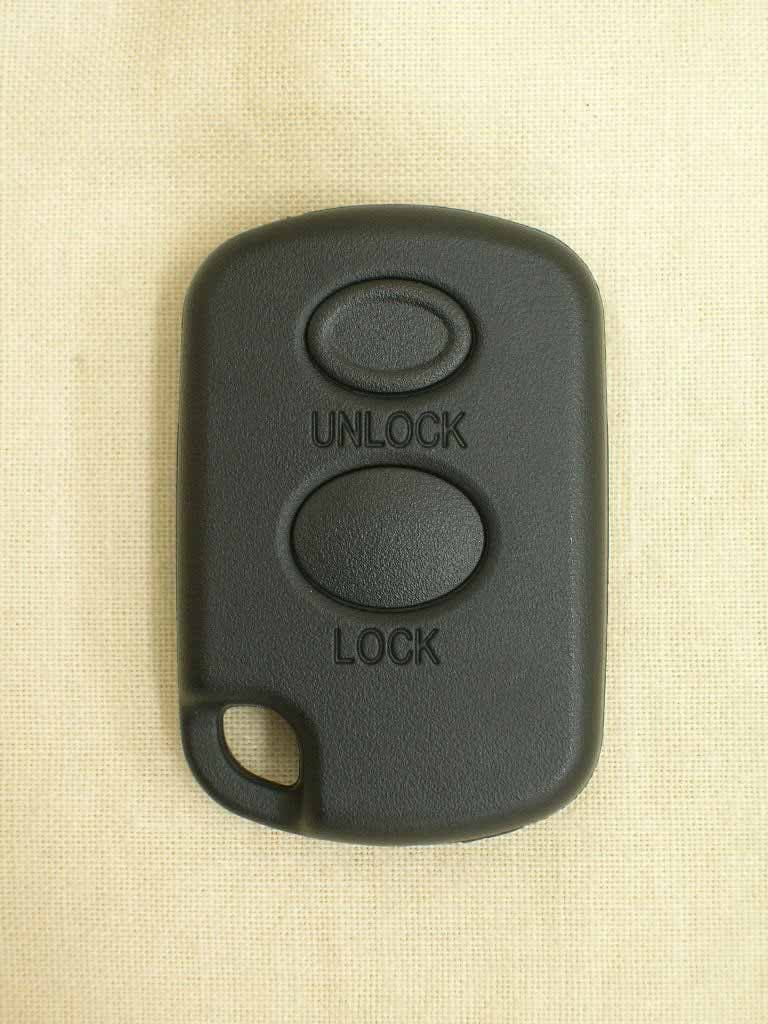

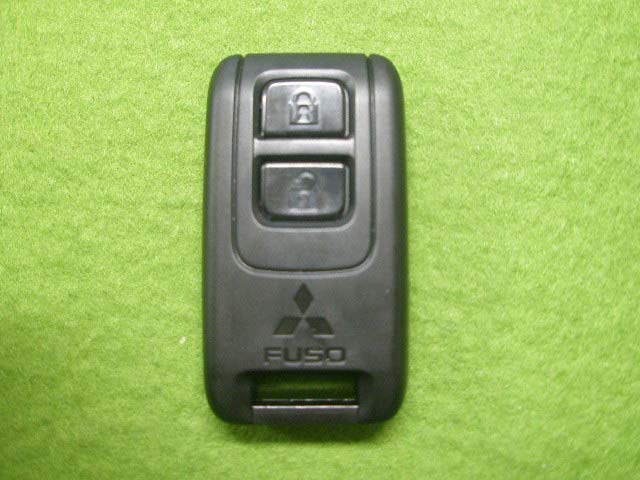

Transmitter(H7079) Front Top Side-A Rear Bottom Side-B Photo U-SHIN LTD. Model:WRDCE0050TX

Transmitter Label Drawing Label Location R R

Photo Model: H7079 Top Top Bottom

FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 2 of 19 Revised date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Table of Contents Page 1 Applicant Information 3 2 Equipment under test (E.U.T.) 3 3 Test Specification, Procedures and Results 4 4 System Test Configuration 6 5 Automatically Deactivate 7 6 Radiated Emissions (Fundamental & Spurious) 8 7 Bandwidth 9 Contents of Appendixes 10 FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 3 of 19 Revised date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 1 Applicant Information Company Name : U-SHIN LTD. Address : Shiba NBF Tower, 1-1-30 Shiba-daimon, Minato-ku, Tokyo 105-0012, Japan Telephone Number : +81-3-5401-4662 Facsimile Number : +81-3-5401-4685 Contact Person : Naoki Mukai 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : SWITCH ASSY, DOOR CONTROL Model No. : WRDCE0050TX Serial No. : 17(for Automatically Deactivate test), 19(for other tests) Rating : DC3.0V (CR2032) Country of Manufacture : Japan Receipt Date of Sample : December 16, 2009 Condition of EUT : Production Prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab. 2.2 Product Description Equipment type : Transmitter Frequency of operation : 315MHz Clock frequency : Microcomputer: 1MHz, PLL synthesizer: 9.8437MHz Type of modulation : ASK Antenna type : PWB Pattern antenna Antenna connector type : none *FCC Part15.31 (e) The test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. *FCC Part15.203 It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the requirement. FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 4 of 19 Revised date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part15 Subpart C: 2009 , final revised on December 2, 2009. Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209 Radiated emission limits, general requirements Section 15.231 Periodic operation in the band 40.66 - 40.70 MHz and above 70 MHz 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviationWorst Margin Results Conducted Emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC 15.207 - N/A *1) - N/A Automatically Deactivate ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.231(a)(1) Radiated N/A - Complied Electric Field Strength of Fundamental Emission ANSI C63.4: 2003 13. Measurement of intentional radiators FCC 15.231 (b) Radiated N/A 14.6dB (Horizontal, Peak with Duty Factor) Complied Electric Field Strength of Spurious Emission ANSI C63.4: 2003 13. Measurement of intentional radiators FCC 15.205 FCC 15.209 FCC 15.231 (b) Radiated N/A 0.3dB (2519.984MHz, Horizontal and Vertical, Peak with Duty Factor) Complied -20dB Bandwidth ANSI C63.4: 2003 13. Measurement of intentional radiators FCC 15.231(c) Radiated N/A - Complied *1) The test is not applicable since the EUT has no AC mains. Note: UL Japan’s EMI Work Procedures No.QPM05 and QPM15. 3.3 Addition to standard Item Test Procedure Specification Remarks Worst Margin Results Occupied Bandwidth (99%) RSS-Gen 4.6.1 RSS-Gen 4.6.1 Radiated - Complied * Other than above, no addition, exclusion nor deviation has been made from the standard. FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 5 of 19 Revised date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3.4 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. No.1 anechoic chamber ( ± ) No.2 anechoic chamber ( ± ) No.3 anechoic chamber ( ± ) Radiated emission (3m) 30-300MHz 4.4 dB 4.3 dB 4.5 dB 300-1000MHz 4.3 dB 4.2 dB 4.5 dB 1GHz< 5.7 dB 5.6 dB 5.6 dB The data listed in this report meets the limits unless the uncertainty is taken into consideration. 3.5 Test Location UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 JAB Accreditation No. : RTL02610 Test room Width x Depth x Height (m) Test room Width x Depth x Height (m) No.1 Semi-anechoic chamber 20.6 x 11.3 x 7.65 Maximum measurement distance: 10m No.1 shielded room 6.8 x 4.1 x 2.7 No.2 Semi-anechoic chamber 20.6 x 11.3 x 7.65 Maximum measurement distance: 10m No.2 shielded room 6.8 x 4.1 x 2.7 No.3 Semi-anechoic chamber 12.7 x 7.7 x 5.35 Maximum measurement distance: 5m No.3 shielded room 6.3 x 4.7 x 2.7 No.4 Semi-anechoic chamber 8.1 x 5.1 x 3.55 No.4 shielded room 4.4 x 4.7 x 2.7 No.5 shielded room 7.8 x 6.4 x 2.7 No.6 shielded room 7.8 x 6.4 x 2.7 No.1/ No.2/ No.3 anechoic chamber has been fully described in a report submitted to FCC office, and accepted on April 17, 2009 (Registration No.: 697847). IC Registration No. : 2973D-1 (No1 Semi-anechoic chamber) 2973D-2 (No2 Semi-anechoic chamber) 2973D-3 (No3 Semi-anechoic chamber) FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 6 of 19 Revised date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 4 System Test Configuration 4.1 Justification The EUT exercise program used during radiated and conduc…

Text truncated - open the document above for the full version.

Appendix 2 (Test Data) Automatically deactivate UL Japan, Inc. SHONAN EMC Lab. No.5 Shielded room COMPANY : U-SHIN LTD. REPORT NO : 29LE0111-HO-01-B-R1 EQUIPMENT : SWITCH ASSY, DOOR CONTOROL REGULATION : FCC Part15SubpartC 231(a)(1) MODEL NUMBER : WRDCE0050TX DATE : 2009/12/22 SERIAL NUMBER : 17 TEMP./HUMI : 23°C/37％ POWER : DC3V TEST MODE : Normal use ENGINEER : Hikaru Shirasawa Operation in FCC15.231(a)(1) (Limit: total ≤5sec) Time of Transmitting [sec] Limit [sec] 0.34583 5.00 UL Japan, Inc. SHONAN EMC Lab. No.1 Semi-Anechoic Chamber Report No.: 29LE0111-HO-01-B-R1 Company: U-SHIN.LTD Equipment: SWITCH ASSY, DOOR CONTROLRegulation: FCC Part15C Section 15.231(b), 15.209 Model: WRDCE0050TXTest Distance: 3m Sample No.: 19Date : 2009/12/18 Power: DC 3.0V (Battery)Temperature: 18deg.C Mode: Transmitting 315MHzHumidity: 36% ENGINEER : Akio Hayashi Peak with Duty factor FrequencyAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m]HorVerof Restricted Bands 314.99875.772.814.19.231.7-6.361.058.175.614.617.5 Carrier 629.99640.540.919.210.832.0-6.332.232.655.623.423.0 Outside(Hor:X, Ver:Y-axis) 944.99432.429.822.412.131.1-6.329.526.955.626.128.7 Outside(Hor:X, Ver:Y-axis) 1259.99250.950.324.32.539.7-6.331.731.155.623.924.5 Outside(Hor:X, Ver:Y-axis) 1574.99054.855.025.02.839.5-6.336.837.053.917.116.9 Inside(Hor:X, Ver:Y-axis) 1889.98866.867.325.83.139.5-6.349.950.455.65.75.2 Outside(Hor:Y, Ver:Y-axis) 2204.98650.250.326.93.439.3-6.334.935.053.919.018.9 Inside(Hor:X, Ver:Y-axis) 2519.98468.968.928.13.739.1-6.355.355.355.60.30.3 Outside(Hor:Z, Ver:Z-axis) 2834.98264.863.128.53.939.5-6.351.449.753.92.54.2 Inside(Hor:X, Ver:Y-axis) 3149.98067.766.228.74.139.8-6.354.452.955.61.22.7 Outside(Hor:Z, Ver:Y-axis ) Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) Peak FrequencyAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m]HorVerof Restricted Bands 314.99875.772.814.19.231.7-67.364.4--- Carrier(Reference) 1259.99250.950.324.32.539.7-38.037.475.637.638.2 Outside(Hor:X, Ver:Y-axis) 1574.99054.855.025.02.839.5-43.143.373.930.830.6 Inside(Hor:X, Ver:Y-axis) 1889.98866.867.325.83.139.5-56.256.775.619.418.9 Outside(Hor:Y, Ver:Y-axis) 2204.98650.250.326.93.439.3-41.241.373.932.732.6 Inside(Hor:X, Ver:Y-axis) 2519.98468.968.928.13.739.1-61.661.675.614.014.0 Outside(Hor:Z, Ver:Z-axis) 2834.98264.863.128.53.939.5-57.756.073.916.217.9 Inside(Hor:X, Ver:Y-axis) 3149.98067.766.228.74.139.8-60.759.275.614.916.4 Outside(Hor:Z, Ver:Y-axis) Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) REMARKS ANTENNA TYPE: 30-300MHz Biconical / 300-1000MHz Logperiodic / 1-3.2GHz DRG Horn *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). [dBuV][dBuV/m][dB] [dBuV][dBuV/m][dB] ReadingResultMargin ReadingResultMargin Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Duty Cycle UL Japan, Inc. Shonan No.1 Semi-Anechoic Chamber COMPANY : U-SHIN LTD. REPORT NO. : 29LE0111-HO-01-B-R1 EQUIPMENT : SWITCH ASSY, DOOR CONTROL DATE : 2009/12/18 MODEL NUMBER : WRDCE0050TX TEMP./HUMI : 18deg.C./36% SERIAL NUMBER : 19 TEST MODE : Transmitting 315MHz POWER : DC3V ENGINEER : Akio Hayashi ON time(One pulse)ON time(in 100ms) TypeTimes[ms][ms] A151.02615.39 B650.50833.02 *1)ON time(in 100ms) = Times * ON time(One pulse) *2)The train of pulses was exceeding 100msec, and that sampled 100msec was the worst case against the pulse (Total) ON timeCycleDutyDuty [ms][ms](On time/Cycle)[dB] 48.41100.000.48-6.3 *3)ON time = Type A's ON time (in 100ms) + Type B's ON time (in 100ms) *4)Duty = 20log 10 (ON time/Cycle) Duty Cycle UL Japan, Inc. Shonan No.1 Semi-Anechoic Chamber COMPANY : U-SHIN LTD. REPORT NO. : 29LE0111-HO-01-B-R1 EQUIPMENT : SWITCH ASSY, DOOR CONTROL DATE : 2009/12/18 MODEL NUMBER : WRDCE0050TX TEMP./HUMI : 18deg.C./36% SERIAL NUMBER : 19 TEST MODE : Transmitting 315MHz POWER : DC3V ENGINEER : Akio Hayashi Att 10 dB * * A 3DB RBW 100 kHz VBW 1 MHz DC SWT 100 msRef 75 dBμV * * Center 2.519984 GHz10 ms/ 1 PK CLRWR 2 PK CLRWR SGL 25 30 35 40 45 50 55 60 65 70 75 1 Marker 1 [T1 ] 67.47 dBμV 2.500000 ms Date: 18.DEC.2009 09:24:07 Att 10 dB * * A 3DB RBW 100 kHz VBW 1 MHz DC Ref 75 dBμV SGL Center 2.519984 GHz400 μs/ SWT 4 ms * * 1 PK CLRWR 2 PK CLRWR 25 30 35 40 45 50 55 60 65 70 75 1 Marker 1 [T1 ] 37.46 dBμV 2.546641 ms 1 Delta 1 [T1 ] 15.72 dB 1.025641 ms Date: 18.DEC.2009 09:29:00 Att 10 dB * * A 3DB RBW 100 kHz VBW 1 MHz DC Ref 75 dBμV SGL Center 2.519984 GHz400 μs/ SWT 4 ms * * 1 PK CLRWR 2 PK CLRWR 25 30 35 40 45 50 55 60 65 70 75 1 Marker 1 [T1 ] 48.66 dBμ V 508.179487 μs 1 Delta 1 [T1 ] -2.08 dB 512.820513 μs Date: 18.DEC.2009 09:28:26 ：Type A Other ：Type B Type B Type A 20dB Bandwidth UL Japan, Inc. Shonan No.2 Semi-Anechoic Chamber COMPANY : U-SHIN LTD. REPORT NO : 29LE0111-HO-01-B-R1 EQUIPMENT : SWITCH ASSY, DOOR CONTOROL REGULATION : FCC Part15SubpartC 231(c) MODEL NUMBER : WRDCE0050TX DATE : 2009/12/16 SERIAL NUMBER : 19 TEMP./HUMI : 23°C/30％ POWER : DC3V TEST MODE : Transmitting 315MHz ENGINEER : Hikaru Shirasawa Bandwidth Limit : fundamental Frequency 315MHz X 0.25%= 787.5 kHz -20dB Bandwidth [kHz] Bandwidth Limit [kHz] Result 90.000 787.5 Pass Occupied Bandwidth(99%) UL Japan, Inc. Shonan No.2 Semi-anechoic Chamber COMPANY : U-SHIN LTD. REPORT NO : 29LE0111-HO-01-B-R1 EQUIPMENT : SWITCH ASSY, DOOR CONTOROL REGULATION : RSS-Gen 4.6.1 MODEL NUMBER : WRDCE0050TX DATE : 2009/12/16 SERIAL NUMBER : 19 TEMP./HUMI : 23°C/30％ POWER : DC3V TEST MODE : Transmitting 315MHz ENGINEER : Hikaru Shirasawa 99% Occupied Bandwidth [kHz] 469.4252kHz UL Japan, Inc. Page : Test Report No：29LE0111-HO-01 APPENDIX 3 Test Instruments EMI test equipment Control No.InstrumentManufacturerModel NoSerial NoTest ItemCalibration Date * Interval(month) SAF-01Pre AmplifierSONOMA310N290211…

Text truncated - open the document above for the full version.

FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 11 of 19 Revised date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 APPENDIX 1: Photographs of test setup Radiated emission FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 12 of 19 Revised date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis
