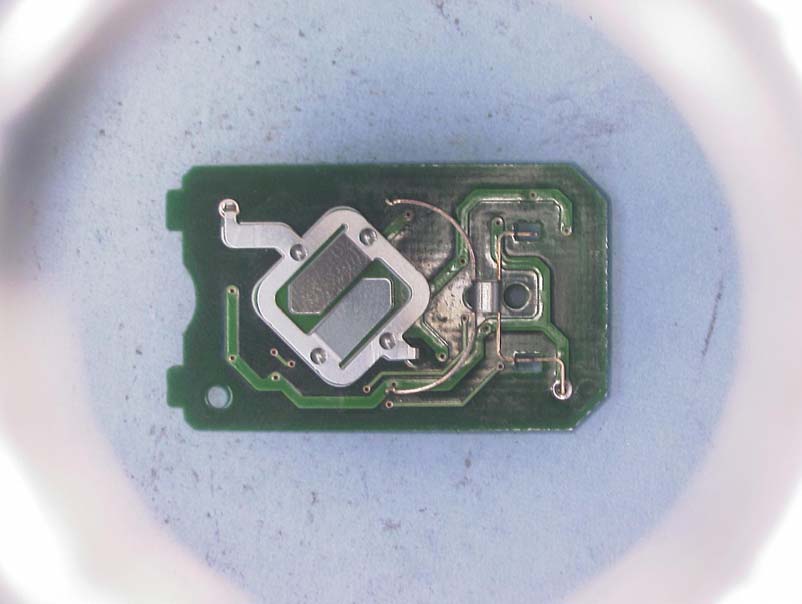

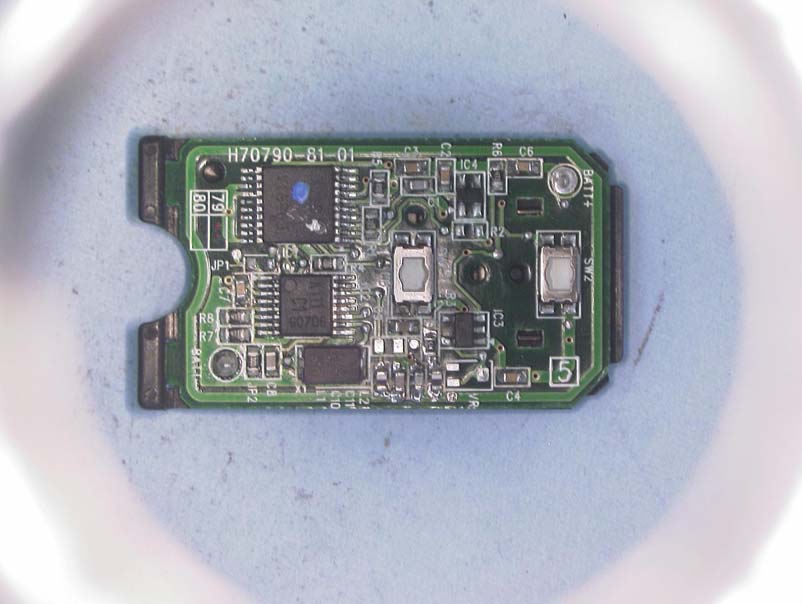

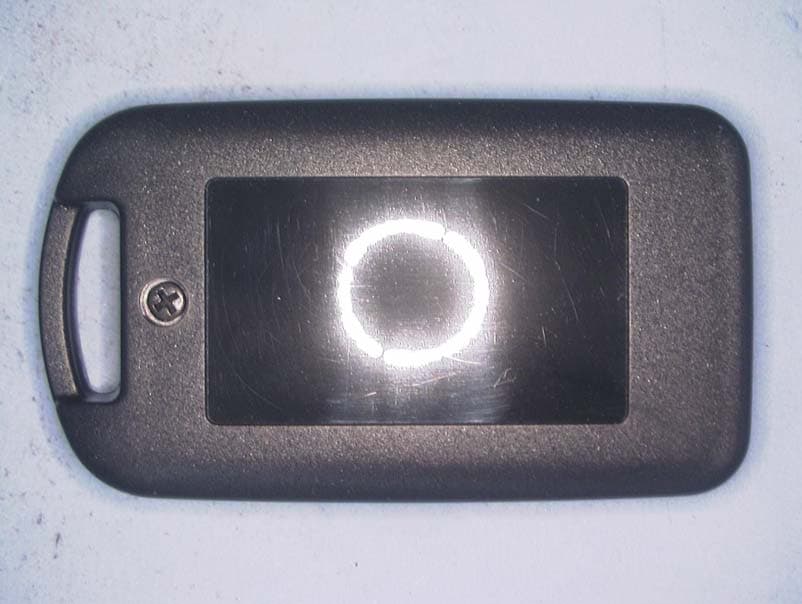

Photo U-SHIN LTD. Model:WRDCE0050TX Photo U-SHIN LTD. Model:WRDCE0050TX

8 4 9 3 0 - E 0 0 5 0 R 8 4 9 3 0 - E 0 0 5 0 R

Photo U-SHIN LTD. Model:WRDCE0050TX Photo U-SHIN LTD. Model:WRDCE0050TX

FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 2 of 19 Reviced date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Table of Contents Page 1 Applicant Information 3 2 Equipment under test (E.U.T.) 3 3 Test Specification, Procedures and Results 4 4 System Test Configuration 6 5 Automatically Deactivate 7 6 Radiated Emissions (Fundamental & Spurious) 8 7 Bandwidth 9 Contents of Appendixes 10 FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 3 of 19 Reviced date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 1 Applicant Information Company Name : U-SHIN LTD. Address : Shiba NBF Tower, 1-1-30 Shiba-daimon, Minato-ku, Tokyo 105-0012, Japan Telephone Number : +81-3-5401-4662 Facsimile Number : +81-3-5401-4685 Contact Person : Naoki Mukai 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : SWITCH ASSY, DOOR CONTROL Model No. : WRDCE0050TX Serial No. : 17(for Automatically Deactivate test), 19(for other tests) Rating : DC3.0V (CR2032) Country of Manufacture : Japan Receipt Date of Sample : December 16, 2009 Condition of EUT : Production Prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab. 2.2 Product Description Equipment type : Transmitter Frequency of operation : 315MHz Clock frequency : Microcomputer: 1MHz, PLL synthesizer: 9.8437MHz Type of modulation : ASK Antenna type : PWB Pattern antenna Antenna connector type : none *FCC Part15.31 (e) The test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. *FCC Part15.203 It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the requirement. FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 4 of 19 Reviced date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part15 Subpart C: 2009 , final revised on December 2, 2009. Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209 Radiated emission limits, general requirements Section 15.231 Periodic operation in the band 40.66 - 40.70 MHz and above 70 MHz 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviationWorst Margin Results Conducted Emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC 15.207 - N/A *1) - N/A Automatically Deactivate ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.231(a)(1) Radiated N/A - Complied Electric Field Strength of Fundamental Emission ANSI C63.4: 2003 13. Measurement of intentional radiators FCC 15.231 (b) Radiated N/A 14.6dB (Horizontal, Peak with Duty Factor) Complied Electric Field Strength of Spurious Emission ANSI C63.4: 2003 13. Measurement of intentional radiators FCC 15.205 FCC 15.209 FCC 15.231 (b) Radiated N/A 0.3dB (2519.984MHz, Horizontal and Vertical, Peak with Duty Factor) Complied -20dB Bandwidth ANSI C63.4: 2003 13. Measurement of intentional radiators FCC 15.231(c) Radiated N/A - Complied *1) The test is not applicable since the EUT has no AC mains. Note: UL Japan’s EMI Work Procedures No.QPM05 and QPM15. 3.3 Addition to standard Item Test Procedure Specification Remarks Worst Margin Results Occupied Bandwidth (99%) RSS-Gen 4.6.1 RSS-Gen 4.6.1 Radiated - Complied * Other than above, no addition, exclusion nor deviation has been made from the standard. FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 5 of 19 Reviced date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3.4 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. No.1 anechoic chamber ( ± ) No.2 anechoic chamber ( ± ) No.3 anechoic chamber ( ± ) Radiated emission (3m) 30-300MHz 4.4 dB 4.3 dB 4.5 dB 300-1000MHz 4.3 dB 4.2 dB 4.5 dB 1GHz< 5.7 dB 5.6 dB 5.6 dB The data listed in this report meets the limits unless the uncertainty is taken into consideration. 3.5 Test Location UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 JAB Accreditation No. : RTL02610 Test room Width x Depth x Height (m) Test room Width x Depth x Height (m) No.1 Semi-anechoic chamber 20.6 x 11.3 x 7.65 Maximum measurement distance: 10m No.1 shielded room 6.8 x 4.1 x 2.7 No.2 Semi-anechoic chamber 20.6 x 11.3 x 7.65 Maximum measurement distance: 10m No.2 shielded room 6.8 x 4.1 x 2.7 No.3 Semi-anechoic chamber 12.7 x 7.7 x 5.35 Maximum measurement distance: 5m No.3 shielded room 6.3 x 4.7 x 2.7 No.4 Semi-anechoic chamber 8.1 x 5.1 x 3.55 No.4 shielded room 4.4 x 4.7 x 2.7 No.5 shielded room 7.8 x 6.4 x 2.7 No.6 shielded room 7.8 x 6.4 x 2.7 No.1/ No.2/ No.3 anechoic chamber has been fully described in a report submitted to FCC office, and accepted on April 17, 2009 (Registration No.: 697847). IC Registration No. : 2973D-1 (No1 Semi-anechoic chamber) 2973D-2 (No2 Semi-anechoic chamber) 2973D-3 (No3 Semi-anechoic chamber) FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 6 of 19 Reviced date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 4 System Test Configuration 4.1 Justification The EUT exercise program used during radiated and conduc…

Text truncated - open the document above for the full version.

Appendix 2 (Test Data) Automatically deactivate UL Japan, Inc. SHONAN EMC Lab. No.5 Shielded room COMPANY : U-SHIN LTD. REPORT NO : 29LE0111-HO-01-B-R1 EQUIPMENT : SWITCH ASSY, DOOR CONTOROL REGULATION : FCC Part15SubpartC 231(a)(1) MODEL NUMBER : WRDCE0050TX DATE : 2009/12/22 SERIAL NUMBER : 17 TEMP./HUMI : 23°C/37％ POWER : DC3V TEST MODE : Normal use ENGINEER : Hikaru Shirasawa Operation in FCC15.231(a)(1) (Limit: total ≤5sec) Time of Transmitting [sec] Limit [sec] 0.34583 5.00 UL Japan, Inc. SHONAN EMC Lab. No.1 Semi-Anechoic Chamber Report No.: 29LE0111-HO-01-B-R1 Company: U-SHIN.LTD Equipment: SWITCH ASSY, DOOR CONTROLRegulation: FCC Part15C Section 15.231(b), 15.209 Model: WRDCE0050TXTest Distance: 3m Sample No.: 19Date : 2009/12/18 Power: DC 3.0V (Battery)Temperature: 18deg.C Mode: Transmitting 315MHzHumidity: 36% ENGINEER : Akio Hayashi Peak with Duty factor FrequencyAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m]HorVerof Restricted Bands 314.99875.772.814.19.231.7-6.361.058.175.614.617.5 Carrier 629.99640.540.919.210.832.0-6.332.232.655.623.423.0 Outside(Hor:X, Ver:Y-axis) 944.99432.429.822.412.131.1-6.329.526.955.626.128.7 Outside(Hor:X, Ver:Y-axis) 1259.99250.950.324.32.539.7-6.331.731.155.623.924.5 Outside(Hor:X, Ver:Y-axis) 1574.99054.855.025.02.839.5-6.336.837.053.917.116.9 Inside(Hor:X, Ver:Y-axis) 1889.98866.867.325.83.139.5-6.349.950.455.65.75.2 Outside(Hor:Y, Ver:Y-axis) 2204.98650.250.326.93.439.3-6.334.935.053.919.018.9 Inside(Hor:X, Ver:Y-axis) 2519.98468.968.928.13.739.1-6.355.355.355.60.30.3 Outside(Hor:Z, Ver:Z-axis) 2834.98264.863.128.53.939.5-6.351.449.753.92.54.2 Inside(Hor:X, Ver:Y-axis) 3149.98067.766.228.74.139.8-6.354.452.955.61.22.7 Outside(Hor:Z, Ver:Y-axis ) Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) Peak FrequencyAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m]HorVerof Restricted Bands 314.99875.772.814.19.231.7-67.364.4--- Carrier(Reference) 1259.99250.950.324.32.539.7-38.037.475.637.638.2 Outside(Hor:X, Ver:Y-axis) 1574.99054.855.025.02.839.5-43.143.373.930.830.6 Inside(Hor:X, Ver:Y-axis) 1889.98866.867.325.83.139.5-56.256.775.619.418.9 Outside(Hor:Y, Ver:Y-axis) 2204.98650.250.326.93.439.3-41.241.373.932.732.6 Inside(Hor:X, Ver:Y-axis) 2519.98468.968.928.13.739.1-61.661.675.614.014.0 Outside(Hor:Z, Ver:Z-axis) 2834.98264.863.128.53.939.5-57.756.073.916.217.9 Inside(Hor:X, Ver:Y-axis) 3149.98067.766.228.74.139.8-60.759.275.614.916.4 Outside(Hor:Z, Ver:Y-axis) Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) REMARKS ANTENNA TYPE: 30-300MHz Biconical / 300-1000MHz Logperiodic / 1-3.2GHz DRG Horn *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). [dBuV][dBuV/m][dB] [dBuV][dBuV/m][dB] ReadingResultMargin ReadingResultMargin Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Duty Cycle UL Japan, Inc. Shonan No.1 Semi-Anechoic Chamber COMPANY : U-SHIN LTD. REPORT NO. : 29LE0111-HO-01-B-R1 EQUIPMENT : SWITCH ASSY, DOOR CONTROL DATE : 2009/12/18 MODEL NUMBER : WRDCE0050TX TEMP./HUMI : 18deg.C./36% SERIAL NUMBER : 19 TEST MODE : Transmitting 315MHz POWER : DC3V ENGINEER : Akio Hayashi ON time(One pulse)ON time(in 100ms) TypeTimes[ms][ms] A151.02615.39 B650.50833.02 *1)ON time(in 100ms) = Times * ON time(One pulse) *2)The train of pulses was exceeding 100msec, and that sampled 100msec was the worst case against the pulse (Total) ON timeCycleDutyDuty [ms][ms](On time/Cycle)[dB] 48.41100.000.48-6.3 *3)ON time = Type A's ON time (in 100ms) + Type B's ON time (in 100ms) *4)Duty = 20log 10 (ON time/Cycle) Duty Cycle UL Japan, Inc. Shonan No.1 Semi-Anechoic Chamber COMPANY : U-SHIN LTD. REPORT NO. : 29LE0111-HO-01-B-R1 EQUIPMENT : SWITCH ASSY, DOOR CONTROL DATE : 2009/12/18 MODEL NUMBER : WRDCE0050TX TEMP./HUMI : 18deg.C./36% SERIAL NUMBER : 19 TEST MODE : Transmitting 315MHz POWER : DC3V ENGINEER : Akio Hayashi Att 10 dB * * A 3DB RBW 100 kHz VBW 1 MHz DC SWT 100 msRef 75 dBμV * * Center 2.519984 GHz10 ms/ 1 PK CLRWR 2 PK CLRWR SGL 25 30 35 40 45 50 55 60 65 70 75 1 Marker 1 [T1 ] 67.47 dBμV 2.500000 ms Date: 18.DEC.2009 09:24:07 Att 10 dB * * A 3DB RBW 100 kHz VBW 1 MHz DC Ref 75 dBμV SGL Center 2.519984 GHz400 μs/ SWT 4 ms * * 1 PK CLRWR 2 PK CLRWR 25 30 35 40 45 50 55 60 65 70 75 1 Marker 1 [T1 ] 37.46 dBμV 2.546641 ms 1 Delta 1 [T1 ] 15.72 dB 1.025641 ms Date: 18.DEC.2009 09:29:00 Att 10 dB * * A 3DB RBW 100 kHz VBW 1 MHz DC Ref 75 dBμV SGL Center 2.519984 GHz400 μs/ SWT 4 ms * * 1 PK CLRWR 2 PK CLRWR 25 30 35 40 45 50 55 60 65 70 75 1 Marker 1 [T1 ] 48.66 dBμ V 508.179487 μs 1 Delta 1 [T1 ] -2.08 dB 512.820513 μs Date: 18.DEC.2009 09:28:26 ：Type A Other ：Type B Type B Type A 20dB Bandwidth UL Japan, Inc. Shonan No.2 Semi-Anechoic Chamber COMPANY : U-SHIN LTD. REPORT NO : 29LE0111-HO-01-B-R1 EQUIPMENT : SWITCH ASSY, DOOR CONTOROL REGULATION : FCC Part15SubpartC 231(c) MODEL NUMBER : WRDCE0050TX DATE : 2009/12/16 SERIAL NUMBER : 19 TEMP./HUMI : 23°C/30％ POWER : DC3V TEST MODE : Transmitting 315MHz ENGINEER : Hikaru Shirasawa Bandwidth Limit : fundamental Frequency 315MHz X 0.25%= 787.5 kHz -20dB Bandwidth [kHz] Bandwidth Limit [kHz] Result 90.000 787.5 Pass Occupied Bandwidth(99%) UL Japan, Inc. Shonan No.2 Semi-anechoic Chamber COMPANY : U-SHIN LTD. REPORT NO : 29LE0111-HO-01-B-R1 EQUIPMENT : SWITCH ASSY, DOOR CONTOROL REGULATION : RSS-Gen 4.6.1 MODEL NUMBER : WRDCE0050TX DATE : 2009/12/16 SERIAL NUMBER : 19 TEMP./HUMI : 23°C/30％ POWER : DC3V TEST MODE : Transmitting 315MHz ENGINEER : Hikaru Shirasawa 99% Occupied Bandwidth [kHz] 469.4252kHz UL Japan, Inc. Page : Test Report No：29LE0111-HO-01 APPENDIX 3 Test Instruments EMI test equipment Control No.InstrumentManufacturerModel NoSerial NoTest ItemCalibration Date * Interval(month) SAF-01Pre AmplifierSONOMA310N290211…

Text truncated - open the document above for the full version.

FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 11 of 19 Reviced date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 APPENDIX 1: Photographs of test setup Radiated emission FCC ID : OBIWRDCE0050TX Test report No. : 29LE0111-HO-01-B-R1 Page : 12 of 19 Reviced date : January 19, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis
