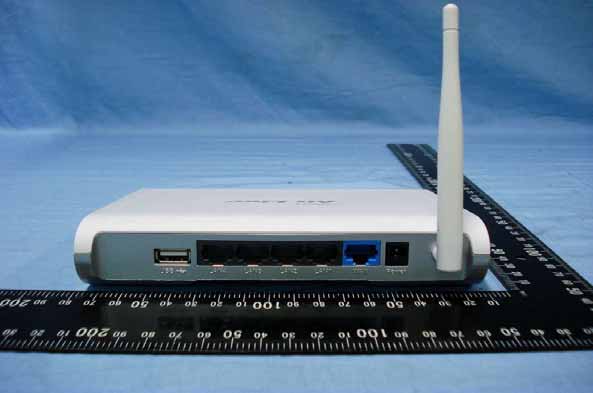

Compliance Certification Services Inc. Report No.:T110324402 Date of Issue: May 26, 2011 Page A1 / 7 PHOTOGRAPHS OF EUT External Photo (Model: Air3G) Compliance Certification Services Inc. Report No.:T110324402 Date of Issue: May 26, 2011 Page A2 / 7 Antenna gain 2.35 dBi Compliance Certification Services Inc. Report No.:T110324402 Date of Issue: May 26, 2011 Page A3 / 7 Antenna gain 2 dBi Compliance Certification Services Inc. Report No.:T110324402 Date of Issue: May 26, 2011 Page A4 / 7 Compliance Certification Services Inc. Report No.:T110324402 Date of Issue: May 26, 2011 Page A5 / 7

Diagram p Label location FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that ma y cause undesired operation.

Compliance Certification Services Inc. Report No.:T110324402 Date of Issue: May 26, 2011 Page A6 / 8 Internal Photo (Antenna gain 2.35 dBi) Antenna gain 2 dBi ANT ANT Compliance Certification Services Inc. Report No.:T110324402 Date of Issue: May 26, 2011 Page A7 / 8 Compliance Certification Services Inc. Report No.:T110324402 Date of Issue: May 26, 2011 Page A8 / 8

Description of Operation The EUT is a Wireless 11n 150Mbps 3G Broadband Router with IEEE 802.11b/g/n . And this device provided of transmitting speed: IEEE 802.11b：11, 5.5, 2, 1 Mbps IEEE 802.11g：54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps IEEE 802.11n HT40 : 150 ,135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK . The device adapts DSSS and OFDM modulation. And the antenna was a Dipole antenna and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network. Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz～2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz～2452MHz The ANT 0 is 1TX1RX , and ANT 1 is 1RX (just for option). ANT 1 is not used for this application. Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40: 5MHz Channel Number IEEE 802.11b/g, 802.11n HT20:11 Channels IEEE 802.11n HT40 :7 Channels

規格承認書 Specification for Approval 客 戶： 永 洋 Customer 品 名: 2.4GHz 2.35dBi ANTENNA WHITE ANT-WIFI-2.35dBi-C:驊陞,剝皮鍍錫,Cable=160mm,白色 GY111HT467-012 Part name 料 號：GY111HT467-012 Part No. 客戶料號：11320Y11065A1 Customer Part No. Rev.(版本): 01 客戶承認印 CUSTOMER APPROVED BY APPROVAL CHIEF SUPERVISOR Approval No. Model Part No. CHIEF SALES R&D DESIGN Andy Teri Tseng Ta mmy River Date: 2010/10/18 Date: 2010/10/18 驊 陞 科 技 股 份 有 限 公 司 WIESON TECHNOLOGIES CO., LTD. 表格編號：324012 版本: 第四版 WIESON TECHNOLOGIES CO., LTD. SPECIFICATION LIST TYPE OF PRODUCT ANTENNA ITEM INDEX PAGE 1. THE PRODUCT SPECIFICATION LIST.......................................................... 1 2. DRAWING OF PRODUCT.............................................................................. 2 3. SPECIFICATION OF CABLE.......................................................................... 3 4. SPECIFICATION OF PLASTIC....................................................................... 4~6 5. SPECIFICATION OF COPPER TUBE............................................................ 7 6. TEST REPORT............................................................................................ 8~15 7. GUARANTEE OF HAZARDOUS SUBSTANCES................................................. 16 8. WIESON CERTIFICATE............................................................................... 17~18 Approvals Rev Date Description Edited by Prepared : River 01 2010/10/18 ISSUE River Checked : Tammy 02 2011/02/08 ADD CHAMBER TEST RESULT Jerry Approved : Andy Issued No : Sheet : 1 OF 18 No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. Panlite L-1250Z 100 CategoryUnitTest MethodCondition L-1250Z 100 Melt volume flow rate cm 3 /10min ISO 1133300deg.C load 1.2kg8 Density kg/m 3 ISO 1183-1200 Water absorption rate%ISO 62in water 23deg.C 24h0.2 Light transmission%ASTM D 1003thickness 3mm88 Refractive index-ASTM D 542-1.585 Tensile modulusMPa1mm/min2400 Tensile stress at yieldMPa50mm/min61 Tensile strain at yield%50mm/min6 Nominal tensile strain at break %50mm/min>50 Flexural modulusMPa2mm/min2350 Flexural strengthMPa2mm/min93 unnotchedNB notched76 1.80MPa129 0.45MPa142 Vicat softening tem perature deg.CISO 30650deg.C/h 50N149 parallel0.5-0.7 vertical0.5-0.7 parallel0.7 vertical0.7 -100Hz3.1 -1MHz3 ×10 -4 100Hz10 ×10 -4 1MHz90 Volume resistivityohm-mIEC 60093- >1×10 13 Surface resistivityohmIEC 60093- >1×10 15 Withstand voltageMV/mIEC 60243-1short time test30 Tracking resistance-IEC 60112-250 electric 1.47mmt125 impact 1.47mmt115 non-impact 1.47mmt125 * The values listed are specification values, not certified values. ISO 527-1 and ISO 527-2 ISO 178 Charpy impact strength kJ/m 2 ISO 179 Heat deflection temperature deg.C ISO 75-1 and ISO 75-2 Mold shrinkage% In-house method Coefficient of linear expansion ×10 -4 /k ISO 11359-2 Specific inductive capacity IEC 60250 Dielectric loss tangentIEC 60250 Flammability-UL 94 V-2(0.40mm) HB(1.5mm) - Temperature indexdeg.CUL 746B NOV-12-2007 12 : 17PM FROM-TA I WAN YOSON 70-1 AC I -D G, YmU-SI , JEOLLANAM-DO. KOREA HTTP: I/ w M.GN%I~E.CU -- r,. ;. Fax : (001 )680-8070 & '71.: a Te l : (061 ) 686--1669,15B4 , - 8 b, .. RTl F l GATE OF AwU 1 I 1 Customer I YOSON I NERhIAT I ONAL CO . , LTD Product /Grade I Tast I tsrn I Test Method 1 PEIT KEYFLEX ET1063D 25KG BAG Remark I Unit I Sp~e IRBSUI~SI Lot No. Quantity(Kg1 AT11631 I QOM.0W 2007.11 .O9 2021 6745 Low Temp I mp' ASN D256 Mln.3.0 I I I I 5 .€I Melt Flow Index (ASMD1238( 2:K)ExZ.IBkg _I/l~min) 21.00-27.00 1 26.29 1 I I-. 'I Date of Iswe Shore Hardness ASTM 02240 stye-D I 59.0-84.. 0 60.9 1 I Shlpment No. Flexural Modulus 3270 C 211 -0717.0 213.4 Yield strength YIE HEREBY CERT l FY THAT ABOVE-MENT I ONED TEST FIESULTS AqE CORRECT AND MEET OUR SPEC IF I CAT IONS. - a- . - - - YMSU SPECIALTY POLYMERS PLANT O.A. MANAGER 'ASTM I3338 250 mmlmln I E:g / crn* 180-240 189 WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 3/10 I. SUMMARY This report to account for the measurement setup and result of the Antenna. 1. The measurement setup includes s-parameter, pattern, and gain measurement. 2. The measured data for Antenna are presented and analysis. II. S-PARAMETER MEASUREMENT A. Reflection coefficient : (a) InstrumentNetwork Analyzer. (b) Setup (1) Calibrate the Network Analyzer by one port calibration using O.S.L. calibration kits. (2) Connect the antenna under test to the Network Analyzer. (3) Measure the S11(reflection coefficient) shown in Fig. 1. (4) Generally, the S11 is less than –10dB to ensure the 90% power into antenna and only less than 10% power back to system. Fig.1 Antenna measured in Network Analyzer WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 4/10 III. S-PARAMETER TEST RESULT Antenna Retune Loss (a) Antenna Frequency Sample 2.4GHz 2.45GHz 2.4835GHz 1 -17.837dB-30.28dB -28.058dB WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 5/10 IV. THE TEST INFORMATION IN ANECHOIC CHAMBER A. Scope This statement of work defines the requirements of a far-field antenna measurement range, which includes (1) One 325 cm (W) x 285 cm (H) x 640 cm (L) Antenna Measurement Anechoic Chamber, detailed requirements refer section 2.0 . (2) One Far-field Antenna Measurement System with spinning linear CP measurement capabilities, detailed requirement refer section 3.0 . (3) One broad-band transmitted antenna, detailed requirements refer section 8.0 . (4) Three NRL-4433 standard gain antennas, detailed requirements refer section 9.0 . B. Antenna Measurement Anechoic Chamber Fully anechoic chamber with dimension 325 cm in width, 285 cm in height and 640 cm in length. The quiet zone of this Chamber shall be greater than WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 6/10 70 cm @ 0.9 GHz, 50 cm @1.8 GHz, 44 cm @2.4 GHz, 28 cm @5.8 GHz, 16 cm @18 GHz. Contractor should be aware of this anechoic chamber is going to be used for perform…

Text truncated - open the document above for the full version.

Specification 1. Electrical Properties : 1.1 Frequency Range.................. 1.2 Impedance ..................... ... 1.3 VSWR .............................. 1.4 Return Loss........................ 1.5 Radiation ........................... 1.6 Gain(peak).........................2dBi 1.7 Polarization..................... ...Linear; Vertical 1.8 Admitted Power.................. 1.9 Cable.............................. ...RG-178 Cable 1.10 Connector........................ ...SMA Straight Plug Reverse 2. Physical Properties : 2.1 Antenna Body................ ... ...TPE 2.2 Antenna Base................ ... ...PC 2.3 Antenna Base................ ... ...PBT 2.4 Operating Temp. ............... ...-10к ~ +60к 2.5 Storage Temp. .................. ...-10к ~ +70к 2.6 Color .............................. White 1W 2.4GHz ~ 2.5GHz 50ȍ Nominal 1.92 :1Max. -10 dB Max. RF Antenna Assembly Omni-directional 1 2 3 2009/4/13 RF Antenna Assembly P/No.C381-510150-A SSR-91019 Spec:2.4~2.5GHz 4 ʳ 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C381-510150-A SSR-91019 E H-PLANE.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 5 ʳ 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C381-510150-A SSR-91019 V H-PLANE.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 6 11-15 Santai Rd., Hsinchuang, Taipei Hsien, 242, Taiwan, R.O.C. Nizing Electric Co., Ltd. Tel: 02 -29016164 Fax: 29050644 E-mail: [email protected] RG 178 B/UPAGE1 / 2 ISSUED 16. Oct. 2003 PRODUCT STANDARD FEP INSULATED HIGH-FREQUENCY COAXIAL CABLE REVISED I - Scope This specification presents a FEP insulated high- frequency coaxial cable AWG 30, 1.8 mm O.D. for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II - Construction ItemUnitDetails Material— CP-AG CompositionNo./mm AWG 30 or 7ͪ0.1 1. Inner Conductor Dia. (approx.)mm 0.305 Material— Extruded FEP Nom. O.D. mm 0.84 ± 0.05 2. Dielectric Color— Natural Material— Silver coated copper Composition — Braided (16 / 3 / 0.1) 3. Outer Conductor Dia. (approx)mm 1.29̈́0.01 Material— Extruded FEP Dia.mm 1.80̈́0.1 4. Jacket Color— Standard color is Light Orange MADE BY Note : APPROVALS 2 4 3 1 7 11-15 Santai Rd., Hsinchuang, Taipei Hsien, 242, Taiwan, R.O.C. Nizing Electric Co., Ltd. Tel: 02 -29016164 Fax: 29050644 E-mail: [email protected] RG 178 B/UPAGE2 / 2 ISSUED 16. Oct. 2003 PRODUCT STANDARD FEP INSULATED HIGH-FREQUENCY COAXIAL CABLE REVISED III – Characteristics ItemUnitSpecified ValueNote Temperature Rating к -55 ~ +200 Voltage LastingV1000 Dielectric core: No breakdown at AC 3 kv for 0.2 sec. Spark test Dielectric strength — Jacket: No breakdown at AC 3 kv for 0.2 sec. Spark test Characteristic Impedance Ω50 ± 2 TDR method CapacitancepF / m29.4at 1 kHz 52.01.0 GHz 94.03.0 GHz -5.0 GHz 16.0100.0 GHz Attenuation. (Max.)dB / 30m 33.0400.0 GHz Approx. Weight g / m 7.68 MADE BY Note : APPROVALS 8 ET-QA-0017-A2 ˖̂́́˸˶̇̂̅ޗᔆᢞࣔ஼ʳ ᢛᇛறᇆʳ ˪˻˴̌̈ʳˣ˂ˡ ʳ ˄˃˃ˀ˅˃˃˄˅ˉˉˀ˔˭ʳ ข঴ټጠʳ ˣ̅̂˷̈˶̇ʳˡ˴̀˸ʳ ʳ˕˼˺ʳ˦ˠ˔ʳ˦̇̅˴˼˺˻̇ʳˣ˿̈˺ʳ˥˸̉˸̅̆˸ʳ ̇̂̅ʳ˥ ̊ˀ˄ˊˋʳ ࿨ዌቹ૿ʳ 4 Pin 3. Ferrule 2. Duelectric 1. Assembly Body ʳ ʳٝګᔆޗ।૿๠෻ʳ ˄ʳ ˕̂˷̌ʳ ˕̅˴̆̆ʳ ˖̈ʳ ˣ˵ʳ ̇˸ʳ ̇˸ʾ˦́ ˭́ʳ ʳˣˢˠʳ˪˻˼̇˸ʳ ˅ʳ ˗˼˸˿˸˶̇̅˼˶ʳ ˧˸˹˿̂́ʳˣ˧ ̇ ̆ʳˡ˂˔ʳ ˆʳ ̇˸̅̅̈˿˸ʳ ˕̅˴̆̆ʳ ˖̈ʳ ˣ˵ʳ ̇˸ʳ ̇˸ʾ˦́ ˭́ʳ ʳ ˣ˿˴̇˸˷ʳˡ˼˶˾˸˿ʳˑˋ˃Ӵʵʳ ˇʳ ˣ˼́ʳ ˕̅˴̆̆ʳ ˖̈ʳ ˣ˵ʳ ̇˸ʳ ̇˸ʾ˦́ ˭́ʳ ʳ ˣ˿˴̇˸˷ʳ ̊̂˿˷ʳˈӴʵʳ ˥˸̀˴̅˾Κʳᓮ።ֆ׹ີʳ 9

Compliance Certification Services Inc. Reference No.: T110304401-RP1 FCC IDODMA3GII Report No.T110324402-RP1 Page 1 / 114 FCC 47 CFR PART 15 SUBPART C: 2009 AND ANSI C63.4: 2003 TEST REPORT For Wireless 11n 150Mbps 3G Broadband Router Model Number: Air3G Brand: Air Live Issued for OvisLink Corp. 5F , No.6 , Lane 130 , Min-Chuan Rd., Hsin-Tien City , Taipei County 231 , Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Ceng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Date: May 26, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Compliance Certification Services Inc. Reference No.: T110304401-RP1 FCC IDODMA3GII Report No.T110324402-RP1 Page 2 / 114 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 May 26, 2011 Initial Issue ALL Sunny Chang Compliance Certification Services Inc. Reference No.: T110304401-RP1 FCC IDODMA3GII Report No.T110324402-RP1 Page 3 / 114 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ................................................................................................ 4 2. EUT DESCRIPTION...................................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ........................................................................................ 5 3. DESCRIPTION OF TEST MODES ............................................................................................... 7 4. TEST METHODOLOGY................................................................................................................ 8 5. FACILITIES AND ACCREDITATIONS......................................................................................... 8 5.1 FACILITIES .............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................ 8 5.3 LABORATORY ACCREDITATIONS LISTINGS ...................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................... 9 6. CALIBRATION AND UNCERTAINTY .......................................................................................... 10 6.1 MEASURING INSTRUMENT CALIBRATION.......................................................................... 10 6.2 MEASUREMENT UNCERTAINTY .......................................................................................... 10 7. SETUP OF EQUIPMENT UNDER TEST ...................................................................................... 11 7.1 SETUP CONFIGURATION OF EUT........................................................................................ 11 7.2 SUPPORT EQUIPMENT ......................................................................................................... 12 7.3 EUT OPERATING CONDITION .............................................................................................. 13 8. APPLICABLE LIMITS AND TEST RESULTS.............................................................................. 14 8.1 6DB BANDWIDTH ................................................................................................................... 14 8.2 MAXIMUM PEAK OUTPUT POWER....................................................................................... 25 8.3 MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. 29 8.4 POWER SPECTRAL DENSITY ............................................................................................... 31 8.5 CONDUCTED SPURIOUS EMISSION.................................................................................... 41 8.6 RADIATED EMISSIONS .......................................................................................................... 58 8.6.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS .................................................. 58 8.6.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz.................................................. 62 8.6.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ................................................. 63 8.6.4 RESTRICTED BAND EDGES.......................................................................................... 87 8.7 POWERLINE CONDUCTED EMISSIONS .............................................................................. 105 9. ANTENNA REQUIREMENT .........................................................................................................109 9.1 STANDARD APPLICABLE ...................................................................................................... 109 9.2 ANTENNA CONNECTED CONSTRUCTION .......................................................................... 109 APPENDIX I SETUP PHOTOS......................................................................................................... 110 APPENDIX II PHOTOGRAPHS OF EUT.............................................................................A1 Compliance Certification Services Inc. Reference No.: T110304401-RP1 FCC IDODMA3GII Report No.T110324402-RP1 Page 4 / 114 1. TEST REPORT CERTIFICATION Applicant OvisLink Corp. Address 5F , No.6 , Lane 130 , Min-Chuan Rd., Hsin-Tien City , Taipei County 231 , Taiwan Equipment Under Test Wireless 11n 150Mbps 3G Broadband Router Model Number Air3G Brand Name Air Live Date of Test March 07, 2011 ~ April 07, 2011 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C : 2009 AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu…

Text truncated - open the document above for the full version.

!! Compliance Certification Services Inc. Reference No.: T110304401-RP1 FCC IDΚODMA3G҈ Report No.ΚT110324402-RP1 Page 110 / 114 APPENDIX I SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP !! Compliance Certification Services Inc. Reference No.: T110304401-RP1 FCC IDΚODMA3G҈ Report No.ΚT110324402-RP1 Page 111 / 114 RADIATED RF MEASUREMENT SETUP !! Compliance Certification Services Inc. Reference No.: T110304401-RP1 FCC IDΚODMA3G҈ Report No.ΚT110324402-RP1 Page 112 / 114 !! Compliance Certification Services Inc. Reference No.: T110304401-RP1 FCC IDΚODMA3G҈ Report No.ΚT110324402-RP1 Page 113 / 114 RF CONDUCTED SETUP !! Compliance Certification Services Inc. Reference No.: T110304401-RP1 FCC IDΚODMA3G҈ Report No.ΚT110324402-RP1 Page 114 / 114 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
