G.DUO Dual 11g Access Point User’s Manual Copyright and Disclaimer AirLive G.DUO User’s Manual Copyright & Disclaimer No part of this publication may be reproduced in any form or by any means, whether electronic, mechanical, photocopying, or recording without the written consent of OvisLink Corp. OvisLink Corp. has made the best effort to ensure the accuracy of the information in this user’s guide. However, we are not liable for the inaccuracies or errors in this guide. Please use with caution. All information is subject to change without notice Table of Contents AirLive G.DUO User’s Manual ii Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. All Trademarks are properties of their respective holders. Table of Contents i AirLive G.DUO User’s Manual Table of Contents 1. Introduction ................................................................................................ 1 1.1 Overview .............................................................................................. 1 1.2 Firmware Upgrade and Tech Support .................................................. 1 1.3 Features ............................................................................................... 2 1.4 Wireless Operation Modes ................................................................... 2 1.4.1 WISP + AP Mode ....................................................................................................... 2 1.4.2 Client + AP mode ....................................................................................................... 3 1.4.3 Dual AP Mode ............................................................................................................ 3 1.4.4 Gateway + AP ............................................................................................................ 3 1.4.5 WDS + AP .................................................................................................................. 4 2. Installing the G.DUO .................................................................................. 5 2.1 Before You Start ................................................................................... 5 2.2 Package Content ................................................................................. 5 2.3 Knowing your G.DUO ........................................................................... 6 2.4 Hardware Installation ........................................................................... 7 2.4.1 Passive PoE Installation ............................................................................................. 8 2.4.2 Wall Mount Installation ............................................................................................. 9 2.5 LED Table .......................................................................................... 10 2.6 Restore Settings to Default ................................................................ 10 3. Configuring the G.DUO ........................................................................... 11 3.1 Important Information ......................................................................... 11 3.2 Prepare your PC ................................................................................ 12 3.3 Management Interface ....................................................................... 12 Web Management (HTTP): ............................................................................................... 12 Secured Web Management (HTTPS): ............................................................................... 13 Command Line Interface (Telnet): .................................................................................... 13 Secure Shell (SSH, SSH2) ................................................................................................ 13 3.4 Introduct…

Text truncated - open the document above for the full version.

6. Client + AP Mode 61 AirLive G.DUO User’s Manual 6.3.3 Advance (Wireless Settings) Operation Mode -> Setup -> Advance „ Fragmentation: When the size of a unicast frame exceeds the fragmentation threshold, it will be fragmented before the transmission. It should have a value of 256-2346 bytes, with a default of 2346. If you experience a high packet error rate, you should slightly decrease the Fragmentation Threshold. „ RTS Threshold: RTS/CTS frames are used to gain control of the medium for transmission. Any unicast (data or control) frames larger than specified RTS threshold must be transmitted following the RTS/CTS handshake exchange mechanism. The RTS threshold should have a value between 256-2347 bytes, with a default of 2347. It is recommended that this value does not deviate from the default too much. „ Beacon Interval: The device broadcasts beacon frames regularly to announce its existence. The beacon Interval specifies how often beacon frames are transmitted in time unit of milliseconds. The default value is 100, and a valid value should be between 1 and 65,535. „ AckTimeOut: When a packet is sent out from one wireless station to the other, it will waits for an Acknowledgement frame from the remote station. The station will only wait for a certain amount of time, this time is called the ACK timeout. In most conditions, please put ACKtimeout value at zero(default value). The AP will calculate the ACKtimeout automatically when the value is zero. However, you can also enter 6. Client + AP Mode AirLive G.DUO User’s Manual 62 the ACKtimeout manually. „ Preamble Type: A preamble is a signal used in wireless environment to synchronize the transmitting timing including Synchronization and Start frame delimiter. In a "noisy" network environment, the Preamble Type should be set to Long Preamble. The Short Preamble is intended for applications where minimum overhead and maximum performance is desired. If in a "noisy" network environment, the performance will be decreased. „ IAPP: IAPP (Inter Access Point Protocol) is designed for the enforcement of unique association throughout a ESS (Extended Service Set) and a secure exchange of station’s security context between current access point (AP) and new AP during handoff period. „ BG Protection: The 802.11g standard includes a protection mechanism to ensure mixed 802.11b and 802.11g operation. If there is no such kind of mechanism exists, the two kinds of standards may mutually interfere and decrease network’s performance. . „ Hide SSID: Enable Hide SSID will make the AP network’s SSID invisible. A device can link with the AP only if correct SSID name is entered. „ Isolation: Enable Isolation will prevent wireless clients to see each other on the network. „ TX Power Level: You can set your TX Output power level here. Please note the maximum allowable TX output power in EU is 20dBm. Please do not exceed your country’s legal limit. 6.3.4 Access Control Operation Mode -> Setup -> Access Control The G.DUO allows you to define a list of MAC addresses that are allowed or denied to access the wireless network. This function is available only for Access Point and Gateway modes. 6. Client + AP Mode 63 AirLive G.DUO User’s Manual „ Access Control List „ Disable: When selected, no MAC address filtering will be performed. „ Allow list: When selected, data traffic from only the specified devices in the table will be allowed in the network. „ Deny list: When selected, data traffic from the devices specified in the table will be denied/discarded by the network. 6.3.5 Associated Clients Click on this to show the current wireless clients associated to the AP. It will display MAC adderss, Trasmit packet, Tx rate, power saving, expire time, and signal strength. 7. Gateway + AP Mode AirLive G.DUO User’s Manual 64 In this chapter, we will explain about the wireless settings for Gateway+AP Mode. Please be sure to read through Chapter 1.4 and Chapter 3’s “Introduction to Web Management” and “Initial Configurations” first. It is highly recommended that you use 2 directional antennas in this mode to achieve larger coverage and avoid mutual interference. If you need to use the supplied 2dBi Omni antennas, please adjust them according to the diagram below: 7.1 Application for Gateway +AP Mode In this mode, both Radio1 and Radio2 are performing as AP Router. This is perfect for shopping mall or office where they can extend the coverage of the wireless IP sharing. 7 7. Gateway + AP Mode 7. Gateway + AP Mode 65 AirLive G.DUO User’s Manual In this mode, the WAN port is in the LAN1. It can be seen as a wireless router with 2 radios. 7.2 Radio1: WISP Router Mode Settings Although both Radio1 and Radio2 are working as wireless router, the WAN configuration is on the Radio1 side.. When you select “Radio1” as the interface, the following screen will appear. 7. Gateway + AP Mode AirLive G.DUO User’s Manual 66 7.2.1 Basic Wireless Settings „ Band: You can choose between “802.11g/b”, “802.11g”, or “802.11b”. We recommend to leave the setting at “802.11g/b”. „ SSID: The SSID setting of the remote AP. If you are not sure, you can click on “Site Survey” button to scan for AP. „ Channel: Wireless Channel used. For EU, it is channel 1~13. For U.S.A., it is channel 1~11. 7.2.2 Security Settings Operation Mode -> Setup -> Security Settings Security settings allow you to use encryption to secure your data from eavesdropping. You can select different security policy to provide association authentication and/or data encryption. The G.DUO features various security policies including WEP, 802.1x, WPA, WPA Personal, WPA2, WPA2 Personal , WPA Mixed. WEP WEP Encryption is the oldest and most available encryption method. However, it is also the least secure. „ Select one of the WEP key for wireless network: There are total of 4 possible keys for WEP encryption. You need to choose which key will be used for encryption. All wireless devices on the same network have to use the same settings. We recomm…

Text truncated - open the document above for the full version.

Page No. :9 OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan Tel: +886-2-2218-6888 Fax: +886-2-8667-6352 Confidential Letter Date: 2010/1/19 Federal Communications Commission Authorization and Evaluation Division FCC ID：ODMGDUO Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1.Block Diagram 2.Circuit Diagram 3.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : OvisLink Corp. Applicant’s company address : 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan Signature : _____________________________ Job Title and Dept. : Albert Yeh / Vice President wt.moc.knilsivo@trebla : liaM-E 8886-8122-2-688+ : .leT

Page No. :16 OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan Tel: +886-2-2218-6888 Fax: +886-2-8667-6352 DoC Attestation Letter Date: 2010/1/19 We OvisLink Corp., as the grantee of this project FCC ID: ODMGDUO, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, FCC Grantee contact person information. Applicant’s company name : OvisLink Corp. Applicant’s company address : 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan Signature : _____________________________ Job Title and Dept. : Albert Yeh / Vice President wt.moc.knilsivo@trebla : liaM-E 8886-8122-2-688+ : .leT

Page No. :2 OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan Tel: +886-2-2218-6888 Fax: +886-2-8667-6352 Power of Attorney Date: 2010/1/19 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Air Live / G.DUO/gDUO FCC ID:ODMGDUO Product name: Dual 11g/b PoE Access Point FCC Grantee contact person information. Applicant’s company name : OvisLink Corp. Applicant’s company address : 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan Signature : _____________________________ Job Title and Dept. : Albert Yeh / Vice President wt.moc.knilsivo@trebla : liaM-E 8886-8122-2-688+ : .leT

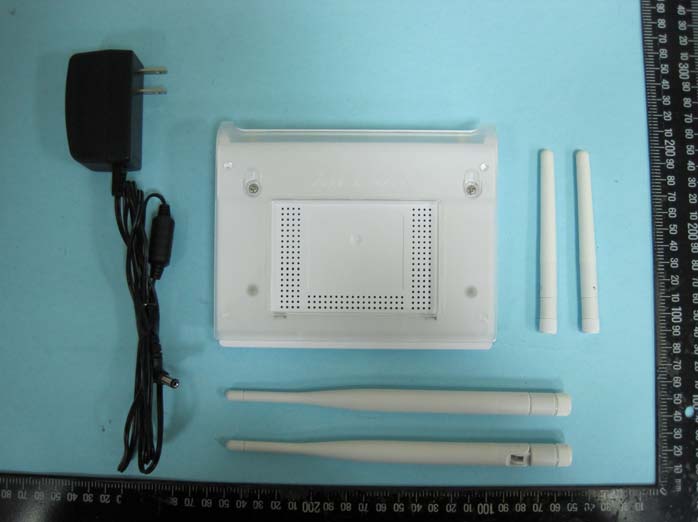

SPORTON International Inc. PAGE NUMBER : A1 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2010 FAX : 886-2-2696-2255 Ant. A SPORTON International Inc. PAGE NUMBER : A7 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2010 FAX : 886-2-2696-2255 Ant. B SPORTON International Inc. PAGE NUMBER : A8 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 18, 2010 FAX : 886-2-2696-2255
