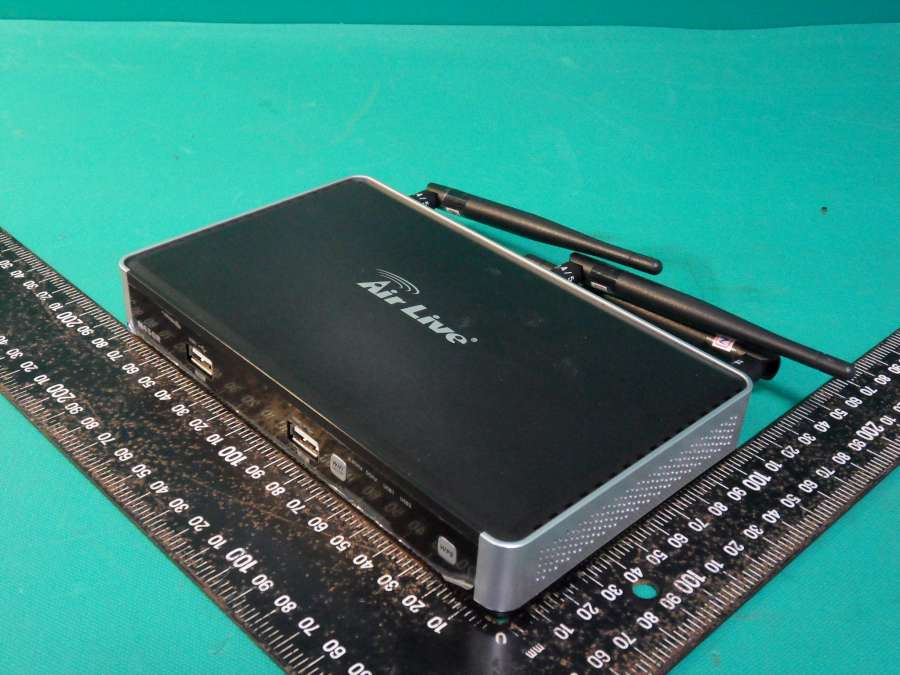

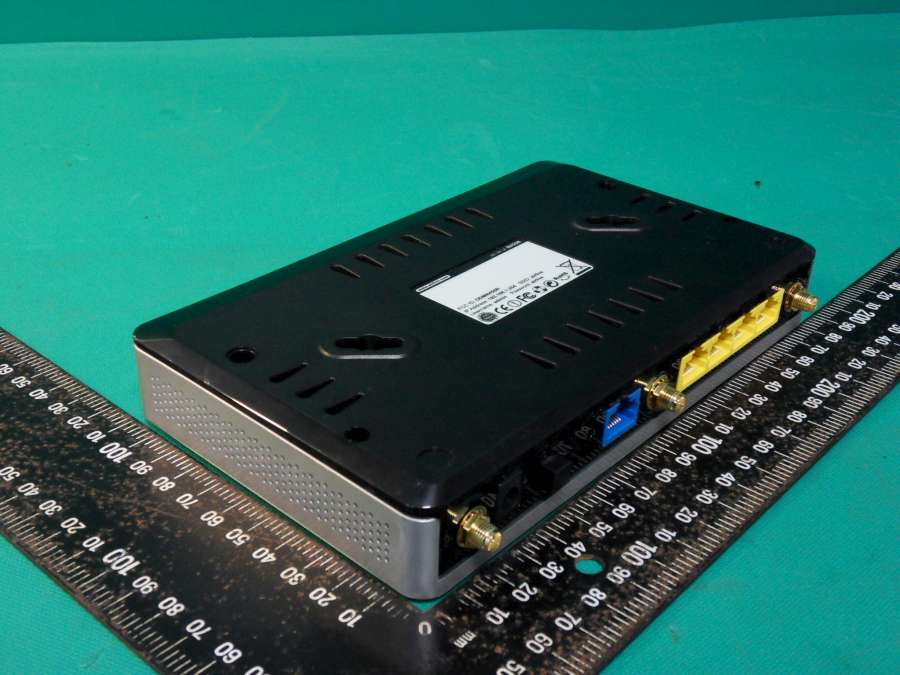

Compliance Certification Services Inc. Report No.：T120109N03 Page A1 / 10 External Photo (N450R) Compliance Certification Services Inc. Report No.：T120109N03 Page A2 / 10 Compliance Certification Services Inc. Report No.：T120109N03 Page A3 / 10 Compliance Certification Services Inc. Report No.：T120109N03 Page A4 / 10

Diagram Label location Label location FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Compliance Certification Services Inc. Report No.：T120109N03 Page A5 / 10 Internal Photo (N450R) Compliance Certification Services Inc. Report No.：T120109N03 Page A6 / 10 Compliance Certification Services Inc. Report No.：T120109N03 Page A7 / 10 Compliance Certification Services Inc. Report No.：T120109N03 Page A8 / 10 Compliance Certification Services Inc. Report No.：T120109N03 Page A9 / 10 Compliance Certification Services Inc. Report No.：T120109N03 Page A10 / 10

規格承認書 Specification for Approval 客 戶： 永 洋 Customer: 品 名： SMA DUAL BAND ANTENNA Part name 料 號： GY121HT467-003 Part No. 客戶料號: 11320Y11084A1 Customer Part No. 客戶承認印 CUSTOMER APPROVED BY APPROVAL CHIEF SUPERVISOR Approval No. Model Part No. CHIEF SALES R&D DESIGN LEO Teri Wen Mark Date:2011/07/27 Date:2011/07/27 驊 陞 科 技 股 份 有 限 公 司 WIESON TECHNOLOGIES CO., LTD. 表格編號：324012 版本: 第四版 RUTH ANYA HUNTER ZENITH A1 I. Summ This repor The meas measure m The meas II. S-Pa A. Refle (a) Instrum (b) Setup (1) Calib r cali (2) Conne (3) Measu (4) Gener ante WI mary rt to accou surement s ment. sured data aramete ection coe mentNe rate the Ne ibration ki ect the ant ure the S1 rally, the S enna and o IESON unt for the setup inclu for Anten er Meas efficient etwork An etwork An its. tenna unde 1(reflectio S11 is less only less t Fig.1 An N TEC e measurem udes s-par nna are pre sureme : nalyzer. nalyzer by er test to th on coeffici than –10d than 10% ntenna me CHNO ment setup rameter, pa esented an nt y one port he Netwo ient) show dB to ensu power bac asured in OLOGI p and resu attern, and nd analysis calibration rk Analyz wn in Fig. ure the 90% ck to syste Network A IES C ult of the A d gain s. n using O zer. 1. % power i em. Analyzer CO., LT Antenna. O.S.L. into TD. III. S-P Ante (a WI Paramet enna VSW ) 2.4GHz Sample IESON ter Te st WR Antenna Fr 1 N TEC t Result requency CHNO t 2400 MHz 24 M 1.3530 1 OLOGI 450 MHz 24 8 MH .1584 1.0 IES C 835 Hz 5150 Hz 586 1.492 CO., LT 0M 5850M Hz 21 1.5224 TD. M 4 IV. The A. Scope This state range, wh (1) One 325 requiremen (2) One F capabilitie (3) One b (4) Three B. Anten Fully anech The quiet z WI e Te s t In e ement of w hich includ 5 cm (W) x nts refer sect Far-field A es, detaile road-band NRL-443 nna Meas hoic chambe zone of this IESON nformat work defin des 285 cm (H tion 2.0 . Antenna M ed requirem d transmitt 33 standard surement er with dim Chamber sh N TEC tion An nes the req ) x 640 cm easuremen ment refer ted antenn d gain ant t Anecho mension 325 hall be grea CHNO nechoic quirements (L) Antenn nt System r section 3 na, detaile tennas, det oic Cham cm in width ater than OLOGI Chamb s of a far-f na Measurem m with spin 3.0 . d require m tailed requ mber h, 285 cm in IES C ber field anten ment Anech nning linea ments refe uirements n height and CO., LT nna measu hoic Chambe ar CP mea er section 8 refer sect d 640 cm in TD. urement er, detailed asurement 8.0 . tion 9.0 . n length. t 70 cm @ 0. Contractor antenna me C. Electr Frequency Quiet zon >28 cm @ Quiet zone WI .9 GHz, 50 should be a easurement. rical spec y Range: 8 ne size: >7 @5.8 GHz, ripple: < +/ IESON cm @1.8 G aware of thi cification 800 MHz 70 cm @ 0 , >16 cm @ /- 0.5 dB @ N TEC GHz, 44 cm s anechoic c ns to 18 GHz 0.9 GHz, > @18 GHz @1.5~2.4 GH CHNO @2.4 GHz chamber is z, >50 cm @ z. Hz, < +/- 0.2 OLOGI , 28 cm @5 going to be @1.8 GHz, 25 dB @2.4 IES C 5.8 GHz, 16 e used for pe >44 cm @ 4~18GHz CO., LT 6 cm @18 G erforming f @2.4 GHz TD. GHz. far-filed z, D. Abso r We s h a l l d guarantee than 24" w (H) x 533 regulatio n E. Far-fi We s h a l l s antenna ra 5230A PN to automa either Car F. Far-fie The softw software. (1) The d a *measurin switch fre *measurin *measurin *real time *screen sh WI rbers design and e the electr which ena cm (L). A ns ield Ante supply all adiation p NA-L or A atically me rtesian or p eld meas ware consi ata acquis ng single f equency at ng data in ng data at e plot in C hows real IESON d install pr rical speci ables the sp All the abs nna Mea the hardw atterns fro Agilent 875 easure and polar form surement sts of the ition soft w frequency t the end o Uni-direc least with Cartesian o time angl N TEC roper abso ifications . pace in the sorber use asuremen ware and s om 30 KH 53ES Vect d plot sing mats. software control or ware shall y per cut - of a scan. ction or bi h azimuth or polar fo le position CHNO orbers on t . However e chamber ed shall me nt System software w Hz to 6 GH tor Netwo gle axis am e r data acqu at least b single ax i i-direction 360 degre rmat n OLOGI the inner w r, the abso r to be aro eet NRL-8 m which are c Hz or 18GH ork Analyz mplitude an uisition so e capable is (azimuth n ees. (+/- 18 IES C walls of th orbers heig ound 203 c 8093 fire r capable of Hz using t zer. The sy nd phase a ftware and of the foll h); system 80 degree CO., LT he chambe ght shall b cm (W) x retardant f character the existed ystem shal antenna pa d the data lowing fun m can auto s or 0-36 0 TD. er to be no less 163 cm rizing d Agilent ll be able atterns in a plotting nctions: matically 0 degrees) *system a *function *operator *entry to (2) The d a *Editing p *plotting *plotting *normali z *overlayin *outputtin G. Broad We s h a l l p than those Frequency > 20 dB H. NRL4 We s h a l l p meets the standard g DRH-011 curves an WI automatica n to set pos r can set da allow pos ata plottin plot data data in C a data in lin zing data t ng data, (d ng data to dband Tr provide a e listed he y: 1-18 GH 4433 Sta provide on specificat gain horn 8 from 0. d tables f o IESON ally calcul sitioner ze ata taking sitioner off ng softwar arttesian, P near or dB to peak (d drag and d any Wind ransmitte linear-pol ereafter in Hz, Gain: andard Ga ne WR-43 tions of N is from 1. 8 to 18G H or the stan N TEC lates S/N r ero positio velocity a fset to any e shall at l Polar or de B scales B), standa dorp capab dows supp ed antenn larized bro this articl >12 dBi @ ain Horn 30, WR-18 NRL-4433 7 to 2.6 G Hz. We sha ndard gain CHNO ratio level on and data s y angle least be ca elimited A ard gain re bility is pr ported prin na oadband a e, @10 GHz ns 87 one DR report. Th GHz, and W all also pr n horns. OLOGI l based on ampling i apable of t ASCII outp eference (d referable) nters ntenna wi z, VSWR:< RH0118 st he operatin WR-187 fr ovide NR IES C measured nterval the follow put with h dBi), or no ith the spe <2,0:1, Fr andard ga ng frequen rom 3.95 t L-4433 th CO., LT d signal flu wing functi heade…

Text truncated - open the document above for the full version.

Description of Operation The EUT is a 3T3R Wireless-N Dual Band Gigabit Router with IEEE 802.11b/g/n (2T2R) of 2.4G , IEEE 802.11a/n(3T3R) of 5G . And this device provided of transmitting speed: 2.4G IEEE 802.11b：11, 5.5, 2, 1 Mbps IEEE 802.11g：54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 130 , 117 , 104 , 78 , 65 , 58.5 , 52 , 39 , 26 , 19.5 , 13 , 6.5 Mbps IEEE 802.11n HT40 : 300 , 270 , 243 , 216 , 162 , 150 , 135 , 121.5 , 108 , 81 , 54 , 40.5 , 27 , 13.5 Mbps 5G IEEE 802.11a : 54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 195 , 175.5 , 156 , 130 , 117 , 104 , 78 , 65 , 58.5 , 52 , 39 , 26 , 19.5 , 13 , 6.5 Mbps IEEE 802.11n HT40 : 450 , 405 , 364.5 , 324 , 300 , 270 , 243 , 216 , 162 , 150 , 135 , 121.5 , 108 , 81 , 54 , 40.5 , 27 , 13.5 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK . The device adapts DSSS and OFDM modulation. And the antenna was three Dipole Antennas and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) , 5GHz Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11a/b/g/n network.

Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 161 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 162 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Antenna Gain (2.4G): 2.28 dBi = 1.690441 mW Antenna Gain (5G): 4.13 dBi = 2.5882129 mW No non-compliance noted: (MPE distance equals 20 cm) IEEE 802.11b = 0.0796 * 79.7995 * 1.69044093 ÷ 400 = 0.026844 IEEE 802.11g = 0.0796 * 211.8361 * 1.69044093 ÷ 400 = 0.071261 IEEE 802.11n HT20 = 0.0796 * 236.7983 * 1.69044093 ÷ 400 = 0.079658 IEEE 802.11n HT40 = 0.0796 * 190.4342 * 1.69044093 ÷ 400 = 0.064062 IEEE 802.11a = 0.0796 * 149.9685 * 2.58821292 ÷ 400 = 0.07724 IEEE 802.11n HT20 = 0.0796 * 203.7042 * 2.58821292 ÷ 400 = 0.10492 IEEE 802.11n HT40 = 0.0796 * 219.2805 * 2.58821292 ÷ 400 = 0.11294 Mode Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Numeric antenna gain (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 2.28 20.0 19.02 79.80 1.00 0.026844 IEEE 802.11g 2.28 20.0 23.26 211.84 1.00 0.071261 IEEE 802.11n HT20 2.28 20.0 23.74 236.80 1.00 0.079658 IEEE 802.11n HT40 2.28 20.0 22.80 190.43 1.00 0.064062 IEEE 802.11a 4.13 20.0 21.76 149.97 1.00 0.077242 IEEE 802.11n HT20 4.13 20.0 23.09 203.70 1.00 0.104919 IEEE 802.11n HT40 4.13 20.0 23.41 219.28 1.00 0.112941 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 1 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For 3T3R Wireless-N Dual Band Gigabit Router Model : N450R Data Applies To: N450R Series , N450R-FCC , Hotspot Series , Hotspot-450 , Hotspot-300 Trade Name : Air Live Issued for OvisLink Corp. 5F , No.6, Lane 130 , Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231 , Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Date: January 10, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 2 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 January 10, 2012 Initial Issue ALL Sunny Chang Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 3 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 7 4. TEST METHODOLOGY ............................................................................................... 9 5. FACILITIES AND ACCREDITATION ........................................................................... 9 5.1 FACILITIES ............................................................................................................ 9 5.2 ACCREDITATIONS................................................................................................ 9 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 10 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 11 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 15 7.1 6dB BANDWIDTH.................................................................................................. 15 7.2 MAXIMUM PEAK OUTPUT POWER ..................................................................... 44 7.3 POWER SPECTRAL DENSITY ............................................................................. 50 7.4 CONDUCTED SPURIOUS EMISSION .................................................................. 80 7.6 RADIATED EMISSION........................................................................................... 113 7.7 CONDUCTED EMISSION ...................................................................................... 156 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE ..................................................... 161 APPENDIX II SETUP PHOTOS ....................................................................................... 163 Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 4 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant ： OvisLink Corp. Address ： 5F , No.6, Lane 130 , Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231 , Taiwan Equipment Under Test ： 3T3R Wireless-N Dual Band Gigabit Router Model Number ： N450R Data Applies To ： N450R Series , N450R-FCC , Hotspot Series , Hotspot-450 , Hotspot-300 Brand Name ： Air Live Date of Test ： November 30, 2011 ~ December 31, 2011 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Jeter Wu Eric Huang Assistant Manager Assistant Section Manager Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 5 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name 3T3R Wireless-N Dual Band Gigabit Router Model Number N450R Data Applies To N450R Series , N450R-FCC , Hotspot Series , Hotspot-450 , Hotspot-300 Brand Name Air Live Identify Number T120109N03 Received Date January 09, 2012 IEEE 802.11b/g, 802.11n HT20 : 2412MHz～2462MHz IEEE 802.11n HT40 : 2422MHz～2452MHz IEEE 802.11a, IEEE 802.11n HT20 : 5745MHz ~ 5805MHz Frequency Range IEEE 802.11n HT40 : 5745MHz ~ 5805MHz IEEE 802.11b : 19.02 dBm IEEE 802.11g : 23.26 dBm IEEE 802.11n HT20 : 23.74 dBm IEEE 802.11n HT40 : 22.80 dBm IEEE 802.11a : 21.76 dBm IEEE 802.11n HT20 : 23.09 dBm Transmit Power IEEE 802.11n HT40 : 23.41 dBm IEEE 802.11b/g, 802.11n HT20/HT40 : 5MHz IEEE 802.11a, 802.11n HT20 : 20MHz Channel Spacing IEEE 802.11n HT40 : 10MHz IEEE 802.11b/…

Text truncated - open the document above for the full version.

Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 113 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 7.6 RADIATED EMISSION LIMITS (1) According to § 15.205 (a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090 - 0.110 16.42 - 16.423 399.9 - 410 4.5 - 5.15 1 0.495 - 0.505 16.69475 - 16.69525608 - 614 5.35 - 5.46 2.1735 - 2.1905 16.80425 - 16.80475960 - 1240 7.25 - 7.75 4.125 - 4.128 25.5 - 25.67 1300 - 1427 8.025 - 8.5 4.17725 - 4.17775 37.5 - 38.25 1435 - 1626.5 9.0 - 9.2 4.20725 - 4.20775 73 - 74.6 1645.5 - 1646.5 9.3 - 9.5 6.215 - 6.218 74.8 - 75.2 1660 -1710 10.6 -12.7 6.26775 - 6.26825 108 -121.94 1718.8 - 1722.2 13.25 -13.4 6.31175 - 6.31225 123 - 138 2200 - 2300 14.47 – 14.5 8.291 - 8.294 149.9 - 150.05 2310 - 2390 15.35 -16.2 8.362 - 8.366 156.52475 - 156.52525 2483.5 - 2500 17.7 - 21.4 8.37625 - 8.38675 156.7 - 156.9 2655 - 2900 22.01 - 23.12 8.41425 - 8.41475 162.0125 - 167.17 3260 - 3267 23.6 - 24.0 12.29 - 12.293 167.72 - 173.2 3332 - 3339 31.2 - 31.8 12.51975 - 12.52025240 - 285 3345.8 - 3338 36.43 - 36.5 12.57675 - 12.57725322 -335.4 3600 - 4400 ( 2 ) 13.36 - 13.41 Remark: 1. 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz. 2. 2 Above 38.6 (2) According to § 15.205 (b) Except as provided in paragraphs (d) and (e) of this section, the field strength of emissions appearing within these frequency bands shall not exceed the limits shown in §15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in §15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000 MHz, compliance with the emission limits in §15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in §15.35 apply to these measurements. Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 114 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. (3) According to § 15.209 (a) Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table : Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009 – 0.490 2400/F(KHz) 300 0.490 – 1.705 24000/F(KHz) 30 1.705 – 30.0 30 30 30 - 88 100 ** 3 88 - 216 150 ** 3 216 - 960 200 ** 3 Above 960 500 3 Remark: **Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72 MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz. However, operation within these frequency bands is permitted under other sections of this Part, e.g., Sections 15.231 and 15.241. (4) According to § 15.209 (b) In the emission table above, the tighter limit applies at the band edges. Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 115 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TEST EQUIPMENT The following test equipments are utilized in making the measurements contained in this report. Open Area Test Site # 6 Name of Equipment Manufacturer Model Serial Number Calibration Due TYPE N COAXIAL CABLE SUHNER CHA9513 6 NOV. 17, 2012 BI-LOG Antenna Sunol JB1 A070506-2 OCT. 03, 2012 LOOP ANTENNA EMCO 6502 8905-2356 JUN. 10, 2012 Pre-Amplifier HP 8447F 2944A03817 NOV. 23, 2012 EMI Receiver R&S ESVS10 833206/012 MAY 10, 2012 RF Cable SUHNER SUCOFLEX104PEA 20520/4PEA NOV. 10, 2012 Horn Antenna Com-Power AH-118 071032 DEC. 27, 2012 Spectrum Analyzer R&S FSEK 30 835253/002 SEP. 29, 2012 Pre-Amplifier MITEQ AFS44-00108650-42-10P-441205908 NOV. 23, 2012 3116 Double Ridge Antenna (40G) ETS-LINDGREN EMCO-003 00078 NOV. 14, 2012 Turn Table Yo Chen 001 ---------- N.C.R. Antenna Tower AR TP1000A 309874 N.C.R. Controller CT SC101 ---------- N.C.R. RF Swicth E-INSTRUMENT TELH LTD ERS-180A EC1204141 N.C.R Power Meter Anritsu ML2487A 6K00003888 MAY 30, 2012 Power Sensor Anritsu MA2491A 33265 MAY 30.2012 Temp./Humidity Chamber K.SON THS-M1 242 AUG. 09, 2012 Signal Generator HP 8673C 2938A00663 SEP. 12, 2012 DC Power Source LOKO DSP-5050 L1507009282 N.C.R Remark: 1. Each piece of equipment is scheduled for calibration once a year. 2. N.C.R = No Calibration Request. Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 116 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TEST SETUP The diagram below shows the test setup that is utilized to make the measurements for emission from below 1GHz. 9kHz ~ 30MHz Spectrum Ana lyzer L oop Antenna 3m 1m Turntable EUT 0.8 m R eferen ce ground pla ne 30MHz ~ 1GHz EMI Test Receiver 3m 1~4m 1m Tu rn table EUT 0.8m Ante nna Tower R eferen ce ground p lan e Bi -log Antenn a Pre-amp Coaxial Cable Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 117 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. The diagram below shows the test setup that is utilized to make the measurements for emission above 1GHz. Spectrum Analyzer Horn Antenna 3m 1~4m 1m Turntable EUT 0.8m Antenna Tower Pre-amp Reference ground plane C oaxial C able TEST PROCEDURE 1. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 10 meter open area test site. The table was rotated 360 degrees to determine the position of the highest radiation. 2. While measuring the radiated emission below 1GHz, the EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tow…

Text truncated - open the document above for the full version.

Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 163 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 164 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. RADIATED RF MEASUREMENT SETUP Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 165 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Reference No.：T11112930802-RP1 FCC ID：ODMN450R Report No.：T120109N03-RP1 Page 166 / 166 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
