ODMNPLUGWireless b/g/n Power Adapter Access Point

1 N.Plug Wireless b/g/n Power Adapter Access Point User’s Manual Copyright and Disclaimer AirLive N.Plug User’s Manual i Copyright & Disclaimer No part of this publication may be reproduced in any form or by any means, whether electronic, mechanical, photocopying, or recording without the written consent of OvisLink Corp. OvisLink Corp. has made the best effort to ensure the accuracy of the information in this user’s guide. However, we are not liable for the inaccuracies or errors in this guide. Please use with caution. All information is subject to change without notice All Trademarks are properties of their respective holders. Copyright and Disclaimer AirLive N.Plug User’s Manual ii FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. NOTICE: the domain name of our e-mail address is being shifted from adt.com.tw to tw.bureauveritas.com. The old e-mail address is still valid till mid-2010. Please modify your address book to keep contact information correct and up-to-date. Table of Contents AirLive N.Plug User’s Manual iii Table of Contents 1. Introduction................................................................................................1 1.1 Overview..............................................................................................1 1.2 Firmware Upgrade and Tech Support..................................................1 1.3 Product Features.................................................................................2 1.4 Physical Details....................................................................................3 1.4.1 Status LED/WPS.........................................................................................3 1.4.2 Upper Switch...............................................................................................5 1.4.3 Bottom View................................................................................................6 2. Operation Modes........................................................................................7 2.1 Router Mode........................................................................................7 2.2 Access Point Mode..............................................................................8 2.3 Repeater Mode....................................................................................8 2.3.1 Repeater Mode (Default Mode)...................................................................8 2.3.2 Repeating Router........................................................................................9 2.3.3 Client Mode...............................................................................................10 3. Installation................................................................................................12 3.1 Hardware Connection........................................................................12 3.1.1 AP/Router Mode.........................................................................................12 3.1.2 Repeater Mode...........................................................................................12 3.2 Login..................................................................................................13 3.3 Common Connection Types...............................................................16 3.3.1 Cable Modems...........................................................................................16 3.3.2 DSL Modems..............................................................................................16 3.3.3 Other Modems (e.g. Broadband Wireless).................................................17 4. Web Configuration...................................................................................18 4.1 Setup Wizard.....................................................................................19 4.1.1 Router Mode..............................................................................................19 4.1.2 Repeater Mode...…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 2.0 SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw 12/29/2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SPORTON International Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Wireless b/g/n Power Adapter Access Point Model Number: N.Plug; N.Plug-EU; N.Plug-US FCC ID: ODMNPLUG We affirm that between SIEMIC and SPORTON International Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name / title: Wayne Hsu / Vice Manager Contact information / address: No. 52 Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. / Ph: 886-3-327-3456 / FAX: 886- 3-327-0973 / www.sporton.com.tw

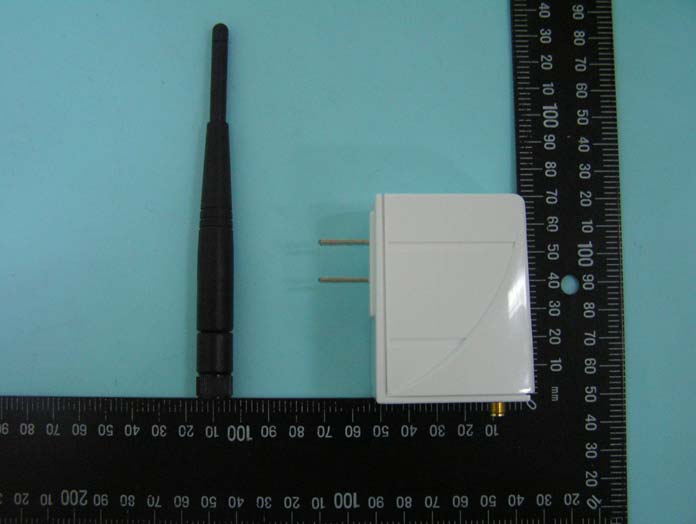

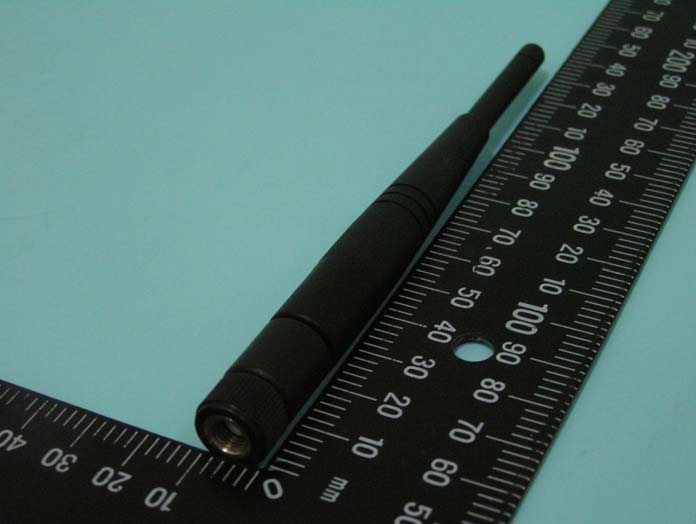

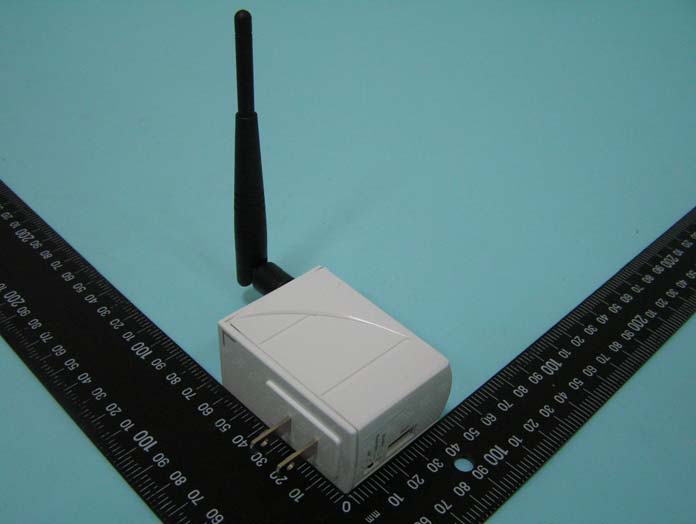

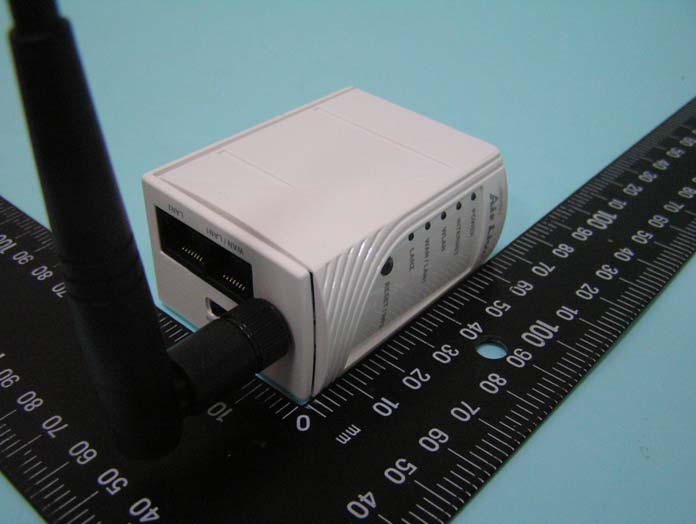

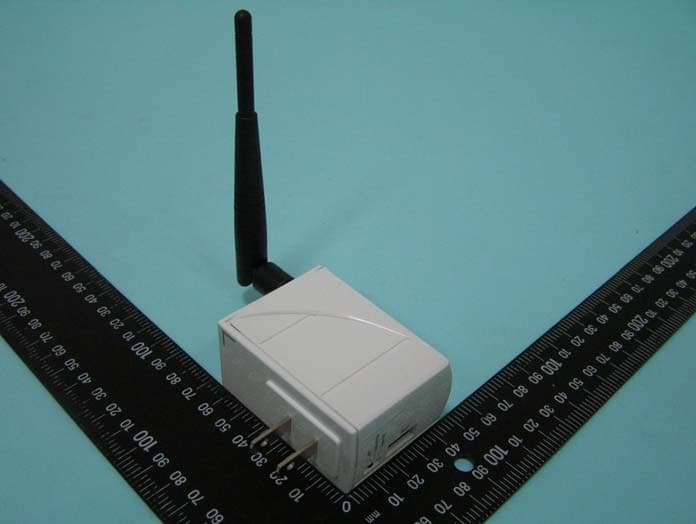

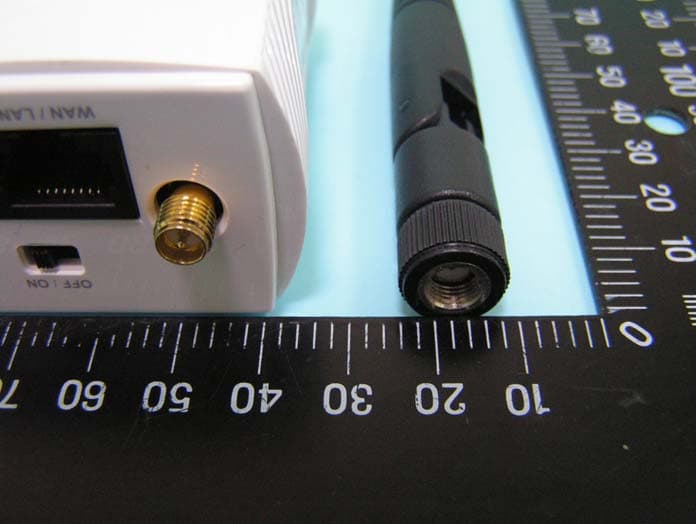

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C4 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 03, 2011 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C4 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 03, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C4 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 03, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C4 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 03, 2011 FAX : 886-2-2696-2255

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 03, 2011 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 03, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 03, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 03, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 03, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C6 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 03, 2011 FAX : 886-2-2696-2255

Page No. : A1 of A3 FCC ID : ODMNPLUG F FCC TEST REPORT Report No. : FR152426-01AC Appendix A. Maximum Permissible Exposure Page No. : A2 of A3 FCC ID : ODMNPLUG F FCC TEST REPORT Report No. : FR152426-01AC 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Page No. : A3 of A3 FCC ID : ODMNPLUG F FCC TEST REPORT Report No. : FR152426-01AC 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11b/g: 16.98dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 3 1.995262 16.98 49.8884 0.0198

Page No. : A1 of A3 FCC ID : ODMNPLUG F FCC TEST REPORT Report No. : FR152426-01AI Appendix A. Maximum Permissible Exposure Page No. : A2 of A3 FCC ID : ODMNPLUG F FCC TEST REPORT Report No. : FR152426-01AI 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Page No. : A3 of A3 FCC ID : ODMNPLUG F FCC TEST REPORT Report No. : FR152426-01AI 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n (20MHz) : 14.73 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 3 1.584893 14.73 29.7167 0.0118 Max Conducted Power for IEEE 802.11n (40MHz) : 14.67 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 3 1.584893 14.67 29.3089 0.0116

SPORTON International Inc. Report Format Version: a FCC TEST REPORT Report No. : FR152426-01AC FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : Wireless b/g/n Power Adapter Access Point Brand Name : Air Live Model No. : N.Plug, N.Plug-EU, N.Plug-US Filing Type : New Application Applicant : OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Taiwan FCC ID : ODMNPLUG Manufacturer : OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Taiwan Received Date : Aug. 24, 2011 Final Test Date : Sep. 22, 2011 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Nov. 02, 2011 FAX : 886-2-2696-2255 FCC ID : ODMNPLUG FCC TEST REPORT Report No. : FR152426-01AC Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details ................................................................................................................................................................................... 3 2.2 Accessories ........................................................................................................................................................................................ 3 2.3 Table for Filed Antenna ....................................................................................................................................................................... 3 2.4 Table for Carrier Frequencies ............................................................................................................................................................. 3 2.5 Test Manner ........................................................................................................................................................................................ 3 2.6 Table for Test Modes .......................................................................................................................................................................... 4 2.7 Table for Testing Locations ................................................................................................................................................................. 4 2.8 Table for Supporting Units .................................................................................................................................................................. 4 2.9 Table for Parameters of Test Software Setting .................................................................................................................................... 5 2.10 EUT Operation during Test ................................................................................................................................................................. 5 2.11 Test Configuration ............................................................................................................................................................................... 6 3 TEST RESULT ......................................................................................................................................................... 7 3.1 AC Power Line Conducted Emissions Measurement .......................................................................................................................... 7 3.2 Peak Output Power Measurement .................................................................................................................................................... 11 3.3 Power Spectral Density Measurement .............................................................................................................................................. 13 3.4 6dB Spectrum Bandwidth Measurement ........................................................................................................................................... 19 3.5 Radiated Emissions Measurement .................................................................................................................................................... 25 3.6 Band Edge and Fundamental Emissions Measurement .................................................................................................................... 43 3.7 Antenna Requirements ..................................................................................................................................................................... 48 4 LIST OF MEASURING EQUIPMENTS .................................................................................................................. 49 5 TEST LOCATION ................................................................................................................................................... 51 6 TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 52 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE ...................................................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. Report Format Version: a FCC TEST REPORT Report No. : FR152426-01AI FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : Wireless b/g/n Power Adapter Access Point Brand Name : Air Live Model No. : N.Plug, N.Plug-EU, N.Plug-US Filing Type : New Application Applicant : OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Taiwan FCC ID : ODMNPLUG Manufacturer : OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Taiwan Received Date : Aug. 24, 2011 Final Test Date : Sep. 22, 2011 Statement Test result included is only for the 802.11n of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Nov. 02, 2011 FAX : 886-2-2696-2255 FCC ID : ODMNPLUG FCC TEST REPORT Report No. : FR152426-01AI Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details ................................................................................................................................................................................... 3 2.2 Accessories ........................................................................................................................................................................................ 3 2.3 Table for Filed Antenna ....................................................................................................................................................................... 3 2.4 Table for Carrier Frequencies ............................................................................................................................................................. 4 2.5 Table for Testing Locations ................................................................................................................................................................. 4 2.6 Test Manner ........................................................................................................................................................................................ 4 2.7 Table for Test Modes .......................................................................................................................................................................... 4 2.8 Table for Supporting Units .................................................................................................................................................................. 5 2.9 Table for Parameters of Test Software Setting .................................................................................................................................... 5 2.10 EUT Operation during Test ................................................................................................................................................................. 5 2.11 Test Configuration ............................................................................................................................................................................... 6 3 TEST RESULT ......................................................................................................................................................... 7 3.1 AC Power Line Conducted Emissions Measurement .......................................................................................................................... 7 3.2 Peak Output Power Measurement .................................................................................................................................................... 11 3.3 Power Spectral Density Measurement .............................................................................................................................................. 13 3.4 6dB Spectrum Bandwidth Measurement ........................................................................................................................................... 19 3.5 Radiated Emissions Measurement .................................................................................................................................................... 25 3.6 Band Edge and Fundamental Emissions Measurement .................................................................................................................... 43 3.7 Antenna Requirements ..................................................................................................................................................................... 48 4 LIST OF MEASURING EQUIPMENTS .................................................................................................................. 49 5 TEST LOCATION ................................................................................................................................................... 51 6 TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 52 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE ..........................................................................…

Text truncated - open the document above for the full version.

Page No. : 1 of 19 FCC ID : ODMNPLUG FCC TEST REPORT Report No. : FR152426-01 Co-location Report Page No. : 2 of 19 FCC ID : ODMNPLUG FCC TEST REPORT Report No. : FR152426-01 1 TEST RESULT 1.1 Radiated Emissions Measurement 1.1.1 Limit 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 1.1.2 Measuring Instruments and Setting Please refer to section 2 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 10th carrier harmonic RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 1MHz / 1MHz for peak Receiver Parameter Setting Attenuation Auto Start ~ Stop Frequency 9kHz~150kHz / RB 200Hz for QP Start ~ Stop Frequency 150kHz~30MHz / RB 9kHz for QP Start ~ Stop Frequency 30MHz~1000MHz / RB 120kHz for QP Page No. : 3 of 19 FCC ID : ODMNPLUG FCC TEST REPORT Report No. : FR152426-01 1.1.3 Test Procedures 1. Configure the EUT according to ANSI C63.4. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 8. If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High – Low scan is not required in this case. Page No. : 4 of 19 FCC ID : ODMNPLUG FCC TEST REPORT Report No. : FR152426-01 1.1.4 Test Setup Layout For radiated emissions below 30MHz For radiated emissions above 30MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [9.54 dB]. 1.1.5 Test Deviation There is no deviation with the original standard. 1.1.6 EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1m Page No. : 5 of 19 FCC ID : ODMNPLUG FCC TEST REPORT Report No. : FR152426-01 1.1.7 Results of Radiated Emissions (9kHz~30MHz…
