ODMWH-9200AP802.11a/b/g Dual Radio Wireless Base Station

WH-9200AP 802.11a/b/g Dual Radio Wireless Base Station User’s Manual AirLive WH-9200AP User’s Manual 2 Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC NOTICE: To comply with FCC part 15 rules in the United States, the system must be professionally installed to ensure compliance with the Part 15 certification. It is the responsibility of the operator and professional installer to ensure that only certified systems are deployed in the United States. The use of the system in any other combination (such as co-located antennas transmitting the same information) is expressly forbidden. Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the written consent of OvisLink Corp. Windows ™ 95/98 and Windows ™ 2000 are trademarks of Microsoft ® Corp. Pentium is trademark of Intel. All copyright reserved. 3 AirLive WH-9200AP User’s Manual Table of Contents 1. Introduction..................................................................................................................................... 4 1.1 Overview ............................................................................................................................... 4 1.2 Installing WH-9200AP ........................................................................................................ 5 1.2.1 Package Content ........................................................................................... 5 1.2.2 Hardware Presentation ................................................................................. 6 2. Wireless Settings ......................................................................................................................... 12 2.1 Client Mode ........................................................................................................................ 12 2.2 Wireless Security .............................................................................................................. 15 2.3 Advanced Wireless Settings ............................................................................................ 23 3. System Management .................................................................................................................. 26 3.1 Change Password............................................................................................................. 26 3.2 System Management Settings ........................................................................................ 27 3.3 SNMP Settings .................................................................................................................. 29 3.4 Firmware Upgrade ............................................................................................................ 31 3.5 Configuration Save and Restore .................................................................................... 32 3.6 Reboot System .................................................................................................................. 33 3.7 WH-9200AP Emergency Recovery ................................................................................ 34 AirLive WH-9200AP User’s Manual 4 1. Introduction 1.1 Overview The WH-9200AP is a dream device for WISP to build their wireless networks. The AP features 2 Atheros 11a/b/g radios that run in 5GHz or 2.4GHz frequency band. Moreover, it provides hi-power at 11a mode for extra long distance application. There is an intergraded 802.3af POE port to let you run the AP at up to 100 meter distance away from the power source. Dual Wireless + Hi Power + 2 LAN Ports The WH-9200AP is equipped with 2 high-powered Atheros radios. The radio 1 runs in the 11a 5GHz mode only while the radio 2 runs at the 11a/b/g dual band mode. AirLive adds high power amplifier to run the AP at 23dBm in 11a mode (200mW), that’…

Text truncated - open the document above for the full version.

Page No. :8 OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan. Tel: 886-2-2218-6888 Fax: 886-2-8667-6352 Confidential Letter Date: 2009/10/14 Federal Communications Commission Authorization and Evaluation Division FCC ID：ODMWH-9200AP Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : OvisLink Corp. Applicant’s company address : 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan. Signature : _____________________________ Job Title and Dept. : Albert Yeh / Vice President wt.moc.knilsivo@trebla : liaM-E 8886-8122-2-688 : .leT

OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan Tel: 886-2- 2218-6888 Fax: 886-2- 8667-6352 Declaration Letter Date:2009/10/14 To Whom it may concern, We, OvisLink Corp., declare that the EUT (Model Name: WH-9200AP, AirMax DUO, AirMax DUAL). This device that the client software and associated drivers will not permit transmission of beacon signals on DFS frequencies. Regards, Applicant’s company name : OvisLink Corp. Applicant’s company address : 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan Signature : _____________________________ Job Title and Dept. : Albert Yeh / Vice President wt.moc.knilsivo@trebla : liaM-E 8886-8122 -2-688 : .leT

Page No. :15 OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan. Tel: 886-2-2218-6888 Fax: 886-2-8667-6352 DoC Attestation Letter Date: 2009/10/14 We OvisLink Corp., as the grantee of this project FCC ID: ODMWH-9200AP, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, FCC Grantee contact person information. Applicant’s company name : OvisLink Corp. Applicant’s company address : 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan. Signature : _____________________________ Job Title and Dept. : Albert Yeh / Vice President wt.moc.knilsivo@trebla : liaM-E 8886-8122-2-688 : .leT

Page No. :2 OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan. Tel: 886-2-2218-6888 Fax: 886-2-8667-6352 Power of Attorney Date: 2009/12/22 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Air Live / WH-9200AP, AirMax DUO, AirMax DUAL FCC ID:ODMWH-9200AP Product name: 802.11a/b/g Dual Radio Wireless Base Station FCC Grantee contact person information. Applicant’s company name : OvisLink Corp. Applicant’s company address : 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan. Signature : _____________________________ Job Title and Dept. : Albert Yeh / Vice President wt.moc.knilsivo@trebla : liaM-E 8886-8122-2-688 : .leT

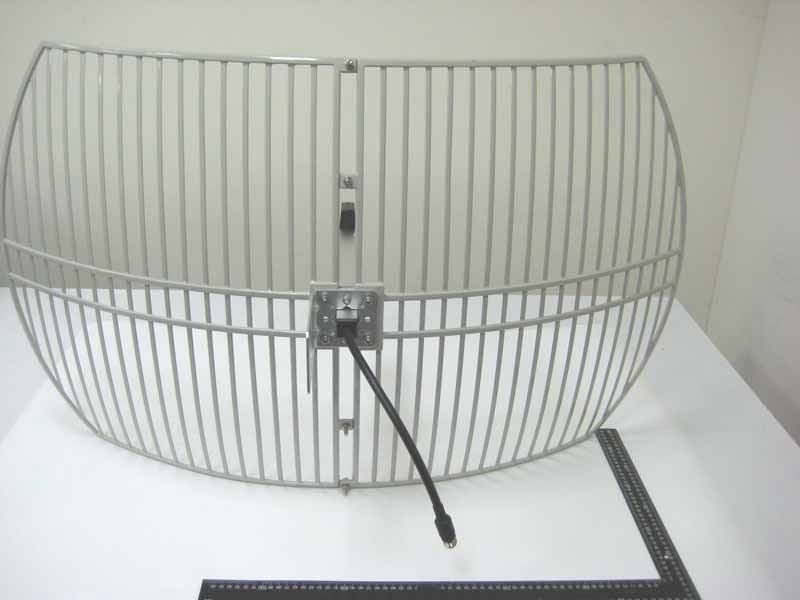

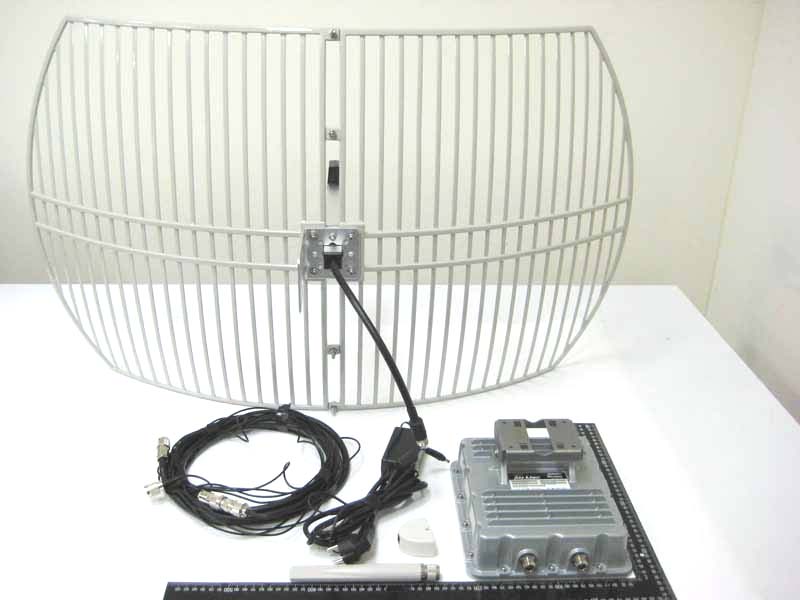

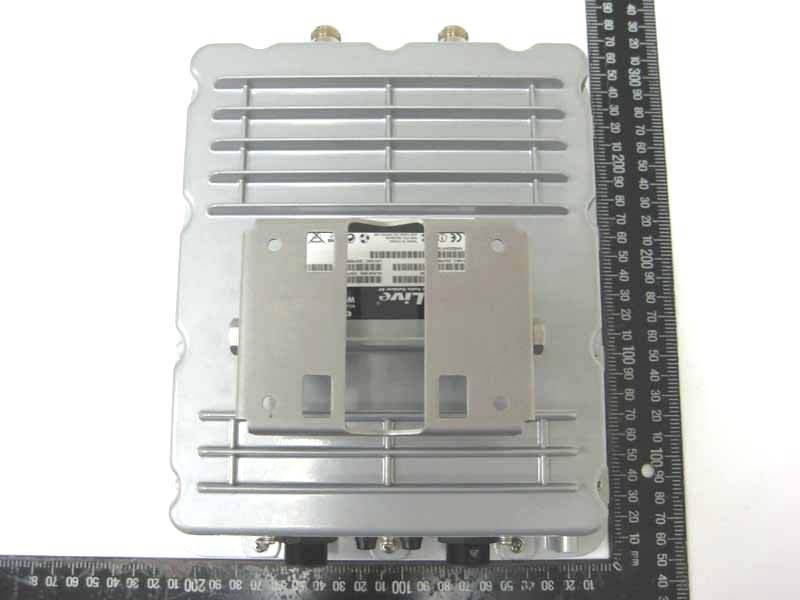

SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 Antenna A SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 Antenna B

SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 16, 2009 FAX : 886-2-2696-2255

Report No.: FR7N3008-01 FCC ID: ODMWH-9200AP Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR7N3008-01 FCC ID: ODMWH-9200AP Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR7N3008-01 FCC ID: ODMWH-9200AP Page No. : 3 of 3 1.3. Calculated Result and Limit For 5GHz Band <Module for IEEE 802.11a/b/g> Antenna Type : Omni Antenna Max Conducted Power for IEEE 802.11a : 19.65dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 7.00 5.0119 19.6500 92.2571 0.092034 1 Complies <Module for IEEE 802.11a> Antenna Type : Omni Antenna Max Conducted Power for IEEE 802.11a : 19.73dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 7.00 5.0119 19.7300 93.9723 0.093745 1 Complies For 2.4GHz Band <Module for IEEE 802.11a/b/g> Antenna Type : Grid Antenna Max Conducted Power for IEEE 802.11b/g : 26.19dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 7.00 5.0119 26.1900 415.9106 0.414907 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC Dynamic Frequency Selection Test Report Applicant’s company OvisLink Corp. Applicant Address 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan. FCC ID ODMWH-9200AP Manufacturer’s company OvisLink Corp. Manufacturer Address 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan. Product Name 802.11a/b/g Dual Radio Wireless Base Station Brand Name Air Live Model Name WH-9200AP, AirMax DUO, AirMax DUAL Test Standard(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5470~5725MHz Received Date Sep. 09, 2009 Final Test Date Oct. 26, 2009 Submission Type Original Equipment Operating Mode Client (without radar detection function) Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in FCC OET Order 06-96A (2006) and 47 CFR FCC Part 15 Subpart E § 15.407. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FZ7N3008-01 Report Format Version: 01 Page No. : i of ii FCC ID: ODMWH-9200AP Issued Date : Dec. 22, 2009 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Standard Requirement .......................................................................................................................................................................3 3.2. Product Specification Table................................................................................................................................................................3 3.3. Accessories .........................................................................................................................................................................................3 3.4. Table for DFS Band Carrier Frequencies .............................................................................................................................................4 3.5. Antenna Information on DFS Band......................................................................................................................................................4 4. DFS DETECTION THRESHOLDS AND RADAR TEST WAVEFORMS ............................................................................. 5 4.1. Interference Threshold values, Master or Client incorporating In-Service Monitoring.........................................................................5 4.2. DFS Response requirement values......................................................................................................................................................5 4.3. Radar Test Waveforms Minimum Step.................................................................................................................................................6 4.4. Short Pulse Radar Test Waveforms ......................................................................................................................................................6 4.5. Long Pulse Radar Test Waveform........................................................................................................................................................7 4.6. Frequency Hopping Radar Test Waveform.........................................................................................................................................9 4.7. Conducted Calibration Setup ..........................................................................................................................................................11 4.8. Radar Waveform Calibration Procedure ..........................................................................................................................................11 4.9. Calibration Deviation........................................................................................................................................................................11 4.10. Radar Waveform Calibration Result .................................................................................................................................................12 5. TEST SETUP AND TEST RESULT............................................................................................................................ 14 5.1. Test setup ..........................................................................................................................................................................................14 5.2. In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time, and Non-Occupancy Period Measurement21 6. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 31 7. TEST LOCATION.............................................................................................................................................. 32 8. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 33 APPENDIX A. PHOTOGRAPHS OF EUT........................................................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company OvisLink Corp. Applicant Address 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan. FCC ID ODMWH-9200AP Manufacturer’s company OvisLink Corp. Manufacturer Address 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County 231, Taiwan. Product Name 802.11a/b/g Dual Radio Wireless Base Station Brand Name Air Live Model Name WH-9200AP, AirMax DUO, AirMax DUAL Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5470 ~ 5725MHz Received Date Sep. 09, 2009 Final Test Date Dec. 02, 2009 Submission Type Original Equipment Operating Mode Client (without radar detection function) Multiple Listing Please refer to section 3.7 Statement Test result included is only for the 802.11a (5470 ~ 5725MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR7N3008-01AA Report Format Version: 01 Page No. : i of ii FCC ID: ODMWH-9200AP Issued Date : Dec. 22, 2009 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................5 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Multiple Listing & Class II Change ........................................................................................................................................6 3.8. Table for Supporting Units ...................................................................................................................................................................6 3.9. Table for Parameters of Test Software Setting .....................................................................................................................................6 3.10. Test Configurations .............................................................................................................................................................................7 4. TEST RESULT ..................................................................................................................................................... 9 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................9 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................15 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................22 4.4. Power Spectral Density Measurement ..............................................................................................................................................29 4.5. Peak Excursion Measurement ...........................................................................................................................................................36 4.6. Radiated Emissions Measurement ....................................................................................................................................................43 4.7. Band Edge Emissions Measurement .................................................................................................................................................63 4.8. Frequency Stability Measurement ....................................................................................................................................................67 4.9. Antenna Requirements .....................................................................................................................................................................70 5. LIST OF MEASURING EQUIPMENTS ......................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR7N3008-01 FCC ID: ODMWH-9200AP Page No. : 1 of 9 Appendix B. Test Photos Report No.: FR7N3008-01 FCC ID: ODMWH-9200AP Page No. : 2 of 9 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR7N3008-01 FCC ID: ODMWH-9200AP Page No. : 3 of 9 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR7N3008-01 FCC ID: ODMWH-9200AP Page No. : 4 of 9 30MHz~1GHz For 5GHz Band <Module for IEEE 802.11a/b/g> FRONT VIEW REAR VIEW Report No.: FR7N3008-01 FCC ID: ODMWH-9200AP Page No. : 5 of 9 For 5GHz Band <Module for IEEE 802.11a> FRONT VIEW REAR VIEW Report No.: FR7N3008-01 FCC ID: ODMWH-9200AP Page No. : 6 of 9 For 2.4GHz Band <Module for IEEE 802.11a/b/g> FRONT VIEW REAR VIEW Report No.: FR7N3008-01 FCC ID: ODMWH-9200AP Page No. : 7 of 9 Above 1GHz For 5GHz Band <Module for IEEE 802.11a/b/g> FRONT VIEW REAR VIEW Report No.: FR7N3008-01 FCC ID: ODMWH-9200AP Page No. : 8 of 9 For 5GHz Band <Module for IEEE 802.11a> FRONT VIEW REAR VIEW Report No.: FR7N3008-01 FCC ID: ODMWH-9200AP Page No. : 9 of 9 For 2.4GHz Band <Module for IEEE 802.11a/b/g> FRONT VIEW REAR VIEW
