1 WN-220ARM Wireless 11N 150Mbps ADSL2+M Router User Manual 2 Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission. FCC Part 15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation FCC Part 15.21 information for user You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC Section 15.105 Information to the user. NOTE: This equipment has been tested and found to comply with the limits for a lass B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. RF exposure statements 3 TABLE OF CONTENTS COPYRIGHT ......................................................................................................................... 2 FCC INTERFERENCE STATEMENT ..................................................錯誤! 尚未定義書籤。 1.1 PACKAGE LIST ........................................................................................................... 4 1.2 HARDWARE INSTALLATION .................................................................................... 5 CHAPTER 2. GETTING STARTED ...................................................................................... 8 2.2 EASY SETUP BY CONFIGURING WEB PAGES........................................................ 12 CHAPTER 3. MAKING CONFIGURATION ..................................................................... 16 3.1 START TO CONFIGURE .......................................................................................... 16 3.2 SYSTEM STATUS...................................................................................................... 17 3.3 ADVANCED ............................................................................................................... 18 3.3.1 BASIC SETTING........................................................................................................ 18 3.3.2 FORWARDING RULES ............................................................................................. 32 3.3.3 SECURITY SETTINGS .............................................................................................. 36 3.3.4 ADVANCED SETTINGS ............................................................................................ 50 3.3.5 TOOLBOX..................................................................................................................61 CHAPTER 4. TROUBLESHOOTING ................................................................................. 66 APPENDIX A. SPEC SUMMARY TABLE.......................................................................... 70 4 CHAPTER 1. Introduction Congratulations on your purchase of this outstanding product: WN-220ARM Wireless 11N 150Mbps ADSL2+M Router . This product is specifically designed for home and small office needs. It provides a complete solution for Internet surfing. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product. 1.1 Package List Items Description Quantity 1 Wireless 11N 150Mbps ADSL2+M Router 1 2 Power adapter 12Vdc/ 0.6A 1 3 CD 1 5 1.2 Hardware Installation 1.2.1 Hardware configuration LAN1~LAN4 LEDs ADSL Connection Status WPS Button Status LEDPower Switch WLAN LED Wireless On/Off Button Reset: Press “Wireless on/off” and “WPS” button for 5 sec simultaneously. 6 1.2.2 LED indicators LED color Description Green in flash power is on Status Green in fast flash Reset mode Green in flash xDSL connection is established ADSL Green in fast flash Data packet transferred via DSL Line Green WiFi is on. WLAN Green in flash Data access Green RJ45 cable is plugged, and Ethernet connection is established. LAN Green in flash Data access Auto MDI/MDIX RJ-45 Ports Automatically sense the types of WAN and LAN when connecting to Ethernet Receptor for Power adapter RJ-11 Port 7 1.2.3 Installation Steps Step 1. Connect with the Ethernet patch cable: Insert the Ethernet cable into RJ45 Ethernet Port on the back panel. And then plug the other end of RJ45 into the computer or Laptop computer. The LED of Internet connection will show green color if the Ethernet connection is normally connected. Step 2. Insert the RJ11 cable for ADSL Step 3. Connect the power adapter: Plug the other end of the power adapter into a wall outlet. Step 4. power on Switch the power on in front of this WiFi ADSL Router Step 5. Start to configure the device: You can start to configure the device via the Easy Set…

Text truncated - open the document above for the full version.

OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Taiwan Attestation FCC ID : ODMWN220ARM Product : Wireless 11N 150Mbps ADSL2+M Router Model : WN-220ARM Statements: We, the undersigned, hereby certify that only 11 channels from 2412-2462MHz will be used in USA, other channels will be disabled by software. Sincerely yours, _________________________ Name/ Title Company name

OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Ta i w a n Confidentiality Request FCC ID : ODMWN220ARM Product : Wireless 11N 150Mbps ADSL2+M Router Model : WN-220ARM Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ___________________________ Albert Yeh / Vice President

OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Taiwan Date: 2011/10/25 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Alex Chiu / Director of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Alex Chiu / Director of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Albert Yeh / Vice President OvisLink Corp. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

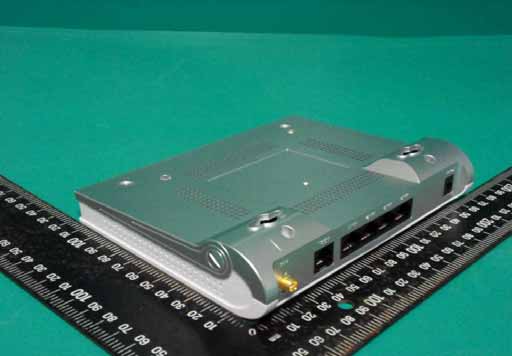

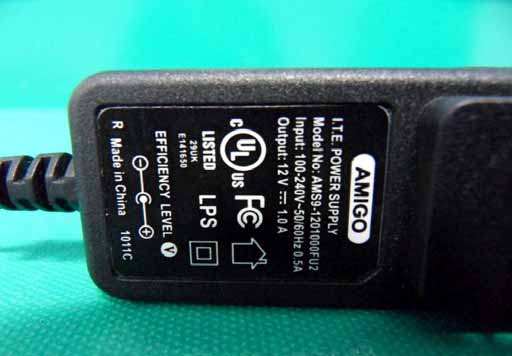

Compliance Certification Services Inc. Report No.:T110803404 Date of Issue: August 12, 2011 Page A1 / 10 PHOTOGRAPHS OF EUT External Photo (Model: WN-220ARM) Compliance Certification Services Inc. Report No.:T110803404 Date of Issue: August 12, 2011 Page A2 / 10 Compliance Certification Services Inc. Report No.:T110803404 Date of Issue: August 12, 2011 Page A3 / 10 Compliance Certification Services Inc. Report No.:T110803404 Date of Issue: August 12, 2011 Page A4 / 10 External Photo (Adapter 1) External Photo (Adapter 2) Compliance Certification Services Inc. Report No.:T110803404 Date of Issue: August 12, 2011 Page A5 / 10 External Photo (Adapter 3)

Diagram Label location Label location ZALiP FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Compliance Certification Services Inc. Report No.:T110803404 Date of Issue: August 12, 2011 Page A6 / 10 Internal Photo (Model: WN-220ARM) Compliance Certification Services Inc. Report No.:T110803404 Date of Issue: August 12, 2011 Page A7 / 10 Compliance Certification Services Inc. Report No.:T110803404 Date of Issue: August 12, 2011 Page A8 / 10 Compliance Certification Services Inc. Report No.:T110803404 Date of Issue: August 12, 2011 Page A9 / 10 Compliance Certification Services Inc. Report No.:T110803404 Date of Issue: August 12, 2011 Page A10 / 10

Description of Operation The EUT is a Wireless 11N 150Mbps ADSL2+M Router with IEEE 802.11b/g/n (1T1R) . And this device provided of transmitting speed: IEEE 802.11b：11, 5.5, 2, 1 Mbps IEEE 802.11g：54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps IEEE 802.11n HT40 : 150 ,135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK. The device adapts DSSS and OFDM modulation. And the antenna was a Dipole Antenna(1T1R) and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network. The other instruction, please have a look at the user’s manual.

Specification 1. Electrical Properties : 1.1 Frequency Range.................. 1.2 Impedance ..................... ... 1.3 VSWR .............................. 1.4 Return Loss........................ 1.5 Radiation ........................... 1.6 Gain(peak).........................2dBi 1.7 Polarization..................... ...Linear; Vertical 1.8 Admitted Power.................. 1.9 Cable.............................. ...RG-178 Cable 1.10 Connector........................ ...SMA Straight Plug Reverse 2. Physical Properties : 2.1 Antenna Body................ ... ...TPE 2.2 Antenna Base................ ... ...PC 2.3 Antenna Base................ ... ...PBT 2.4 Operating Temp. ............... ...-10к ~ +60к 2.5 Storage Temp. .................. ...-10к ~ +70к 2.6 Color .............................. White 1W 2.4GHz ~ 2.5GHz 50ȍ Nominal 1.92 :1Max. -10 dB Max. RF Antenna Assembly Omni-directional 1 2 3 2009/4/13 RF Antenna Assembly P/No.C381-510150-A SSR-91019 Spec:2.4~2.5GHz 4 ʳ 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C381-510150-A SSR-91019 E H-PLANE.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 5 ʳ 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C381-510150-A SSR-91019 V H-PLANE.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 6 11-15 Santai Rd., Hsinchuang, Taipei Hsien, 242, Taiwan, R.O.C. Nizing Electric Co., Ltd. Tel: 02 -29016164 Fax: 29050644 E-mail: [email protected] RG 178 B/UPAGE1 / 2 ISSUED 16. Oct. 2003 PRODUCT STANDARD FEP INSULATED HIGH-FREQUENCY COAXIAL CABLE REVISED I - Scope This specification presents a FEP insulated high- frequency coaxial cable AWG 30, 1.8 mm O.D. for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II - Construction ItemUnitDetails Material— CP-AG CompositionNo./mm AWG 30 or 7ͪ0.1 1. Inner Conductor Dia. (approx.)mm 0.305 Material— Extruded FEP Nom. O.D. mm 0.84 ± 0.05 2. Dielectric Color— Natural Material— Silver coated copper Composition — Braided (16 / 3 / 0.1) 3. Outer Conductor Dia. (approx)mm 1.29̈́0.01 Material— Extruded FEP Dia.mm 1.80̈́0.1 4. Jacket Color— Standard color is Light Orange MADE BY Note : APPROVALS 2 4 3 1 7 11-15 Santai Rd., Hsinchuang, Taipei Hsien, 242, Taiwan, R.O.C. Nizing Electric Co., Ltd. Tel: 02 -29016164 Fax: 29050644 E-mail: [email protected] RG 178 B/UPAGE2 / 2 ISSUED 16. Oct. 2003 PRODUCT STANDARD FEP INSULATED HIGH-FREQUENCY COAXIAL CABLE REVISED III – Characteristics ItemUnitSpecified ValueNote Temperature Rating к -55 ~ +200 Voltage LastingV1000 Dielectric core: No breakdown at AC 3 kv for 0.2 sec. Spark test Dielectric strength — Jacket: No breakdown at AC 3 kv for 0.2 sec. Spark test Characteristic Impedance Ω50 ± 2 TDR method CapacitancepF / m29.4at 1 kHz 52.01.0 GHz 94.03.0 GHz -5.0 GHz 16.0100.0 GHz Attenuation. (Max.)dB / 30m 33.0400.0 GHz Approx. Weight g / m 7.68 MADE BY Note : APPROVALS 8 ET-QA-0017-A2 ˖̂́́˸˶̇̂̅ޗᔆᢞࣔ஼ʳ ᢛᇛறᇆʳ ˪˻˴̌̈ʳˣ˂ˡ ʳ ˄˃˃ˀ˅˃˃˄˅ˉˉˀ˔˭ʳ ข঴ټጠʳ ˣ̅̂˷̈˶̇ʳˡ˴̀˸ʳ ʳ˕˼˺ʳ˦ˠ˔ʳ˦̇̅˴˼˺˻̇ʳˣ˿̈˺ʳ˥˸̉˸̅̆˸ʳ ̇̂̅ʳ˥ ̊ˀ˄ˊˋʳ ࿨ዌቹ૿ʳ 4 Pin 3. Ferrule 2. Duelectric 1. Assembly Body ʳ ʳٝګᔆޗ।૿๠෻ʳ ˄ʳ ˕̂˷̌ʳ ˕̅˴̆̆ʳ ˖̈ʳ ˣ˵ʳ ̇˸ʳ ̇˸ʾ˦́ ˭́ʳ ʳˣˢˠʳ˪˻˼̇˸ʳ ˅ʳ ˗˼˸˿˸˶̇̅˼˶ʳ ˧˸˹˿̂́ʳˣ˧ ̇ ̆ʳˡ˂˔ʳ ˆʳ ̇˸̅̅̈˿˸ʳ ˕̅˴̆̆ʳ ˖̈ʳ ˣ˵ʳ ̇˸ʳ ̇˸ʾ˦́ ˭́ʳ ʳ ˣ˿˴̇˸˷ʳˡ˼˶˾˸˿ʳˑˋ˃Ӵʵʳ ˇʳ ˣ˼́ʳ ˕̅˴̆̆ʳ ˖̈ʳ ˣ˵ʳ ̇˸ʳ ̇˸ʾ˦́ ˭́ʳ ʳ ˣ˿˴̇˸˷ʳ ̊̂˿˷ʳˈӴʵʳ ˥˸̀˴̅˾Κʳᓮ።ֆ׹ີʳ 9

Compliance Certification Services Inc. Reference No.:T110519402-RP1 FCC IDODMWN220ARM Report No.T110803404-RP1 Page 1 / 120 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For Wireless 11N 150Mbps ADSL2+M Router Model Number: WN-220ARM Brand: Air Live Issued for OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Date: August 12, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Compliance Certification Services Inc. Reference No.:T110519402-RP1 FCC IDODMWN220ARM Report No.T110803404-RP1 Page 2 / 120 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 August 12, 2011 Initial Issue ALL Sunny Chang 01 October 26, 2011 Update data Page 59 Sunny Chang Compliance Certification Services Inc. Reference No.:T110519402-RP1 FCC IDODMWN220ARM Report No.T110803404-RP1 Page 3 / 120 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ................................................................................................ 4 2. EUT DESCRIPTION...................................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ........................................................................................ 5 3. DESCRIPTION OF TEST MODES ............................................................................................... 7 4. TEST METHODOLOGY................................................................................................................ 8 5. FACILITIES AND ACCREDITATIONS......................................................................................... 8 5.1 FACILITIES .............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................ 8 5.3 LABORATORY ACCREDITATIONS LISTINGS ...................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................... 9 6. CALIBRATION AND UNCERTAINTY .......................................................................................... 10 6.1 MEASURING INSTRUMENT CALIBRATION.......................................................................... 10 6.2 MEASUREMENT UNCERTAINTY .......................................................................................... 10 7. SETUP OF EQUIPMENT UNDER TEST ...................................................................................... 11 7.1 SETUP CONFIGURATION OF EUT........................................................................................ 11 7.2 SUPPORT EQUIPMENT ......................................................................................................... 11 7.3 EUT OPERATING CONDITION .............................................................................................. 13 8. APPLICABLE LIMITS AND TEST RESULTS.............................................................................. 14 8.1 6DB BANDWIDTH ................................................................................................................... 14 8.2 MAXIMUM PEAK OUTPUT POWER....................................................................................... 25 8.3 MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. 29 8.4 POWER SPECTRAL DENSITY ............................................................................................... 31 8.5 CONDUCTED SPURIOUS EMISSION.................................................................................... 41 8.6 RADIATED EMISSIONS .......................................................................................................... 58 8.7 POWERLINE CONDUCTED EMISSIONS .............................................................................. 107 9. ANTENNA REQUIREMENT .........................................................................................................115 9.1 STANDARD APPLICABLE ...................................................................................................... 115 9.2 ANTENNA CONNECTED CONSTRUCTION .......................................................................... 115 APPENDIX I SETUP PHOTOS......................................................................................................... 116 APPENDIX II PHOTOGRAPHS OF EUT.............................................................................A1 Compliance Certification Services Inc. Reference No.:T110519402-RP1 FCC IDODMWN220ARM Report No.T110803404-RP1 Page 4 / 120 1. TEST REPORT CERTIFICATION Applicant OvisLink Corp. Address 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Taiwan Equipment Under Test Wireless 11N 150Mbps ADSL2+M Router Model Number WN-220ARM Brand Name Air Live Date of Test May 20, 2011 ~ June 03, 2011 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. Reference No.:T110519402-RP1 FCC IDODMWN220ARM Report No.T110803404-RP1 Page 5 / 120 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name Wireless 11N 150Mbps ADSL2+M Router Model Number WN-220ARM Brand Name Air Live Received Date August 03, 2011 Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS B…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.:T110519402-RP1 FCC IDODMWN220ARM Report No.T110803404-RP1 Page 116 / 120 APPENDIX I SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.:T110519402-RP1 FCC IDODMWN220ARM Report No.T110803404-RP1 Page 117 / 120 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.:T110519402-RP1 FCC IDODMWN220ARM Report No.T110803404-RP1 Page 118 / 120 Compliance Certification Services Inc. Reference No.:T110519402-RP1 FCC IDODMWN220ARM Report No.T110803404-RP1 Page 119 / 120 RF CONDUCTED SETUP Compliance Certification Services Inc. Reference No.:T110519402-RP1 FCC IDODMWN220ARM Report No.T110803404-RP1 Page 120 / 120 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
