ODMWN220R150Mbps SOHO Wireless Router

WN-220R 150Mbps SOHO Wireless Router User’s Manual Copyright and Disclaimer AirLive WN-220R User’s Manual Copyright & Disclaimer No part of this publication may be reproduced in any form or by any means, whether electronic, mechanical, photocopying, or recording without the written consent of OvisLink Corp. OvisLink Corp. has made the best effort to ensure the accuracy of the information in this user’s guide. However, we are not liable for the inaccuracies or errors in this guide. Please use with caution. All information is subject to change without notice All Trademarks are properties of their respective holders. Copyright and Disclaimer AirLive WN-220R User’s Manual FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Cla ss B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) Thi s device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation expos ure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Table of Contents AirLive WN-220R User’s Manual Table of Contents 1. Introduction ................................................................................................1 1.1 Overview ..............................................................................................1 1.2 Support ................................................................................................1 1.3 Features...............................................................................................2 1.4 Packing List .........................................................................................2 1.5 Specification Table ...............................................................................3 1.6 Hardware Configuration .......................................................................4 1.6.1 Front V iew ...................................................................................................4 1.6.2 Rare V iew ....................................................................................................5 1.6.3 LED Indicator...............................................................................................5 1.6.4 Button Definition..........................................................................................6 1.6.5 Hardware Installation ...................................................................................6 2. Getting Start ...............................................................................................8 3. Making Configuration ..............................................................................14 3.1 Login to Configure from Wizard .........................................................15 3.2 System Status ....................................................................................19 3.3 Advanced ...........................................................................................20 3.3.1 Basic Setting.........................................................................................20 3.3.2 Forwarding Rules.................................................................................. 41 3.3.3 Security Settings...................................................................................45 3.3.4 Advanced Settings................................................................................59 3.3.5 Toolbox..................................................................................................69 Appendix: FAQ and Troubleshooting ........................................................73 1. Introduction 1 AirLive WN-220R User’s Manual 1 1. Introduction 1.1 Overview AirLive WN-220R is the center of your home or office network, you can share a high–speed Internet connection with the flexibility, speed, security and simplicity! The WN-220R conforms to wireless 802.11b/g/n demand, and provides up to 150Mbps wireless speed. Its additional 4 Ethernet cable ports let the user connect your whole wired and wireless devices together. WN-220R also supports various ways for connecting to your Internet Service Provider, such as static IP, dynamic IP (DHCP), or PPPoE. More over, with the Setup Wizard provided in the bundle CD, you can simply connect your n…

Text truncated - open the document above for the full version.

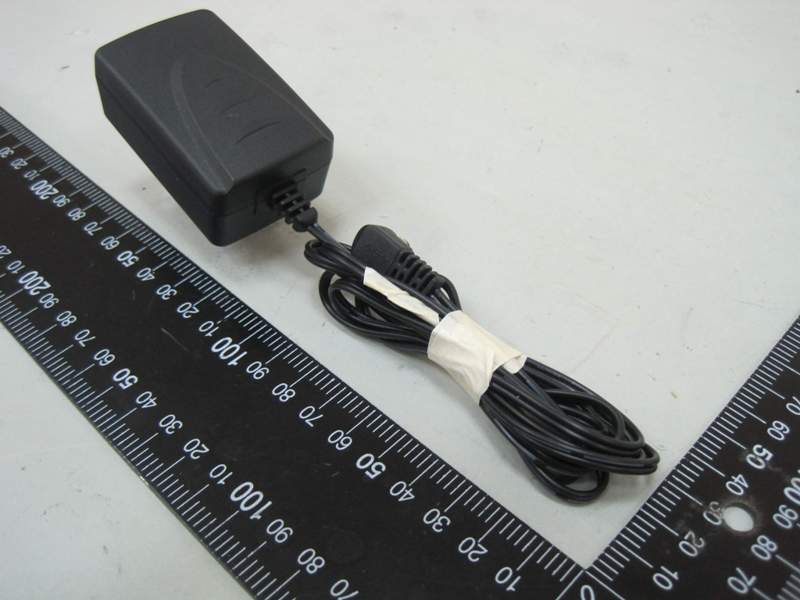

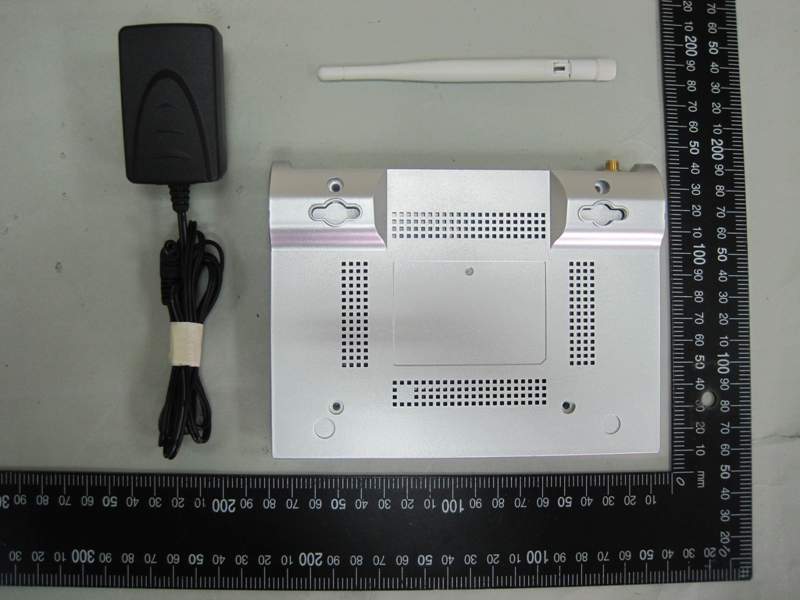

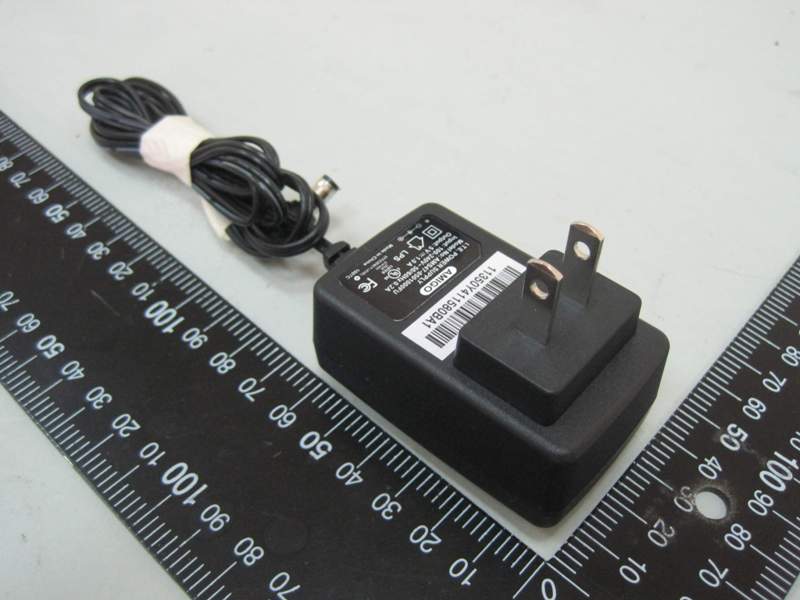

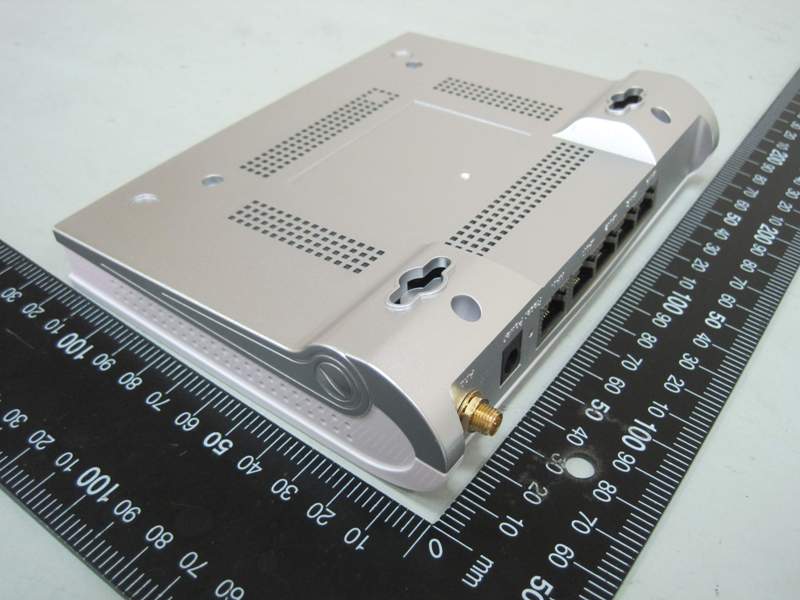

SPORTON International Inc. PAGE NUMBER : A1 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : May. 19, 2011 FAX : 886-2-2696-2255 Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : May. 19, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : May. 19, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : May. 19, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : May. 19, 2011 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May. 19, 2011 FAX : 886-2-2696-2255 Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May. 19, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May. 19, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May. 19, 2011 FAX : 886-2-2696-2255

Report No.: FR141923-01 FCC ID: ODMWN220R Page No. : 1 of 3 Appendix B. Maximum Permissible Exposure Report No.: FR141923-01 FCC ID: ODMWN220R Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2 m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR141923-01 FCC ID: ODMWN220R Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11g Ant. A: 26.58 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 1.40 1.3804 26.5800 454.9881 0.125012 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company OvisLink Corp. Applicant Address 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City , Taipei County 231, Taiwan FCC ID ODMWN220R Product Name 150Mbps SOHO Wireless Router Brand Name Air Live Model Name WN-220R Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Jan. 14, 2011 Final Test Date Mar. 25, 2011 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR141923-01 Report Format Version: 01 Page No. : i of ii FCC ID: ODMWN220R Issued Date :May. 24, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details .................................................................................................................................................................................... 3 3.2. Accessories ......................................................................................................................................................................................... 3 3.3. Table for Filed Antenna....................................................................................................................................................................... 3 3.4. Table for Carrier Frequencies ............................................................................................................................................................. 3 3.5. Table for Test Modes ........................................................................................................................................................................... 4 3.6. Table for Testing Locations .................................................................................................................................................................. 4 3.7. Table for Supporting Units ................................................................................................................................................................... 5 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 5 3.9. Test Configurations ............................................................................................................................................................................. 6 4. TEST RESULT ..................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement ........................................................................................................................... 8 4.2. Maximum Conducted Output Power Measurement ......................................................................................................................... 12 4.3. Power Spectral Density Measurement .............................................................................................................................................. 14 4.4. 6dB Spectrum Bandwidth Measurement .......................................................................................................................................... 19 4.5. Radiated Emissions Measurement .................................................................................................................................................... 24 4.6. Band Edge Emissions Measurement ................................................................................................................................................. 36 4.7. Antenna Requirements ..................................................................................................................................................................... 41 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 42 6. TEST LOCATION.............................................................................................................................................. 44 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 45 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A6 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................................... B1 ~B3 Report No.: FR141923-01 Report Format Version: 01 Page No. : ii of ii FCC ID: ODMWN220R Issued Date :May. 24, 2011 History of This Test Report REPORT NO. VERSION DESCRIPTION ISSUED DATE FR141923-01 Rev. 01 Initial issue of report Ma…

Text truncated - open the document above for the full version.

Report No.: FR141923-01 FCC ID: ODMWN220R Page No. : 1 of 6 Appendix A. Test Photos Report No.: FR141923-01 FCC ID: ODMWN220R Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR141923-01 FCC ID: ODMWN220R Page No. : 3 of 6 SIDE VIEW Report No.: FR141923-01 FCC ID: ODMWN220R Page No. : 4 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR141923-01 FCC ID: ODMWN220R Page No. : 5 of 6 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR141923-01 FCC ID: ODMWN220R Page No. : 6 of 6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
