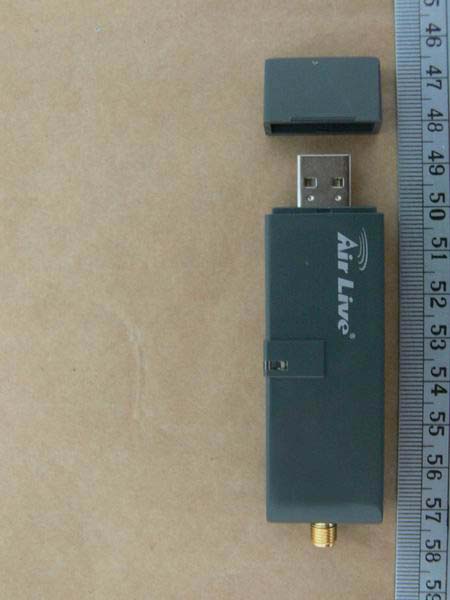

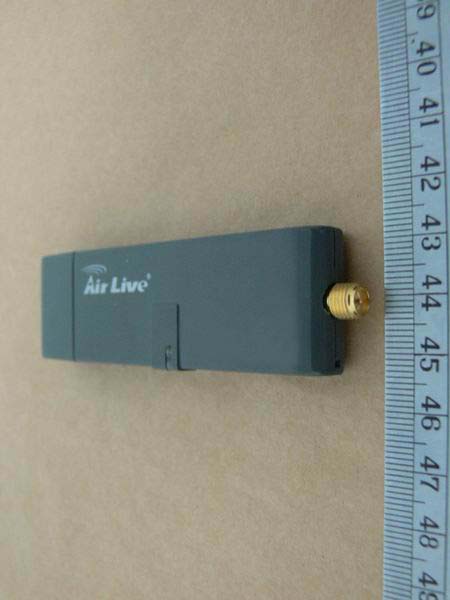

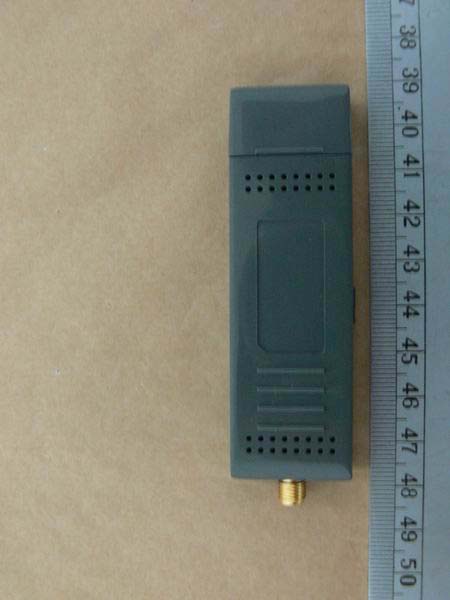

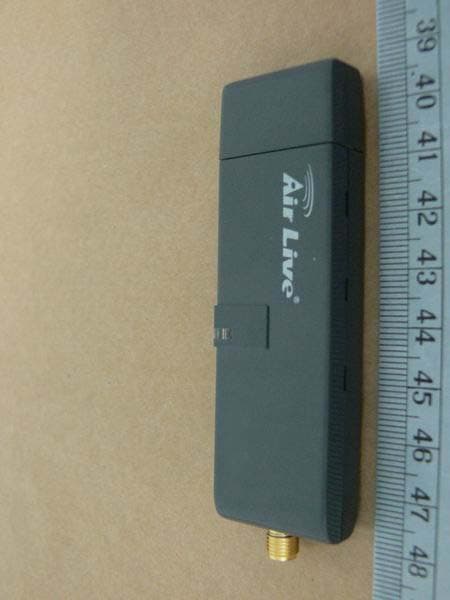

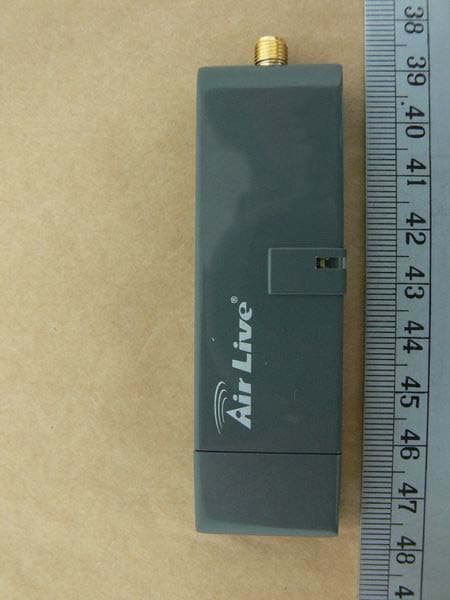

Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 170 of 185 External Photos Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 171 of 185 Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 172 of 185 Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 173 of 185 Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 174 of 185 Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 175 of 185 Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 176 of 185 Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 177 of 185 Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 178 of 185

Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 179 of 185 Internal Photos Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 180 of 185 Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 181 of 185

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 16.72 (dBm) Maximum peak output power at antenna input terminal: 46.98 (mW) Antenna gain(maximal): 5.0 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2437 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.0295(mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the user’s body.

of Applicant: OvisLink Corp. Address: 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien City,Taipei County 231, Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6D21105-11474-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for Long Range Wireless-B/G/N USB Dongle with Detachable Antenna Model No.: WN-370USB FCC ID: ODMWN370USB Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 72 TABLE OF CONTENTS 1 General Information.........................................................................................................................2 1.1 Notes ...........................................................................................................................................2 1.2 Testing laboratory .......................................................................................................................3 1.2.1 Location ..................................................................................................................................3 1.2.2 Details of accreditation status ................................................................................................3 1.3 Details of approval holder...........................................................................................................3 1.4 Application details ......................................................................................................................4 1.5 General information of Test item................................................................................................4 1.6 Test standards .............................................................................................................................5 2 Technical test .....................................................................................................................................6 2.1 Summary of test results...............................................................................................................6 2.2 Test environment ........................................................................................................................6 2.3 Test Equipment List ....................................................................................................................7 2.4 General Test Procedure.............................................................................................................11 3 Test results (enclosure) ...................................................................................................................13 3.1 Peak Output Power (transmitter) ..............................................................................................14 3.2 Equivalent isotropic radiated power .........................................................................................21 3.3 RF Exposure Compliance Requirements ..................................................................................21 3.4 Transmitter Radiated Emissions in Restricted Bands ...............................................................22 3.5 Spurious Emissions (tx) ............................................................................................................23 3.6 Radiated Emission on the band edge ........................................................................................34 3.7 Minimum 6 dB Bandwidth .......................................................................................................39 3.8 Peak Power Spectral Density ....................................................................................................46 3.9 Radiated Emission from Digital Part ........................................................................................53 3.10 Power Line Conducted Emission..............................................................................................71 Registration number: W6D21105-11474-C-1 FCC ID: ODMWN370USB Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 72 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: July 07, 2011 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: July…
