OE58000-5219-S

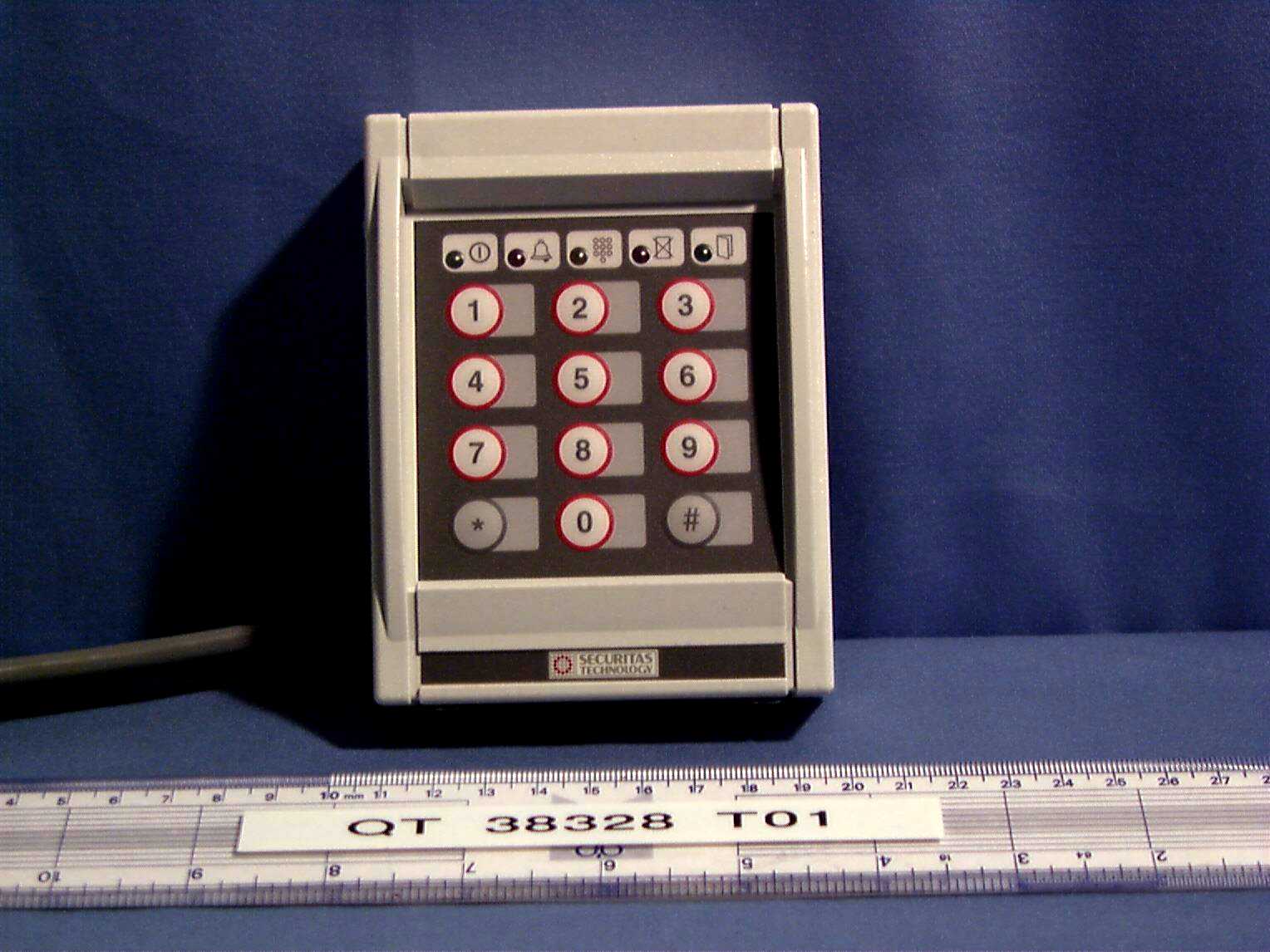

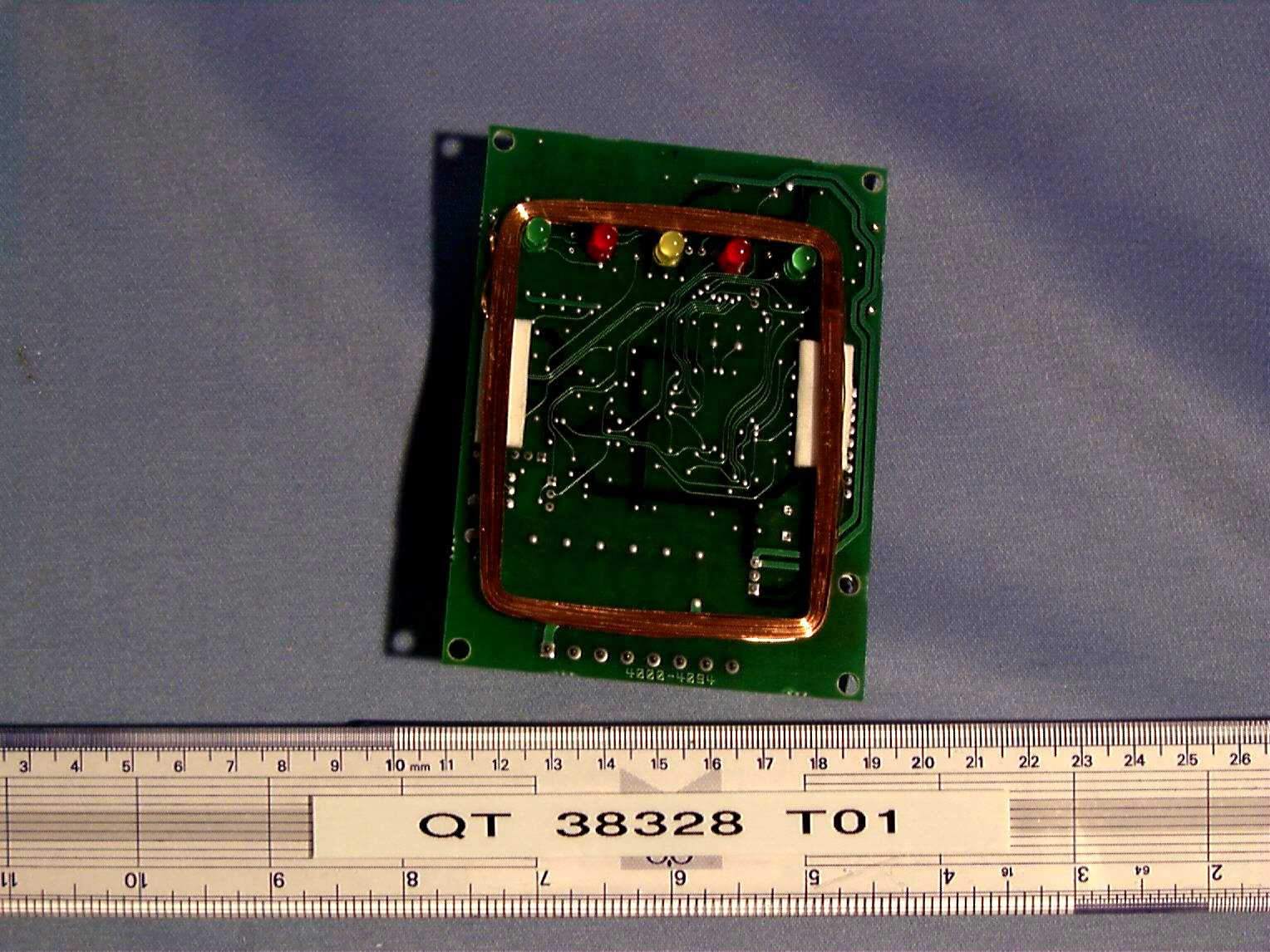

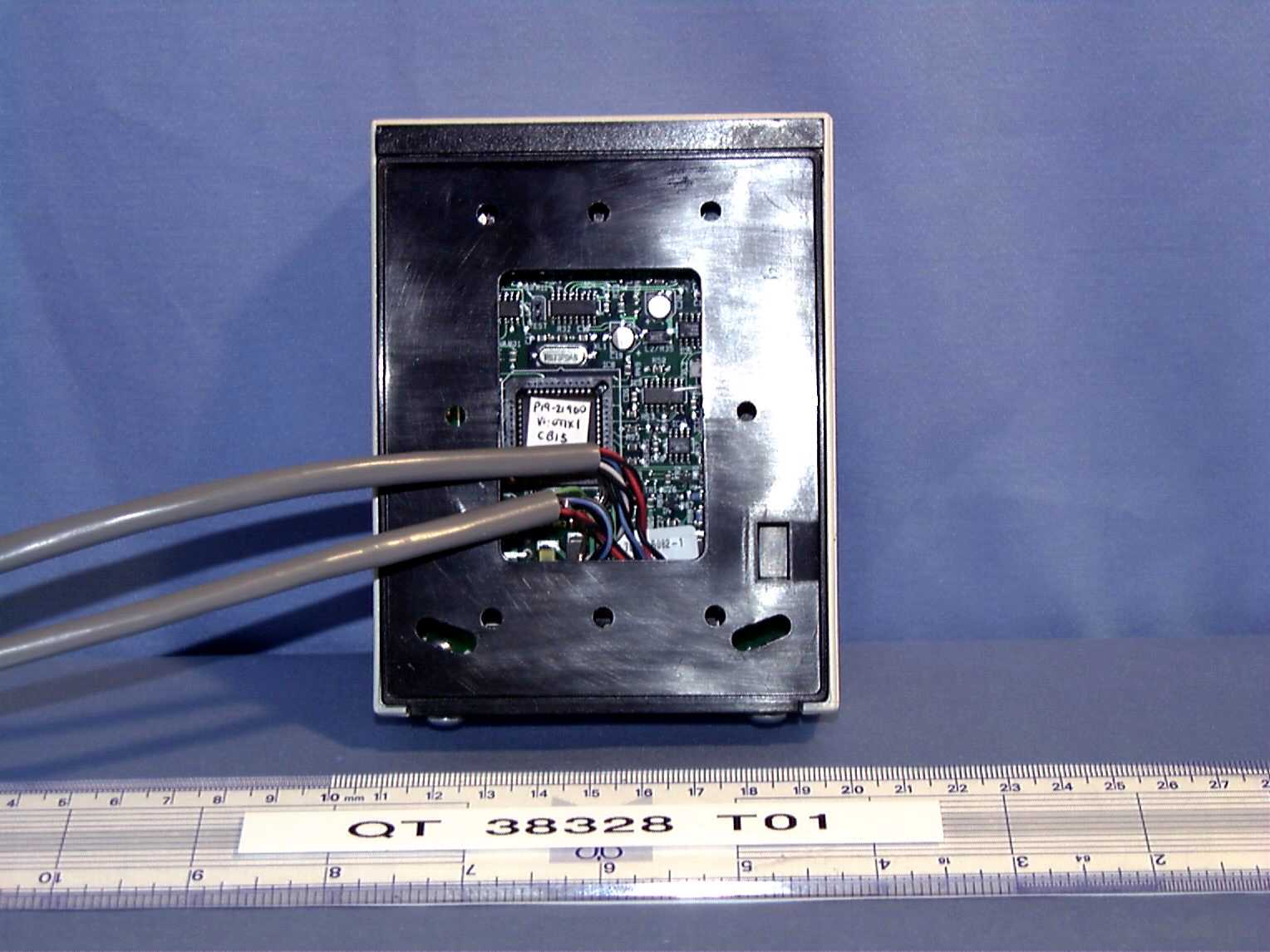

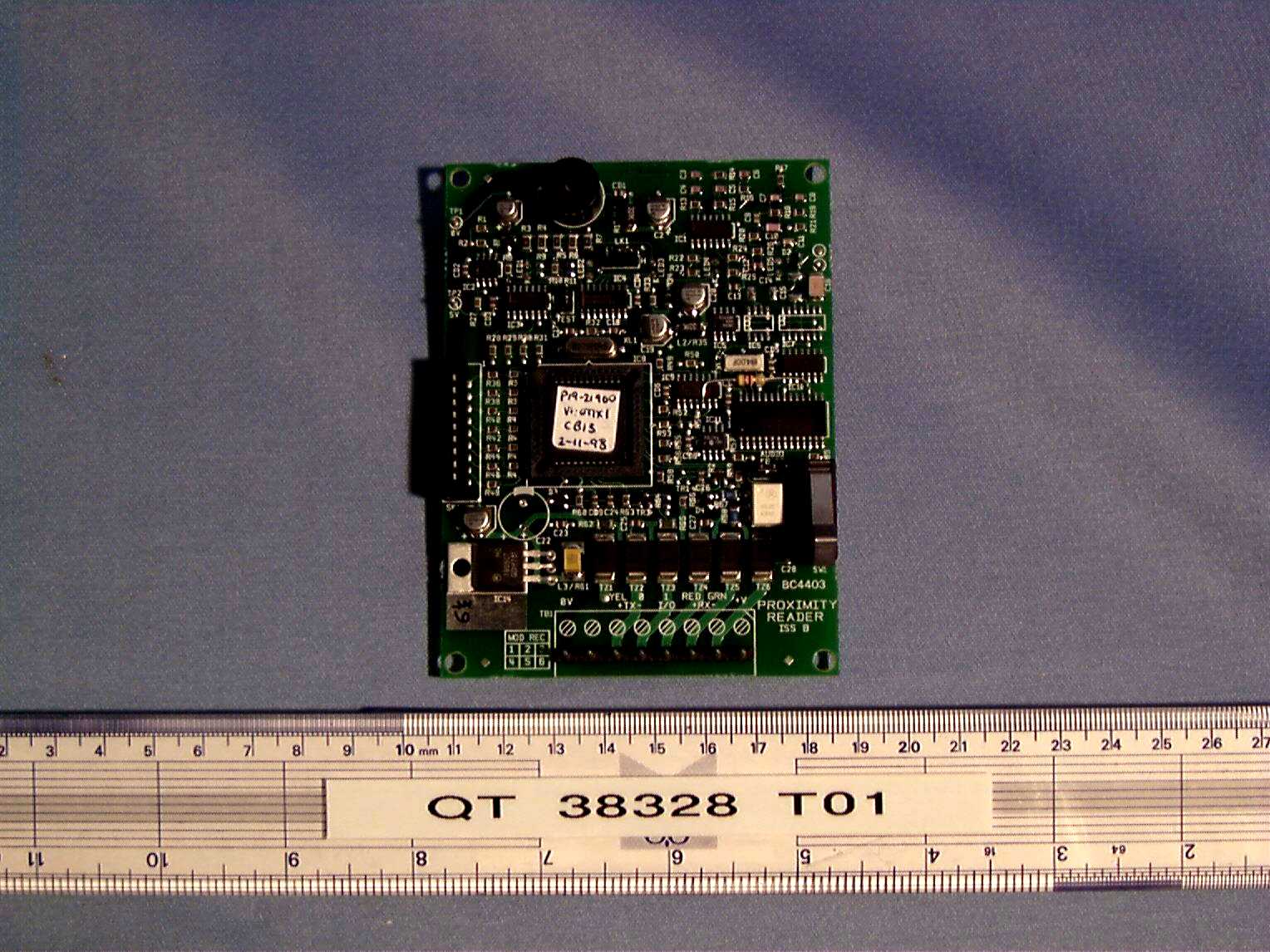

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test of: John Falck Associates. Group 4 Technology Proximity Reader Device 8000-5219-S To: F.C.C. Part 15:1997 Subpart C Sections 15.207 and 15.209 (Intentional Radiators) Test Report Serial No: RFI/EMCB1/RP38147A This Test Report Is Issued Under The Authority Of Brian Watson Technical Director: Checked By: Tested By: p.p. Release Version No: PDF01 Issue Date: 9 February 1999Test Date: 20 December 1998 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB1/RP38147A EMC DepartmentPage 2 of 33 Issue Date: 9 February 1999 Test Of:John Falck Associates. Group 4 Technology Proximity Reader Device 8000-5219-S To:F.C.C. Part 15:1997 Subpart C Section 15.207 and 15.209 (Intentional Radiators) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB1/RP38147A EMC DepartmentPage 3 of 33 Issue Date: 9 February 1999 Test Of:John Falck Associates. Group 4 Technology Proximity Reader Device 8000-5219-S To:F.C.C. Part 15:1997 Subpart C Section 15.207 and 15.209 (Intentional Radiators) Table of Contents 1. Client Information......................................................................................................4 2. Equipment Under Test (EUT)....................................................................................5 3. Test Specification, Methods And Procedures.........................................................7 4. Deviations From The Test Specification..................................................................8 5. Operation Of The EUT During Testing.....................................................................9 6. Summary Of Test Results.......................................................................................10 7. Measurements, Examinations And Derived Results.............................................11 8. Measurement Uncertainty.......................................................................................20 Appendix 1. Test Equipment Used..............................................................................21 Appendix 2. Measurement Methods............................................................................23 Appendix 3. Test Configuration Drawings..................................................................27 Appendix 4. Graphical Test Results............................................................................31 Appendix 5. Sample Measurement Calculation..........................................................32 Appendix 6. Photographs of EUT................................................................................33 RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB1/RP38147A EMC DepartmentPage 4 of 33 Issue Date: 9 February 1999 Test Of:John Falck Associates. Group 4 Technology Proximity Reader Device 8000-5219-S To:F.C.C. Part 15:1997 Subpart C Section 15.207 and 15.209 (Intentional Radiators) 1. Client Information Company Name: John Falck Associates Address: 36 New Barns Road Ely Cambs CB7 4PN Contact Name: Mr J Falck RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB1/RP38147A EMC DepartmentPage 5 of 33 Issue Date: 9 February 1999 Test Of:John Falck Associates. Group 4 Technology Proximity Reader Device 8000-5219-S To:F.C.C. Part 15:1997 Subpart C Section 15.207 and 15.209 (Intentional Radiators) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Securitas Technology Model Name or Number: 8000-5219-S Unique Type Identification: Proximity Detector Serial Number: 9840007 Country of Manufacture: UK FCC ID Number: Pending Date of Receipt: 20 December 1998 2.2. Description Of EUT The equipment under test is a proximity reader device with keypad. It transmits a pulsed carrier signal at 125 kHz from an integral loop antenna. When an access control tag is brought within the transmit field, it is activated and returns its unique code. This message it decoded in the receiver and output to the host system. 2.3. Modifications Incorporated In EUT For the purpose of testing, the EUT was modified to provide a continuous carrier transmit signal. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB1/RP38147A EMC DepartmentPage 6 of 33 Issue Date: 9 February 1999 Test Of:John Falck Associates. Group 4 Technology Proximity Reader Device 8000-5219-S To:F.C.C. Part 15:1997 Subpart C Section 15.207 and 15.209 (Intentional Radiators) 2.4. Additional Information Related To Testing Power Supply Requirement: + 12 volt DC Intended Operating Environment: Commercial, Light Industry Weight: 210 g Dimensions: 125 mm x 100 mm x 45 mm Interface Ports: 20 mA Current Loop Single Input/Output Line to Door Interface Module 2.5. Support Equipment The following support equipment was used to power the EUT during testing: Description: Power Supply Unit Brand Name: Lascar Model Name or Number: PSU 20112 (110 V AC) Serial Number: QA Batch TAH 24/3/98 FCC ID Number: None stated by the client Cable Length And Type: 3m Multicore Shielded Connected to Port: DC + 12 V Input on EUT RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI/EMCB1/RP38147A EMC DepartmentPage 7 of 33 Issue Date: 9 February 1999…
