OE5PENDTUUSBProxiPen DTU USB Data Terminal Unit

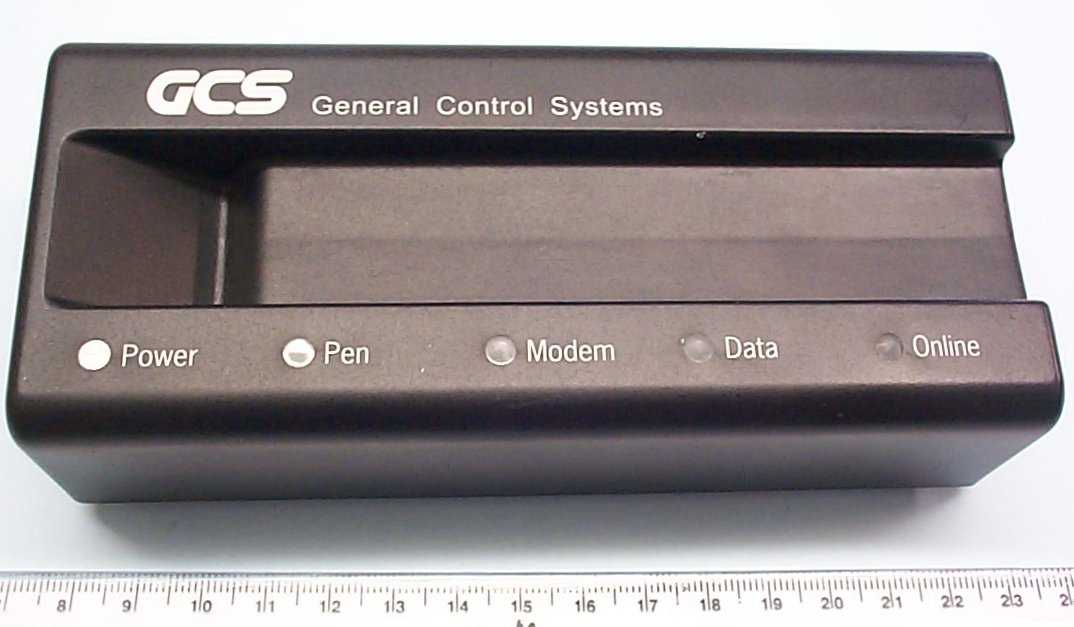

Installation and User Instructions for the GCS USB-DTU ® If you are using the USB interface, connect a standard A-to-B USB cable to the unit. If you are using the RS232 interface, connect a 9-pin modem-type serial cable to the unit. When using the RS232 interface, an external 9-volt power supply must also be connected to the 2.5mm Jack socket. 1 Installing the DTU Communications between the Proxy Pen and DTU is wireless and simply requires the pen to be placed in the cradle at the top of the DTU. To download data from the Proxy Pen, please refer to the Top Guard or WinDau software manual. 2 Using the DTU This leaflet provides user and installation instructions for the Universal Serial Bus (USB) version of the ProxiPen Data Termination Unit (DTU). The unit is equipped with both a 9-pin RS232 port and a USB port, enabling the unit to communicate with a PC running the WinDau or Top Guard software through either port. When using the RS232 port, the unit must be powered from a separate 9Vdc power supply. When using the USB port, power is provided through the USB cable. About the LEDs Power Pen Modem Data Online – Lit when you connect the external 9Vdc power supply or USB cable from the PC – Lit when the Proxy Pen is in the cradle and communicating with the DTU. – Lit if the DTU recognizes a modem connected to its RS232 port. – Lit when data is being transferred from the Proxy Pen to the DTU, or vice versa. – Lit when you connect the DTU to a PC. If you are connecting via the USB port, the PC must have the Top Guard or WinDau software installed for the LED to illuminate. . Specifications External supply (only when RS232 connection used): 9Vdc. Input current; 30mA. Operating temperature: 32 to 95 F (0 to 35 C). Operating humidity: 15 to 90%, non-condensing. Approvals: EN300 330, R&TTE. °° 9600-0391.Installation and User Instructions for the USB Data Termination Unit, Issue 1.0x2 14th January 2004.General Control Systems, 2004. All trademarks acknowledged. GCS is a trademark of General Control Systems. FCC Notice:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device may void the authority of the user to operate it. ©

Diagram showing Proxy Pen DTU USB labelling instructions. Label filename is PenDTUlabel.JPG. Issue 1 IRW 09/02/04 Base of Unit FCC Label (PenDTUlabel.jpg)

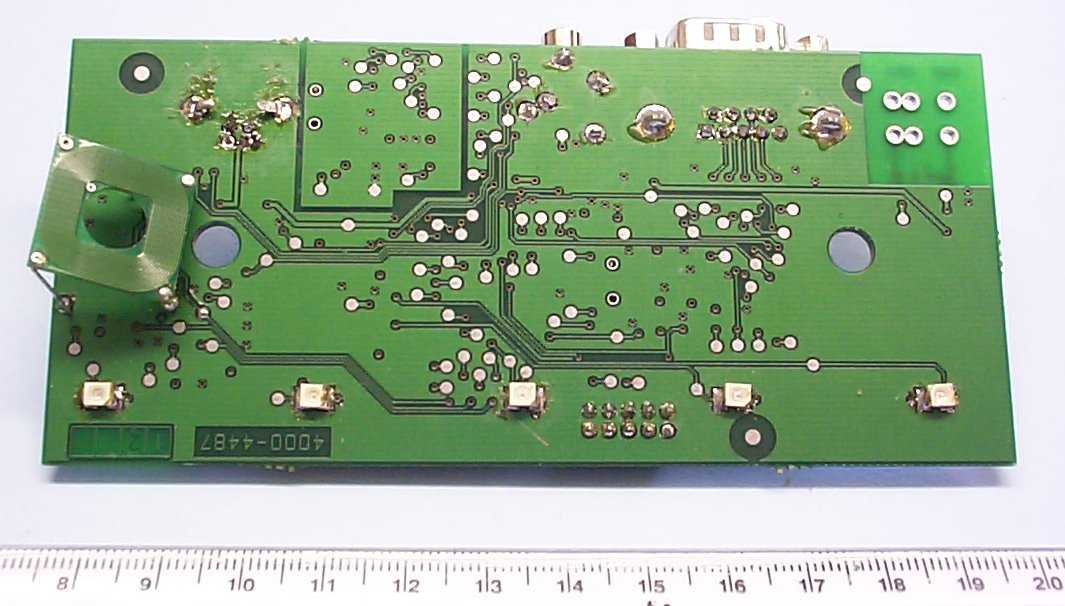

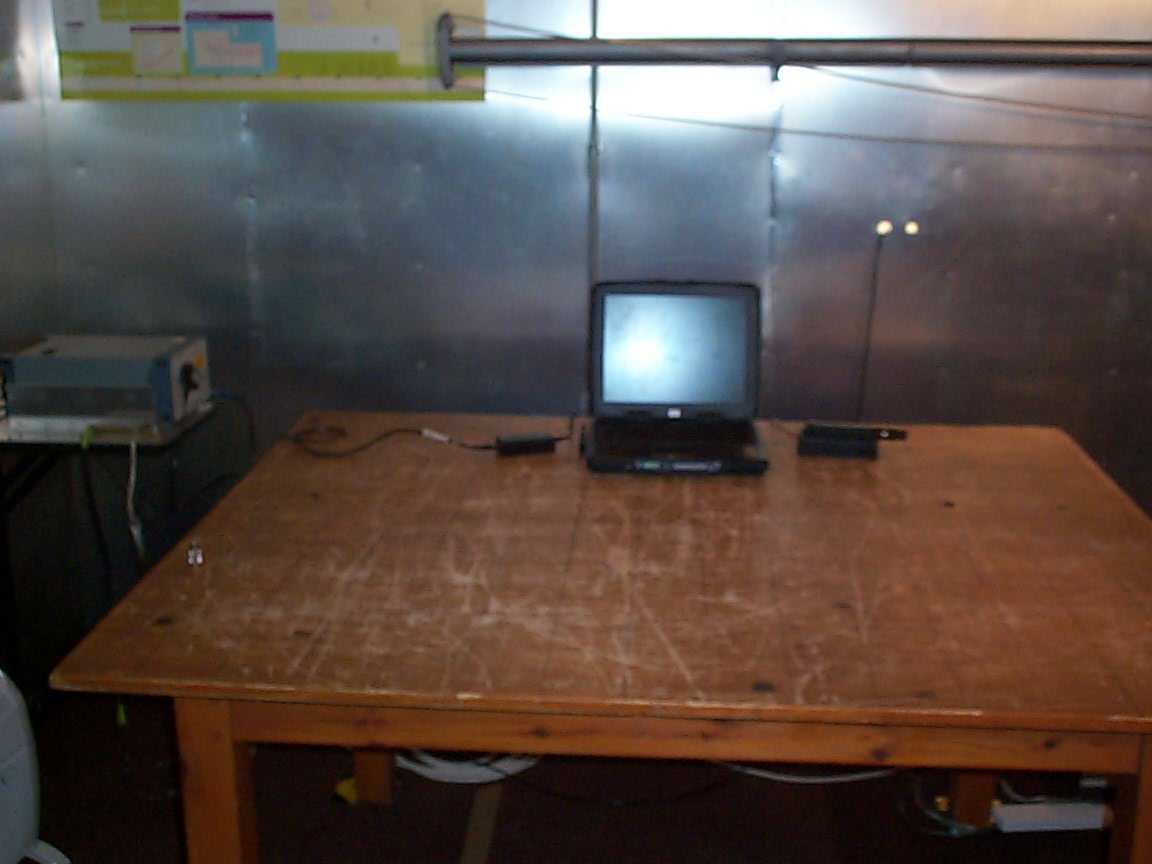

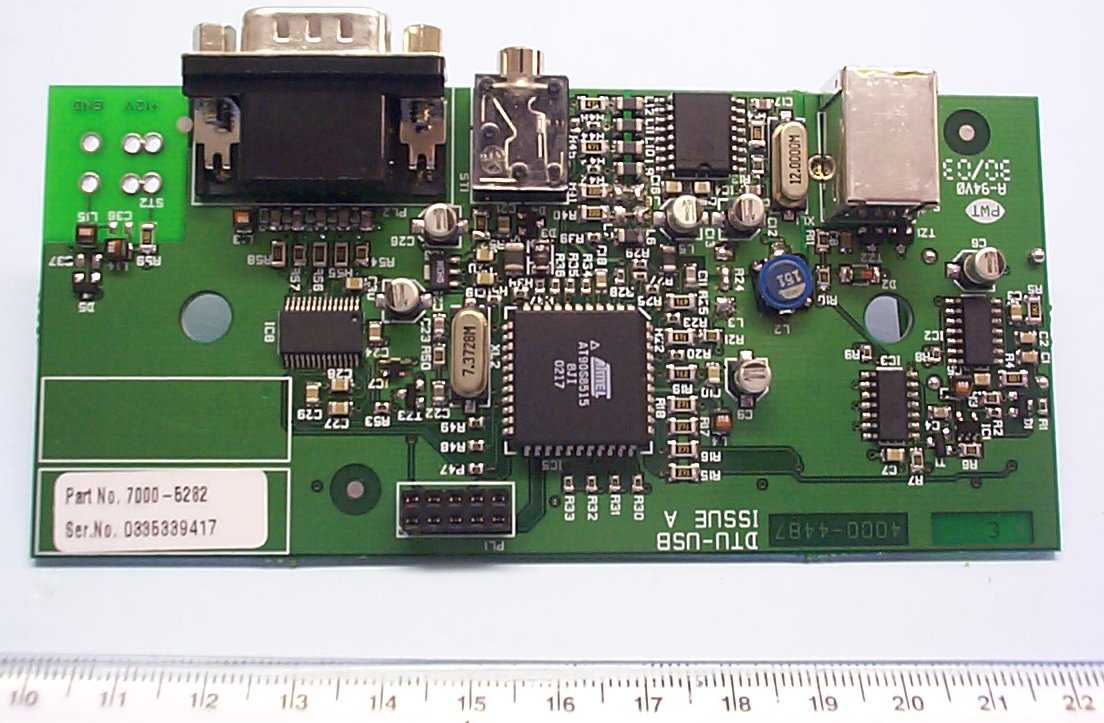

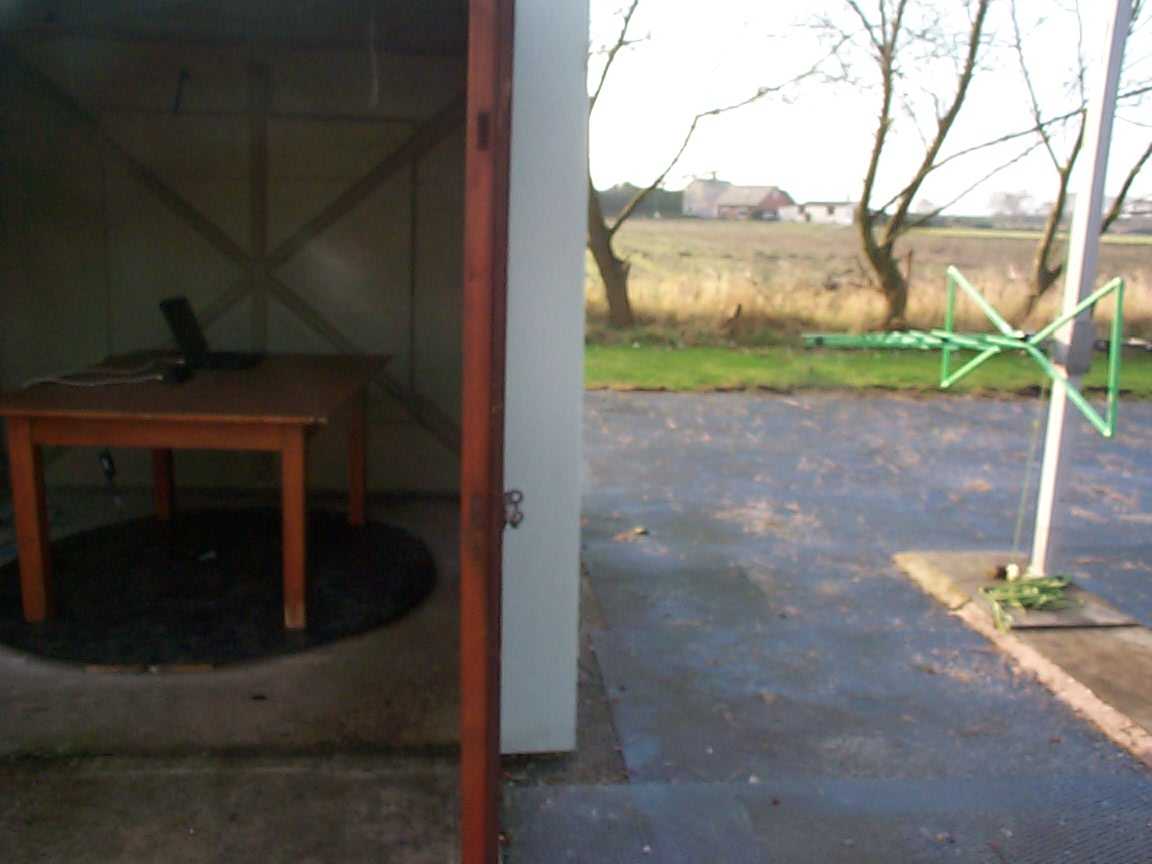

TRL COMPLIANCE SERVICES LTD EMC DIVISION MOSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM TELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO:RU1085/5229 COPY NO:2 ISSUE NO:1 FCC ID:OE5PenDTUUSB REPORT ON THE CERTIFICATION TESTING OF A Group 4 Technology Limited ProxiPen DTU USB WITH RESPECT TO THE FCC RULES CFR 47, PART 15.209 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 25 th November – 2 nd December 2003 TESTED BY:J CHARTERS APPROVED BY:P GREEN PRODUCT MANAGER DATE:6 th February 2004 Distribution: Copy Nos:1.Group 4 Technology Limited 2.FCC EVALUATION LABORATORIES 3.TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335U iss03RU1085/5229Page 2 of 27 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE3 APPLICANT’S SUMMARY4 EQUIPMENT TEST CONDITIONS5 TESTS REQUIRED5 TEST RESULTS6-12 ANNEX PHOTOGRAPHSA PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side PHOTOGRAPH No. 6: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LISTB BAND OCCUPANCY PLOTC SCAN DATAD Notes: 1.Component failure during testYES NO [ ] [X] 2.If Yes, details of failure: 3.The facilities used for the testing of the product contain in this report are FCC Listed. 4.The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335U iss03RU1085/5229Page 3 of 27 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY:OE5PenDTUUSB PURPOSE OF TEST:Certification TEST SPECIFICATION:FCC RULES CFR 47, Part 15.209 TEST RESULT:Compliant to Specification EQUIPMENT UNDER TEST:ProxiPen DTU USB EQUIPMENT SERIAL No:Engineering sample ITU: EMISSION CODE:19k2A1D PRODUCT USE:Tag reader CARRIER EMISSION: 0.0017μV/m @ 300m ANTENNA TYPE:Integral ALTERNATIVE ANTENNA:Not applicable BAND OF OPERATION:0.009kHz – 0.490kHz CHANNEL SPACING:N/A wideband NUMBER OF CHANNELS:1 FREQUENCY GENERATION:SAW Resonator[X]Crystal[ ]Synthesiser [ ] MODULATION METHOD:Amplitude[ ]Digital[X]Angle [ ] POWER SOURCE(s): 5Vdc via USD port 9Vdc via external PSU TEST DATE(s):25 th November – 2 nd December 2003 ORDER No(s):PRP10119 APPLICANT:Group 4 Technology Limited ADDRESS:Challenge House Northway Lane Tewkesbury Gloucester GL19 4QH TESTED BY:J CHARTERS APPROVED BY:P GREEN PRODUCT MANAGER RF335U iss03RU1085/5229Page 4 of 27 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT):ProxiPen DTU USB SERIAL NUMBER OF EUT:Engineering sample PURPOSE OF TEST:Certification TEST SPECIFICATION(s):FCC RULES CFR 47, Part 15.209 TEST RESULT:COMPLIANTYes No [X] [ ] APPLICANT’S CATEGORY:MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s):PRP10119 APPLICANT’S CONTACT PERSON(s):Mr Eric Porter E-mail address:[email protected] APPLICANT:Group 4 Technology Limited ADDRESS:Challenge House Northway Lane Tewkesbury Gloucester GL19 4QH TEL:+44 (0)1684 850977 FAX:+44 (0)1684 294845 MANUFACTURER:Group 4 Technology Limited EUT(s) COUNTRY OF ORIGIN:United Kingdom TEST LABORATORY:TRL EMC UKAS ACCREDITATION No:0728 TEST DATE(s)25 th November – 2 nd December 2003 TEST REPORT No:RU1085/5229 RF335U iss03RU1085/5229Page 5 of 27 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATIONRULE PARTDETECTORAPPLICABILITY Intentional Emission Frequency:15.209(a)AverageYes Intentional Emission Field Strength:15.209(a)AverageYes Intentional Emission Band Occupancy:15.215(c)PeakYes Intentional Emission ERP (mW):--No Spurious Emissions – Conducted:15.207 Quasi Peak Average Yes Spurious Emissions – Radiated <1000MHz:15.209 Quasi Peak Average Yes Spurious Emissions – Radiated >1000MHz:--No Maximum Frequency of Search:15.33-Yes Antenna Arrangements Integral:15.203-Yes Antenna Arrangements External Connector:15.204-Yes Restricted Bands15.205-Yes Extrapolation Factor15.31(f)-Yes 2.Emission Designator:19k2A1D 3.Duty Cycle:100% 4.Transmitter bit or pulse rate and level:19200Bd 5.Temperatures:Ambient (Tnom)12 o C 6.Supply Voltages:Vnom5Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel[X] Two channel[ ] 7.Equipment Category: Multi-channel[ ] Narrowband[ ] Wideband[X] 8.Channel spacing: RF335U iss03RU1085/5229Page 6 of 27 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature=12 o C(<1GHz)3m measurements <30MHz[X] Relative humidity=64% (<1GHz),3m measurements <1GHz[X] Conditions=Open Area Test Site (OATS)300m extrapolated from 3m[X] Supply voltage=5Vdc30m extrapolated from 3m[X] Channel number=1 FREQ. (MHz) MEAS. Rx. (dBμV) CABLE LOSS (dB) ANT FACT. FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 0.009MHz-0.490MHz 0.490MHz-1.705MHz 1.705MHz-30.0MHz 30MHz- 88MHz 33.2 63.7 6.0 14.95 0.5 0.6 16.5 5.05 23.0 20.6 - - 14.1 10.7 100 100 88MHz-216MHz 216MHz-960MHz 324.9 389.9 431.9 498.4 584.85 649.8 664.1 813.75 895.1 18.85 19.1 18.5 17.3 18.55 23.7 8.2 16.3 11.1 1.9 2.0 2.2 2.6 2.8 3.0 3.1 3.6 3.9 13.65 15.2 16.4 17.2 18.65 19.1 19.0 20.1 20.2 34.4 36.3 37.1 37.1 40.0 45.8 30.3 40.0 35.2 - - - - - - - - - 52.48 65.31 71.6 71.6 100.0 194.9 32.73 100.00 57.54 200 200 200 200 200 200 200 200 200 960MHz-1GHz 1GHz-5GHz 0.009MHz to 0.490MHz2400/F(kHz)μV/m@ 300m 0.490MHz to 1.705MHz24000/F(kHz)μV/m@ 30m 1.705MHz to 30MHz 30μV/m@ 30m 30MHz to 88MHz100μV/m@ 3m 88MHz to 216MHz150μV/m@ 3m 216MHz to 960MHz200μV/m@ 3m 960MHz to 1GHz500μV/m@ 3m Limits 1GHz to 5GHz500μV/m@ 3m RF335U iss03RU1085/5229Page 7 of 27 Notes: 1Results quoted are extrapolated as indicated 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a 3Extrapolation factor 9.5dB from 1m to 3m, as per Part 15.31f 4Extrapolation factor 80dB from 3m to 300m as per Part 15.31f 5Extrapolation factor 40dB …
