OE5S674Proximity reader transmitter

TRL Compliance Services Ltd Long Green Forthampton Gloucester GL194QH UK 27th September 2001 To Whom It May Concern: Letter of Agency (;hallenge House, Northway Lane, Tewkesbury, Gloucestershire GL20 8JG Telephone: 01 684 850977 Facsimile: 01 684 294845 www.group4technology.co m Please be advised that Group 4 Technology Limited, authorizes TRL EMC Ltd. to act on our behalf, until otherwise notified, for applications submitted to TRL Compliance Services Ltd (TRL). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Thank you for your attention to these matters. Yours faithfully Group 4 Technology Limited E.J. Registered Office: Farncombe House, Broadway, Wores. Registered Number: 2382338 England. A Member of the British Security Industry Association. TRL 51 F047 issol G4S/49M2.01 A Group 4 Faick (ompany GROUP4]9 1 FALCK

PROX. PROCESSOR 4MHz CLOCK ÷ 32 PULSE GATE COIL DRIVER Rx F ILT ERING AND AMPL IF IC AT ION RESET MULTINODE COMMS RRI COMMS KEYPAD CONTROL PROCESSOR USER INDICATIONS POWER SUPPLY 12V d.c. RAM EPROM S675 Proximity Reader Block Diagram

TRL Compliance Services Ltd Long Green Forthampton Gloucester GL194QH UK 27th September 2001 To Whom It May Concern: Letter of Agency (;hallenge House, Northway Lane, Tewkesbury, Gloucestershire GL20 8JG Telephone: 01 684 850977 Facsimile: 01 684 294845 www.group4technology.co m Please be advised that Group 4 Technology Limited, authorizes TRL EMC Ltd. to act on our behalf, until otherwise notified, for applications submitted to TRL Compliance Services Ltd (TRL). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Thank you for your attention to these matters. Yours faithfully Group 4 Technology Limited E.J. Registered Office: Farncombe House, Broadway, Wores. Registered Number: 2382338 England. A Member of the British Security Industry Association. TRL 51 F047 issol G4S/49M2.01 A Group 4 Faick (ompany GROUP4]9 1 FALCK

S674 Family Proximity Reader Labels Product Label ( for S674 reader variant ) UK Label FCC Label Label Positioning VIEW ON REAR OF PRODUCT Issue 2 270901 FCC ID OE5S674 CEPT SRD 9c GB Group 4 Technology Ltd. Type: S674Model: 8000-5280-A Serial No: 0190006 9-14V DC 100mA Product Label UK Label FCC Label !

S674 FAMILY PROXIMITY READER TECHNICAL DESCRIPTION OF OPERATION The S674 family of Proximity Reader’s intended purpose is to read unique identification codes programmed into passive transponders, accept PINs through a keypad, if present, and display a response on two or five LEDs. The maximum read range is about 9”. The unit is connected by cable to a Multinode-2 controller which provides the necessary control/interface signals via a 20mA current loop interface or a Wiegand interface. The majority of the circuitry is contained on a single PCB and this is mounted in a plastic enclosure (170mm x 170mm x 43mm approx.). A small interface PCB mounted on the back of the front cover provides interface signals to the LEDs and keypad when fitted. The antenna is mounted on the side of the enclosure, while the terminal block for power and signals is on the component side of the PCB, the cable exiting through holes in the back of the unit. The power supply operating range is 9V – 14V d.c. which is used to power the comms to the controller. The antenna is driven from the input supply while a 5V regulator powers the remainder of the circuit. The antenna is a coil of wire that emits a 125kHz magnetic field. The field ‘powers up’ a passive transponder or tag which is brought into the vicinity of the antenna. The transponder, when powered, operates as a field disturbance device and returns a serial data stream representing its ID code. With no transponder in the field (99% of the time) the carrier is switched on for 25ms in every 100ms. This is repeated until a transponder is detected at the edge of the field when it changes to 25ms every 50ms. With the card properly in the field the carrier pattern changes to 100ms in every 500ms. The carrier duty cycle is controlled by the proximity processor. The control processor handles the communications between the reader and the controller, responding to commands received and passing card data and status information back to the controller. The control processor also carries out housekeeping tasks such as scanning the keypad, when present. The unit has a second serial port for use with a remote door control unit. The data to and from this port is also processed by the control processor. The S674 family comprises the following variants :- S674 No keypad Current Loop Interface S675 With keypad Current Loop Interface S676 No keypad, Wiegand Interface S677 With keypad Wiegand Interface All variants use a common PCB and the only differences are the presence or absence of the keypad and minor component selection differences to effect the interface type.

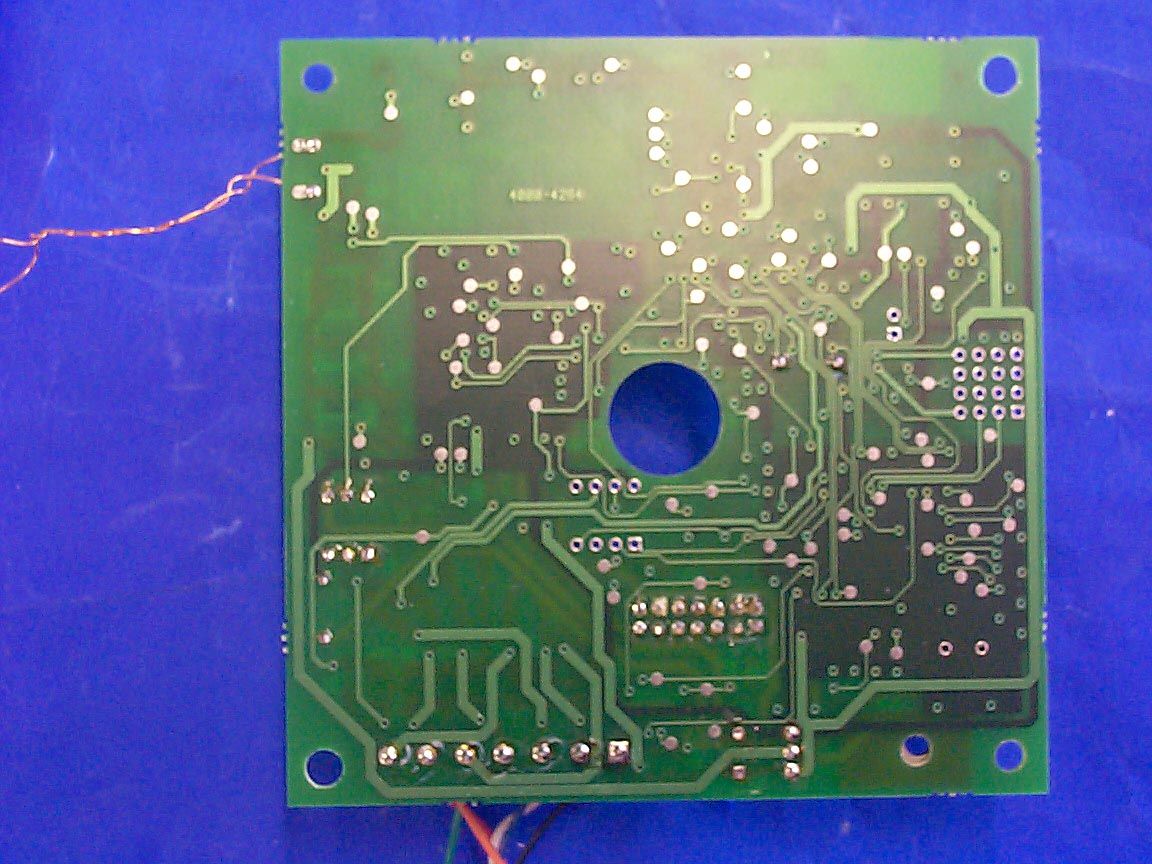

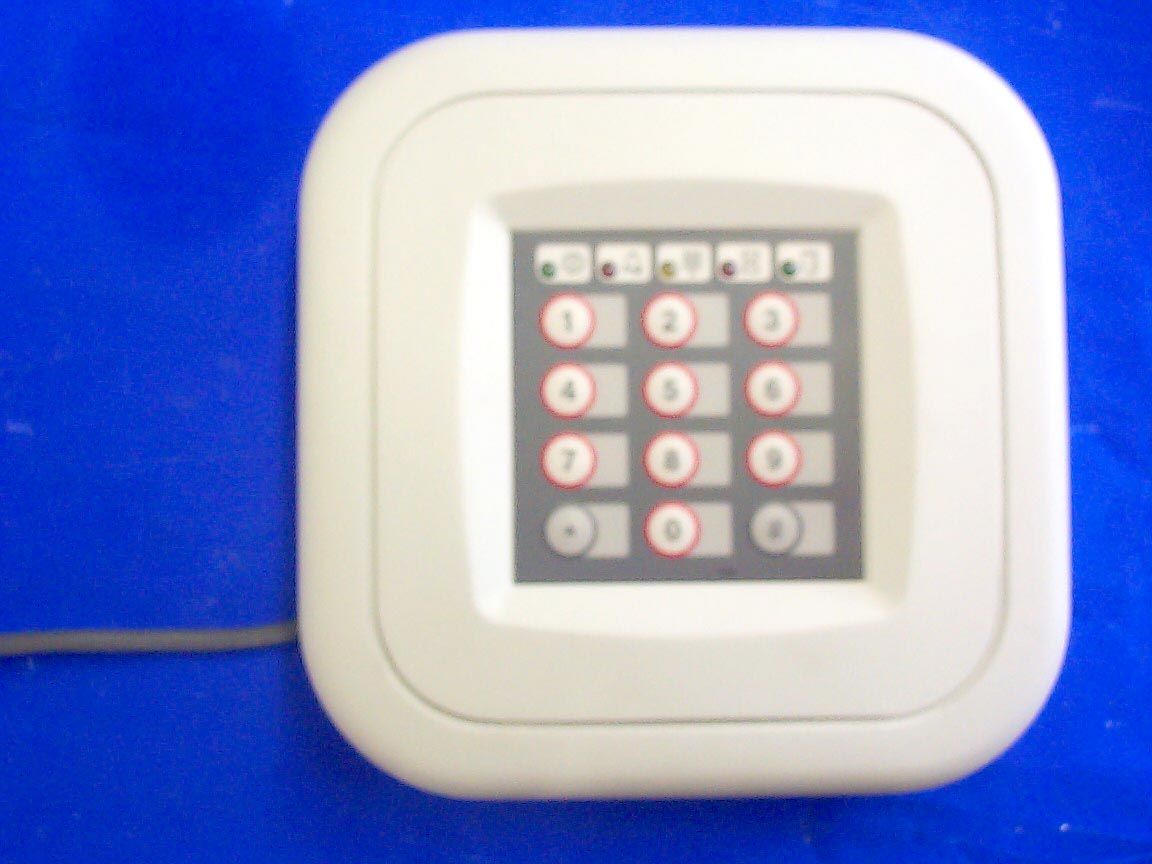

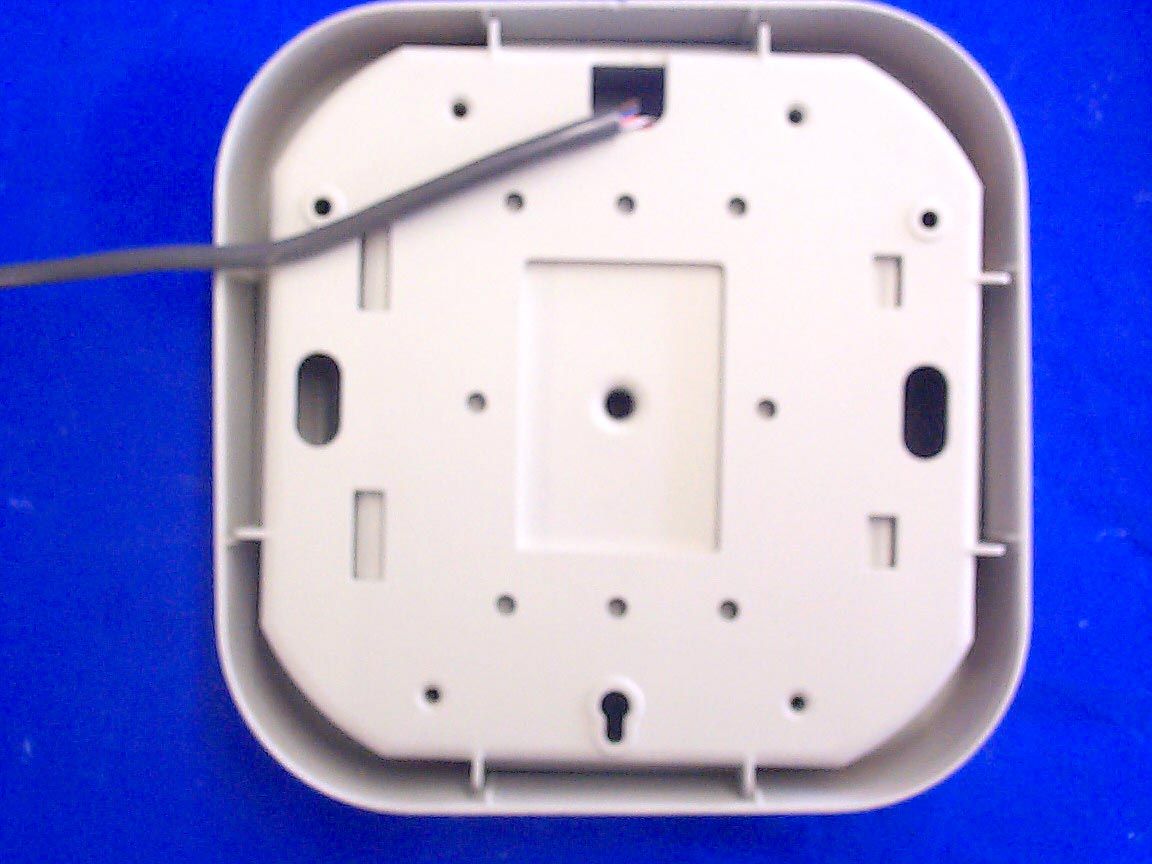

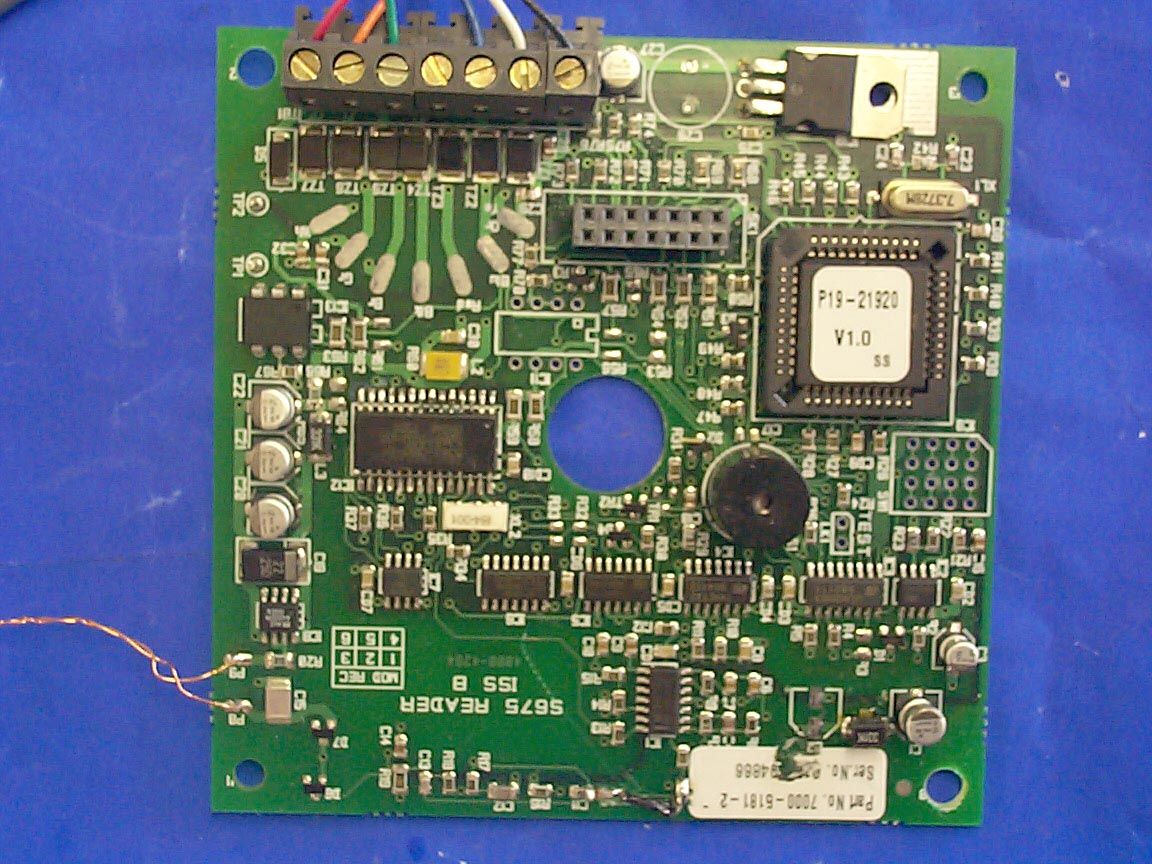

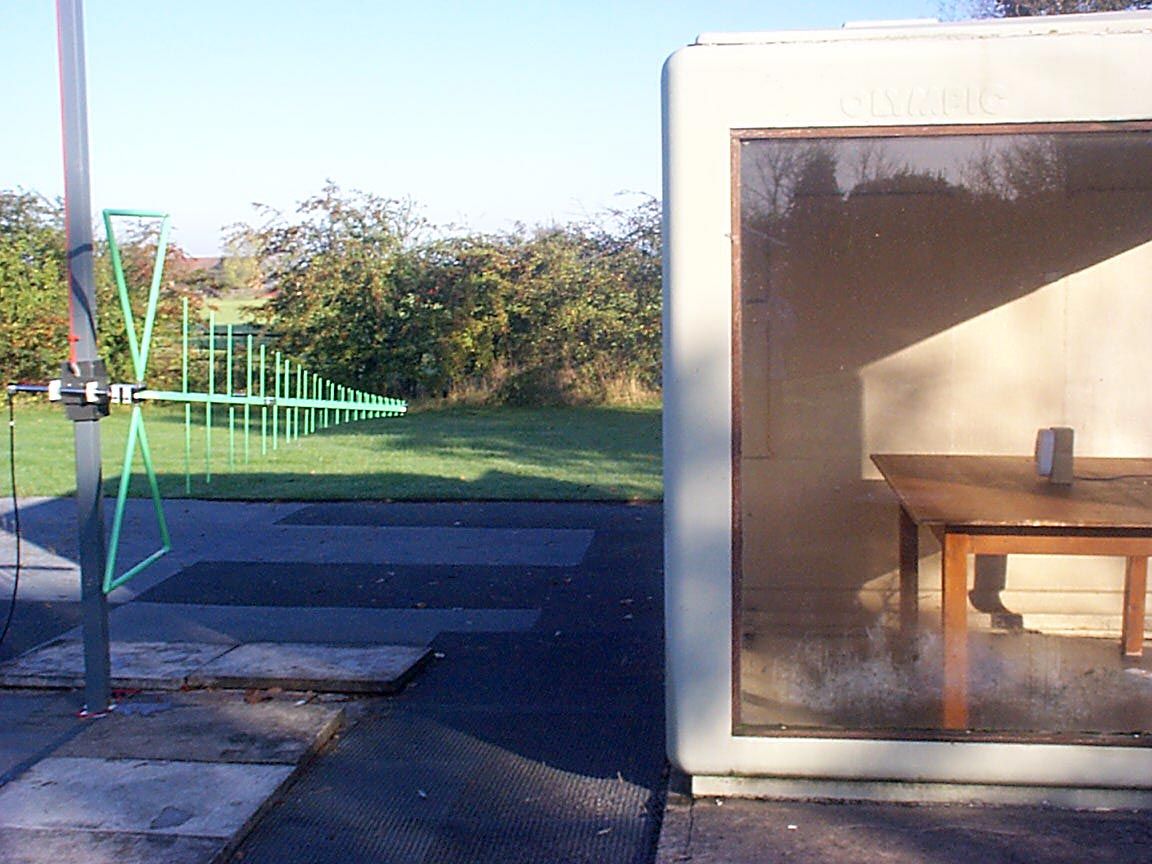

TRL COMPLIANCE SERVICES LTD EMC DIVISON LONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM TELEPHONE +44 (01684 833818 FAX +44 (0)1684 833858 E-MAIL [email protected] www.trlcompliance.com TEST REPORT NO:RU1005/3358 COPY NO:2 ISSUE NO:2 FCC ID:OE5S674 REPORT ON THE CERTIFICATION TESTING OF A GROUP 4 TECHNOLOGY Ltd. S674 PROXIMITY READER TRANSMITTER WITH RESPECT TO THE FCC 47CFR, Part 15.209 INTENTIONAL RADIATOR SPECIFICATION TEST DATE(s): 26 & 27 September 2001 thth TESTED BY:....................................................J CHARTERS APPROVED BY:....................................................S P HAYES ISSUE DATE: 2 November 2001 nd Distribution Copy No’s:- 1GROUP 4 TECHNOLOGY Ltd. 2FCC EVALUATION LABORATORIES 3TRL EMC Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF089 iss03RU1005/3358Page 2 of 20 CONTENTS page APPLICANT'S SUMMARY3 CERTIFICATE OF CONFORMITY & COMPLIANCE4 DESCRIPTION OF TRANSMITTER4 EQUIPMENT TEST CONDITIONS5 TESTS REQUIRED6 SAMPLE CALCULATIONS6 TEST RESULTS7 - 9 PHOTOGRAPHSANNEX A[X] PHOTOGRAPH No 1:Tx, front.ANNEX A1 PHOTOGRAPH No 2:Tx, rear.ANNEX A2 PHOTOGRAPH No 3:Tx, rf pcb, top.ANNEX A3 PHOTOGRAPH No 4:Tx, rf pcb bottom.ANNEX A4 PHOTOGRAPH No 5:Tx, on test site.ANNEX A5 TEST EQUIPMENT LISTANNEX B [X] MEASURING DISTANCE EXTRAPOLATION GRAPH(s)ANNEX C[X] Notes:- 1.Component failure during testYES[ ] NO[X] 2.If Yes, details of failure:- 3.All measurement uncertainty calculations detailed in this report are carried out in accordance with UKAS Publication NIS 81, Edition 1, May 1994, for a 95% confidence level. 4.The contents of the attached applicant’s declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations and is provided in good faith. RF089 iss03RU1005/3358Page 3 of 20 APPLICANT'S SUMMARY EQUIPMENT UNDER TEST (EUT):S674 PROXIMITY READER EQUIPMENT TYPE:TAG READER TRANSMITTER SERIAL NUMBER OF EUT:Engineering sample PURPOSE OF TEST:FCC CERTIFICATION TEST SPECIFICATION:FCC 47CFR Part15.209 TEST RESULT:COMPLIANTYES[X] NO[ ] APPLICANT’S CATEGORY:( a ) MANUFACTURER[X] ( b ) IMPORTER[ ] ( c ) DISTRIBUTOR[ ] ( d ) AGENT[ ] APPLICANT'S ORDER No(s):P11486 APPLICANT’S CONTACT PERSON:Mr Eric Porter APPLICANT:GROUP 4 TECHNOLOGY Ltd. ADDRESS:Challenge House Northway Lane Tewkesbury Gloucestershire GL20 8JG England TEL: +44 1684 850977 FAX: +44 1684 294845 MANUFACTURER:GROUP 4 TECHNOLOGY Ltd. ADDRESS:As above EUT(s) COUNTRY OF ORIGIN:United Kingdom TEST LABORATORY:TRL EMC LTD UKAS ACCREDITATION No:0728 TEST DATE(s):26 & 27 September 2001 thth TEST REPORT No:RU1005/3358 RF089 iss03RU1005/3358Page 4 of 20 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY:OE5S674 PURPOSE OF TEST:FCC Certification TEST SPECIFICATION:FCC 47CFR, Part 15.209 TEST RESULT:Compliant to Specification EQUIPMENT UNDER TEST:S674 PROXIMITY READER EQUIPMENT SERIAL No:Engineering Sample EQUIPMENT TYPE:TAG READERTransmitter UTILISATION:Wall mounted ITU EMISSION CODE:17k0A1D CARRIER EMISSION:0.15FV/m @ 300m ANTENNA TYPE:Fixed/ Integral, part of PCB tracking ALTERNATIVE AE:None, as per Part 15.203, no external connection BAND OF OPERATION:110 -160 kHz CHANNEL SPACING:n/a (Wideband) No. of CHANNELS:1 FREQUENCY GENERATION:SAW Resonator[ ] ;Crystal[X] ;Synthesizer [ ] MODULATION METHOD:Amplitude [X] ;Digital [ ] ;Angle [ ] POWER SOURCE(s):9Vdc - 14Vdc TEST DATE(s):26 & 27 September 2001 thth ORDER No(s):P11486 APPLICANT:GROUP 4 TECHNOLOGY Ltd. TESTED BY:...............................................................J CHARTERS APPROVED BY:...............................................................S P HAYES EMC MANAGER RF089 iss03RU1005/3358Page 5 of 20 EQUIPMENT TEST CONDITIONS 1. EQUIPMENT SERIAL /CHANNEL NUMBERTx NOMINALTESTS REQUIREDREMARKS MODEL IDENTITYFREQUENCY MHz S674 PROXIMITY1125.81kHzFull READER 2.Equipment category:Single channel[X] Two channel[ ] Multi-channel[ ] 3.Supply voltages:Vnom=+14Vdc Note:-Vnom voltages are as stated above unless otherwise shown on the test report page. 4.Temperatures:Tnom=[see test] 5.Maximum frequency generated:=7.37MHz 6.Channel spacing:kHz=n/a Narrowband[ ] Wideband[X] RF089 iss03RU1005/3358Page 6 of 20 TESTS REQUIRED TRANSMITTER TESTS Transmitter Spurious Emissions - Powerline- Part 15.207[ ] Transmitter Carrier Emission - Radiated- Part 15.209.a[X] Transmitter Spurious Emissions - Radiated- Part 15.209.c- <30MHz[X] Transmitter Spurious Emissions - Radiated- Part 15.209.c- >30MHz[X] Notes:- 1.Equipment tested for (mains ac) 110V powerline emissions.[ ] 2.Equipment tested as (fixed) integral antenna configuration. No external antenna port available.[X] 3.All tests were carried out with new batteries, as per Part 15.31.e.[ ] SAMPLE CALCULATIONS Part 15.209 - Radiated. Frequency RxAe AF & Cable lossField Strength @ 3mExtrapolation 3-Field Strength (kHz)(dBFV)(dB/m & dB)(dBFV/m)300m Factor@ 300m (dB)(FV/m) 125.8189.70.1dB109.81260.15 20dB/m RF089 iss03RU1005/3358Page 7 of 20 TRANSMITTER TESTS TRANSMITTER CARRIER EMISSION - RADIATED - PART 15.209.a Ambient temperature=19EC3m measurements <30MHz[X] Relative humidity=56%1m measurements >1GHz[ ] Conditions=Open Area Test Site (OATS)300m extrapolated from 3m[X] Supply voltage=14Vnom30m extrapolated from 3m[ ] Channel number=13mextrapolated from 1m[ ] Frequency & Level125.81kHz0.15FV/m Limit 19.0FV/m @ 300m Measurement Uncertainty±4.2dB FlFh Band occupancy (kHz)(kHz)@ -30dBc 123.34128.184.84kHz Notes:- 1.Results quoted are extrapolated as indicated. 2.Extrapolation factor @ 40dB/decade from 300m to 30m, as per Part 15.31f. 3.Extrapolation factor graph values from 30m to 3m, as per Annex C. 4.Extrapolation factor @ 9.5dB from 1m to 3m, as per Part 15.31f. 5.Measurements <490kHz@ 3m, as per Part 15.31f (2). 6.Measurements <1705kHz@ 3m, as per Part 15.31f (2). 7.Measurements <30MHz@ 3m, as per Part 15.31f (2). 8.Measurements >1GHz@ 1m, as per Part 15.31f (1). 9.Receiver detector <30MHz= CISPR, Average, 10kHz bandwidth. 10.R…
