OE5S813Contactless Smart-Card & fingerprint reader

Installation and User Instructions for S813 Readers Model number:S813-KPMICLBR The S813 is a combined fingerprint and contactless smart-card reader with keypad that is capable of reading Philips . S813 ®® ®TM MIFARE DESFire formatted cards, as well as other standard and custom formats. Theuses a Bioscrypt MV1200 Sensor and pseudo-random 20mA current loop communications 1 Mount the Backplate 2 Reader Links To mount the backplate: 1) Detach the main body of the reader from the backplate by releasing the two securing screws along the bottom edge of the reader, swinging the backplate upwards and easing it away from the two top clips. 2) Mount the backplate adjacent to the opening edge of the door and at a convenient height, making sure that the finger pad is easily reached. Feed the cable to the reader through the backplate. You should find that the backplate has suitable holes for connection to most standard electrical backboxes. TO BE REPLACED BY ILLUSTRATION The following links are provided on the reader's PCB: LK1(Audio feedback) - Set to "0" for sound off. Set to "1" for sound on. LK3(Test) - Ensure that this link has been removed. 9600-0306.Installation and User Instructions for S813 Readers, Issue 1.0x1 22nd May 2003.AMAG Technology, 2003. Bioscrypt is a registered trademark of Bioscrypt Inc. FCC Notice:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device may void the authority of the user to operate it. All trademarks acknowledged. Philips and MIFARE are registered trademarks of Philips Electronics, N.V. MV1200 is a trademark of Bioscrypt Inc. © 4 Using the Reader 3 Reader Connections Connect screen at controller end only (attach to case). S813 Reader TB1 Specifications Input voltage: 9-14V. Input current: 100mA. Operating temperature: 32 to 122 F (0 to 50 C). Operating humidity: 15 to 90%, non-condensing. Maximum read range: 1" (25mm). Approvals: EN50133, R&TTE, IP605. For internal use only. °° Present the proximity card face-on close to the reader until you hear a "bleep". After presenting your card, you may be prompted to enter a PIN and/or place your finger on the finger pad. You may also be prompted to place a second finger on the finger pad. Follow the on- screen instructions. The system can be set up to generate a "duress" transaction if the pre-defined duress finger is placed on the pad. In two-finger mode, the duress finger must be placed first. 0V RX+ RX- TX+ TX- 12V Controller connections (20mA current loop) 0V TX+ TX- I/0 SCR (not used) RX+ RX- +12V The I/O terminal is for connection to a RIM - see the Installation Instructions for S660 Remote Interface Module (RIM). On completion, re-secure the reader to the backplate. Twisted pairs (use Belden 9503 cable) 2

MIFARE PROCESSOR RESET MULTINODE COMMS KEYPAD CONTROL PROCESSOR POWER SUPPLY 12V d.c. TAMPER FLASH Program I/F Figure 1:S813 Mifare Reader Block Diagram (Issue 2 ) LCD MIFARE ANTENNA RS485 Comms HOST PC FingerPrint Module RS485 I/F 13.56MHz XTAL

S813 Fingerprint Reader Label Product and Approvals Label ( 25mm x 30mm ) Label Positioning ( The label will be placed on the back of the unit as shown below ) Issue 1 220503 Group 4 Technology Ltd. Model: 8000-5650-A Serial No: 0321000001 9-14V DC 350mA FCC ID: OE5S813 ! Label Position

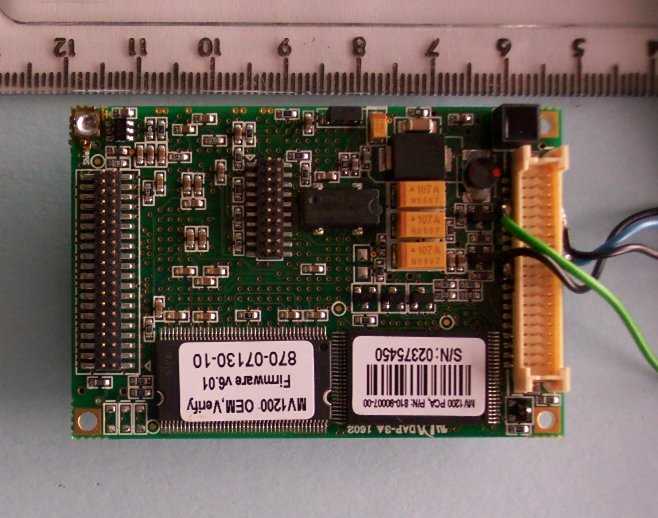

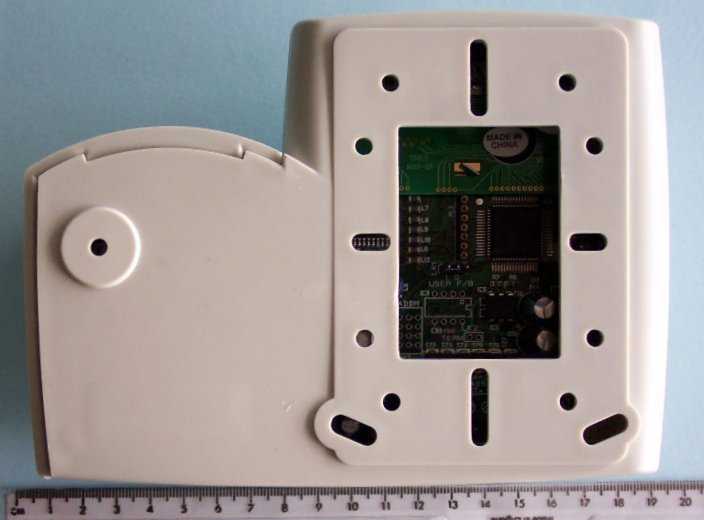

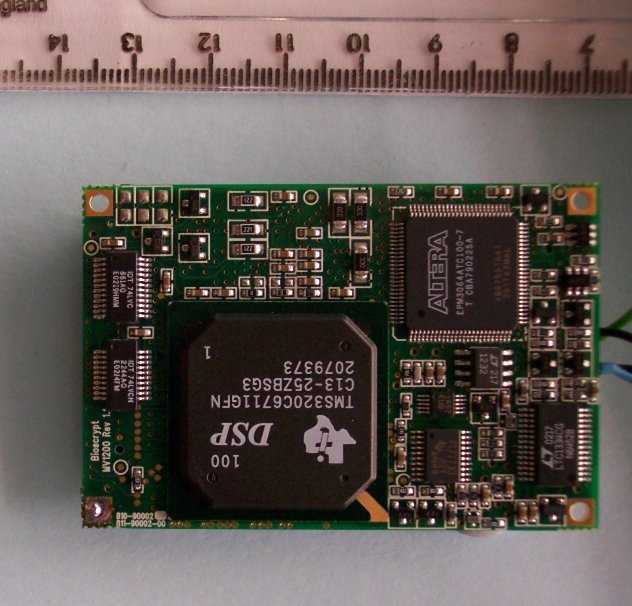

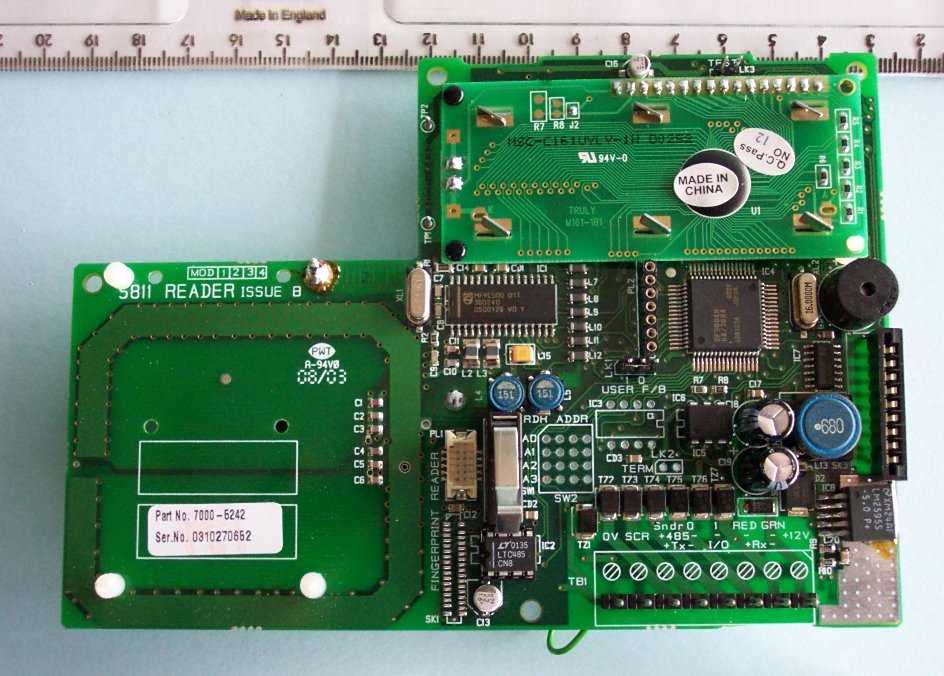

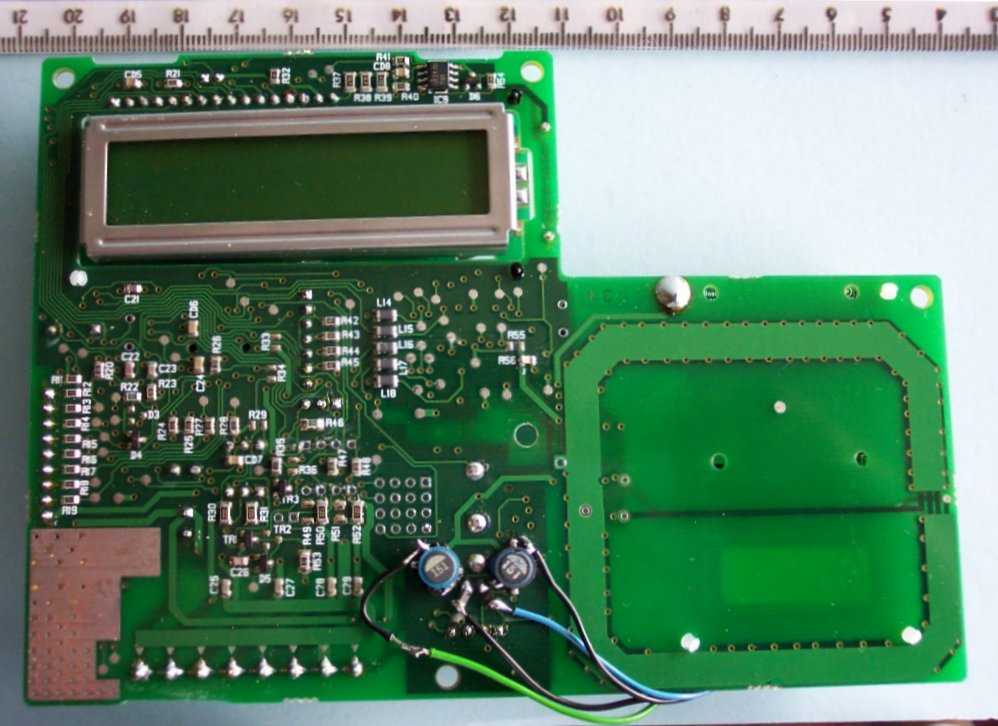

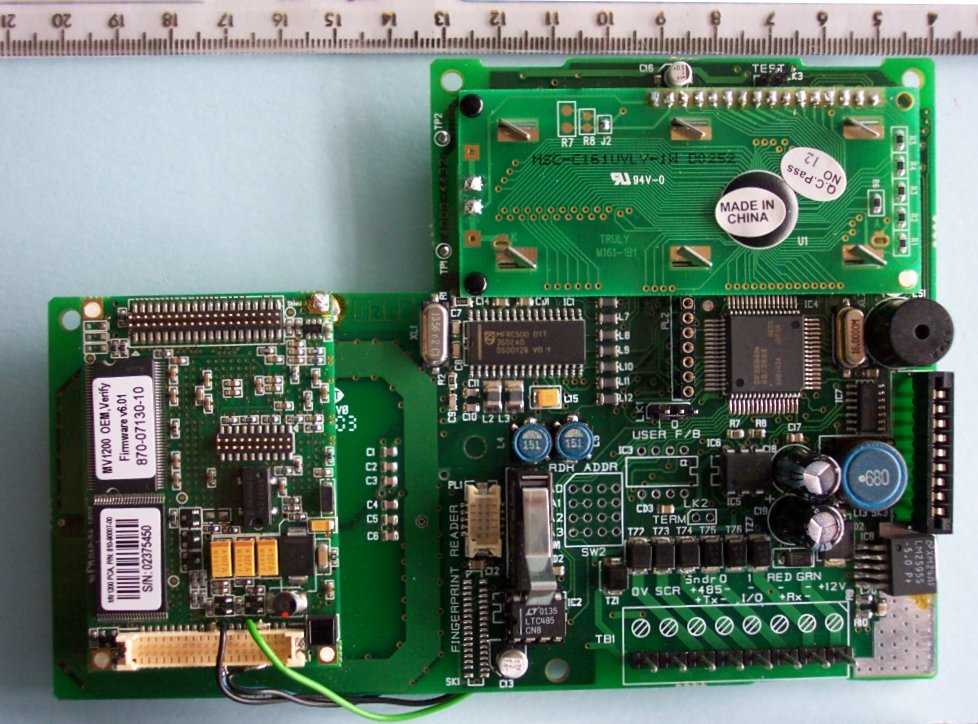

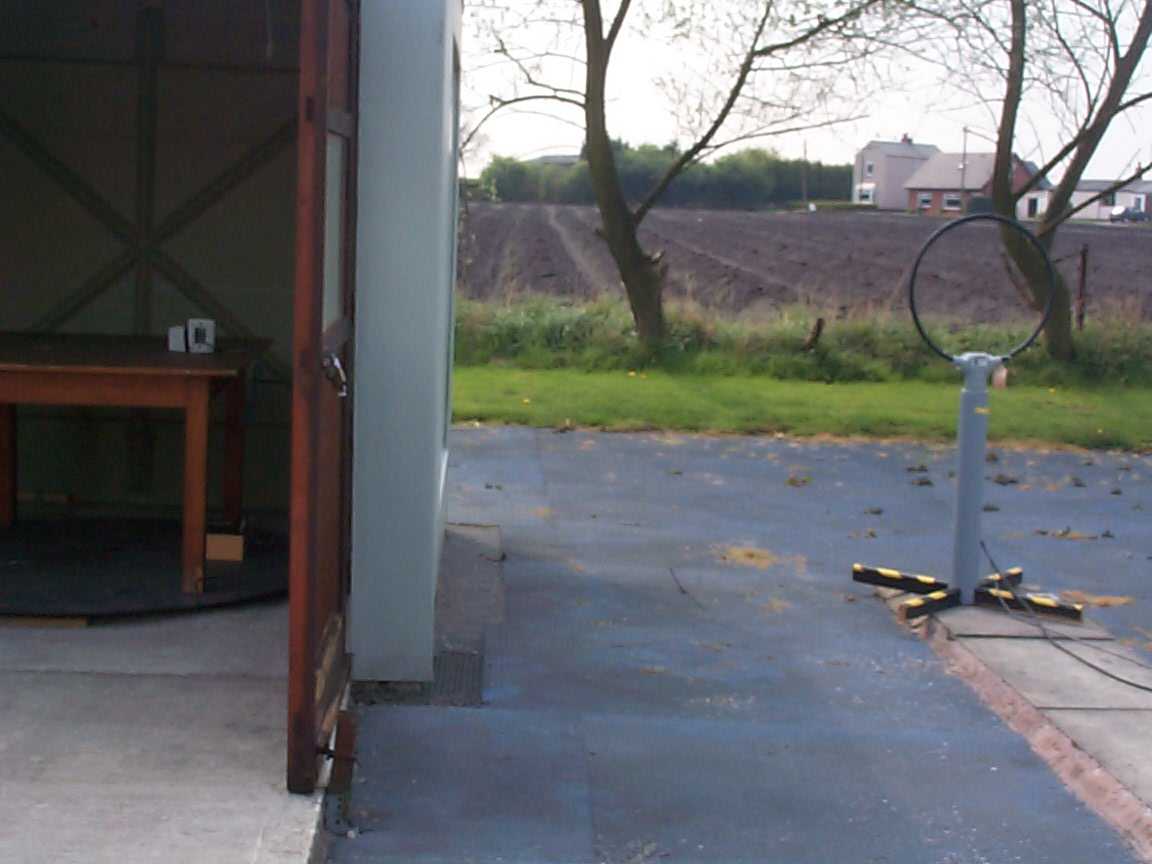

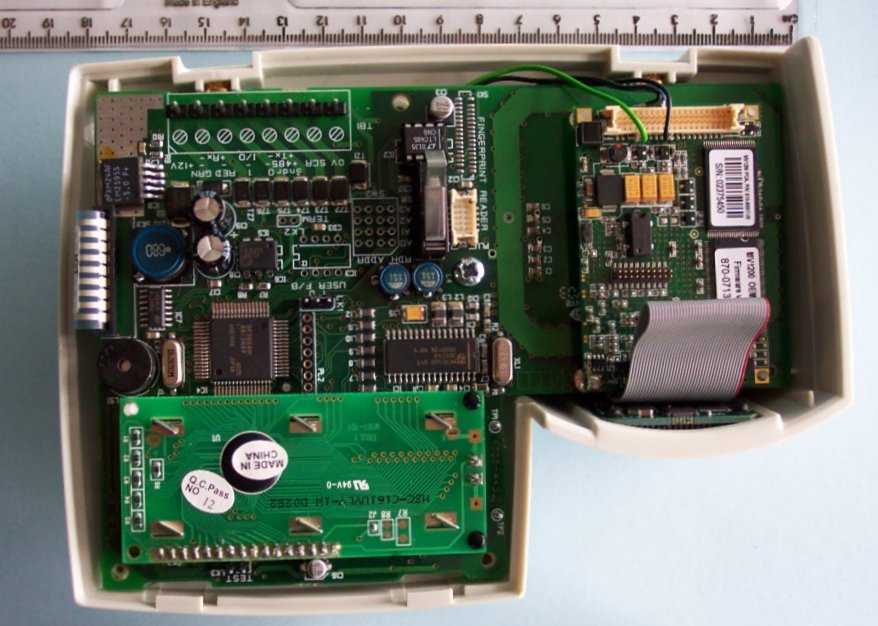

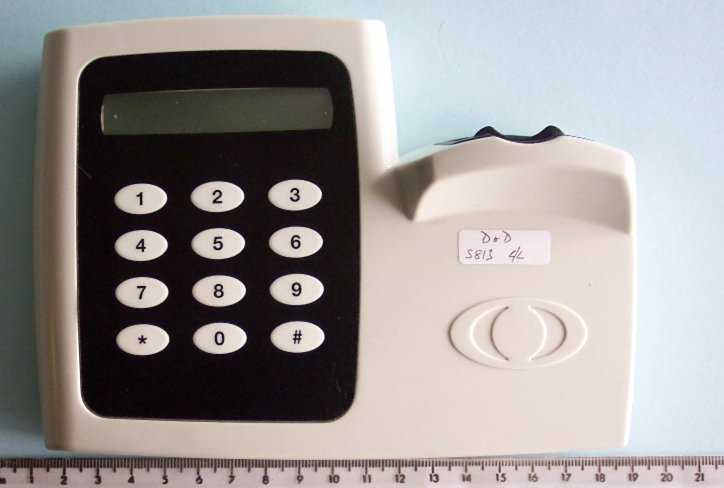

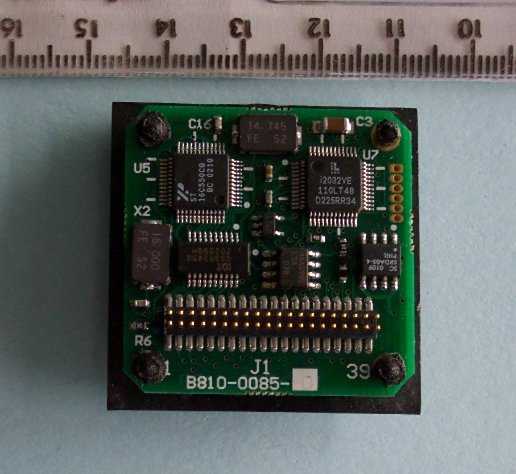

TRL C OMPLIANCE S ERVICES L TD EMC DIVISION LONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM TELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com 0728 TEST REPORT NO:RL1176/7631 COPY NO: ISSUE NO:1 FCC ID:OE5S813 REPORT ON THE CERTIFICATION TESTING OF A GROUP 4 TECHNOLOGY Ltd. S813 FINGER PRINT READER WITH RESPECT TO THE FCC RULES CFR 47, PART 15.225 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 23 rd –25 th April 2003 TESTED BY:J CHARTERS APPROVED BY:P GREEN EMC PRODUCT MANAGER DATE: Distribution: Copy Nos:1.GROUP 4 TECHNOLOGY Ltd. 2.FCC EVALUATION LABORATORIES 3.TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02RU1050/4381Page 2 of 32 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE3 APPLICANT’S SUMMARY4 EQUIPMENT TEST CONDITIONS5 TESTS REQUIRED6 SAMPLE CALCULATIONS6 TEST RESULTS7-12 ANNEX PHOTOGRAPHSA PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter lid removed PHOTOGRAPH No. 5: Transmitter PCB component side PHOTOGRAPH No. 6: Transmitter PCB rear view PHOTOGRAPH No. 7: Transmitter PCB rear view PCB removed PHOTOGRAPH No. 8: Transmitter finger print reader PCB PHOTOGRAPH No. 9: PCB component side PHOTOGRAPH No. 10: PCB track side APPLICANT’S SUBMISSION OF DOCUMENTATION LISTB BAND OCCUPANCY PLOTC CONDUCTED EMISSIONS PLOTSD Notes: 1.Component failure during testYES NO [ ] [X] 2.If Yes, details of failure: 3.The facilities used for the testing of the product contain in this report are FCC Listed. 4.The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335 iss02RU1050/4381Page 3 of 32 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY:OE5S813 PURPOSE OF TEST:CERTIFICATION TEST SPECIFICATION:FCC RULES CFR 47, Part 15.225 TEST RESULT:Compliant to Specification EQUIPMENT UNDER TEST:S813 FINGER PRINT READER EQUIPMENT SERIAL No:Engineering sample ITU: EMISSION CODE:12K0A1D EQUIPMENT TYPE:S813 PRODUCT USE:RFID card reader CARRIER EMISSION: 37.2μV/m @30m ANTENNA TYPE:INTEGRAL ALTERNATIVE ANTENNA:N/A BAND OF OPERATION:13.553MHz – 13.567MHz CHANNEL SPACING:Wideband allocation NUMBER OF CHANNELS:1 FREQUENCY GENERATION:SAW Resonator[ ]Crystal[X]Synthesiser [ ] MODULATION METHOD:Amplitude[X]Digital[ ]Angle [ ] POWER SOURCE(s):+12Vdc TEST DATE(s):23 rd - 25 th April 2003 ORDER No(s):R000013397 APPLICANT:GROUP 4 TECHNOLOGY Ltd. ADDRESS:CHALLENGE HOUSE NORTHWAY LANE TEWKESBURY GLOUCESTER GL20 8JG UNITED KINGDOM TESTED BY:J CHARTERS APPROVED BY:P GREEN EMC PRODUCT MANAGER RF335 iss02RU1050/4381Page 4 of 32 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT):S813 FINGER PRINT READER EQUIPMENT TYPE:S813 SERIAL NUMBER OF EUT:Engineering sample PURPOSE OF TEST:CERTIFICATION TEST SPECIFICATION(s):FCC RULES CFR 47, Part 15.225 TEST RESULT:COMPLIANTYes No [X] [ ]. APPLICANT’S CATEGORY:MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s):R000013397 APPLICANT’S CONTACT PERSON(s):Mr E Porter E-mail address: [email protected] APPLICANT:GROUP 4 TECHNOLOGY Ltd. ADDRESS:CHALLENGE HOUSE NORTHWAY LANE TEWKESBURY GLOUCESTER GL20 8JG UNITED KINGDOM TEL:+44 (0)1684 850977 FAX:+44 (0)1684 294845 MANUFACTURER:GROUP 4 TECHNOLOGY Ltd. EUT(s) COUNTRY OF ORIGIN:UNITED KINGDOM TEST LABORATORY:TRL EMC UKAS ACCREDITATION No:0728 TEST DATE(s)23 rd - 25 th April 2003 TEST REPORT No:RL1176/7631 RF335 iss02RU1050/4381Page 5 of 32 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATIONRULE PARTDETECTORAPPLICABILITY Intentional Emission Frequency:15.225Quasi PeakYes Intentional Emission Field Strength:15.225Quasi PeakYes Intentional Emission Band Occupancy:N/AYes Intentional Emission ERP (mW):N/AN/ANo Spurious Emissions – Conducted:15.207 Quasi Peak Average Yes Spurious Emissions – Radiated <1000MHz:15.209Quasi PeakYes Spurious Emissions – Radiated >1000MHz:N/ANo Maximum Frequency of Search:15.33N/AYes Antenna Arrangements Integral:15.203N/AYes Antenna Arrangements External Connector:15.204N/ANo Restricted Bands15.205N/AYes Extrapolation Factor15.31(f)N/AYes 2.Product Use:Access Control 3.Emission Designator:12K0A1D 4.Duty Cycle:<100% 5.Temperatures:Ambient (Tnom)24 o C 6.Supply Voltages:Vnom12V Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel[X] Two channel[ ] 7.Equipment Category: Multi-channel[ ] Narrowband[ ] Wideband[X] 8.Channel spacing: RF335 iss02RU1050/4381Page 6 of 32 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature=25 o C(<1GHz)3m measurements <1GHz[X] Relative humidity=40% (<1GHz),10m measurements <30GHz[X] Conditions=Open Area Test Site (OATS)3m extrapolated from 1m[ ] Supply voltage=12Vdc Channel number=1 FREQ. (MHz) MEAS. Rx. (dBμV/m) CABLE LOSS (dB) ANT FACT. FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 1.705MHz-30MHz27.1229.8--29.819.083.430 30MHz- 88MHz32.016.00.516.933.4-46.7100 88MHz-216MHz 125.0 135.6 150.0 28.3 25.8 24.6 1.1 1.2 1.4 11.4 11.0 10.0 40.8 38.0 36.0 - - - 109.6 79.4 63.1 150 150 150 216MHz-960MHz 600.0 700.0 800.0 850.0 900.0 19.0 20.4 21.4 21.2 18.9 2.9 3.2 3.6 3.8 4.0 18.6 18.9 20.1 20.1 20.2 40.5 42.5 45.1 45.1 43.1 - - - - - 105.9 133.3 179.8 179.8 142.9 200 200 200 200 200 960MHz-1GHz1000.019.24.120.944.2-162.2500 1GHz-5GHz 1.705MHz to 30MHz 30μV/m@ 30m 30MHz to 88MHz100μV/m@ 3m 88MHz to 216MHz150μV/m@ 3m 216MHz to 960MHz200μV/m@ 3m 960MHz to 1GHz500μV/m@ 3m Limits 1GHz to 5GHz500μV/m@ 3m See next page for notes and test method. RF335 iss02RU1050/4381Page 7 of 32 Notes: 1Results quoted are extrapolated as indicated 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a 3Extrapolation factor 9.5dB from 1m to 3m, as per Part 15.31f 4Extrapolation factor 19.08dB from 10m to 30…
