OE5S821ES821 Enrolment Reader

Installation and User Instructions for S821 Enrollment Readers 1 Cable Connection The S821 enrollment reader is used to encode Texas Instruments (ISO 15693) smart cards using the "smartMAX" format. TM Insert the jack plug into the box on the end of the reader cable. Insert the power plug into . the box on the end of the reader cable Connect the 12Vdc power source to the mains supply. Connect to a serial port of a PC installed with the SMS software. Set up the port in the Install/Client Ports screen of the SMS software. 9600-0393.Installation and User Instructions for S821 Enrollment Readers, Issue 1.0x1 10th March 2004.Group 4 Technology, 2004. FCC Notice:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device may void the authority of the user to operate it. All trademarks acknowledged. Texas Instruments is a trademark of Texas Instruments Incorporated. © Specifications Input voltage: 9-14V. Input current: 110mA @ nominal 12Vdc supply. Operating temperature: -13 to 158 F (-25 to 70 C). Operating humidity: 15 to 90%, non-condensing. Maximum encoding range: 3" (75mm). Approvals: EN50133, R&TTE, IP656. For internal use only. °° 2 Enrollment Procedure To encode a card: 1. Log in to the SMS software at the PC that the reader is connected to. 2. Start the enrollment procedure from the appropriate screen in the SMS software. For example, if you are using a standard client, use thebutton in. 3. Encodethe Card Holders screen When prompted, present the card to the encoder. You will hear a "bleep" when the card has been encoded.

TT TI Transceiver 13.56MHz CLOCK RESET CONTROL PROCESSOR USER INDICATIONS POWER SUPPLY 12V d.c. Figure 1: S821 Enrolment Proximity Reader Block Diagram – Issue 1 Note: Sounder, LEDs and coil are mounted on the aerial PCB Flash programming interface Tamper Detect 16MHz Crystal RS485 Comms Host PC

S821 Enrolment Proximity Reader Labels Product Label ( 25mm x 15mm ) Approvals Label ( 25mm x 15mm ) Label Positioning ( The labels will be placed on the back of the unit as shown below ) Issue 1 090304 FCC ID:OE5S821E Group 4 Technology Ltd. Model: 8000-5730-A Serial No: 0321000001 9-14V DC 100mA Product label Approv -als label

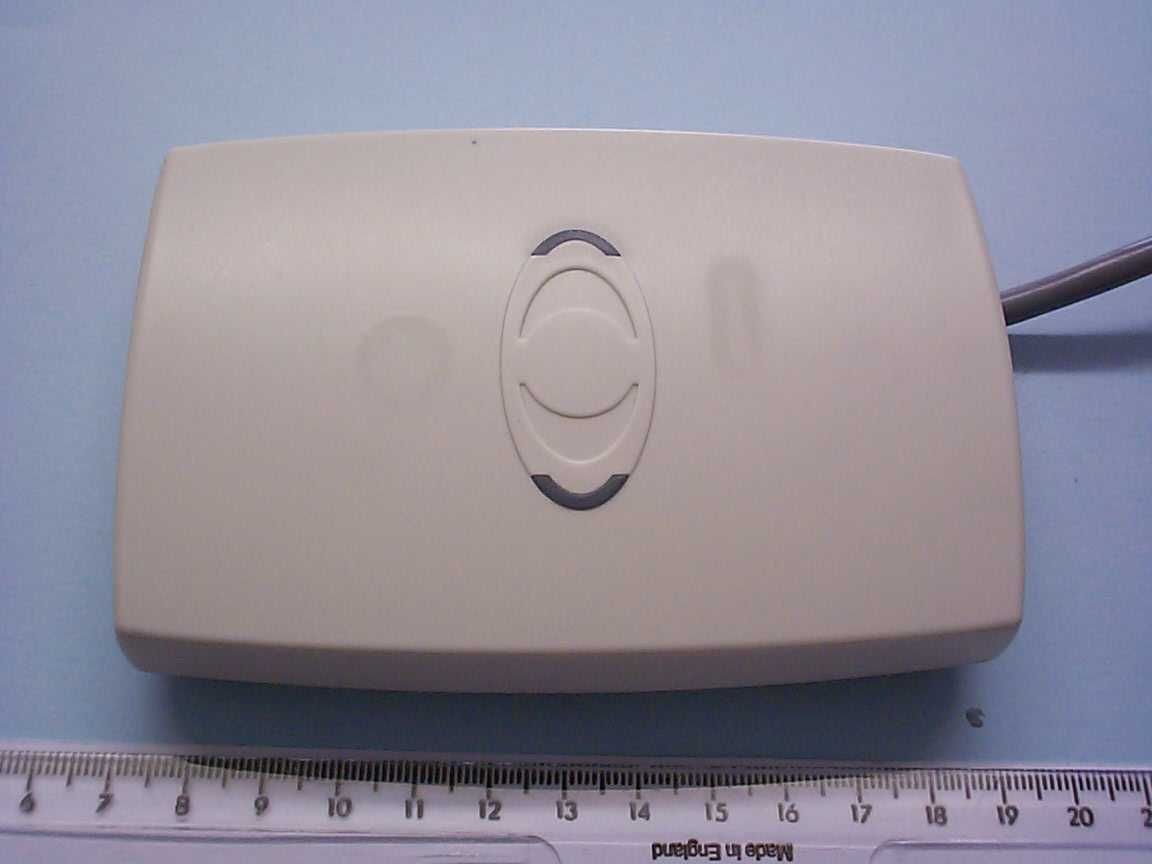

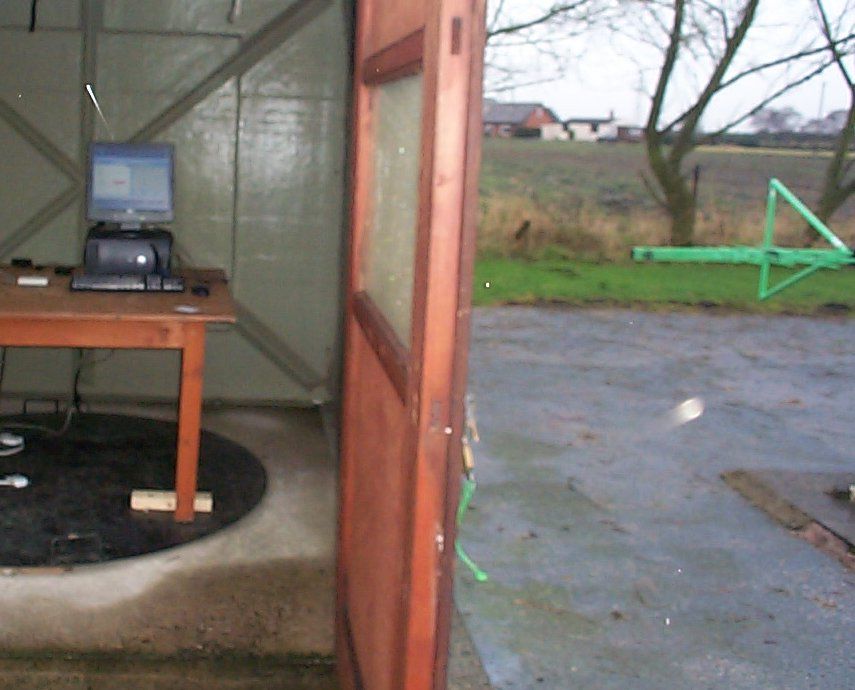

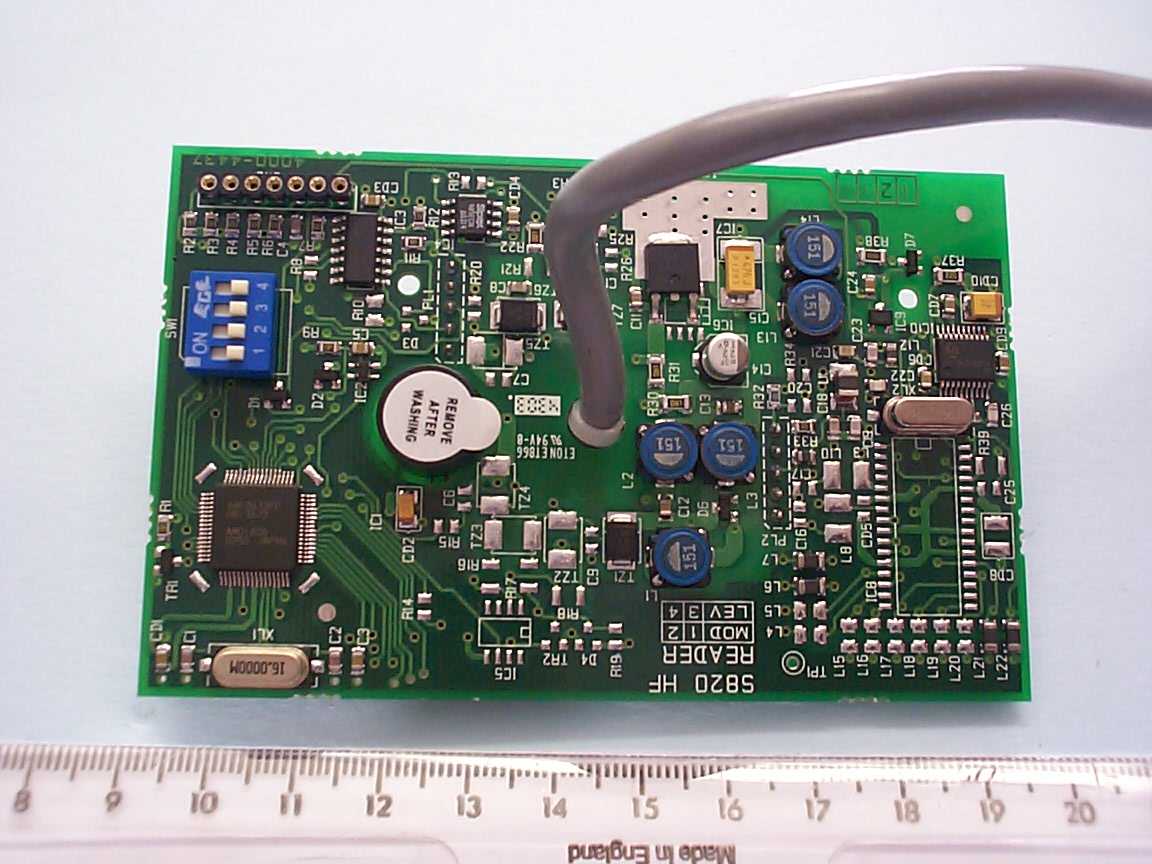

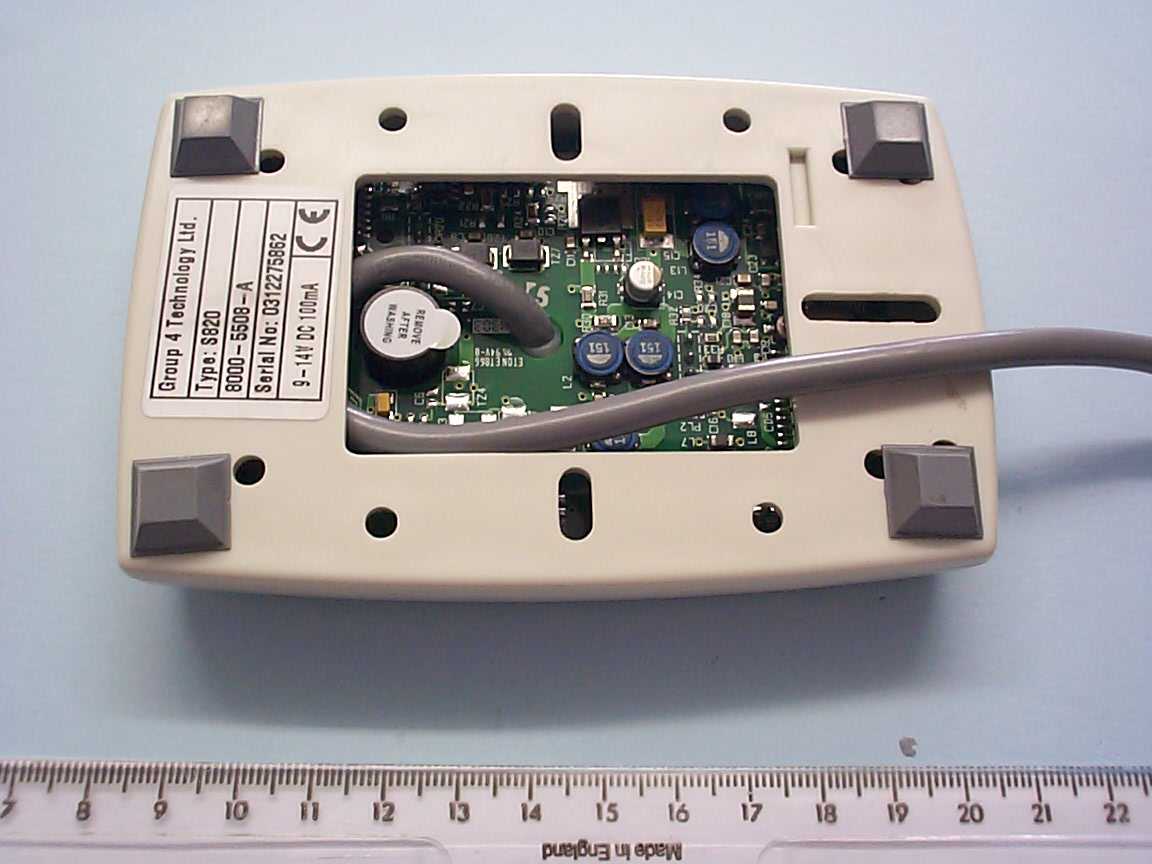

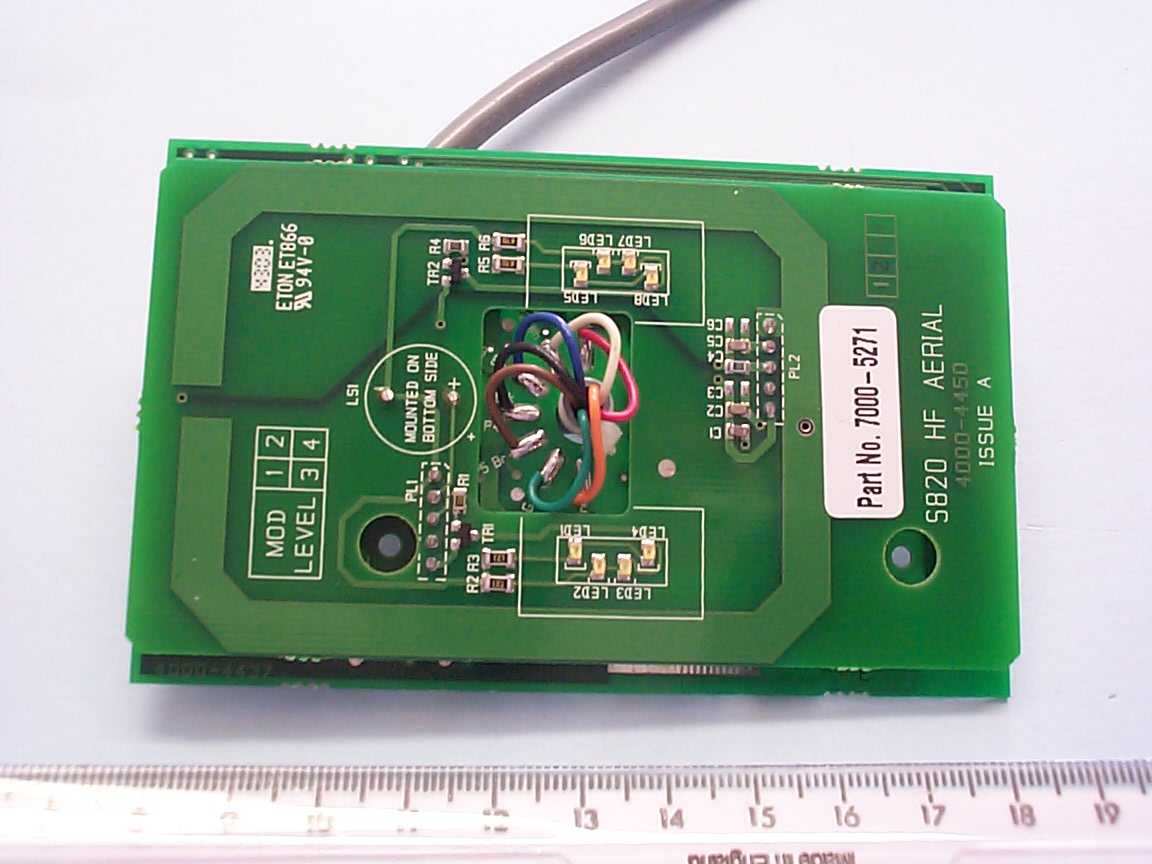

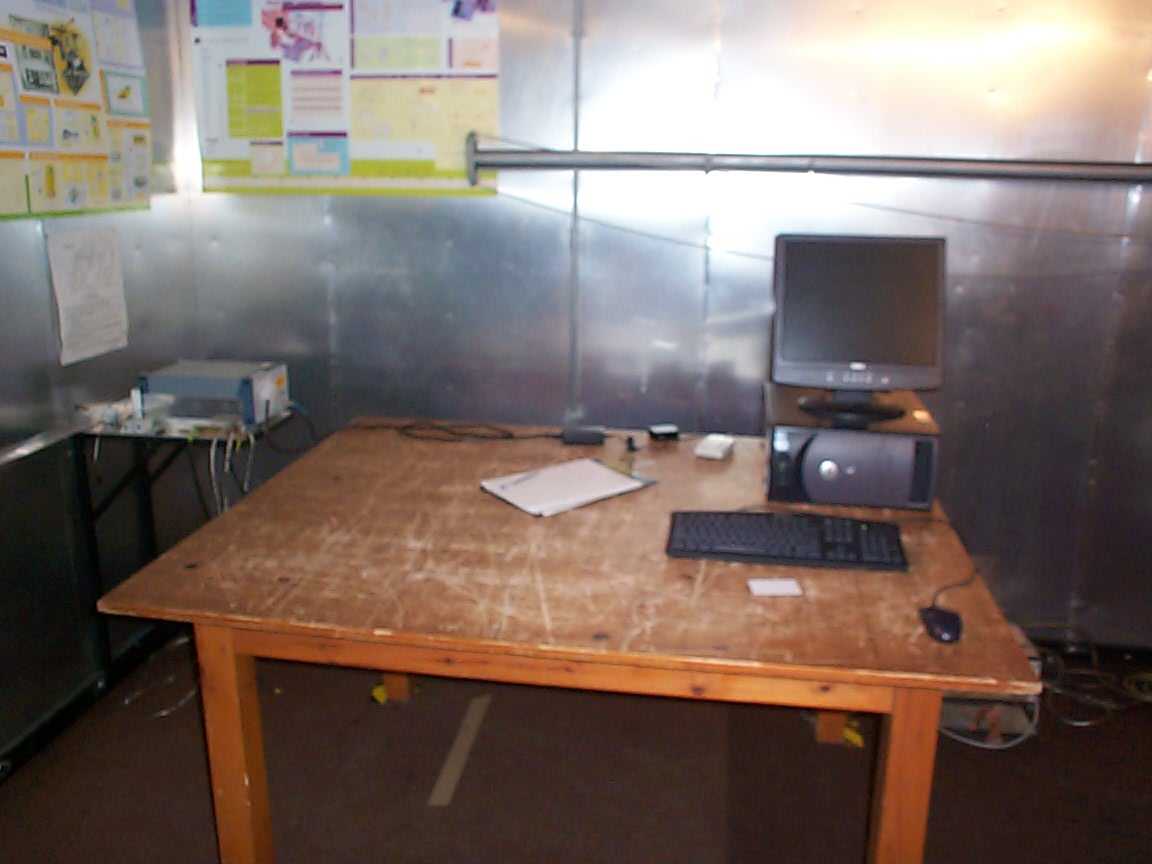

TRL C OMPLIANCE S ERVICES L TD EMC D IVISION M OSS V IEW N IPE L ANE U P H OLLAND W EST L ANCASHIRE WN8 9PY U NITED K INGDOM T ELEPHONE +44 (0)1695 556666 F AX +44 (0)1695 557077 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1092/5386 COPY NO: ISSUE NO: 1 FCC ID: OE5S821E REPORT ON THE CERTIFICATION TESTING OF A Group 4 Technology Limited S821 Enrolment Reader WITH RESPECT TO THE FCC RULES CFR 47, PART 15.225 MARCH 2003 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 12 th – 15 th January 2004 TESTED BY: J Charters APPROVED BY: P Green Product Manager DATE: Distribution: Copy Nos: 1. Group 4 Technology Limited 2. FCC EVALUATION LABORATORIES 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335U iss03 RU1092/5386 Page 2 of 28 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-14 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side PHOTOGRAPH No. 6: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B BAND OCCUPANCY PLOT C SCAN DATA D Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335U iss03 RU1092/5386 Page 3 of 28 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: OE5S821E PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, PART 15.225 March 2003 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: S821 Enrolment Reader EQUIPMENT SERIAL No: 0312275862 ITU: EMISSION CODE: 12K0A1D EQUIPMENT TYPE: S821 e PRODUCT USE: Access/Control CARRIER EMISSION: 221.82μV/m @ 30m ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not applicable FREQUENCY OF OPERATION: 13.56MHz CHANNEL SPACING: Not applicable. Wideband NUMBER OF CHANNELS: 1 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [X} Synthesiser [ ] MODULATION METHOD: Amplitude [X] Digital [ ] Angle [ ] POWER SOURCE(s): +12Vdc TEST DATE(s): 12 th – 15 th January 2004 ORDER No(s): R000016004 APPLICANT: Group 4 Technology Limited ADDRESS: Challenge House Northway Lane Tewkesbury GL19 4QH TESTED BY: J Charters APPROVED BY: P Green Product Manger RF335U iss03 RU1092/5386 Page 4 of 28 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): S821 Enrolment Reader EQUIPMENT TYPE: Enrolment Reader SERIAL NUMBER OF EUT: 0312275862 PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, PART 15.225 March 2003 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): R000016004 APPLICANT’S CONTACT PERSON(s): Mr E Porter E-mail address: [email protected] APPLICANT: Group 4 Technology Limited ADDRESS: Challenge House Tewkesbury Gloucestershire GL20 8JG TEL: +44 (0) 1684 299400 FAX: +44 (0) 1684 294845 MANUFACTURER: Group 4 Technology Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 12 th – 15 th January 2004 TEST REPORT No: RU1092/5386 RF335U iss03 RU1092/5386 Page 5 of 28 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.225 Quasi Peak Yes Intentional Emission Field Strength: 15.225 Quasi Peak Yes Intentional Emission Band Occupancy: 15.225 Quasi Peak Yes Intentional Emission ERP (mW): N/A - No Spurious Emissions – Conducted: 15.207 Quasi Peak Average Yes Spurious Emissions – Radiated <1000MHz: 15.209 Quasi Peak Yes Spurious Emissions – Radiated >1000MHz: 15.209 Average Yes Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - Yes Restricted Bands 15.205 - Yes Extrapolation Factor 15.31(f) - Yes 2. Product Use: Access control 3. Emission Designator: 12K0A1D 4. Duty Cycle: <100% 5. Temperatures: Ambient (Tnom) 17 o C 6. Supply Voltages: Vnom +12Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [X] Two channel [ ] 7. Equipment Category: Multi-channel [ ] Narrowband [ ] Wideband [X] 8. Channel spacing: RF335U iss03 RU1092/5386 Page 6 of 28 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature = 17 o C(<1GHz) 3m measurements <1GHz [X] Relative humidity = 58% (<1GHz), 1m measurements >1GHz [ ] Conditions = Open Area Test Site (OATS) 3m extrapolated from 1m [ ] Supply voltage = +12Vdc Channel number = 1 FREQ. (MHz) MEAS. Rx. (dBμV) CABLE LOSS (dB) ANT FACT. (dB/m) FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) Limit (μV/m) 1.705MHz - 30MHz 30MHz - 88MHz 32.0 72.7 4.3 22.3 0.5 0.9 16.9 5.4 21.7 28.6 - - 12.16 26.9 100 100 88MHz - 216MHz 176.3 19.65 1.3 8.65 29.6 - 30.2 150 216MHz - 960MHz 447.6 488.33 528.95 610.35 18.3 23.5 25.5 11.6 2.3 2.3 2.7 2.9 16.4 17.2 17.8 18.6 37.0 43.0 46.0 33.1 - - - - 70.79 141.25 199.5 33.1 500 500 500 500 960MHz - 1GHz 1GHz - 5GHz 1.705MHz to 30MHz 30μV/m @ 30m 30MHz to 88MHz 100μV/m @ 3m 88MHz to 216MHz 150μV/m @ 3m 216MHz to 960MHz 200μV/m @ 3m 960MHz to 1GHz 500μV/m @ 3m Limits 1GHz to 5GHz 500μV/m @ 3m See next page for the notes and test methods: RF335U iss03 RU1092/5386 Page 7 of 28 Notes: 1 Results quoted are extrapolated as indicated 2 Emissions were searched to: ( x ) 1000MHz inclusive, as per Part 15.33a 3 Extrapolation factor 9.5dB from 1m to 3m, as per Part 15.31f 4 Extrapolation factor 19.08dB from 10m to 30m, as per Part 15.31f 5 Measurements >1GHz @ 1m as per Part 15.31f(1) 6 Receiver detector <1GHz = CISPR, Quasi-…
