OE5S822S822 Access Control Proximity Reader

Installation and User Instructions for S822 Readers 1 Mount the Backplate To mount the backplate: 1) Detach the main body of the reader from the backplate by releasing the two securing screws along the bottom edge of the reader. 2) Mount the backplate adjacent to the opening edge of the door and at a convenient height. Feed the cable to the reader through the backplate. The backplate has suitable holes for connection to most standard electrical backboxes. The S822 is a contactless smart-card reader, which uses p. The S822 is able to read HID ismart cards, and the card serial number on Philips MIFARE smart cards. For either type of card, the S822 supports the use of unencoded cards (where only the unique card serial number is read). In the case of HID icards, an encoded card number can be read. Encoding formats supported include HID's own formats and the "smartMAX" format. CLASS CLASS TM 20mA current loop seudo-random communications ® ®® 9600-0305.Installation and User Instructions for S822 Readers, Issue 1.0x10 18th November 2003.AMAG Technology, 2003. of HID Corporation. Philips and MIFARE are registered trademarks of Philips Electronics, NV. FCC Notice:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device may void the authority of the user to operate it. All trademarks acknowledged. HID is a registered trademark of HID Corporation. iis a trademarkCLASS © Specifications Input voltage: 9-14V. Input current: 100mA @ nominal 12Vdc supply. Operating temperature: -13 to 158 F (-25 to 70 C). Operating humidity: 15 to 90%, non-condensing. Maximum read range: 2.5" (65mm). Approvals: EN50133, R&TTE, IP656. °° 3 Using the Reader Present the card face-on to the reader until you hear a "bleep". If the green indicator is lit, the card has been accepted and the door is unlocked. If the red indicator is lit, either the card has not been accepted, or you do not have access through the door. If the read and green indicators flash alternatively, please wait. cards can be presented in rapid succession - there is no need to wait for the green or red LED to extinguish before presenting another card. Note: 2 Reader Connections 20mA Current Loop Reader Connections 0V Connect shield at controller end only (connect to case) Tx- Tx+ Rx- Rx+ 12V Controller connections (20mA reader port) Red Black White Blue Green Orange Note: the brown wire is not used Reader

www.HIDCorp.com 9292 Jeronimo Road • Irvine, CA 92618-1905 • Phone (949) 598-1600 Fax (949) 598-1680 (Administration) • Fax (949) 598-1690 (Customer Service) • Fax (949) 598-1692 (Manufacturing & Purchasing) An ASSA ABLOY Group company February 10, 2004 TRL Compliance Services Ltd. TRL EMC Forthampton Glorcester GL 19 4QH United Kingdom 0.459 Request that submitted material be withheld from Public Inspection Products:31xxA (609x-301) iCLASS OEM Module Family It is requested that the following material be withheld from public inspection: Description of the iCLASS OEM Module, Circuit Functions, how the device operates, Ground System, and Antenna Block Diagram Schematic These materials are considered HID Corporation Proprietary and Confidential. Revealing the fundamental design for the product to the public, the OEM, and our competition would put us at a competitive disadvantage. We feel we have a product cost/design advantage over our competition with our iCLASS OEM Module family and therefore ask that the above-specified materials be withheld from public and OEM inspection. Frank de Vall Sr. Engineering Manager - Compliance Assa Abloy ITG & HID Corporation Assa Abloy ITG Research Center 11674 N. Huron Street Denver, CO 80234 USA

S822 Proximity Reader Labels Product and Approvals Label ( 25mm x 30mm ) Label Positioning ( The label will be placed on the back of the unit as shown below ) Issue 1 171103 Group 4 Technology Ltd. Model: 8000-5519-A Serial No: 0321000001 9-14V DC 100mA FCC ID: OE5S822 ! Label Position

S822 Proximity Reader Labels Product and Approvals Label ( 25mm x 30mm ) Label Positioning ( The label will be placed on the back of the unit as shown below ) Issue 1 171103 Group 4 Technology Ltd. Model: 8000-5519-A Serial No: 0321000001 9-14V DC 100mA FCC ID: OE5S822 ! Label Position

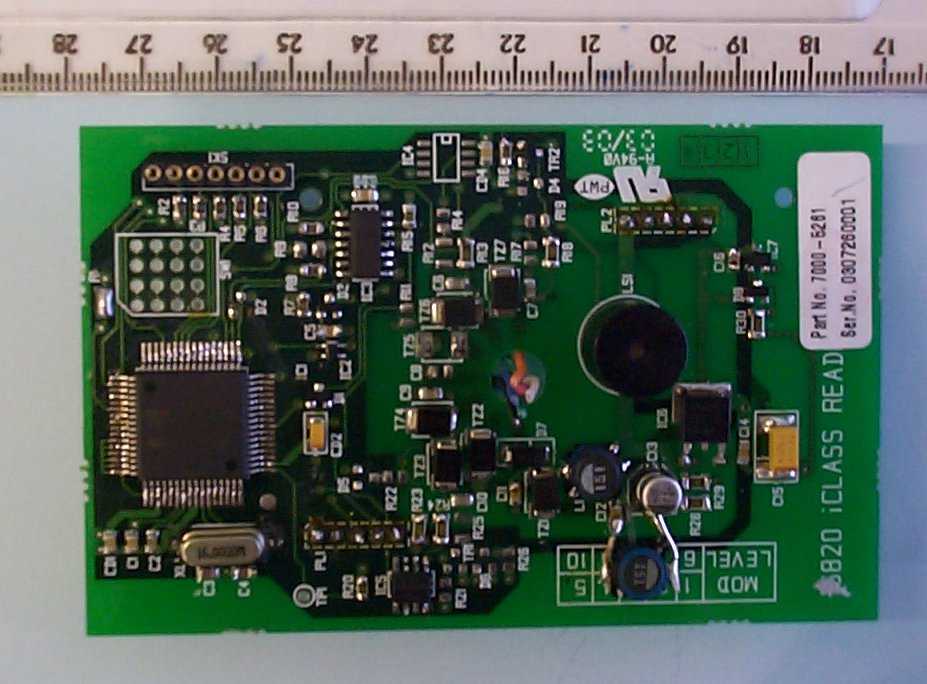

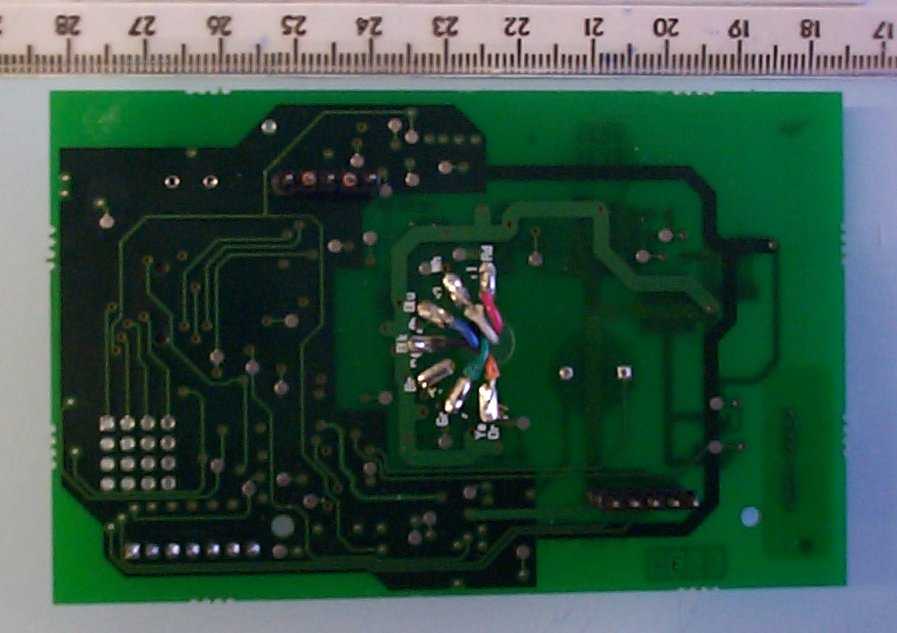

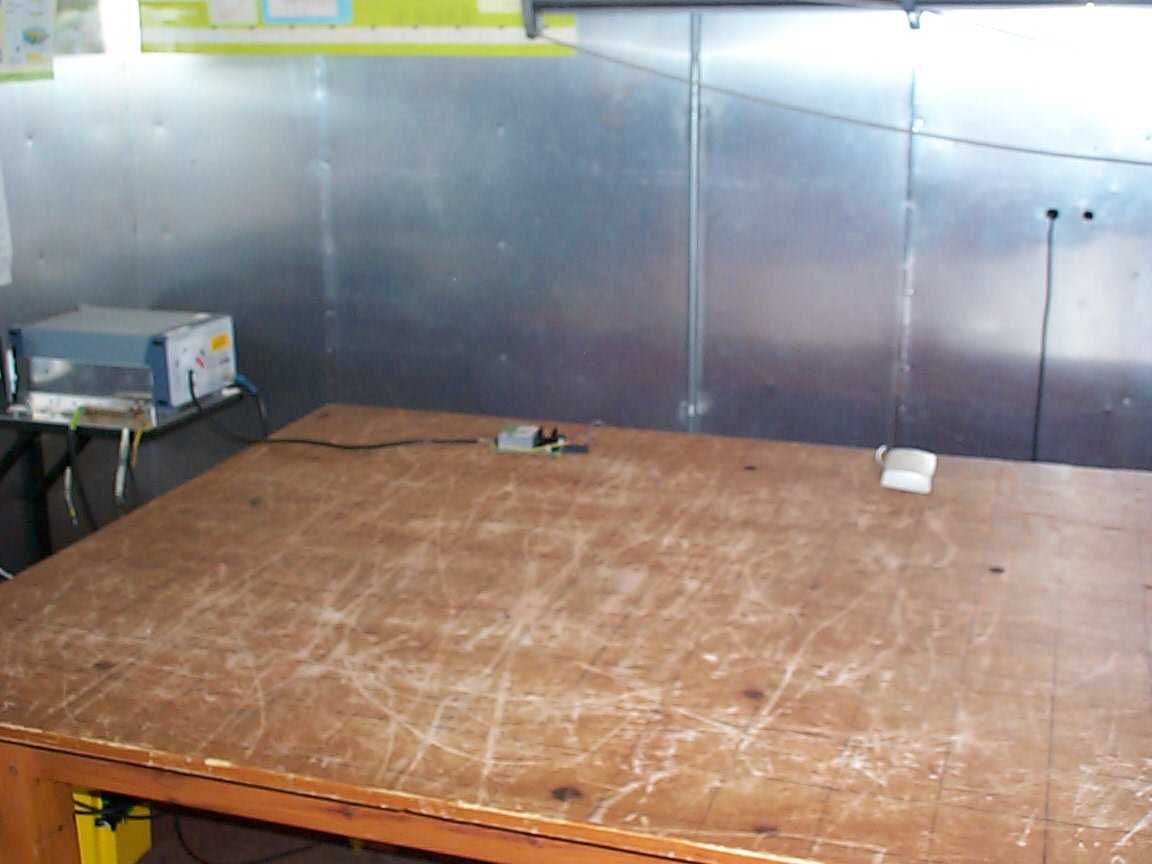

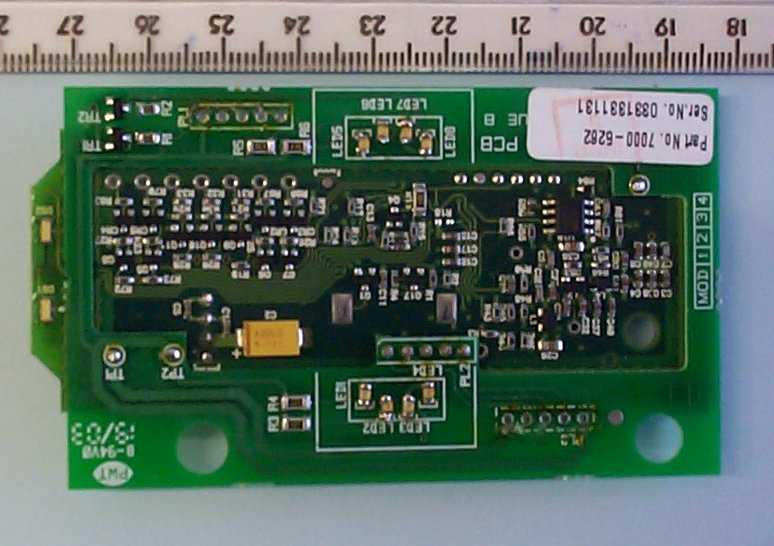

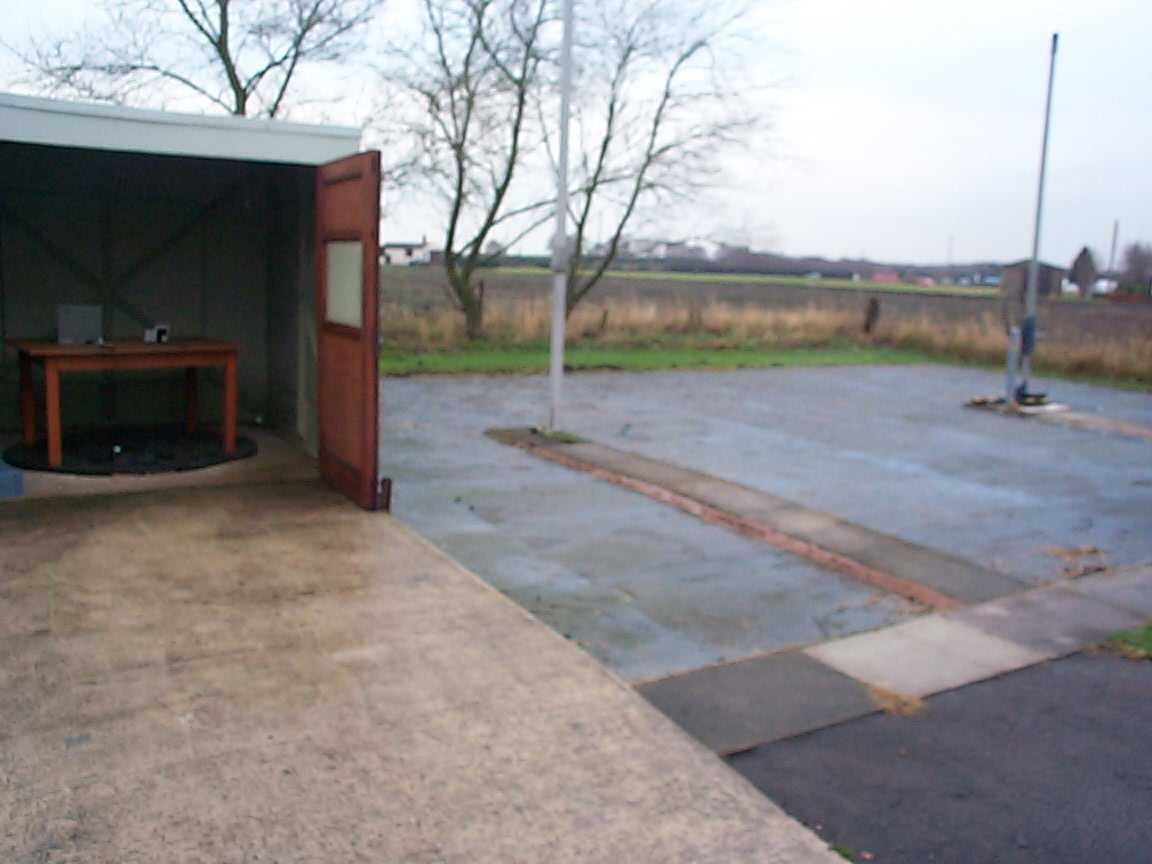

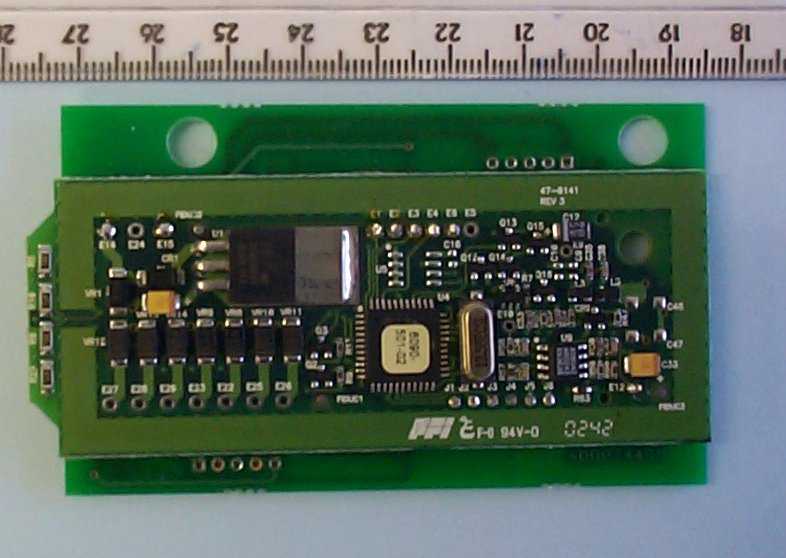

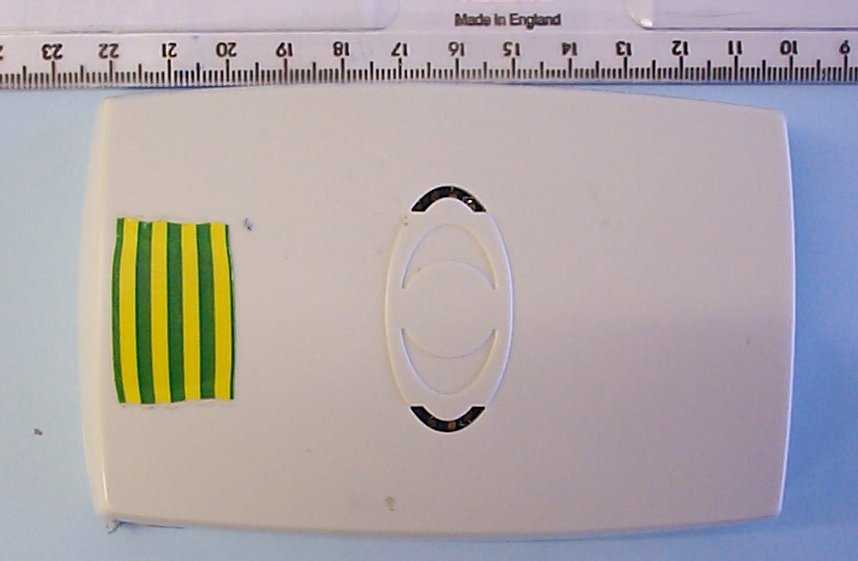

TRL COMPLIANCE SERVICES LTD EMC DIVISION MOSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM TELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com 0728 FS 21805 TEST REPORT NO:RU1082/5149 COPY NO:2 ISSUE NO:1 FCC ID:OE5S822 REPORT ON THE CERTIFICATION TESTING OF A GROUP 4 TECHNOLOGY Ltd. S822 WITH RESPECT TO THE FCC RULES CFR 47, PART 15.225 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 5 th – 7 th NOVEMBER 2003 TESTED BY:J CHARTERS APPROVED BY:P GREEN EMC PRODUCT MANAGER DATE:5 th January 2004 Distribution: Copy Nos:1.GROUP 4 TECHNOLOGY Ltd. 2.FCC EVALUATION LABORATORIES 3.TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335U iss03RU1082/5149Page 2 of 30 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE3 APPLICANT’S SUMMARY4 EQUIPMENT TEST CONDITIONS5 TESTS REQUIRED5 TEST RESULTS6-14 ANNEX PHOTOGRAPHSA PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side PHOTOGRAPH No. 6: Antenna PCB component side PHOTOGRAPH No. 7: Antenna PCB track side PHOTOGRAPH No. 8: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LISTB BAND OCCUPANCY PLOTC SCAN DATAD Notes: 1.Component failure during testYES NO [ ] [X] 2.If Yes, details of failure: 3.The facilities used for the testing of the product contain in this report are FCC Listed. 4.The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335U iss03RU1082/5149Page 3 of 30 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY:OE5S822 PURPOSE OF TEST:Certification TEST SPECIFICATION:FCC RULES CFR 47, Part 15.225 TEST RESULT:Compliant to Specification EQUIPMENT UNDER TEST:S822 EQUIPMENT SERIAL No:0307260001 ITU: EMISSION CODE:12K0A1D EQUIPMENT TYPE:S822 Tag reader PRODUCT USE:Access and control CARRIER EMISSION: 29.9 μV/m @ 30m ANTENNA TYPE:Integral ALTERNATIVE ANTENNA:Not applicable BAND OF OPERATION:13.553MHz –13.567MHz CHANNEL SPACING:N/A wideband NUMBER OF CHANNELS:1 FREQUENCY GENERATION:SAW Resonator[ ]Crystal[X]Synthesiser [ ] MODULATION METHOD:Amplitude[X]Digital[ ]Angle [ ] POWER SOURCE(s):12Vdc TEST DATE(s):5 th – 7 th NOVEMBER 2003 ORDER No(s):PRP10113 APPLICANT:GROUP 4 TECHNOLOGY Ltd. ADDRESS:Challenge House Northway Lane Tewkesbury Gloucester GL19 4QH TESTED BY:J CHARTERS APPROVED BY:P GREEN EMC PRODUCT MANAGER RF335U iss03RU1082/5149Page 4 of 30 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT):S822 EQUIPMENT TYPE:S822 Tag reader SERIAL NUMBER OF EUT:0307260001 PURPOSE OF TEST:Certification TEST SPECIFICATION(s):FCC RULES CFR 47, Part 15.225 TEST RESULT:COMPLIANTYes No [X] [ ] APPLICANT’S CATEGORY:MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s):PRP10113 APPLICANT’S CONTACT PERSON(s):Mr E Porter E-mail address:[email protected] APPLICANT:GROUP 4 TECHNOLOGY Ltd. ADDRESS:Challenge House Northway Lane Tewkesbury Gloucester GL19 4QH TEL:+44 (0) 1684 850997 FAX:+44 (0) 1684 294845 MANUFACTURER:GROUP 4 TECHNOLOGY Ltd. EUT(s) COUNTRY OF ORIGIN:United Kingdom TEST LABORATORY:TRL EMC UKAS ACCREDITATION No:0728 TEST DATE(s)5 th - 7 th NOVEMBER 2003 TEST REPORT No:RU1082/5149 RF335U iss03RU1082/5149Page 5 of 30 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATIONRULE PARTDETECTORAPPLICABILITY Intentional Emission Frequency:15.225Quasi PeakYes Intentional Emission Field Strength:15.225Quasi PeakYes Intentional Emission Band Occupancy:15.225Quasi PeakYes Intentional Emission ERP (mW):N/A-No Spurious Emissions – Conducted:15.207 Quasi Peak Average Yes Spurious Emissions – Radiated <1000MHz:15.209Quasi PeakYes Spurious Emissions – Radiated >1000MHz:N/A-No Maximum Frequency of Search:15.33-Yes Antenna Arrangements Integral:15.203-Yes Antenna Arrangements External Connector:15.204-No Restricted Bands15.205-Yes Extrapolation Factor15.31(f)-Yes 2.Product Use:Access/control 3.Emission Designator:12K0A1D 4.Duty Cycle:<100% 5.Temperatures:Ambient (Tnom)14 o C 6.Supply Voltages:Vnom12Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel[X] Two channel[ ] 8.Equipment Category: Multi-channel[ ] Narrowband[ ] Wideband[X] 9.Channel spacing: RF335U iss03RU1082/5149Page 6 of 30 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature=14 o C(<1GHz)10m measurements <30MHz[X] Relative humidity=72% (<1GHz),3m measurements >1GHz[X] Conditions=Open Area Test Site (OATS)30m extrapolated from 10m[X] Supply voltage=12Vdc Channel number=1 FREQ. (MHz) MEAS. Rx. (dBμV) CABLE LOSS (dB) ANT FACT. (dB/m) FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 1.705MHz-30MHz27.1229.4--29.419.083.330 30MHz- 88MHz40.6521.10.612.734.4-52.48100 88MHz-216MHz 216MHz-960MHz- 960MHz-1GHz- 1GHz-5GHz- 1.705MHz to 30MHz 30μV/m@ 30m 30MHz to 88MHz100μV/m@ 3m 88MHz to 216MHz150μV/m@ 3m 216MHz to 960MHz200μV/m@ 3m 960MHz to 1GHz500μV/m@ 3m Limits 1GHz to 5GHz500μV/m@ 3m See next page for the notes and test methods: RF335U iss03RU1082/5149Page 7 of 30 Notes: 1Results quoted are extrapolated as indicated 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a 3Extrapolation factor 9.5dB from 1m to 3m, as per Part 15.31f 4Extrapolation factor 19.08dB from 10m to 30m, as per Part 15.31f 5Measurements >1GHz @ 1m as per Part 15.31f(1) 6Receiver detector >1GHz = CISPR, Quasi-Peak, 120kHz bandwidth 7Receiver detector >1GHz = Peak Hold, 1MHz resolution bandwidth 8New batteries used for battery powered products. 9Emissions 20dB’s below the limit were not necessarily recorded. 10For emission below 30MHz the measuring receiver automatically compensates for the loss due to the antenna factor of the loop antenna. This loss is 20dB’s across the measuremen…
