OE5S822ES822 Enrolment Reader

Installation and User Instructions for S822 Encoders 1 Cable Connection The S822 encoder is used to encode blank HID ismart cards to the "smartMAX" format, or to re- encode existing "smartMAX" format icards. CLASS CLASS TM® Insert the jack plug into the box on the end of the encoder cable. Insert the power plug into . the box on the end of the encoder cable Connect the 12Vdc power source to the mains supply. Connect this RS232-to- RS485 converter to a serial port of a PC installed with the SMS software. Set up the port in the Install/Client Ports screen of the SMS software. 9600-0395.Installation and User Instructions for S822 Encoders, Issue 1.0 28th April 2004.Group 4 Technology, 2004. HID is a registered trademark of HID Corporation. iis a trademark of HID Corporation. FCC Notice:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device may void the authority of the user to operate it. All trademarks acknowledged. CLASS © Specifications Input voltage: 9-15V. Input current: 260mA @ nominal 12Vdc supply. Operating temperature: -13 to 158 F (-25 to 70 C). Operating humidity: 15 to 90%, non-condensing. Maximum encoding range: 1" (25mm). Approvals: EN50133, R&TTE, IP656. For internal use only. °° 2 Encoding Procedure To encode a card: 1. Log in to the SMS software at the PC that the encoder is connected to. 2. Start the encoding procedure from the appropriate screen in the SMS software. For example, if you are using a standard client, use thebutton in. 3. Encodethe Card Holders screen When prompted, present the card to the encoder. You will hear a "bleep" when the card has been encoded. - Lit when power is supplied to the encoder. - Lit when the encoder has received data. Beeps once when the card has been encoded successfully. LEDs: Sounder: Red Green

S822 Enrolment Proximity Reader Labels Product and Approvals Label ( 25mm x 30mm ) Label Positioning ( The label will be placed on the back of the unit as shown below ) Issue 1 08/03/04 Group 4 Technology Ltd. Model: 8000-5984-A Serial No: 0321000001 FCC ID: OE5S822E 9-14V DC 100mA Label Position

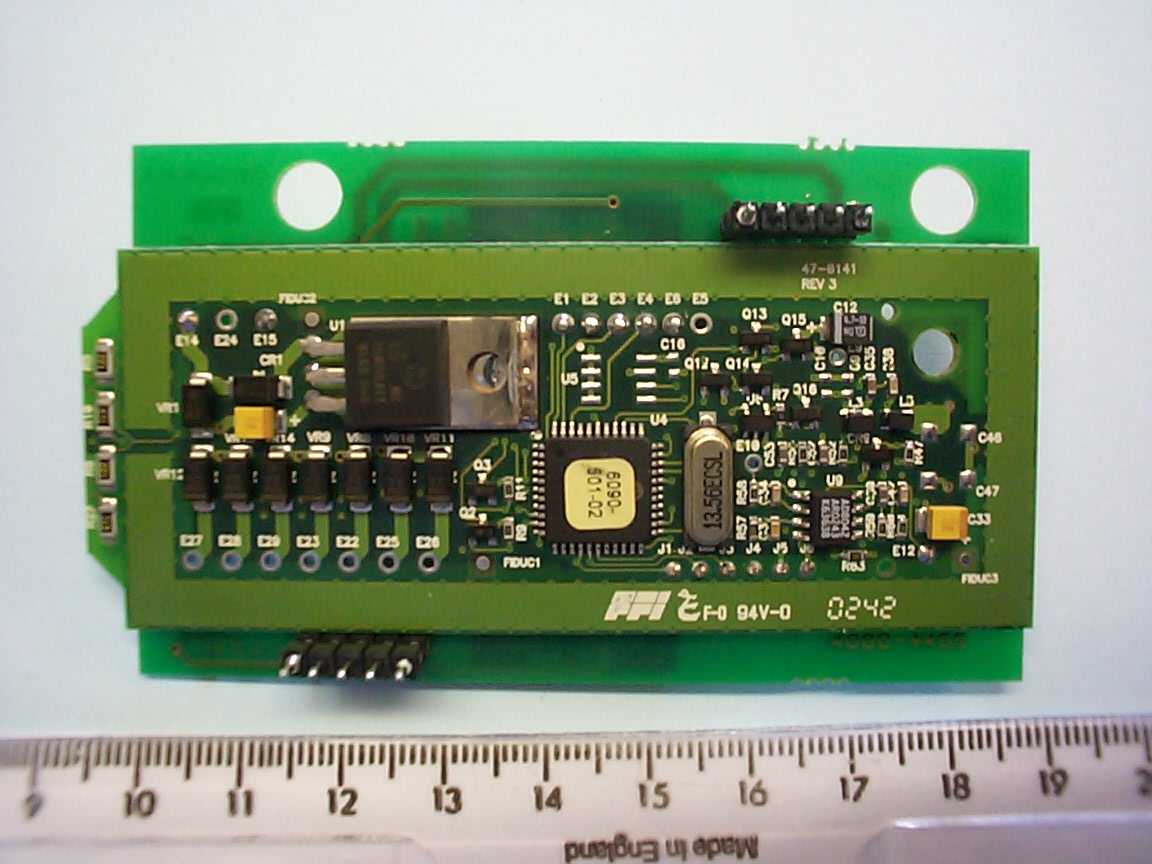

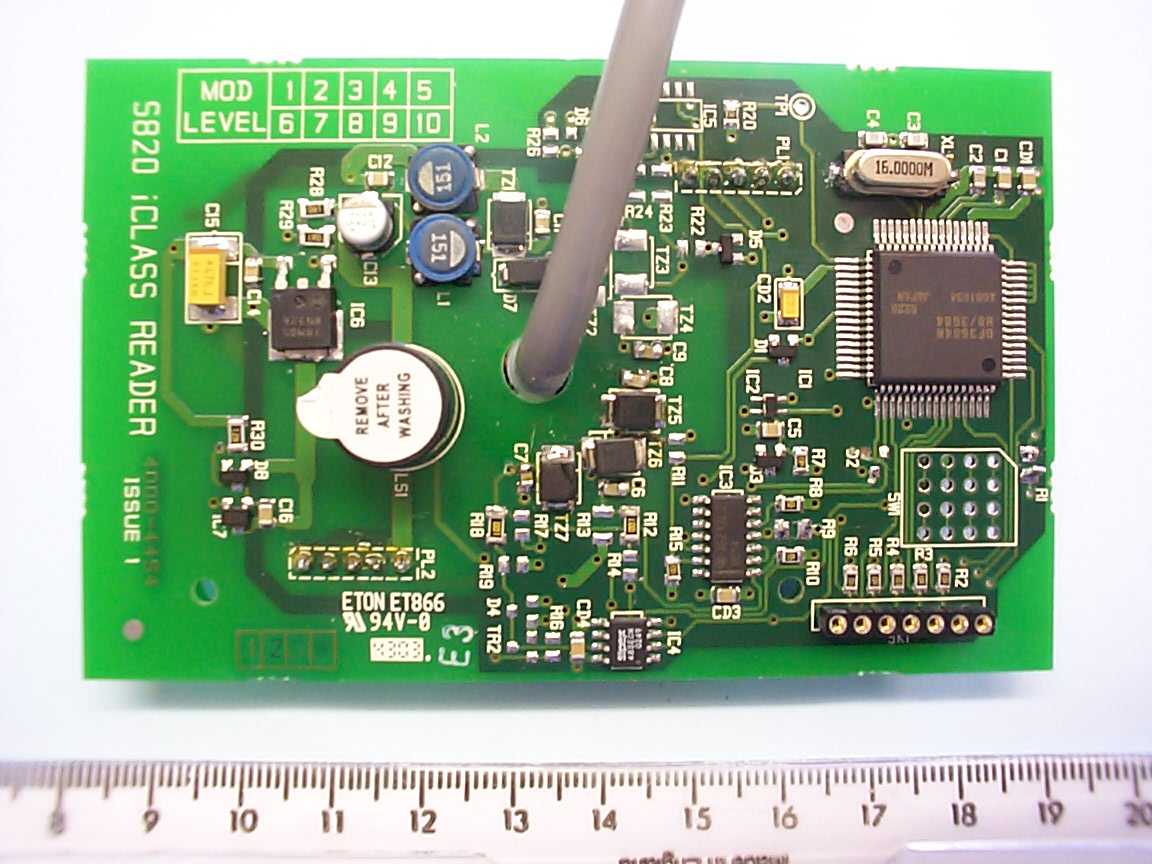

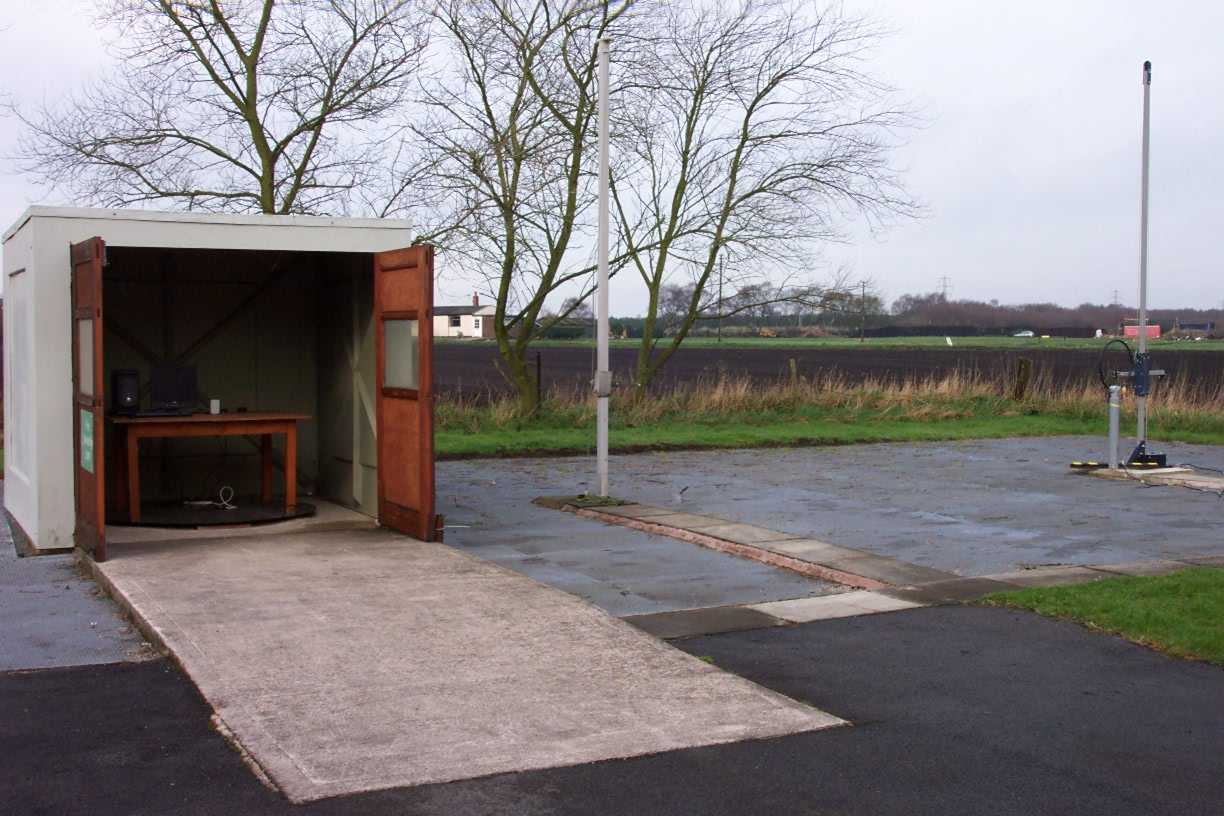

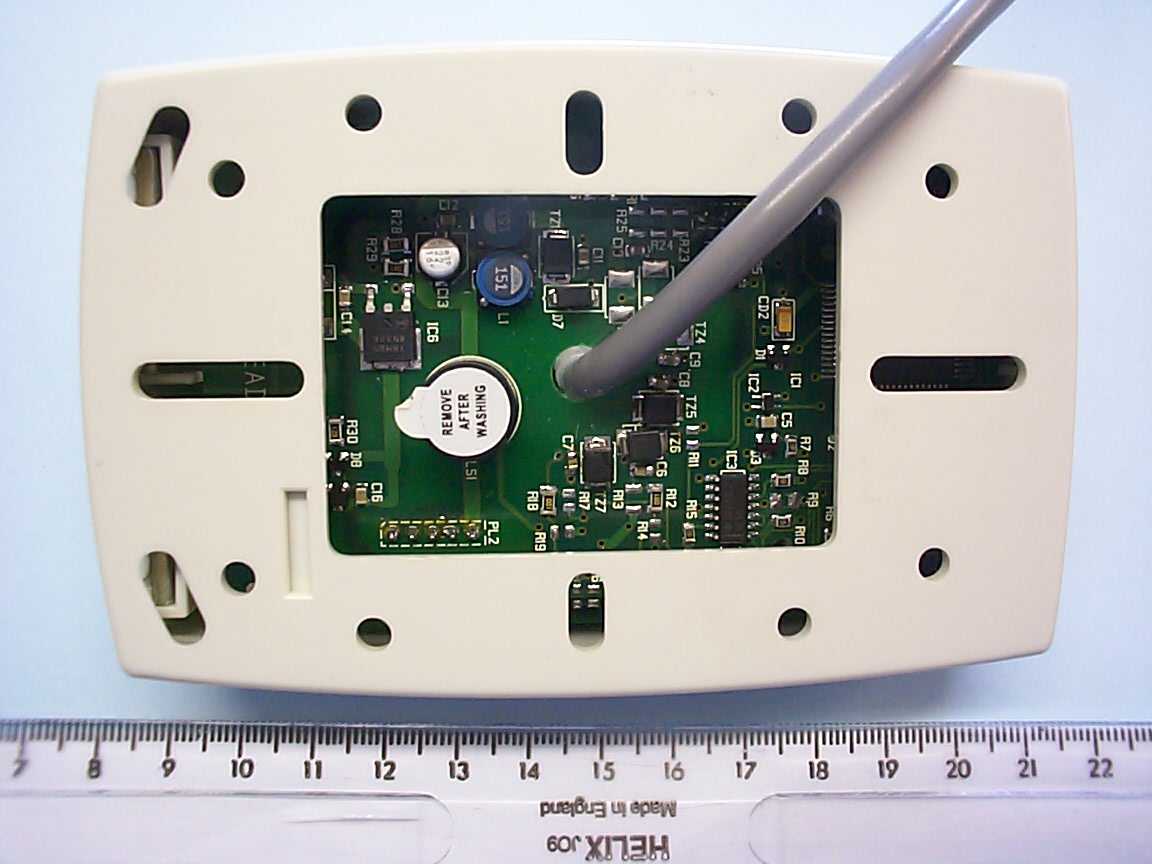

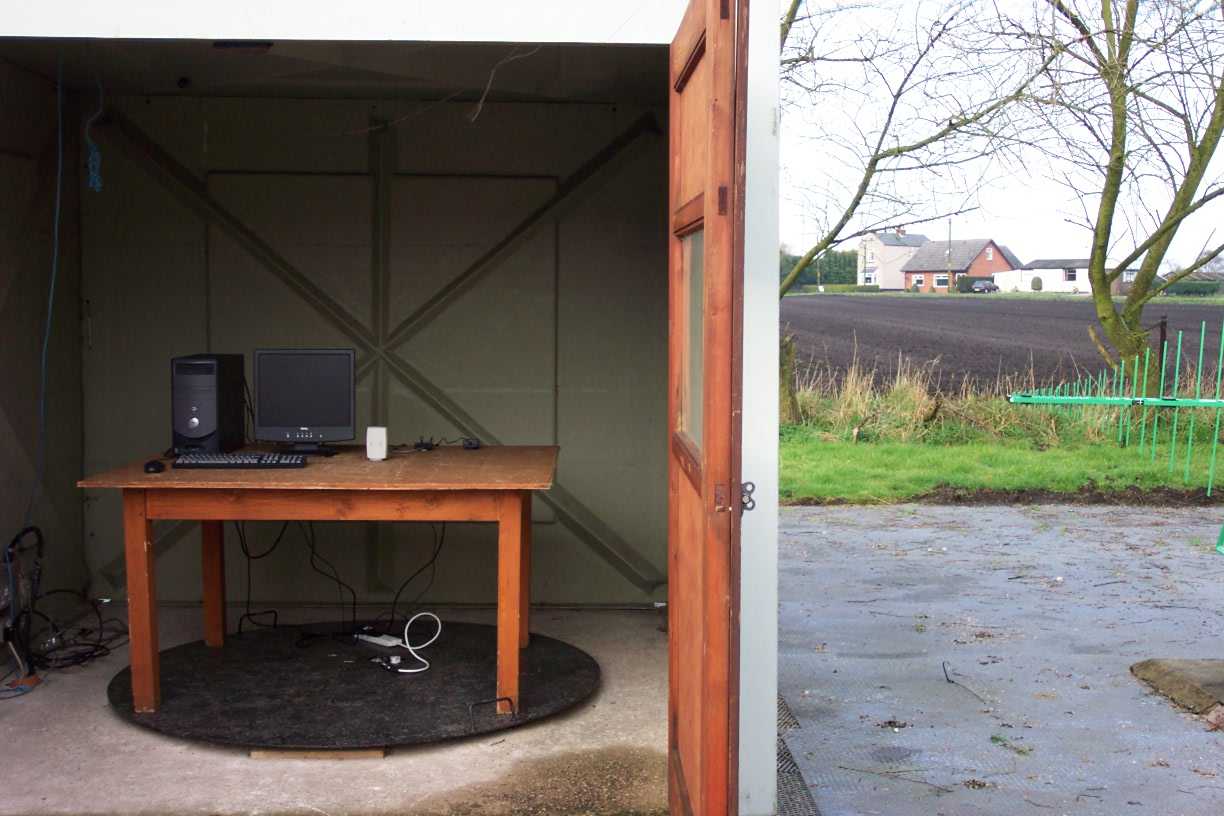

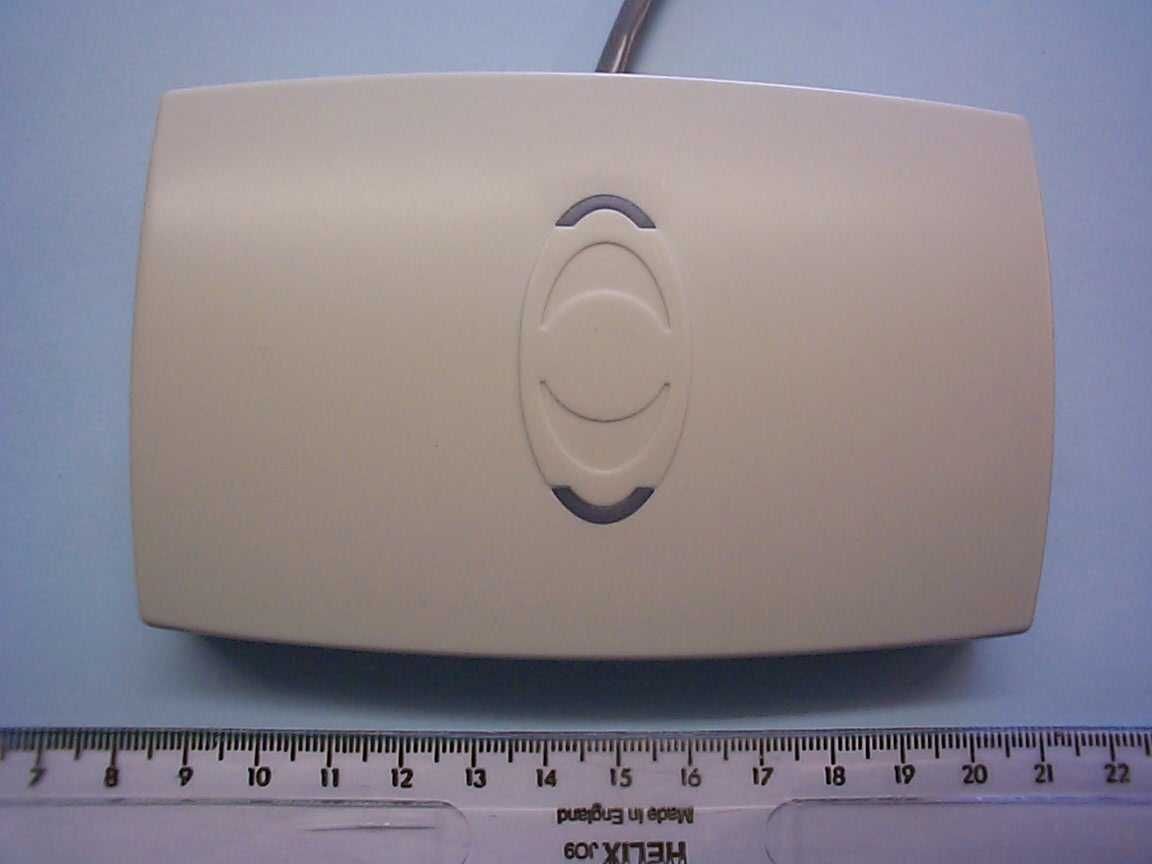

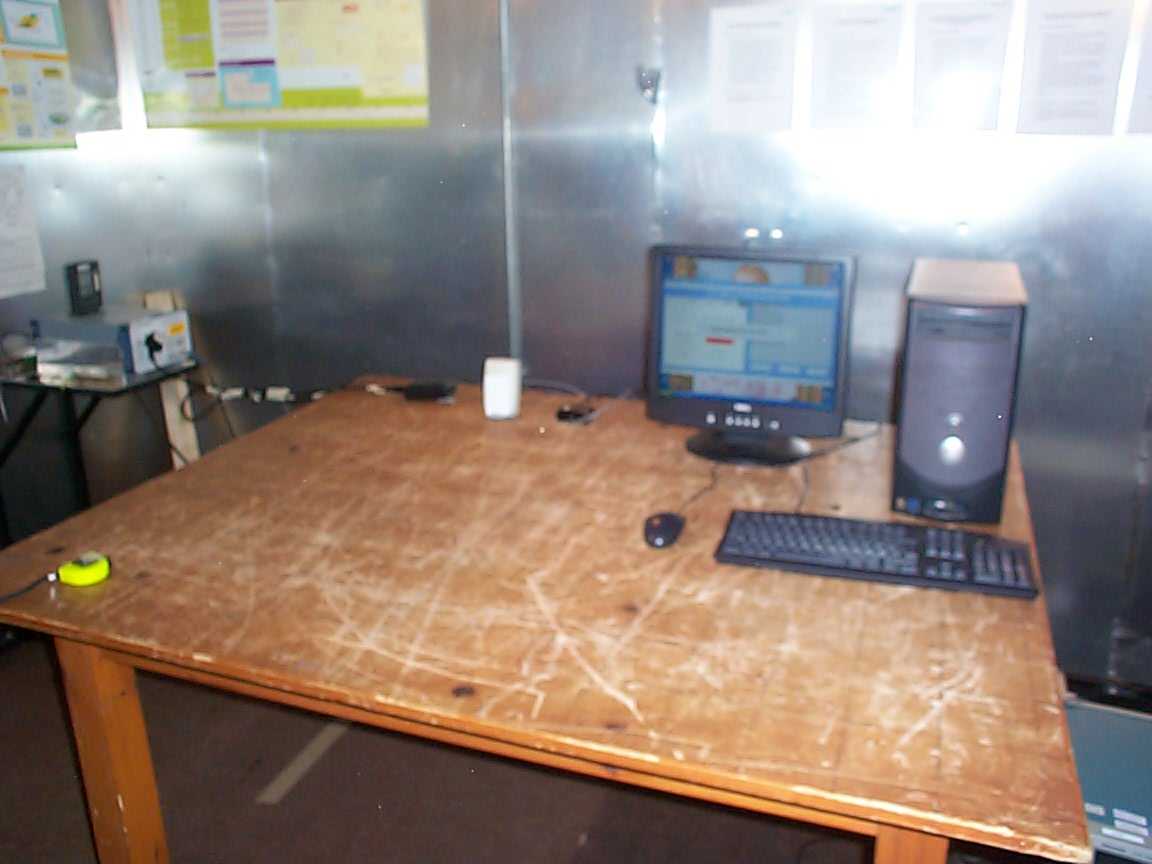

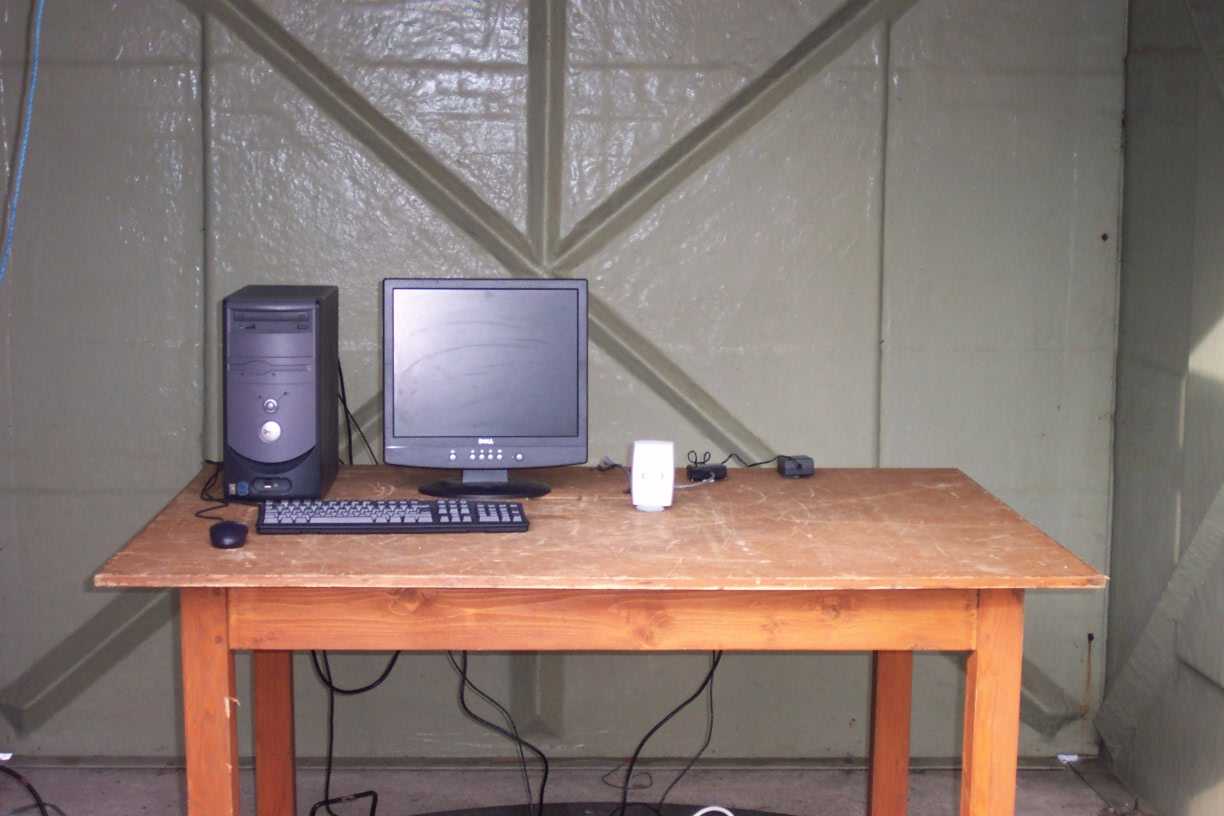

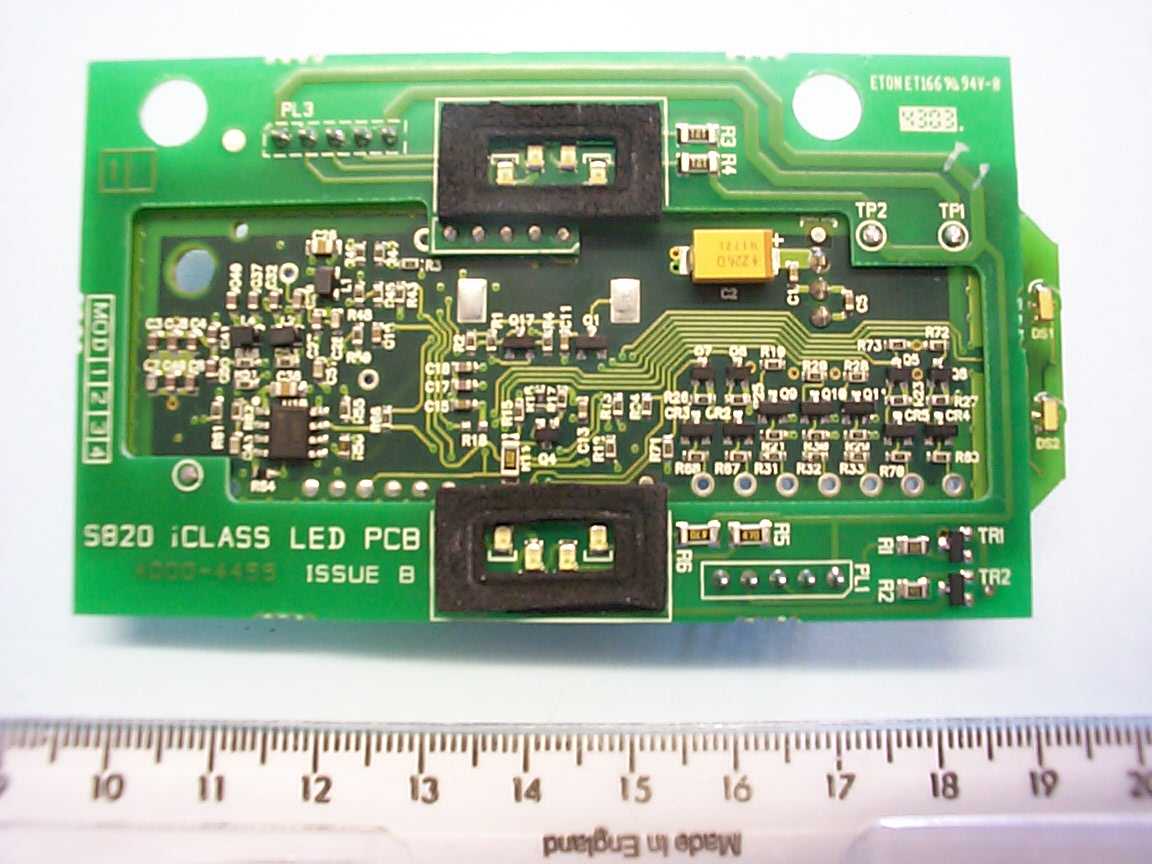

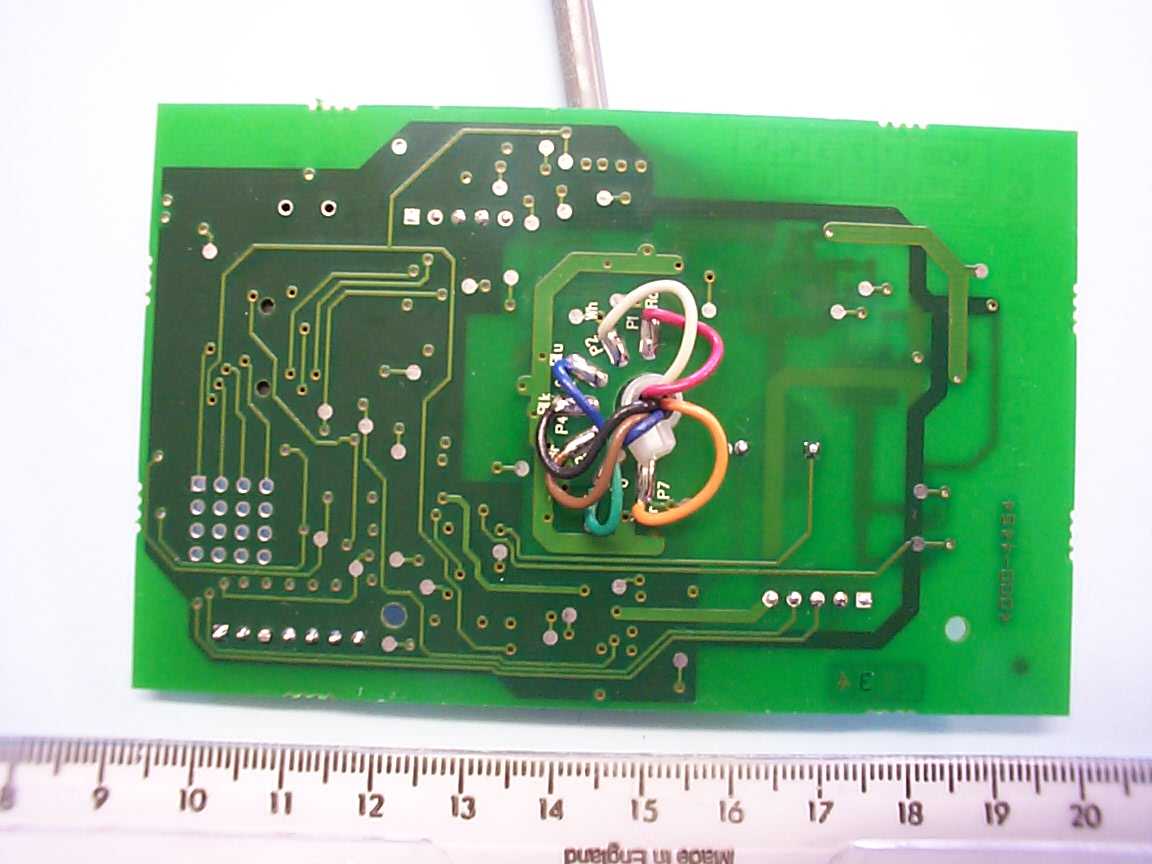

TRL C OMPLIANCE S ERVICES L TD EMC D IVISION M OSS V IEW N IPE L ANE U P H OLLAND W EST L ANCASHIRE WN8 9PY U NITED K INGDOM T ELEPHONE +44 (0)1695 556666 F AX +44 (0)1695 557077 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1108/5412 COPY NO: 2 ISSUE NO: 1 FCC ID: OE5S822E REPORT ON THE CERTIFICATION TESTING OF A Group 4 Technology Limited S822 Enrolment Reader WITH RESPECT TO THE FCC RULES CFR 47, PART 15.225 December 2003 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 2 nd April – 4 th April 2004 TESTED BY: J CHARTERS APPROVED BY: P GREEN EMC PRODUCT MANAGER DATE: 4 th June 2004 Distribution: Copy Nos: 1. Group 4 Technology Limited 2. FCC EVALUATION LABORATORIES 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335U iss03 RU1108/5412 Page 2 of 29 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-14 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: EUT front view PHOTOGRAPH No. 3: EUT rear view PHOTOGRAPH No. 4: Main PCB component side PHOTOGRAPH No. 5: Main PCB track side PHOTOGRAPH No. 6: Add on PCB component side PHOTOGRAPH No. 7: Add on PCB antenna side APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B BAND OCCUPANCY PLOT C SCAN DATA D Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335U iss03 RU1108/5412 Page 3 of 29 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: OE5S822E PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.225 December 2003 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: S822 Enrolment Reader EQUIPMENT SERIAL No: Engineering Sample ITU: EMISSION CODE: 12K0A1D EQUIPMENT TYPE: Inductive Card Reader PRODUCT USE: Access control CARRIER EMISSION: 29.58 μV/m @ 30m ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not Applicable BAND OF OPERATION: 13.553 MHz – 13.567MHz CHANNEL SPACING: Not Applicable, wideband NUMBER OF CHANNELS: 1 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [X] Synthesiser [ ] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): 110Vac TEST DATE(s): 2 nd April – 4 th April 2004 ORDER No(s): R000018146 APPLICANT: Group 4 Technology Limited ADDRESS: Challenge House Northway Lane Tewkesbury Gloucester England GL20 8JG TESTED BY: J CHARTERS APPROVED BY: P GREEN EMC PRODUCT MANAGER RF335U iss03 RU1108/5412 Page 4 of 29 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): S822 Enrolment Reader EQUIPMENT TYPE: Inductive Card Reader SERIAL NUMBER OF EUT: Engineering Sample PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.225 December 2003 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): R000018146 APPLICANT’S CONTACT PERSON(s): Mr E Porter E-mail address: [email protected] APPLICANT: Group 4 Technology Limited ADDRESS: Challenge House Northway Lane Tewkesbury Gloucester GL20 8JG TEL: 01684 299400 FAX: 01684 290166 EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 2 nd April – 4 th April 2004 TEST REPORT No: RU1108/5412 RF335U iss03 RU1108/5412 Page 5 of 29 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.225 Quasi Peak Yes Intentional Emission Field Strength: 15.225(a) Quasi Peak Yes Intentional Emission Band Occupancy: 15.215(c) Peak Yes Intentional Emission ERP (mW): N/A - No Spurious Emissions – Conducted: 15.207 Quasi Peak Average Yes Spurious Emissions – Radiated <1000MHz: 15.209 Quasi Peak Yes Spurious Emissions – Radiated >1000MHz: 15.209 Average Yes Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - No Restricted Bands 15.205 - Yes Extrapolation Factor 15.31(f) - Yes 2. Product Use: Access control 3. Emission Designator: 12K0A1D 4. Duty Cycle: <100% 5. Temperatures: Ambient (Tnom) 10.2 o C 6. Supply Voltages: Vnom 110Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [X] Two channel [ ] 7. Equipment Category: Multi-channel [ ] Narrowband [ ] Wideband [X] 8. Channel spacing: RF335U iss03 RU1108/5412 Page 6 of 29 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature = 10.2 o C(<1GHz) 3m measurements <1GHz [X] Relative humidity = 43% (<1GHz) 10m measurements <30MHz [X] Conditions = Open Area Test Site (OATS) 30m extrapolated from 10m [X] Supply voltage = 110Vac Channel number = 13.56 MHz FREQ (MHz) MEAS. Rx. (dBμV) CABLE LOSS (dB) ANT FACTOR FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 1.705MHz - 30MHz 27.12 - - - 27.2 19.08 2.547 30 30MHz - 88MHz 40.7 54.25 25.90 21.2 0.6 0.7 12.70 6.40 39.2 28.3 - - 91.201 26.002 100 100 88MHz - 216MHz 216MHz - 960MHz 960MHz - 1GHz 1GHz - 5GHz 1.705MHz to 30MHz 30μV/m @ 30m 30MHz to 88MHz 100μV/m @ 3m 88MHz to 216MHz 150μV/m @ 3m 216MHz to 960MHz 200μV/m @ 3m 960MHz to 1GHz 500μV/m @ 3m Limits 1GHz to 5GHz 500μV/m @ 3m See next page for notes and test method: RF335U iss03 RU1108/5412 Page 7 of 29 Notes: 1 Results quoted are extrapolated as indicated. 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a. 3 Extrapolation factor 9.5dB from 1m to 3m, as per Part 15.31f. 4 Extrapolation factor 19.08dB from 10m to 30m, as per Part 15.31f. 5 Measurements >1GHz @ 1m as per Part 15.31f(1). 6 Receiver detector <1GHz = CISPR, Quasi-Peak, 120kHz bandwidth. 7 Receiver detector >1GHz = Peak …
