OE5S823S823 Proximity Reader

Installation and User Instructions for S823 Readers 1 Mount the Backplate To mount the backplate: 1) Remove the two screws taped to the inside of the backplate. 2) Mount the backplate adjacent to the opening edge of the door and at a convenient height. Feed the cable to the reader through the backplate. 3) Use the screws removed in step 1 to secure the backplate to the main body of the reader (see opposite). The backplate has suitable holes for connection to most standard electrical backboxes. Screws to attach backplate to reader The S823 is a contactless smart-card reader, which uses p. The S823 is able to read Philips MIFARE and Philips MIFARE DESfire smart cards. For either type of card, the S823 supports the use of unencoded cards (where only the unique card serial number is read), or cards encoded with a card number. Several encoding formats are supported. The reader can simultaneously support two different card types/formats (e.g. non-encoded MIFARE and smartMAX- encoded MIFARE DESfire, or non-encoded MIFARE and smartMAX-encoded MIFARE). The reader is automatically configured to accept the first two card types/formats presented. 20mA current loop seudo-random communications ®® 9600-0407.Installation and User Instructions for S823 Readers, Issue 1.0 24th January 2005.AMAG Technology, 2005. Philips and MIFARE are registered trademarks of Philips Electronics N.V FCC Notice:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device may void the authority of the user to operate it. All trademarks acknowledged. . © 4 Using the Reader 2 Reader Connections 20mA Current Loop Reader Connections 0V Connect shield at controller end only (attach to case) Tx- Tx+ Rx- Rx+ 12V Controller connections (20mA reader port) Red Black White Blue Green Orange Note: the brown wire is not used Reader Present the proximity card face-on to the reader until you hear a "bleep". The maximum read range is typically 0.4" (10mm). If the green indicator is lit, the card has been accepted and the door is unlocked. If the red indicator is lit, either the card has not been accepted, or you do not have access through the door. cards can be presented in rapid succession - there is no need to wait for the green or red LED to extinguish before presenting another card. If the red and green indicators flash alternatively, please wait. Note: Specifications Input: 130mA max @ 10.6-12.7Vdc. Operating temperature: -13 to 158 F (-25 to 70 C). Operating humidity: 15 to 90%, non-condensing. Maximum read range: 0.4" (10mm). Approvals: EN50133, R&TTE, IP656. °° If the reader needs to read both MIFARE and MIFARE DESfire cards, make sure that one of each card is presented to the reader immediately after the reader has been installed and the cards have been encoded in the Admin/Card Holders screen of the SMS software. The reader supports the first two card formats presented. If the two cards are the same type, only one format is supported. 3 Reader Configuration

S823 Proximity Reader Labels Product and Approvals Label ( 25mm x 30mm ) Label Positioning ( The label will be placed on the back of the unit as shown below ) Issue 1 3/11/2005 Group 4 Technology Ltd. Model: 8000-6078-A Serial No: 0321000001 9-14V DC 130mA FCC ID: OE5S823 Label Position

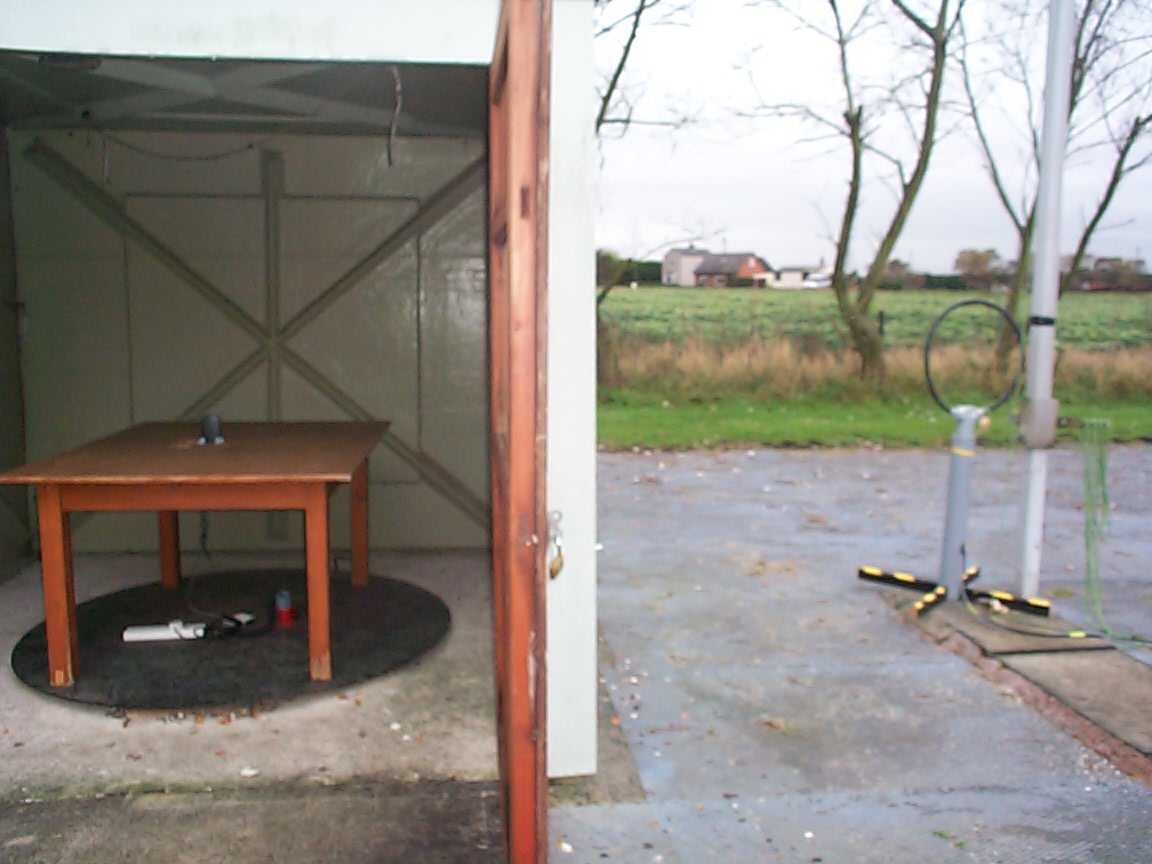

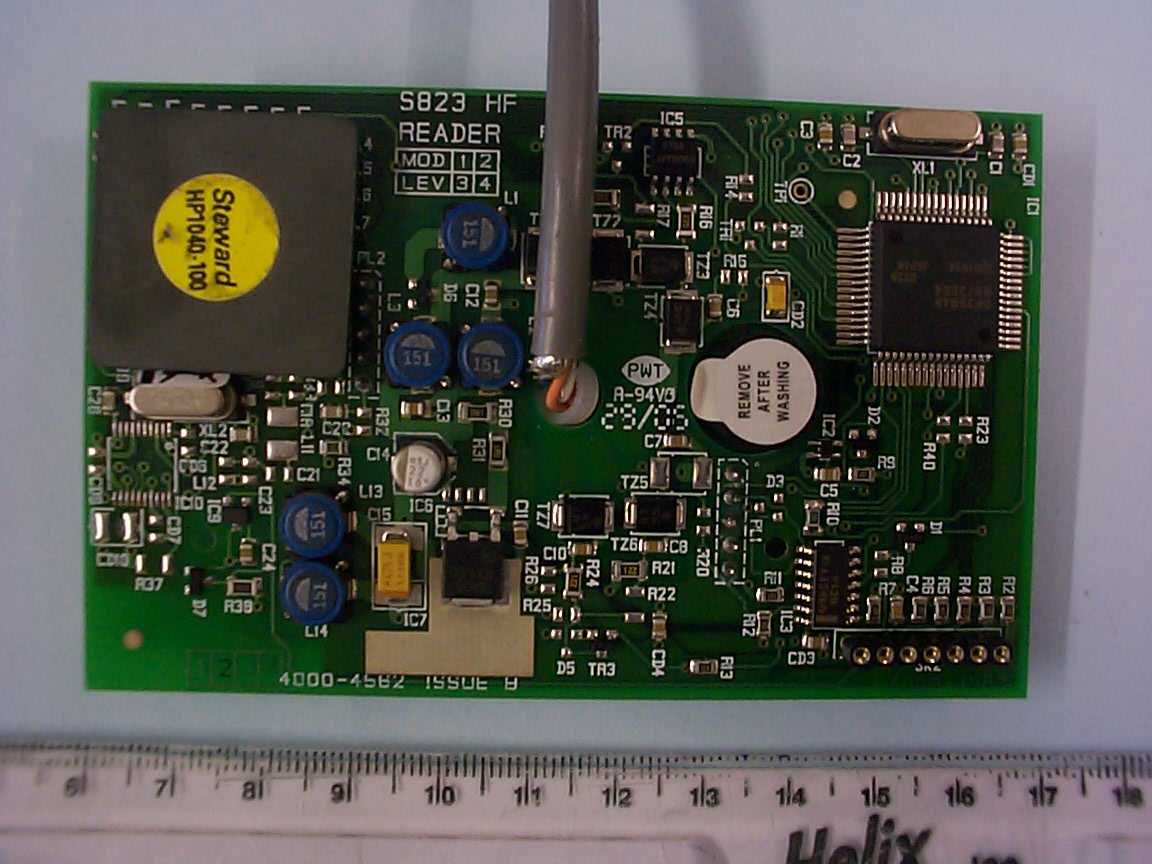

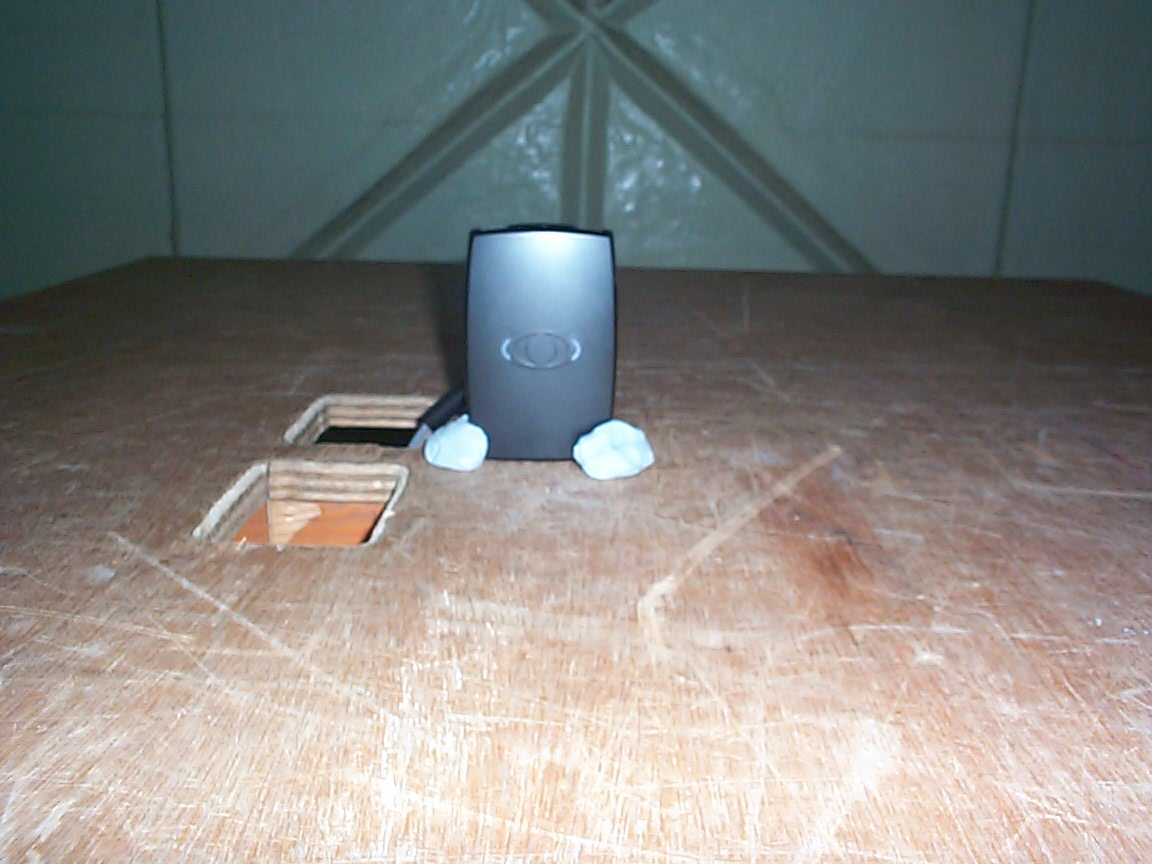

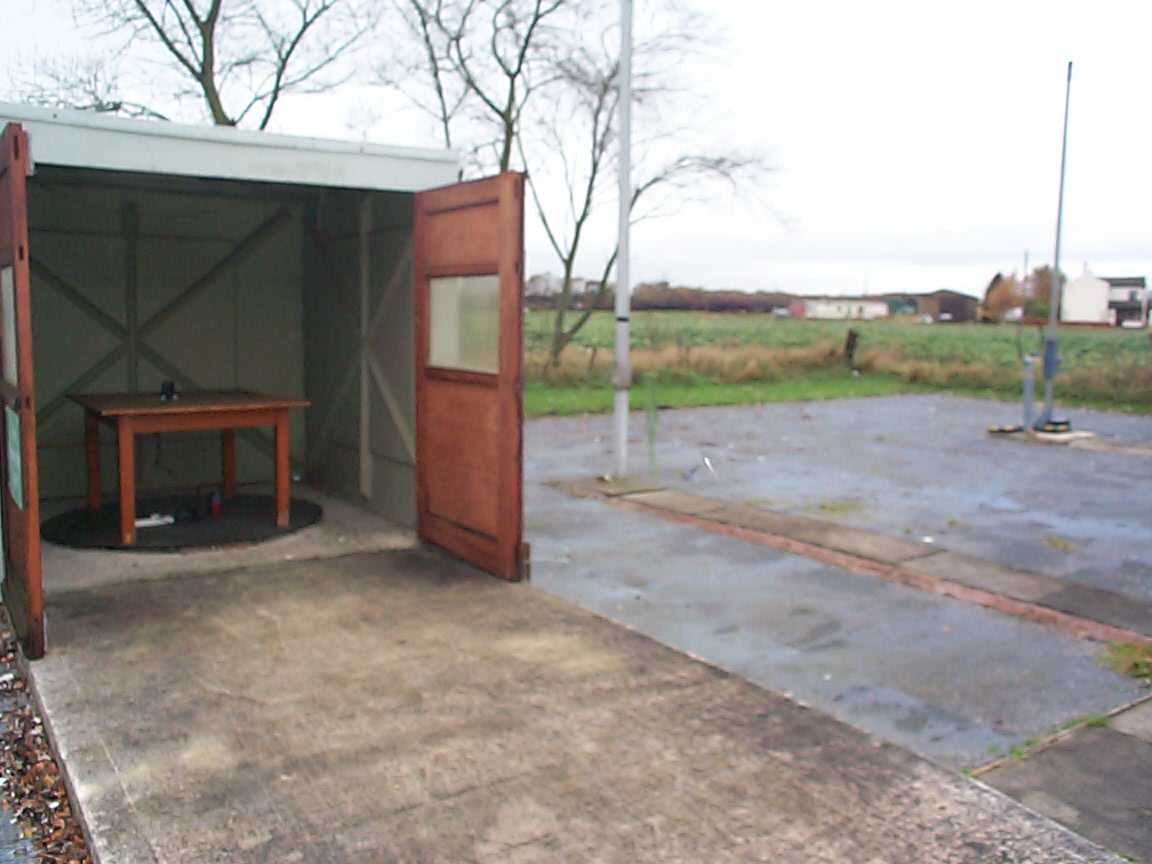

TRL COMPLIANCE LTD EMC DIVISION M OSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM T ELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com 0728 FS 21805 TEST REPORT NO: RU1207/6654 COPY NO: 2 ISSUE NO: 1 FCC ID: OE5S823 REPORT ON THE CERTIFICATION TESTING OF A GROUP 4 TECHNOLOGY Ltd S823 WITH RESPECT TO THE FCC RULES CFR 47, PART 15.225 June 2005 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 4 th October 2005 – 10 th October 2005 TESTED BY: J CHARTERS APPROVED BY: P GREEN EMC PRODUCT MANAGER DATE: 5 th December 2005 Distribution: Copy Nos: 1. GROUP 4 TECHNOLOGY Ltd 2. FCC EVALUATION LABORATORIES 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335U iss03 RU1207/6654 Page 2 of 36 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 6 SAMPLE CALCULATIONS 6 TEST RESULTS 7-13 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side PHOTOGRAPH No. 6: Antenna PCB track side PHOTOGRAPH No. 7: Antenna PCB component side APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B BAND OCCUPANCY PLOT C MASK COMPLIANCE D POWERLINE EMISSIONS E H FIELD PEAK SCAN F E FIELD PRE SCAN G EQUIPMENT CALIBRATION H Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335U iss03 RU1207/6654 Page 3 of 36 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: OE5S823 PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.225 June 2005 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: S823 EQUIPMENT SERIAL No: 4000-4562 ITU: EMISSION CODE: 165KA1D EQUIPMENT TYPE: RFID Proximity Reader PRODUCT USE: Access Control CARRIER EMISSION: 26.22 μV/m @ 30m ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not Applicable FREQUENCY OF OPERATION: 13.56MHz CHANNEL SPACING: Wideband NUMBER OF CHANNELS: 1 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [ ] Synthesiser [X] MODULATION METHOD: Amplitude [X] Digital [ ] Angle [ ] POWER SOURCE(s): +12Vdc TEST DATE(s): 4 th October 2005 – 10 th October 2005 ORDER No(s): PUR69294 APPLICANT: Group 4 Technology Ltd ADDRESS: New Challenge House International Drive Tewkesbury Gloucester GL20 8UQ TESTED BY: J CHARTERS APPROVED BY: P GREEN EMC PRODUCT MANAGER RF335U iss03 RU1207/6654 Page 4 of 36 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): S823 EQUIPMENT TYPE: RFID Proximity Reader SERIAL NUMBER OF EUT: 4000-4562 PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.225 June 2005 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): PUR69294 APPLICANT’S CONTACT PERSON(s): Mr E Porter E-mail address: [email protected] APPLICANT: Group 4 Technology Ltd ADDRESS: New Challenge House International Drive Tewkesbury Gloucester GL20 8UQ TEL: +44 (0) 1684 850977 FAX: +44 (0) 1684 294845 EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 4 th October 2005 – 10 th October 2005 TEST REPORT No: RU1207/6654 RF335U iss03 RU1207/6654 Page 5 of 36 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.225 Quasi-Peak Yes Intentional Emission Field Strength: 15.225 Quasi-Peak Yes Intentional Emission Band Occupancy: 15.255 Peak Yes Intentional Emission ERP (mW): - - No Spurious Emissions – Conducted: 15.207 Quasi-Peak Average Yes Spurious Emissions – Radiated <1000MHz: 15.209 Quasi-Peak Yes Spurious Emissions – Radiated >1000MHz: 15.209 Average Yes Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - Yes Restricted Bands 15.205 - Yes Extrapolation Factor 15.31(f) - Yes 2. Product Use: Access/control RFID 3. Emission Designator: 165KA1D 4. Duty Cycle: <100% 5. Transmitter bit or pulse rate and level: 106bps 6. Temperatures: Ambient (Tnom) 12 o C 7. Supply Voltages: Vnom +12Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [X] Two channel [ ] 8. Equipment Category: Multi-channel [ ] Narrowband [ ] Wideband [X] 9. Channel spacing: RF335U iss03 RU1207/6654 Page 6 of 36 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature = 12 o C(<1GHz) 3m measurements <1GHz [X] Relative humidity = 50% (<1GHz), 10m measurements <30MHz [X] Conditions = Open Area Test Site (OATS) 30m extrapolated from 10m [X] Supply voltage = +12Vdc Channel number = 1 FREQ. (MHz) MEAS. Rx. (dBμV) CABLE LOSS (dB) ANT FACT. FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 0.009MHz - 0.490MHz 0.490MHz - 1.750MHz 1.705Mhz - 30.0MHz 30MHz - 88MHz 40.7 21.60 0.7 12.00 34.3 - 51.88 100 88MHz - 216MHz 94.45 162.75 176.30 189.85 203.45 25.60 23.47 26.01 24.80 29.87 1.10 1.48 1.54 1.60 1.63 9.40 9.25 8.55 8.20 8.60 36.1 34.2 36.1 34.6 40.1 - - - - 63.83 51.28 63.83 53.70 101.16 150 150 150 150 150 216MHz - 960MHz 217.00 244.15 257.70 271.25 34.25 31.61 28.48 26.86 1.70 1.84 1.92 1.94 8.15 11.45 12.60 12.50 44.1 44.9 43.0 41.3 - - - - 160.32 175.79 141.25 116.14 200 200 200 200 960MHz - 1GHz 1GHz - 5GHz 0.009MHz to 0.490MHz 2400/F(kHz) @ 300m 0.490MHz to 1.705MHz 24000/F(kHz)@ 30m 1.705MHz to 30MHz 30μV/m @ 30m 30MHz to 88MHz 100μV/m @ 3m 88MHz to 216MHz 150μV/m @ 3m 216MHz to 960MHz 200μV/m @ 3m 960MHz to 1GHz 500μV/m @ 3m Limits 1GHz t…
