OE5S830Proximity Card Reader

Installation and User Instructions for S830 Readers Model number:S830-HICLR The S830 is a small-footprint 125kHz proximity card reader that is capable of reading HID format cards. The S830 usesp . ® 20mA current loop seudo-random communications 1 Mount the Backplate To mount the backplate: 1) Detach the main body of the reader from the backplate by inserting a fingernail into the groove in the bottom edge of the reader and swinging the reader upwards. 2) Mount the backplate adjacent to the opening edge of the door and at a convenient height. Feed the cable to the reader through the backplate. 9600-xxxx.Installation and User Instructions for S830 Readers, Issue 1.0x2 10th June 2003. AMAG Technology, 2003. FCC Notice:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device may void the authority of the user to operate it. All trademarks acknowledged. HID is a registered trademark of HID Corporation. © 3 Using the Reader 2 Reader Connections 20mA Current Loop Reader Connections 0V Connect screen at controller end only (attach to case) Tx- Tx+ Rx- Rx+Tx+ Tx- Rx+ Rx- 12V12V 0V Controller connections (20mA reader port) Red Black White Blue Green Orange Note: the brown wire is not used Reader Present the proximity card face-on to the reader until you hear a "bleep". The maximum read range is typically 2.5" (65mm). If the green indicator is lit, the card has been accepted and the door is unlocked. If the red indicator is lit, either the card has not been accepted, or you do not have access through the door. cards can be presented in rapid succession - there is no need to wait for the green or red LED to extinguish before presenting another card. Note: Specifications Input voltage: 9-14V. Input current: 75mA @ nominal 12Vdc supply. Operating temperature: -4 to 150 F (-20 to 70 C). Operating humidity: 15 to 90%, non-condensing. Maximum read range: 2.5" (65mm). Approvals: EN50133, R&TTE, IP656. °°

PROX. PROCESSOR 4MHz CLOCK ÷ 32 PULSE GATE COIL DRIVER Rx FILTERING AND AMPLIFICATION RESET MULTINODE COMMS CONTROL PROCESSOR USER INDICATIONS POWER SUPPLY 12V d.c. Figure 1:S830 Proximity Reader Block Diagram Note: Sounder, LEDs and coil are mounted on the aerial PCB Flash programming interface

S830 Proximity Reader Labels Product and Approvals Label ( 25mm x 30mm ) Label Positioning ( The label will be placed on the back of the unit as shown below ) Issue 1 220503 Group 4 Technology Ltd. Model: 8000-5770-A Serial No: 0321000001 9-14V DC 75mA FCC ID: OE5S830 ! Label Position

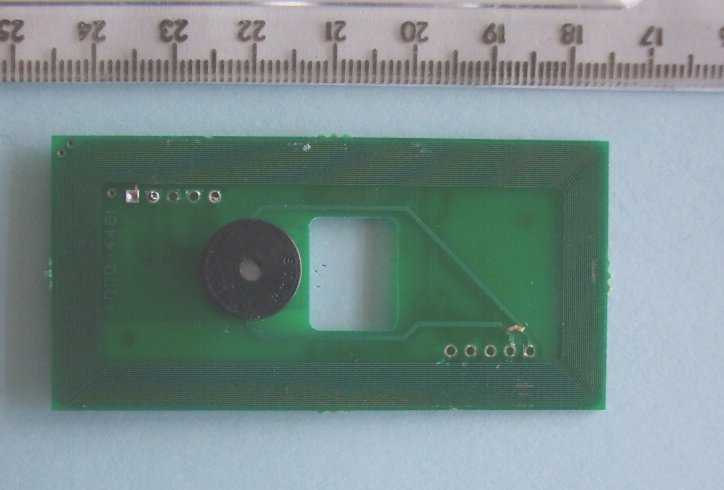

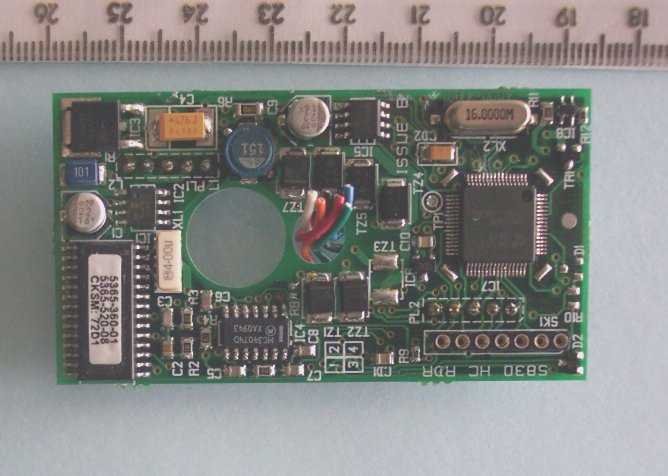

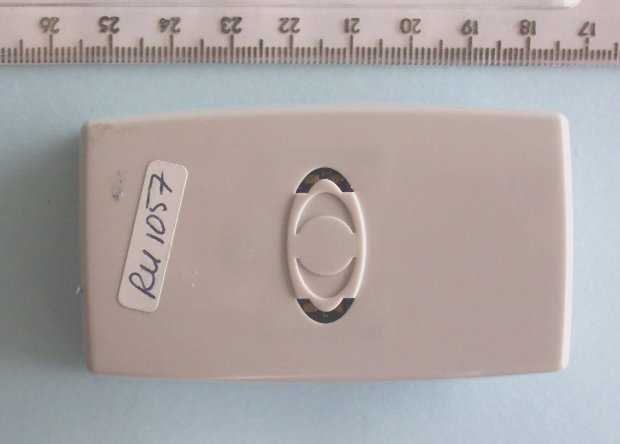

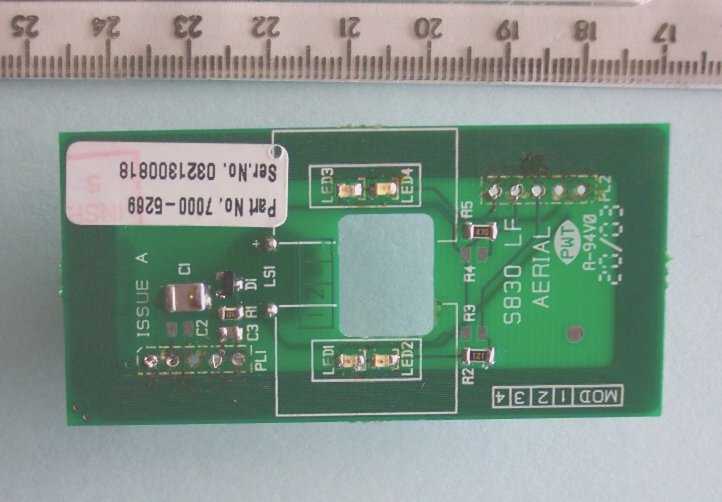

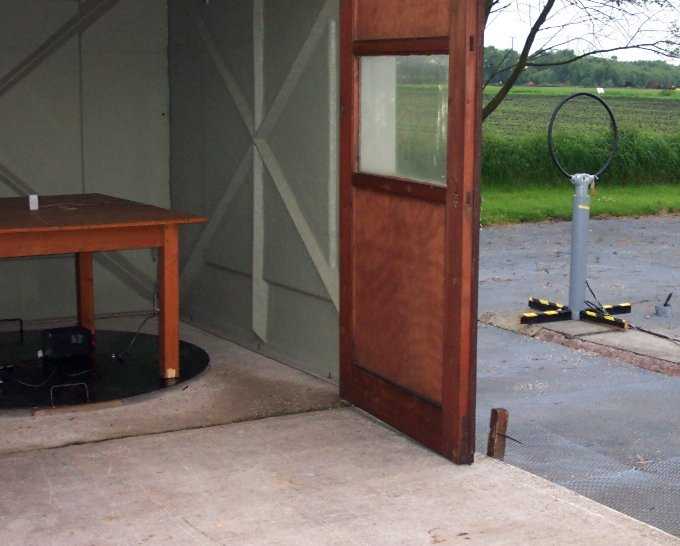

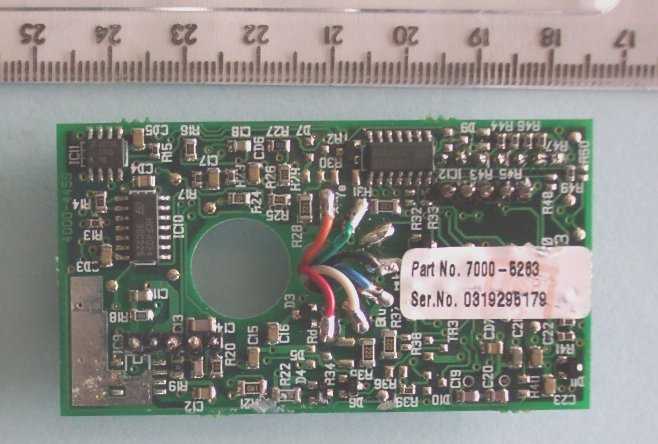

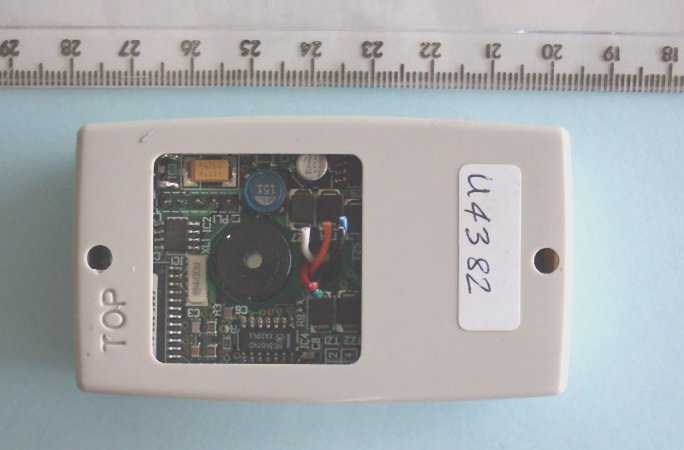

TRL C OMPLIANCE S ERVICES L TD EMC DIVISION LONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM TELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com 0728 TEST REPORT NO:RU1057/4452 COPY NO: ISSUE NO:1 FCC ID:OE5S830 REPORT ON THE CERTIFICATION TESTING OF A GROUP 4 TECHNOLOGY Ltd S830 HID READER WITH RESPECT TO THE FCC RULES CFR 47, PART 15.209 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 28 th & 29 th May 2003 TESTED BY:J CHARTERS APPROVED BY:P GREEN EMC PRODUCT MANAGER DATE: Distribution: Copy Nos:1.GROUP 4 TECHNOLOGY Ltd 2.FCC EVALUATION LABORATORIES 3.TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02RU1050/4381Page 2 of 30 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE3 APPLICANT’S SUMMARY4 EQUIPMENT TEST CONDITIONS5 TESTS REQUIRED6 SAMPLE CALCULATIONS6 TEST RESULTS7-12 ANNEX PHOTOGRAPHSA PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side PHOTOGRAPH No. 6: Antenna PCB track side PHOTOGRAPH No. 7: Antenna PCB component side APPLICANT’S SUBMISSION OF DOCUMENTATION LISTB BAND OCCUPANCY PLOTC POWER LINE PLOTSD PEAK EMISSIONS SCAN DATAE Notes: 1.Component failure during testYES NO [ ] [X] 2.If Yes, details of failure: 3.The facilities used for the testing of the product contain in this report are FCC Listed. 4.The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335 iss02RU1050/4381Page 3 of 30 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY:OE5S830 PURPOSE OF TEST:Certification TEST SPECIFICATION:FCC RULES CFR 47, Part 15.209 TEST RESULT:Compliant to Specification EQUIPMENT UNDER TEST:S830 HID READER EQUIPMENT SERIAL No: PCB: 0319295179 Antenna: 0321300818 ITU: EMISSION CODE:17K0A1D EQUIPMENT TYPE:S830 PRODUCT USE:RFID access control CARRIER EMISSION: 0.52μV/m ANTENNA TYPE:Integral ALTERNATIVE ANTENNA:N/A BAND OF OPERATION:0.009kHz – 0.490kHz CHANNEL SPACING:N/A (wideband) NUMBER OF CHANNELS:1 FREQUENCY GENERATION:SAW Resonator[ ]Crystal[X]Synthesiser [ ] MODULATION METHOD:Amplitude[XDigital[ ]Angle [ ] POWER SOURCE(s):+12Vdc TEST DATE(s):28 th & 29 th May 2003 ORDER No(s):PRP10069 APPLICANT:GROUP 4 TECHNOLOGY Ltd ADDRESS:Challenge House Northway Lane Tewkesbury GLOUCESTERSHIRE GL20 8JG UNITED KINGDOM TESTED BY:J CHARTERS APPROVED BY:P GREEN EMC PRODUCT MANAGER RF335 iss02RU1050/4381Page 4 of 30 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT):S830 HID READER EQUIPMENT TYPE:S830 SERIAL NUMBER OF EUT: PCB: 0319295179 ANT: 0321300818 PURPOSE OF TEST:Certification TEST SPECIFICATION(s):FCC RULES CFR 47, Part 15.209 TEST RESULT:COMPLIANTYes No [X] [ ] APPLICANT’S CATEGORY:MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s):PRP10069 APPLICANT’S CONTACT PERSON(s):Mr E PORTER E-mail address:[email protected] APPLICANT:GROUP 4 TECHNOLOGY Ltd ADDRESS:Challenge House Northway Lane Tewkesbury GLOUCESTERSHIRE GL20 8JG UNITED KINGDOM TEL:+44 (0) 1684 833818 FAX:+44 (0) 1684 833858 MANUFACTURER:GROUP 4 TECHNOLOGY Ltd EUT(s) COUNTRY OF ORIGIN:United Kingdom TEST LABORATORY:TRL EMC UKAS ACCREDITATION No:0728 TEST DATE(s)28 th & 29 th May 2003 TEST REPORT No:RU1057/4452 RF335 iss02RU1050/4381Page 5 of 30 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATIONRULE PARTDETECTORAPPLICABILITY Intentional Emission Frequency:15.209(a)AverageYes Intentional Emission Field Strength:15.209(a)AverageYes Intentional Emission Band Occupancy:N/APeakYes Intentional Emission ERP (mW):N/AN/AN/A Spurious Emissions – Conducted:15.207 Quasi Peak Average Yes Spurious Emissions – Radiated <1000MHz:15.209 Quasi Peak Average Yes Spurious Emissions – Radiated >1000MHz:15.209AverageYes Maximum Frequency of Search:15.33N/AYes Antenna Arrangements Integral:15.203N/AYes Antenna Arrangements External Connector:15.204N/AYes Restricted Bands15.205N/AYes Extrapolation Factor15.31(f)N/AYes 2.Product Use:RFID access control 3.Emission Designator:17K0A1D 4.Duty Cycle:<100% 5.Transmitter bit or pulse rate and level:1200Bps 6.Temperatures:Ambient (Tnom)18 o C 7.Supply Voltages:Vnom+12Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel[X] Two channel[ ] 8.Equipment Category: Multi-channel[ ] Narrowband[ ] Wideband[X] 9.Channel spacing: RF335 iss02RU1050/4381Page 6 of 30 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature=18 o C(<1GHz)3m measurements <1GHz[X] Relative humidity=64% (<1GHz),1m measurements >1GHz[X] Conditions=Open Area Test Site (OATS)3m extrapolated from 1m[ ] Supply voltage=+12Vdc Channel number=1 FREQ. (MHz) MEAS. Rx. (dBμV/m) CABLE LOSS (dB) EXTRAP. FACT. (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 0.009kHz-0.490kHz 0.25028 0.37542 22.7 46.4 - - 80 80 0.0014 0.021 9.6 6.4 0.490kHz-1.705MHz0.625741.3-401.1638.4 30MHz- 88MHz 88MHz-216MHz 216MHz-960MHz 960MHz-1GHz 1GHz-5GHz 9kHz to 490kHz 2400/F (kHz)@ 300m 490kHz to 1.705MHz24000/F (kHz)@ 30m 1.705MHz to 30MHz 30μV/m@ 30m 30MHz to 88MHz100μV/m@ 3m 88MHz to 216MHz150μV/m@ 3m 216MHz to 960MHz200μV/m@ 3m 960MHz to 1GHz500μV/m@ 3m Limits 1GHz to 5GHz500μV/m@ 3m See next page for notes and test methods. RF335 iss02RU1050/4381Page 7 of 30 Notes: 1Results quoted are extrapolated as indicated 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a 3Extrapolation factor 9.5dB from 1m to 3m, as per Part 15.31f 4Extrapolation factor 80dB from 3m to 300m as per Part 15.31f 5Extrapolation factor 40dB from 3m to 30m as per Part 15.31f 6Measurements >1GHz @ 1m as per Part 15.31f(1) 7Receiver detector 9kHz – 30MHz CISPR, Quasi-Peak, 10kHz bandwidth. Apart from the bands 9kHz-90kHz and 110kHz-490kHz where an Average detector is used 8Recei…
