OE5S831Contactless smart card reader

Installation and User Instructions for S831 Readers 1 Mount the Backplate To mount the backplate: 1) Detach the main body of the reader from the backplate by inserting a fingernail into the groove in the bottom edge of the reader and swinging the reader upwards. 2) Mount the backplate adjacent to the opening edge of the door and at a convenient height. Feed the cable to the reader through the backplate. The S831 is a small-footprint contactless smart-card reader, which usesp . The S831 is able to read Texas Instruments (ISO 15693) and Philips MIFARE smart cards. For either type of card, the S831 supports the use of unencoded cards (where only the unique card serial number is read). In the case of Texas Instruments (TI) cards, an encoded card number can be read. Encoding formats supported include TI's own formats and the "smartMAX TI" format. The reader can simultaneously support two different card types/formats (e.g. "smartMAX TI" and MIFARE). The reader is automatically configured to accept the first two card types/formats presented. TM 20mA current loop seudo-random communications ®® 9600-0344.Installation and User Instructions for S831 Readers, Issue 1.0x1 17th Oct. 2003.AMAG Technology, 2003. Texas Instruments is a trademark of Texas Instruments Incorporated. Philips and MIFARE are registered trademarks of Philips Electronics, NV. FCC Notice:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device may void the authority of the user to operate it. All trademarks acknowledged. © 4 Using the Reader 2 Reader Connections 0V Connect shield at controller end only connect to case) Tx- Tx+ Rx- Rx+ 12V Controller connections (20mA reader port) Red Black White Blue Green Orange Note: the brown wire is not used Reader Present the proximity card face-on to the reader until you hear a "bleep". If the green indicator is lit, the card has been accepted and the door is unlocked. If the red indicator is lit, either the card has not been accepted, or you do not have access through the door. If the red and green indicators flash alternatively, please wait. cards can be presented in rapid succession - there is no need to wait for the green or red LED to extinguish before presenting another card. Note: Specifications Input voltage: 9-14V. Input current: xxmA @ nominal 12Vdc supply. Operating temperature: -13 to 158 F (-25 to 70 C). Operating humidity: 15 to 90%, non-condensing. Maximum read range: xx" (xxmm). Approvals: EN50133, R&TTE, IP656. °° 20mA Current Loop Reader Connections The reader supports the first two different card types/formats presented after power-up. For example, unencoded MIFARE and encoded TI cards (in this example, unencoded TI cards would not be recognized). The reader enters this configuration mode whenever power is re-applied. 3 Reader Configuration

TI Transceiver 13.56MHz CLOCK RESET MULTINODE COMMS CONTROL PROCESSOR USER INDICATIONS POWER SUPPLY 12V d.c. Figure 1:S831 Proximity Reader Block Diagram – Issue 2 Note: Sounder, LEDs and coil are mounted on the aerial PCB Flash programming interface Tamper Detect 16MHz Crystal

S831 Proximity Reader Labels Product and Approvals Label ( 25mm x 30mm ) Label Positioning ( The label will be placed on the back of the unit as shown below ) Issue 1 171003 Group 4 Technology Ltd. Model: 8000-5800-A Serial No: 0321000001 9-14V DC 75mA FCC ID: OE5S831 ! Label Position

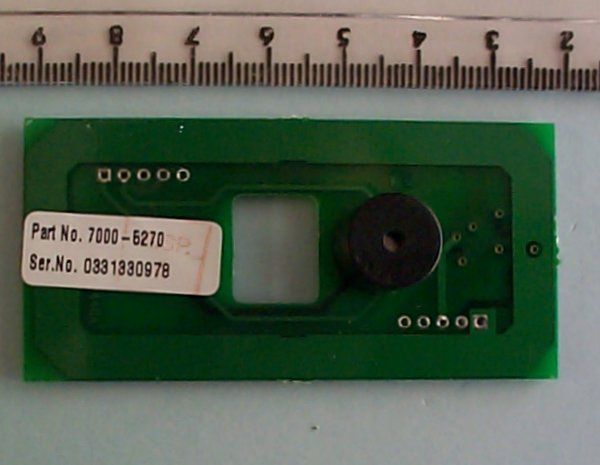

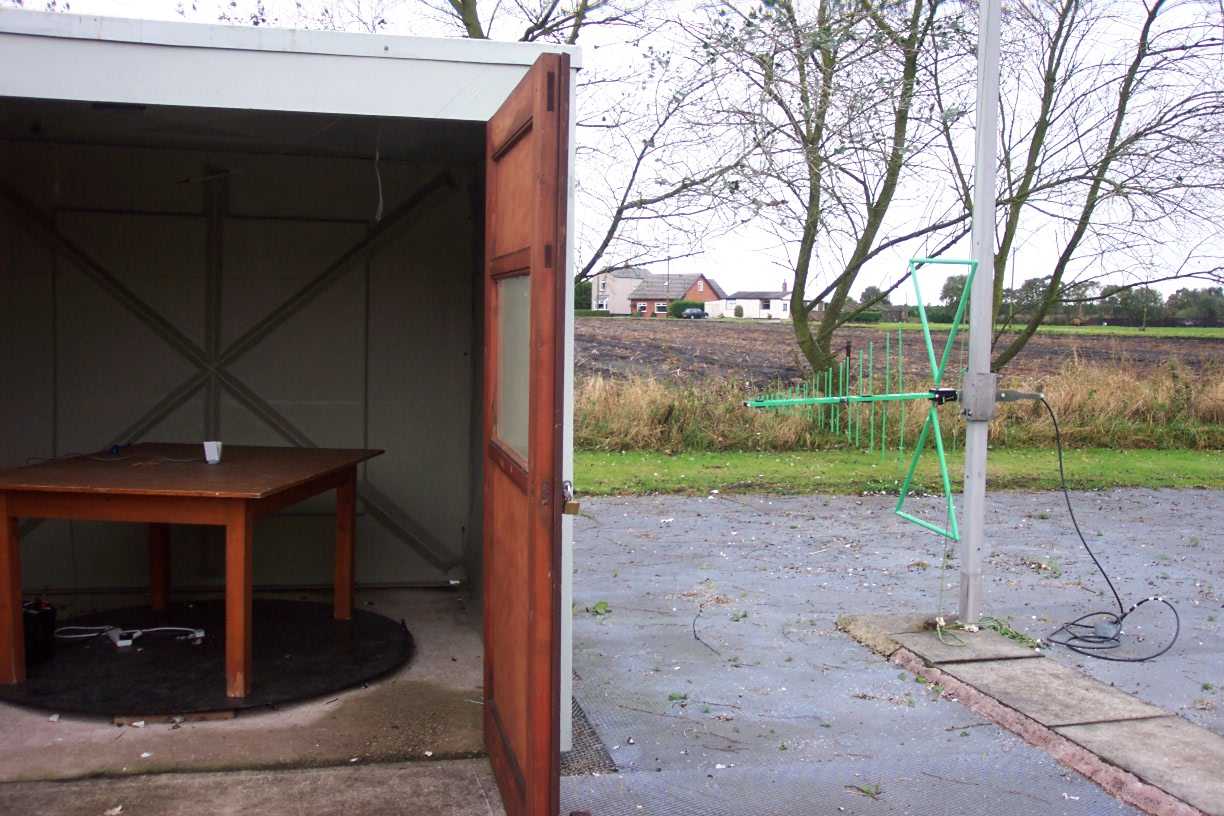

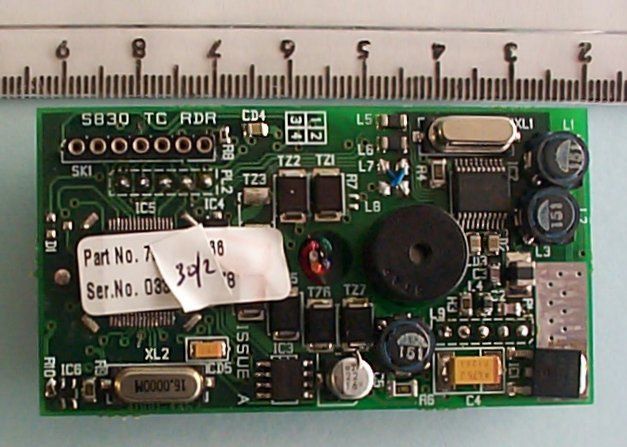

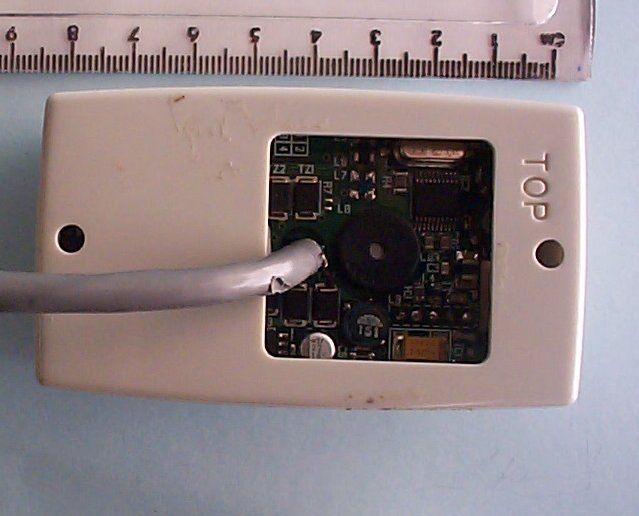

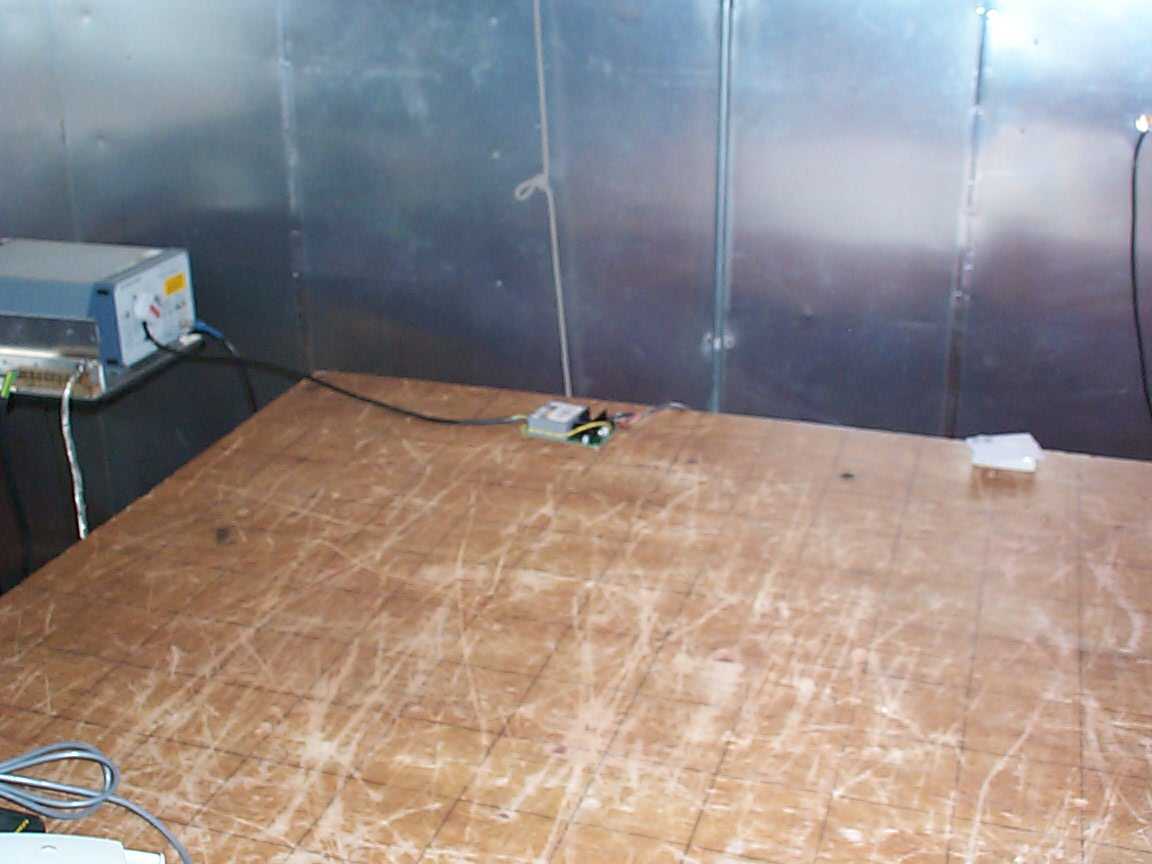

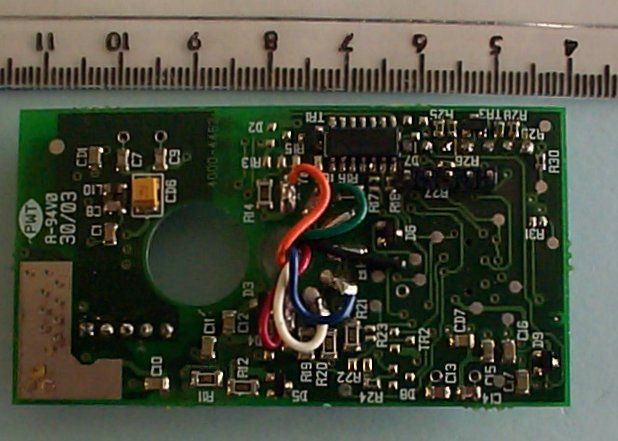

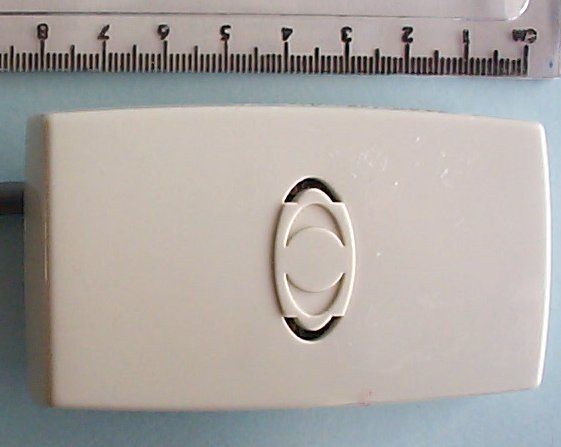

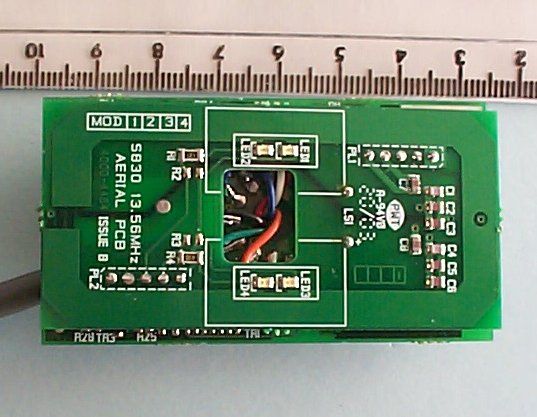

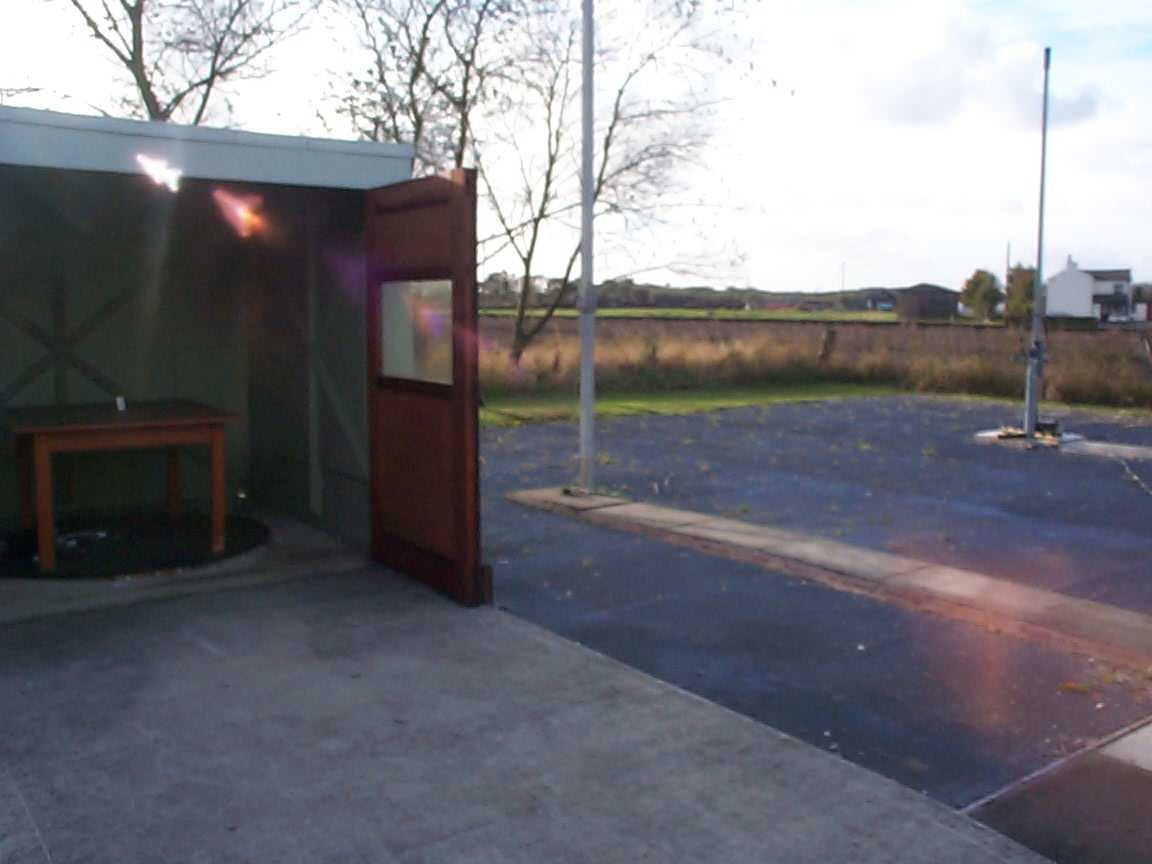

TRL C OMPLIANCE S ERVICES L TD EMC DIVISION MOSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM TELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E- MAIL [email protected] www.trlcompliance.com 0728 FS 21805 TEST REPORT NO:RU1077/4887 COPY NO:2 ISSUE NO:1 FCC ID:OE5S831 REPORT ON THE CERTIFICATION TESTING OF A GROUP 4 TECHNOLOGY Ltd. S831 WITH RESPECT TO THE FCC RULES CFR 47, PART 15.225 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 7 th – 9 th OCTOBER 2003 TESTED BY:J CHARTERS APPROVED BY:P GREEN EMC PRODUCT MANAGER DATE:4 th November 2003 Distribution: Copy Nos:1.GROUP 4 TECHNOLOGY Ltd. 2.FCC EVALUATION LABORATORIES 3.TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335U iss03RU1077/4887Page 2 of 30 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE3 APPLICANT’S SUMMARY4 EQUIPMENT TEST CONDITIONS5 TESTS REQUIRED5 TEST RESULTS6-14 ANNEX PHOTOGRAPHSA PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side PHOTOGRAPH No. 6: Antenna PCB component side PHOTOGRAPH No. 7: Antenna PCB track side PHOTOGRAPH No. 8: Test setup APPLICANT’S SUBMISSION OF DOCUMENTATION LISTB BAND OCCUPANCY PLOTC SCAN DATAD Notes: 1.Component failure during testYES NO [ ] [X] 2.If Yes, details of failure: 3.The facilities used for the testing of the product contain in this report are FCC Listed. 4.The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335U iss03RU1077/4887Page 3 of 30 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY:OE5S831 PURPOSE OF TEST:Certification TEST SPECIFICATION:FCC RULES CFR 47, Part 15.225 TEST RESULT:Compliant to Specification EQUIPMENT UNDER TEST:S831 EQUIPMENT SERIAL No:0331331078 ITU: EMISSION CODE:12K0A1D EQUIPMENT TYPE:S831 Tag reader PRODUCT USE:Access and control CARRIER EMISSION: 9.9μV/m @ 30m ANTENNA TYPE:Integral ALTERNATIVE ANTENNA:Not applicable BAND OF OPERATION:13.553MHz –13.567MHz CHANNEL SPACING:N/A wideband NUMBER OF CHANNELS:1 FREQUENCY GENERATION:SAW Resonator[ ]Crystal[X]Synthesiser [ ] MODULATION METHOD:Amplitude[X]Digital[ ]Angle [ ] POWER SOURCE(s):12Vdc TEST DATE(s):7 th – 9 th OCTOBER 2003 ORDER No(s):R000015006 APPLICANT:GROUP 4 TECHNOLOGY Ltd. ADDRESS:Challenge House Northway Lane Tewkesbury Gloucester GL19 4QH TESTED BY:J CHARTERS APPROVED BY:P GREEN EMC PRODUCT MANAGER RF335U iss03RU1077/4887Page 4 of 30 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT):S831 EQUIPMENT TYPE:S831 Tag reader SERIAL NUMBER OF EUT:0331331078 PURPOSE OF TEST:Certification TEST SPECIFICATION(s):FCC RULES CFR 47, Part 15.225 TEST RESULT:COMPLIANTYes No [X] [ ] APPLICANT’S CATEGORY:MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s):R000015006 APPLICANT’S CONTACT PERSON(s):Mr E Porter E-mail address:[email protected] APPLICANT:GROUP 4 TECHNOLOGY Ltd. ADDRESS:Challenge House Northway Lane Tewkesbury Gloucester GL19 4QH TEL:+44 (0) 1684 850997 FAX:+44 (0) 1684 294845 MANUFACTURER:GROUP 4 TECHNOLOGY Ltd. EUT(s) COUNTRY OF ORIGIN:United Kingdom TEST LABORATORY:TRL EMC UKAS ACCREDITATION No:0728 TEST DATE(s)7 th - 9 th OCTOBER 2003 TEST REPORT No:RU1077/4887 RF335U iss03RU1077/4887Page 5 of 30 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATIONRULE PARTDETECTORAPPLICABILITY Intentional Emission Frequency:15.225Quasi PeakYes Intentional Emission Field Strength:15.225Quasi PeakYes Intentional Emission Band Occupancy:15.225Quasi PeakYes Intentional Emission ERP (mW):N/A-No Spurious Emissions – Conducted:15.207 Quasi Peak Average Yes Spurious Emissions – Radiated <1000MHz:15.209Quasi PeakYes Spurious Emissions – Radiated >1000MHz:N/A-No Maximum Frequency of Search:15.33-Yes Antenna Arrangements Integral:15.203-Yes Antenna Arrangements External Connector:15.204-No Restricted Bands15.205-Yes Extrapolation Factor15.31(f)-Yes 2.Product Use:Access/control 3.Emission Designator:12K0A1D 4.Duty Cycle:<100% 5.Temperatures:Ambient (Tnom)20 o C 6.Supply Voltages:Vnom12Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel[X] Two channel[ ] 8.Equipment Category: Multi-channel[ ] Narrowband[ ] Wideband[X] 9.Channel spacing: RF335U iss03RU1077/4887Page 6 of 30 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature=20 o C(<1GHz)10m measurements <30MHz[X] Relative humidity=60% (<1GHz),3m measurements >1GHz[X] Conditions=Open Area Test Site (OATS)10m extrapolated from 30m[X] Supply voltage=12Vdc Channel number=1 FREQ. (MHz) MEAS. Rx. (dBμV) CABLE LOSS (dB) ANT FACT. (dB/m) FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 1.705MHz-30MHz27.1220.2--20.219.081.130 30MHz- 88MHz40.6520.70.612.734.0-50.0100 88MHz-216MHz108.521.71.011.334.0-50.0150 216MHz-960MHz- 960MHz-1GHz- 1GHz-5GHz- 1.705MHz to 30MHz 30μV/m@ 30m 30MHz to 88MHz100μV/m@ 3m 88MHz to 216MHz150μV/m@ 3m 216MHz to 960MHz200μV/m@ 3m 960MHz to 1GHz500μV/m@ 3m Limits 1GHz to 5GHz500μV/m@ 3m See next page for the notes and test methods: RF335U iss03RU1077/4887Page 7 of 30 Notes: 1Results quoted are extrapolated as indicated 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a 3Extrapolation factor 9.5dB from 1m to 3m, as per Part 15.31f 4Extrapolation factor 19.08dB from 10m to 30m, as per Part 15.31f 5Measurements >1GHz @ 1m as per Part 15.31f(1) 6Receiver detector >1GHz = CISPR, Quasi-Peak, 120kHz bandwidth 7Receiver detector >1GHz = Peak Hold, 1MHz resolution bandwidth 8New batteries used for battery powered products. 9Emissions 20db’s below the limit were not recorded. 10For emission below 30MHz the measuring receiver automatically compensates for the loss due to the antenna factor of the loop antenna. This loss is 20dB’s ac…
