OE5S840Access control proximity reader

Installation and User Instructions for S840 Readers You should find that the backplate has holes for connection to most standard electrical backboxes. With the backplate off (see above), mount the backplate adjacent to the opening edge of the door and at a convenient height. Feed the required cables through the backplate: The cable from the controller. The cable from the heater, if used (must be a separate cable). A cable from a Remote Interface Module (RIM), if used. A RIM can reduce cable lengths to door furniture. ! ! ! 2 The optional heater kit maintains the reader at the correct temperature when mounted outside. With the backplate off, remove the backing paper from the two elements, then stick them to the inner sides of the reader. The heaters must be connected to a 24V AC supply (min 25VA). When mounting outside, the two-part gasket kit must be fitted: a) Remove the backplate from the reader by releasing the two securing screws. b) Remove the cutouts and backing paper from the two gaskets, then stick them to the backplate as shown. Outer gasket Inner gasket Backplate securing screws Backplate 1 Fit the Weatherproofing Kit Mount the Backplate Ensure no jumper is fitted across LK2 (TEST). If a jumper is provided, park it across one pin only. LK4 (AUDIO KB FB) - set to 1 for sound on and 0 for sound off. LK1 (LED BR) - set to H position. 3 Reader Links The S840 is a contactless smart-card reader with keypad, which usesp . The S840 is able to read HID format cards. 20mA current loop seudo-random communications ® Specifications Input voltage: 9-14Vdc. Input current (excl. heater): 110mA @ nom. 12Vdc. Operating temperature: -13 to 158 F (-25 to 70 C) without heater. Operating humidity: 15 to 90%, non-condensing. Maximum read range: 6" (150mm). Approvals: EN50133, R&TTE, IP656. °° 5 Using the Reader 0V Connect shield at controller end only (attach to case). RX+ RX- TX+ TX- 12V Reader Twisted pairs (use Belden 9503 cable) Controller connections (20mA current loop) The I/O terminal is for connection to a RIM (see the RIM Instructions). On completion, re-secure the reader to the backplate. 0V TX+ Do not use TX- I/0 RX+ RX- +12V 4 Reader Connections 9600-0347.Installation and User Instructions for S840 Readers, Issue 1.0x2 7th January 2004.AMAG Technology Ltd, 2004. All trademarks acknowledged. HID is a registered trademark of HID Corporation. FCC Notice:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device may void the authority of the user to operate it. © Present the card face-on to the reader until you hear "bleep". Cards can be presented in rapid succession; there is no need to wait for the green or red LED to extinguish efore presenting another. a b If the reader has been enabled for user-code mode at the controller, you can gain access by pressing the # key, entering your card number, then pressing the * key. If the amber LED flashes, enter your PIN. If you make a mistake, the red LED is lit for a moment, then the flashing amber prompts you to try again. These auxiliary LED indicators can be configured to operate in conjunction with conditional commands. When this LED is lit, the lock is released and you may open the door. Green (access granted) LED Red (access denied) LED Flashing amber (PIN) LED Alarm LED Switch LED This is lit if you do not have access rights to gain entry, or if the reader could not read your card (in this case, move the card away, then present it again). About the Reader LEDs }

S840 HID Proximity Reader Labels Product Label ( for S840 reader variant ) v FCC Label Diagram Showing Label Positions on the Back of the Reader Issue 3 22-12-98 FCC ID OE5S840 Group 4 Technology Ltd. Type: 0001 Model: 8000-6056-A Serial No: 9840006 9-14V DC 100mA

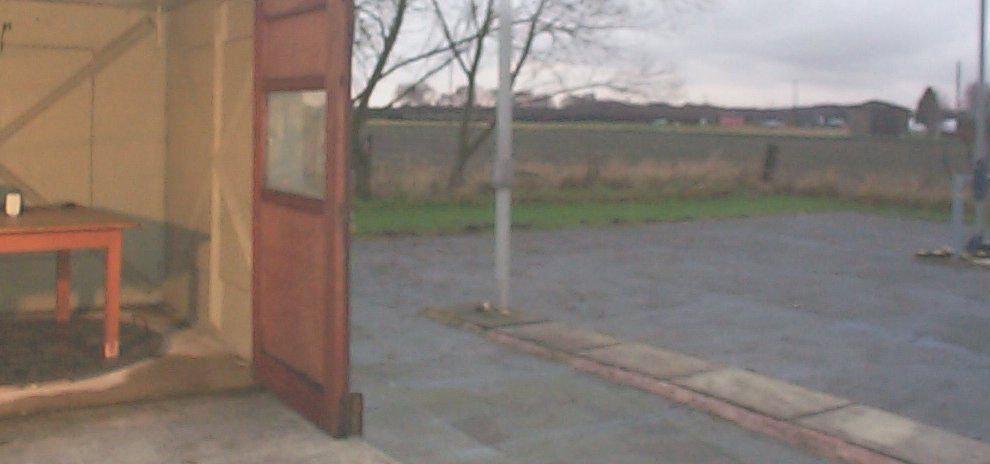

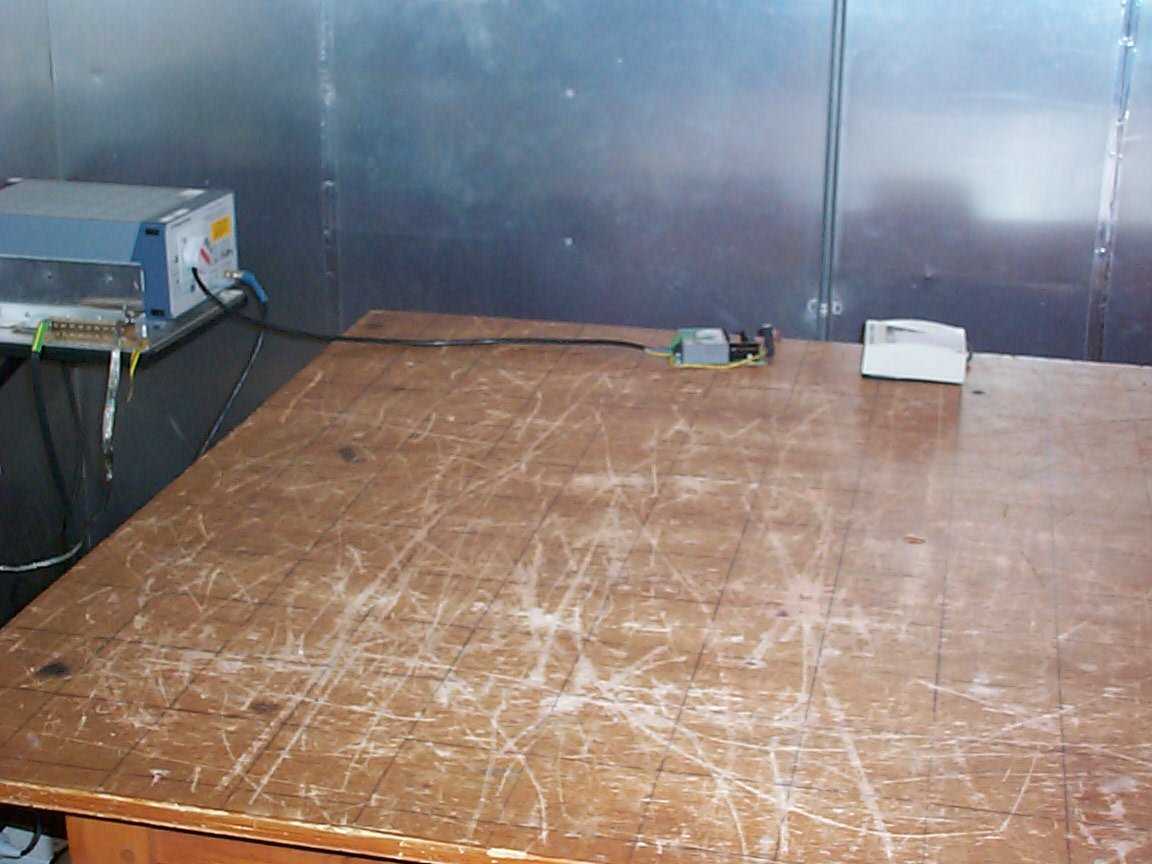

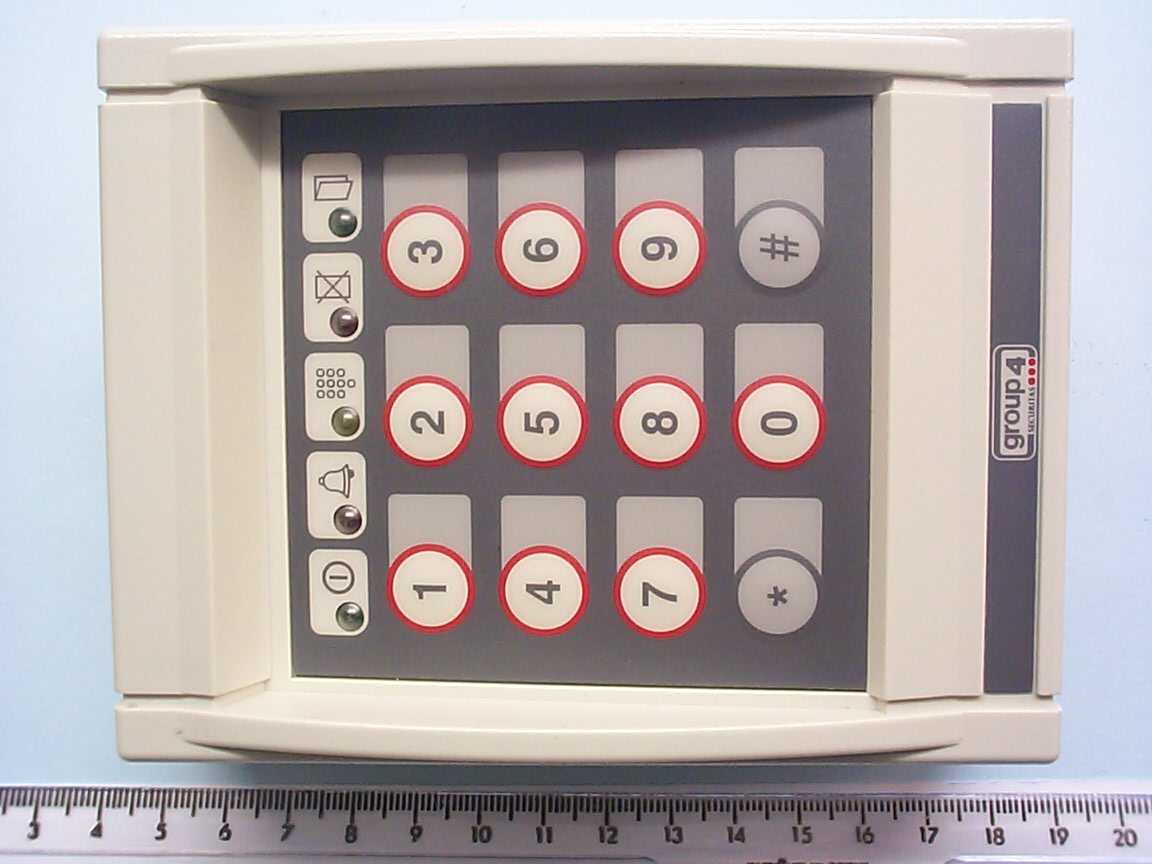

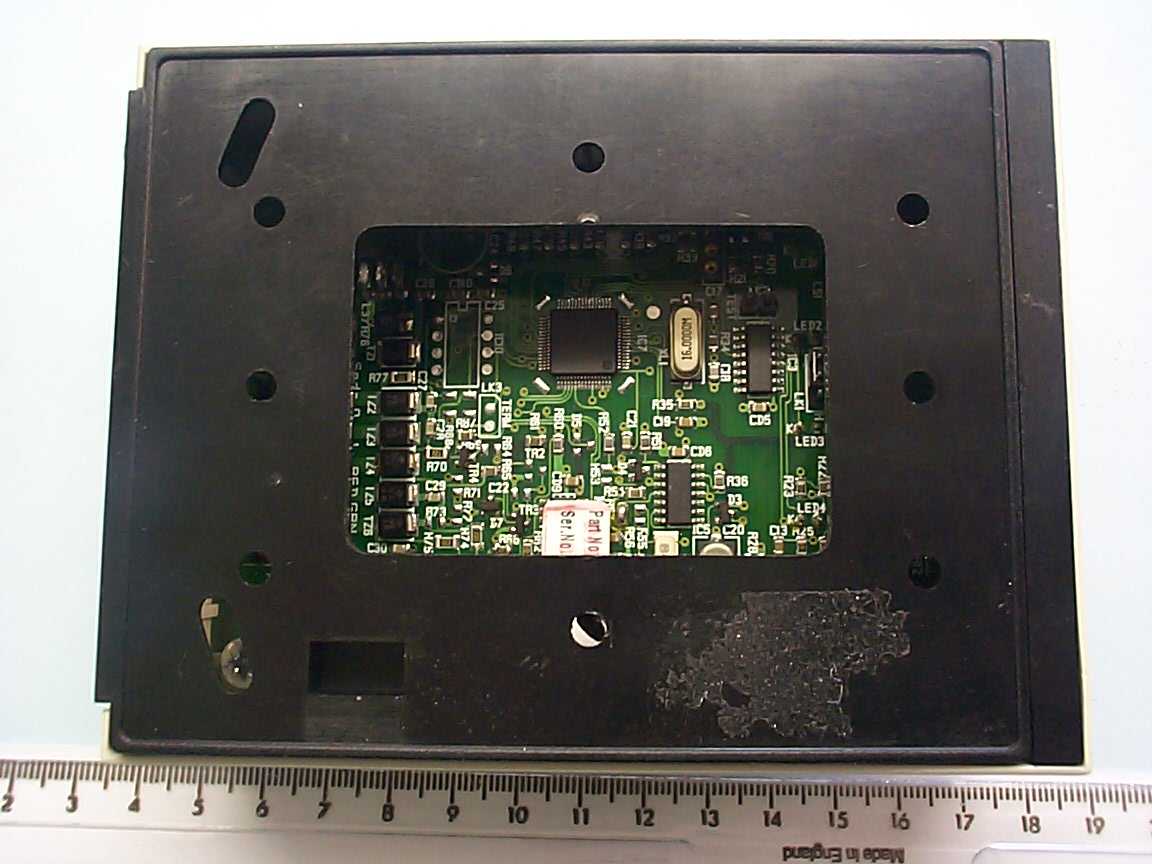

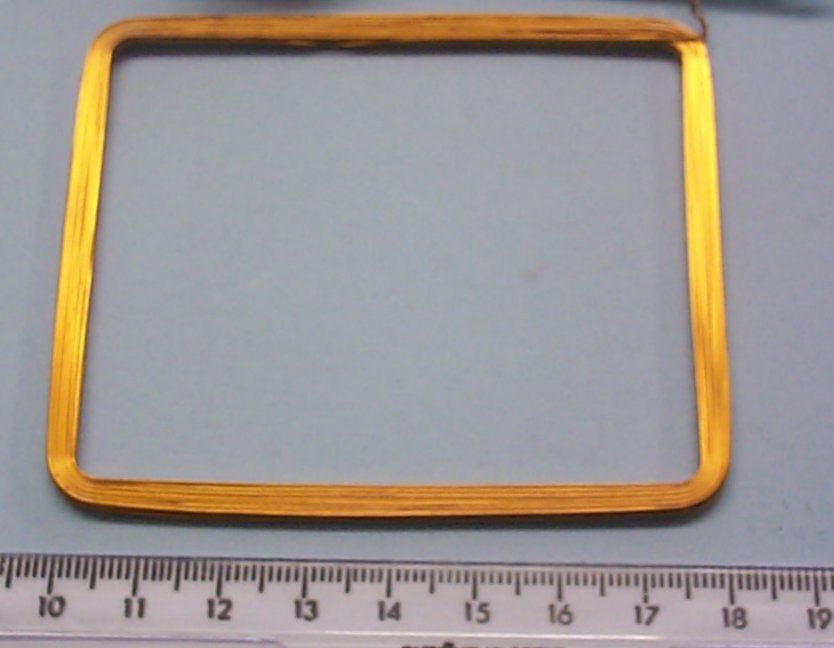

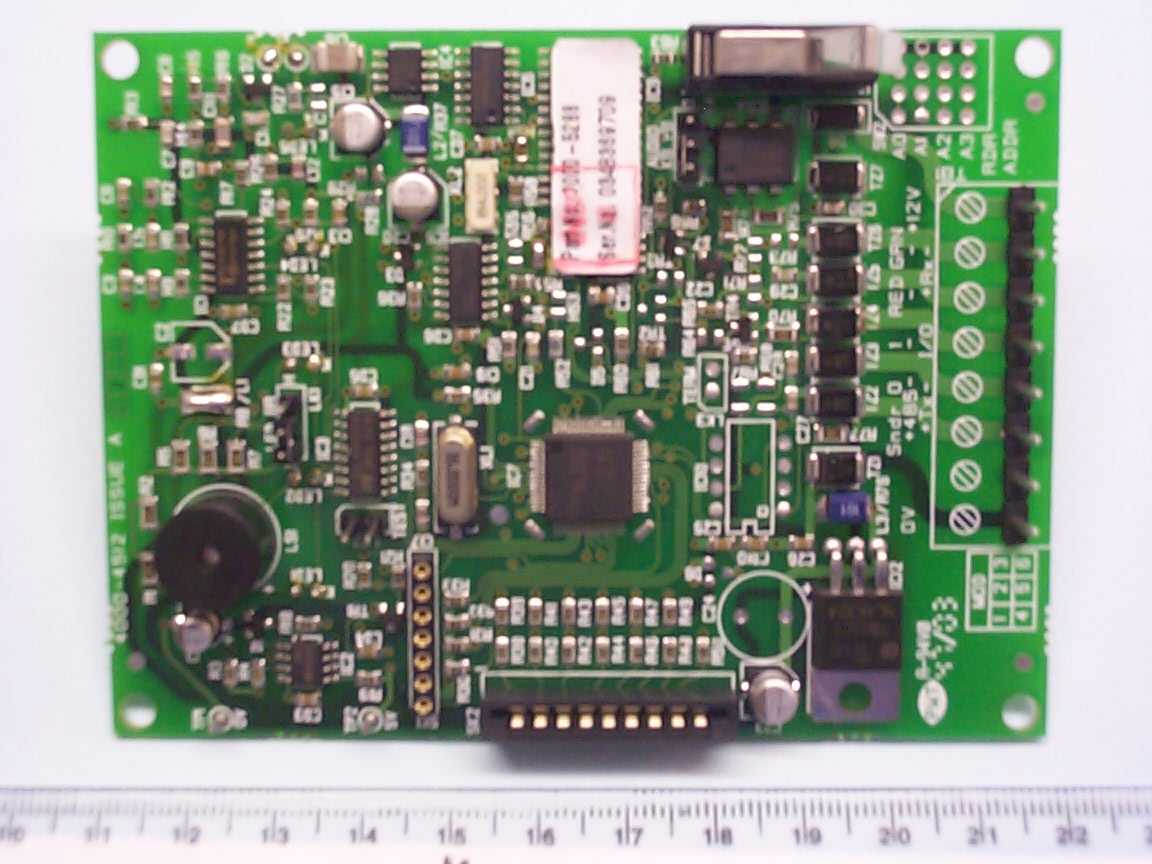

TRL COMPLIANCE SERVICES LTD EMC DIVISION MOSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM TELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO:RU1094/5213 COPY NO:2 ISSUE NO:1 FCC ID:OE5S840 REPORT ON THE CERTIFICATION TESTING OF A Group 4 Technology Limited S840 WITH RESPECT TO THE FCC RULES CFR 47, PART 15.209 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 18 th – 19 th December 2003 TESTED BY:J CHARTERS APPROVED BY:P GREEN PRODUCT MANAGER DATE:3 rd February 2004 Distribution: Copy Nos:1.Group 4 Technology Limited 2.FCC EVALUATION LABORATORIES 3.TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335U iss03RU1094/5213Page 2 of 28 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE3 APPLICANT’S SUMMARY4 EQUIPMENT TEST CONDITIONS5 TESTS REQUIRED5 TEST RESULTS6-12 ANNEX PHOTOGRAPHSA PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side PHOTOGRAPH No. 6: Antenna APPLICANT’S SUBMISSION OF DOCUMENTATION LISTB BAND OCCUPANCY PLOTC CONDUCTED EMISSIONS PLOTSD 9kHz – 30MHz PEAK SCANE Notes: 1.Component failure during testYES NO [ ] [X] 2.If Yes, details of failure: 3.The facilities used for the testing of the product contain in this report are FCC Listed. 4.The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335U iss03RU1094/5213Page 3 of 28 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY:OE5S840 PURPOSE OF TEST:Certification TEST SPECIFICATION:FCC RULES CFR 47, Part 15.209 TEST RESULT:Compliant to Specification EQUIPMENT UNDER TEST:S840 EQUIPMENT SERIAL No:0348369709 ITU: EMISSION CODE:17k0F1D PRODUCT USE:Access/control CARRIER EMISSION: 3.6μV/m @ 300m ANTENNA TYPE:Integral ALTERNATIVE ANTENNA:Not applicable BAND OF OPERATION:0.009kHz – 0.490kHz CHANNEL SPACING:Wideband NUMBER OF CHANNELS:1 FREQUENCY GENERATION:SAW Resonator[ ]Crystal[X]Synthesiser [ ] MODULATION METHOD:Amplitude[ ]Digital[X]Angle [ ] POWER SOURCE(s):+12Vdc TEST DATE(s):18 th - 19 th December 2003 ORDER No(s):R000016295 APPLICANT:Group 4 Technology Limited ADDRESS:Challenge House Northway Lane Tewkesbury Gloucester GL20 8JG TESTED BY:J CHARTERS APPROVED BY:P GREEN PRODUCT MANAGER RF335U iss03RU1094/5213Page 4 of 28 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT):S840 SERIAL NUMBER OF EUT:0348369709 PURPOSE OF TEST:Certification TEST SPECIFICATION(s):FCC RULES CFR 47, Part 15.209 TEST RESULT:COMPLIANTYes No [X] [ ] APPLICANT’S CATEGORY:MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s):R000016295 APPLICANT’S CONTACT PERSON(s):Mr E Porter E-mail address:[email protected] APPLICANT:Group 4 Technology Limited ADDRESS:Challenge House Northway Lane Tewkesbury Gloucester GL20 8JG TEL:+44 (0)1684 850977 FAX:+44 (0)1684 294845 MANUFACTURER:Group 4 Technology Limited EUT(s) COUNTRY OF ORIGIN:United kingdom TEST LABORATORY:TRL EMC UKAS ACCREDITATION No:0728 TEST DATE(s)18 th – 19 th December 2003 TEST REPORT No:RU1094/5213 RF335U iss03RU1094/5213Page 5 of 28 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATIONRULE PARTDETECTORAPPLICABILITY Intentional Emission Frequency:15.209AverageYes Intentional Emission Field Strength:15.209AverageYes Intentional Emission Band Occupancy:15.215(c)PeakYes Intentional Emission ERP (mW):--No Spurious Emissions – Conducted:15.207 Quasi Peak Average Yes Spurious Emissions – Radiated <1000MHz:15.209 Quasi Peak Average Yes Spurious Emissions – Radiated >1000MHz:AverageNo Maximum Frequency of Search:15.33-Yes Antenna Arrangements Integral:15.203-Yes Antenna Arrangements External Connector:15.204-Yes Restricted Bands15.205-Yes Extrapolation Factor15.31(f)-Yes 2.Product Use:Security/Access control 3.Emission Designator:17k0F1D 4.Duty Cycle:<100% 5.Temperatures:Ambient (Tnom)11 o C 6.Supply Voltages:Vnom12Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel[X] Two channel[ ] 7.Equipment Category: Multi-channel[ ] Narrowband[ ] Wideband[X] 8.Channel spacing: RF335U iss03RU1094/5213Page 6 of 28 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature=14 o C(<1GHz)3m measurements <30MHz[X] Relative humidity=56% (<1GHz),3m measurements <1GHz[X] Conditions=Open Area Test Site (OATS)300m extrapolated from 3m[X] Supply voltage=12Vdc Channel number=1 FREQ. (MHz) MEAS. Rx. (dBμV) CABLE LOSS (dB) ANT FACT (dB/m) FIELD STRENGTH (dBμVm) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 0.009MHz-0.490MHz0.375---52.2 80 (see note 4) 0.046.4 0.490MHz-1.705MHz0.625---42.6 40 (see note 5) 1.338.4 1.705MHz-30.0MHz 30MHz- 88MHz 32.0 33.9 35.1 38.75 43.55 46.05 51.1 64.0 16.9 17.9 18.7 18.4 22.3 16.7 11.9 13.25 0.6 0.6 0.6 0.7 0.7 0.7 0.8 0.85 16.9 16.0 15.2 13.9 11.2 9.4 7.4 5.0 34.4 34.5 34.5 33.0 34.2 26.8 20.1 19.1 - - - - - - - - 52.4 53.0 53.0 44.6 51.2 21.8 10.1 9.0 100 100 100 100 100 100 100 100 88MHz-216MHz 139.4 140.7 160.0 167.9 174.2 4.2 19.1 7.4 7.2 12.8 1.3 1.4 1.5 1.5 1.5 10.5 10.5 9.6 9.1 9.8 16.0 31.0 18.5 17.8 24.1 - - - - - 6.3 35.5 8.4 7.7 16.0 150 150 150 150 150 216MHz-960MHz 960MHz-1GHz 1GHz-5GHz 0.009MHz – 0.49MHz2400/F (kHz)@300m 0.490MHz – 1.705MHz24000/F (kHz)@ 30m 1.705MHz to 30MHz 30μV/m@ 30m 30MHz to 88MHz100μV/m@ 3m 88MHz to 216MHz150μV/m@ 3m 216MHz to 960MHz200μV/m@ 3m 960MHz to 1GHz500μV/m@ 3m Limits 1GHz to 5GHz500μV/m@ 3m See next page for notes and test methods. RF335U iss03RU1094/5213Page 7 of 28 Notes: 1Results quoted are extrapolated as indicated 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a 3Extrapolation factor 9.5dB from 1m to 3m, as per Part 15.31f 4Extrapolation factor 80dB from 3m to 300m as per Part 15…
