OE5S843Mifare proximity reader for access control

Installation and User Instructions for S843 Readers You should find that the backplate has holes for connection to most standard electrical backboxes. With the backplate off (see above), mount the backplate adjacent to the opening edge of the door and at a convenient height. Feed the required cables through the backplate: The cable from the controller. The cable from the heater, if used (must be a separate cable). A cable from a Remote Interface Module (RIM), if used. A RIM can reduce cable lengths to door furniture. ! ! ! 2 The optional heater kit maintains the reader at the correct temperature when mounted outside. With the backplate off, remove the backing paper from the two elements, then stick them to the inner sides of the reader. The heaters must be connected to a 24V AC supply (min 25VA). When mounting outside, the two-part gasket kit must be fitted: a) Remove the backplate from the reader by releasing the two securing screws. b) Remove the cutouts and backing paper from the two gaskets, then stick them to the backplate as shown. Outer gasket Inner gasket Backplate securing screws Backplate 1 Fit the Weatherproofing Kit Mount the Backplate The S843 is a . The contactless smart-card reader, with liquid-crystal display and keypad, able to read Philips MIFARE and Philips MIFARE DESfire formatted cards S843 usesp . ® ® 20mA current loop seudo-random communications 0V Connect shield at controller end only (attach to case). Present the card face-on to the reader until you hear a "bleep". Cards can be presented in rapid succession; there is no need to wait for UNLOCKED" toefore presenting another."disappear b If the reader has been enabled for user-code mode at the controller, you can gain access by pressing the # key, entering your card number, then pressing the * key. RX+ RX- TX+ TX- 12V S843 Reader 9600-0340.Installation and User Instructions for S843 Readers, Issue 1.0x2 7th October 2003.AMAG Technology Ltd, 2003. FCC Notice:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorised modification to this device may void the authority of the user to operate it. © Twisted pairs (use Belden 9503 cable) Controller connections (20mA current loop) The I/O terminal is for connection to a RIM (see the RIM Instructions). On completion, re- secure the reader to the backplate. 0V TX+ - (not used) TX- I/0 RX+ RX- +V When UNLOCKED is displayed, the lock is released and you may open the door. UNLOCKED If the ENTER PIN message is displayed, enter your PIN. If you make a mistake, the message INCORRECT PIN is momentarily displayed, followed by ENTER PIN, to prompt you to try again. ENTER PIN ACCESS DENIED & LOCKED These messages are displayed if you do not have access rights to gain entry, or if the reader did not read your card properly (in this case, present it again). About the Reader Messages These auxiliary indicators can be configured to operate in conjunction with conditional commands. Flashing or steady } The reader is waiting for a valid card to be presented. READY Specifications Input voltage: 9-14Vdc. Input current (excl. heater): 150mA @ nom. 12Vdc. Operating temperature: -4 to 158 F (-20 to 70 C) without heater. Operating humidity: 15 to 90%, non-condensing. Maximum read range: 1" (25mm). Approvals: EN50133, R&TTE, IP656. °° 2 5 Using the Reader 4 Reader Connections If you are using the reader with a Hand Geometry Unit (HGU), connect the HGU to PL1. Ensure no jumpers are fitted across LK3 (NODE TERM), LK4 (HGU TERM) and LK2 (TEST). If a jumper is provided, park it across one pin only. LK1 (USER FB) - set to 1 for sound on and 0 for sound off. 3 Check the Reader Links

MIFARE PROCESSOR RESET MULTINODE COMMS RRI COMMS KEYPAD CONTROL PROCESSOR POWER SUPPLY 12V d.c. TAMPER RAM EPROM Figure 1:S843 Mifare Reader Block Diagram LCD HGU COMMS MIFARE ANTENNA 13.56MHz 16MHz

S843 Mifare Reader Labels Product and Approvals Label ( 25mm x 30mm ) Label Positioning ( The label will be placed on the back of the unit as shown below ) Issue 1 220503 FCC ID: OE5S843 Group 4 Technology Ltd. Model: 8000-5830-A Serial No: 0321000001 9-14V DC 120mA Label Position

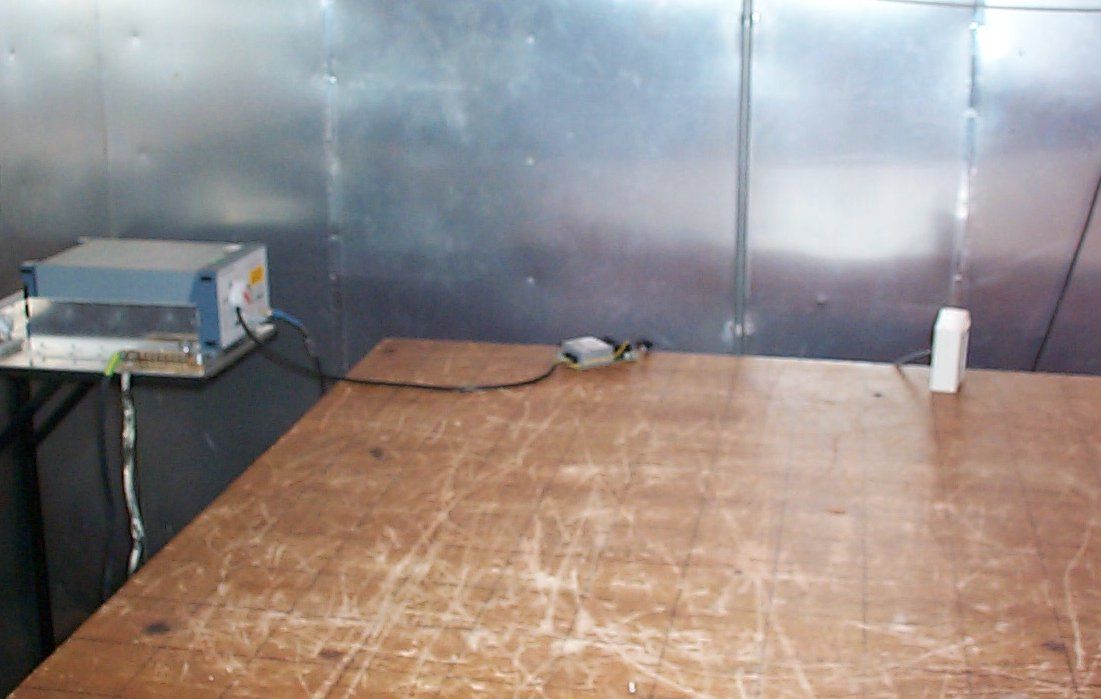

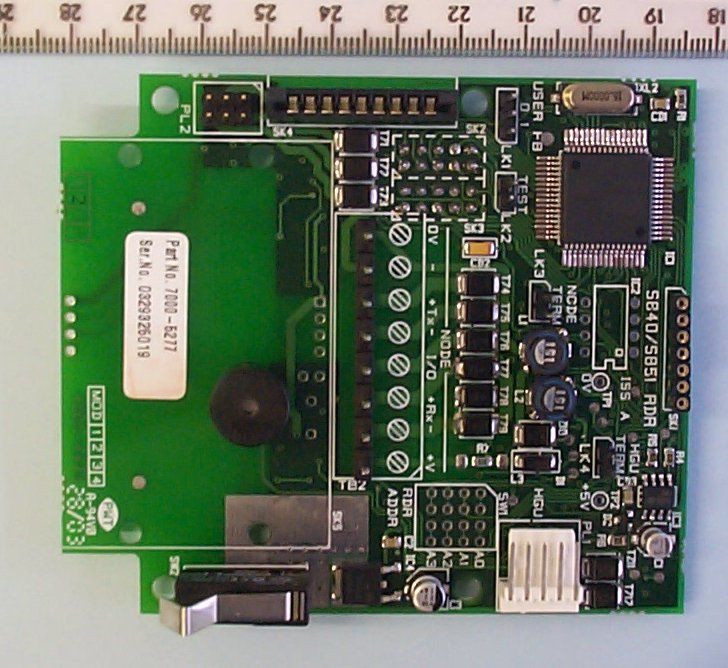

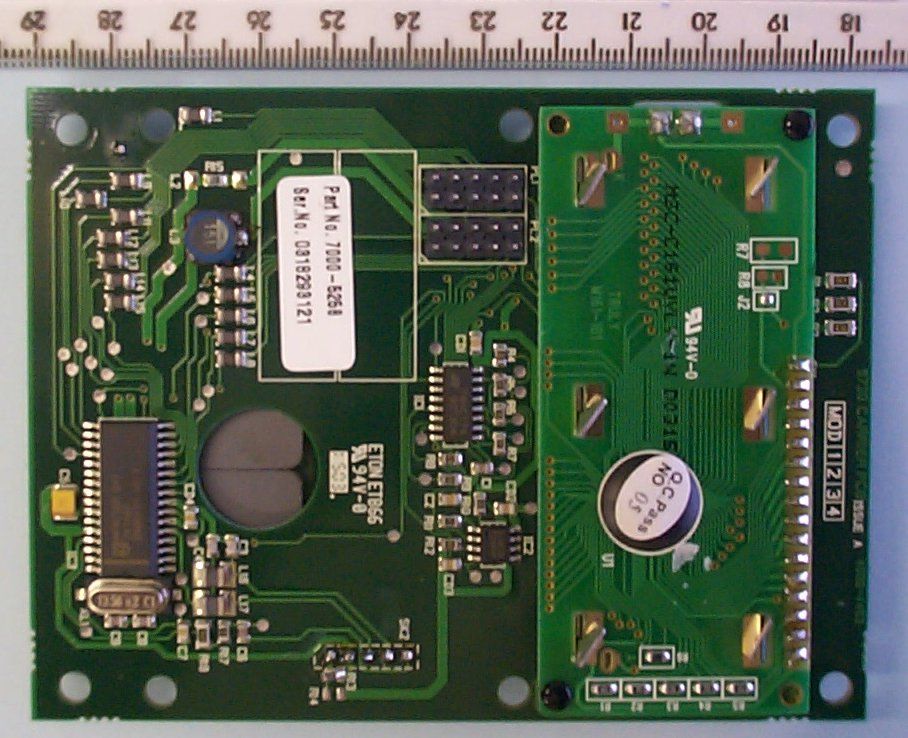

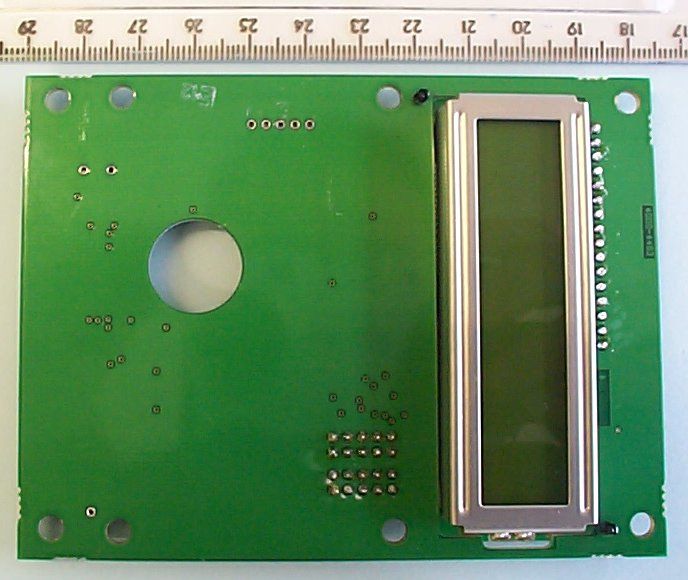

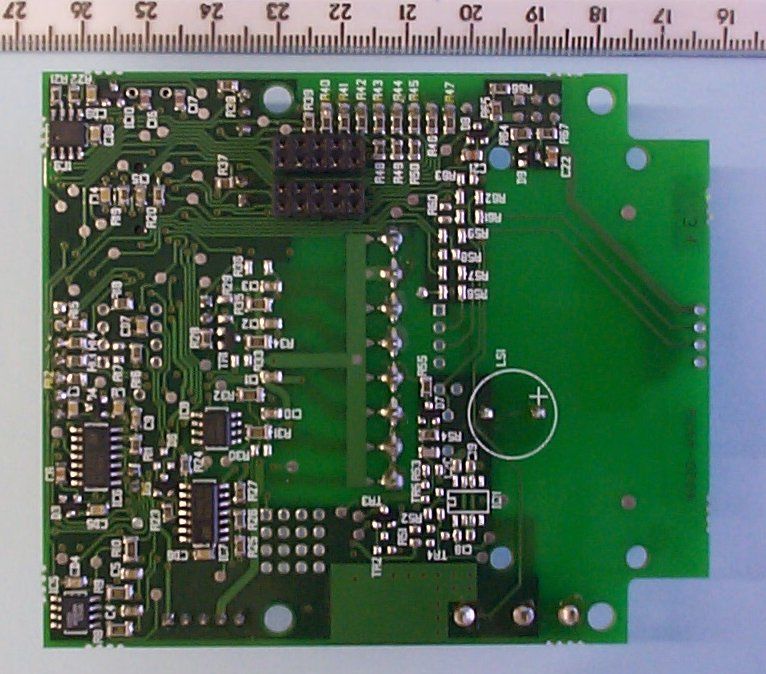

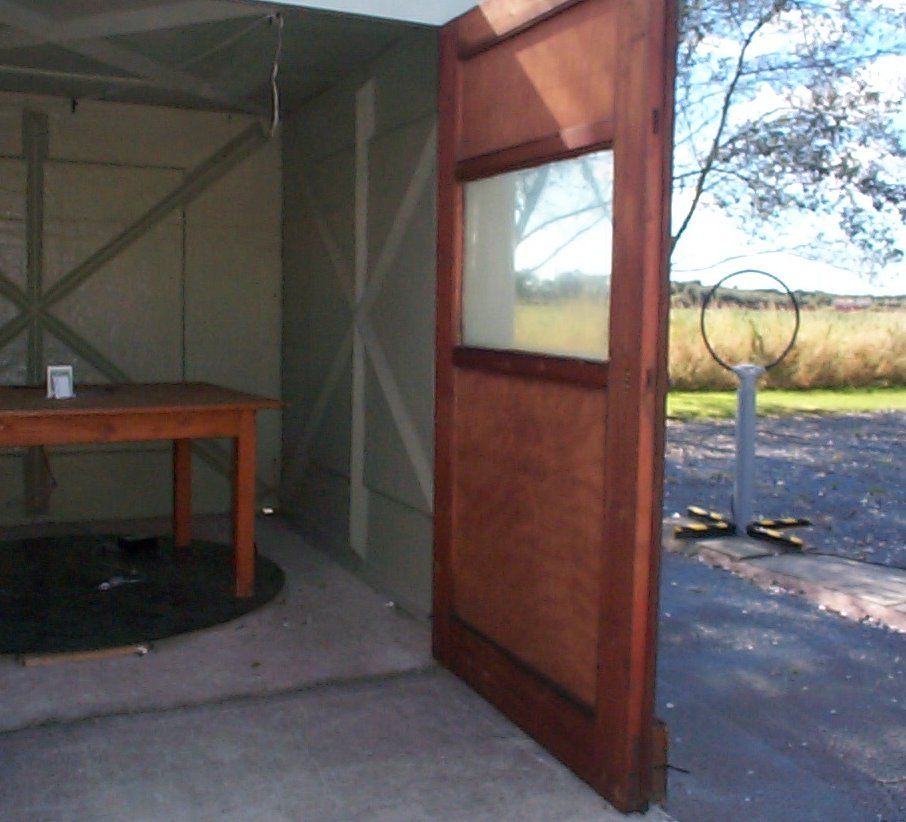

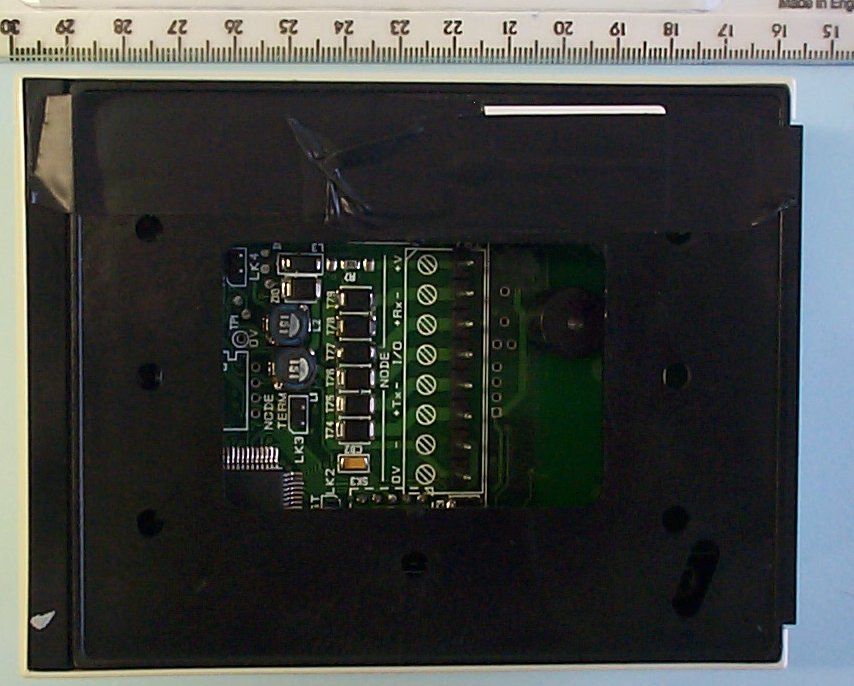

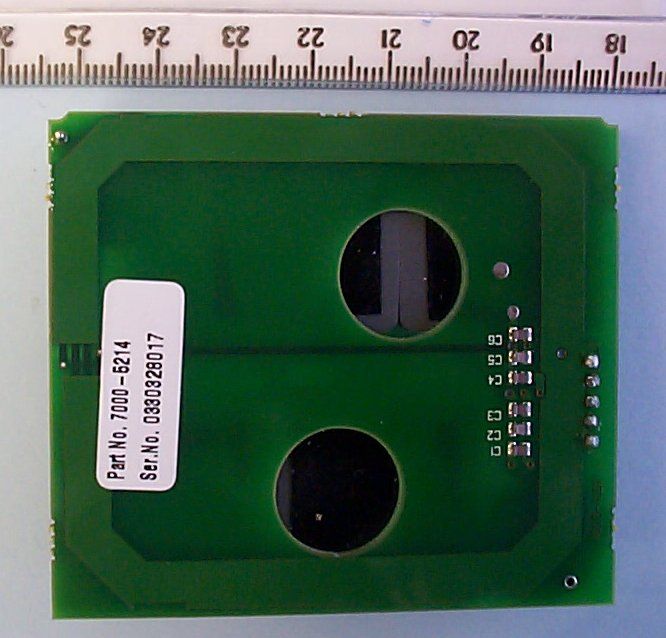

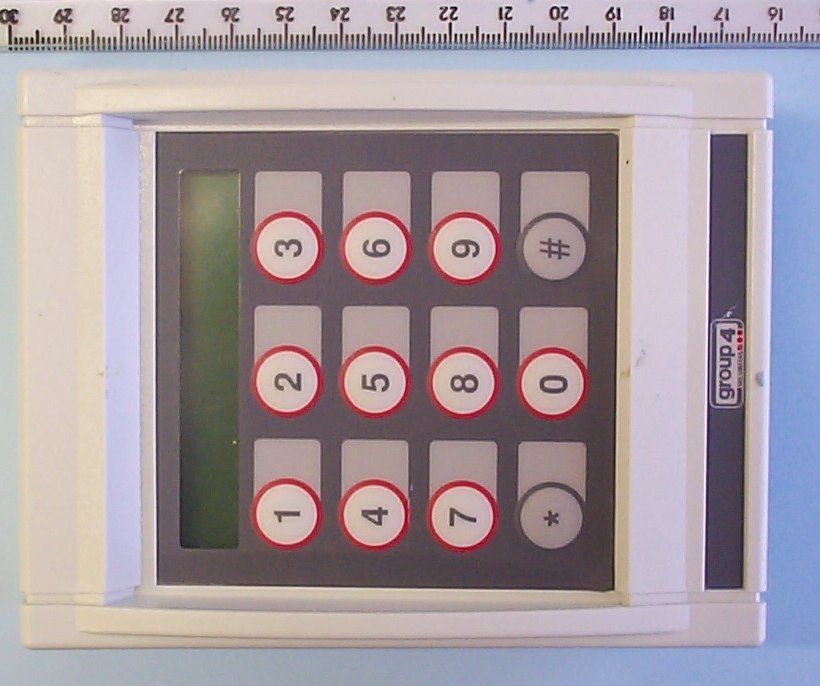

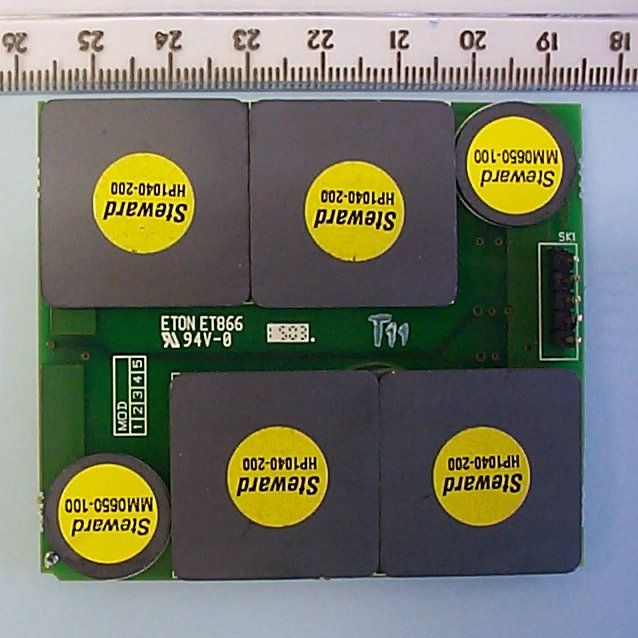

TRL C OMPLIANCE S ERVICES L TD EMC DIVISION LONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM TELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com 0728 TEST REPORT NO:RU1066/4773 COPY NO:2 ISSUE NO:1 FCC ID:OE5S843ID REPORT ON THE CERTIFICATION TESTING OF A GROUP 4 TECHNOLOGY Ltd. S843 MIFARE READER WITH RESPECT TO THE FCC RULES CFR 47, PART 15.225 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 14 th – 15 th AUGUST 2003 TESTED BY:J CHARTERS APPROVED BY:P GREEN EMC PRODUCT MANAGER DATE:22 nd September 2003 Distribution: Copy Nos:1.GROUP 4 TECHNOLOGY Ltd. 2.FCC EVALUATION LABORATORIES 3.TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335 iss02RU1066/4773Page 2 of 33 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE3 APPLICANT’S SUMMARY4 EQUIPMENT TEST CONDITIONS5 TESTS REQUIRED5 TEST RESULTS6-14 ANNEX PHOTOGRAPHSA PHOTOGRAPH No. 1: Test setup Power Line conduction PHOTOGRAPH No. 2: Test setup Radiated Emissions PHOTOGRAPH No. 3: Transmitter front view PHOTOGRAPH No. 4: Transmitter rear view PHOTOGRAPH No. 5: Transmitter PCB 1 track side PHOTOGRAPH No. 6: Transmitter PCB 1 component side PHOTOGRAPH No. 7: Transmitter PCB 2 with Antenna PCB PHOTOGRAPH No. 8: Transmitter PCB 2 with antenna PCB removed PHOTOGRAPH No. 9: Transmitter PCB 2 component side PHOTOGRAPH No. 10: Antenna PCB track side PHOTOGRAPH No. 11: Antenna PCB component side APPLICANT’S SUBMISSION OF DOCUMENTATION LISTB BAND OCCUPANCY PLOTC SCAN DATAD Notes: 1.Component failure during test YES NO [ ] [X] 2.If Yes, details of failure: 3.The facilities used for the testing of the product contained in this report are FCC Listed. 4.The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and are provided in good faith. RF335 iss02RU1066/4773Page 3 of 33 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY:OE5S843ID PURPOSE OF TEST:CERTIFICATION TEST SPECIFICATION:FCC RULES CFR 47, Part 15.225 TEST RESULT:Compliant to Specification EQUIPMENT UNDER TEST:S843 MIFARE READER EQUIPMENT SERIAL No:Engineering sample ITU: EMISSION CODE:12K0A1D EQUIPMENT TYPE:S843 MIFARE READERTYPE PRODUCT USE:Access and control CARRIER EMISSION: 14.16μV/m @30m ANTENNA TYPE:Integral ALTERNATIVE ANTENNA:Not applicable BAND OF OPERATION:13.110MHz – 14.010MHz CHANNEL SPACING:N/A wideband NUMBER OF CHANNELS:1 FREQUENCY GENERATION:SAW Resonator[ ]Crystal[X]Synthesiser [ ] MODULATION METHOD:Amplitude[X]Digital[ ]Angle [ ] POWER SOURCE(s):+12Vdc TEST DATE(s):14 th – 15 th AUGUST 2003 ORDER No(s):PRP10101 APPLICANT:GROUP 4 TECHNOLOGY Ltd. ADDRESS:CHALLENGE HOUSE NORTHWAY LANE TEWKESBURY GLOUCESTERSHIRE GL20 8JG TESTED BY:J CHARTERS APPROVED BY:P GREEN EMC PRODUCT MANAGER RF335 iss02RU1066/4773Page 4 of 33 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT):S843 MIFARE READER EQUIPMENT TYPE:S843 SERIAL NUMBER OF EUT:Engineering sample PURPOSE OF TEST:CERTIFICATION TEST SPECIFICATION(s):FCC RULES CFR 47, Part 15.225 TEST RESULT:COMPLIANTYes No [X] [ ] APPLICANT’S CATEGORY:MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s):PRP10101 APPLICANT’S CONTACT PERSON(s):Mr E Porter E-mail address:[email protected] APPLICANT:GROUP 4 TECHNOLOGY Ltd. ADDRESS:CHALLENGE HOUSE NORTHWAY LANE TEWKESBURY GLOUCESTERSHIRE GL20 8JG TEL:+44 (0) 1684 850977 FAX:+44 (0) 1684 294845 MANUFACTURER:GROUP 4 TECHNOLOGY Ltd. EUT(s) COUNTRY OF ORIGIN:United Kingdom TEST LABORATORY:TRL EMC UKAS ACCREDITATION No:0728 TEST DATE(s)14 th – 15 th AUGUST 2003 TEST REPORT No:RU1066/4773 RF335 iss02RU1066/4773Page 5 of 33 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATIONRULE PARTDETECTORAPPLICABILITY Intentional Emission Frequency:15.225Quasi PeakYes Intentional Emission Field Strength:15.225Quasi PeakYes Intentional Emission Band Occupancy:15.225Quasi PeakYes Intentional Emission ERP (mW):N/A-No Spurious Emissions – Conducted:15.207 Quasi Peak Average Yes Spurious Emissions – Radiated <1000MHz:15.209Quasi PeakYes Spurious Emissions – Radiated >1000MHz:15.209AverageYes Maximum Frequency of Search:15.33-Yes Antenna Arrangements Integral:15.203-Yes Antenna Arrangements External Connector:15.204-No Restricted Bands15.205-Yes Extrapolation Factor15.31(f)-Yes 2.Product Use:Access control 3.Emission Designator:12K0A1D 4.Duty Cycle:<100% 5.Temperatures:Ambient (Tnom)24 o C 6.Supply Voltages:Vnom12Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel[X] Two channel[ ] 7.Equipment Category: Multi-channel[ ] Narrowband[ ] Wideband[X] 8.Channel spacing: RF335 iss02RU1066/4773Page 6 of 33 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature=24 o C(<1GHz)10m measurements <30MHz[X] Relative humidity=45% (<1GHz),3m measurements >30MGHz[X] Conditions=Open Area Test Site (OATS)10m extrapolated from 30m[X] Supply voltage=12Vdc Channel number=1 FREQ. (MHz) MEAS. Rx. (dBμV/m) CABLE LOSS (dB) ANT FACT. (dB/m) FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 1.705MHz-30MHz27.123.8--23.819.081.0430 30MHz-88MHz 54.25 67.8 24.15 26.15 0.7 0.7 6.4 5.05 31.25 31.9 - 36.5 31.9 100 100 88MHz-216MHz203.4532.851.48.4542.7-36.4150 216MHz-960MHz 217.0 230.55 257.7 339.0 30.7 32.6 30.7 27.9 1.4 1.5 1.6 1.9 8.0 9.5 12.5 13.8 40.1 43.6 44.8 43.6 - 101.2 151.4 173.8 151.35 200 200 200 200 960MHz-1GHz- 1GHz-5GHz- 1.705MHz to 30MHz 30μV/m@ 30m 30MHz to 88MHz100μV/m@ 3m 88MHz to 216MHz150μV/m@ 3m 216MHz to 960MHz200μV/m@ 3m 960MHz to 1GHz500μV/m@ 3m Limits 1GHz to 5GHz500μV/m@ 3m See next page for notes and test methods . RF335 iss02RU1066/4773Page 7 of 33 Notes: 1Results quoted are extrapolated as indicated 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a 3Extrapolation factor 9.5dB from 1m to 3m, as per Part 15.31f 4Extrapolation factor 19.08dB from 10m t…
