OE5S853RFID Tag Reader

Installation and User Instructions for S853 Readers You should find that the backplate has holes for connection to most standard electrical backboxes. With the backplate off (see above), mount the backplate adjacent to the opening edge of the door and at a convenient height. Feed the required cables through the backplate: The cable from the controller. The cable from the heater, if used (must be a separate cable). A cable from a Remote Interface Module (RIM), if used. A RIM can reduce cable lengths to door furniture. ! ! ! 2 The optional heater kit maintains the reader at the correct temperature when mounted outside. With the backplate off, remove the backing paper from the two elements, then stick them to the inner sides of the reader. The heaters must be connected to a 24V AC supply (min 25VA). When mounting outside, the two-part gasket kit must be fitted: a) Remove the backplate from the reader by releasing the two securing screws. b) Remove the cutouts and backing paper from the two gaskets, then stick them to the backplate as shown. Outer gasket Inner gasket Backplate securing screws Backplate 1 Fit the Weatherproofing Kit Mount the Backplate Ensure no jumpers are fitted across LK2 (TEST) and LK3 (NODE TERM) and LK4 (HGU TERM). If a jumper is provided, park it across one pin only. LK1 (USER FB) - set to 1 for sound on and 0 for sound off. 3 Reader Links The S853 is a combined contact and contactless smart- card reader, with LCD and keypad, which uses p. The S853 is able to read Philips MIFARE and Philips MIFARE DESfire smart cards. For either type of card, the S853 supports the use of unencoded cards (where only the unique card serial number is read), or cards encoded with a card number. Several encoding formats are supported. The reader can simultaneously support two different card types/formats (e.g. non-encoded MIFARE and smartMAX- encoded MIFARE DESfire, or non-encoded MIFARE and smartMAX-encoded MIFARE). The reader is automatically configured to accept the first two contactless and the first contact card types/formats presented. 20mA current loop seudo-random communications ®® Specifications Input voltage: 9-14Vdc. Input current (excl. heater): 195mA @ nom. 12Vdc. Operating temperature: -4 to 158 F (-20 to 70 C) without heater. Operating humidity: 15 to 90%, non-condensing. Max. read range (MIFARE DESfire): 1.2" (30mm). Approvals: EN50133, R&TTE, IP656. °° 0V Connect shield at controller end only (attach to case). RX+ RX- TX+ TX- 12V Reader Twisted pairs (use Belden 9503 cable) Controller connections (20mA current loop) The I/O terminal is for connection to a RIM (see the RIM Instructions). On completion, re-secure the reader to the backplate. 0V TX+ Do not use TX- I/0 RX+ RX- +V 4 Reader Connections 9600-0348.Installation and User Instructions for S853 Readers, Issue 1.0 5th August 2004. Group 4 Technology, 2004. All trademarks acknowledged. Philips and MIFARE are registered trademarks of Philips Electronics N.V. FCC Notice:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device may void the authority of the user to operate it. © For a contactless card, present the card face-on to the reader until you hear "bleep". For a contact card, insert the card (chip upwards and facing you) into the slot at the bottom of the reader until you hear a "bleep". Cards can be presented in rapid succession; there is no need, for example, to wait for UNLOCKED" toefore presenting another."disappear b If the reader has been enabled for user-code mode at the controller, you can gain access by pressing the # key, entering your card number, then pressing the * key. About the Reader Messages } READY UNLOCKED ACCESS DENIED & LOCKED ENTER PIN CARD PIN AND # – – The lock is released and you may open the door. – You do not have access rights to gain entry, or the reader did not read your card properly (in this case, present it again). – Enter your PIN. If you make a mistake, the message INCORRECT PIN is momentarily displayed, followed by ENTER PIN, to prompt you to try again. – Enter the DESfire card PIN, then press # if the PIN is less than 8 digits. The reader is waiting for a valid card to be presented. (Flashing or steady)– These auxiliary indicators can be configured to operate in conjunction with conditional commands. 6 Using the Reader The reader supports the first two contactless and the first contact card types/formats presented after power-up. For example, encoded MIFARE and encoded MIFARE DESfire (in this example, unencoded cards would not be recognized). The reader enters this configuration mode whenever power is re-applied. A reader Setup menu can be displayed by pressing the * and # keys simultaneously while power is applied. You can use the menu to change the contrast and language used for the LCD (default English), and view/clear the three card types/formats programmed. At the prompts, press * for No and # for Yes. 5 Reader Configuration

S853 Mifare Proximity Reader Labels Product Label ( for S853 reader variant ) v FCC Label Diagram Showing Label Positions on the Back of the Reader Issue 29-11-04 FCC ID OE5S853 Group 4 Technology Ltd. Type: S853 Model: 8000-5920-A Serial No: 9840006 9-14V DC 120mA

S853 Mifare Proximity Reader Labels – Issue 2 Product Label ( for S853 reader variant ) v FCC Label Diagram Showing Label Positions on the Back of the Reader Issue 2 18-01-05 Group 4 Technology Ltd. Type: S853 Model: 8000-5920-A Serial No: 9840006 9-14V DC 120mA FCC ID: OE5S853 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Label Product Label

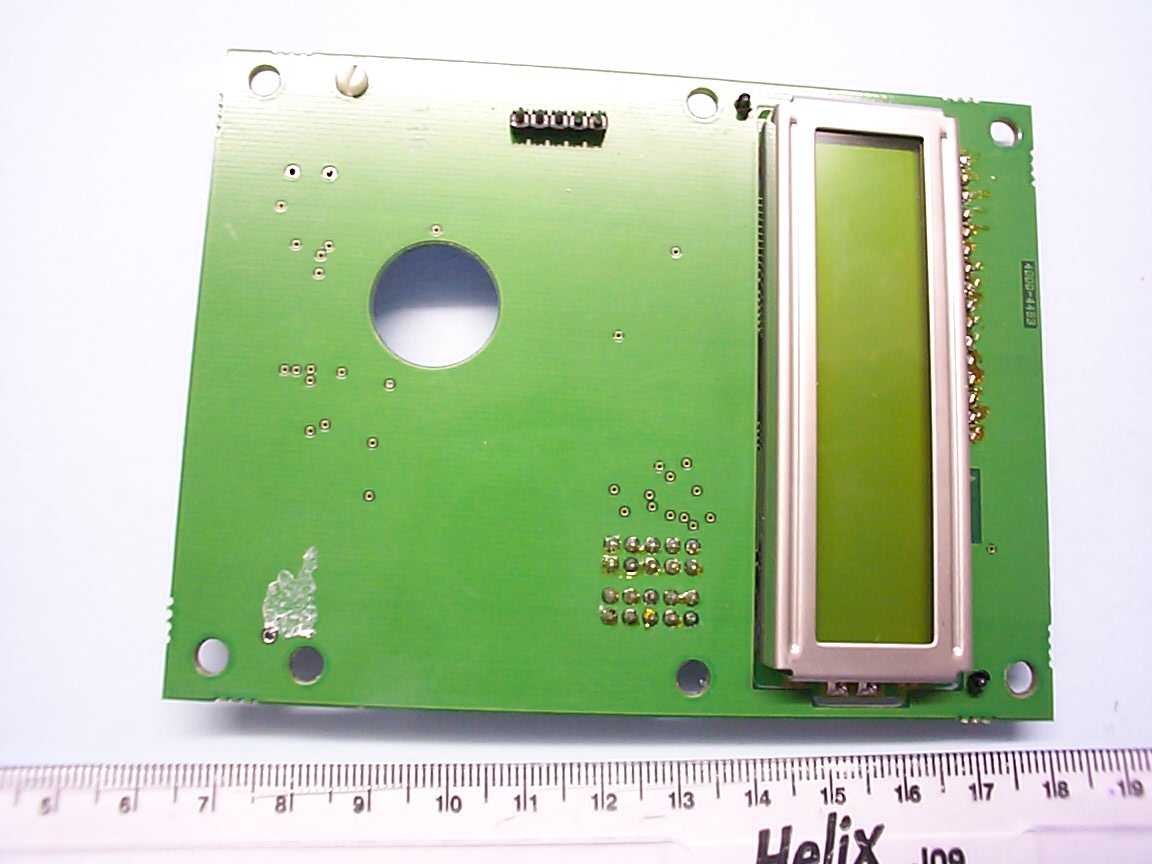

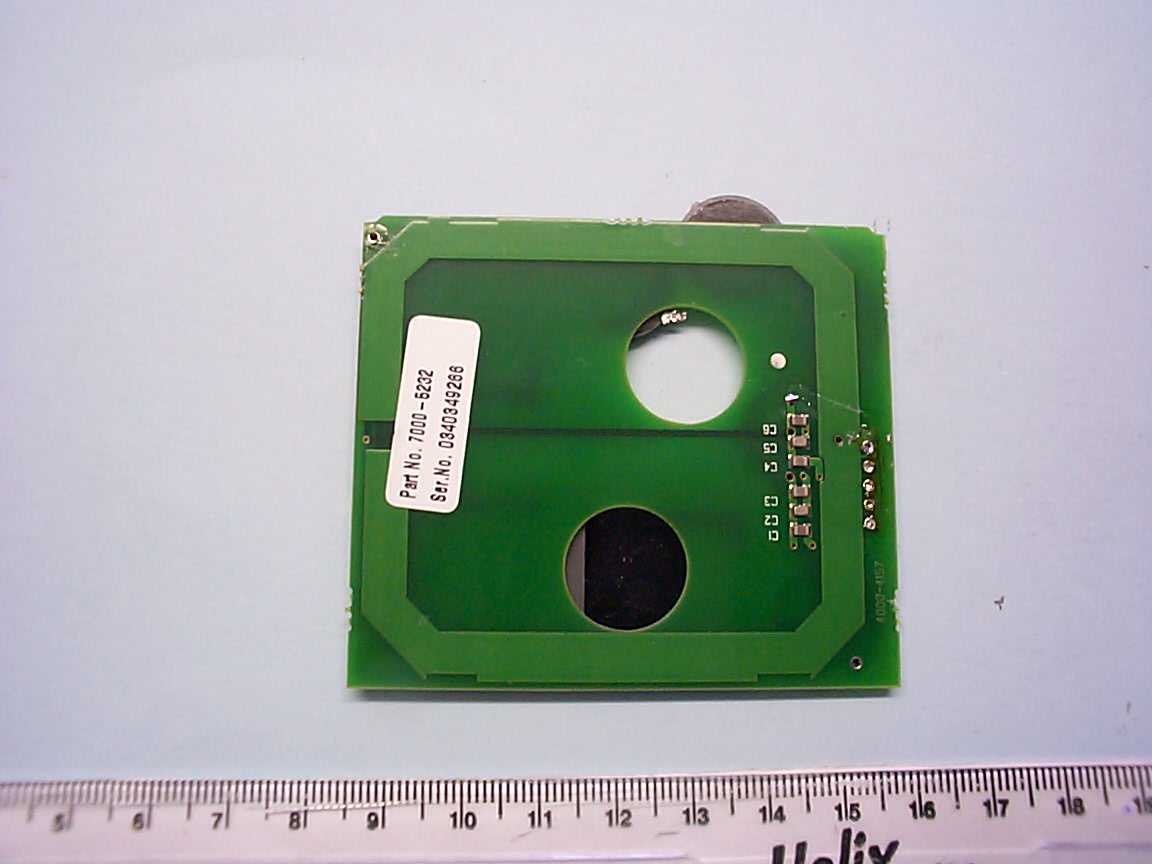

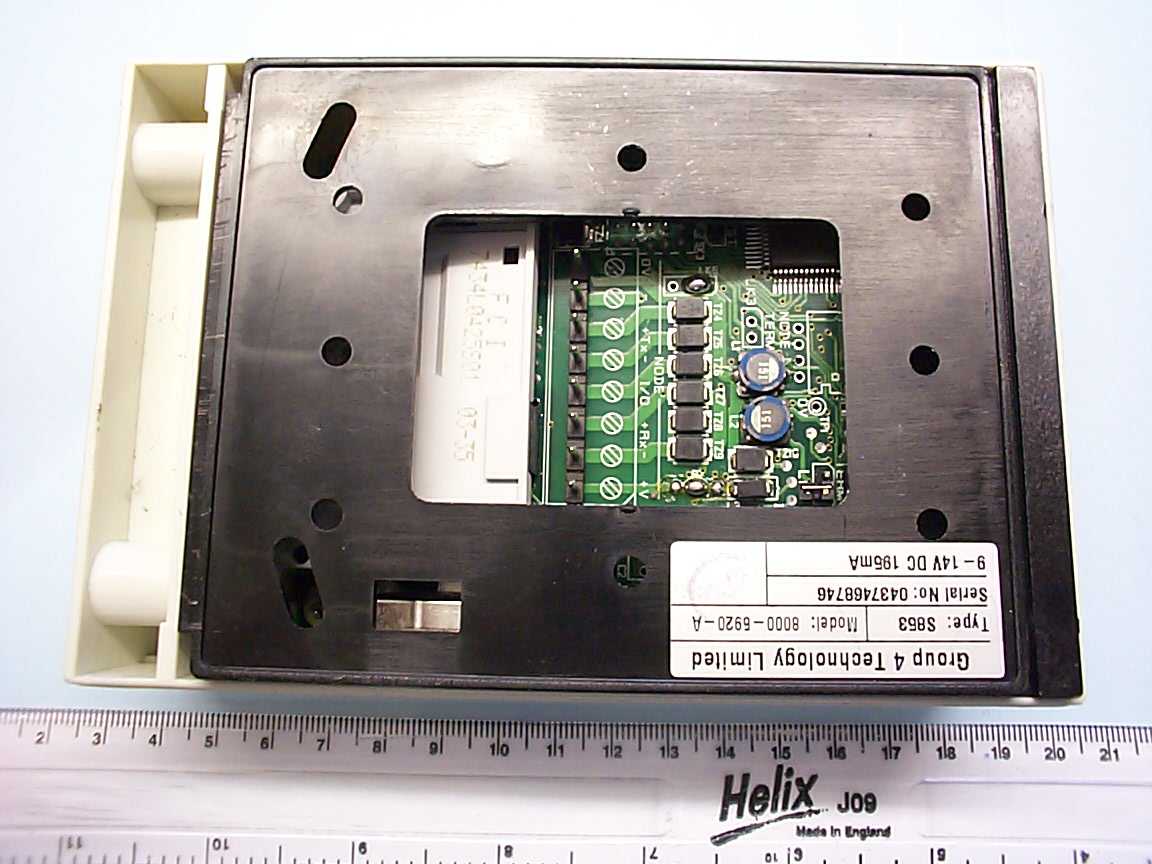

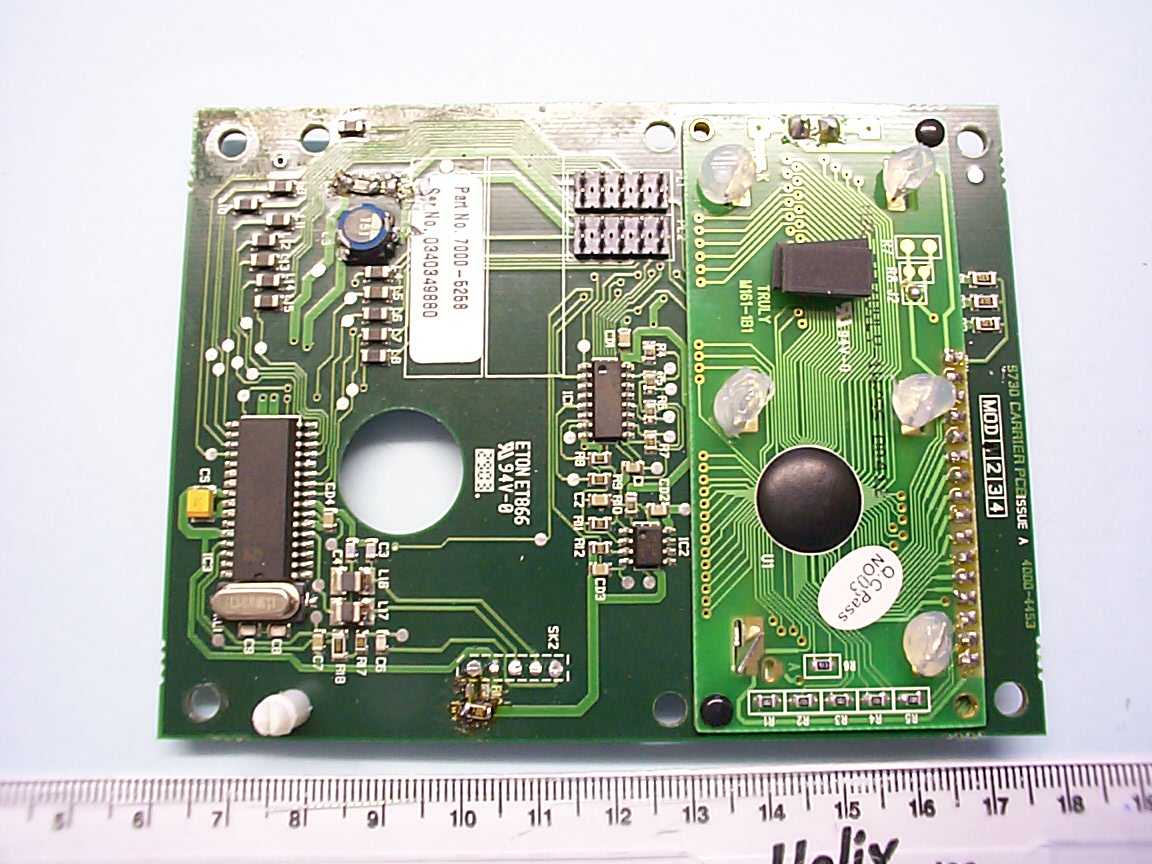

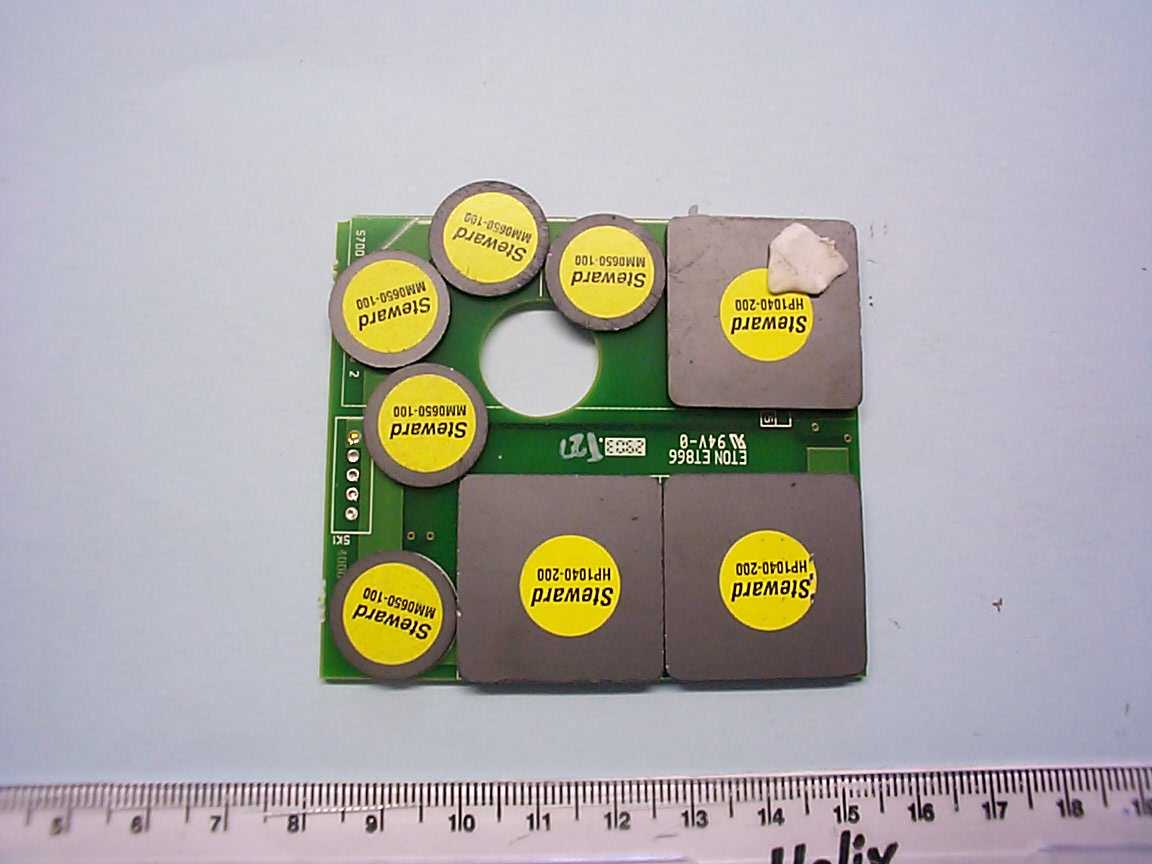

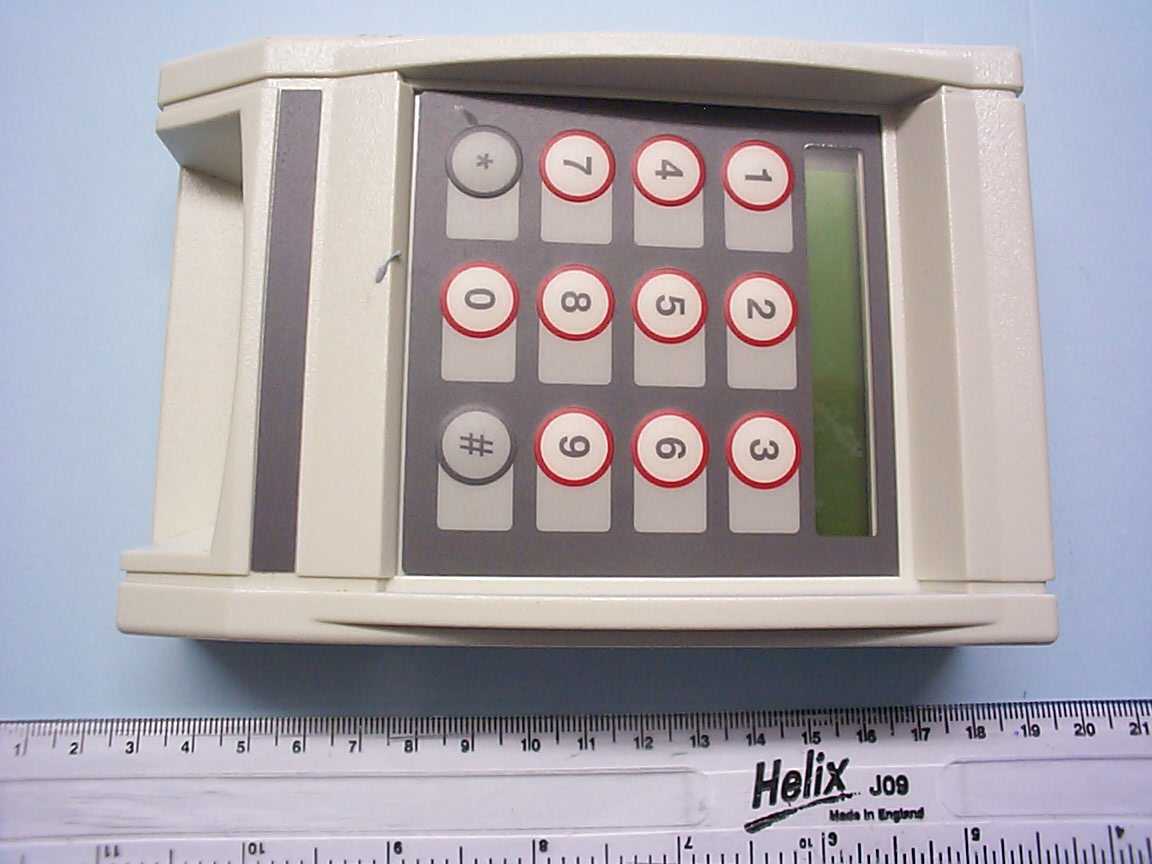

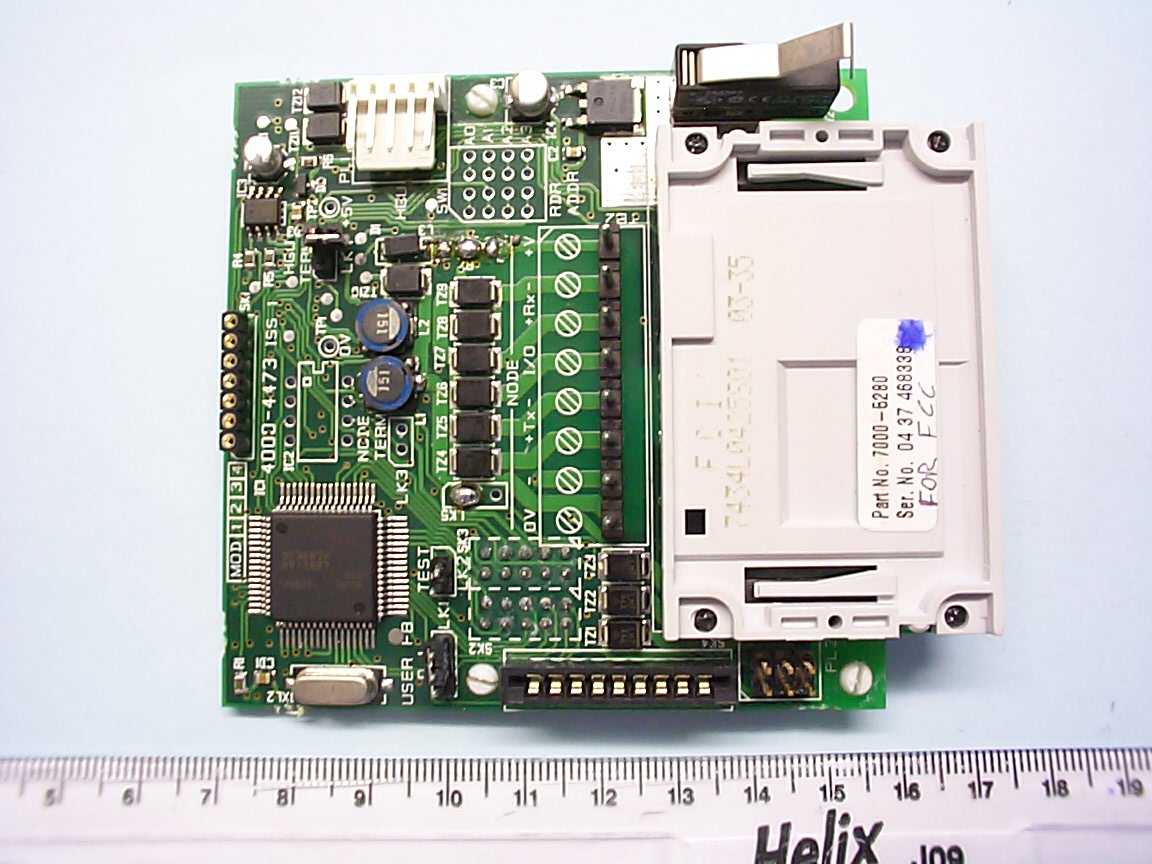

TRL C OMPLIANCE S ERVICES L TD EMC D IVISION M OSS V IEW N IPE L ANE U P H OLLAND W EST L ANCASHIRE WN8 9PY U NITED K INGDOM T ELEPHONE +44 (0)1695 556666 F AX +44 (0)1695 557077 E- MAIL [email protected] www.trlcompliance.com 0728 FS 21805 TEST REPORT NO: RU1127/6787 COPY NO: 2 ISSUE NO: 1 FCC ID: OE5S853 REPORT ON THE CERTIFICATION TESTING OF A GROUP 4 TECHNOLOGY Ltd S853 WITH RESPECT TO THE FCC RULES CFR 47, PART 15.225 INTENTIONAL RADIATOR SPECIFICATION ON BEHALF OF GROUP 4 TECHNOLOGY Ltd TEST DATE: 13 th – 14 th October 2004 TESTED BY: J Charters APPROVED BY: P Green Product Manager DATE: 7 th December 2004 Distribution: Copy Nos: 1. GROUP 4 TECHNOLOGY Ltd 2. FCC EVALUATION LABORATORIES 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE 37RF335U iss03 RU1127/6787 Page 2 of 37 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6 -14 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side PHOTOGRAPH No. 6: Display PCB Top PHOTOGRAPH No. 7: Display PCB Bottom PHOTOGRAPH No. 8: Antenna Top PHOTOGRAPH No. 9: Antenna Bottom APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B BAND OCCUPANCY PLOT C MASK COMPLIANCE D POWER LINE CONDUCTED EMISSIONS E H FIELD PRE SCAN F E FIELD PRE SCAN G Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. 37RF335U iss03 RU1127/6787 Page 3 of 37 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: OE5S853 PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION: FCC RULES CFR 47, Part 15.225:JULY 2004 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: S853 EQUIPMENT SERIAL No: 0437468746 ITU EMISSION CODE: 12K0A1D EQUIPMENT TYPE: RFID Tag reader PRODUCT USE: RFID CARRIER EMISSION: 26.18dBμV/m ANTENNA TYPE: Integral antenna ALTERNATIVE ANTENNA: Not applicable FREQUENCY OF OPERATION: 13.6523MHz CHANNEL SPACING: N/A wideband NUMBER OF CHANNELS: 1 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [X] Synthesiser [ ] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): +12Vdc TEST DATE(s): 13 th – 14 th October 2004 ORDER No(s): R000020620 APPLICANT: GROUP 4 TECHNOLOGY Ltd ADDRESS: Challenge House Northway Lane Tewesbury Gloucester GL20 8JG TESTED BY: J Charters APPROVED BY: P Green Product Manager 37RF335U iss03 RU1127/6787 Page 4 of 37 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): S853 EQUIPMENT TYPE: S853 SERIAL NUMBER OF EUT: 0437468746 PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.225:July 2004 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): R000020620 APPLICANT’S CONTACT PERSON(s): Mr E Porter E-mail address: [email protected] APPLICANT: GROUP 4 TECHNOLOGY Ltd ADDRESS: Challenge House Northway Lane Tewesbury Gloucester GL20 8JG TEL: 01684 850977 FAX: 01684 294845 MANUFACTURER: GROUP 4 TECHNOLOGY Ltd EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 13 th – 14 th October 2004 TEST REPORT No: RU1127/6787 37RF335U iss03 RU1127/6787 Page 5 of 37 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.225 Quasi-Peak Yes Intentional Emission Field Strength: 15.225 Quasi-Peak Yes Intentional Emission Band Occupancy: 15.255 Peak Yes Intentional Emission ERP (mW): - - No Spurious Emissions – Conducted: 15.207 Quasi-Peak Average Yes Spurious Emissions – Radiated <1000MHz: 15.209 Quasi-Peak Yes Spurious Emissions – Radiated >1000MHz: 15.209 Average Yes Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - Yes Restricted Bands 15.205 - Yes Extrapolation Factor 15.31(f) - Yes 2. Product Use: Access/control RFID 3. Emission Designator: 12K0A1D 4. Duty Cycle: <100% 5. Transmitter bit or pulse rate and level: 106kBps 6. Temperatures: Ambient (Tnom) 20 o C 7. Supply Voltages: Vnom +12Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [X] Two channel [ ] 8. Equipment Category: Multi-channel [ ] Narrowband [ ] Wideband [X] 9. Channel spacing: 37RF335U iss03 RU1127/6787 Page 6 of 37 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature = 13 o C(<1GHz) 3m measurements <1GHz [X] Relative humidity = 56% (<1GHz), 10m measurements <30MHz [X] Conditions = Open Area Test Site (OATS) 30m extrapolated from 10m [X] Supply voltage = 110Vac Channel number = 1 FREQ. (MHz) MEAS. Rx. (dBμV) CABLE LOSS (dB) ANT FACT. FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 0.009MHz - 0.490MHz 0.490MHz - 1.750MHz 1.705Mhz - 30.0MHz 27.124 24.5 - - 24.5 28.18 0.66 30 30MHz - 88MHz 88MHz - 216MHz 135.6 162.75 189.85 28.5 31.8 31.5 1.2 1.4 1.4 11.4 9.7 8.2 41.1 42.9 41.1 - - - 113.5 139.6 113.5 150 150 150 216MHz - 960MHz 217.0 311.95 32.6 27.0 1.5 2.2 8.7 13.3 42.8 42.5 - - 138.03 133.35 200 200 960MHz - 1GHz 1GHz - 5GHz 0.009MHz to 0.490MHz 2400/F(kHz) @ 300m 0.490MHz to 1.705MHz 24000/F(kHz) @ 30m 1.705MHz to 30MHz 30μV/m @ 30m 30MHz to 88MHz 100μV/m @ 3m 88MHz to 216MHz 150μV/m @ 3m 216MHz to 960MHz 200μV/m @ 3m 960MHz to 1GHz 500μV/m @ 3m Limits 1GHz to 5GHz 500μV/m @ 3m See next page for notes and test method: 37RF335U iss03 RU1127/6787 Page 7 of 37 Notes: 1 Results quoted are extrapolated as indicated. 2 Emissio…

Text truncated - open the document above for the full version.

37RF335U iss03 RU1127/6787 Page 16 of 37 PHOTOGRAPH No. 1 TEST SETUP
