OE5S870S870 Proximity Card Reader

Mount the backplate using countersunk headed screws adjacent to the opening edge of the door. If fixing hole ’A’ is used then the breakout must be removed and the screw must not protrude. Feed the cable from the controller through the backplate. If the wall tamper function is to be used then the small hole in breakout ‘B’ may be used to mark the position of the wall screw before the breakout is removed. An appropriate wall screw should then be adjusted in height to protrude through the hole to activate the tamper lever. The front cover is secured to the backplate by UNSCREWING the securing screw ‘C’ via the small hole in the enclosure so that the screw head locates in the counterbored hole on the inside of the enclosure. The screw should not be removed from the backplate. 2 Mount the Backplate The S870 reading HID format card, with LED’s and keypad. The reader can be set to use Wiegand or For additional information regarding the installation, configuration and proper use of this product: SMS Software User Guide, P/N 9600-0429 Issue 7.0.4 or later, M2150 Design Guide, P/N 9600-0420 Issue Issue 1.6.4 or later. is a 125kHz proximity card reader that is capable of ® 20mA current loop communications. Installation and User Instructions for S870-EX Keypad Readers 1 Fit The Weather Proofing Kit When mounting outside, the gasket kit must be fitted: a)Remove the backplate from the reader after screwing the securing screw ‘C’ fully IN. b)Position the gasket between the back plate and the mounting surface. Note: For UL listed applications, use only manufacturer provided gasket, P/N 87X-GASKET. You should find that the backplate has holes for connection to most standard electrical backboxes. Note: (For UL Installations only) 1). Consult local AHJ (Authority Having Jurisdiction) when installing access control readers and locking mechanisms to any portal in an egress path. 2). The use of Fail Closed / secure configuration shall be determined by local building codes and the local AHJ. 3). Wiring methods shall be in accordance with NEC (National Electrical Code) ANSI/NFPA 70. 4). All Interconnected devices must be UL listed. 3 Reader Connections C A B 5 Reader Links Presentthe cardface-ontothereaderuntilyouhear a"bleep". Cardscanbepresentedinrapidsuccession; there is no need, for example, to wait for "GREEN LED’s" to disappear before presenting another. If the reader has been enabled for user-code mode at the controller, you can gain access by pressing the O key, entering your card number, then pressing the P key. 9600-0605. Installation and User Instructions for S870-EX Keypad Readers, Issue 1.0x2 26th June 2012. G4S Technology, 2012. FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device may void the authority of the user to operate it. All trademarks acknowledged. © LED Status Indicator GREEN – The lock is released and you may open the door. RED – You do not have access rights to gain entry, or the reader did not read your card properly (in this case, present it again). YELLOW – Enter your PIN. If you make a mistake, the RED LED’s are momentarily displayed, followed by YELLOW LED’s, to prompt you to try again. Specifications Input voltage: 9-14Vdc. Input current: 120mA @ nom. 12Vdc. Operating temperature: -40 to 158°F (-40 to 70°C) Operating humidity: 15 to 90%, non-condensing. Maximum read range: 4" (100mm). Approvals: EN300330, EN301489 6 Using the Reader Set SW1 switch2 (COM) to W for Wiegand communications, or C for 20mA current loop communications. Set SW1 switch1 (USER F/B - Keypad audio feedback) to 1 for sound on, or 0 for sound off. 4 Reader Connections contd. 0V RX+ RX- TX+ TX- 12V Controller 0V TX+ TX- RX+ RX- +V Reader TB1 20mA current loop 0V Green Data 0 Red Data 1 12V Controller 0V GRN 0 +V Wiegand RED 1 Reader TB1 Connect shield at controller end only. Connect shield at controller end only. Note: Use SW1 switch2 to select the communications mode (See Step 5). Twisted pairs (use Belden 9503) cable or other UL Listed style 2464 (DUZX) cable. Multi conductor (Use Belden 9537) or other UL Listed style 2464 (DUZX) cable.

Serial Label Position 80 mm 106 mm

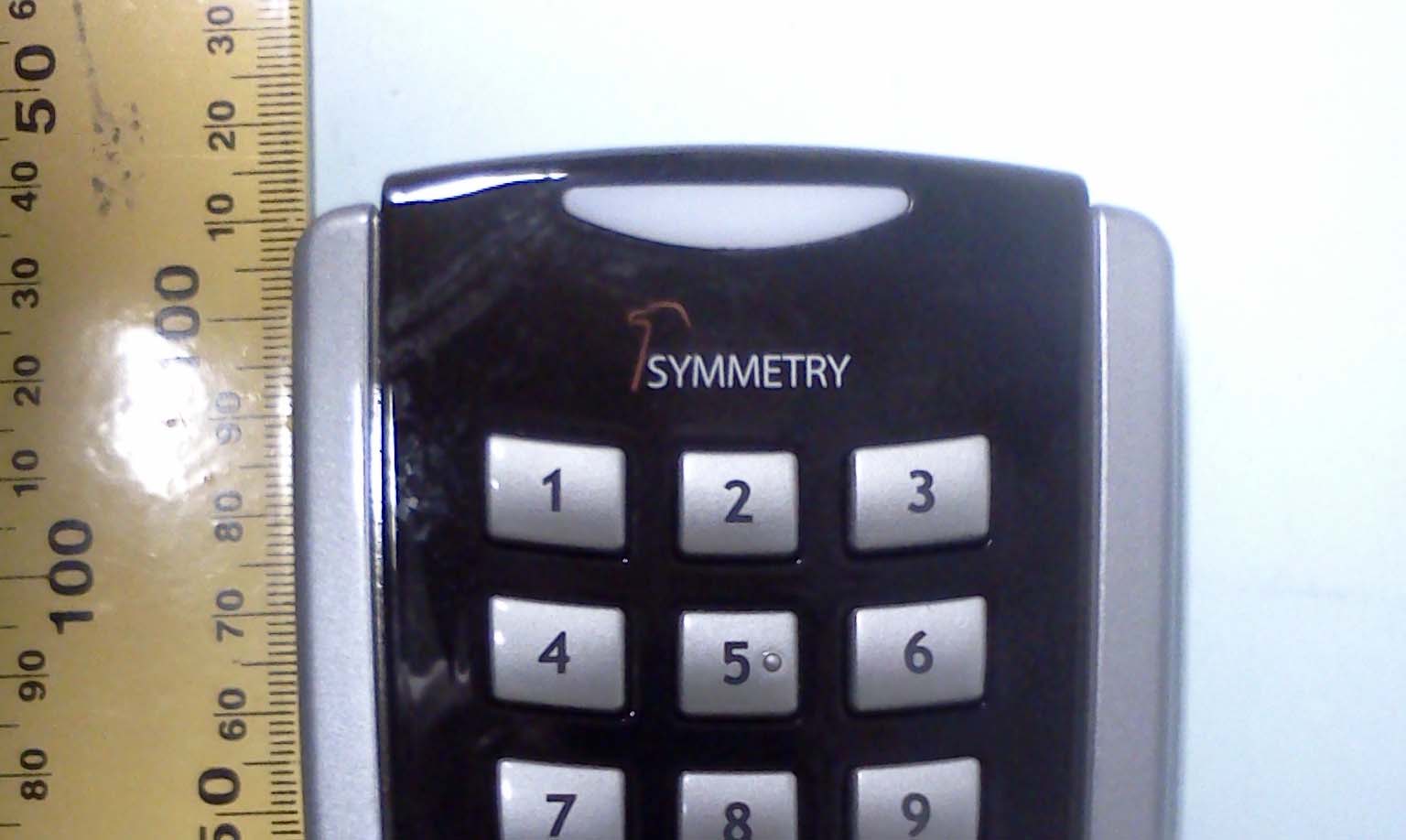

S870 READER TECHNICAL DESCRIPTION OF OPERATION The S870 HID Proximity Reader’s intended purpose is to read identification codes programmed into passive transponders, accept PINs through a keypad and display a response on one of three banks of LEDs. The maximum read range is about 5.5”. The unit is intended to be connected by cable to a range of Access Control Controllers which provide the necessary power and control/interface signals. The circuitry is contained on a single PCB which is mounted in a plastic enclosure (112mm x 85mm x 20mm approx). A cable from the terminal block exits through a large hole in the back of the unit. The power supply is a nominal 12V DC and linear regulators are used to provide 5V and 3V3 internal supply rails. The antenna is a printed coil that emits a 125KHz magnetic field. The field ‘powers up’ a passive transponder which is brought into the vicinity of the antenna. When powered this operates as a field disturbance device allowing two-way communication to take place between the reader and the card. The field is pulsed continuously and a dedicated device that is manufactured by the HID corporation for the purpose carries out modulation of the field. The control processor handles communications between the reader and the controller, responding to commands received and passing card data and status information back to the controller. The control processor also carries out housekeeping tasks such as scanning the keypad and monitoring the tamper switch.

Radio Test Report for G4S Technology Ltd on S870 Document No: TRA-008148-W-US1 Total number of pages: 31 TRaC Wireless Test Report : TRA-008148-W-US1 Applicant : G4S Technology Ltd Apparatus : S870 Specification(s) : CFR47 Part 15.209, July 2011 Purpose of Test : Certification FCC ID : OE5S870 Authorised by : Radio Products Manager Issue Date :27 th April 2012 Authorised Copy Number : PDF TRaC Global Test Report: TRA-008148-W-US1 Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes relating to the assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Appendix A: Formal Emission Test Results 11 A1 Transmitter Intentional Emission Radiated 12 A2 Radiated Spurious Emissions 13 A3 Power Line Conducted Emissions 17 Appendix B: Supporting Graphical Data 19 Appendix C: Additional Test and Sample Details 22 C1 Test samples 23 C2 EUT operating mode during testing 24 C3 EUT Configuration Information 25 C4 List of EUT Ports 26 C5 Details of Equipment Used 27 Appendix D: Additional Information 28 Appendix E: Photographs and Figures 29 3 TRaC Global Test Report: TRA-008148-W-US1 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: S Hodgkinson, D Winstanley Report author: S Bharat This report must not be reproduced except in full without prior written permission from TRaC Global Ltd. 4 TRaC Global Test Report: TRA-008148-W-US1 1.2 Tests Requested By This testing in this report was requested by: G4S Technology Ltd Challenge House International Drive Tewkesbury GL20 8UQ Gloucestershire, UK 1.3 Manufacturer Same as above 1.4 Apparatus Assessed The followin g apparatus was assessed between 12 th April and 20 th April 2012: S870 The above equipment is an RFID card reader with a radio transmitter operating at 125.3 kHz. 5 TRaC Global Test Report: TRA-008148-W-US1 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result Spurious Emissions Radiated <1000MHz Title 47 of the CFR: Part 15 Subpart (c) 15.209 ANSI C63.10 Pass Spurious Emissions Radiated >1000MHz Title 47 of the CFR: Part 15 Subpart (c) 15.209 ANSI C63.10 Pass AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart (c) 15.207 ANSI C63.10 Pass Intentional Emission Frequency Title 47 of the CFR: Part 15 Subpart (c) 15.209 ANSI C63.10 Pass Intentional Emission Field Strength Title 47 of the CFR: Part 15 Subpart (c) 15.209 ANSI C63.10 Pass Intentional Emission Band Occupancy Title 47 of the CFR: Part 15 Subpart (c) 15.209 ANSI C63.10 Pass Intentional Emission ERP (mW) Title 47 of the CFR: Part 15 Subpart (c) 15.209 ANSI C63.10 Pass Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (b) 15.109 ANSI C63.10 Pass Antenna Arrangements Integral: Title 47 of the CFR: Part 15 Subpart (c) 15.203 - N/A Antenna Arrangements External Connector Title 47 of the CFR: Part 15 Subpart (c) 15.204 - N/A Restricted Bands Title 47 of the CFR: Part 15 Subpart (c) 15.205 - N/A Maximum Frequency of Search Title 47 of the CFR: Part 15 Subpart (c) 15.33 - N/A Extrapolation Factor Title 47 of the CFR: Part 15 Subpart (c) 15.31(f) - N/A Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 6 TRaC Global Test Report: TRA-008148-W-US1 1.6 Notes relating to the assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 17 to 23 C Humidity : 45 to 75 % Barometric Pressure : 86 to 106 kPa All dates used in this report are in the format dd/mm/yy. This assessment has been performed in accordance with the requirements of ISO/IEC 17025. 1.7 Deviations from Test Standards There were no deviations from the standards test ed to. 7 TRaC Global Test Report: TRA-008148-W-US1 Section 2: Measurement U…
