OE5S874S874 MiFare Wallplate Card Reader

Mount the backplate using countersunk headed screws adjacent to the opening edge of the door and at a convenient height (recommended height is 5' (1.5m) to top of unit). If fixing hole ’A’ is used then the breakout must be removed and the screw must not protrude. Feed the cable from the controller through the backplate. If the wall tamper function is to be used then the small hole in breakout ‘B’ may be used to mark the position of the wall screw before the breakout is removed. An appropriate wall screw should then be adjusted in height to protrude through the hole to activate the tamper lever. 2 1 Mount the Backplate Reader Connections The S874 is a reader can be set to use Wiegand or The S874 reader will read smartMAX encoded MIFARE cards and card serial numbers from most ISO 14443A smart cards which have a 4-byte UID (User Identification). The reader may be configured to read other card types by presenting a programming card to the reader during start up. For additional information regarding the installation, configuration and proper use of this product: SMS User Guide, P/N 9600-0429, M2150 Access Control Design Guide, P/N 9600-0420, M2150 Intrusion Guide, P/N 9600-0540 and M2150 UL1076 Compliance Manual, P/N 9600-0449. contactless smart-card reader, with LED’s and keypad. The 20mA current loop communications. The securing screw ‘C’ is integral to the backplate and is unscrewed via the small hole in the enclosure so that the screw head locates in the counterbored holes on the inside of the enclosure. You should find that the backplate has holes for connection to most standard electrical backboxes. C A B Installation and User Instructions for S874 Keypad Readers 0V RX+ RX- TX+ TX- 12V Controller 0V TX+ TX- RX+ RX- +V Reader TB1 20mA current loop 0V Green Data 0 Red Data 1 12V Controller 0V GRN 0 +V Use Belden 9537 Cable Wiegand RED 1 Reader TB1 Connect shield at controller end only. Connect shield at controller end only. Twisted pairs (use Belden 9503 Cables) Note: Use SW1 switch2 to select the communications mode (See Step 3). Note: 1). Consult local AHJ (Authority Having Jurisdiction) when installing access control readers and locking mechanisms to any portal in an egress path. 2). The use of Fail Closed / secure configuration shall be determined by local building codes and the local AHJ. 3). Wiring methods shall be in accordance with NEC (National Electrical Code) ANSI/NFPA 70. 4). The Wiegand connections are not allowed under UL1076 unless a separate tamper switch is provided. Slide the ferrite sleeve onto cable before wiring terminal block. Ferrite to be placed 50mm (2") up cable and held in place with cable ties. Note: The FERRITE must be fitted! Presentthe cardface-ontothereaderuntilyouhear a"bleep". Cardscanbepresentedinrapidsuccession;thereisnoneed, for example, to wait for "GREEN LED’s" to disappear before presenting another. If the reader has been enabled for user-code mode at the controller, you can gain access by pressing the O key, entering your card number, then pressing the P key. Please refer to M2150 Intrusion Guide, 9600-0540 for IDS Arm / Disarm procedure. 9600-0596. Installation and User Instructions for S874 Keypad Readers, Issue 1.0x2 12th March 2012. G4S Technology, 2012. FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device may void the authority of the user to operate it. All trademarks acknowledged. © LED Status Indicator GREEN – The lock is released and you may open the door. RED – You do not have access rights to gain entry, or the reader did not read your card properly (in this case, present it again). YELLOW – Enter your PIN. If you make a mistake, the RED LED’s are momentarily displayed, followed by YELLOW LED’s, to prompt you to try again. Specifications Input voltage: 9-14Vdc. Input current: 120mA @ nom. 12Vdc. Operating temperature: 14 to 131°F (-10 to 55°C) Operating humidity: 15 to 90%, non-condensing. Maximum read range: 4" (100mm). Approvals:EN302291, EN301489 4 Using the Reader Set SW1 switch2 (COM) to W for Wiegand communications, or C for 20mA current loop communications. Set SW1 switch1 F/B - Keypad audio feedback) to 1 for sound on, or 0 for sound off. 3 Switch Settings

Page 1 of 1 Certification and Engineering Bureau Industry Canada P.O. Box 11490, Station H 3701 Carling Avenue (Building 94) Ottawa, Ontario K2H 8S2 G4S Technology Limited S874 MiFare Wallplate Card Reader TRaC test report TES-00437701-W-US1 superseded by TRA-008148-CO029-W-US-2 FCC ID OE5S874 : Incorrect sample supplied for testing. February 8 th 2013 Dear Sir, As requested I am writing to confirm that in February 2012 TRaC’s RF test laboratory was supplied with a sample of a S874 MiFare Wallplate Card Reader. The laboratory tested this sample and produced a test report TES-00437701-WUS1. This report was then used as part for the certification process and subsequent issue off FCC grant. During an FCC surveillance the test laboratory found a difference between the original results taken and the surveillance sample. The applicant then checked their records and found that they had not sent the final production sample to the laboratory. They have issued an attestation to this effect. TRaC then fully tested a final production sample found it to be compliant and have produced test report TRA-008148-CO029-W-US-2. This test report supersedes test report TES-00437701-WUS1. . Yours Sincerely John Charters Radio Product manager TRaC Global Ltd.

Serial Label Position 80 mm 106 mm

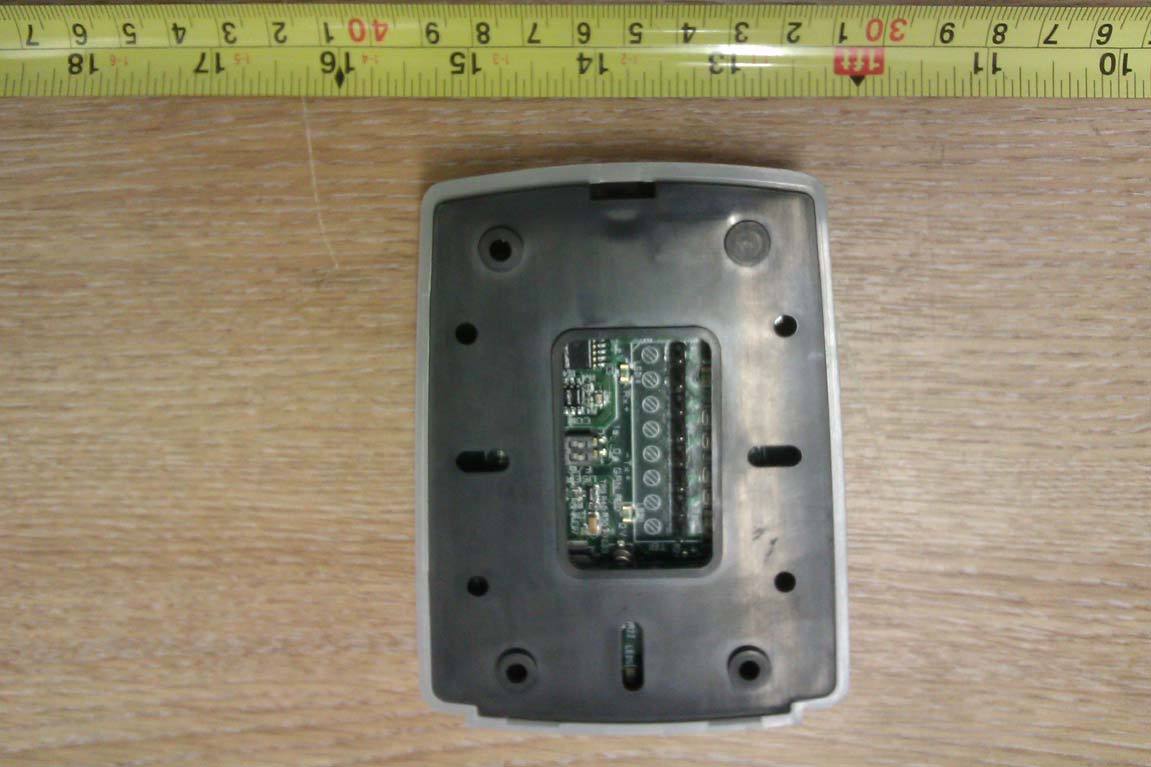

S874 READER TECHNICAL DESCRIPTION OF OPERATION The S874 Smart Card Reader’s intended purpose is to read identification codes programmed into a range of passive contactless Smart cards, accept PINs through a keypad and display a response on one of three banks of LEDs. The maximum read range is about 4”. The unit is intended to be connected by cable to a range of Access Control Controllers which provide the necessary power and control/interface signals. The circuitry is contained on a single PCB which is mounted in a plastic enclosure (112mm x 85mm x 20mm approx). The cable from the terminal block exits through a large hole in the back of the unit. The power supply is a nominal 12V DC and linear regulators are used to provide 5V and 3V3 internal supply rails. The antenna is a printed coil that emits a 13.56MHz magnetic field. The field ‘powers up’ a Smart card which is brought into the vicinity of the antenna. When powered this operates as a field disturbance device allowing two-way communication to take place between the reader and the card. The field is switched on continuously and modulation of the field is carried out by a dedicated device which is manufactured by NXP for the purpose. The control processor handles communications between the reader and the controller, responding to commands received and passing card data and status information back to the controller. The control processor also carries out housekeeping tasks such as scanning the keypad and monitoring the tamper switch.

Radio Test Report for G4S Technology Ltd on S874 Mifare Wallplate Card Reader DOCUMENT NO. TES-004377-01-W-US1 Total number of pages: 36 TRaC Wireless Test Report : TES-004377-01-W-US1 Applicant : G4S Technology Ltd Apparatus : S874 Mifare Wallplate Card Reader Specification(s) : CFR47 Part 15.225 Purpose of Test : Certification FCCID : OE5S874 Authorised by : :Radio Products Manager Issue Date :23 rd February 2012 Authorised Copy Number : PDF TRaC Global Test Report: TES-004377-01-W-US1 Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes relating to the assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Appendix A: Formal Emission Test Results 11 A1 Transmitter Intentional Emission Radiated 12 A2 Radiated Magnetic Field Emissions 13 A3 Radiated Electric Field Emissions 15 A4 Power Line Conducted Emissions 17 A5 Frequency Stability 19 Appendix B: Supporting Graphical Data 20 Appendix C: Additional Test and Sample Details 27 C1 Test samples 28 C2 EUT operating mode during testing 29 C3 EUT Configuration Information 30 C4 List of EUT Ports 31 C5 Details of Equipment Used 32 Appendix D: Additional Information 33 Appendix E: Photographs and Figures 34 3 TRaC Global Test Report: TES-004377-01-W-US1 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: Daniel Winstanley, Sandeep Bharat Report author: Sandeep Bharat This report must not be reproduced except in full without prior written permission from TRaC Global. 4 TRaC Global Test Report: TES-004377-01-W-US1 1.2 Tests Requested By This testing in this report was requested by: England, UK G4S Technology Ltd Challenge House International Drive Tewkesbury Gloucestershire GL20 8UQ 1.3 Manufacturer Same as above 1.4 Apparatus Assessed The followin g apparatus was assessed between 11 th and 18 th January 2012: S874 Mifare Wallplate Card Reader The above device is an RFID card reader operating at 13.56 MHz 5 TRaC Global Test Report: TES-004377-01-W-US1 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result Spurious Emissions Radiated <1000MHz Title 47 of the CFR: Part 15 Subpart (c) 15. ANSI C63.10 Pass AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart (c) 15.207 ANSI C63.10 Pass Intentional Emission Frequency Title 47 of the CFR: Part 15 Subpart (c) 15. ANSI C63.10 Pass Intentional Emission Field Strength Title 47 of the CFR: Part 15 Subpart (c) 15. ANSI C63.10 Pass Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (b) 15.109 ANSI C63.10 Pass Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 6 TRaC Global Test Report: TES-004377-01-W-US1 1.6 Notes relating to the assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 17 to 23 C Humidity : 45 to 75 % Barometric Pressure : 86 to 106 kPa All dates used in this report are in the format dd/mm/yy. This assessment has been performed in accordance with the requirements of ISO/IEC 17025. 1.7 Deviations from Test Standards There were no deviations from the standards test ed to. 7 TRaC Global Test Report: TES-004377-01-W-US1 Section 2: Measurement Uncertainty 2.1 Measurement Uncertainty Values For the test data recorded in accordance with note (iii) of Section 2.1 the following measurement uncertainty was calculated: Radio Testing – General Uncertainty Schedule All statements of uncertainty are expanded standard uncertainty using a coverage factor of 1.96 to give a 95% confidence where no required test level exists. [1] Adjacent Channel Power Uncertainty in test result = 1.86dB [2] Carrier Power Uncertainty in test result (Power Meter) = 1.08dB Uncertainty in test result (Spectrum Analyser) = 2…
