OE5S880S880 Proximity Reader

Mount the backplate using countersunk headed screws adjacent to the opening edge of the door and at a convenient height (recommended height is 5' (1.5m) to top of unit). If fixing hole ’A’ is used then the breakout must be removed and the screw must not protrude. Feed the required cables through the backplate: ∑The cable from the controller. ∑General Purpose Input / Output cable (Optional) If wall tamper function is to be used then breakout ‘B’ must be removed and an appropriate wall screw fitted through the hole to actuate the tamper lever. 2 1 Mount the Backplate Reader Connections The S880 reading HID format card, with Graphic LCD and keypad. The reader can be set to use Wiegand or is a 125kHz proximity card reader that is capable of ® 20mA current loop communications. The securing screws ‘C’ are integral to the backplate and are unscrewed via the small holes in the enclosure so that the screw heads locate in the counterbored holes on the inside of the enclosure. You should find that the backplate has holes for connection to most standard electrical backboxes. C A B Installation and User Instructions for S880 Readers 0V RX+ RX- TX+ TX- 12V Controller 0V TX+ TX- RX+ RX- +V Reader TB1 20mA current loop 0V Green Data 0 Red Data 1 12V Controller 0V GRN 0 +V Use Belden 9537 Cable Wiegand RED 1 Reader TB1 Connect shield at controller end only. Connect shield at controller end only. Twisted pairs (use Belden 9503 Cables) Note: Use LK2 to select the communications mode (See Step 3). 3 Reader Links IN 1 IN 2 C SPKR Reader TB2 I/O Connections 4 General Purpose Inputs & Outputs (Optional) COM NC NO SPKR Presentthe cardface-ontothereaderuntilyouhear a"bleep". Cardscanbepresentedinrapidsuccession; there is no need, for example, to wait for "UNLOCKED" to disappear before presenting another. If the reader has been enabled for user-code mode at the controller, you can gain access by pressing the O key, entering your card number, then pressing the P key. A Setup menu can be displayed by pressing the O and P keys simultaneously while power is applied. You can use the menu to change the contrast and language used for the LCD (default English). Use the four function keys to navigate around the menu. 9600-0568. Installation and User Instructions for S880 Readers, Issue 1.0 11th March 2011. G4S Technology, 2011. FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized modification to this device may void the authority of the user to operate it. All trademarks acknowledged. © LED Status Indicator GREEN – The lock is released and you may open the door. RED – You do not have access rights to gain entry, or the reader did not read your card properly (in this case, present it again). YELLOW – Enter your PIN. If you make a mistake, the message INVALID PIN is momentarily displayed, followed by ENTER PIN, to prompt you to try again. Specifications Input voltage: 9-14Vdc. Input current: 200mA @ nom. 12Vdc. Operating temperature: 14 to 131°F (-10 to 55°C) Operating humidity: 15 to 90%, non-condensing. Maximum read range: 4" (100mm). Approvals: EN50133, EN300330, EN301489 5 Using the Reader Set LK2 (COMMS) across the center and WE pin for Wiegand communications, or across the center and CL pin for 20mA current loop communications. Set LK3 (USER Keypad audio feedback) to 1 for sound on, or 0 for sound off.

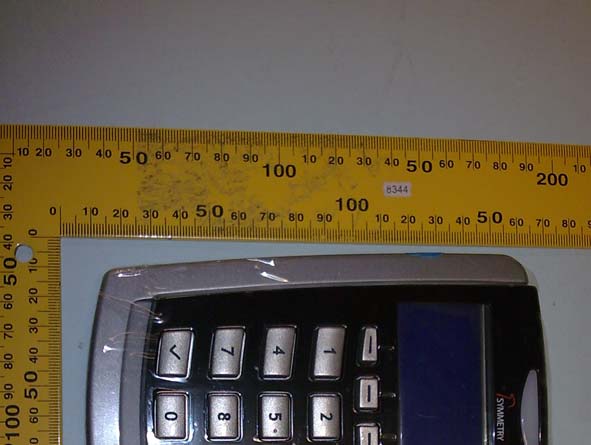

Serial Label Position 112 mm 145 mm

S880 READER TECHNICAL DESCRIPTION OF OPERATION The S880 HID Proximity Reader’s intended purpose is to read identification codes programmed into passive transponders, accept PINs through a keypad and display a response on a 86 x 240 pixel LCD and one of three banks of LEDs. The maximum read range is about 5.5”. The unit is intended to be connected by cable to a range of Access Control Controllers which provide the necessary power and control/interface signals. The circuitry is contained on a single PCB which is mounted in a plastic enclosure (150mm x 110mm x 25mm approx). A cable from the terminal block exits through a large hole in the back of the unit. The power supply is a nominal 12V DC and linear regulators are used to provide 5V and 3V3 internal supply rails. The antenna is a printed coil that emits a 125KHz magnetic field. The field ‘powers up’ a passive transponder which is brought into the vicinity of the antenna. When powered this operates as a field disturbance device allowing two-way communication to take place between the reader and the card. The field is pulsed continuously and a dedicated device that is manufactured by the HID corporation for the purpose carries out modulation of the field. The control processor handles communications between the reader and the controller, responding to commands received and passing card data and status information back to the controller. The control processor also carries out housekeeping tasks such as scanning the keypad and monitoring the tamper switch.

Total number of pages: 33 TRaC Wireless Test Report : TTR-004520WUS1 Applicant : G4S Technology Ltd Apparatus : S880 Specification(s) : CFR47 Part 15.209 (Oct 2009) Purpose of Test : Certification FCCID : OE5S880 Authorised by : : Radio Product Manager Issue Date :1 st April 2011 Authorised Copy Number : PDF Radio Test Report: TTR-004520WUS1 Contents Section 1: Introduction 3 1.1 General 3 1.2 Tests requested by 4 1.3 Manufacturer 4 1.4 Apparatus Assessed 4 1.5 Test Result Summary 5 1.6 Notes relating to the Assessment 6 1.7 Deviations from Test Standards 6 Section 2: Measurement Uncertainty 7 2.1 Measurement Uncertainty Values 7 Section 3: Modifications 9 3.1 Modifications performed during Assessment 9 Appendix A: Formal Emission Test Results 10 A1 Transmitter Intentional Radiated Emissions 11 A2 Radiated Magnetic Field Emissions 12 A3 Radiated Electric Field Emissions 13 A4 Power Line Conducted Emissions 16 Appendix B: Supporting Graphical Data 18 Appendix C: Additional Test and Sample Details 21 Appendix D: Additional Information 27 Appendix E: Calculation of the duty cycle correction factor 28 Appendix F: Photographs and Figures 29 2 Radio Test Report: TTR-004520WUS1 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Telecoms & Radio [ ] Unit E South Orbital Trading Park Hedon Road Hull HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Telecoms & Radio [X] Unit 1 Pendle Place Skelmersdale WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: Steve Hodgkinson Report author: Daniel Winstanley This report must not be reproduced except in full without prior written permission from TRaC Telecoms & Radio. 3 Radio Test Report: TTR-004520WUS1 1.2 Tests requested by This testing in this report was requested by : G4S Technology Limited Challenge House International Drive Tewkesbury Gloucestershire GL20 8UQ 1.3 Manufacturer G4S Technology Limited Challenge House International Drive Tewkesbury Gloucestershire GL20 8UQ 1.4 Apparatus Assessed The followin g apparatus was assessed between 23 rd & 25 th February 2011: S880 RFID Card Reader operating at 125 kHz 4 Radio Test Report: TTR-004520WUS1 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement Standard Result Spurious Emissions Radiated <1000MHz Title 47 of the CFR: Part 15 Subpart (c) 15.209 ANSI C63.10 PASS Spurious Emissions Radiated >1000MHz N/A N/A N/A AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart (c) 15.207 ANSI C63.10 PASS Intentional Emission Frequency Title 47 of the CFR: Part 15 Subpart (c) 15.209 ANSI C63.10 PASS Intentional Emission Field Strength Title 47 of the CFR: Part 15 Subpart (c) 15.209 ANSI C63.10 PASS Intentional Emission Band Occupancy Title 47 of the CFR: Part 15 Subpart (c) 15.215(c) ANSI C63.10 PASS Intentional Emission ERP (mW) N/A N/A N/A Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (b) 15.109 ANSI C63.10 PASS Antenna Arrangements Integral Title 47 of the CFR: Part 15 Subpart (c) 15.203 - PASS Antenna Arrangements External Connector Title 47 of the CFR: Part 15 Subpart (c) 15.204 - PASS Restricted Bands Title 47 of the CFR: Part 15 Subpart (c) 15.205 - PASS Maximum Frequency of Search Title 47 of the CFR: Part 15 Subpart (c) 15.33 - PASS Extrapolation Factor Title 47 of the CFR: Part 15 Subpart (c) 15.31(f) - PASS Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 5 Radio Test Report: TTR-004520WUS1 1.6 Notes relating to the Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 17 to 23 C Humidity : 45 to 75 % Barometric Pressure : 86 to 106 kPa All dates used in this report are in the format dd/mm/yy. This assessment has been performed in accordance with the requirements of ISO/IEC 17025. 1.7 Deviations from Test Standards There were no deviations from the standards test ed to. 6 Radio Test Report: TTR-004520WUS1 Section 2: Measurement Uncertainty 2.1 Measurement Uncertainty Values Radio Testing – General Uncertainty Schedule All statements of uncertainty are expanded standard uncertainty using a coverage factor of 1.96 to give a 95% confidence where no required test level e…
