OGU-VER1900Infant Badge and Databand

Versus Technology, Inc. Hardware/Wiring Installation Guide V ERSUS T ECHNOLOGY , I NC . 2600 M ILLER C REEK R OAD T RAVERSE C ITY , MI 49684 (231) 946-5868 Versus Technology, Inc. Copyright 1991, 1992, 1993, 1996, and 1998 Versus Technology, Inc., all rights reserved This document contains user’s information on technology that is proprietary to Versus Technology, Inc. Permitted transmittal, receipt, or possession of this document does not express license or imply any rights to use, sell, design, or manufacture this information. No reproduction, publication or disclosure of this information, in whole or in part, shall be made without prior written authorization from an officer of Versus Technolo gy, Inc. To Clean Badges: wipe gently with damp cloth. WARNING! This product is not designed, intended, authorized or warranted for use in any life support or other application where product failure could cause or contribute to personal injury, death, or severe property damage. This component or its systems are covered by one or more of the following U.S. Patents: 5,276,496, 5,355,222; 5,119,104; 5,548,637; 5,572,195; 5,387,993; 5,027,314, 5,017,794, 4,906,853. FCC STATEMENT: Components compiling with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Modifying or tampering with the transceiver’s or receiver’s internal components can cause a malfunction, invalidate the warranty, and will void your FCC authorization to use these products.

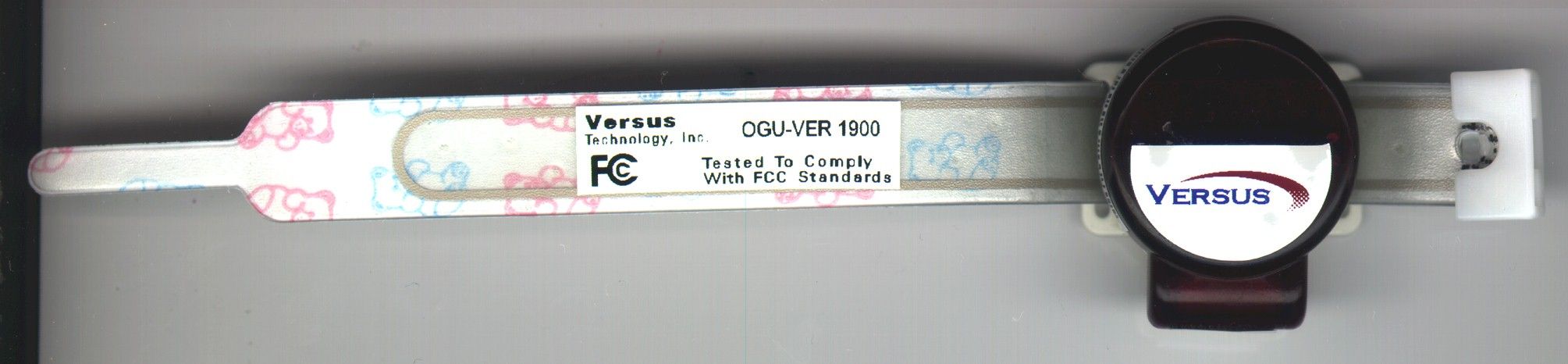

Component Specifications/Descriptions Versus Technology “Infant Badge” model number VER-1900 and “DataBand” model number VER-1800 are an infrared transmitting badge with a RF supervisory signal. The DataBand is an adult version of the infant badge in that the only difference between the two badges is the type of the band that attaches to the person, with no modifications to the electronics. These badges are just two products used in the Versus Information Systems (VIS) to provide for quick and easy way to locate people and equipment. The badges are a low power long lasting IR/RF transmitter that incorporate a three-volt lithium battery in the case along with PCB boards for IR/RF circuitry and alarm (PAS) circuitry and a PCB antenna. Both infrared and RF signals are independent of each other which contain recognition code to identify the badge that is transmitting, along with motion status, battery status, and switch information. The RF signal is transmitted per FCC “Code of Federal Regulations” Title 47, Part 15 Subpart C, Sections 15.231 et seq. When an alarm is activated the badge transmits a different code that identifies that an alarm has occurred along with the badges recognition code. There are two ways that the badge can be set in an alarm state; 1.) The first type of alarm is when a band on the badge is cut, this alarm will continue to transmit until the proper personnel deactivate the badge. 2.) The second type of alarm is a proximity alarm, when the badge enters a restricted area an alarm input is set. Upon exiting the restricted area the badge alarm input is cleared and RF transmissions are ceased.

FCC ID: OCU-VER1900 Request for Confidentiality In accordance with 47 CFR Section 0.459, we, Versus Technology Inc., hereby request confidentiality for the theory of operation and schematics presented as Exhibit B. In support of the request for confidentiality, the following is stated: Enclosed within this application is technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Robert Wiser Vers us Tec hnology Inc. July 14, 2000

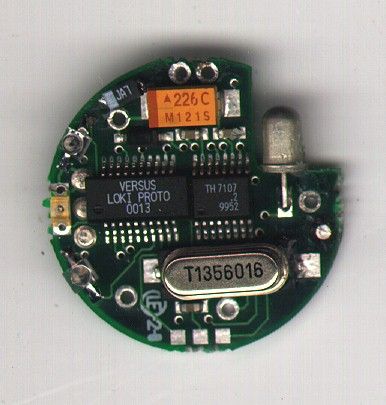

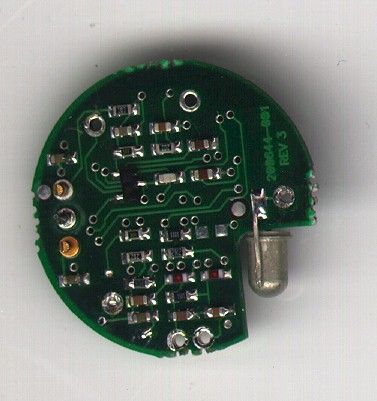

Description of the VER-1900 Badge The VER-1900 Infant Badge contains a low power RF transmitter chip which is controlled by an ASIC. The frequency synthesizer for generation of the RF output carrier is received from a low frequency external crystal. An output clock from the RF chip runs the ASIC device, when an RF transmission needs to be generated the data is sent to the RF chip. The modulation used by the radio frequency chip is on/off key at 433.9MHz. The ground plane for the RF signal is contained in one of the four layers of the printed circuit board. The RF antenna is a PCB loop antenna, which is attached to the RF PCB by wires. Versus Technology Inc. “Infant Badge” model number VER-1900 is an infrared transmitting badge with a RF supervisory signal. The badge is a low power long lasting IR/RF transmitter that incorporate a three-volt lithium battery. Both infrared and RF signals are independent of each other. Both infrared and RF signals contain recognition code to identify the badge, along with motion status, battery status, and switch information. When an alarm is activated by one of two inputs the badge transmits a different code that identifies an alarm has occurred along with the badges recognition code. There are two ways that the badge can be set in an alarm state; 1.) The first type of alarm is when a band on the badge is cut, this alarm will continue to transmit until the proper personnel deactivate the badge. 2.) The second type of alarm is a proximity alarm, when the badge enters a restricted area an alarm input is set. Upon exiting the restricted area the badge alarm input is cleared and RF transmissions are ceased.

Engineering Test Report No. 05252000 Page____1____of__23______ _______________________________________________ ENGINEERING REPORT NO. 052500 REGARDING THE RF INTERFERENCE FROM A MODEL VER-1900 INFANT BADGE TRANSMITTER Report By: Robert Wiser Test Date: May 25, 2000 Engineering Test Report No. 05252000 Page____2____of__23______ DESCRIPTION OF TEST ITEM: Infant Badge MODEL NO: VER-1900 MANUFACTURER: Versus Technology, Inc. APPLICABLE SPECIFICATIONS: FCC “Code of Federal Regulations” Title 47, Part 15, Subpart C QUANTITY OF ITEMS TESTED: One (1) TEST PERFORMED BY: ELITE ELECTRONIC ENGINEERING COMPANY Radio Interference Consultants Downers Grove, Illinois 60515 DATE RECEVED: May 25, 2000 DATE TESTED: May 25, 2000 PERSONNEL (OPERATIONS, OBSERVERS, AND CO-ORDINATORS): CUSTOMER: Robert Wiser of Versus Technology, Inc. was present. ELITE ELECTRONIC: Mark Longinotti was test engineer ABSTRACT: The model VER-1900 Infant Badge does meet the radiated emission requirements of the FCC “Code of Federal Regulations” Title 47, Part 15 Subpart C, Sections 15.205 et seq. For Intentional Radiators, when tested per ANSI C63.4-1992. The radiated emission level closest to the limit (worst case) occurred at 1301.9 MHz. The emission level at this frequency was 13.6dB within the limit. See page 22 for more details. THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF VERSUS TECHNOLOGY, INC. Engineering Test Report No. 05252000 Page____3____of__23______ Table of Contents Paragraph Description of Contents 1.0 Introduction 1.1 Description of Test Item 1.2 Purpose 1.3 Deviations, Additions and exclusions 1.4 Applicable Documents 1.5 Subcontractor Identification 1.6 Laboratory Conditions 2.0 Test Item Setup and Operation 2.1 Power Input 2.2 Grounding 2.3 Peripheral Equipment 2.4 Interconnect Cables 2.5 Operational Mode 3.0 Test Equipment 3.1 Test Equipment List 3.2 Calibration Traceability 3.3 Measurement Uncertainty 4.0 Requirements, Procedures and Results 4.1 Powerline Conducted Emissions 4.1.1 Requirements 4.2 Duty Cycle Factor Measurements 4.2.2 Procedures 4.2.3 Results 4.3 Radiated Measurements 4.3.1 Requirements 4.3.2 Procedures 4.3.3 Results 4.4 Occupied Bandwidth Measurements 4.4.1 Requirements 4.4.2 Procedures 4.4.3 Results 5.0 Conclusion 6.0 Certification 7.0 Endorsement Disclaimer Table I – Equipment List Total Number of pages in this document, (including data sheets): Twenty-three (23) THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF VERSUS TECHNOLOGY, INC. Engineering Test Report No. 05252000 Page____4____of__23______ Measurement of RF Interference from A Model VER-1900 Infant Badge Transmitter 1.0 Introduction: 1.1 Description of Test Item: On May 25, 2000, a series of radio interference measurements were performed on a model VER-1900 Infant Badge Transmitter, (hereinafter referred to as the test item) serial number 240. The test item was designed to transmit at approximately 433.0 MHz using an internal PCB antenna. The tests were performed for Versus Technology, Inc. of Traverse City, Michigan. 1.2 Purpose: The test series was performed to determine if the test item meets the radiated RF emission requirements of the FCC “Code of Federal Regulations” Title 47, Part 15, Subpart C, Sections for Intentional Radiators. Testing was performed in accordance with ANSI C63.4-1992. 1.3 Deviations, Additions and Exclusions: There were no deviations, additions to, or exclusions from the test specification during this test series. 1.4 Applicable Documents: The following documents of the exact issue designated form part of this document to the extent specified herein: - Federal Communications Commission “Code of Federal Regulations”, Title 47, Part 15, Subpart C, dated 1 October 1997 - ANSI C63.4-1992, “American National Standard for methods of measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz” 1.5 Subcontractor Identification: This series of tests was performed by the Elite Electronic Engineering Company, of Downers Grove, Illinois. The laboratory is accredited by the National Institute of Standards and Technology (NIST) under the National Voluntary Laboratory Accreditation Program (NVLAP). NVLAP Lab Code: 100278-0. THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF VERSUS TECHNOLOGY, INC. Engineering Test Report No. 05252000 Page____5____of__23______ 1.6 Laboratory Conditions: The temperature at the time of the test was 20°C and the relative humidity was 25%. 2.0 Test Item Setup and Operation: 2.1 Power Input: The test item received 3.0 VDC from internal battery. 2.2 Grounding: Since the test item was powered with 3.0 VDC through a battery, it was ungrounded during the tests. 2.3 Peripheral Equipment: There was no peripheral equipment. 2.4 Interconnect Cables: There were no interconnect cables. 2.5 Operational Mode: For all tests the test item was energized and placed on a 80cm high non- conductive stand. For all tests, the test item’s alarm button was shorted, thereby setting the unit to transmit continuously. The transmitting mechanism automatically deactivated when released. The battery voltage was periodically checked to ensure proper operation at maximum level. The tests were performed with the test item operating at 4.330MHz. 3.0 Test Equipment: 3.1 Test Equipment List: A list of the test equipment used can be found on Table I page 18. All equipment was calibrated per the instruction manuals supplied by the manufacturer. The fundamental, harmonics and spurious emissions were measured with an HP 8566B spectrum analyzer. The spectrum analyzer peak-detected readings were converted to average readings using a duty cycle factor. All measurements were taken with the resolution and video bandwidth of the measuring instrument adjusted to 100kHz below 1GHz and 1MHz above 1GHz. THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTE…
