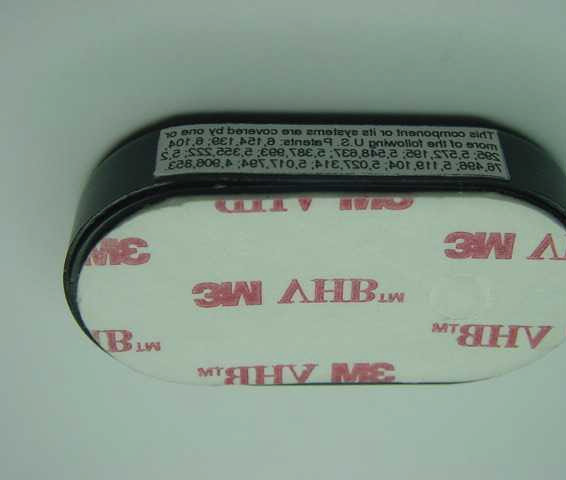

OGUVER1830CAsset Tag/Badge

1 Versus Technology, Inc. would like product description, block diagram and the schematic held confidential. Regards, Robert Wiser Versus Technology Engineer 1 2600 Miller Creek Road Traverse City, MI 49684 Phone: (616-946-5868) Fax: (616-946-6775)

VER-1780 PCB – TOP VIEW VER-1780 PCB – BOTTOM VIEW

A H D EMC Laboratory 92723 M-152, Dowagiac, MI 49047 USA Phone: (616) 424-7014 www.ahde.com This Report will be on file with AHD to September 7, 2006 Page 1 of 1 EMC Test Report #0100460F30 Issued 09/12/01 REGARDING THE FCC PART 15.231 (E) TRANSMITTER MODEL: VER-1830 Prepared for: Mr. Bob Wiser VERSUS Technology 2600 Miller Creek Rd. Traverse City, MI 49684 Test Date(s): September 7, 2001 data recorded by witnessed by Gordon Helm, PE Bob Wiser Ted Chaffee, NCE This report prepared by: Ted Chaffee, NCE Lab Manager/Test Engineer, AHD Deleted: 27 Inserted: 27 Deleted: 1 Test report #0100460F30 FCC 15.231 for Model VER-1830 Tested September 7, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 Page 2 of 29 TABLE OF CONTENTS TABLE OF CONTENTS........................................................................................................................2 Statements Concerning this Report.......................................................................................................3 Measurement/Test Site Facility & Equipment.........................................................................................4 Test Site [2.948, 2.1033(b6)]......................................................................................................4 Measurement Equipment Used [2.947(d), 15.31(b)]........................................................................4 EUT Description..................................................................................................................................5 EUT Pictures...............................................................................................................................5 Tested Configuration /Setup: [2.1033(b8)]..............................................................................................9 Support Equipment & Cabling........................................................................................................9 Setup Pictures.............................................................................................................................9 Test Methodology: [2.1033(b6)]...........................................................................................................12 Standards Applied to Test: [2.1033(b6)]........................................................................................12 FORMULAS AND SAMPLE CALCULATIONS:.......................................................................14 Measurement Results........................................................................................................................15 Summary:.................................................................................................................................15 Changes made to achieve compliance..................................................................................15 Restricted Bands: [15.205]..................................................................................................16 Radiated Field Strength Measurements: [15.231(b), 15.205]..................................................17 APPENDIX A....................................................................................................................................19 Modulation Characteristics and Duty Cycle Calculations................................................................19 Test Data from test 0100446F75 issued 08/16/01..........................................................................22 Occupied Bandwidth [15.231(c)]...........................................................................................22 APPENDIX B....................................................................................................................................23 General Measurement Procedures...............................................................................................23 Line Conducted...................................................................................................................23 Radiated............................................................................................................................24 Cable Loss................................................................................................................................26 AHD Accreditation......................................................................................................................28 Deleted: 2 Deleted: 3 Deleted: 4 Deleted: 4 Deleted: 4 Deleted: 5 Deleted: 5 Deleted: 9 Deleted: 9 Deleted: 9 Deleted: 12 Deleted: 12 Deleted: 14 Deleted: 15 Deleted: 15 Deleted: 15 Deleted: 16 Deleted: 17 Deleted: 19 Deleted: 19 Deleted: 21 Deleted: 21 Deleted: 22 Deleted: 22 Deleted: 22 Deleted: 23 Deleted: 24 Deleted: 26 Deleted: 1 Inserted: 1 Deleted: 18 Test report #0100460F30 FCC 15.231 for Model VER-1830 Tested September 7, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 Page 3 of 29 STATEMENTS CONCERNING THIS REPORT Test Traceability: The calibration of all measuring and test equipment and the measured data using this equipment are traceable to the National Institute for Standards and Technology (NIST). Limitations on results: The test results contained in this report relate only to the Item(s) tested. Any electrical or mechanical modification made to the test item subsequent to the test date shall invalidate the data presented in this report. Any electrical or mechanical modification made to the test item subsequent to this test date shall require an evaluation to verify continued compliance. Limitations on copying: This report shall not be reproduced, except in full, without the written approval of AHD. Limitations of the report: This report shall not be used to claim product endorsement by NVLAP, FCC, or any agency of the US Government. Statement of Test Results Uncertainty: Following the guidelines of NAMAS publication NIS81 and NIST Technical Note 1297, the Measurement Uncertainty at a 95% c…

Text truncated - open the document above for the full version.

Test report #0100460F30 FCC 15.231 for Model VER-1830 Tested September 7, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 Page 10 of 29 RADIATED SETUP END POSITION FLAT POSITION Deleted: 1 Inserted: 1 Deleted: 18 Test report #0100460F30 FCC 15.231 for Model VER-1830 Tested September 7, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 Page 11 of 29 SIDE POSITION Deleted: 1 Inserted: 1 Deleted: 18
