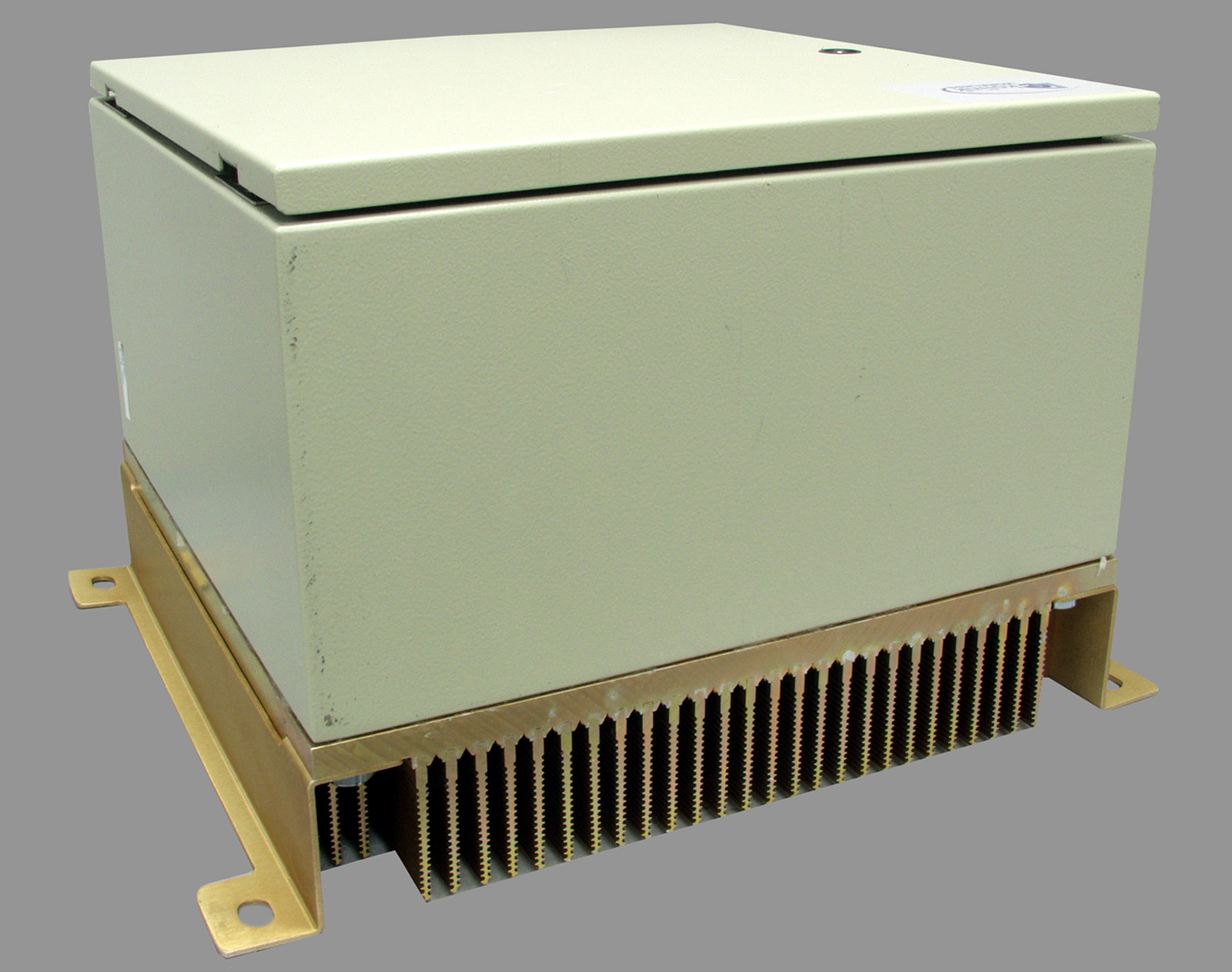

OIWBDA800BB50W90Bi-Directional Amplifier

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@dekolinkcomweb www dekolinkcom Page 1 of 14 50W rev 3  08/03 INSTALLATION AND OPERATING INSTRUCTIONS FOR HIGH POWER REPEATER MODEL: MW-BDA-800BB-50W90 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@dekolinkcomweb www dekolinkcom Page 2 of 14 50W rev 3  08/03 TABLE OF CONTENTS PARAGRAPH PAGE No REPEATER OVERVIEW 3 BLOCK DIAGRAM DESCRIPTION 3 REPEATER (BDA) CONNECTION 3 STEP ATTENUATOR & RF GAIN & SETTING 4 AGC FUNCTION 4 BDA MONITOR 5 BDA MONITOR FUNCTIONS 6 BDA INSTALLATION 8 BASE / DONOR ANTENNA INSTALLATION 8 REMOTE / MOBILE SERVICE ANTENNA INSTALLATION 8 ANTENNA ISOLATION 8 INSTALLATION STEPS 9 RF EXPOSURE WARNING 10 ELECTRICAL SPECIFICATIONS 11 MECHANICAL SPECIFICATIONS 11 ENVIRONMENTAL CONDITIONS 11 MECHANICAL LAYOUT 12 MECHANICAL OUTLINE 13 LIMITED WARRANTY 14 LIST OF DRAWINGS DRAWING PAGE No REPEATER(BDA) RF BLOCK DIAGRAM 4 BDA MONITOR 7 BDA MONITOR BLOCK DIAGRAM 7 MECHANICAL LAYOUT 13 MECHANICAL OUTLINE 13 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@dekolinkcomweb www dekolinkcom Page 3 of 14 50W rev 3  08/03 REPEATER OVERVIEW: The Bi-Directional Repeater assembly provides an exceptional repeater/booster performance to extend the coverage area of radio communications in buildings and RF shielded environments. Features such as high linearity power amplifiers are contributing for the overall improved system linearity performances. The unit is based on a duplexed path configuration, having sharp out of band attenuation for improved isolation between the receiving and transmitting paths. BLOCK DIAGRAM DESCRIPTION: The Repeater Downlink path receives the RF signals from base station, amplifies them and transmits them to the subscriber. The Repeater Uplink path receives the RF signals from the subscriber, amplifies them and transmits them to the base station. Two duplexers frequency separate the signals to the proper amplifying path and isolate the two signals. For each path two amplifiers do the path signal amplification; a low noise amplifier (LNA) and a high power amplifier. The low noise amplifier has a 30 dB step attenuator to set the gain of the specific path. REPEATER (BDA) CONNECTION The RF connection is made via two type “N” female connectors. The RF connector labeled “Base” must be connected to the antenna pointing to the base station; usually a rooftop antenna. The RF connection labeled “Mobile” must be connected to the antenna pointing into the area to be covered by the Repeater such as inside a building or outdoor shaded area. Duplexer Downlink Duplexer Uplink LNA Attenuator Power Monitor PA AGC LNA Attenuator Power Monitor PA AGC BDA RF BLOCK DIAGRAM TO BASE TO MOBILE Page 4 of 14 50W rev 3  08/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@dekolinkcomweb www dekolinkcom STEP ATTENUATOR AND RF GAIN SETTING For proper operation of the Repeater, the isolation between the base station antenna and the mobile antenna should exceed the Repeater gain by at least 12 dB. If the Repeater gain were higher than the isolation between the antennas, oscillation would start and would saturate the amplifier. Isolation few dB higher than the Repeater gain cannot start oscillations but would cause gain ripple in the band. The step attenuator on the low noise amplifier reduces the Repeater gain. The Repeater gain can be stepped down by the amount indicated on the step attenuator. AGC FUNCTION The Repeater has AGC function on both paths that serve to prevent the saturation of the power amplifier. When a high signal is received the AGC circuit detects the amplitude and sends a feedback signal to a variable attenuator, which attenuates the signal level so that the output power of the amplifier does not exceed the preset limit. The green LED on the BDA monitor (AGC Range) illuminates when the power output of the amplifier is within the set limit. An On/Off switch on the connection box enables the AGC function. If the AGC is disabled then the amplifier gives maximum gain. Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@dekolinkcomweb www dekolinkcom Page 5 of 14 50W rev 3  08/03 BDA MONITOR The BDA monitor circuit monitors the following functions: RF power transmitted by the power amplifiers. For the downlink channel a red fault LED illuminates if the power is 10 dB below the specified composite power. In normal use the downlink channel continuously transmits RF signals and this LED should be on. When the donor reception from the base is bad this LED turns on to warn that the repeater is not being used efficiently. Another green LED illuminates when the power reaches or exceeds this power (10W). This is used to set the repeater gain. This limit is the same as the AGC limit and is factory preset. For the uplink channel a green indicator LED illuminates when the power reaches or exceeds its composite power (1W). When the isolation between the antennas is bad this LED lits permanently. This LED should turns on only when a near by cellular is used. This limit is the same as the AGC limit and is factory preset. DC voltage of the channels. The fault LED illuminates when the voltage is below or above the specified limits. DC current to each of the two LNAs and the uplink power amplifier. If the current is below or above the specified limits then a LED illuminates. Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@dekolinkcomweb www dekolinkcom Page 6 of 14 50W rev 3  08/03 BDA MONITOR FUNCTIONS P.S. (Uplink & down link) Illuminates when the Power Su…

Text truncated - open the document above for the full version.

Dekolink WIRELESS Ltd.16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:[email protected] www.dekolink.com Page 3 of 12 50W BDA-800BB-50W INST.doc REPEATER OVERVIEW: The Bi-Directional Repeater assembly provides an exceptional repeater/booster performance to extend the coverage area of radio communications in buildings and RF shielded environments. Features such as high linearity power amplifiers are contributing for the overall improved system linearity performances. The unit is based on a duplexed path configuration, having sharp out of band attenuation for improved isolation between the receiving and transmitting paths. BLOCK DIAGRAM DESCRIPTION: The Repeater Downlink path receives the RF signals from base station, amplifies them and transmits them to the subscriber. The Repeater Uplink path receives the RF signals from the subscriber, amplifies them and transmits them to the base station. Two duplexers frequency separate the signals to the proper amplifying path and isolate the two signals. For each path two amplifiers do the path signal amplification; a low noise amplifier (LNA) and a high power amplifier. The low noise amplifier has a 30 dB step attenuator to set the gain of the specific path. REPEATER (BDA) OPERATION The RF connection is made via two type “N” female connectors. The RF connector labeled “Base” must be connected to the antenna pointing to the base station; usually a rooftop antenna. The RF connection labeled “Mobile” must be connected to the antenna pointing into the area to be covered by the Repeater such as inside a building or outdoor shaded area. Dekolink WIRELESS Ltd.16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:[email protected] www.dekolink.com Page 4 of 12 50W BDA-800BB-50W INST.doc Duplexer Downlink Duplexer Uplink LNA Attenuator Power Monitor PA AGC LNA Attenuator Power Monitor PA AGC BDA RF BLOCK DIAGRAM TO BASE TO MOBILE STEP ATTENUATOR AND RF GAIN SETTING For proper operation of the Repeater, the isolation between the base station antenna and the mobile antenna should exceed the Repeater gain by at least 12 dB. If the Repeater gain were higher than the isolation between the antennas, oscillation would start and would saturate the amplifier. Isolation few dB higher than the Repeater gain cannot start oscillations but would cause gain ripple in the band. The step attenuator on the low noise amplifier reduces the Repeater gain. The Repeater gain can be stepped down by the amount indicated on the step attenuator.

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com FCC ID: OIWBDA800BB50W90 LABEL FORMAT Page 1 of 1 FCC ID BDA 800BB-50W90.doc

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Downlink Power Amplifier 1SPECIFICATIONS Parameter Specifications Input Frequency Range 880-894 MHz RF Gain 46±2 dB Gain Ripple <±0.7 dB Noise Figure <10 dB Output 3 rd order intercept point +64 dBm typ; +60 dBm min VSWR Input and Output <1.5:1 AGC Set Point +40±1 dBm AGC Range >10 dB RF Connectors SMA female Supply Voltage 28 Volt Supply Current 4.00 A at +40 dBm Amplifier RF Input RF Output POWER AMPLIFIER BLOCK DAIGRAM Voltage Variable Attenuator Directional Coupler Detector Feedback Voltage Regulator Page 4 of 4 BDA 800B 50W90 AMPS SCHEMATICS.doc

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com 9 July 2003 BDA 800B 50W90 POWER AMPLIFIERS SCHEMATICS: Uplink Power Amplifier 0SPECIFICATIONS Parameter Specifications Input Frequency Range 835-849 MHz RF Gain 46±2 dB Gain Ripple <±0.7 dB Noise Figure <10 dB Output 3 rd order intercept point +50 dBm typ; +48 dBm min VSWR Input and Output <1.5:1 AGC Set Point +30±1 dBm AGC Range >20 dB RF Connectors SMA female Supply Voltage 28 Volt Supply Current 700±100 mA Page 1 of 1 BDA 800B 50W90 AMPS SCHEMATICS.doc UPLINK POWER AMPLIFIER RF CIRCUIT DIAGRAM

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 1 of 1 50W rev 2  09/02 RF COMPONENTS DESCRIPTION AND SCHEMATICS FOR MW-BDA-800BB-50W90 Duplexer Downlink Duplexer Uplink LNA Attenuator Power Monitor PA AGC LNA Attenuator Power Monitor PA AGC BDA RF BLOCK DIAGRAM TO BASE TO MOBILE Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 2 of 2 50W rev 2  09/02 LNA +STEP ATTENUATOR This is a 48dB GAIN unit with a 30 dB step attenuator. The step attenuator is used to reduce the Repeater gain when needed, usually to set proper output power . Both Uplink and downlink LNA’s are the same except for a ceramic filter that is tuned to the proper band (uplink / downlink) Title SizeDocument NumberRev Date:Sheet of 300AC80504 Preamplifier Filter A 11Thursday, July 31, 2003 U4 SGA-6486 31 4 2 U1 UA7812KC IN 1 OUT 3 GND 2 R1 240 D1 1N5376D C6 51pF C8 51pF C7 51pF R5 68 R7 100 R6 100 L3 22nH L2 0.1uH C9 51pF R10 400 R11 400 R8270R9 270 U3 SGA-458631 4 2 C12 0.1uF C11 0.1uF U3 C10 1pF C2 51pF C3 51pF R3 270 R4 270 L1 0.1uH F1 BPF IN 1 OUT 5 + C4 1uF + C14.7uF Input R14 10K R12 10K R13 10K R15 10K C5 0.1uF S1 4 Bit Switch A8 1 C2 2 A2 3 C1 5 A4 4 A1 6 Output AA264 Gnd 1 Gnd 2 V1 3 V2 4 V3 5 V4 6 Gnd 7 Gnd 8 Out 9 Gnd 10 Gnd 11 Gnd 12 Gnd 13 Gnd 14 Gnd 15 In 16 R2 10K U2 SGA-6486 31 4 2 +15V +5V+5V +12V +12V +5V +12V T4 T3 T4T1 T2T3 +12V T1 T2 +5V Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 3 of 3 50W rev 2  09/02 Downlink power amplifier: This is a 50W 1dB compression amplifier operated at 10W composite output power. The power is limited by AGC mechanism to keep system performance. The amplifier uses 28VDC, 4AMP. Typ. This is a Buy product so we have only block diagram. Amplifier RF Input RF Output DOWN LINK POWER AMPLIFIER BLOCK DAIGRAM Voltage Variable Attenuator Directional Coupler Detector Feedback Voltage Regulator Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 4 of 4 50W rev 2  09/02 Uplink power amplifier: This is a 16W 1dB compression amplifier operated up to 1W composite output power. The power is limited by AGC mechanism to keep system performance. The amplifier uses 28VDC, 1.7 AMP. Typ. UPLINK POWER AMPLIFIER RF PATH CIRCUIT DIAGRAM (Page 1 of 2) Title SizeDocument NumberRev Date:Sheet of 300PA103040 Dual Power Amplifier A 12Monday, December 10, 2001 +5V C16 51pF R12 0 R10 160 R11 160 R21 51 L1 33nH R14 270 R31 50 Video ATT +V R22 68 R24 100 Output R13 270 C20 4.7uF R23 100 U10 Coupler A 1 C 3 D 4 B 2 R32 50 U6 Power Amp In 1 +V 2 +V 3 +V 4 Out 5 U4 SGA-6486 31 4 2 C5 51pF C13 0.1uF C14 4.7uF U3 AT-108 1 2 3 4 8 7 6 5 U9 Coupler A 1 C 3 D 4 B 2 C19 0.1uF D3 Dual Diode Input C7 51pF C10 0.1uF U5 SGA-6486 31 4 2 L3 33nH R16 270 R15 270 C8 51pF J1 CONN C9 0.1uF C6 51pF C1 0.1uF C25 0.1uF J2 CONN C24 4.7uF U8 COUPLER A 1 C 3 D 4 B 2 C21 0.1uF C22 4.7uF +12V U11 Power Amp In 1 +V 2 +V 3 +V 4 Out 5 +27V C23 0.1uF Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 5 of 5 50W rev 2  09/02 Video ATT Title SizeDocument NumberRev Date:Sheet of 300PA103040 Dual Power Amplifer A 22Monday, December 10, 2001 C4 1uF C11 1uF R310k C2 1uF R296k +12V U1B LM124 5 6 7 4 11 SW1 SW SPDT R26 4k R51000k D4 LED +12V + C17 4.7uF C3 0.1uF R81k U1D LM124 12 13 14 4 11 +12V R41k U1C LM124 10 9 8 4 11 +12V +12V+12V U7 LM78L05 B 8 C 2 D 3 E 6 F 7 A 1 R301k +12V R21k +5V R28 3k R18 1k U2 LM7812/TO VIN 1 GND 3 VOUT 2 R251k U1A LM124 3 2 1 4 11 R1 1k K15k +27V +5V UPLINK POWER AMPLIFIER AGC CIRCUIT DIAGRAM (Page 2 of 2) Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 6 of 6 50W rev 2  09/02 MECHANICAL LAYOUT Downlink Uplink FUSE Power AGC AGC 10A ON/OFF ON/OFF ON/OFF Uplink Preamplier Downlink Ampifier Downlink Preamplier Uplink Amplifier BDA MONITOR

Dekolink WIRELESS Ltd.16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:[email protected] www.dekolink.com Page 5 of 12 50W BDA-800BB-50W INST.doc AGC FUNCTION The REPEATER has AGC function on both paths that serve to prevent the saturation of the power amplifier. The power amplifier has a directional coupler and a detector at its output to monitor the output power. When a high signal is received the automatic level control detects the amplitude and sends a feedback signal to a voltage variable attenuator, which attenuates the signal level so that the output power of the amplifier does not exceed the preset limit. The LED on the amplifier illuminates when the power output of the amplifier is within the set limit (when the AGC is On and when the AGC is OFF). An On/Off switch enables the AGC function. If the AGC is disabled then the amplifier gives maximum gain. BDA MONITOR The BDA monitor monitors the DC voltage of the channels. The fault LED illuminates when the voltage is below or above the specified limits. The monitor box also monitors the current to each one of the 4 amplifiers. If the current is below or above the specified limits then a LED illuminates. FAULTS LIST (up link & down link) P.S. Illuminates when the Power Supply voltage is below or above its limits. P.AMP. Illuminates when the Power Amplifier current is above or below its specified limits. Note : The downlink amplifier will trip a fault when overdriven by RF signals. L.N.A. Illuminates when the Low Noise Amplifier current is above or below its specified limits. FAN Illuminates when the internal FAN current is above or below its specified limits. N.C. Not connected. (Future option) A pushbutton switch on the BDA monitor turns on all the alarms. This is used to test the alarm functions of the BDA. REMOTE ALARM The BDA monitor has a dry contact relay arms output. These contacts are short circuit at no fault and open circuit at any fault or when the power is off. This function can be used to operate a modem for remote alarm warning. The relay contacts are connected to pins A and C (small pins) on the alarm connector at the front panel.

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com 30.07.03 PART LIST FOR : MW-BDA-800BB50W90 FCC ID: OIWBDA800BB50W90 Part Name Part Des. Qty. Unit Sup. Part 1 300UA31100 POWER SUPLY ASSY 1.00 EA JWS-300-24 2 300YA15000 CONNECTION BOX ASSY 1.00 EA 3 300YA14000 MONIT0R 1.00 EA 4 300YA12000 UPLINK PRE-AMP 48dB UL-842 1.00 EA 5 300YA13000 DOWNLINK PRE-AMP 48dB DL-887 1.00 EA 6 1510992863 UPLINK POWER AMP RF 800-960MHZ 16W 1.00 EA CD0202000 7 1510992641 DOWNLINK POWER AMP RF 870-900MHZ 50W 1.00 EA 7040 8 1511692556 Coaxial isolator model C10-1L 5FF 1.00 EA Coax.Isilator 0.78- 0.8GHZ 9 1501001351 FAN 24VDC 120mA 2.88W 37dbA SQ92MMX25MM 1.00 EA 10 1513000589 Diplexer Cell B 2.00 EA SGC-D887-14SS- KSR 300UA50150 HEAT SINK 1.00 EA 1241001209 IC REG FX POS 15V 1.0 ATO-220 1.00 EA UA7815CKC 30WVA30001 SMA141-25N-11SMA-23cm 1 EA 30WVA30003 SM141-11SMA(x2)-34,5cm 1.00 EA 30WVA30004 SM141-11SMA(x2)-15,5cm 1.00 EA 30WVA30005 SM141-11SMA(x2)-57cm 1.00 EA 30WVA30006 SM141-11SMA(x2)-43cm 1.00 EA 30WVA30007 SMA141-25N-11SMA-23cm 1 EA 30WVA30008 SM141-11SMA(x2)-16cm 1.00 EA 30WVA30009 SM141-11SMA(x2)-23cm 1.00 EA 30WVA30010 SM141-11SMA(x2)-23cm 1.00 EA Page 1 of 1 PART LIST BDA 800BB 50W90.doc

DOWN LINK 880-894 MHZ INDOOR ANTENNA Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 33.00 (dBm) Maximum peak output power at antenna input terminal: 1995.262315 (mW) Antenna gain(typical): 2 (dBi) Maximum antenna gain: 1.584893192 (numeric) Prediction distance: 20 (cm) Prediction frequency: 894 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.6 (mW/cm^2) Power density at prediction frequency: 0.629115 (mW/cm^2) Maximum allowable antenna gain: 1.794211057 (dBi) Margin of Compliance: -0.205788943 Note: Cable and splitter insertion loss has not been accounted for in this calculation. 2 4 R PG S π =

DOWN LINK 880-894 MHZ OUTDOOR ANTENNA Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 40.00 (dBm) Maximum peak output power at antenna input terminal: 10000 (mW) Antenna gain(typical): 8 (dBi) Maximum antenna gain: 6.309573445 (numeric) Prediction distance: 200 (cm) Prediction frequency: 894 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.6 (mW/cm^2) Power density at prediction frequency: 0.125525 (mW/cm^2) Maximum allowable antenna gain: 14.79421106 (dBi) Margin of Compliance: 6.794211057 2 4 R PG S π =

UP LINK 835-849 MHZ OUTDOOR ANTENNA Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 30.00 (dBm) Maximum peak output power at antenna input terminal: 1000 (mW) Antenna gain(typical): 10 (dBi) Maximum antenna gain: 10 (numeric) Prediction distance: 100 (cm) Prediction frequency: 849 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.6 (mW/cm^2) Power density at prediction frequency: 0.079577 (mW/cm^2) Maximum allowable antenna gain: 18.77361114 (dBi) Margin of Compliance: 8.773611144 (dB) 2 4 R PG S π =

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@dekolinkcomweb www dekolinkcom Page 10 of 14 50W rev 2  09/02 RF EXPOSURE WARNING In order to satisfy the FCC RF exposure requirements, you must ensure that the installation complies with the following: One antenna is connected via cable that has typical 1~10 dB attenuation (depends on the length of the cable) to the BDA base port. This antenna is installed outdoor and has very sharp beam (Yagi type or similar) pointed to the donor (BTS). This type of antenna has about 10 dBi gain. Typical specifications: gain: 8 dBd (=10.1 dBi), VSWR: better than 1.5:1 , Impedance: 50 ohm. The outdoor antenna must be installed to provide a minimum separation distance of 1 m (100 cm) from persons within the area. The second antenna is connected via cable that has typical 1~10 dB attenuation (depends on the length of the cable) to the BDA MOBILE port. This type of antenna is omnidirecttional (isotropic), or wide beam, with 0 to 2 dBi typical gain and is installed and distributes indoor (in buildings, tunnels, basements, park lots, shopping centers etc.). Typical specifications: gain: 2 dBi, VSWR: better than 2:1 , Impedance: 50 ohm. For direct connection to the BDA this antenna must be installed to provide a minimum separation distance of 2 m (200 cm) from persons within the area. Less separation is needed if the power from this power is divided into many antennas covering many floors or areas.

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Video ATT +V Title SizeDocument NumberRev Date:Sheet of 300PA103040 Dual Power Amplifier A 12Monday, December 10, 2001 +5V C16 51pF R12 0 R10 160 R11 160 R21 51 L1 33nH R14 270 R31 50 R22 68 R24 100 Output R13 270 C20 4.7uF R23 100 U10 Coupler A 1 C 3 D 4 B 2 R32 50 U6 Power Amp In 1 +V 2 +V 3 +V 4 Out 5 U4 SGA-6486 31 4 2 C5 51pF C13 0.1uF C14 4.7uF U3 AT-108 1 2 3 4 8 7 6 5 U9 Coupler A 1 C 3 D 4 B 2 C19 0.1uF D3 Dual Diode Input C7 51pF C10 0.1uF U5 SGA-6486 31 4 2 L3 33nH R16 270 R15 270 C8 51pF J1 CONN C9 0.1uF C6 51pF C1 0.1uF C25 0.1uF J2 CONN C24 4.7uF U8 COUPLER A 1 C 3 D 4 B 2 C21 0.1uF C22 4.7uF +12V U11 Power Amp In 1 +V 2 +V 3 +V 4 Out 5 +27V C23 0.1uF Page 2 of 2 BDA 800B 50W90 AMPS SCHEMATICS.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com DC & AGC CIRCUIT DIAGRAM Title SizeDocument NumberRev Date:Sheet of 300PA103040 Dual Power Amplifer A 22Monday, December 10, 2001 C4 1uF C11 1uF R310k C2 1uF R296k +12V U1B LM124 5 6 7 4 11 SW1 SW SPDT R26 4k R51000k D4 LED +12V + C17 4.7uF C3 0.1uF R81k U1D LM124 12 13 14 4 11 +12V R41k U1C LM124 10 9 8 4 11 +12V +12V+12V U7 LM78L05 B 8 C 2 D 3 E 6 F 7 A 1 R301k +12V R21k +5V R28 3k R18 1k U2 LM7812/TO VIN 1 GND 3 VOUT 2 R251k U1A LM124 3 2 1 4 11 R1 1k K15k +27V +5V Video ATT Page 3 of 3 BDA 800B 50W90 AMPS SCHEMATICS.doc

Master: PT90PLMR Date: February 25, 2001 Test Report: 3W06532 Applicant: Dekolink Wireless Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, 49510 Israel Equipment Under Test: Bi-Directional Amplifier (EUT) Model MW-BDA-800B-50W90 FCC ID: OIW BDA800BB50W90 In Accordance With: FCC Part 22, Subpart H Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Glen Westwell, Wireless Technologist Date: 21 July 2003 Total Number of Pages: 65 Nemko Canada Inc. FCC PART 22, SUBPART H Bi-Directional Amplifier PROJECT NO.:3W06532 EQUIPMENT: MW-BDA –800B-50W90 Page 2 of 65 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. General Equipment Specification......................................................................5 Section 3. RF Power Output ................................................................................................6 Section 4. Occupied Bandwidth ..........................................................................................7 Section 5. Spurious Emissions at Antenna Terminals ....................................................17 Section 6. Field Strength of Spurious Emissions .............................................................60 Section 7. Test Equipment List .........................................................................................63 Section 8. Block Diagrams .................................................................................................64 Nemko Canada Inc. FCC PART 22, SUBPART H Bi-Directional Amplifier PROJECT NO.:3W06532 EQUIPMENT: MW-BDA –800B-50W90 Page 3 of 65 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22, Subpart H. New Submission Production Unit Class II Permissive Change Pre-Production Unit A M P Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: _____________________________________ DATE: 21 July 2003 Russell Grant Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 22, SUBPART H Bi-Directional Amplifier PROJECT NO.:3W06532 EQUIPMENT: MW-BDA-800B-50W90 Page 4 of 65 Summary Of Test Data Name Of Test Para. No. Result RF Power Output 2.1046 Complies Occupied Bandwidth 2.1049 Complies Spurious Emissions at Antenna Terminals 2.1051 Complies Field Strength of Spurious Emissions 2.1053 Complies Frequency Stability 2.1055 N/A Footnotes For N/A’s: This equipment does not have any frequency generating circuits. Indoor Temperature: 24°C Humidity: 41% Outdoor Temperature: 27°C Humidity: 45% Nemko Canada Inc. FCC PART 22, SUBPART H Bi-Directional Amplifier PROJECT NO.:3W06532 EQUIPMENT: MW-BDA-800B-50W90 Page 5 of 65 Section 2. General Equipment Specification Manufacturer: Dekolink Wireless Ltd. Model No. MW-BDA-800B-50W90 Serial No: 03066109 Date Received In Laboratory: July 8, 2003 Nemko Identification No.: 1 Supply Voltage: 120VAC, 60Hz Frequency Range: Uplink: 835-849 MHz Downlink: 880-894MHz RF Output Power (Rated): Downlink: 40dBm Uplink: 30dBm Emission Designator: TDMA: DXW GSM: GXW CDMA: F9W Nemko Canada Inc. FCC PART 22, SUBPART H Bi-Directional Amplifier PROJECT NO.:3W06532 EQUIPMENT: MW-BDA-800B-50W90 Page 6 of 65 Section 3. RF Power Output Para. No.: 2.1046 Test Performed By: Russell Grant Date of Test: July 14, 2003 Minimum Standard: 22.913(a), 500 W ERP Test Results: Complies The maximum output power is 12.0 Watts ERP. This is 16.2 dB below the specification limit. The measured output power is within 1 dB of the manufacturers rated output power. Down Link Rated Output Power: 40 dBm Up Link: Rated Output Power 30 dBm Measured Output Power Typical Antenna Gain ERP (dBm) (dB d ) (dBm) (Watts) Up Link 30.1 to 30.3 8 38.3 6.8 Down Link 40.1 to 40.8 0 40.8 12.0 Note: Output power is reduced via AGC according to channel loading. Down Link per channel power Watts N       = 10 , N=number of channels. Up Link per channel power Watts N       = 1 , N=number of channels. Nemko Canada Inc. FCC PART 22, SUBPART H Bi-Directional Amplifier PROJECT NO.:3W06532 EQUIPMENT: MW-BDA-800B-50W90 Page 7 of 65 Section 4. Occupied Bandwidth Para. No.: 2.1049 Test Performed By: Russell Grant Date of Test: July 16, 2003 Minimum Standard: 22.917(a) Test Results: Complies. There was no degradation in the occupied bandwidth. Measurement Data: See attached graphs. The occupied bandwidth was measured by comparison of input to the output signal. This was done in order to determine if there was any degradation to the output signal due to the amplification through the repeater. Nemko Canada Inc. FCC PART 22, SUBPART H Bi-Directional Amplifier PROJECT NO.:3W06532 EQUIPMENT: MW-BDA-800B-50W90 Page 8 of 65 TDMA Input Signal Nemko Canada Inc. FCC PART 22, SUBPART H Bi-Directional Amplifier PROJECT NO.:3W06532 EQUIPMENT: MW-BDA-800B-50W90 Page 9 of 65 GSM Input Signal Nemko Canada Inc. FCC PART 22, SUBPART H Bi-Directional Amplifier PROJECT NO.:3W06532 EQUIPMENT: MW-BDA-800B-50W90 Page 10 of 65 CDMA Input Signal Nemko Canada Inc. FCC PART 22, SUBPART H Bi-Directional Amplifier PROJECT NO.:3W06532 EQUIPMENT: MW-BDA-800B-50W90 Page 11 of 65 Up Link TDMA Occupied Bandwidth Nemko Canada Inc. FCC PART 22, SUB…

Text truncated - open the document above for the full version.

Nemko Canada Inc. FCC PART 22, SUBPART H Bi-Directional Amplifier PROJECT NO.:3W06532 EQUIPMENT: MW-BDA-800B-50W90 Page 62 of 65
