Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Feb. 04, 3008 Equipment Authorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: OIWDCSA45047012CH Product Name: Digital Channel Selective Amplifier - UHF (DCSA-UHF) Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational description, it is provided to customer based on non-disclosure agreement. • photos of circuits and amplifiers and internal photos, it is permanently mounted /sealed, not generally publicly accessible • Part list. • Tune up procedure. • User manual, provided to customer based on non-disclosure agreement. These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 13 Day of Feb. 20 08 By: Yaron Moas Signature Printed Title: Director, Engineering Division On behalf of : Dekolink Wireless Ltd. Telephone: +972-3-918-0180

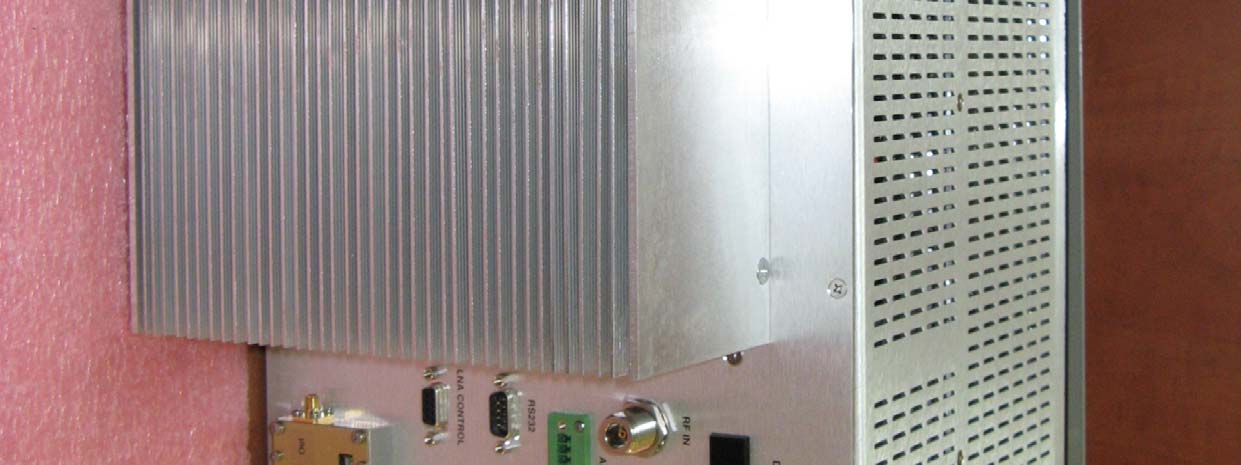

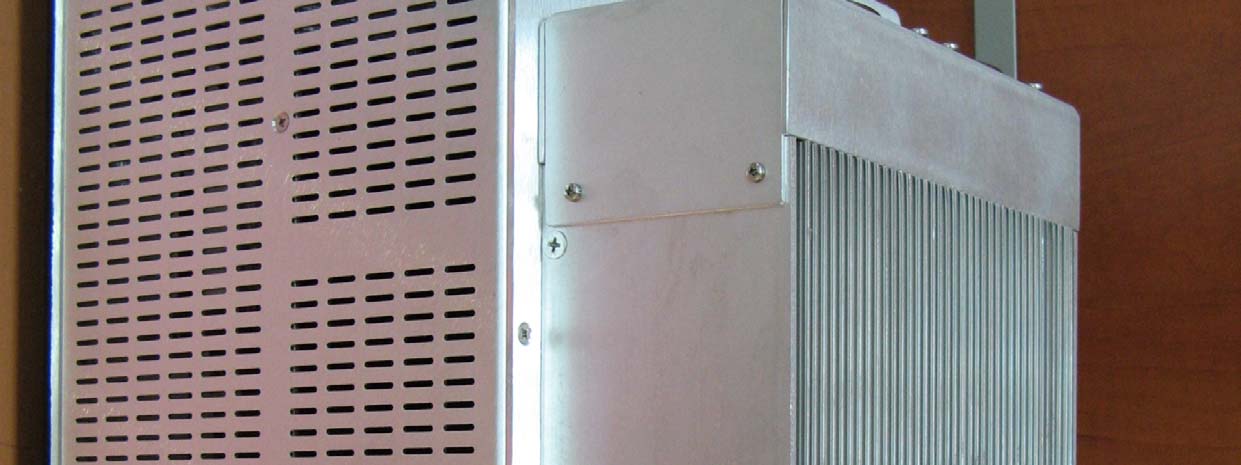

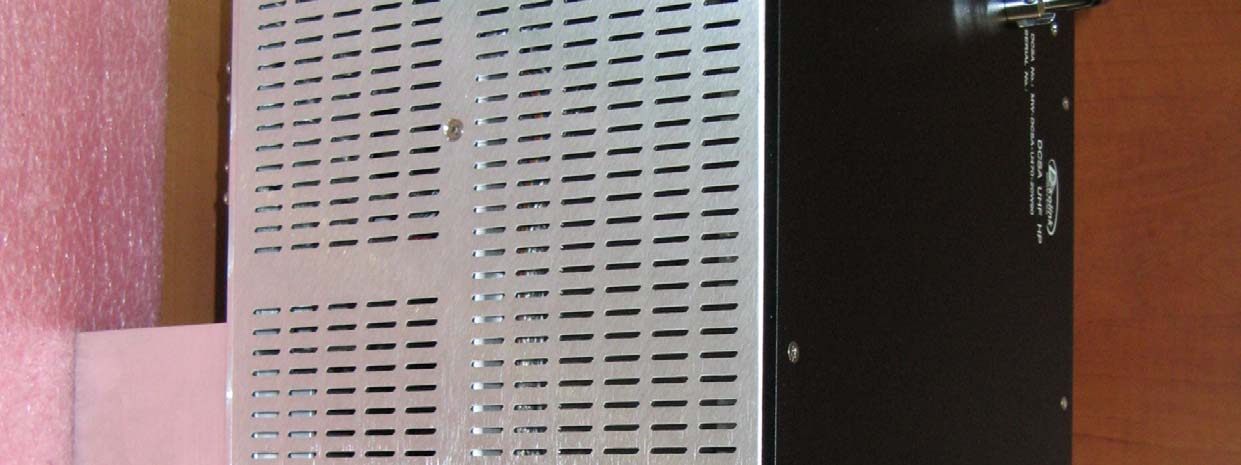

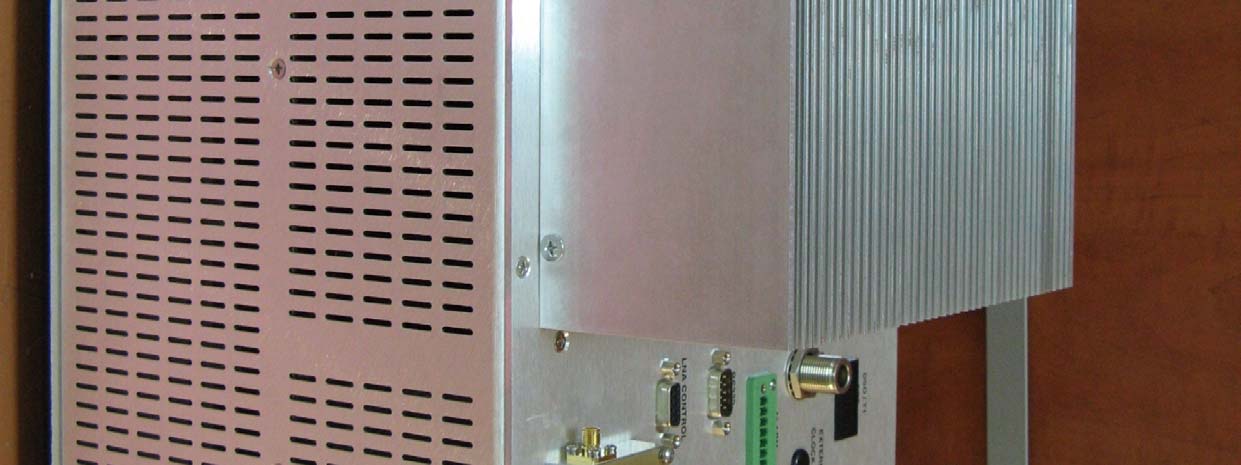

38.10 76.20 0.10.1 A A M00709 RELEASE 27.02.08 HE 19.06.07 19.06.07 HAIM E 1 1 NONE LABEL 9713000153 HAIME DCSA 9713000153 NOTE:1. MATERIAL: LABEL, SILVER METALIZED POLYESTER WIT H 3M 467MP + PERMANENT ACRYLIC BACK ADHESIVE. 2. PRINTING: BLACK. 2.1 TEXT: HELVETICA MEDIUM.3. USE RIBBON ACCORDING TO LABEL MANUFACTURER RECO MMENDATION. 4. FOR SERIAL NUMBER SEE LABEL INFORMATION.5. BAR CODE TYPE ACCORDING TO CODE-1286. THE LABELS MUST BE SUPPLIED ON ROLL.7. PART MUST COMPLY TO RoHS REQUIREMENTS. This Document and Any Attachments Thereto Contain Propi etary Confidential and Privileged Information and Is for the Sole Use of the Intended Recipient(s). Any Unauthorized Review, Use, Reproduction, Disclosure or Distribution Is Strictly Prohibited. Max. ALL DIMENSIONS ARE IN MM. DO NOT SCALE DRAWING 1 2 3 4 5 6 A B CD C B A D DESCRIPTION 1 2 3 5 6 4 REV ECO # DATE APPROVED PROJCT TITLE BURR & FLASH Max. SHARP EDGES 0.1-0.3mm DATE NAME CHECK. DESIGN SIGNTUR SHEET SCALE PART REV. DRAWN BREAK SHARP CORNERS & MANGR OF A3 LINEAR MM HOLE + MMBETWEEN HOLES MM ANGULAR DRAFTANGLE/SIDE UNLESS OTHERWISE SPECIFIED PART No. 9713000153-A.SLDDRW11/03/2008Page 1 of 1 Ziv.S 3 4 Ziv.S DCSA UHF ASSEMBLY 300VC50000 0 27.2.0827.2.0827.2.08 H.E TOP 1:1.75 This Document and Any Attachments Thereto Contain P ropietary Confidential and Privileged Information and Is for the Sole Use of the Intended Recipient(s). Any Unauthorized Review, Use , Reproduction, Disclosure or Distribution Is Strictly Prohibited. 8 E 1 2 3 4 5 6 A B C D APPROVED DATE ECO # REV 4 C B 6 5 3 2 1 A PART No. 7 DATE SHARP EDGES 0.1-0.3mm DO NOT SCALE DRAWING F E PROJCT 7 8 TITLE PART REV. NAME D CHECK. DESCRIPTION DRAWN ALL DIMENSIONS ARE IN MM. BURR & FLASH Max. UNLESS OTHERWISE SPECIFIED Max. MANGR A2 OF SCALE SHEET SIGNATURE DESIGN LINEAR MM HOLE + MMBETWEEN HOLES MM ANGULAR DRAFTANGLE/SIDE BREAK SHARP CORNERS & F 9 A3 1 H1 MP3 1 Page 3 of &[300VC50000.SLDDRWpages]11/03/2008
Maximum peak output power at antenna input terminal:43.00(dBm) Maximum peak output power at antenna input terminal:19953(mW) Antenna gain(typical):2.2(dBi) Maximum antenna gain:1.660(numeric) Prediction distance:100(cm) Sourse Based Time Average Duty Cycle:100(%) Prediction frequency:470(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.313(mW/cm^2) Power density at prediction frequency:0.2635(mW/cm^2) Margin of Compliance:0.7522(dB)
www.nemko.com Test Report: 101482TRFWL Applicant: Dekolink Wireless Ltd. 16 Bazel St. Qiryat Arieh Petah-Tikva, 49510 Istael Apparatus: MW-DCSA-450-470-12C-20W FCC ID: OIWDCSA45047012CH In Accordance With: FCC Part 90, Boosters Private Land Mobile Radio Services Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jason Nixon, Wireless/Telecom Specialist Date: March 5, 2008 Total Number of Pages: 29 FCC Part 90 Boosters : October 2006 Nemko Canada Inc. REPORT SUMMARY Report Number: 101482TRFWL FCC ID: OIWDCSA45047012CH Specification: FCC Part 90 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 90. Conducted measurements were performed in accordance with ANSI TIA-603-B-2002. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: MW-DCSA-450-470-12C-20W Specification: FCC Part 90 Private Land Mobile Radio Services Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Heng Lin EMC/Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Page 2 of 29 Nemko Canada Inc. REPORT SUMMARY Report Number: 101482TRFWL FCC ID: OIWDCSA45047012CH Specification: FCC Part 90 TABLE OF CONTENTS Report Summary.........................................................................................................................................2 Section 1 : Equipment Under Test.............................................................................................................4 1.1 Product Identification.................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation...................................................................................................................................4 1.4 Technical Specifications of the EUT..........................................................................................................5 1.5 Block Diagram of the EUT.........................................................................................................................5 Section 2 : Test Conditions.........................................................................................................................6 2.1 Specifications.............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment.......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 2.5 Measurement Uncertainty...........................................................................................................................7 Section 3 : Observations.............................................................................................................................8 3.1 Modifications Performed During Assessment ............................................................................................8 3.2 Record Of Technical Judgements...............................................................................................................8 3.3 EUT Parameters Affecting Compliance.....................................................................................................8 3.4 Test Deleted................................................................................................................................................8 3.5 Additional Observations.............................................................................................................................8 Section 4 : Results Summary.....................................................................................................................9 4.1 FCC Part 90 : Test Results.......................................................................................................................10 Appendix A : Test Results........................................................................................................................11 Clause 90.205 Output Power ...............................................................................................................................11 Clause 90.210 Conducted Spurious Emissions....................................................................................................12 Clause 90.210 Radiated Spurious Emissions.......................................................................................................20 Clause 90.213 Frequency Stability................................................…
Text truncated - open the document above for the full version.
16 Bazel St. Qiryat-Arieh · Petah-Tikva · Israel
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 90 | 450 MHz - 470 MHz | 4 W | F1W | Amp |

DUAL BAND IDEN REPEATER
Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
CDMA MIDI REPEATER UNIT 80DB/30DBM WITH CCD
Equipment Class
PCB - PCS Licensed Transmitter
Digital Channel Selective Amplifier � UHF
Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Multi-Band iDEN and WPCS Booster
Equipment Class
PCB - PCS Licensed Transmitter

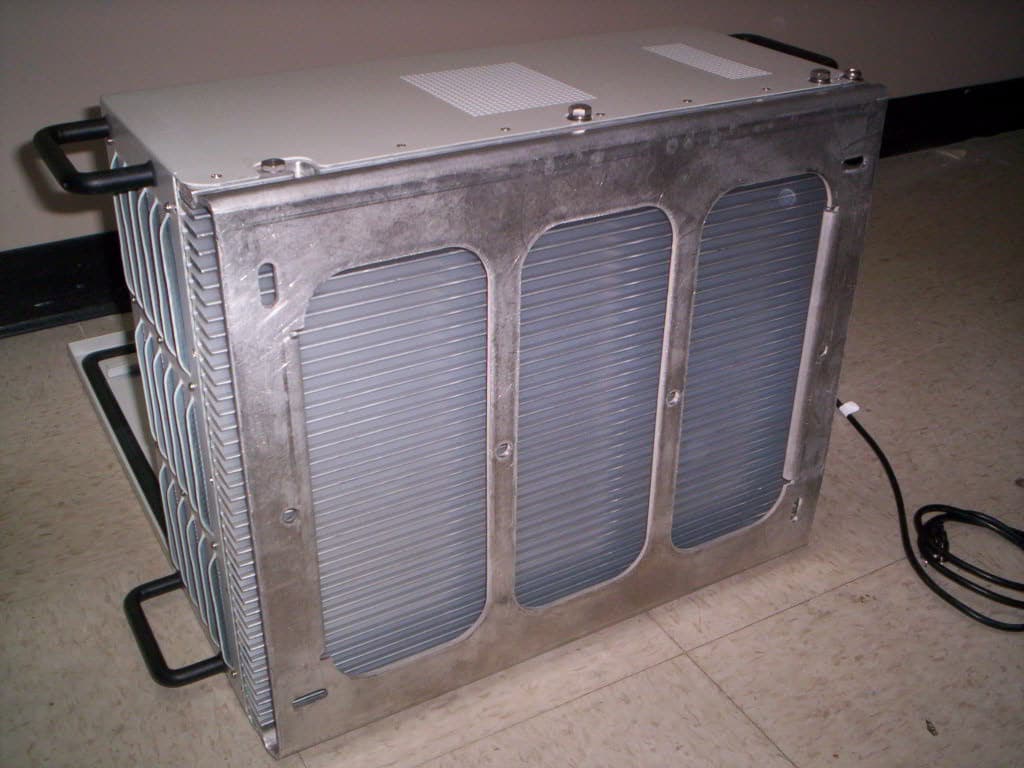

Bi-Directional Booster
