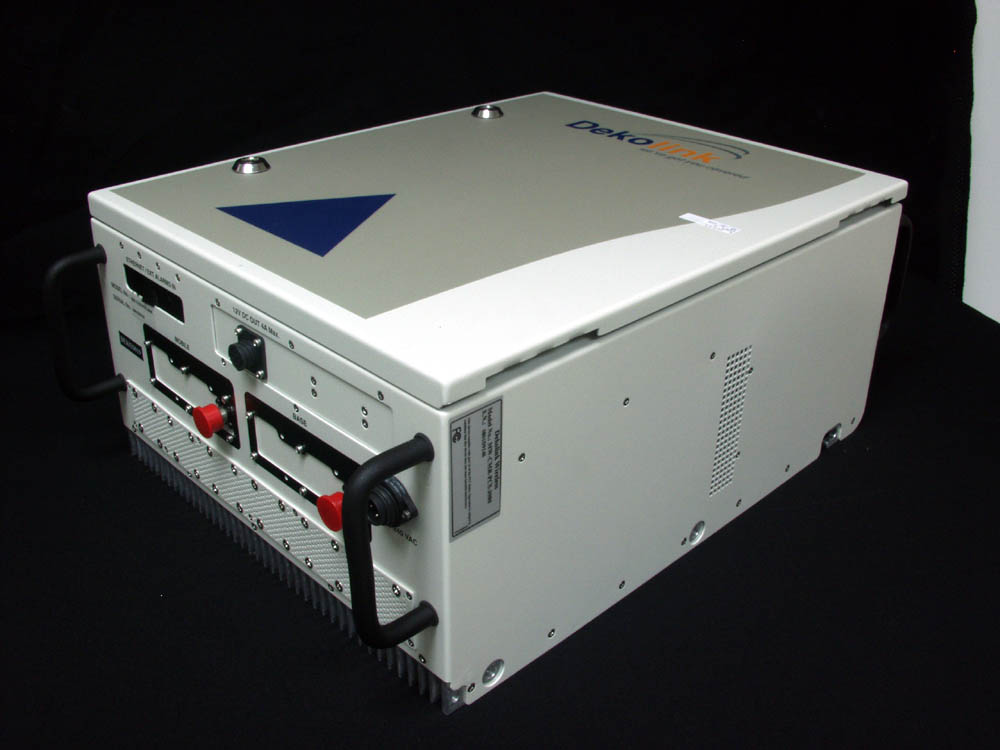

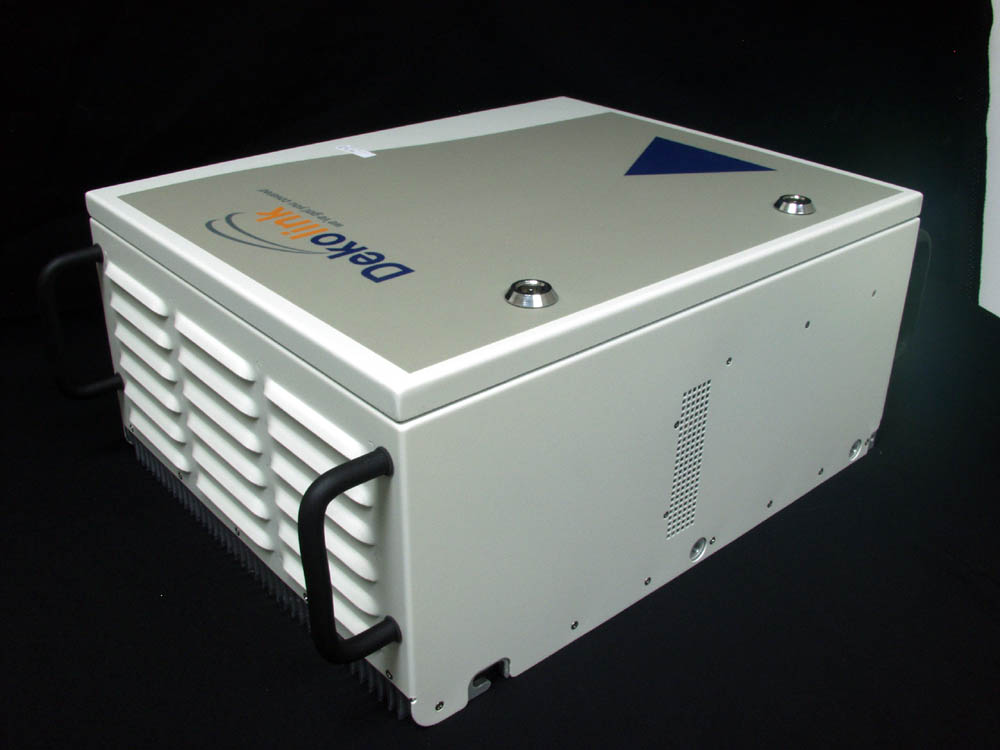

Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Photo Report No: 99922PIC1 Page 1 of 4 Detailed External Photographs – DEKO3019 Front/side/top view Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Photo Report No: 99922PIC1 Page 2 of 4 Detailed Photographs, continued Rear/side/top view Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Photo Report No: 99922PIC1 Page 3 of 4 Detailed Photographs, continued Front view

9713000135 C00134 RELEASE 22.01.08 HE 19.06.07 19.06.07 1 1 NONE A LABEL 9713000135 HAIMEHAIM E 0.10.1 SPRINT 3019 A NOTE:1. MATERIAL: LABEL, SILVER METALIZED POLYESTER WIT H 3M 467MP + PERMANENT ACRYLIC BACK ADHESIVE. 2. PRINTING: BLACK. 2.1 TEXT: HELVETICA MEDIUM.3. USE RIBBON ACCORDING TO LABEL MANUFACTURER RECO MMENDATION. 4. FOR SERIAL NUMBER SEE LABEL INFORMATION.5. BAR CODE TYPE ACCORDING TO CODE-1286. THE LABELS MUST BE SUPPLIED ON ROLL.7. PART MUST COMPLY TO RoHS REQUIREMENTS. This Document and Any Attachments Thereto Contain Propi etary Confidential and Privileged Information and Is for the Sole Use of the Intended Recipient(s). Any Unauthorized Review, Use, Reproduction, Disclosure or Distribution Is Strictly Prohibited. DO NOT SCALE DRAWING 1 2 3 4 5 6 A B CD C B A D DESCRIPTION 1 2 3 5 6 4 REV ECO # DATE APPROVED PART REV. DRAWN ALL DIMENSIONS ARE IN MM. SHARP EDGES 0.1-0.3mm DATE NAME CHECK. DESIGN SIGNTUR SHEET SCALE OF A3 BREAK SHARP CORNERS & MANGR TITLE BURR & FLASH Max. PROJCT Max. LINEAR MM HOLE + MMBETWEEN HOLES MM ANGULAR DRAFTANGLE/SIDE UNLESS OTHERWISE SPECIFIED PART No. 38.10 76.20 9713000135-A.SLDDRW18/02/2008Page 1 of 1 H3 6 C 12 STEP #2 H2 H3 10 B B ADDED MP17 H.E. 25.02.08 HAIM E NONE 1 3 24.01.08 B 300QC10000 HAIM E FINAL ASSY A C00134 24.01.08 H.E. RELEASE 24.01.08 SPRINT 3019 C00153 This Document and Any Attachments Thereto Contain P ropietary Confidential and Privileged Information and Is for the Sole Use of the Intended Recipient(s). Any Unauthorized Review, Use , Reproduction, Disclosure or Distribution Is Strictly Prohibited. F 7 8 E 1 2 3 4 5 6 A B C D APPROVED DATE ECO # REV 4 C B 6 5 3 2 1 E CHECK. TITLE A 7 8 BURR & FLASH Max. PART REV. D ALL DIMENSIONS ARE IN MM. DESCRIPTION DESIGN DRAWN SIGNATURE SHARP EDGES 0.1-0.3mm PROJCT NAME DATE PART No. DO NOT SCALE DRAWING UNLESS OTHERWISE SPECIFIED Max. MANGR A2 OF SCALE SHEET LINEAR MM HOLE + MMBETWEEN HOLES MM ANGULAR DRAFTANGLE/SIDE BREAK SHARP CORNERS & F 4 H15 SCALE 3 : 1 DETAIL C CONNECTOR KEY PART OF W30 MP17 1 ME1 H7 24 MP16 1 1 STEP #1 A1 1 A SCALE 1 : 1 1 DETAIL A MP6 MP15 1 5 5 Page 1 of &[300QC10000-B.SLDDRWpages]28/02/2008

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radi a R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 30.30 (dBm) Maximum peak output power at antenna input terminal: 1072 (mW) Antenna gain(typical): 6 (dBi) Maximum antenna gain: 3.981 (numeric) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 1900 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm^2) Power density at prediction frequency: 0.8487 (mW/cm^2) Margin of Compliance: 0.7 2 4 R PG S π =

www.nemko.com Test Report: 99922TRFWL Applicant: Dekolink Wireless Ltd. 16 Bazel St. Qiriyat-Arieh, Petah-Tikva, Israel 49510 Apparatus: MW-CSR-PCS-3080 FCC ID: OIWCSRPCS3080 In Accordance With: FCC Part 24, Personal Communications Services Subpart E Broadband PCS Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jason Nixon, Wireless/Telecom Specialist Date: March 4, 2008 Total Number of Pages: 36 Nemko Canada Inc. REPORT SUMMARY Report Number: 99922TRFWL FCC ID: OIWCSRPCS3080 Specification: FCC Part 24 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 24. Conducted measurements were performed in accordance with ANSI TIA-603-B-2002. Radiated tests were conducted is accordance with TIA-603-B-2002. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: MW-CSR-PCS-3080 Specification: FCC Part 24 Subpart E Broadband PCS Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Andrey Adelberg EMC/Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Page 2 of 36 Nemko Canada Inc. REPORT SUMMARY Report Number: 99922TRFWL FCC ID: OIWCSRPCS3080 Specification: FCC Part 24 TABLE OF CONTENTS Report Summary.........................................................................................................................................2 Section 1 : Equipment Under Test.............................................................................................................4 1.1 Product Identification.................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation...................................................................................................................................4 1.4 Technical Specifications of the EUT..........................................................................................................5 1.5 Block Diagram of the EUT.........................................................................................................................5 Section 2 : Test Conditions.........................................................................................................................6 2.1 Specifications.............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment.......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 2.5 Measurement Uncertainty...........................................................................................................................7 Section 3 : Observations.............................................................................................................................8 3.1 Modifications Performed During Assessment ............................................................................................8 3.2 Record Of Technical Judgements...............................................................................................................8 3.3 EUT Parameters Affecting Compliance.....................................................................................................8 3.4 Test Deleted................................................................................................................................................8 3.5 Additional Observations.............................................................................................................................8 Section 4 : Results Summary.....................................................................................................................9 4.1 FCC Part 24 Subpart E: Test Results........................................................................................................10 Appendix A : Test Results........................................................................................................................11 Clause 24.232 Output Power ...............................................................................................................................11 Clause 24.238 Conducted Spurious Emissions....................................................................................................12 Clause 24.238 Radiated Spurious Emissions.......................................................................................................19 Clause 2-11-04/EAB/RF Occupied Bandwidth...................................................................................................20 Cl…
