OIWCSRSMR893180DUAL BAND IDEN REPEATER

January 13, 2008 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint NEMKO Canada Inc. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Dekolink Wireless, 12 Bazel St. Petah-Tikva Israel, 49001. Dated this 14 Day of Feb. 20 08 Agency agreement expiration date: Usually Give 8 - 12 Months By: Yaron Moas Signature Printed Title: Director, Engineering Division On behalf of : Dekolink Wireless Ltd. Telephone: +972-3-918-0180

January 13, 3008 Equipment Authorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: OIWCSRSMR893180 Product Name: DUAL BAND Iden REPEATER, DEKO3189 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational description, it is provided to customer based on non-disclosure agreement. • photos of circuits and amplifiers and internal photos, it is permanently mounted /sealed, not generally publicly accessible • Part list. • Tune up procedure. • User manual, provided to customer based on non-disclosure agreement. These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 13 Day of January 20 08 By: Yaron Moas Signature Printed Title: Director, Engineering Division On behalf of : Dekolink Wireless Ltd. Telephone: +972-3-918-0180

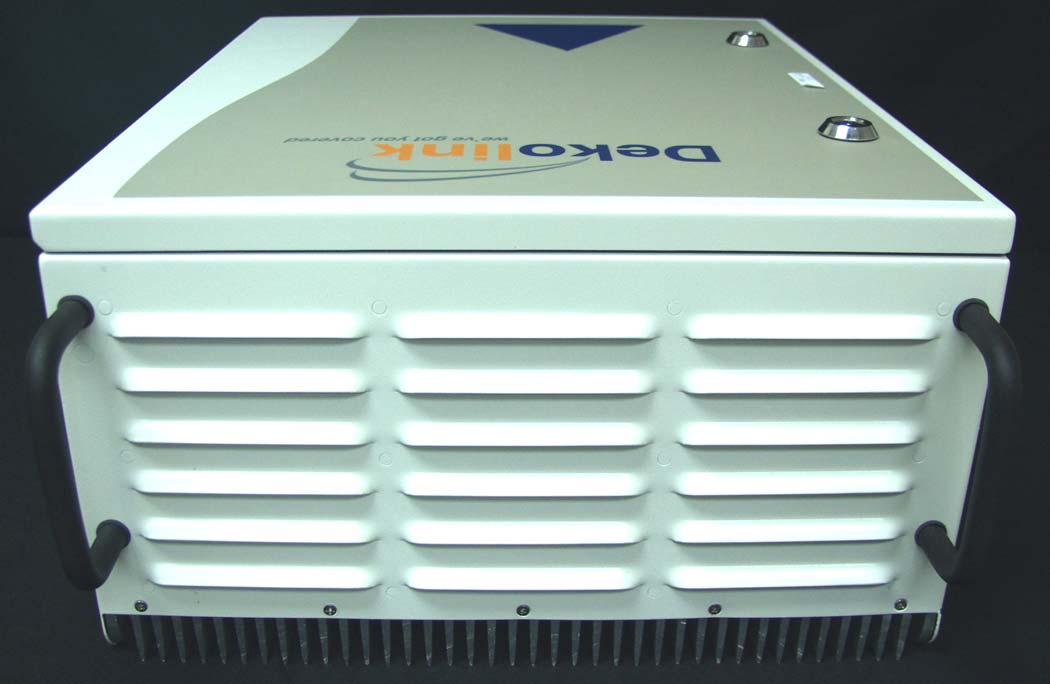

Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 DEKO3189 Photo Report No: 99388 Page 1 of 3 Detailed Photographs - External External top and side view Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 DEKO3189 Photo Report No: 99388 Page 2 of 3 Detailed Photographs, continued External top and front view Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 DEKO3189 Photo Report No: 99388 Page 3 of 3 Detailed Photographs, continued External top and rear view

DEKOLINK WIRELESS LTD. MW-CSR-SMR89-3180 IC: 4589A – SMR893180 FCC ID: OIWCSRSMR893180 Made in Israel

E 1 MP5 D STEP #2 H3 9 H2 12 H3 6 C 24 H7 A1 1 1 STEP #1 10 H3 ME1 MP17 1 A C HAIM E NONE 1 3 - A HAIM E ADDED MP17 FINAL ASSY HAIM E 20.12.07 30.01.0730.01.07 300PC20000 C 300UC70000 RELEASE B SPRINT 3189 MP17 31.12.07 HAIM E C00122 H.E. 25.02.08 H16 CHANGED QTY + ADDED C00153 TERMINAL LUG NOTE: BEFORE INSTALLING P.S. REMOVE TAPPING SCREW. 1. INSERT STANDOFF IN THE HOLE. 2. SECURE STANDOFF WITH LOCK WASHER + NUT. 3. This Document and Any Attachments Thereto Contain P ropietary Confidential and Privileged Information and Is for the Sole Use of the Intended Recipient(s). Any Unauthorized Review, Use , Reproduction, Disclosure or Distribution Is Strictly Prohibited. E 1 2 3 4 5 6 A B C D APPROVED DATE ECO # REV 4 C B 6 5 3 2 1 A PART No. DO NOT SCALE DRAWING 8 ALL DIMENSIONS ARE IN MM. DRAWN UNLESS OTHERWISE SPECIFIED 7 F SHARP EDGES 0.1-0.3mm E 7 PROJCT 8 DATE PART REV. NAME D DESCRIPTION BURR & FLASH Max. TITLE Max. MANGR A2 OF SCALE SHEET SIGNATURE DESIGN CHECK. LINEAR MM HOLE + MMBETWEEN HOLES MM ANGULAR DRAFTANGLE/SIDE BREAK SHARP CORNERS & F FROM AC CONN H10 1 H9 H10 H9 W22 +W1 H9 W22 H9 DETAIL A SCALE 1 : 1 1 1 1 FROM P-S +DOOR H9 1 1 1 TERMINAL LUG H9 1 SCALE 2 : 1 DETAIL C H16 4 KEY PART OF W MP17 1 Page 1 of &[300UC70000-C.SLDDRWpages]25/02/2008 H3 4 MP3 1 STEP #3 H4 2 H5 2 H6 2 SPRINT 3189 FINAL ASSY ?????? HAIM E 300UC70000 C 2 3 NONE HAIM E 300PC20000 This Document and Any Attachments Thereto Contain P ropietary Confidential and Privileged Information and Is for the Sole Use of the Intended Recipient(s). Any Unauthorized Review, Use , Reproduction, Disclosure or Distribution Is Strictly Prohibited. 1 2 3 4 5 6 A B C D APPROVED DATE ECO # REV 4 C B 6 5 3 2 1 A PART No. DO NOT SCALE DRAWING UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE IN MM. LINEAR MM HOLE + MMBETWEEN HOLES MM ANGULAR DRAFTANGLE/SIDE Max. BURR & FLASH Max. TITLE PROJCTMANGR A2 OF SCALE SHEET SIGNATURE DESIGN CHECK. NAME DATE BREAK SHARP CORNERS &SHARP EDGES 0.1-0.3mm DRAWN DESCRIPTION D PART REV. 8 7 E F 7 8 E F H16 6 MP2 1 PS1 1 H23 1 H22 1 H6 1 H15 1 SEE NOTE STEP #4 H12 2 MP15 2 MP6 1 MP12 SCALE 1 : 1 DETAIL E 22 H5 H6 H15 2 2 H17 H18 2 1 2 H19 2 H2 ART OF W12 Page 2 of &[300UC70000-C.SLDDRWpages]25/02/2008 H8 1 H9 2 A2 1 STEP #5 H2 2 MP10 1 H1 4 H14 4 H6 4 MP13 1 F1 1 H24 1 MP14 1 H2 2 MP13 1 H20 2 H21 1 PART OF W10 B H13 SCALE 1.5 : 1 DETAIL B 1 H11 1 1 H11 TERMINAL LUG W16 1 SPRINT 3189 FINAL ASSY ?????? HAIM E 3 3 NONE HAIM E 30.01.07 30.01.07 300PC20000 C 300UC70000 This Document and Any Attachments Thereto Contain P ropietary Confidential and Privileged Information and Is for the Sole Use of the Intended Recipient(s). Any Unauthorized Review, Use , Reproduction, Disclosure or Distribution Is Strictly Prohibited. 1 2 3 4 5 6 A B C D APPROVED DATE ECO # REV 4 C B 6 5 3 2 1 A PART No. DO NOT SCALE DRAWING UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE IN MM. LINEAR MM HOLE + MMBETWEEN HOLES MM ANGULAR DRAFTANGLE/SIDE Max. BURR & FLASH Max. TITLE PROJCTMANGR A2 OF SCALE SHEET SIGNATURE DESIGN CHECK. NAME DATE BREAK SHARP CORNERS &SHARP EDGES 0.1-0.3mm DRAWN DESCRIPTION D PART REV. 8 7 E F 7 8 E F MP16 1 SCALE 1 : 1 DETAIL D MP7 1 5 T Y P 5 Page 3 of &[300UC70000-C.SLDDRWpages]25/02/2008

Prediction of MPE limit at a given distance DEKO 3189 Down-link Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna iDEN 800 Maximum peak output power at device output terminal:29.82(dBm) Cable and Jumper loss2.0(dB) Maximum peak output power at antenna input terminal:27.82(dBm) Maximum peak output power at antenna input terminal:605.3408748(mW) Single Antenna gain(typical):4(dBi) Number of Antennae1 Total Antenna gain(typical):4(dBi) Maximum antenna gain:2.511886432(numeric) Prediction distance:20(cm) Prediction frequency:860(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.573333333(mW/cm^2) Power density at prediction frequency:0.302503(mW/cm^2) 3.025033(W/m^2) Maximum allowable antenna gain:6.776770475(dBi) Margin of Compliance:2.776770475 dB iDEN 900 Maximum peak output power at device output terminal:28.64(dBm) Cable and Jumper loss2.0(dB) Maximum peak output power at antenna input terminal:26.64(dBm) Maximum peak output power at antenna input terminal:461.3175746(mW) Single Antenna gain(typical):4(dBi) Number of Antennae1 Total Antenna gain(typical):4(dBi) Maximum antenna gain:2.511886432(numeric) Prediction distance:20(cm) Prediction frequency:937.5(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.625(mW/cm^2) Power density at prediction frequency:0.230531(mW/cm^2) 2.305314(W/m^2) Maximum allowable antenna gain:8.331498727(dBi) Margin of Compliance:4.331498727 dB 2 4R PG S π = Prediction of MPE limit at a given distance DEKO 3189 Up-link Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna iDEN 800 Maximum peak output power at device output terminal:22.86(dBm) Cable and Jumper loss2.0(dB) Maximum peak output power at antenna input terminal:20.86(dBm) Maximum peak output power at antenna input terminal:121.8989599(mW) Antenna gain(typical):14(dBi) Maximum antenna gain:25.11886432(numeric) Prediction distance:100(cm) Prediction frequency:817.5(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.545(mW/cm^2) Power density at prediction frequency:0.024366(mW/cm^2) 0.243663(W/m^2) Maximum allowable antenna gain:27.49606366(dBi) Margin of Compliance:13.49606366 dB iDEN 900 Maximum peak output power at device output terminal:21.34(dBm) Cable and Jumper loss2.0(dB) Maximum peak output power at antenna input terminal:19.34(dBm) Maximum peak output power at antenna input terminal:85.90135215(mW) Antenna gain(typical):14(dBi) Maximum antenna gain:25.11886432(numeric) Prediction distance:100(cm) Prediction frequency:898.5(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.599(mW/cm^2) Power density at prediction frequency:0.017171(mW/cm^2) 0.171708(W/m^2) Maximum allowable antenna gain:29.42636686(dBi) Margin of Compliance:15.42636686 dB 2 4R PG S π =

www.nemko.com FCC Part 90 Boosters : October 2006 Test Report: 99388TRFWL Applicant: Dekolink Wireless 16 Bazel St., Kiryat-Arieh, Petah-Tikvah 49001 Israel Apparatus: DEKO 3189 FCC ID: OIWCSRSMR893180 In Accordance With: FCC Part 90, Boosters Private Land Mobile Radio Services Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jason Nixon, Telecom Specialist Date: February 11, 2008 Total Number of Pages: 67 Nemko Canada Inc. REPORT SUMMARY Report Number: 99388TRFWL FCC ID: OIWCSRSMR893180 Specification: FCC Part 90 Page 2 of 67 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 90. Conducted measurements were performed in accordance with ANSI TIA-603-B-2002. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: DEKO 3189 Specification: FCC Part 90 Private Land Mobile Radio Services Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Andrey Adelberg EMC/Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 99388TRFWL FCC ID: OIWCSRSMR893180 Specification: FCC Part 90 Page 3 of 67 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1: Equipment Under Test.............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation ...................................................................................................................................4 1.4 Technical Specifications of the EUT ..........................................................................................................5 1.5 Block diagram of the EUT..........................................................................................................................5 Section 2: Test Conditions.......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3: Observations .............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 3.5 Additional Observations .............................................................................................................................7 Section 4: Results Summary ...................................................................................................................... 8 4.1 FCC Part 90 : Test Results .........................................................................................................................9 Appendix A: Test Results ......................................................................................................................... 10 Clause 90.205 Output Power ...............................................................................................................................10 Clause 90.210 Conducted Spurious Emissions....................................................................................................12 Clause 90.210 Radiated Spurious Emissions.......................................................................................................37 Clause 90.213 Frequency Stability ......................................................................................................................38 Clause 2-11-04/EAB/RF Occupied Bandwidth ..........................................…
