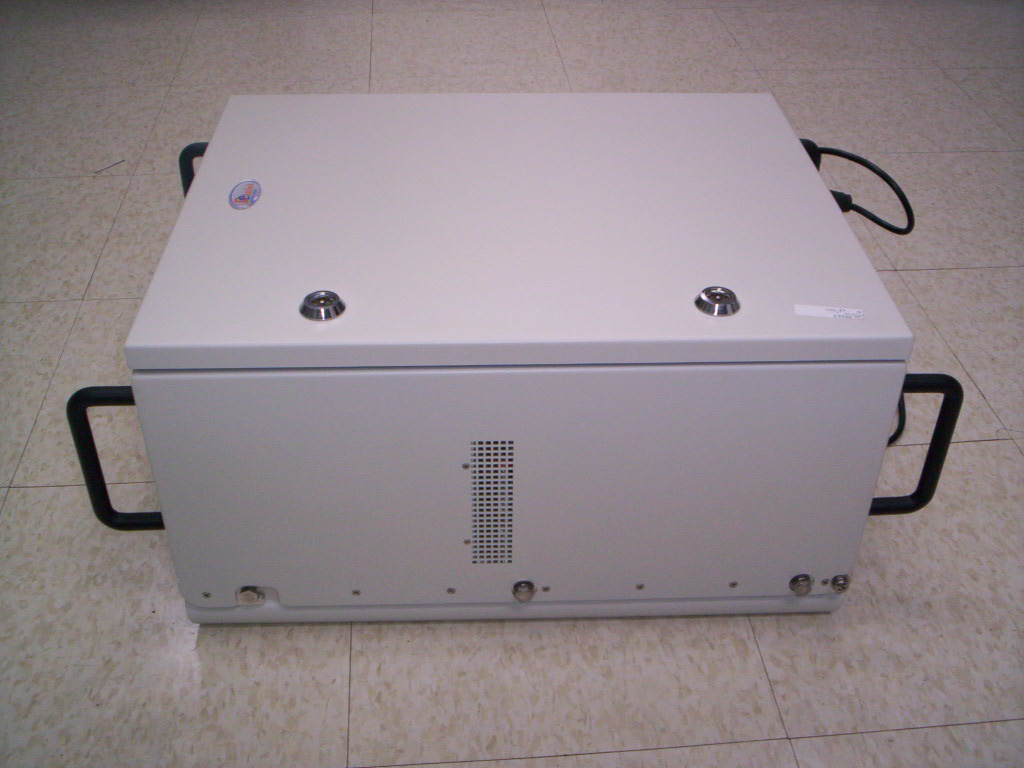

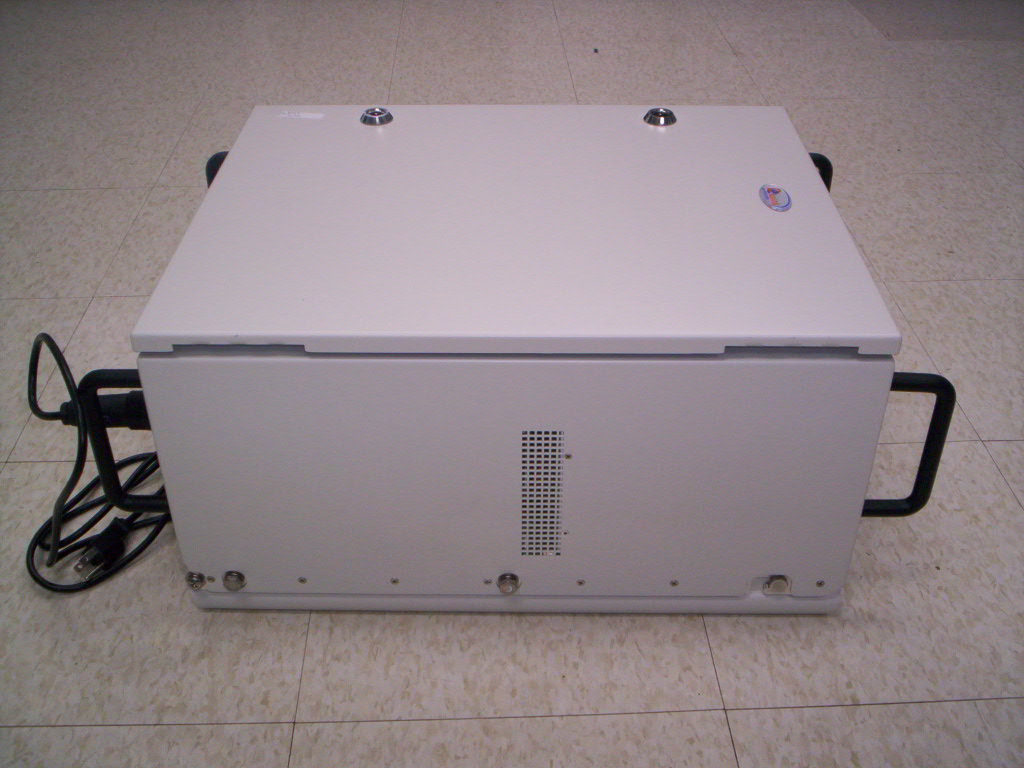

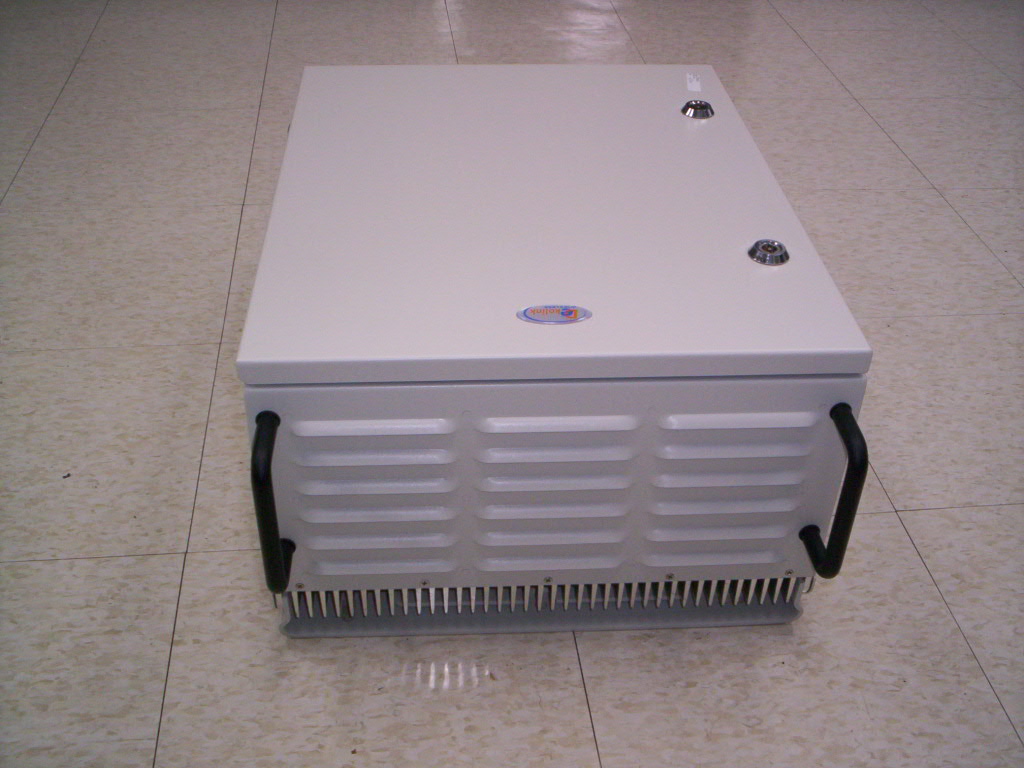

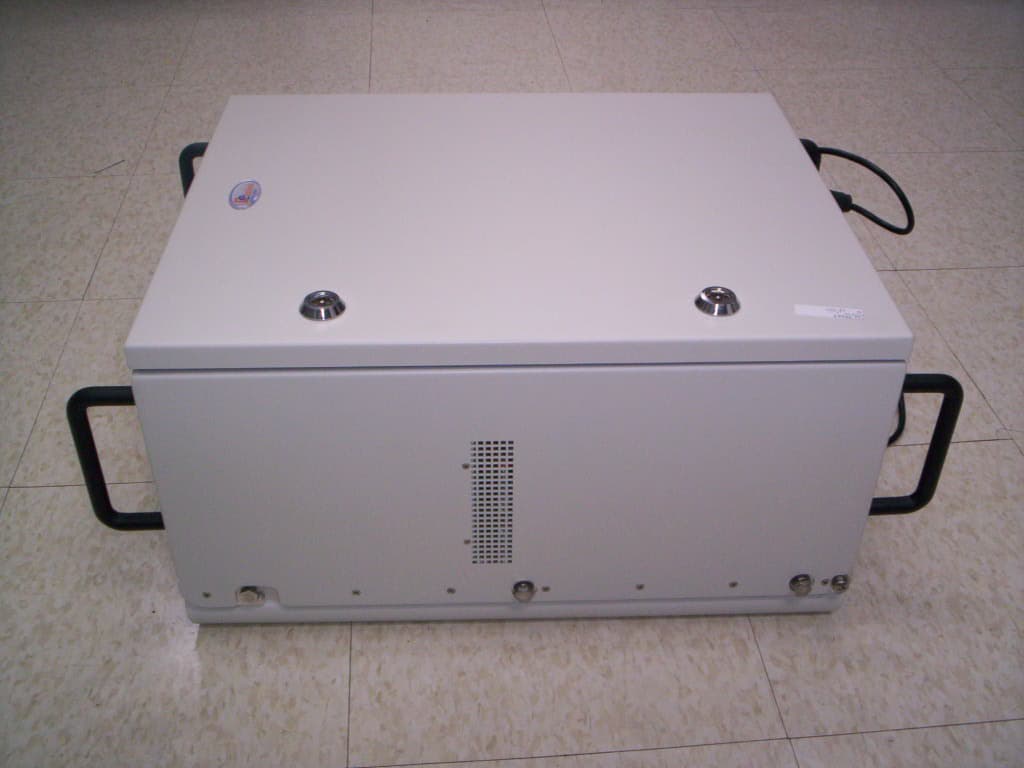

OIWCMRPCSSMR2580Multi-Band iDEN and WPCS Booster

Acknowledgement of FCC Part 90.219 In signing this document I acknowledge that the product of Dekolink wireless with FCC ID: OIWCMRPCSSMR2580 (Model: MW-CMR-PCS-SMR-2580) meets all criteria stated in Sections 90.219 for related booster operations. October 30, 2007 Shmuel Bleichman Director of Engineering Dekolink Wireless Ltd. Direct: +972-3-918-0180 Fax: +972-3-918-0190 Mobile: +972-52-561-7502 [email protected] www.dekolink.com

July 29, 2007 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint NEMKO Canada Inc. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Dekolink Wireless, 12 Bazel St. petach-Tikva Israel, 49001. Dated this 29 Day of July 20 07 Agency agreement expiration date: December 31 st 2008 By: Shmuel Bleichman Signature Printed Title: Director of Engineering On behalf of : Dekolink Wireless Ltd. Telephone: +972-3-918-0180

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 30.91 (dBm) Maximum peak output power at antenna input terminal: 1233.104833 (mW) Antenna gain(typical): 2 (dBi) Maximum antenna gain: 1.584893192 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1930 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.388803 (mW/cm^2) Maximum allowable antenna gain: 6.102698554 (dBi) Margin of Compliance: 4.102698554 2 4 R PG S π = Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 30.91 (dBm) Maximum peak output power at antenna input terminal: 1233.104833 (mW) Antenna gain(typical): 10.1 (dBi) Maximum antenna gain: 10.23292992 (numeric) Prediction distance: 100 (cm) Prediction frequency: 1930 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.100413 (mW/cm^2) Maximum allowable antenna gain: 20.08209864 (dBi) Margin of Compliance: 9.98209864 2 4 R PG S π = Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 30.26 (dBm) Maximum peak output power at antenna input terminal: 1061.695557 (mW) Antenna gain(typical): 10.1 (dBi) Maximum antenna gain: 10.23292992 (numeric) Prediction distance: 100 (cm) Prediction frequency: 1915 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.086455 (mW/cm^2) Maximum allowable antenna gain: 20.73209864 (dBi) Margin of Compliance: 10.63209864 2 4 R PG S π =

www.nemko.com FCC Part 90 Boosters: October 2006 Test Report: 89969-1TRFWL Applicant: Dekolink Wireless Ltd 16 Bazel St, Qiryat-Arieh, Petah-Tikva, 49510 Israel Apparatus: MW-CMR-PCS-SMR-2580 FCC ID: OIWMCSRPCSSMR2580 In Accordance With: FCC Part 90, Boosters Private Land Mobile Radio Services Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Roman Kuleba, Wireless Specialist Date: October 23, 2007 Total Number of Pages: 36 Nemko Canada Inc. REPORT SUMMARY Report Number: 89969-1TRFWL FCC ID: OIWMCSRPCSSMR2580 Specification: FCC Part 90 Page 2 of 36 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 90. Conducted measurements were performed in accordance with ANSI TIA-603-B-2002. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: MW-CMR-PCS-SMR-2580 Specification: FCC Part 90 Private Land Mobile Radio Services Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Heng Lin, EMC/Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 89969-1TRFWL FCC ID: OIWMCSRPCSSMR2580 Specification: FCC Part 90 Page 3 of 36 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1: Equipment Under Test.............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation ...................................................................................................................................4 1.4 Technical Specifications of the EUT ..........................................................................................................5 Section 2: Test Conditions.......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3: Observations .............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 3.5 Additional Observations .............................................................................................................................7 Section 4: Results Summary ...................................................................................................................... 8 4.1 FCC Part 90: Test Results ..........................................................................................................................9 Appendix A: Test Results ......................................................................................................................... 10 Clause 90.205 Output Power ...............................................................................................................................10 Clause 90.210 Conducted Spurious Emissions....................................................................................................11 Clause 90.210 Radiated Spurious Emissions.......................................................................................................22 Clause 90.213 Frequency Stability ......................................................................................................................23 Clause 2-11-04/EAB/RF Occupied Bandwidth ...................................................................................................24 Clause 2-11-04/EAB/RF Out of Band Rejection ...................…

Text truncated - open the document above for the full version.

www.nemko.com FCC Part 24 : October 2006 Test Report: 89969-3TRFWL Applicant: Dekolink Wireless Ltd. 16 Bazel St. Qiryat-Arieh, Petah-Tikva, Israel 49510 Apparatus: MW-CMR-PCS-SMR-2580 FCC ID: OIWCSRPCSSMR2580 In Accordance With: FCC Part 24 Personal Communications Services Subpart E Broadband PCS Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Roman Kuleba, Wireless Specialist Date: October 23, 2007 Total Number of Pages: 31 Nemko Canada Inc. REPORT SUMMARY Report Number: 89969-3TRFWL FCC ID: OIWCSRPCSSMR2580 Specification: FCC Part 24 Page 2 of 31 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 24. Conducted measurements were performed in accordance with ANSI TIA-603-B-2002. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: MW-CMR-PCS-SMR-2580 Specification: FCC Part 24 Subpart E Broadband PCS Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Heng Lin EMC / Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 89969-3TRFWL FCC ID: OIWCSRPCSSMR2580 Specification: FCC Part 24 Page 3 of 31 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation ...................................................................................................................................4 1.4 Technical Specifications of the EUT ..........................................................................................................5 Section 2 : Test Conditions......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3 : Observations ............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 3.5 Additional Observations .............................................................................................................................7 Section 4 : Results Summary ..................................................................................................................... 8 4.1 FCC Part 24 Subpart E : Test Results.........................................................................................................9 Appendix A : Test Results ........................................................................................................................ 10 Clause 24.232 Output Power ...............................................................................................................................10 Clause 24.238 Conducted Spurious Emissions....................................................................................................11 Clause 24.238 Radiated Spurious Emissions.......................................................................................................18 Clause 2-11-04/EAB/RF Occupied Bandwidth ...................................................................................................19 Clause 2-11-04/EAB/RF Out of Band Rejection .................................................................................................25 Appendix B : Setup Photographs ..........................................................…

Text truncated - open the document above for the full version.
