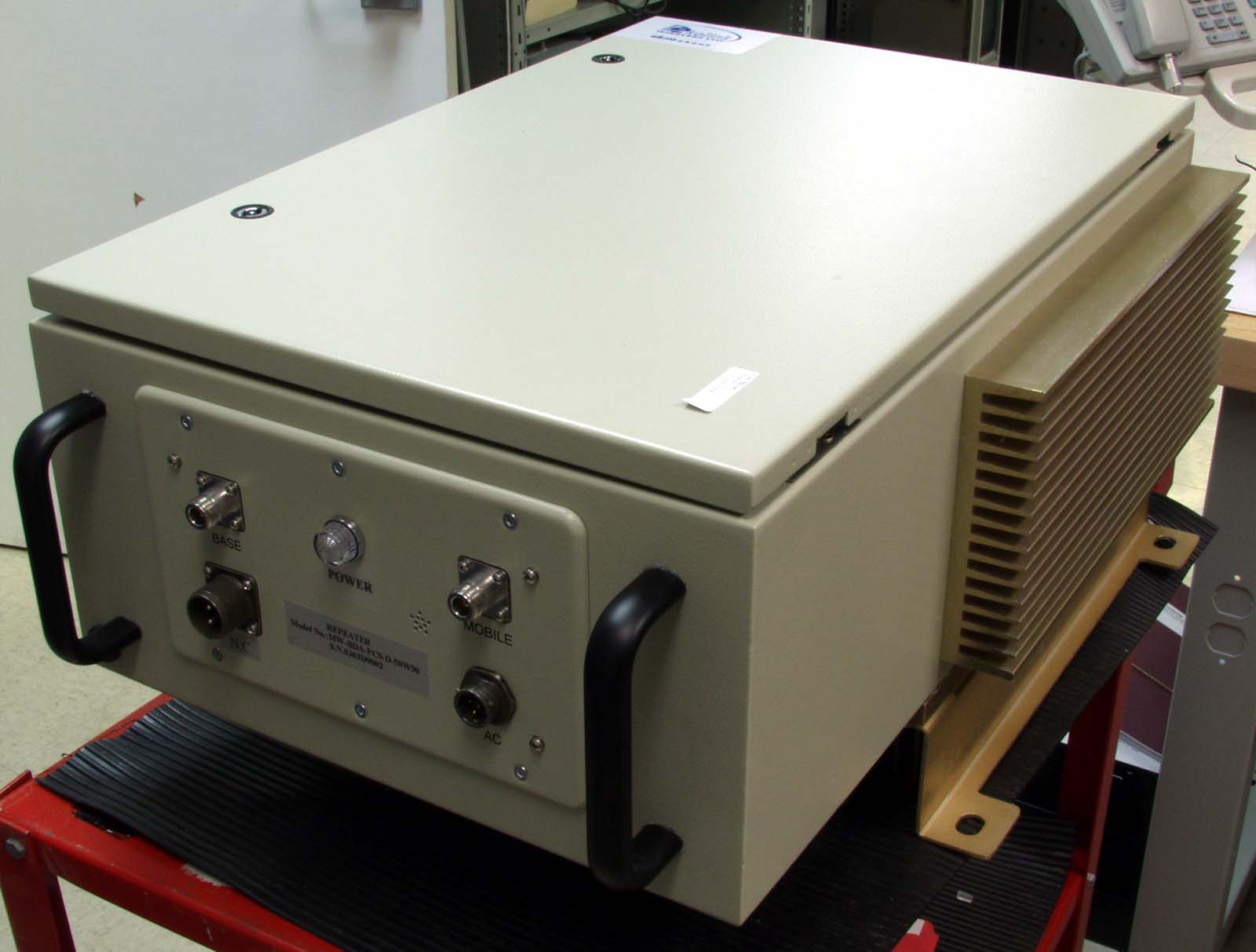

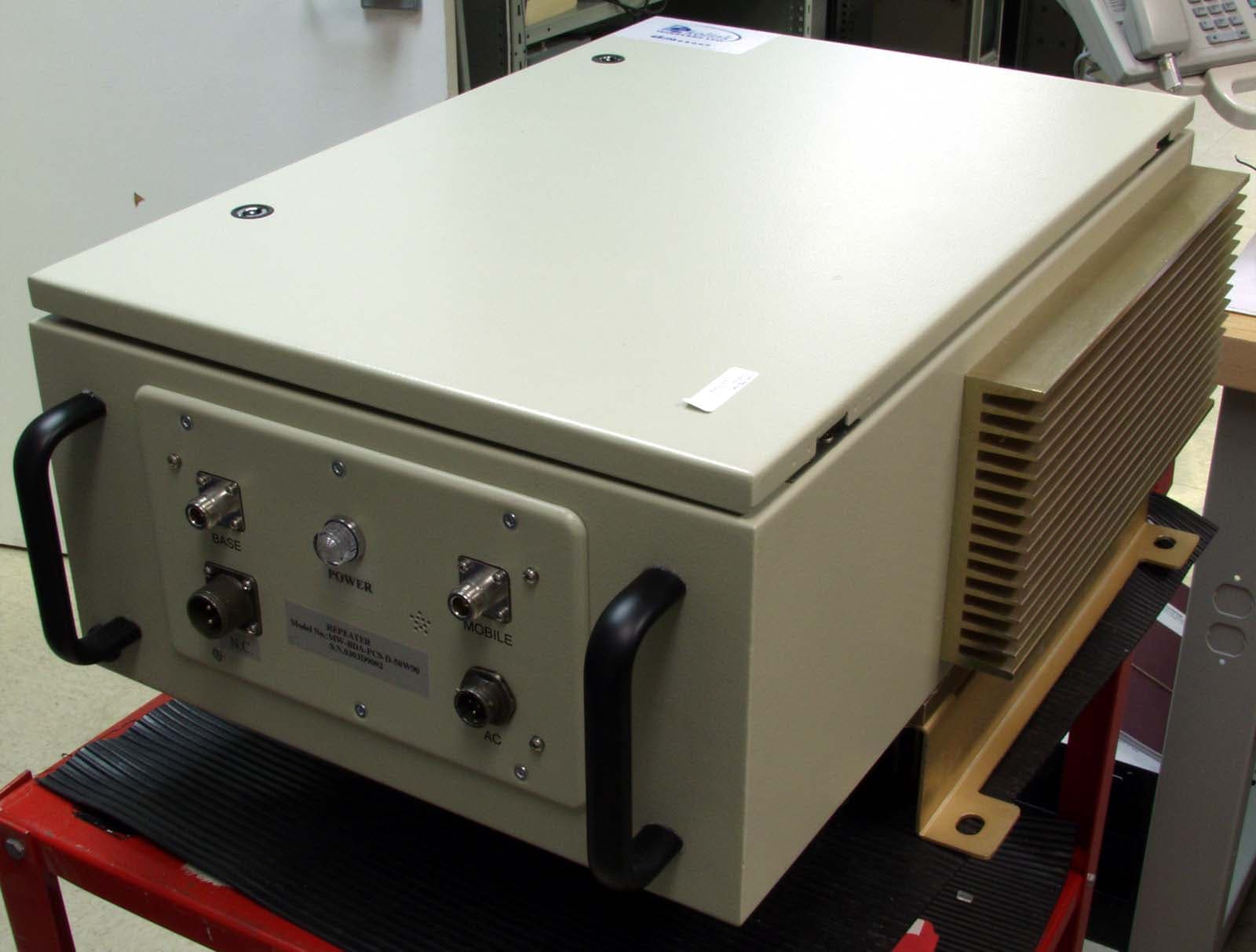

OIWBDAPCSF50W90Bi-Directional Booster

50W 1 of 16 rev 1  10/03 Page Dekolink Wireless Proprietary and Confidential Information. Copying, Distribution, and Disclosure are prohibited without Express Authorization from Dekolink Wireless Company. This document is protected by all applicable copyright laws. Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com INSTALLATION AND OPERATING INSTRUCTIONS FOR HIGH POWER PCS REPEATER MODEL: MW-BDA-PCS-F-50W90 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com 50W rev 1  10/03 Page 2 of 16 Table of contents 1. Repeater overview ___________________________________________________________3 2. Block diagram description_____________________________________________________3 2.1. Step attenuator and RF gain setting ______________________________________________5 2.2. Automatic Level (gain) Control (ALC) functionality__________________________________5 2.3. Power supply unit____________________________________________________________5 2.4. Power control unit___________________________________________________________5 2.5. Repeater connection module ____________________________________________________6 2.6. Remote monitoring and control module ___________________________________________6 3. Repeater operation___________________________________________________________7 4. Repeater monitoring and control________________________________________________8 4.1. Controls___________________________________________________________________8 4.2. Link alarm status (downlink & uplink)____________________________________________8 4.3. General alarm status_________________________________________________________8 5. Repeater installation _________________________________________________________10 5.1. Donor side antenna installation ________________________________________________10 5.2. Service side antenna Installation ________________________________________________10 5.3. Antenna isolation ___________________________________________________________10 5.4. Installation steps____________________________________________________________11 6. Specifications______________________________________________________________12 6.1. Electrical specifications ______________________________________________________12 6.2. Mechanical specifications _____________________________________________________12 6.3. Environmental conditions _____________________________________________________12 Mechanical layout _______________________________________________________________13 Mechanical outline _______________________________________________________________14 7. RF exposure warning ________________________________________________________15 8. Limited warranty ___________________________________________________________16 Applicable documents Repeater Management Application Software User Manual Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com 50W rev 1  10/03 Page 3 of 16 1. Repeater overview Dekolink’s repeater assembly provides an exceptional capability to extend the coverage area of radio communications into building areas and RF shielded environments. The unit’s integrated high linearity power amplifiers contribute to the overall improved system performance while avoiding non-linear related phenomena. The unit is based on a duplexed path configuration, having sharp out of band attenuation for improved isolation between the receiving and transmitting paths. 2. Block diagram description Within the repeater, the downlink path receives RF signals from base station (donor side) amplifies them and re-transmits them to the subscribers (service area). The repeater uplink path receives RF signals from the service side, amplifies them and retransmits them towards the donating base station. On both the repeaters’ ends, cavity tuned duplexers separate the Tx and Rx signals (frequency separation) and diverts them to the amplifying path while providing the required signal isolation. Two amplifiers are used to perform the required amplification for each of the paths; a Low Noise Amplifier (LNA) and a high power amplifier. Each of the LNAs includes an internal step attenuator that allows adjusting the gain of the relevant path to the required level depending on the specific field situation. Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Figure 1 - Repeater RF block diagram TO BASE Duplexer TO MOBILE Downlink LNA Attenuator Power Monitor Power Amplifier ALC Uplink Duplexer Attenuator LNA Attenuator Power Monitor ALC Power Amplifier AC/DC POWER SUPPLY +28 VDC AC IN POWER ON LED CONNECTION MODULE MONITOR & CONTROL MODULE ALARMS CONTROLS ALARMS Coupler 50W rev 1  10/03 Page 4 of 16 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com 50W rev 1  10/03 Page 5 of 16 2.1. Step attenuator and RF gain setting For proper operation and in order to avoid oscillations, Dekolink’s suggestion is to have an isolation value between the base station antenna (donor side) and the mobile antenna (service side) that exceeds the repeaters’ set gain by 12dB. A step attenuator integrated in the LNA can be adjusted to change the repeaters’ gain in 1dB steps, within a range of 31dB. Adjustment is done via SW. 2.2. Automatic Level (gain) Control (ALC) functionality In order to prevent saturation of the power amplifiers, the repeater is equipped with ALC circuits on both its paths. When a high signal is received, the ALC detects its amplitude and sends a feedback signal to a voltage variable atte…

Text truncated - open the document above for the full version.

50W 1 of 16 rev 1  10/03 Page Dekolink Wireless Proprietary and Confidential Information. Copying, Distribution, and Disclosure are prohibited without Express Authorization from Dekolink Wireless Company. This document is protected by all applicable copyright laws. Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com INSTALLATION AND OPERATING INSTRUCTIONS FOR HIGH POWER PCS REPEATER MODEL: MW-BDA-PCS-X-50W90 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com 50W rev 1  10/03 Page 2 of 16 Table of contents 1. Repeater overview ___________________________________________________3 2. Block diagram description _____________________________________________________3 2.1. Step attenuator and RF gain setting______________________________________________5 2.2. Automatic Level (gain) Control (ALC) functionality__________________________________5 2.3. Power supply unit____________________________________________________________5 2.4. Power control unit ___________________________________________________________5 2.5. Repeater connection module ____________________________________________________6 2.6. Remote monitoring and control module ___________________________________________6 3. Repeater operation __________________________________________________7 4. Repeater monitoring and control _________________________________________8 4.1. Controls 8 4.2. Link alarm status (downlink & uplink)____________________________________________8 4.3. General alarm status_________________________________________________________8 5. Repeater installation ________________________________________________10 5.1. Donor side antenna installation ________________________________________________10 5.2. Service side antenna Installation ________________________________________________10 5.3. Antenna isolation ___________________________________________________________10 5.4. Installation steps ____________________________________________________________11 6. Specifications _____________________________________________________12 6.1. Electrical specifications ______________________________________________________12 6.2. Mechanical specifications _____________________________________________________12 6.3. Environmental conditions _____________________________________________________13 Mechanical layout ____________________________________________________________13 Mechanical outline ___________________________________________________________14 7. RF exposure warning ________________________________________________15 8. Limited warranty ___________________________________________________16 Applicable documents Repeater Management Application Software User Manual Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com 50W rev 1  10/03 Page 3 of 16 1. Repeater overview Dekolink’s repeater assembly provides an exceptional capability to extend the coverage area of radio communications into building areas and RF shielded environments. The unit’s integrated high linearity power amplifiers contribute to the overall improved system performance while avoiding non-linear related phenomena. The unit is based on a duplexed path configuration, having sharp out of band attenuation for improved isolation between the receiving and transmitting paths. 2. Block diagram description Within the repeater, the downlink path receives RF signals from base station (donor side) amplifies them and re-transmits them to the subscribers (service area). The repeater uplink path receives RF signals from the service side, amplifies them and retransmits them towards the donating base station. On both the repeaters’ ends, cavity tuned duplexers separate the Tx and Rx signals (frequency separation) and diverts them to the amplifying path while providing the required signal isolation. Two amplifiers are used to perform the required amplification for each of the paths; a Low Noise Amplifier (LNA) and a high power amplifier. Each of the LNAs includes an internal step attenuator that allows adjusting the gain of the relevant path to the required level depending on the specific field situation. Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Figure 1 - Repeater RF block diagram TO BASE Duplexer TO MOBILE Downlink LNA Attenuator Power Monitor Power Amplifier ALC Uplink Duplexer Attenuator LNA Attenuator Power Monitor ALC Power Amplifier AC/DC POWER SUPPLY +28 VDC AC IN POWER ON LED CONNECTION MODULE MONITOR & CONTROL MODULE ALARMS CONTROLS ALARMS Coupler 50W rev 1  10/03 Page 4 of 16 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com 50W rev 1  10/03 Page 5 of 16 2.1. Step attenuator and RF gain setting For proper operation and in order to avoid oscillations, Dekolink’s suggestion is to have an isolation value between the base station antenna (donor side) and the mobile antenna (service side) that exceeds the repeaters’ set gain by 12dB. A step attenuator integrated in the LNA can be adjusted to change the repeaters’ gain in 1dB steps, within a range of 31dB. Adjustment is done via SW. 2.2. Automatic Level (gain) Control (ALC) functionality In order to prevent saturation of the power amplifiers, the repeater is equipped with ALC circuits on both its paths. When a high signal is received, the ALC detects its amplitude and sends a feedback signal to a voltage variable attenuator, which attenuates the signal level so that the output power of the amplifier does not exceed a preset limit. The uplink…

Text truncated - open the document above for the full version.

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 1 of 7 50W rev 2  09/02 RF COMPONENTS DESCRIPTION AND SCHEMATICS FOR MW-BDA-PCS-F-50W90 Duplexer Downlink Duplexer Uplink LNA Attenuator Power Monitor PA AGC LNA Attenuator Power Monitor PA AGC BDA RF BLOCK DIAGRAM TO BASE TO MOBILE Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 2 of 7 50W rev 2  09/02 LNA +STEP ATTENUATOR This is a 48dB GAIN unit with a 30 dB step attenuator. The step attenuator is used to reduce the Repeater gain when needed, usually to set proper output power. Both Uplink and downlink LNA’s are the same except for a ceramic filter that is tuned to the proper band (uplink / downlink). I n the downlink path the LNA consists off AGC circuitry. The TX detected video output is fed to this amplifier. This AGC limits the power transmitted by the TX amplifier even when AGC is turned off. SPECIFICATIONS Parameter Specifications Input Frequency Range Uplink 1890-1895 MHz Downlink 1970-1975 MHz RF Gain 48±2 dB Gain Ripple <±0.7 dB Attenuation Range 0 to 30 dB Noise Figure at max gain <4 dB Output 3 rd order intercept point >30 dBm VSWR Input and Output <1.5:1 RF Connectors SMA female Supply Voltage 12 to 30 Volt Supply Current 220±50 mA Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 3 of 7 50W rev 2  09/02 AGC ALCL ALCE Control VD Control ALCE AGCVD ALCL T1 T2 T3 T4 Title SizeDocument NumberRev Date:Sheet of 300AC80604 AGC Preamplifier Filter REV - 1 A 12Friday, May 02, 2003 L5 OPT U2 RF AMP 31 4 2 C19 OPT R2 OPT C20 22pF C17 22pF R8 39 R7 150 R5 150 C2 22pF L1 22nHL4 22nH +12V R9 100 U8 RF AMP31 4 2 C10 100pF C4 22pF C11 100pF C13 100pF C15 100pF RF SECTION C6 22pF C3 22pF R15 68 L2 22nH U6 HMC273MS10G 1dB 1 2dB 2 4dB 3 8dB 4 16dB 5 RF2 6 RF1 10 G1 7 G2 8 G3 9 T1 T2 T3 T4 R65K U1 AT-108 1 2 3 4 8 7 6 5 ATN C1 22pF +5V T0 C8 22pF R10 100 C9 100pF C14 100pF R14 68 Input R16 68 C16 100pF R12 68 R11 68 C12 100pF OUTPUT U7 Filter G1 1 G2 3 G3 5 In 2 Out 4 R1 39 +5V R4 150 R3 150 C5 22pF +12V +12V C7 OPT U3 RF AMP 31 4 2 R17 68 L3 22nH +12V U5 RF AMP 31 4 2 LNA CIRCUIT DIAGRAM RF SECTION LNA CIRCUIT DIAGRAM CONTROL SECTION T0 R44 OPT +15V ATN Q1 2N7002/SOT R42100 SW1 SW SPDT R415.1k R34 5.1k R371k U10B LM124 5 6 7 4 11 U9 LM78L05 B 8 C 2 D 3 E 6 F 7 A 1 U10C LM124 10 9 8 4 11 U10D LM124 12 13 14 4 11 U10A LM124 3 2 1 4 11 R361kR331k R31 10k + C21 47uF C22 1uF R321k R35OPT R2660k R302kR2110k K15k R43 1k R241k R25 1k R221k S1 Hex Switch A1 1 C1 2 A4 3 A2 4 C2 5 A8 6 R38 30 R29 20K R27 40k R19 20K R28 20K R18 20K +5V +5V+5V +5V T3T2 T4T1 +5V D2 DIODE D1 DIODE DC SECTION +12V +5V ATN +12V +12V +12V +12V +12V U11 UA7812KC IN 1 OUT 3 GND 2 + C23 1uF +12V +15V Title SizeDocument NumberRev Date:Sheetof 300AC80604 AGC Preamplifier Filter - REV 1 A 22Wednesday, July 23, 2003 R40 1k J1 D-SUB_15P_MALE_RA 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 chassis 16 chassis2 17 R39 OPT High Density D-TYPE C24 1uF C18 1uF T1 T4 T3 T2 T0 R231kR200 D3 LED +5VR1320K Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 4 of 7 50W rev 2  09/02 Downlink power amplifier: This is a 50W 1dB compression amplifier operated at 10W composite output power. The power is limited by AGC mechanism to keep system performance. This is a Buy product so we have only block diagram. SPECIFICATION Parameter Specifications Input Frequency Range 1950-2000 MHz RF Gain 46±2 dB Gain Ripple <±0.7 dB Output 3 rd order intercept point +64 dBm typ; +62 dBm min VSWR Input and Output <1.5:1 AGC Set Point +41±1 dBm AGC Range >10 dB RF Connectors SMA female Supply Voltage 28 Volt Supply Current 4 A at +40 dBm Amplifier RF Input RF Output DOWN LINK POWER AMPLIFIER BLOCK DAIGRAM Voltage Variable Attenuator Directional Coupler Detector Feedback Voltage Regulator Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 5 of 7 50W rev 2  09/02 Uplink power amplifier: This is a 8W 1dB compression amplifier operated up to 1W composite output power. The power is limited by AGC mechanism to keep system performance. The amplifier uses 28VDC, 1.4 AMP. Typ. Uplink Power Amplifier SPECIFICATIONS Parameter Specifications Frequency Range 1800-2000 MHz RF Gain 46±2 dB Gain Ripple <±0.7 dB Noise Figure <10 dB Output 3 rd order intercept point +49 dBm typ; +47 dBm min VSWR Input and Output <1.5:1 AGC Set Point +28±1 dBm AGC Range >20 dB RF Connectors SMA female Supply Voltage 28 Volt Supply Current 1.4 A Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 6 of 7 50W rev 2  09/02 UPLINK POWER AMPLIFIER CIRCUIT DIAGRAM (Page 1 of 2) Title SizeDocument NumberRev Date:Sheet of 300PA103040 Dual Power Amplifier A 12Monday, December 10, 2001 +5V C16 51pF R12 0 R10 160 R11 160 R21 51 L1 33nH R14 270 R31 50 R22 68 R24 100 Output R13 270 C20 4.7uF R23 100 U10 Coupler A 1 C 3 D 4 B 2 R32 50 U6 Power Amp In 1 +V 2 +V 3 +V 4 Out 5 U4 SGA-6486 31 4 2 C5 51pF C13 0.1uF C14 4.7uF U3 AT-108 1 2 3 4 8 7 6 5 U9 Coupler A 1 C 3 D 4 B 2 C19 0.1uF D3 Dual Diode Input C7 51pF C10 0.1uF U5 SGA-6486 31 4 2 L3 33nH R16 270 R15 270 C8 51pF J1 CONN C9 0.1uF C6 51pF C1 0.1uF C25 0.1uF J2 CONN C24 4.7uF U8 COUPLER A 1 C 3 D 4 B 2 C21 0.1uF C22 4.7uF +12V U11 Power Amp In 1 +V 2 +V 3 +V 4 Out 5 +27V C23 0.1uF Video ATT +V Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fa…

Text truncated - open the document above for the full version.

Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR: MW-BDA-PCS-F-50W FCC ID: OIWBDAPCSF50W90 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if there is any information you may need. Sincerely, March, 26, 2004 David Levy, Technical Support Manager Dekolink Wireless Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180179 Fax-972-3-9180190

Response to TCB Findings 1. The composite power output rating in the "RF Components Description" file is 1W, but the measurements show a power output of 27dBm and manual also shows 27dBm rating. Has the input drive level and gain setting been maximized? Please clarify. [Ruby Dulmage] The composite power is up to 1W, we use only 0.5W for safety margin 2. Please clarify if all the components required to achieve the "D" and "F" block frequencies reside in a single enclosure as seen in external photo. Are these different transmitters in separate enclosures? [Ruby Dulmage] For each block there is one product that is used independently. The RF active components are the same, the mechanical structure and electrical wiring are the same, the difference is only in the duplexers' frequency response. 3. Please specify the label material. [Ruby Dulmage] The label material is nylon. 4. Please supply up-link and down-link MPE calculations. [Ruby Dulmage] MPE calculations supplied for uplink and downlink. 5. Please specify the DC voltages and currents in final RF amplifier stage. [Ruby Dulmage] DC parameters are listed in RF components description document . DC voltage is 28V, DC current is 4A for downlink AMP and 1.4A for uplink AMP. 6. Please inform Dekolink Wireless that their product must meet all criteria stated in Section 22.383 (applies to 24E as well) for related booster/in-building operations. Please submit an exhibit or correspondence confirming that they are aware of this. [Ruby Dulmage] Dekolink was sent Section 22.383 of the FCC Rules. 7. Please describe how the rejection of out-of-band signals are ensured by this device. Supporting test data or filter frequency response is acceptable. [Ruby Dulmage] See attached "Block F and D Duplexer Plots" as required.

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com FCC ID: OIWBDAPCSF50W90 LABEL FORMAT Page 1 of 1 FCC ID BDA PCS-F-50W90.doc

BLOCK D DUPLEXER PLOTS BLOCK F DUPLEXER PLOTS

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 1 of 7 50W rev 2  09/02 RF COMPONENTS DESCRIPTION AND SCHEMATICS FOR MW-BDA-PCS-F-50W90 Duplexer Downlink Duplexer Uplink LNA Attenuator Power Monitor PA AGC LNA Attenuator Power Monitor PA AGC BDA RF BLOCK DIAGRAM TO BASE TO MOBILE Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 2 of 7 50W rev 2  09/02 LNA +STEP ATTENUATOR This is a 48dB GAIN unit with a 30 dB step attenuator. The step attenuator is used to reduce the Repeater gain when needed, usually to set proper output power. Both Uplink and downlink LNA’s are the same except for a ceramic filter that is tuned to the proper band (uplink / downlink). I n the downlink path the LNA consists off AGC circuitry. The TX detected video output is fed to this amplifier. This AGC limits the power transmitted by the TX amplifier even when AGC is turned off. SPECIFICATIONS Parameter Specifications Input Frequency Range Uplink 1890-1895 MHz Downlink 1970-1975 MHz RF Gain 48±2 dB Gain Ripple <±0.7 dB Attenuation Range 0 to 30 dB Noise Figure at max gain <4 dB Output 3 rd order intercept point >30 dBm VSWR Input and Output <1.5:1 RF Connectors SMA female Supply Voltage 12 to 30 Volt Supply Current 220±50 mA Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 3 of 7 50W rev 2  09/02 AGC ALCL ALCE Control VD Control ALCE AGCVD ALCL T1 T2 T3 T4 Title SizeDocument NumberRev Date:Sheet of 300AC80604 AGC Preamplifier Filter REV - 1 A 12Friday, May 02, 2003 L5 OPT U2 RF AMP 31 4 2 C19 OPT R2 OPT C20 22pF C17 22pF R8 39 R7 150 R5 150 C2 22pF L1 22nHL4 22nH +12V R9 100 U8 RF AMP31 4 2 C10 100pF C4 22pF C11 100pF C13 100pF C15 100pF RF SECTION C6 22pF C3 22pF R15 68 L2 22nH U6 HMC273MS10G 1dB 1 2dB 2 4dB 3 8dB 4 16dB 5 RF2 6 RF1 10 G1 7 G2 8 G3 9 T1 T2 T3 T4 R65K U1 AT-108 1 2 3 4 8 7 6 5 ATN C1 22pF +5V T0 C8 22pF R10 100 C9 100pF C14 100pF R14 68 Input R16 68 C16 100pF R12 68 R11 68 C12 100pF OUTPUT U7 Filter G1 1 G2 3 G3 5 In 2 Out 4 R1 39 +5V R4 150 R3 150 C5 22pF +12V +12V C7 OPT U3 RF AMP 31 4 2 R17 68 L3 22nH +12V U5 RF AMP 31 4 2 LNA CIRCUIT DIAGRAM RF SECTION LNA CIRCUIT DIAGRAM CONTROL SECTION T0 R44 OPT +15V ATN Q1 2N7002/SOT R42100 SW1 SW SPDT R415.1k R34 5.1k R371k U10B LM124 5 6 7 4 11 U9 LM78L05 B 8 C 2 D 3 E 6 F 7 A 1 U10C LM124 10 9 8 4 11 U10D LM124 12 13 14 4 11 U10A LM124 3 2 1 4 11 R361kR331k R31 10k + C21 47uF C22 1uF R321k R35OPT R2660k R302kR2110k K15k R43 1k R241k R25 1k R221k S1 Hex Switch A1 1 C1 2 A4 3 A2 4 C2 5 A8 6 R38 30 R29 20K R27 40k R19 20K R28 20K R18 20K +5V +5V+5V +5V T3T2 T4T1 +5V D2 DIODE D1 DIODE DC SECTION +12V +5V ATN +12V +12V +12V +12V +12V U11 UA7812KC IN 1 OUT 3 GND 2 + C23 1uF +12V +15V Title SizeDocument NumberRev Date:Sheetof 300AC80604 AGC Preamplifier Filter - REV 1 A 22Wednesday, July 23, 2003 R40 1k J1 D-SUB_15P_MALE_RA 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 chassis 16 chassis2 17 R39 OPT High Density D-TYPE C24 1uF C18 1uF T1 T4 T3 T2 T0 R231kR200 D3 LED +5VR1320K Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 4 of 7 50W rev 2  09/02 Downlink power amplifier: This is a 50W 1dB compression amplifier operated at 10W composite output power. The power is limited by AGC mechanism to keep system performance. This is a Buy product so we have only block diagram. SPECIFICATION Parameter Specifications Input Frequency Range 1950-2000 MHz RF Gain 46±2 dB Gain Ripple <±0.7 dB Output 3 rd order intercept point +64 dBm typ; +62 dBm min VSWR Input and Output <1.5:1 AGC Set Point +41±1 dBm AGC Range >10 dB RF Connectors SMA female Supply Voltage 28 Volt Supply Current 4 A at +40 dBm Amplifier RF Input RF Output DOWN LINK POWER AMPLIFIER BLOCK DAIGRAM Voltage Variable Attenuator Directional Coupler Detector Feedback Voltage Regulator Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 5 of 7 50W rev 2  09/02 Uplink power amplifier: This is a 8W 1dB compression amplifier operated up to 1W composite output power. The power is limited by AGC mechanism to keep system performance. The amplifier uses 28VDC, 1.4 AMP. Typ. Uplink Power Amplifier SPECIFICATIONS Parameter Specifications Frequency Range 1800-2000 MHz RF Gain 46±2 dB Gain Ripple <±0.7 dB Noise Figure <10 dB Output 3 rd order intercept point +49 dBm typ; +47 dBm min VSWR Input and Output <1.5:1 AGC Set Point +28±1 dBm AGC Range >20 dB RF Connectors SMA female Supply Voltage 28 Volt Supply Current 1.4 A Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolinkcomweb www decolinkcom Page 6 of 7 50W rev 2  09/02 UPLINK POWER AMPLIFIER CIRCUIT DIAGRAM (Page 1 of 2) Title SizeDocument NumberRev Date:Sheet of 300PA103040 Dual Power Amplifier A 12Monday, December 10, 2001 +5V C16 51pF R12 0 R10 160 R11 160 R21 51 L1 33nH R14 270 R31 50 R22 68 R24 100 Output R13 270 C20 4.7uF R23 100 U10 Coupler A 1 C 3 D 4 B 2 R32 50 U6 Power Amp In 1 +V 2 +V 3 +V 4 Out 5 U4 SGA-6486 31 4 2 C5 51pF C13 0.1uF C14 4.7uF U3 AT-108 1 2 3 4 8 7 6 5 U9 Coupler A 1 C 3 D 4 B 2 C19 0.1uF D3 Dual Diode Input C7 51pF C10 0.1uF U5 SGA-6486 31 4 2 L3 33nH R16 270 R15 270 C8 51pF J1 CONN C9 0.1uF C6 51pF C1 0.1uF C25 0.1uF J2 CONN C24 4.7uF U8 COUPLER A 1 C 3 D 4 B 2 C21 0.1uF C22 4.7uF +12V U11 Power Amp In 1 +V 2 +V 3 +V 4 Out 5 +27V C23 0.1uF Video ATT +V Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fa…

Text truncated - open the document above for the full version.

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com 10.12.03 PART LIST FOR : MW-BDA-PCS-D-50W90 FCC ID:OIWBDAPCSF50W90 Part Name Part Des. Qty. Unit Sup. Part 1 300UA31100 POWER SUPLY ASSY 1.00 EA JWS-300-24 2 300EB76000 CONNECTION BOX + MONITOR 1.00 EA 3 6420205930 CONTROL UNIT BASIC CB-04 1.00 EA 4 300FB34000 PRE AMP PCS U/L 1.00 EA 5 300FB35000 PRE AMP D/L PCS 1.00 EA 6 1510992331 AMP RF 1800-1900MHZ 8W 1.00 EA 7032 7 1510992441 Panther 1900-1990MHz 12W 1.00 EA 100-0170-001 8 1511692557 Coaxial Isolator model D30-1L5FF 1.00 COAXIAL ISOLATOR 1.7-2GHZ 9 1501001351 FAN 24VDC 120mA 2.88W 37dbA SQ92MMX25MM 1.00 EA 10 1512100400 DIPLEXER COMPACT PCS 1W 65DB "D" BAND 1.00 EA 11 1512100262 DIPLEXER PCS H.P B.W 5MHZ 1.00 EA 12 300CB82000 HEAT SINK 1.00 EA 13 CC050B0B40 SMA141-SMA-SMA MALE SEMI 40c”m 1.00 EA 14 CC051F0B16 SMA141-SMA_M-N-TYPE_F PANEL 16c”m 1.00 EA 15 CC051B0B26 SMA141-SMA-N-TYPE_MALE 16c”m 1.00 EA 16 CC050B0B56 SMA141-SMA-SMA MALE SEMI 56c”m 3.00 EA 17 CC051F0B20 SMA141-SMA_M-NTYPE_F PANEL 20c”m 1.00 18 CC050B0B66 SMA141-SMA_-SMA MALE 66c”m 1.00 EA 19 CC050B0B28 SMA141-SMA-SMA MALE SEMI 28c”m 1.00 EA 20 CC050B0B26 SMA141-SMA-SMA MALE SEMI 26c”m 1.00 EA Page 1 of 1 MW-BDA-PCS -D-50W90 PART LIST_1.doc

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com 20/11/03 PART LIST FOR : MW-BDA-PCS-F-50W90 FCC ID:OIWBDAPCSF50W90 Part Name Part Des. Qty. Unit Sup. Part 1 300UA31100 POWER SUPLY ASSY 1.00 EA JWS-300-24 2 300EB76000 CONNECTION BOX + MONITOR 1.00 EA 3 6420205930 CONTROL UNIT BASIC CB-04 1.00 EA 4 300CB84000 PRE-AMP PCS U/L "E" "F" "C" 1.00 EA 5 300CB85000 PRE AMP PCS D/L "E" "F" "C" 1.00 EA 6 1510992331 AMP RF 1800-1900MHZ 8W 1.00 EA 7032 7 1510992441 Panther 1900-1990MHz 12W 1.00 EA 100-0170-001 8 1511692557 Coaxial Isolator model D30-1L5FF 1.00 COAXIAL ISOLATOR 1.7-2GHZ 9 1501001351 FAN 24VDC 120mA 2.88W 37dbA SQ92MMX25MM 1.00 EA 10 1512100402 DIPLEXER COMPACT PCS 100W 65DB "F" BAND 1.00 EA DA1890U1970D/5M 11 1513000601 DUPLEX TX-1972.5 RX-1892.5 BW- 5M 100CW 1.00 EA 12 300CB82000 HEAT SINK 1.00 EA 13 CC050B0B40 SMA141-SMA-SMA MALE SEMI 40c”m 1.00 EA 14 CC051F0B16 SMA141-SMA_M-N-TYPE_F PANEL 16c”m 1.00 EA 15 CC051B0B26 SMA141-SMA-N-TYPE_MALE 16c”m 1.00 EA 16 CC050B0B56 SMA141-SMA-SMA MALE SEMI 56c”m 3.00 EA 17 CC051F0B20 SMA141-SMA_M-NTYPE_F PANEL 20c”m 1.00 18 CC050B0B66 SMA141-SMA_-SMA MALE 66c”m 1.00 EA 19 CC050B0B28 SMA141-SMA-SMA MALE SEMI 28c”m 1.00 EA 20 CC050B0B26 SMA141-SMA-SMA MALE SEMI 26c”m 1.00 EA Page 1 of 1 MW-BDA-PCS -F-50W90 PART LIST_.doc

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 33.00 (dBm) Maximum peak output power at antenna input terminal: 1995.26…

Text truncated - open the document above for the full version.
