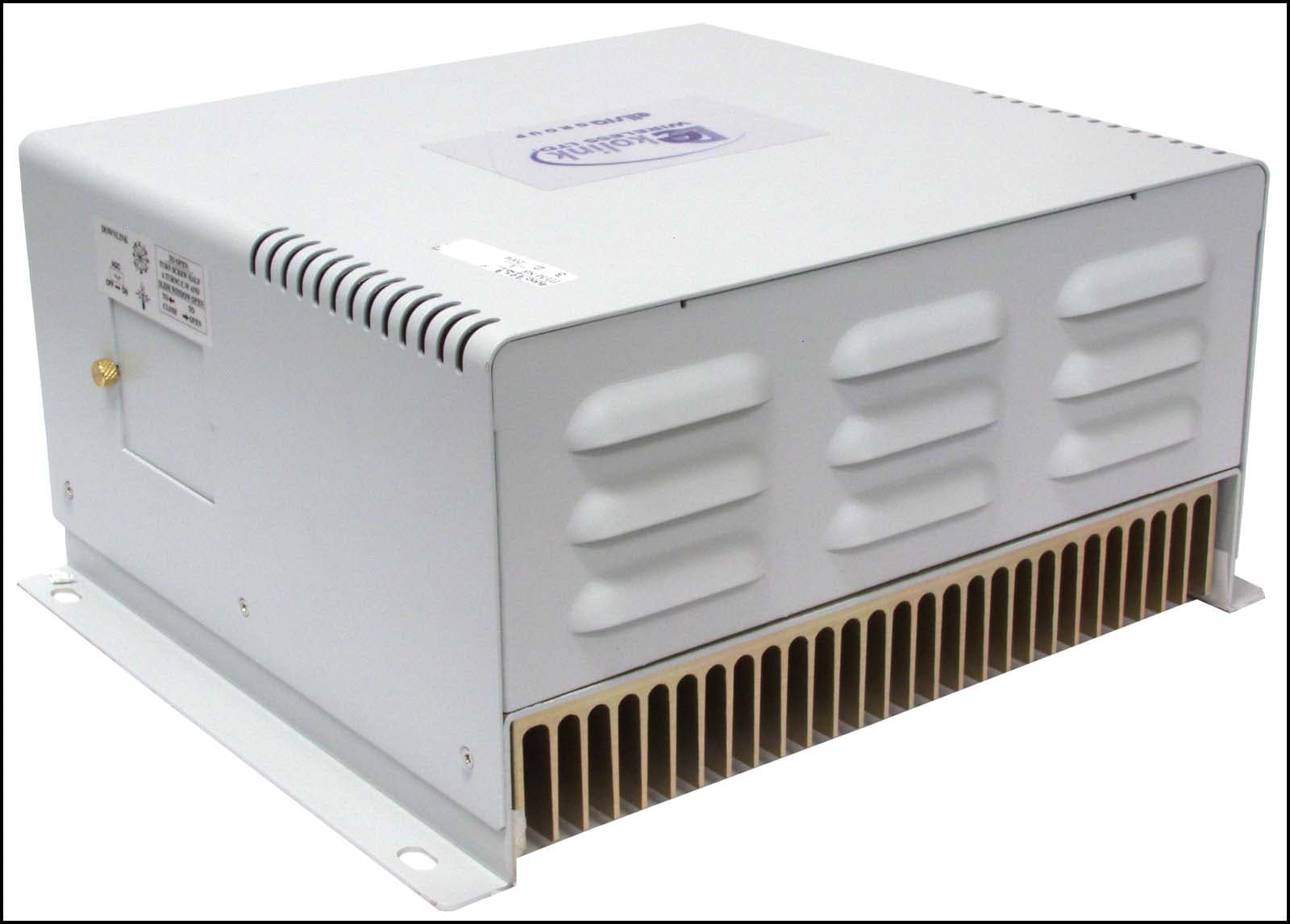

OIWCBDA800AB10W80Indoor Repeater

Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] ; Web site- www.dekolink.com r ev 5 11/ 02 page 1 of 12 INSTALLATION AND OPERATING INSTRUCTIONS FOR MW-CBDA SERIES 10W-80-A COMPACT BI-DIRECTIONAL AMPLIFIERS Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] ; Web site- www.dekolink.com r ev 5 11/ 02 page 2 of 12 INSTALLATION & OPERATING INSTRUCTIONS CBDA 10W-80-A COMPACT BI-DIRECTIONAL AMPLIFIERS TABLE OF CONTENTS PARAGRAPH PAGE No BDA OVERVIEW 3 BLOCK DIAGRAM DESCRIPTION 3 STEP ATTENUATOR & RF GAIN & SETTING 4 AGC FUNCTION 5 AGC & GAIN CONTROLS 5 BDA INSTALLATION 6 BASE/DONOR ANTENNA INSTALLATION 6 REMOTE/MOBILE ANTENNA INSTALLATION 6 ANTENNA ISOLATION 6 INSTALLATION STEPS 7 DIAGNOSTICS GUIDE 8 ELECTRICAL SPECIFICATIONS 9 SYSTEM FREQUENCY RANGE 9 ENVIRONMENTAL CONDITIONS 10 MECHANICAL SPECIFICATIONS 10 RF EXPOSURE WARNING 10 LIMITED WARRANTY 12 LIST OF DRAWINGS DRAWING PAGE No BDA RF BLOCK DIAGRAM 4 AGC AMPLIFIER 5 MECHANICAL OUTLINE 11 Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] ; Web site- www.dekolink.com r ev 5 11/ 02 page 3 of 12 :BDA OVERVIEW The Compact Bi-Directional Amplifier (CBDA) assembly provides an exceptional repeater/booster performances to extend the coverage area of radio communications in buildings and RF shielded environments. Features such as high linearity power amplifiers are contributing for the overall improved system linearity performances. The unit is based on a duplexed path configuration, having sharp out of band attenuation for improved isolation between the receiving and transmitting paths. :BLOCK DIAGRAM DESCRIPTION The CBDA Downlink path receives the RF signals from base station amplifies them and transmits them to the subscriber. The BDA Uplink path receives the RF signals from the subscriber amplifies them and transmits them to the base station. Two duplexers frequency separate the signals to the proper amplifying path and isolate the two signals. For each path two amplifiers do the path signal amplification; a low noise amplifier (LNA) and a high power amplifier. The low noise amplifier has a 30 dB step attenuator at its output. The step attenuator is used to set the BDA repeater gain. The power amplifiers in the BDA have an AGC option switch. When switched on, the AGC circuit limits the amplifier output power. The AGC circuit senses the output power and introduces more attenuation, when the output power exceeds the preset level. This way the gain of the amplifier is reduced, its output power is limited and the intermodulations products are kept below the desired level. The AGC amplifier has a Power LED lamp that illuminates when the output power has reached the preset power limit. Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] ; Web site- www.dekolink.com r ev 5 11/ 02 page 4 of 12 Step Attenuator & RF Gain Setting For proper operation of the BDA; the isolation between the base station antenna and the mobile antenna should exceed the BDA gain by at least 12 dB. If the BDA gain were higher than the isolation between the antennas, oscillation would start and would saturate the amplifier. Isolation few dB higher than the BDA gain cannot start oscillations but would cause gain ripple in the band. The step attenuator on the low noise amplifier can reduce the BDA gain. The BDA gain can be stepped down by the amount indicated on the step attenuator. Duplexer Downlink Duplexer Uplink LNA Attenuator Power Monitor PA AGC LNA Attenuator Power Monitor PA AGC BDA RF BLOCK DIAGRAM TO BASE TO MOBILE Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] ; Web site- www.dekolink.com r ev 5 11/ 02 page 5 of 12 AGC FUNCTION The BDA has AGC function on both paths that serve to prevent the saturation of the power amplifier. Their amplifier has a directional coupler and a detector at the output of the high power amplifier to monitor the output power. When a high signal is received the automatic level control detects the amplitude and sends a feedback signal to a voltage variable attenuator which attenuates the signal level so that the output power of the amplifier does not exceed the preset limit. The LED on the amplifier illuminates when the power out the amplifier is within the set limit (when the AGC is On and when the AGC is OFF). The switch on the RF amplifier enables the AGC function. If the AGC is disabled then the amplifier gives maximum gain. AGC AND GAIN CONTROLS The AGC and GAIN SETTING functions for the up link path are reached by opening the small slide door located on the CBDA left side, adjacent to the BASE antenna port. For the down link path the door is on the right side adjacent to the MOBILE antenna port RF Power LED : The LED illuminates when the output power exceeds the AGC Set . AGC ON / OFF Switch : When OFF the amplifier works with its highest gain (AGC Function OFF). When set to ON (AGC Function ON) the amplifier power output cannot exceed the set limit. Gain setting: By using the rotary knob , the attenuation can be adjusted in 2 dB steps. Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] ; Web site- www.dekolink.com r ev 5 11/ 02 page 6 of 12 BDA INSTALLATION Install the BDA Repeater in a shielded, ventilated and easy to reach area. Use low loss cables to connect antennas to the BDA. Install the BDA close to the service area to improve output power and noise figure. Mount the BDA with RF connecters pointing down. The RF connection is made via two type “N” female connectors. The RF connec…

Text truncated - open the document above for the full version.

Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR: MW-CBDA-800AB-10W80 FCC ID: OIWCBDA800AB10W80 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if there is any information you may need. Sincerely, March ,30, 2004 David Levy, Technical Support Manager Dekolink Wireless Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180179 Fax-972-3-9180190

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Page 1 of 1 FCC ID CBDA-800AB-10W80.doc FCC ID FOR CBDA-800AB-10W80

USED ON NEXT ASSY REVISIONS REV ECN NO. ECN SH DATE NAME SIGN 0 RELEASED SPECIFICATIONS FOR COMPACT Bi DIRECTIONAL AMPLIFIER (CBDA) WITH AGC& MGC MODEL:MW-CBDA-800AB-10W80 REV NO. SH. NO. 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 REV. NO. SH. NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 SHEET REVISION STATUS These drawings and specifications are the FILE NAME: property of ELISRA Electronic Systems Ltd. and shall not be reproduced or used without written . permission from ELISRA Electronic System Ltd. DATE NAME SIGN DRAFT TITLE CHECK APDD ME APPD PE APPD EE APPD QC CLASS SIZE DWG NO APPD ED A PROJ ENG DIM SCALE PAGE 1 OF 5 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Page 2 of 5 414524.DOC BDA OVERVIEW: The Compact Bi-Directional Amplifier (CBDA) assembly provides an exceptional repeater/booster performances to extend the coverage area of radio communications in buildings and RF shielded environments. Features such as high linearity power amplifiers are contributing for the overall improved system linearity performances. The unit is based on a duplexed path configuration, having sharp out of band attenuation for improved isolation between the receiving and transmitting paths. BLOCK DIAGRAM DESCRIPTION: The CBDA Downlink path receives the RF signals from base station amplifies them and transmits them to the subscriber. The BDA Uplink path receives the RF signals from the subscriber amplifies them and transmits them to the base station. Two duplexers frequency separate the signals to the proper amplifying path and isolate the two signals. For each path two amplifiers do the path signal amplification; a low noise amplifier (LNA) and a high power amplifier. The low noise amplifier has a 30 dB step attenuator at its output. The step attenuator is used to set the BDA repeater gain. The power amplifiers in the BDA have an AGC option switch. When switched on, the AGC circuit limits the amplifier output power. The AGC circuit senses the output power and introduces more attenuation, when the output power exceeds the preset level. This way the gain of the amplifier is reduced, its output power is limited and the intermodulations products are kept below the desired level. The AGC amplifier has a Power LED lamp that illuminates when the output power has reached the preset power limit. Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Page 3 of 5 414524.DOC Duplexer Downlink Duplexer Uplink LNA Attenuator Power Monitor PA AGC LNA Attenuator Power Monitor PA AGC CBDA-10W80 RF BLOCK DIAGRAM TO BASE TO MOBILE Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Page 4 of 5 414524.DOC ELECTRICAL SPECIFICATIONS: Down Link (Base to Mobile) Up Link (Mobile to Base) Frequency Range (MHz) 869-894 824-849 Passband Gain @Min attenuation 80 dB nominal Passband Ripple +/- 1.5 dB typical Manual Attenuation Range 0 to 30 dB in 2 dB step Isolation between up and down link 90 dB typical Noise Figure 6.0 dB max Amplifier Power Output @1 dB Compression : 10 Watts minimum 1 Watts minimum 3rd Order output Intercept point +50 dBm typical +45 dBm typical AGC Factory Power Preset +30 dBm nom. +24dBm nom. Impedance level 50 ohms V.S.W.R In/Out 1.5 : 1 max AGC Attenuation Range 25 dB typical AGC Selection By ON/OFF Switch AGC LED Indication LED turn ON when power reaches AGC Set Power Level. (both at On and Off Positions). Power Supply : 110/220V AC, 50-60 Hz * same specifications for both paths unless specified. Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Page 5 of 5 414524.DOC MECHANICAL SPECIFICATIONS: Size mm(Inch) : 265(10.4) x 250(9.8) x140(5.5) RF Connectors : N-type Female Weight : 9 kg. Approx. ENVIROMENTAL CONDITIONS: Operating temperature : - 30°C to + 50°C Storage temperature : - 50°C to + 90°C MECHANICAL OUTLINE

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Page 1 of 1 BDA800AB10W PART LIST.doc 17.02.04 CBDA-800AB-10W80 -PART LIST Part No. Description Quantity 1541003556 POWER SUPPLY 1 300VA75000 UPLINK PRE AMP. 1 300VA76000 DOWNLINK PRE AMP. 1 300DA47000 1W AMP. +AGC, 27V 1 1510092873 10W AMP. 800-1000MHz 10W 1 1512100160 DIPLEXER 2 SM86-11SMA-16SMA-50CM CABLE ASSEMBLY W01 1 SM86-11SMA(x2)-26CM CABLE ASSEMBLY W02 1 SM86-11SMA-16SMA-9.5CM CABLE ASSEMBLY W03 1 SM86-11SMA-16SMA-36CM CABLE ASSEMBLY W04 1 SM86-11SMA(x2)-26CM CABLE ASSEMBLY W05 1 SM86-11SMA-16SMA-31CM CABLE ASSEMBLY W06 1 300HA60250 BASE 1 300HA63000 COVER ASSEMBLY 1 300HA60350 HEAT SINK 1 1463500025 CONN. PWR-FILTER AC PLUG 1 300AA81100 DC/DC CONVERTER ASSY 1

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 30.00 (dBm) Maximum peak output power at antenna input terminal: 1000 (mW) Antenna gain(typical): 2 (dBi) Maximum antenna gain: 1.584893192 (numeric) Prediction distance: 20 (cm) Prediction frequency: 869-894 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm^2) Power density at prediction frequency: 0.315304 (mW/cm^2) Maximum allowable antenna gain: 7.012698554 (dBi) Margin of Compliance: 5.012698554 (dB) 2 4 R PG S π =

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 23.00 (dBm) Maximum peak output power at antenna input terminal: 199.5262315 (mW) Antenna gain(typical): 10.1 (dBi) Maximum antenna gain: 10.23292992 (numeric) Prediction distance: 20 (cm) Prediction frequency: 824-849 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm^2) Power density at prediction frequency: 0.406191 (mW/cm^2) Maximum allowable antenna gain: 14.01269855 (dBi) Margin of Compliance: 3.912698554 (dB) 2 4 R PG S π =

Master: Generic FCC Date: October 16, 2001 Test Report: 4W07939 Applicant: Dekolink Wireless Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Equipment Under Test: MW-CBDA-800AB-10W80-A, Indoor Repeater (EUT) In Accordance With: FCC Part 22, Subpart H Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Glen Westwell, Wireless Technologist Date: 26 March 2004 Total Number of Pages: 32 Nemko Canada Inc. PROJECT NO.: 4W07939 FCC PART 22, SUBPART H EQUIPMENT: MW-CBDA-800AB-10W80-A, Indoor Repeater Page 2 of 32 Table of Contents Section 1. Summary of Test Results ...................................................................................... 3 Section 2. General Equipment Specification......................................................................... 5 Section 3. RF Power Output ................................................................................................... 7 Section 4. Occupied Bandwidth ............................................................................................. 8 Section 5. Spurious Emissions at Antenna Terminals ....................................................... 15 Section 6. Field Strength of Spurious Emissions ................................................................ 26 Section 7. Block Diagrams ..................................................................................................... 30 Section 8. Test Equipment List ............................................................................................. 32 Nemko Canada Inc. PROJECT NO.: 4W07939 FCC PART 22, SUBPART H EQUIPMENT: MW-CBDA-800AB-10W80-A, Indoor Repeater Page 3 of 32 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 22, Subpart H. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. TESTED BY: ______________________________ DATE: 26 March 2004 Kevin Carr, EMC/EMI/Wireless Specialist TESTED BY: ______________________________ DATE: 26 March 2004 Daxesh Thakker, Wireless Test Engineer Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. PROJECT NO.: 4W07939 FCC PART 22, SUBPART H EQUIPMENT: MW-CBDA-800AB-10W80-A, Indoor Repeater Page 4 of 32 Summary Of Test Data Name Of Test Para. No. Result RF Power Output 2.1046 Complied Audio Frequency Response 2.1047 NA(1) Audio Low-Pass Filter Response 2.1047 NA(1) Modulation Limiting 2.1047 NA(1) Occupied Bandwidth 2.1049 Complied Spurious Emissions at Antenna Terminals 2.1051 Complied Field Strength of Spurious Emissions 2.1053 Complied Frequency Stability 2.1055 NA(2) Transient Frequency Behavior —— NA(3) Note: The EUT is a F1 – F1, Bi-Directional Amplifier N/A’s: 1 – The EUT has no modulation or audio capability 2 – The EUT has no frequency conversion capability 3 – The EUT is not a PTT device Indoor Temperature: 23°C Humidity: 10% Outdoor Temperature: 22°C Humidity: 12% . Nemko Canada Inc. PROJECT NO.: 4W07939 FCC PART 22, SUBPART H EQUIPMENT: MW-CBDA-800AB-10W80-A, Indoor Repeater Page 5 of 32 Section 2. General Equipment Specification Manufacturer: Dekolink Wireless Ltd Model No.: MW-CBDA-800AB-10W80-A Serial No.: 04017265 Date Received In Laboratory: 15 Mar. 2004 Nemko Identification No.: 1 Supply Voltage: 120VAC, 60Hz Frequency Range: Uplink: 824 – 849MHz Downlink: 869 – 894MHz RF Output Power (Rated) Uplink: 23.0 dBm, 0.2W Downlink: 30.0dBm, 1.0W RF Output Power (measured) Uplink: 22.1 dBm, 0.162W Downlink: 30.0 dBm, 1.0W Emission Designator: DXW, F9W, F3E Nemko Canada Inc. PROJECT NO.: 4W07939 FCC PART 22, SUBPART H EQUIPMENT: MW-CBDA-800AB-10W80-A, Indoor Repeater Page 6 of 32 Block Diagram Mobile Base EUT 120VAC, 60Hz Nemko Canada Inc. PROJECT NO.: 4W07939 FCC PART 22, SUBPART H EQUIPMENT: MW-CBDA-800AB-10W80-A, Indoor Repeater Page 7 of 32 Section 3. RF Power Output Para. No.: 2.1046 Test Performed By: Kevin Carr Date of Test: 18 Mar. 2004 Minimum Standard: 22.913(a) Test Results: Complied Measurement Data: See Attached Graphs. The maximum RF output power is within ± 1dB of the manufacturer’s rating. The RF output power is de-rated according to the number of channels via AGC and is equal to Pmax –10LogN. Pmax = Maximum RF Output Power N = Number Of Channels UL DL (dBm) (dBm) TDMA 21.5 29.4 CDMA 21.5 30.2 AMPS 22.1 30.2 Nemko Canada Inc. PROJECT NO.: 4W07939 FCC PART 22, SUBPART H EQUIPMENT: MW-CBDA-800AB-10W80-A, Indoor Repeater Page 8 of 32 Section 4. Occupied Bandwidth Para. No.: 2.1049 Test Performed By: Kevin Carr Date of Test: 18 Mar. 2004 Minimum Standard: 22.917, Input vs Output Test Results: Complied Measurement Data: See Attached Graphs The occupied bandwidth was measured by comparison of input to the output signal. This was done in order to determine if there was any degradation to the output signal due to the amplification through the repeater. Nemko Canada Inc. PROJECT NO.: 4W07939 FCC PART 22, SUBPART H EQUIPMENT: MW-CBDA-800AB-10W80-A, Indoor Repeater Page 9 of 32 UL TDMA Nemko Canada Inc. PROJECT NO.: 4W07939 FCC PART 22, SUBPART H EQUIPMENT: MW-CBDA-800AB-10W80-A, Indoor Repeater Page 10 of 32 CDMA Nemko Canada Inc. PROJECT NO.: 4W07939 FCC PART 22, SUBPART H EQUIPMENT: MW-CBDA-800AB-10W80-A, Indoor Repeater Page 11 of 32 AMPS Nemko Canada Inc. PROJECT NO.: 4W07939 FCC PART 22, SUBPART H EQUIPMENT: MW-CBDA-800AB-10W80-A, Indoor Repeater Page 12 of 32 DL TDMA Nemko Canada Inc. PROJECT NO.: 4W07939 FCC …

Text truncated - open the document above for the full version.

Nemko Canada Inc. PROJECT NO.: 4W07939 FCC PART 22, SUBPART H EQUIPMENT: MW-CBDA-800AB-10W80-A, Indoor Repeater Page 28 of 32 Radiated Disturbance Detailed Setup Photos: Rear Nemko Canada Inc. PROJECT NO.: 4W07939 FCC PART 22, SUBPART H EQUIPMENT: MW-CBDA-800AB-10W80-A, Indoor Repeater Page 29 of 32 Front
