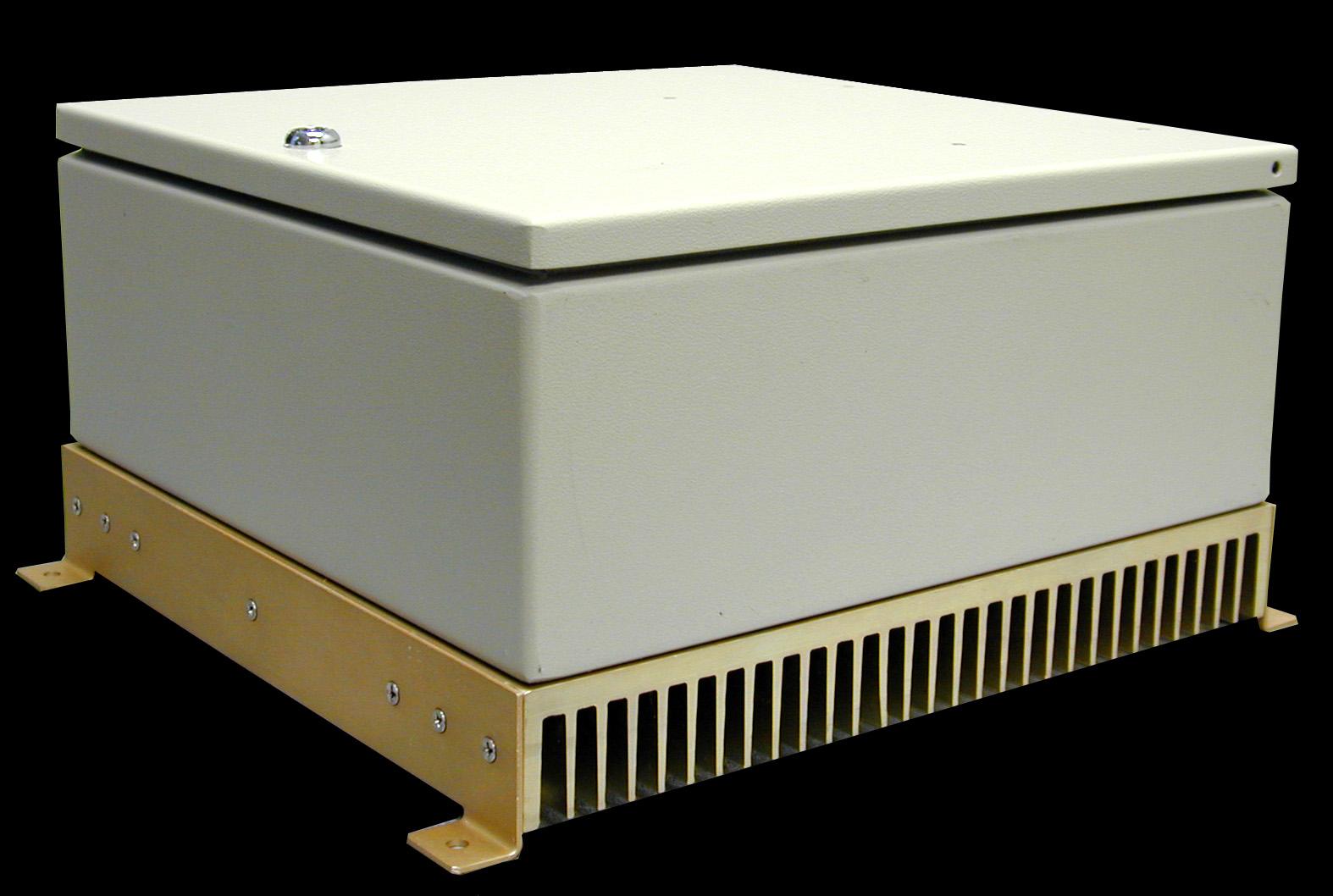

OIWCBDAPCSAC10W80MW-CBDA-PCS-AC-10W80 Compact Bi-Directional Amplif

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com INSTALLATION AND OPERATING INSTRUCTIONS FOR MW-CBDA-PCS-AC-10W80 COMPACT BI-DIRECTIONAL AMPLIFIER North America Sales & Service Parker RF Technologies 2901 W. Busch Blvd., Suite 404, Tampa, FL 33618 Tel: 813-935-1825, Fax: 813-935-1824, Web Site: www.parker-rf.com , e-mail: [email protected] Page 1 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com TABLE OF CONTENTS PARAGRAPH PAGE No BDA OVERVIEW 3 BLOCK DIAGRAM DESCRIPTION 3 BDA OPERATION 4 STEP ATTENUATOR & RF GAIN & SETTING 4 AGC FUNCTION 5 AGC AMPLIFIER CONTROLS 5 RF EXPOSURE WARNING 6 ELECTRICAL SPECIFICATIONS 7 ENVIRONMENTAL CONDITIONS 7 MECHANICAL SPECIFICATIONS 8 LIST OF DRAWINGS DRAWING PAGE No BDA RF BLOCK DIAGRAM 4 MECHANICAL OUTLINE 8 Page 2 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com :WBDA OVERVIE The Compact Bi-Directional Amplifier (CBDA) assembly provides an exceptional repeater/booster performances to extend the coverage area of radio communications in buildings and RF shielded environments. Features such as high linearity power amplifiers are contributing for the overall improved system linearity performances. The unit is based on a duplexed path configuration, having sharp out of band attenuation for improved isolation between the receiving and transmitting paths. :BLOCK DIAGRAM DESCRIPTION The CBDA Downlink path receives the RF signals from base station, amplifies them and transmits them to the subscriber. The BDA Uplink path receives the RF signals from the subscriber amplifies them and transmits them to the base station. Two duplexers frequency separate the signals to the proper amplifying path and isolate the two signals.Two aditional filters , one in uplink path and one in down link path are used to improve isolation. For each path two amplifiers do the path signal amplification; a low noise amplifier (LNA) and a high power amplifier. The low noise amplifier has a 30 dB step attenuator at its output. The step attenuator is used to set the BDA repeater gain. The power amplifiers in the BDA have an AGC option switch. When switched on, the AGC circuit limits the amplifier output power. The AGC circuit senses the output power and introduces more attenuation, when the output power exceeds the preset level. This way the gain of the amplifier is reduced, its output power is limited and the intermodulations products are kept below the desired level. The AGC amplifier has a Power LED lamp that illuminates when the output power has reached the preset power limit. Page 3 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com Duplexe r Downlink Duplexe r Uplink LNA Filter Attenuator Power Monitor PA AGC LNA Attenuator Filter Power Monitor PA AGC BDA RF BLOCK DIAGRAM TO BASE TO MOBILE BDA OPERATION The RF connection is made via two type “N” female connectors. The RF connector labeled “Base” should be connected to the antenna pointing to the base station; usually a rooftop antenna. The RF connection labeled “Mobile” should be connected to the antenna pointing into the area to be covered by the BDA; such as inside a building. Step Attenuator & RF Gain Setting For proper operation of the BDA; the isolation between the base station antenna and the mobile antenna should exceed the BDA gain by at least 12 dB. If the BDA gain is higher than the isolation between the antennas, oscillation would start and would saturate the amplifier. Isolation of few dB higher than the BDA gain cannot start oscillations but would cause gain ripple in the band. The step attenuator on the low noise amplifier can reduce the BDA gain. By using the rotary knob , the attenuation can be adjusted in 2 dB steps up to 30 dB. Page 4 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com The GAIN setting functions for the up link path and the down link path are reached by opening the front door of the unit AGC FUNCTION The BDA has AGC function on both paths that serve to prevent the saturation of the power amplifier. Their amplifier has a directional coupler and a detector at the output of the high power amplifier to monitor the output power. When a high signal is received the automatic level control detects the amplitude and sends a feedback signal to a voltage variable attenuator which attenuates the signal level so that the output power of the amplifier does not exceed the preset limit. The LED on the amplifier illuminates when the power out the amplifier is within the set limit (when the AGC is On and when the AGC is OFF). The switch on the RF amplifier enables the AGC function. If the AGC is disabled then the amplifier gives maximum gain. Note: The BDA is shipped with the AGC switch in the OFF position. The screw on the amplifier is used to set the AGC power limit. This is a factory-preset level. RF Power LED : The LED illuminates when the output power exceeds the AGC Set . AGC ON / OFF Switch : When OFF the amplifier works with its highest gain (AGC Function OFF). When set to ON (AGC Function ON) the amplifier power output cannot exceed the set limit. Page 5 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com RF EXPOSURE WARNING In order to satisfy the FCC…

Text truncated - open the document above for the full version.

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com INSTALLATION AND OPERATING INSTRUCTIONS FOR MW-CBDA-PCS-AC-10W80 COMPACT BI-DIRECTIONAL AMPLIFIER North America Sales & Service Parker RF Technologies 2901 W. Busch Blvd., Suite 404, Tampa, FL 33618 Tel: 813-935-1825, Fax: 813-935-1824, Web Site: www.parker-rf.com , e-mail: [email protected] Page 1 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com TABLE OF CONTENTS PARAGRAPH PAGE No BDA OVERVIEW 3 BLOCK DIAGRAM DESCRIPTION 3 BDA OPERATION 4 STEP ATTENUATOR & RF GAIN & SETTING 4 AGC FUNCTION 5 AGC AMPLIFIER CONTROLS 5 RF EXPOSURE WARNING 6 ELECTRICAL SPECIFICATIONS 7 ENVIRONMENTAL CONDITIONS 7 MECHANICAL SPECIFICATIONS 8 LIST OF DRAWINGS DRAWING PAGE No BDA RF BLOCK DIAGRAM 4 MECHANICAL OUTLINE 8 Page 2 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com :WBDA OVERVIE The Compact Bi-Directional Amplifier (CBDA) assembly provides an exceptional repeater/booster performances to extend the coverage area of radio communications in buildings and RF shielded environments. Features such as high linearity power amplifiers are contributing for the overall improved system linearity performances. The unit is based on a duplexed path configuration, having sharp out of band attenuation for improved isolation between the receiving and transmitting paths. :BLOCK DIAGRAM DESCRIPTION The CBDA Downlink path receives the RF signals from base station, amplifies them and transmits them to the subscriber. The BDA Uplink path receives the RF signals from the subscriber amplifies them and transmits them to the base station. Two duplexers frequency separate the signals to the proper amplifying path and isolate the two signals.Two aditional filters , one in uplink path and one in down link path are used to improve isolation. For each path two amplifiers do the path signal amplification; a low noise amplifier (LNA) and a high power amplifier. The low noise amplifier has a 30 dB step attenuator at its output. The step attenuator is used to set the BDA repeater gain. The power amplifiers in the BDA have an AGC option switch. When switched on, the AGC circuit limits the amplifier output power. The AGC circuit senses the output power and introduces more attenuation, when the output power exceeds the preset level. This way the gain of the amplifier is reduced, its output power is limited and the intermodulations products are kept below the desired level. The AGC amplifier has a Power LED lamp that illuminates when the output power has reached the preset power limit. Page 3 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com Duplexe r Downlink Duplexe r Uplink LNA Filter Attenuator Power Monitor PA AGC LNA Attenuator Filter Power Monitor PA AGC BDA RF BLOCK DIAGRAM TO BASE TO MOBILE BDA OPERATION The RF connection is made via two type “N” female connectors. The RF connector labeled “Base” should be connected to the antenna pointing to the base station; usually a rooftop antenna. The RF connection labeled “Mobile” should be connected to the antenna pointing into the area to be covered by the BDA; such as inside a building. Step Attenuator & RF Gain Setting For proper operation of the BDA; the isolation between the base station antenna and the mobile antenna should exceed the BDA gain by at least 12 dB. If the BDA gain is higher than the isolation between the antennas, oscillation would start and would saturate the amplifier. Isolation of few dB higher than the BDA gain cannot start oscillations but would cause gain ripple in the band. The step attenuator on the low noise amplifier can reduce the BDA gain. By using the rotary knob , the attenuation can be adjusted in 2 dB steps up to 30 dB. Page 4 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com The GAIN setting functions for the up link path and the down link path are reached by opening the front door of the unit AGC FUNCTION The BDA has AGC function on both paths that serve to prevent the saturation of the power amplifier. Their amplifier has a directional coupler and a detector at the output of the high power amplifier to monitor the output power. When a high signal is received the automatic level control detects the amplitude and sends a feedback signal to a voltage variable attenuator which attenuates the signal level so that the output power of the amplifier does not exceed the preset limit. The LED on the amplifier illuminates when the power out the amplifier is within the set limit (when the AGC is On and when the AGC is OFF). The switch on the RF amplifier enables the AGC function. If the AGC is disabled then the amplifier gives maximum gain. Note: The BDA is shipped with the AGC switch in the OFF position. The screw on the amplifier is used to set the AGC power limit. This is a factory-preset level. RF Power LED : The LED illuminates when the output power exceeds the AGC Set . AGC ON / OFF Switch : When OFF the amplifier works with its highest gain (AGC Function OFF). When set to ON (AGC Function ON) the amplifier power output cannot exceed the set limit. Page 5 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com RF EXPOSURE WARNING In order to satisfy the FCC…

Text truncated - open the document above for the full version.

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com FCC ID: OIWCBDAPCSAC10W80 - LABLES Page 1 of 1 FCC ID OIWCBDAPCSAC10W80 - LABLES.doc

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com INSTALLATION AND OPERATING INSTRUCTIONS FOR MW-CBDA-PCS-AC-10W80 COMPACT BI-DIRECTIONAL AMPLIFIER North America Sales & Service Parker RF Technologies 2901 W. Busch Blvd., Suite 404, Tampa, FL 33618 Tel: 813-935-1825, Fax: 813-935-1824, Web Site: www.parker-rf.com , e-mail: [email protected] Page 1 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com TABLE OF CONTENTS PARAGRAPH PAGE No BDA OVERVIEW 3 BLOCK DIAGRAM DESCRIPTION 3 BDA OPERATION 4 STEP ATTENUATOR & RF GAIN & SETTING 4 AGC FUNCTION 5 AGC AMPLIFIER CONTROLS 5 RF EXPOSURE WARNING 6 ELECTRICAL SPECIFICATIONS 7 ENVIRONMENTAL CONDITIONS 7 MECHANICAL SPECIFICATIONS 8 LIST OF DRAWINGS DRAWING PAGE No BDA RF BLOCK DIAGRAM 4 MECHANICAL OUTLINE 8 Page 2 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com :WBDA OVERVIE The Compact Bi-Directional Amplifier (CBDA) assembly provides an exceptional repeater/booster performances to extend the coverage area of radio communications in buildings and RF shielded environments. Features such as high linearity power amplifiers are contributing for the overall improved system linearity performances. The unit is based on a duplexed path configuration, having sharp out of band attenuation for improved isolation between the receiving and transmitting paths. :BLOCK DIAGRAM DESCRIPTION The CBDA Downlink path receives the RF signals from base station, amplifies them and transmits them to the subscriber. The BDA Uplink path receives the RF signals from the subscriber amplifies them and transmits them to the base station. Two duplexers frequency separate the signals to the proper amplifying path and isolate the two signals.Two aditional filters , one in uplink path and one in down link path are used to improve isolation. For each path two amplifiers do the path signal amplification; a low noise amplifier (LNA) and a high power amplifier. The low noise amplifier has a 30 dB step attenuator at its output. The step attenuator is used to set the BDA repeater gain. The power amplifiers in the BDA have an AGC option switch. When switched on, the AGC circuit limits the amplifier output power. The AGC circuit senses the output power and introduces more attenuation, when the output power exceeds the preset level. This way the gain of the amplifier is reduced, its output power is limited and the intermodulations products are kept below the desired level. The AGC amplifier has a Power LED lamp that illuminates when the output power has reached the preset power limit. Page 3 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com Duplexe r Downlink Duplexe r Uplink LNA Filter Attenuator Power Monitor PA AGC LNA Attenuator Filter Power Monitor PA AGC BDA RF BLOCK DIAGRAM TO BASE TO MOBILE BDA OPERATION The RF connection is made via two type “N” female connectors. The RF connector labeled “Base” should be connected to the antenna pointing to the base station; usually a rooftop antenna. The RF connection labeled “Mobile” should be connected to the antenna pointing into the area to be covered by the BDA; such as inside a building. Step Attenuator & RF Gain Setting For proper operation of the BDA; the isolation between the base station antenna and the mobile antenna should exceed the BDA gain by at least 12 dB. If the BDA gain is higher than the isolation between the antennas, oscillation would start and would saturate the amplifier. Isolation of few dB higher than the BDA gain cannot start oscillations but would cause gain ripple in the band. The step attenuator on the low noise amplifier can reduce the BDA gain. By using the rotary knob , the attenuation can be adjusted in 2 dB steps up to 30 dB. Page 4 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com The GAIN setting functions for the up link path and the down link path are reached by opening the front door of the unit AGC FUNCTION The BDA has AGC function on both paths that serve to prevent the saturation of the power amplifier. Their amplifier has a directional coupler and a detector at the output of the high power amplifier to monitor the output power. When a high signal is received the automatic level control detects the amplitude and sends a feedback signal to a voltage variable attenuator which attenuates the signal level so that the output power of the amplifier does not exceed the preset limit. The LED on the amplifier illuminates when the power out the amplifier is within the set limit (when the AGC is On and when the AGC is OFF). The switch on the RF amplifier enables the AGC function. If the AGC is disabled then the amplifier gives maximum gain. Note: The BDA is shipped with the AGC switch in the OFF position. The screw on the amplifier is used to set the AGC power limit. This is a factory-preset level. RF Power LED : The LED illuminates when the output power exceeds the AGC Set . AGC ON / OFF Switch : When OFF the amplifier works with its highest gain (AGC Function OFF). When set to ON (AGC Function ON) the amplifier power output cannot exceed the set limit. Page 5 of 8 CBDA-PCSAC-10W80 INST-FCC.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com RF EXPOSURE WARNING In order to satisfy the FCC…

Text truncated - open the document above for the full version.

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com 14 May 02 FCC ID: OIWCBDAPCSAC10W80 PARTS LIST Part No Description Quantity PS001A0620/2800 CON.PWR-FILTER AC 6A 250V 50-400HZ 1 ZWS-PF100-15 PWR SUP. AC/DC IN:85-265V OUT;15V;7A 1 300TA50150 CHASIS 1 300TA50350 HEAT SINK 1 1501001381 FAN 12V 20-28BA 1 7020 AMP 1800-2000MHz 10W 1 300WA43000 AMP PCS 1W45 1 CD1920/60SK-E DIPLEXER PCS FULL BAND 2 CBB1920/60SK-M DUAL FILTER PCS FULL BAND 1 300TA53000 PRE-AMP 40db 1880 (Up Link) 1 300TA50150 PRE-AMP 40db 1960 (Down Link) 1 30WTA50001 CABLE SM86-25N-11SMA-16cm 1 30WTA50002 CABLE SM86-11SMA(x2)-13cm 1 30WTA50003 CABLE SM86-11SMA-16SMA-12cm 1 30WTA50004 CABLE SM86-11SMA(x2)-30cm 1 30WTA50005 CABLE SM86-11SMA(x2)-19cm 1 30WTA50006 CABLE SM86-11SMA-16SMA-16cm 1 30WTA50007 CABLE SM86-11SMA(x2)-35cm 1 30WTA50008 CABLE SM86-11SMA(x2)-22cm 1 30WWA40009 SM86-11SMA-16SMA-12cm 1 30WWA40010 SM86-11SMA-16SMA-29cm 1

Maximum Permissible Exposure (MPE) Compliance Statement, FCC Radio Frequency Exposure Limit 1.1310 Health Canada Safety Code 6 CBDA PCSAC 10W80 Indoor Repeater The CBDA PCSAC 10W80 Indoor Repeater has been tested and the performance characterized in accordance with the MPE requirements of FCC 47 CFR and RSS 102. At the maximum operating frequency of 1990MHz the MPE limit for the General Population/Uncontrolled Exposure is 1.0mW/cm 2 . This device complies with this limit at the following line of sight distances from the antenna element: CBDA PCSAC 10W80 : 28.2cm The analysis is provided below. Power Density (S) = EIRP/(4πR 2 ) , Therefore, R≥√EIRP/S x 4π Using this calculation: Maximum Antenna Gain = 16dBi Maximum output power = 24dBm S = 1.0 mW/cm 2 EIRP = 40dBm or 10W(max. worst case) Theref ore, R= 28.2cm This minimum safe distance for the general population of 28.2cm shall be stated in the installation & operators instruction manual under the RF Safety Exposure Warning Statement. Analyses provided by, Glen Westwell, Nemko Canada Inc. for Dekolink Wireless Ltd.

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.decolink.com Optical Fiber Downlink Uplink TO MOBILE TO BASE Fiberoptic Transmitter Fiberoptic Receiver Duplexer RX Variable Attenuator TX Power Amplifier Power Monitor PA AGC FBDA MONITOR CURRENT SENSORS O P T I CAL AL AR M SU M M E R I Z E D AL AR M OU T FAN POWER SUPPLY +13.5 V AC CORD +V IN FBDA-PCS-AC-10W ELELCTRICAL SCHEMATICS Page 1 of 1 CBDA-PCSAC 10W80 SCHEMATICS.doc

Master: Generic FCC Date: October 16, 2001 Test Report:2W04890 Applicant:Dekolink Wireless LTD. 16 Bazel St. Qiryat-Arieh Petah-Tikva, 49510 Israel Equipment Under Test:CBDA PCSAC 10W80 (EUT)Indoor Repeater FCC ID:OIWCBDAPCSAC10W80 In Accordance With:FCC Part 24, Subpart E Tested By:Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By:Glen Westwell, Wireless Technologist Date:13 June 2002 Total Number of Pages:24 Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 2 of 24 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. RF Power Output..................................................................................................6 Section 4. Occupied Bandwidth............................................................................................8 Section 5. Spurious Emissions at Antenna Terminals........................................................12 Section 6. Field Strength of Spurious Emissions................................................................18 Section 7.Frequency Stability..............................................................................................21 Section 8.Block Diagrams....................................................................................................22 Section 9.Test Equipment List............................................................................................24 Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 3 of 24 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. The EUT Connects to a Base Station. Therefore only the Downlink Direction was tested. TESTED BY: ______________________________DATE: 13 June 2002 Kevin Carr, EMC Specialist Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 4 of 24 Summary Of Test Data Name Of TestPara. No.Result RF Power Output2.1046Complied. Audio Frequency Response2.1047N/A Audio Low-Pass Filter Response2.1047N/A Modulation Limiting2.1047N/A Occupied Bandwidth2.1049Complied. Spurious Emissions at Antenna Terminals 2.1051Complied. Field Strength of Spurious Emissions2.1053Complied. Frequency Stability2.1055Complied. Transient Frequency Behavior——N/A Footnotes For N/A’s: IndoorTemperature:23°C Humidity:38% OutdoorTemperature:24°C Humidity:50% . Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 5 of 24 Section 2.General Equipment Specification Manufacturer:Dekolink Wireless LTD. Model No.:CBDA PCSAC 10W80 Serial No.: 02058001 Date Received In Laboratory: 12June 2002 Nemko Identification No.: 1 Supply Input Voltage: 120 VAC, 60 Hz Frequency Range: Downlink: 1930-1990MHz RF Output (Rated): Downlink, CDMA: 1.0Watts, 30.0dBm Downlink, TDMA: 1.0Watts, 30.0dBm Downlink, GSM: 1.0Watts, 30.0dBm Emission Designator CDMA, DXW TDMA, F9W GSM, GXW Note: The EUT is a repeater which connects to a base station therefore only the Downlink direction was tested. Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 6 of 24 Section 3.RF Power Output Para. No.: 2.1046 Test Performed By: Kevin CarrDate of Test: 12 June 2002 Minimum Standard:24.232 Test Results:Complied. Measurement Data:See Attached Graphs. The maximum RF output power is within ± 1dB of the manufacturer’s rating. The RF output power is de-rated according to the number of channels via AGC and is equal to Pmax –10LogN. Pmax = Maximum RF Output Power N = Number Of Channels Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 7 of 24 Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 8 of 24 Section 4.Occupied Bandwidth Para. No.: 2.1049 Test Performed By: Kevin CarrDate of Test: 12 June 2002 Minimum Standard:24.238, Input vs Output Test Results:Complied Measurement Data:See attached graphs. The occupied bandwidth was measured by comparison of input to the output signal. This was done in order to determine if there was any degradation to the output signal due to the amplification through the repeater. Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 9 of 24 Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 10 of 24 Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 11 of 24 Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 12 of 24 Section 5.Spurious Emissions at Antenna Terminals Para. No.: 2.1051 Test Performed By: Kevin CarrDate of Test: 12 June 2002 Minimum Standard:24.238 Test Results:Complied. Measurement Data:See Attached Graphs. Only worst case has been reported. Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 13 of 24 Spurious Emissions-Conducted Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC…

Text truncated - open the document above for the full version.

Master: Generic FCC Date: October 16, 2001 Test Report:2W04890 Issue 2.0 Applicant:Dekolink Wireless LTD. 16 Bazel St. Qiryat-Arieh Petah-Tikva, 49510 Israel Equipment Under Test:CBDA PCSAC 10W80 (EUT)Indoor Repeater FCC ID:OIWCBDAPCSAC10W80 In Accordance With:FCC Part 24, Subpart E Tested By:Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By:Glen Westwell, Wireless Technologist Date:28 June 2002 Total Number of Pages:30 Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 2 of 30 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. RF Power Output..................................................................................................6 Section 4. Occupied Bandwidth............................................................................................8 Section 5. Spurious Emissions at Antenna Terminals........................................................15 Section 6. Field Strength of Spurious Emissions................................................................24 Section 7.Frequency Stability..............................................................................................27 Section 8.Block Diagrams....................................................................................................28 Section 9.Test Equipment List............................................................................................30 Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 3 of 30 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. TESTED BY: ______________________________DATE: 28 June 2002 Kevin Carr, EMC Specialist Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. PROJECT NO.:2W04890 EQUIPMENT: CBDA PCSAC 10W80 Page 4 of 30 Summary Of Test Data Name Of TestPara. No.Result RF Power Output2.1046Complied. Audio Frequency Response2.1047N/A …

Text truncated - open the document above for the full version.
