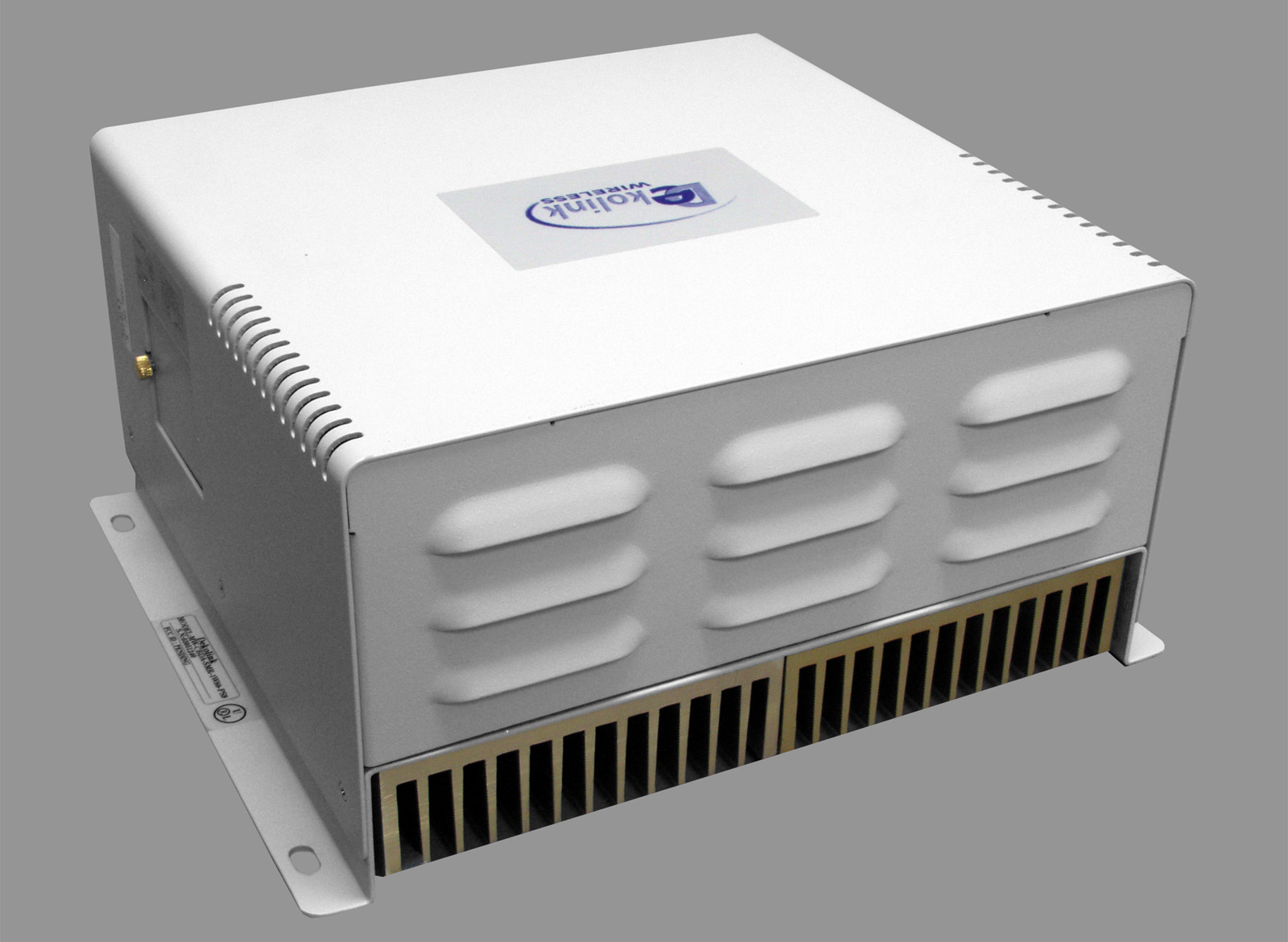

OIWCBDAPS91W80Bi-Directional Amplifier

Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] INSTALLATION AND OPERATING INSTRUCTIONS FOR MW-CBDA SERIES 1W-80-A COMPACT BI-DIRECTIONAL AMPLIFIERS ; Web site- www.dekolink.com r ev 5 11/ 02 page 1 of 12 Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] INSTALLATION & OPERATING INSTRUCTIONS CBDA 1W-80-A COMPACT BI-DIRECTIONAL AMPLIFIERS TABLE OF CONTENTS PARAGRAPH PAGE No BDA OVERVIEW 3 BLOCK DIAGRAM DESCRIPTION 3 STEP ATTENUATOR & RF GAIN & SETTING 4 AGC FUNCTION 5 AGC & GAIN CONTROLS 5 BDA INSTALLATION 6 BASE/DONOR ANTENNA INSTALLATION 6 REMOTE/MOBILE ANTENNA INSTALLATION 6 ANTENNA ISOLATION 6 INSTALLATION STEPS 7 DIAGNOSTICS GUIDE 8 ELECTRICAL SPECIFICATIONS 9 SYSTEM FREQUENCY RANGE 9 ENVIRONMENTAL CONDITIONS 10 MECHANICAL SPECIFICATIONS 10 RF EXPOSURE WARNING 10 LIMITED WARRANTY 12 LIST OF DRAWINGS DRAWING PAGE No BDA RF BLOCK DIAGRAM 4 AGC AMPLIFIER 5 MECHANICAL OUTLINE 11 ; Web site- www.dekolink.com r ev 5 11/ 02 page 2 of 12 Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] :BDA OVERVIEW The Compact Bi-Directional Amplifier (CBDA) assembly provides an exceptional repeater/booster performances to extend the coverage area of radio communications in buildings and RF shielded environments. Features such as high linearity power amplifiers are contributing for the overall improved system linearity performances. The unit is based on a duplexed path configuration, having sharp out of band attenuation for improved isolation between the receiving and transmitting paths. :BLOCK DIAGRAM DESCRIPTION The CBDA Downlink path receives the RF signals from base station amplifies them and transmits them to the subscriber. The BDA Uplink path receives the RF signals from the subscriber amplifies them and transmits them to the base station. Two duplexers frequency separate the signals to the proper amplifying path and isolate the two signals. For each path two amplifiers do the path signal amplification; a low noise amplifier (LNA) and a high power amplifier. The low noise amplifier has a 30 dB step attenuator at its output. The step attenuator is used to set the BDA repeater gain. The power amplifiers in the BDA have an AGC option switch. When switched on, the AGC circuit limits the amplifier output power. The AGC circuit senses the output power and introduces more attenuation, when the output power exceeds the preset level. This way the gain of the amplifier is reduced, its output power is limited and the intermodulations products are kept below the desired level. The AGC amplifier has a Power LED lamp that illuminates when the output power has reached the preset power limit. ; Web site- www.dekolink.com r ev 5 11/ 02 page 3 of 12 Duplexer Downlink Duplexer Uplink LNA Attenuator Power Monitor PA AGC LNA Attenuator Power Monitor PA AGC BDA RF BLOCK DIAGRAM TO BASE TO MOBILE Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] ; Web site- www.dekolink.com r ev 5 11/ 02 page 4 of 12 Step Attenuator & RF Gain Setting For proper operation of the BDA; the isolation between the base station antenna and the mobile antenna should exceed the BDA gain by at least 12 dB. If the BDA gain were higher than the isolation between the antennas, oscillation would start and would saturate the amplifier. Isolation few dB higher than the BDA gain cannot start oscillations but would cause gain ripple in the band. The step attenuator on the low noise amplifier can reduce the BDA gain. The BDA gain can be stepped down by the amount indicated on the step attenuator. Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] AGC FUNCTION The BDA has AGC function on both paths that serve to prevent the saturation of the power amplifier. Their amplifier has a directional coupler and a detector at the output of the high power amplifier to monitor the output power. When a high signal is received the automatic level control detects the amplitude and sends a feedback signal to a voltage variable attenuator which attenuates the signal level so that the output power of the amplifier does not exceed the preset limit. The LED on the amplifier illuminates when the power out the amplifier is within the set limit (when the AGC is On and when the AGC is OFF). The switch on the RF amplifier enables the AGC function. If the AGC is disabled then the amplifier gives maximum gain. AGC AND GAIN CONTROLS The AGC and GAIN SETTING functions for the up link path are reached by opening the small slide door located on the CBDA left side, adjacent to the BASE antenna port. For the down link path the door is on the right side adjacent to the MOBILE antenna port RF Power LED : The LED illuminates when the output power exceeds the AGC Set . AGC ON / OFF Switch : When OFF the amplifier works with its highest gain (AGC Function OFF). When set to ON (AGC Function ON) the amplifier power output cannot exceed the set limit. Gain setting: By using the rotary knob , the attenuation can be adjusted in 2 dB steps. ; Web site- www.dekolink.com r ev 5 11/ 02 page 5 of 12 Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] BDA INSTALLATION Install the BDA Repeater in a shielded, ventilated and easy to reach area. Use low loss cables to connect antennas to the BDA. Install the BDA close to the service area to improve output power and noise figure. Mount the BDA with RF connecters pointing down. The RF connection is made via two type “N” female connectors. The RF connector labeled “Base” must be connected to the antenna; usual…

Text truncated - open the document above for the full version.

CBDA-SMR-1W80-PS9 SCHEMATICS Duplexer Downlink Duplexer Uplink LNA Attenuator Power Monitor PA AGC LNA Attenuator Power Monitor PA AGC CBDA-SMR-1W80-PS9 ELECTRICAL SCHEMATICS TO BASE TO MOBILE POWER SUPPLY +27 V AC IN POWER ON LED R1- 51ohm 10W R2 - 51 oh m 10W

FCC ID LABEL FOR CBDA SMR 1W80 PS9

Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] :BDA OVERVIEW The Compact Bi-Directional Amplifier (CBDA) assembly provides an exceptional repeater/booster performances to extend the coverage area of radio communications in buildings and RF shielded environments. Features such as high linearity power amplifiers are contributing for the overall improved system linearity performances. The unit is based on a duplexed path configuration, having sharp out of band attenuation for improved isolation between the receiving and transmitting paths. :BLOCK DIAGRAM DESCRIPTION The CBDA Downlink path receives the RF signals from base station amplifies them and transmits them to the subscriber. The BDA Uplink path receives the RF signals from the subscriber amplifies them and transmits them to the base station. Two duplexers frequency separate the signals to the proper amplifying path and isolate the two signals. For each path two amplifiers do the path signal amplification; a low noise amplifier (LNA) and a high power amplifier. The low noise amplifier has a 30 dB step attenuator at its output. The step attenuator is used to set the BDA repeater gain. The power amplifiers in the BDA have an AGC option switch. When switched on, the AGC circuit limits the amplifier output power. The AGC circuit senses the output power and introduces more attenuation, when the output power exceeds the preset level. This way the gain of the amplifier is reduced, its output power is limited and the intermodulations products are kept below the desired level. The AGC amplifier has a Power LED lamp that illuminates when the output power has reached the preset power limit. ; Web site- www.dekolink.com r ev 5 11/ 02 page 3 of 12 Duplexer Downlink Duplexer Uplink LNA Attenuator Power Monitor PA AGC LNA Attenuator Power Monitor PA AGC BDA RF BLOCK DIAGRAM TO BASE TO MOBILE Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] ; Web site- www.dekolink.com r ev 5 11/ 02 page 4 of 12 Step Attenuator & RF Gain Setting For proper operation of the BDA; the isolation between the base station antenna and the mobile antenna should exceed the BDA gain by at least 12 dB. If the BDA gain were higher than the isolation between the antennas, oscillation would start and would saturate the amplifier. Isolation few dB higher than the BDA gain cannot start oscillations but would cause gain ripple in the band. The step attenuator on the low noise amplifier can reduce the BDA gain. The BDA gain can be stepped down by the amount indicated on the step attenuator. Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] AGC FUNCTION The BDA has AGC function on both paths that serve to prevent the saturation of the power amplifier. Their amplifier has a directional coupler and a detector at the output of the high power amplifier to monitor the output power. When a high signal is received the automatic level control detects the amplitude and sends a feedback signal to a voltage variable attenuator which attenuates the signal level so that the output power of the amplifier does not exceed the preset limit. The LED on the amplifier illuminates when the power out the amplifier is within the set limit (when the AGC is On and when the AGC is OFF). The switch on the RF amplifier enables the AGC function. If the AGC is disabled then the amplifier gives maximum gain. AGC AND GAIN CONTROLS The AGC and GAIN SETTING functions for the up link path are reached by opening the small slide door located on the CBDA left side, adjacent to the BASE antenna port. For the down link path the door is on the right side adjacent to the MOBILE antenna port RF Power LED : The LED illuminates when the output power exceeds the AGC Set . AGC ON / OFF Switch : When OFF the amplifier works with its highest gain (AGC Function OFF). When set to ON (AGC Function ON) the amplifier power output cannot exceed the set limit. Gain setting: By using the rotary knob , the attenuation can be adjusted in 2 dB steps. ; Web site- www.dekolink.com r ev 5 11/ 02 page 5 of 12

Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] :ICAL SPECIFICATIONSELECTR Frequency Range (MHz)SEE TABLE Passband Gain @Min attenuation 80 dB nominal Passband Ripple ± 1.5 dB typical Manual Attenuation Range 0 to 30 dB in 2 dB step Noise Figure6.0 dB max Impedance level50 ohms V.S.W.R In/Out 1.5 : 1 max AGC SelectionBy ON/OFF Switch AGC Attenuation Range 25 dB typical AGC LED Indication LED turn ON when power reaches AGC Set Power Level. (both at On and Off positions). AGC Factory Power Preset+24 dBm nom. Amplifier Power Output @1 dB Compression 1 Watts 3rd Order output Intercept point+45 dBm typical Power Supply 110/220V AC, 50-60 Hz /1A System Frequency Range SYSTEM TYPE MODEL No DOWN- LINK UP- LINK E-SMR (iDEN) MW-CBDA-ESMR-1W80A 851-866 806-821 SMR 800-Public Safety MW-CBDA-SMR-1W80A-PS8 851-869 806-824 SMR - 900 MHz MW-CBDA-SMR-1W80A-PS9 935-941 892-902 GSM MW-CBDA-GSM-1W80A 935-960 890-915 TDMA Band B MW-CBDA-CELLB-1W80A 880-894 835-849 CDMA/TDMA/N-AMPS MW-CBDA-AB-1W80A 870-894 825-849 ; Web site- www.dekolink.com r ev 5 11/ 02 page 9 of 12

Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] :BDA OVERVIEW The Compact Bi-Directional Amplifier (CBDA) assembly provides an exceptional repeater/booster performances to extend the coverage area of radio communications in buildings and RF shielded environments. Features such as high linearity power amplifiers are contributing for the overall improved system linearity performances. The unit is based on a duplexed path configuration, having sharp out of band attenuation for improved isolation between the receiving and transmitting paths. :BLOCK DIAGRAM DESCRIPTION The CBDA Downlink path receives the RF signals from base station amplifies them and transmits them to the subscriber. The BDA Uplink path receives the RF signals from the subscriber amplifies them and transmits them to the base station. Two duplexers frequency separate the signals to the proper amplifying path and isolate the two signals. For each path two amplifiers do the path signal amplification; a low noise amplifier (LNA) and a high power amplifier. The low noise amplifier has a 30 dB step attenuator at its output. The step attenuator is used to set the BDA repeater gain. The power amplifiers in the BDA have an AGC option switch. When switched on, the AGC circuit limits the amplifier output power. The AGC circuit senses the output power and introduces more attenuation, when the output power exceeds the preset level. This way the gain of the amplifier is reduced, its output power is limited and the intermodulations products are kept below the desired level. The AGC amplifier has a Power LED lamp that illuminates when the output power has reached the preset power limit. ; Web site- www.dekolink.com r ev 5 11/ 02 page 3 of 12 Duplexer Downlink Duplexer Uplink LNA Attenuator Power Monitor PA AGC LNA Attenuator Power Monitor PA AGC BDA RF BLOCK DIAGRAM TO BASE TO MOBILE Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] ; Web site- www.dekolink.com r ev 5 11/ 02 page 4 of 12 Step Attenuator & RF Gain Setting For proper operation of the BDA; the isolation between the base station antenna and the mobile antenna should exceed the BDA gain by at least 12 dB. If the BDA gain were higher than the isolation between the antennas, oscillation would start and would saturate the amplifier. Isolation few dB higher than the BDA gain cannot start oscillations but would cause gain ripple in the band. The step attenuator on the low noise amplifier can reduce the BDA gain. The BDA gain can be stepped down by the amount indicated on the step attenuator. Dekolink Wireless Ltd.;16 Bazel St.Qiryat-Arieh Petah-Tikva Israel, 49510 Tel- 972-3-9180-180; Fax-972-3-190-9180; [email protected] AGC FUNCTION The BDA has AGC function on both paths that serve to prevent the saturation of the power amplifier. Their amplifier has a directional coupler and a detector at the output of the high power amplifier to monitor the output power. When a high signal is received the automatic level control detects the amplitude and sends a feedback signal to a voltage variable attenuator which attenuates the signal level so that the output power of the amplifier does not exceed the preset limit. The LED on the amplifier illuminates when the power out the amplifier is within the set limit (when the AGC is On and when the AGC is OFF). The switch on the RF amplifier enables the AGC function. If the AGC is disabled then the amplifier gives maximum gain. AGC AND GAIN CONTROLS The AGC and GAIN SETTING functions for the up link path are reached by opening the small slide door located on the CBDA left side, adjacent to the BASE antenna port. For the down link path the door is on the right side adjacent to the MOBILE antenna port RF Power LED : The LED illuminates when the output power exceeds the AGC Set . AGC ON / OFF Switch : When OFF the amplifier works with its highest gain (AGC Function OFF). When set to ON (AGC Function ON) the amplifier power output cannot exceed the set limit. Gain setting: By using the rotary knob , the attenuation can be adjusted in 2 dB steps. ; Web site- www.dekolink.com r ev 5 11/ 02 page 5 of 12

Prediction of MPE limit at a given distance Uplink Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 24.00 (dBm) Maximum peak output power at antenna input terminal: 251.1886432 (mW) Antenna gain(typical): 10 (dBi) Maximum antenna gain: 10 (numeric) Prediction distance: 30 (cm) Prediction frequency: 896-902 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.6 (mW/cm^2) Power density at prediction frequency: 0.222100 (mW/cm^2) Maximum allowable antenna gain: 14.31603624 (dBi) Margin of Compliance at 30cm = 4.3dB 2 4 R PG S π =

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Schematic Diagram of Power AMP. for MW-CBDA-SMR-1W80-PS9 Page 1 of 1 Schematic Diagram of Power AMP.doc

Master: PT90PLMR Date: February 25, 2001 Test Report: 3W07175 Applicant: Dekolink Wireless Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Equipment Under Test: MW-CBDA-SMR-1W80-PS9 (EUT) In Accordance With: FCC Part 90, Subpart I Private Land Mobile Repeater Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Glen Westwell, Wireless Technologist Date: 9 June 2003 Total Number of Pages: 30 Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.:3W07175 EQUIPMENT: MW-CBDA-SMR-1W80-PS9 Page 2 of 30 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. General Equipment Specification......................................................................5 Section 3. RF Power Output ................................................................................................6 Section 4. Occupied Bandwidth ..........................................................................................7 Section 5. Spurious Emissions at Antenna Terminals ....................................................14 Section 6. Field Strength of Spurious Emissions .............................................................27 Section 7. Test Equipment List .........................................................................................30 Annex A Test Diagrams................................................................................................... A1 Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.:3W07175 EQUIPMENT: MW-CBDA-SMR-1W80-PS9 Page 3 of 30 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New Submission Production Unit Class II Permissive Change Pre-Production Unit A M P Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: _____________________________________ DATE: 9 June 2003 Kevin Carr, EMC Specialist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.:3W07175 EQUIPMENT: MW-CBDA-SMR-1W80-PS9 Page 4 of 30 Summary Of Test Data Name Of Test Para. No. Result RF Power Output 2.1046 Complied Occupied Bandwidth 2.1409 Complied Spurious Emissions at Antenna Terminals 2.15051 Complied Field Strength of Spurious Emissions 2.1053 Complied Frequency Stability 2.1055 N/A Footnotes For N/A’s: The EUT is a f1-f1 amplifier, therefore frequency stability was not performed. Deviation: A QAM signal was substituted for Iden Modulation Test Conditions: Indoor Temperature: 22°C Humidity: 37% Outdoor Temperature: 17°C Humidity: 65% . Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.:3W07175 EQUIPMENT: MW-CBDA-SMR-1W80-PS9 Page 5 of 30 Section 2. General Equipment Specification Manufacturer: Dekolink Wireless Ltd. Model No.: MW-CBDA-SMR-1W80-PS9 Serial No.: 03051240 Date Received In Laboratory: 2 June 2003 Nemko Identification No.: 1 Supply Voltage Input: 120VAC, 60Hz Frequency Range: DL: 935 – 941 MHz UL: 896 – 902 MHz RF Power Output (rated): DL And UL : 24.0 dBm, RF Power Output (Measured): DL And UL: 24.0 dBm Emission Designator: F3E, F1D, F1E, GXW Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.:3W07175 EQUIPMENT: MW-CBDA-SMR-1W80-PS9 Page 6 of 30 Section 3. RF Power Output Para. No.: 2.1046 Test Performed By: Kevin Carr Date of Test: 2 June 2003 Minimum Standard: Para. No. 90.205(a). Test Results: Complied. The maximum RF output power is within ± 1dB of the manufacturer’s rating. The RF output power is de-rated according to the number of channels via AGC and is equal to Pmax – 10LogN. Pmax = Maximum RF Output Power N = Number Of Channels Measurement Data: Frequency (MHz) Measured Power (dBm) Rated Power (dBm) Measured Rated (dB) 899.0 24.0 24.0 0.0 938.0 24.0 24.0 0.0 Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.:3W07175 EQUIPMENT: MW-CBDA-SMR-1W80-PS9 Page 7 of 30 Section 4. Occupied Bandwidth Para. No.: 2.1049 Test Performed By: Kevin Carr Date of Test: 3 June 2003 Minimum Standard: Para. No. 90.210 Test Results: Complies. Measurement Data: See attached graphs. The occupied bandwidth was measured by comparison of input to the output signal. This was done in order to determine if there was any degradation to the output signal due to the amplification through the repeater. Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.:3W07175 EQUIPMENT: MW-CBDA-SMR-1W80-PS9 Page 8 of 30 Uplink, F3E Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.:3W07175 EQUIPMENT: MW-CBDA-SMR-1W80-PS9 Page 9 of 30 Uplink Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.:3W07175 EQUIPMENT: MW-CBDA-SMR-1W80-PS9 Page 10 of 30 Downlink Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.:3W07175 EQUIPMENT: MW-CBDA-SMR-1W80-PS9 Page 11 of 30 Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.:3W07175 EQUIPMENT: MW-CBDA-SMR-1W80-PS9 Page 12 of 30 Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REP…

Text truncated - open the document above for the full version.

DC VOLTAGES AND CURRENT FCC ID: OIWCBDAPS91W80 The DC voltage and current in the final RF amplifier stage are as follows: Both uplink and downlink amplifiers are 27 V DC and 0.45 A
