OIWCBDASMRPS9Bi-directional amplifier

FCC ID: OIW CBDASMRPS9 Exhibit 5 - Page 1 of 11 INSTALLATION AND OPERATING INSTRUCTIONS The following is a copy of Installation and Operating Instructions of the MW- CBDA-SMR-1W60PS-9 Cellular Bi-Directional Amplifier/Booster. FCC ID: OIW CBDASMRPS9 Exhibit 5 - Page 2 of 11 INSTALLATION AND OPERATING INSTRUCTIONS FOR MW-CBDA-SMR-1W60PS-9 BI-DIRECTIONAL AMPLIFIER (COMPACT BDA) FCC ID: OIW CBDASMRPS9 Exhibit 5 - Page 3 of 11 TABLE OF CONTENTS PARAGRAPHPAGE NO BDA OVERVIEW4 BDA BLOCK DIAGRAM DESCRIPTION4 BDA BLOCK DIAGRAM DRAWING5 ELECTRICAL SPECIFICATIONS6 MECHANICAL SPECIFICATIONS7 ENVIRONMENTAL CONDITIONS7 BDA CONNECTIONS8 PERIODIC MAINTENANCE8 DIAGNOSTIC GUIDE9 MECHANICAL OUTLINE10 FCC ID: OIW CBDASMRPS9 Exhibit 5 - Page 4 of 11 BDA OVERVIEW: The BDA assembly provides an exceptional repeater/booster performances to extend the coverage area of radio communications in buildings and RF shielded environments. Features such as high linearity power amplifiers are contributing for the overall improved system linearity performances. The unit is based on a duplexed path configuration, having sharp out of band attenuation for improved isolation between the receiving and transmitting paths. BDA BLOCK DIAGRAM DESCRIPTION: The BDA Downlink path receives the RF signals from base station amplifies and transmits them to the subscriber. The BDA Uplink path receives the RF signals from the subscriber amplifies and transmits them to the base station. Two duplexers frequency separate the signals to the proper amplifying path and isolate the two signals. BDA w ith AGC (Option A) The amplifiers in this BDA have an AGC feedback loop. The AGC circuit senses the output power and when it exceeds the preset level of +20 dBm it introduces more attenuation. In this manner the gain of the amplifier is reduced, its output power is limited to +20 dBm and the Intermodulation products are kept low. The AGC Dynamic range is 30 dB. FCC ID: OIW CBDASMRPS9 Exhibit 5 - Page 5 of 11 BDA BLOCK DIAGRAM MW-CBDA-SMR-1W60PS-9 Duplexer Downlink Duplexer Uplink TO BASE STATION ANTENNA TO AREA ANTENNA (N-TYPE) (N-TYPE) AGC RF AMPLIFIER AGC CIRCUIT DETECTER AGC CIRCUIT DETECTER AGC RF AMPLIFIER COUPLER COUPLER MGC MGC FCC ID: OIW CBDASMRPS9 Exhibit 5 - Page 6 of 11 ELECTRICAL SPECIFICATIONS: Frequency Range : Up Link : 896 – 902 MHz : Down Link : 935 – 941 MHz Passband Gain @ min attenuation: 60 dB minimum Passband Ripple : ±1.5 dB typical Noise Figure @+25 °C at max gain : 6.0 dB max 3rd Order Intercept point: +45 dBm typical IMD @2 tone @+20 dBm/carrier: 50 dBc typical Isolation between Up/Down Link: 70 dB min Impedance Level: 50 Ohms VSWR In: 1.5 : 1 max Power Supply: 80 to 240 VAC; 50 to 60 Hz; @500 mA FCC ID: OIW CBDASMRPS9 Exhibit 5 - Page 7 of 11 MECHANICAL SPECIFICATIONS: Size: 9.84 x 9.61 x 4.53 inch (250 x 244 x 115 mm) RF Connectors : N-type Female Weight: 10 Lbs. (5kg.) approx. ENVIRONMENTAL CONDITIONS: The unit is designed for indoor applications: Operating temperature: - 30 ° C to + 50 ° C Storage temperature: - 50 ° C to + 90 ° C FCC ID: OIW CBDASMRPS9 Exhibit 5 - Page 8 of 11 BDA CONNECTIONS The BDA AC power is supplied through a standard 3-wire male plug with phase, neutral and safety ground wires. The AC power is only used to supply a high efficiency DC switching power supply. The two amplifiers (Uplink and Downlink) and the Power On lamp use only DC power. The RF connection is made via two type “N” female connectors. The RF connector labeled “Base” must be connected to the antenna pointing to the base station. The RF connection labeled “Mobile” must be connected to the antenna pointing into the area to be covered by the BDA. The connections must be made through 50 ohms impedance cables. The isolation between the base station antenna and the mobile antenna should be at least 12 dB higher than the BDA gain. If the isolation were less than the BDA gain, oscillation would start and would saturate the amplifier. Isolation few dB higher than the BDA gain cannot start oscillations but would causes gain ripple in the band. PERIODIC MAINTENANCE The BDA should provide long term, care free operation with no need of any periodic maintenance. The BDA has no user adjustments or alignments. The front panel lamp indicates power supply turn on. FCC ID: OIW CBDASMRPS9 Exhibit 5 - Page 9 of 11 DIAGNOSTICS GUIDE As mentioned before the BDA should provide long term, care free operation with no need of any periodic maintenance. This section will cover possible problems that may show up after installation. a. Gain Reduction Possible causes: Bad RF cables and RF connections to antennas, Damaged antennas. b. Excessive Intermodulation or Spurious Possible causes: Amplifier oscillation caused by insufficient isolation. The isolation between two antennas is given by the equation: Isolation = 92.5 + 20 Log ( F x D ) – Gt – Gr F is frequency in GHz D is separation in Km Gt is the transmit antenna gain (at the direction of the receive antenna). Gr is the receive antenna gain (at the direction of the transmit antenna). For example at the SMR frequency the antenna isolation at 100 m separation is about 71 dB for omni antennas (0 dB gain). To increase isolation the antennas should have higher directivity and must be pointed away from each other. c. Occasional Drop-out of some Channels Possible causes: One channel with very strong power dominating the RF output of the amplifier. FCC ID: OIW CBDASMRPS9 Exhibit 5 - Page 10 of 11 MECHANICAL OUTLINE FCC ID: OIW CBDASMRPS9 Exhibit 5 - Page 11 of 11

FCC ID: OIW CBDASMRPS9 Page 1 of 1 IDENTIFICATION LABEL ----- 47CFR 2.983(f). Pursuant 47CFR Section 2.983(f) see the Identification Label and Location Info. of the MW-CBDA-SMR-1W60PS-9 Cellular Bi-Directional Amplifier/Booster.

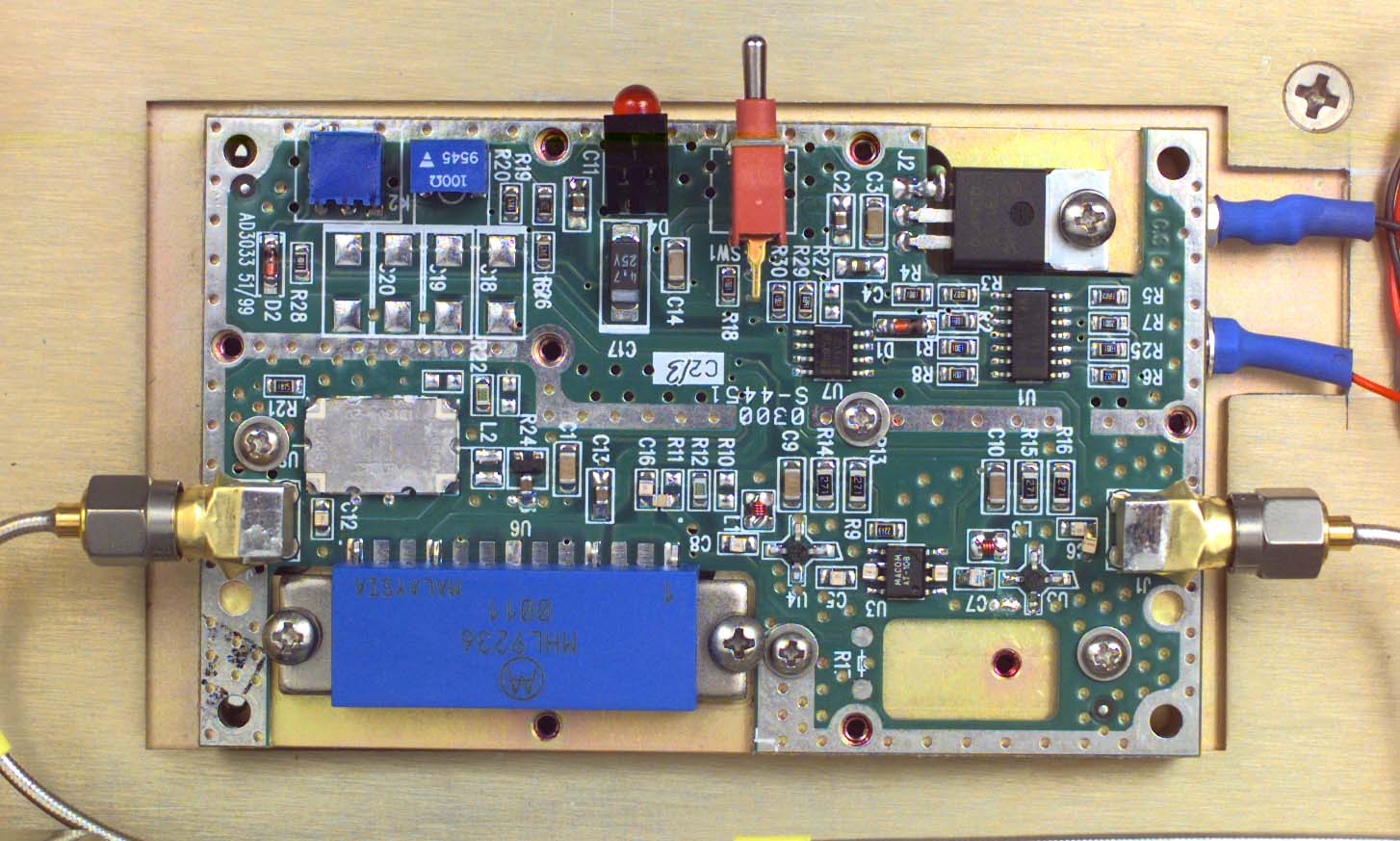

FCC ID: OIW CBDASMRPS9 PARTS LIST: Part NoDescription Quantity PS001A0620/2800CON.PWR-FILTER AC 6A 250V 50-400HZ 1 ZWA-50-24PWR SUP. AC/DC IN:85-265V OUT;24V;2.1A 1 2139-6TERMINAL CRIMP HOUSING1 300CA31000HEAT SINK1 300CA32000BDA COMPACT CHASSIS1 300CA30250BDA COMPACT COVER1 SM86-11SMA(X2)-14.5CMCABLE ASSY L=14.5 CM SMA-P2 X2 CONN 1 SM86-11SMA(X2)-22CMCABLE ASSY L=22 CM SMA-P2 X2 CONN 1 SM86-11SMA(X2)-24CMCABLE ASSY L=24 CM SMA-P2 X2 CONN 1 SM86-11SMA(X2)-11CMCABLE ASSY L=11 CM SMA-P2 X2 CONN 1 CD918/6SK-A2/3DIPLEXER 896-902/935-941 MHZ FOR BDA 2 300CA32100AMP 2W2

FCC ID: OIW CBDASMRPS9 ELECTRICAL SCHEMATIC: Duplexer Downlink Duplexer Uplink TO BASE STATION ANTENNA TO AREA ANTENNA (N-TYPE) (N-TYPE) RF AMPLIFIER RF AMPLIFIER POWER SUPPLY INPUT CONNECTOR ON / OFF LED DC AC AC (3 WIRE) (+24 VDC)

Master: ktlPT90PLMR Date: April 10, 2000 KTL Test Report:0R02306 Applicant:Elisra Electronics System Inc. 48 Mitzva Kadesh Street Bene Beraq, Israel 51203 Equipment Under Test:MW-CBDA-SMR-1W60PS-9 (E.U.T.) FCC ID:OIWCBDASMRPS9 In Accordance With:FCC Part 90, Subpart I Private Land Mobile Repeater Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date: Total Number of Pages:30 KTL Ottawa FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 0R02306 EQUIPMENT: MW-CBDA-SMR-1W60PS-9 FCC ID: OIWCBDASMRPS9 Page 2 of 26 Table of Contents Section 1. Summary of Test Results.......................................................................................... 3 Section 2. General Equipment Specification ........................................................................... 5 Section 3. RF Power Output .....................................................................................................6 Section 4. Occupied Bandwidth................................................................................................ 7 Section 5. Spurious Emissions at Antenna Terminals........................................................... 16 Section 6. Field Strength of Spurious Emissions................................................................... 25 Section 7. Test Equipment List ............................................................................................... 26 Annex A Test Diagrams ........................................................................................................ A1 KTL Ottawa FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 0R02306 EQUIPMENT: MW-CBDA-SMR-1W60PS-9 FCC ID: OIWCBDASMRPS9 Page 3 of 26 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit AMP Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Kevin Carr, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any us e whic h a third p a rty ma k e s o f this re p o rt, o r a ny re lia nc e o n o r d e c is io ns to b e ma d e b a s e d o n it, a re the re s p o ns ib ility of such third parties. KTL Ottawa Inc. accepts no responsibility fo r d a ma ge s , if a ny, s uffe re d b y a ny third p a rty a s a re s ult o f d e c is io ns ma d e o r a c tio ns b a s e d o n this re p o rt. This report applies only to the items tested. KTL Ottawa FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 0R02306 EQUIPMENT: MW-CBDA-SMR-1W60PS-9 FCC ID: OIWCBDASMRPS9 Page 4 of 26 Summary Of Test Data Name Of TestPara. No.Result RF Power Output2.1046Complies Audio Frequency Response2.1047Not Applicable Audio Low-Pass Filter Response2.1047Not Applicable Modulation Limiting2.1047Not Applicable Occupied Bandwidth2.1049Complies Spurious Emissions at Antenna Terminals2.1051Complies Field Strength of Spurious Emissions2.1053Complies Frequency Stability2.1055Not Applicable Transient Frequency Behavior——Not Applicable Footnotes For N/A’s: Indoor Temperature: 24 °C Humidity:30 % Outdoor Temperature: 15 °C Humidity:30 % . KTL Ottawa FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 0R02306 EQUIPMENT: MW-CBDA-SMR-1W60PS-9 FCC ID: OIWCBDASMRPS9 Page 5 of 26 Section 2.General Equipment Specification Manufacturer: Elisra Electronic Systems Ltd. Model No.: MW-CBDA-SMR-1W60PS-9 Serial No.: 00031022 Date Received In Laboratory: April 17, 2000 KTL Identification No.: Item #1 Transmitter Supply Voltage Input: 120 VAC, 60 Hz Frequency Range: UL-896-902 MHz DL-935-941 MHz Tunable Bands: 2 Type(s) of Modulation: F3E, F1E, F1D Gain: 60 dB Nominal Output Impedance: 50 ohm RF Power Output (rated): Total Composite: 26.0 dBm Operator Selection of Operating Frequency: None Power Output Adjustment Capability: AGC. The RF output power per channel decreases as the number of channels increases according to the following formula: P = N W 4.0 Where N=Number of Channels Frequency Translation: None Band Selection: None KTL Ottawa FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 0R02306 EQUIPMENT: MW-CBDA-SMR-1W60PS-9 FCC ID: OIWCBDASMRPS9 Page 6 of 26 Section 3.RF Power Output Para. No.: 2.1046 Test Performed By: Kevin Carr Date of Test: April 18, 2000 Minimum Standard: Para. No. 90.205 ± 1 dB Rated Test Results: Complies. The measured RF power output is within 0 dB of the manufacturer’s rating of RF power output. Measurement Data: Frequency (MHz) Measured Power (dBm) Rated Power (dBm) Measured Rated (dB) 89926.026.00.0 93826.026.00.0 KTL Ottawa FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 0R02306 EQUIPMENT: MW-CBDA-SMR-1W60PS-9 FCC ID: OIWCBDASMRPS9 Page 7 of 26 Section 4.Occupied Bandwidth Para. No.: 2.1049 Test Performed By: Kevin Carr Date of Test: April 18, 2000 Minimum Standard: Para. No. 90.210 Test Results: Complies. There is no degradation in the occupied bandwidth due to amplification through the repeater. This equipment is a repeater and does not have any frequency generating or modulation circuits, therefore measurements were made to compare the input to the output. Measurement Data: See attached graph(s). KTL Ottawa FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 0R02306 EQUIPMENT: MW-CBDA-SMR-1W60PS-9 FCC ID: OIWCBDASMRPS9 Page 8 of 26 F1E/F1D Modulation KTL Ottawa FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 0R02306 EQU…
