OIWCSRESMR25W90Bi-Directional Booster

© Dekolink Wireless Ltd.—All Rights Reserved Revision 1.0 ABOUT THIS MANUAL This Product Manual provides the following information: A description of the iDEN Repeater • • • • • A functional description of the Repeater A description of its main modules Procedures for setup, configuration and checking the proper functioning of the iDEN Repeater Maintenance and troubleshooting procedures TO WHOM IT IS INTENDED: This Product Manual is intended for experienced technicians and engineers. It is assumed that the customers installing, operating, and maintaining Dekolink iDEN Repeaters are familiar with the basic functionality of repeaters. DEKOLINK WIRELESS LTD. PRODUCT MANUAL IDEN REPEATER NOTICE Confidential - Authorized Customer Use This document may be used in its complete form only and is solely for the use of Dekolink Wireless Ltd. employees and authorized Dekolink Wireless Ltd. channels or customers. The material herein is proprietary to Dekolink Wireless Ltd. Any unauthorized reproduction, use or disclosure of any part thereof is strictly prohibited. All trademarks and registered trademarks are the property of their respective owners. DISCLAIMER OF LIABILITY Contents herein are current as of the date of publication. Dekolink Wireless Ltd. reserves the right to change the contents without prior notice. The information furnished by Dekolink Wireless Ltd. in this document is believed to be accurate and reliable. However, Dekolink Wireless Ltd. assumes no responsibility for its use. In no event shall Dekolink Wireless Ltd. be liable for any damage resulting from loss of data, loss of use, or loss of profits and Dekolink Wireless Ltd. further disclaims any and all liability for indirect, incidental, special, consequential or other similes damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. EXCLUSIVE REMEDIES The remedies provided herein are the Buyer’s sole and exclusive remedies. Dekolink Wireless Ltd. shall not be viable for any direct, incidental, or consequential damages, whether based on contract, tort, or any legal theory. International Headquarters Dekolink Wireless Ltd. – Elisra Group 16 Bazel St., Kiryat-Arieh, Petah-Tikvah 49001 ISRAEL Tel.: +972 3 918-0180 Fax: +972 3 918-0190 E-mail: [email protected] Website: www.dekolink.com © Dekolink Wireless Ltd Publication No.: 307-2005 Rev. 1.0 Page b Proprietary Data Pub. 307-2005 Rev. 1.0 IDEN REPEATER PRODUCT MANUAL DEKOLINK WIRELESS LTD. SAFETY WARNINGS AND ADMONISHMENTS Throughout this manual, important safety warnings and admonishments are included to warn of possible hazards to persons or equipment. A safety warning identifies a possible hazard and then describes what may happen if the hazard is not avoided. The safety warnings – in the form of Dangers, Warnings and Cautions must be followed at all times. These warnings are flagged by the use of a warning icon, usually the triangular alert icon seen below. The exclamation point within the triangular alert icon is intended to warn the operator or service personnel of operation and maintenance from factors elating to the product and its operating environment, which could pose a safety hazard. GENERAL SAFETY WARNINGS CONCERNING USE OF THIS SYSTEM Always observe standard safety precautions during installation, operation and maintenance of this product. Only a qualified and authorized personnel should carry out adjustment, maintenance or repairs to the components of this equipment. Danger: Electrical Shock This equipment is usually installed outdoors. Wet conditions increase the potential for receiving an electric shock when installing or using electrically powered equipment. To prevent electrical shock when installing or modifying the system power wiring, disconnect the wiring at the power source before working with uninsulated wires or terminals. Caution: RF Exposure Installation of an antenna must comply with the FCC RF exposure requirements. Refer to paragraph 4.2. Pub. 307-2005 Rev. 1.0 Proprietary Data Page c DEKOLINK WIRELESS LTD. PRODUCT MANUAL IDEN REPEATER G LOSSARY The following is a list of abbreviations and terms used throughout this document. Abbreviation/Term Definition AGC Automatic Gain Control ALC Automatic Level Control ATR Acceptance Test Report DAS Distributed Antenna System DL Downlink Downlink The path covered from the Base Transceiver Station (BTS) to the subscribers/service area via the repeater ESD Electro-Static Discharge iDEN Integrated Digital Enhanced Network IF Intermediate Frequency IP3 Third order Intercept Point MN Model Number NMT Network Management Tool PLL Phased Locked Loop POTS Plain Old Telephone System RF Radio Frequency RMT Repeater Management Tool SALC Smart-ALC (Automatic Level Control) SQE Signal Quality Estimate UL Uplink Uplink The path covered from the subscribers/service area to the Base Transceiver Station (BTS) via the repeater VSWR Voltage Standing Wave Ratio Page d Proprietary Data Pub. 307-2005 Rev. 1.0 DEKOLINK WIRELESS LTD. PRODUCT MANUAL IDEN REPEATER CONTENTS 1. Introduction..............................................................................................1 1.1 General........................................................................................................................1 1.2 Applications.................................................................................................................1 1.3 Features.......................................................................................................................1 1.4 Models and Frequencies...............................................................................................1 1.5 Specifications...............................................................................................................2 1.5.1 General.........................................................................................................2 1.5.2 Electrical Specification…

Text truncated - open the document above for the full version.

DEKOLINK WIRELESS LTD. PRODUCT MANUAL IDEN REPEATER Pub. 307-2005 Rev. 1.0 Proprietary Data Page 5 2. FUNCTIONAL DESCRIPTION 2.1 GENERAL This repeater is designed to help improve communications signal by extending the coverage of a base station. The Donor (Base) antenna receives the signal from a base station and conveys it to the iDEN Repeater. The Repeater amplifies the signal. After amplification, the signal is passed through to the Mobile antennas. Conversely, signals from handsets are amplified and retransmitted by the Repeater to the base station. 2.2 FUNCTIONAL DESCRIPTION The incoming signal processing in the iDEN Repeater is processed similarly for both the Uplink and Downlink paths. Figure 1 provides a functional block diagram of the iDEN Repeater. Figure 1: iDEN Repeater - Block Diagram The block diagram showed in Figure 1 illustrates the overall functionality of the iDEN Repeater. Dekolink’s programmable iDEN Repeaters employ advanced up/down conversion Intermediate Frequency (IF) Surface Acoustic Waves (SAW) filtering architecture. This new technology offers distinct advantages over conventional repeaters, when high adjacent selectivity and spectrum purity is required. The Channeler Module (center unit) consists of dual Radio Frequency Up/Down Converter sub-modules for Downlink and Uplink paths. The Channeler amplifies the received RF signals and converts them into an intermediate frequency (IF). The IF outputs are connected to a SAW Filter. The IF outputs are converted back to the original RF frequencies. The cellular modem is an option for remote monitoring and repeater parameters control.

From: David Levy [[email protected]] Subject: RE: Requirements of 90.219 for boosters I confirm that we are aware of the requirements of 90.219 and all our products comply with it: Best regards, David Levy, Technical Support Manager Dekolink Wireless Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel + 972-3-9180179 Fax +972-3-9180190 Mobile +972-525-617-503

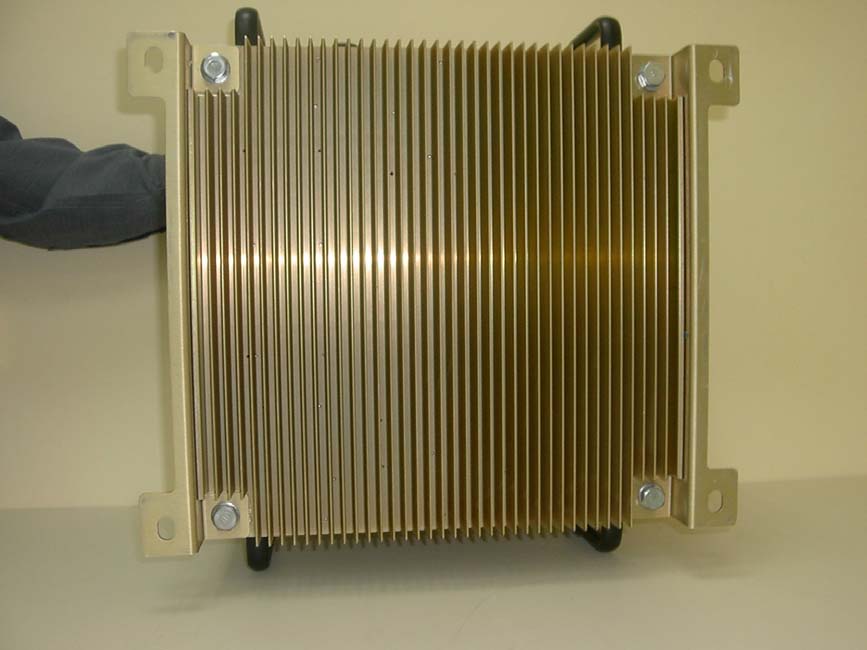

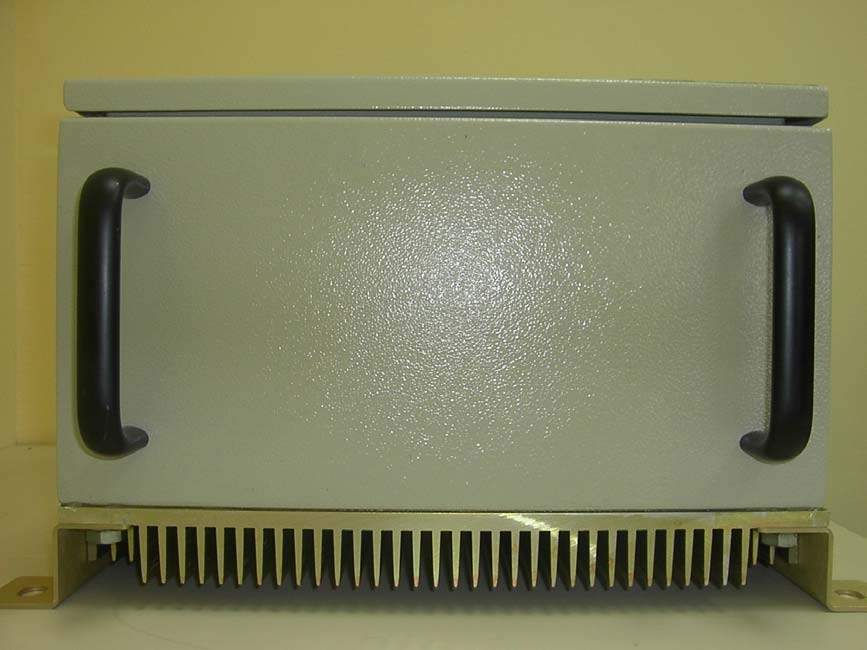

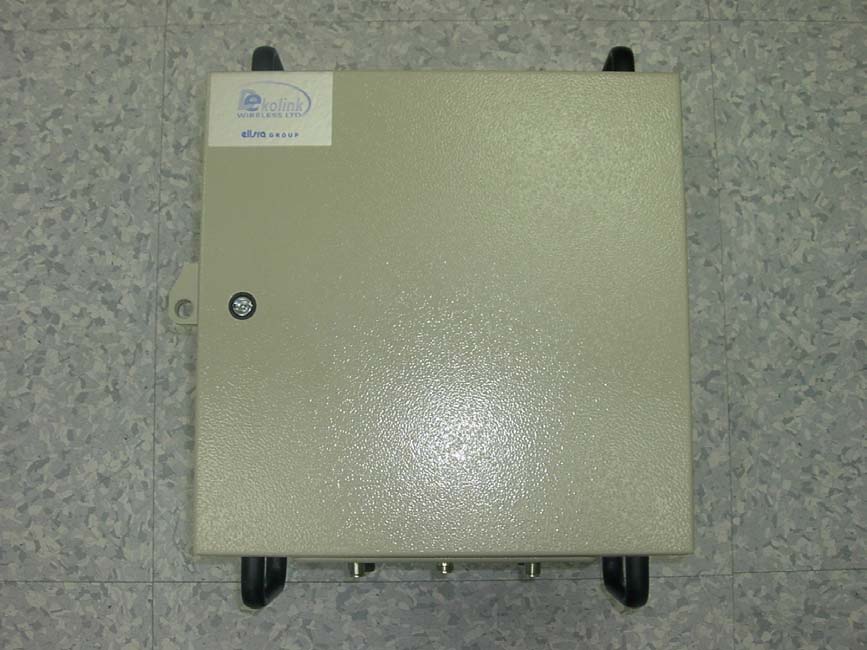

Pictures for MW-CSR-ESMR 25W90 FRONT SIDE BACK BOTTOM Top OPEN UNIT

90W25-ESMR-FCC ID Label for CSR

DEKOLINK WIRELESS LTD. PRODUCT MANUAL IDEN REPEATER Pub. 307-2005 Rev. 1.0 Proprietary Data Page 3 1.5.3 Mechanical Specifications The following table provides the mechanical specifications of the iDEN Repeater. Element Value Size H x W x D 400 x 400 x 260 mm (16 x 16 x 10.3 inch) Weight Approximately 25 kg. (55 lbs.) 1.5.4 Connectors The Repeater interfaces with a Base antenna port and a Mobile antenna port. It includes four external connectors in its bottom panel, as described below. Connector Type RF Connectors: BASE / MOBILE N-type, Female AC Circular, 3-pin Alarms Circular, 8-pin 1.5.5 Environmental Specifications Dekolink’s iDEN Repeaters meet the European IP65 and American NEMA4 weatherproof standards. The Repeater is designed to operate properly under the following environmental conditions. Condition Value Operating temperature - 30° C to + 50°C Storage temperature - 50° C to + 80°C

Feb.13.2005 Tune up procedure for CSR 1. General 1.1. This Procedure is intended to calibrate the repeater so that the customer can set ALC level by assigning power value (dBm) in the “Max Power” box on the RMT, “Parameters and Control “ screen. 1.2. This procedure is conducted during the test procedure in the manufacturer’s premises. Customer has no access to this procedure. 2. Preparations 2.1. Connect to unit using RMS (see Manual). 2.2. Press Ctrl+P and Enter Technician password. 2.3. Press “ToolsÆ Open Param Loader” to get the tune up screen (see arrow below): 1 Download screen appears: 2.4. Press “ Write Parameters to Unit”. And wait for download to complete 2 2.5. Press “General” Tab GENERALALC Downlink AGC Uplink AGC 2.5.1. Set Downlink ALC On/Off to “0” 2.5.2. Set Uplink ALC On/Off to “0” 2.5.3. Press "ALC Calib " tab, the following window appears: 3 DL Power Value FWD UL Power Value FWD 3. Downlink ALC Calibration 3.1. Connect the unit to Test equipment as follows: S.Analyzer RF IN 30dB PED 30dB PED Signal Generator RF OUT RF Cable RF Cable iDEN Digital Reapeter BaseMobile * A Power Meter may be connected instead of Spectrum Analyzer 4 3.2. Set the input power to receive 38 dBM at the repeater’s MOBILE output. Sximate value for 37 dBm output). Read at 3.4. eieved in REG 0 (approximate value for 36 3.5. of 35, 34, to 26 4. . Uplink ALC Calibration pment as follows: A Power Meter may be connected instead of Spectrum Analyzer 3.3. Set DLPower Value FWD to 37. et REG 0 (upper list) to 230 (appro the output power, if output power is higher then 37 dBm, decrease the number in the register, if the power is lower, increase the number. Repe until 37 dBm output power is achieved. Set DLPower Value FWD to 36. St REG 1 to the same number ach dBm output). Read the output power, if output power is higher then 36 dBm, decrease the number in the register, if the power is lower, increase the number. Repeat until 36 dBm output power is achieved. Repeat the above procedure for DL Power Value FWD related to REG 2 to REG 11 accordingly, for output power 35 to 26 dBm respectively. 4.1. Connect the unit to Test equi S.Analyzer RF IN 30dB PED 30dB PED Signal Generator RF OUT RF Cable RF Cable Reapeter BaseMobile iDEN * 5 4.2. Set the input power to receive 25 dBM at the repeater’s BASE output. 4.3. Set ULPower Value FWD to 24. ead is higher then 24 dBm, decrease the 4.4. d in REG 0 (approximate value for 23 wer, if output power is higher then 23 dBm, 4.5. r 22 to 13 dBm Set REG 0 ( lower list) to 130 (approximate value for 24 dBm output). R the output power, if output power number in the register, if the power is lower, increase the number. Repeat until 30 dBm output power is achieved. Set ULPower Value FWD to 23. Set REG 1 to the same number achieve dBm output). Read the output po decrease the number in the register, if the power is lower, increase the number. Repeat until 23 dBm output power is achieved. Repeat the above procedure for UL Power Value FWD of 22, 21, to 13 related to REG 2 to REG 11 accordingly, for output powe respectively. 6

Amplifiers operating voltage : 28 Vdc Uplink Power amplifier Supply current: 0.65A Downlink power amplifier Supply current: 1.35A

Prediction of MPE limit at a given distance MW-CSR-ESMR-25W90-806-18, indoor Antenna Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 36.00 (dBm) Maximum peak output power at antenna input terminal: 3981.071706 (mW) Antenna gain(typical): 2 (dBi) Maximum antenna gain: 1.584893192 (numeric) Prediction distance: 30 (cm) Prediction frequency: 851 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.567333333 (mW/cm^2) Power density at prediction frequency: 0.557889 (mW/cm^2) Maximum allowable antenna gain: 2.072906745 (dBi) Margin of Compliance: 0.072906745 2 4 R PG S π =

Prediction of MPE limit at a given distance MW-CSR-ESMR-25W90-806-18, Outdoor Antenna Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 34.00 (dBm) Maximum peak output power at antenna input terminal: 2511.886432 (mW) Antenna gain(typical): 10 (dBi) Maximum antenna gain: 10 (numeric) Prediction distance: 100 (cm) Prediction frequency: 851 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.567333333 (mW/cm^2) Power density at prediction frequency: 0.199890 (mW/cm^2) Maximum allowable antenna gain: 14.53048165 (dBi) Margin of Compliance: 4.530481651 2 4 R PG S π =

Prediction of MPE limit at a given distance MW-CSR-ESMR-25W90-806-18, Outdoor Donar Antenna Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 22.00 (dBm) Maximum peak output power at antenna input terminal: 158.4893192 (mW) Antenna gain(typical): 20 (dBi) Maximum antenna gain: 100 (numeric) Prediction distance: 50 (cm) Prediction frequency: 806 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.537333333 (mW/cm^2) Power density at prediction frequency: 0.504487 (mW/cm^2) Maximum allowable antenna gain: 20.27393655 (dBi) Margin of Compliance: 0.273936554 2 4 R PG S π =

Master: PT90PLMR Date: February 25, 2001 Test Report: 5W38634 Applicant: Dekolink Wireless Ltd. 16 Bazel St. Qiryat Arieh Petah Tikva, Israel 49510 Equipment Under Test: MW-CSR-ESMR-25W90-806-18 (EUT) FCC ID: OIWCSRESMR25W90 In Accordance With: FCC Part 90, Subpart I Private Land Mobile Repeater Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Sim Jagpal, General Manager Date: 2 March 2005 Total Number of Pages: 23 Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 5W38634 EQUIPMENT: MW-CSR-ESMR-25W90-806-18 Page 2 of 23 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. General Equipment Specification......................................................................5 Section 3. RF Power Output ................................................................................................6 Section 4. Occupied Bandwidth ..........................................................................................7 Section 5. Spurious Emissions at Antenna Terminals ....................................................10 Section 6. Field Strength of Spurious Emissions .............................................................14 Section 7. Out of Band Rejection .......................................................................................18 Section 8. Test Equipment List .........................................................................................20 Annex A Test Diagrams....................................................................................................21 Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 5W38634 EQUIPMENT: MW-CSR-ESMR-25W90-806-18 Page 3 of 23 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New Submission Production Unit Class II Permissive Change Pre-Production Unit T N B Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: _____________________________________ DATE: 2 March 2005 Xu Jin, Wireless Specialist Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 5W38634 EQUIPMENT: MW-CSR-ESMR-25W90-806-18 Page 4 of 23 Summary Of Test Data Name Of Test Para. No. Result RF Power Output 2.1046 Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A (1) Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A (1) Modulation Limiting TIA EIA-603.3.2.6 N/A (1) Occupied Bandwidth 2.1049 Complies Spurious Emissions at Antenna Terminals 2.1051 Complies Field Strength of Spurious Emissions 2.1053 Complies Frequency Stability 2.1055 Complies(2) Transient Frequency Behavior —— Footnotes 1. The apparatus does not modulate or demodulate the carrier and therefore does not contain any modulation circuitry. 2. This equipment uses the same LO for frequency conversion, therefore the transmitted signal is identical in frequency to the received signal. This was verified with frequency counter phase locked to a signal generator and measuring the transmitted signal frequency. The frequency drift was 0 Hz. Indoor Temperature: 22°C Humidity: 23% Outdoor Temperature: 6°C Humidity: 27% Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 5W38634 EQUIPMENT: MW-CSR-ESMR-25W90-806-18 Page 5 of 23 Section 2. General Equipment Specification Manufacturer: Dekolink Wireless Ltd. Model No.: MW-CSR-ESMR-25W90-18 Serial No.: 0501D033 Date Received In Laboratory: Jan 31, 2005 Nemko Identification No.: 1 Supply Voltage Input: 110 to 220VAC Frequency Range: UpLink: 806-824 MHz DownLink: 851-869 MHz Type(s) of Modulation: iDEN(QAM) RF Power Output (rated): UpLink: 0.25Watts, 24dBm DownLink: 4Watts, 36dBm Gain(rated) UpLink: 90dB DownLink: 90dB Emission Designator: G7W (iDEN) Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 5W38634 EQUIPMENT: MW-CSR-ESMR-25W90-806-18 Page 6 of 23 Section 3. RF Power Output Para. No.: 2.1046 Test Performed By: Xu Jin Date of Test: Feb 23, 2005 Minimum Standard: Para. No. 90.205(a). Test Results: Complies Measurement Data: See attached charts. The maximum RF output power is within ± 1dB of the manufacturer’s rating. UpLink Channel Frequency (MHz) Measured Power (dBm) Rated Power (dBm) 806 23.08 24 815 24.52 24 824 23.06 24 DownLink Channel Frequency (MHz) Measured Power (dBm) Rated Power (dBm) 851 35.21 36 860 35.63 36 869 35.30 36 Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 5W38634 EQUIPMENT: MW-CSR-ESMR-25W90-806-18 Page 7 of 23 Section 4. Occupied Bandwidth Para. No.: 2.1049 Test Performed By: Xu Jin Date of Test: Feb 24, 2005 Minimum Standard: Para. No. 90.210 Test Results: Complies Measurement Data: See attached graph(s). The occupied bandwidth was measured by comparison of input from the signal generator to the output signal from the amplifier. This was done in order to determine if there was any degradation …

Text truncated - open the document above for the full version.

MW-CSR-ESMR-25W90 PASS BAND FREQUENCY RESPONSE PLOTS

Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 5W38634 EQUIPMENT: MW-CSR-ESMR-25W90-806-18 Page 16 of 23 Radiated Emissions Setup Photos Front View Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 5W38634 EQUIPMENT: MW-CSR-ESMR-25W90-806-18 Page 17 of 23 Rear View
