DATE 9 nov. 06 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: OIWCSRPCS50W90D Product Name: MW-CSR-PCS-50W90-XX-YY Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description • Internal Photographs • Installation Manual These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 09 Day of November 20 06 By: Jason Nixon Signature Printed Title: Telecom Specialist On behalf of : Nemko Canada Telephone: 613-737-9680

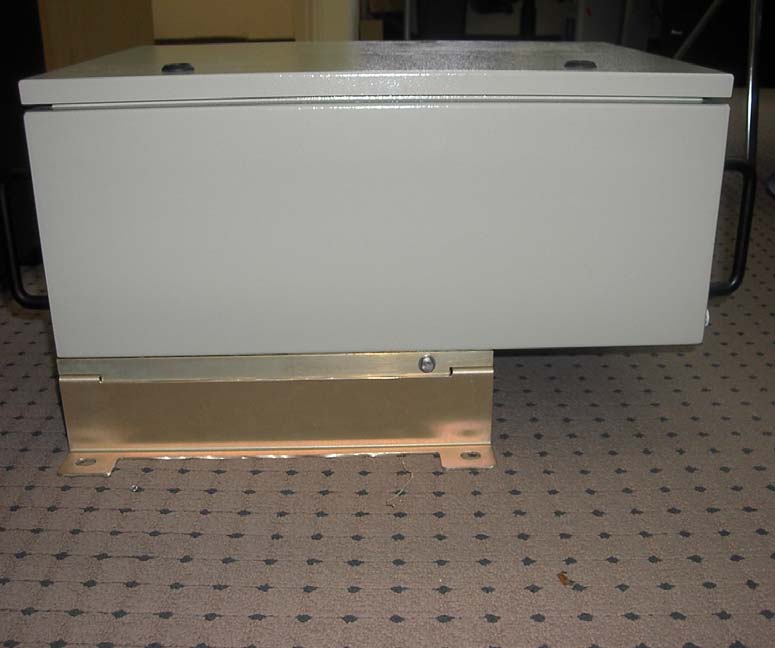

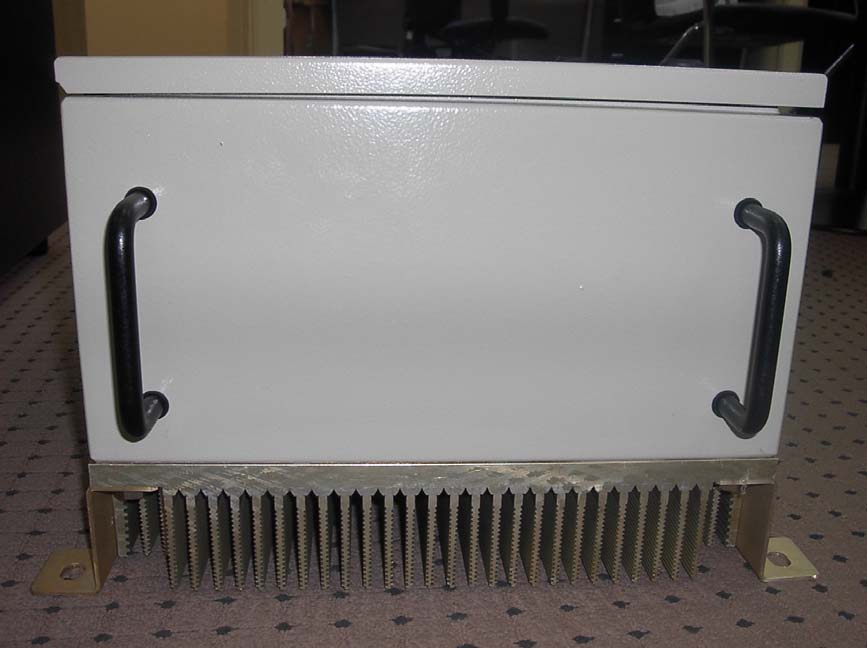

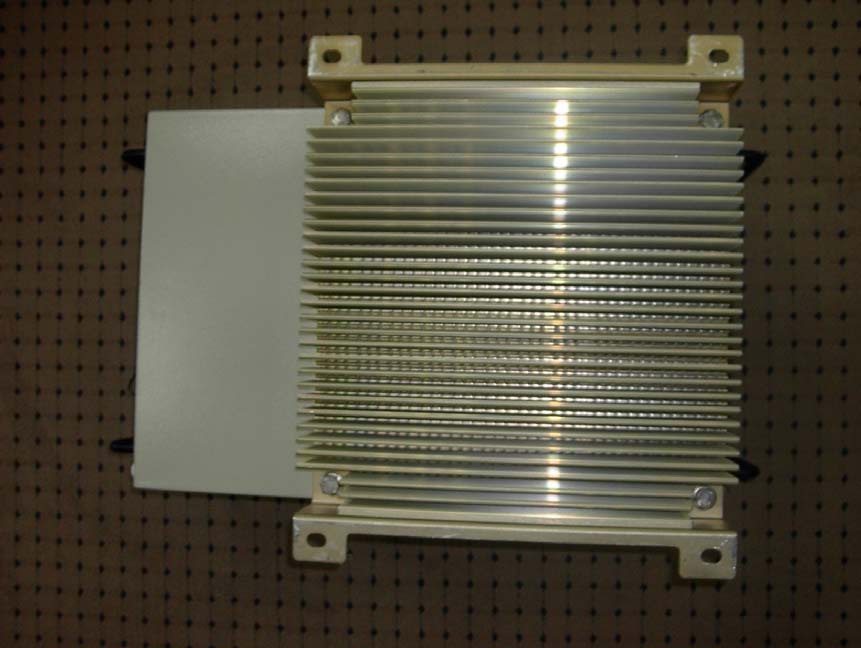

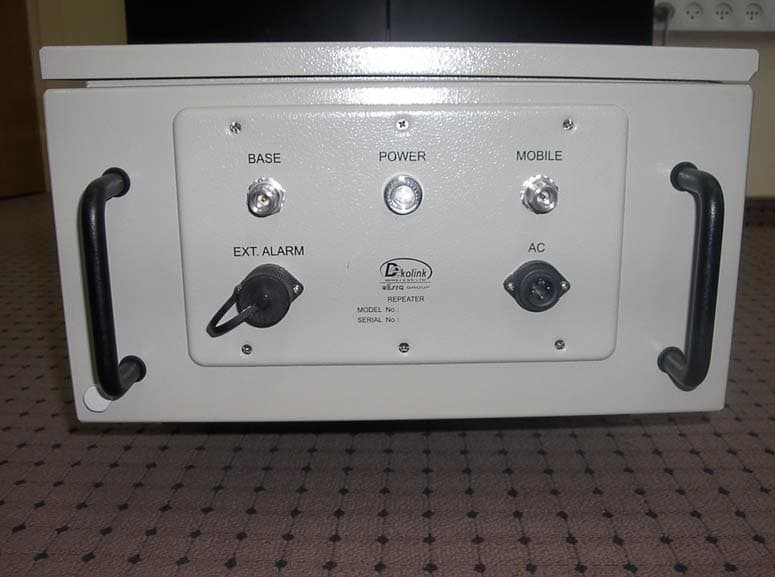

Pictures for MW-CSR-PCS-50W90-5-15 FRONT SIDE BACK BOTTOM
FCC ID for CSR-PCS-50W90 FCC ID: OIWCSRPCS 50W90 D that this device doesnotcause harmful Th is d e viceco mp lie swith p a r t 24 ofthe FCC Rul e s . Operationis subject to the condition interference. IC: 4589A- 300GC2 IC :4589A-300GC2
Aug.30.2006 Tune up procedure for DEKO 4019 1. General 1.1. This Procedure is conducted by the customer using RMS SW, on “Parameters and Control “ screen. 2. Procedure 2.1. Connect to unit using RMS (see Manual). 2.2. Chose “Parameters and Control “ screen (see figure 1). 2.3. Set Max Power to the required output power using the combo choice list. 2.4. Set Max Gain to maximum value. 2.5. Set SALC check box on. 2.6. Set Power check box on for Downlink and uplink. 3. Result: 3.1. The unit is set to the required power, the SALC control the Gain so that the output power will not exceed the maximum output power. 1 Switch to the Parameters and Control tab as shown on the figure below and follow the instructions. Channel Selection Smart ALC On /Off DL Power Amp On /Off Max Gain Am p Main DC Readout Heat sink Temp Pout Figure 1: RMS Software – Controls and Parameters Screen 2
Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 34.77 (dBm) Maximum peak output power at antenna input terminal: 2998.748198 (mW) Antenna gain(typical): 2 (dBi) Maximum antenna gain: 1.584893192 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1930 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.945519 (mW/cm^2) Maximum allowable antenna gain: 2.243298554 (dBi) Margin of Compliance: 0.243298554 2 4 R PG S π =
Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 40.79 (dBm) Maximum peak output power at antenna input terminal: 11994.99303 (mW) Antenna gain(typical): 8 (dBi) Maximum antenna gain: 6.309573445 (numeric) Prediction distance: 100 (cm) Prediction frequency: 1930 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.602268 (mW/cm^2) Maximum allowable antenna gain: 10.20209864 (dBi) Margin of Compliance: 2.20209864 2 4 R PG S π =
Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 30.04 (dBm) Maximum peak output power at antenna input terminal: 1009.252886 (mW) Antenna gain(typical): 10.1 (dBi) Maximum antenna gain: 10.23292992 (numeric) Prediction distance: 100 (cm) Prediction frequency: 1850 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.082185 (mW/cm^2) Maximum allowable antenna gain: 20.95209864 (dBi) Margin of Compliance: 10.85209864 2 4 R PG S π =
Test Report: 6W71892 Applicant: Dekolink Wireless Ltd. 16 Bazel St. Qiryat-Arieh, Petah-Tikva, Israel 49510 Apparatus: MW-CSR-PCS-50W90-5-15 FCC ID: OIWCSRPCS50W90D In Accordance With: FCC Part 24, Boosters Subpart E, Broadband PCS Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: For Roman Kuleba, Wireless Specialist Date: November 1, 2006 Total Number of Pages: 32 Nemko Canada Inc. REPORT SUMMARY Report Number: 6W71892 FCC ID: OIWCSRPCS50W90D Specification: FCC Part 24 Page 2 of 32 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 24. Conducted measurements were performed in accordance with ANSI TIA-603-B-2002. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: MW-CSR-PCS-50W90-5-15 Specification: FCC Part 24 Subpart E Broadband PCS Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Jason Nixon, Telecom Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 6W71892 FCC ID: OIWCSRPCS50W90D Specification: FCC Part 24 Page 3 of 32 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation ...................................................................................................................................4 1.4 Technical Specifications of the EUT ..........................................................................................................5 1.5 Block Diagram of the EUT.........................................................................................................................5 Section 2 : Test Conditions......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3 : Observations ............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 3.5 Additional Observations .............................................................................................................................7 Section 4 : Results Summary ..................................................................................................................... 8 4.1 FCC Part 24 : Test Results .........................................................................................................................9 Appendix A : Test Results ........................................................................................................................ 10 Clause 24.235 Frequency Stability ......................................................................................................................10 Clause 24.232 Output Power ...............................................................................................................................11 Clause 24.238 Conducted Spurious Emissions....................................................................................................12 Clause 24.238 Radiated Spurious Emissions.......................................................................................................20 Clause 2-11-04/EAB/RF Occupied Bandwidth ..................................................................................................…
