OIWDBDAPS950W90Bi-directional Booster

© Dekolink Wireless Ltd.—All Rights Reserved Revision 2.0 ABOUT THIS MANUAL This Product Manual provides the following information: A description of the Digital Repeater • • • • • A functional description of the Repeater A description of its main modules Procedures for setup, configuration and checking the proper functioning of the Digital Repeater Maintenance and troubleshooting procedures TO WHOM IT IS INTENDED: This Product Manual is intended for experienced technicians and engineers. It is assumed that the customers installing, operating, and maintaining Dekolink Digital Repeaters are familiar with the basic functionality of repeaters. DEKOLINK WIRELESS LTD. PRODUCT MANUAL DIGITAL REPEATER NOTICE Confidential - Authorized Customer Use This document may be used in its complete form only and is solely for the use of Dekolink Wireless Ltd. employees and authorized Dekolink Wireless Ltd. channels or customers. The material herein is proprietary to Dekolink Wireless Ltd. Any unauthorized reproduction, use or disclosure of any part thereof is strictly prohibited. All trademarks and registered trademarks are the property of their respective owners. DISCLAIMER OF LIABILITY Contents herein are current as of the date of publication. Dekolink Wireless Ltd. reserves the right to change the contents without prior notice. The information furnished by Dekolink Wireless Ltd. in this document is believed to be accurate and reliable. However, Dekolink Wireless Ltd. assumes no responsibility for its use. In no event shall Dekolink Wireless Ltd. be liable for any damage resulting from loss of data, loss of use, or loss of profits and Dekolink Wireless Ltd. further disclaims any and all liability for indirect, incidental, special, consequential or other similes damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. EXCLUSIVE REMEDIES The remedies provided herein are the Buyer’s sole and exclusive remedies. Dekolink Wireless Ltd. shall not be viable for any direct, incidental, or consequential damages, whether based on contract, tort, or any legal theory. International Headquarters Dekolink Wireless Ltd. – Elisra Group 16 Bazel St., Kiryat-Arieh, Petah-Tikvah 49001 ISRAEL Tel.: +972 3 918-0180 Fax: +972 3 918-0190 E-mail: [email protected] Website: www.dekolink.com © Dekolink Wireless Ltd Publication No.: 302-2004 Rev. 2.0 Page b Proprietary Data Pub. 302-2004 Rev. 2.0 DIGITAL REPEATER PRODUCT MANUAL DEKOLINK WIRELESS LTD. SAFETY WARNINGS AND ADMONISHMENTS Throughout this manual, important safety warnings and admonishments are included to warn of possible hazards to persons or equipment. A safety warning identifies a possible hazard and then describes what may happen if the hazard is not avoided. The safety warnings – in the form of Dangers, Warnings and Cautions must be followed at all times. These warnings are flagged by the use of a warning icon, usually the triangular alert icon seen below. The exclamation point within the triangular alert icon is intended to warn the operator or service personnel of operation and maintenance from factors elating to the product and its operating environment, which could pose a safety hazard. GENERAL SAFETY WARNINGS CONCERNING USE OF THIS SYSTEM Always observe standard safety precautions during installation, operation and maintenance of this product. Only a qualified and authorized personnel should carry out adjustment, maintenance or repairs to the components of this equipment. Danger: Electrical Shock This equipment is usually installed outdoors. Wet conditions increase the potential for receiving an electric shock when installing or using electrically powered equipment. To prevent electrical shock when installing or modifying the system power wiring, disconnect the wiring at the power source before working with uninsulated wires or terminals. Caution: RF Exposure Installation of an antenna must comply with the FCC RF exposure requirements. Refer to paragraph 4.4. Pub. 302-2004 Rev. 2.0 Proprietary Data Page c DEKOLINK WIRELESS LTD. PRODUCT MANUAL DIGITAL REPEATER G LOSSARY The following is a list of abbreviations and terms used throughout this document. Abbreviation/Term Definition AGC Automatic Gain Control ALC Automatic Level Control ATR Acceptance Test Report DAS Distributed Antenna System DDF Dekolink Digital Filter DL Dwnlink Downlink The path covered from the Base Transceiver Station (BTS) to the subscribers/service area via the repeater ESD Electro-Static Discharge iDEN Integrated Digital Enhanced Network IF Intermediate Frequency IP3 Third order Intercept Point MN Model Number NMT Network Management Tool PLL Phased Locked Loop POTS Plain Old Telephone System RF Radio Frequency RMT Repeater Management Tool SALC Smart-ALC (Automatic Level Control) SIM Subscriber Identification Module SQE Signal Quality Estimate UL Uplink Uplink The path covered from the subscribers/service area to the Base Transceiver Station (BTS) via the repeater VSWR Voltage Standing Wave Ratio Page d Proprietary Data Pub. 302-2004 Rev. 2.0 DEKOLINK WIRELESS LTD. PRODUCT MANUAL DIGITAL REPEATER CONTENTS 1. Introduction..............................................................................................1 1.1 General........................................................................................................................1 1.2 Applications.................................................................................................................1 1.3 Features.......................................................................................................................1 1.4 Models and Frequencies...............................................................................................2 1.5 Unpacking and Inspection............................................................................................2 2. Functional Description.................................................…

Text truncated - open the document above for the full version.

HIGH POWER CHANNEL SELECTIVE SMR/iDEN/TDMA REPEATER MAIN FEATURES • 50 Watt 1dB Output Power • 10 Watt Downlink Composite Power • 90 dB RF Gain • Flexible Software Controlled Filter Array • 1 to 8 Programmable Filters, 1 to 8 Channels each Filter • Separate Programmable Bandwidth for each Channel • High Spectral Purity • Small Dimensions • Exceptionally linear operation • Computer (Laptop) Control and monitor • Output Power & Fault Monitor • Special Tailoring Capability to meet Specific Customer Requirements • Patent Pending Dekolink’s new Digital Channel Selective Repeater employs advanced Digital Signal Processing technology (DSP) that provides significant advantages over conventional repeaters. This innovative system introduces new system capabilities, which enable a wide variety of applications particularly when adjacent channel selectivity and very high spectral purity and selectivity is required. The Digital Channel Selective Repeater generates a flexible array of 8 DSP based software controlled independent variable bandwidth channels across the whole 800 MHz SMR band. Each channel parameters such as central frequency, bandwidth, and filter slopes, are all software controlled in a local mode and can be remotely controlled via a wireless modem. The 800 MHz SMR band is crowded with many different services. Services such as IDEN, LMR, SMR and Public Safety are interfering with each other in the same geographical area making it often impossible to support these services simultaneously. The Digital Channel Selective Repeater provides a very efficient solution to the 800MHz interference problem by enabling high spectral selectivity while maintaining a clear low noise spectrum. The Digital Channel Selective Repeater has a built-in software controlled frequency shift capability making this product ideal for those applications where frequency shifting is required and particularly in sites where high gain is required under poor antenna isolation conditions. Dekolink’s Digital Channel Selective Repeater provides a 40dbm composite output power, ideal for outdoor applications. Dekolink also provides a cost effective medium power system providing the same features and capabilities but with 32 dBm composite power. These amplifiers are an excellent choice for in-building coverage applications when frequency selectivity is required. Dekolink Wireless Proprietary and Confidential Information. Copying, Distribution, and Disclosure are prohibited without Express Authorization from Dekolink Wireless Company. This document is protected by all applicable copyright laws. Dekolink Wireless ; 16 Bazel St.Qiryat-Arieh; Petah-Tikva; Israel, 49510 Tel: 972-3-9180-180 , Fax: 972-3-190-9180 ; e-mail:[email protected], web:www.dekolink.com Electrical Specification Downlink Up link Frequency Range See table below Pass band Gain @Min attenuation. 90 dB typical Filters Bandwidth 12.5 –250 KHz (Programmable) Delay 20-80 μSec. Depending on filter Bandwidth and required slope. Channel Setting Resolution 0.5 kHz Passband Ripple ± 2.5 dB max Channel Ripple ± 0.5 dB max Delay Variation ± 250 nSec max Noise Figure @max gain 5.0 dB 3rd Order Output Intercept Point +62 dBm typical +50 dBm typical IMD @ 4 tone 48 dBc typical @ 33dbm/tone 48 dBc typical @ 23 dbm/tone IMD @ 8 tone 45 dBc typical @ 30dbm/tone 45 dBc typical @ 20 dbm/tone Power Output @1 dB Gain Compression 50 Watt 10 Watt Composite Output Power +40dBm +30 dBm Automatic Gain Control (user enable) 15 dB attenuation Range Impedance Level 50 ohms V.S.W.R In/Out 1.5: 1 max Spurious Outputs 55 dBc max Power Supply 90 to 260 VAC Manual Gain Control 30 dB @2 dB/step Size 60x40x30 cm (23.6x15.7x12 inch) RF Connectors N-type Female Weight 42 kg. (95 lb) Operating temperature - 30°C to + 50°C * specifications are subject to change without notice System Frequency range: SYSTEM TYPE DOWN-LINK (MHz) UP-LINK (MHz) iDEN / SMR / LMR 800 851-866 806-821 iDEN / SMR 900 935-941 896-902 Public-safety 851-869 806-824 NPSPEC 866-869 821-824 2 Way Paging 928-941 896-902 Dekolink Wireless ; 16 Bazel St.Qiryat-Arieh; Petah-Tikva; Israel, 49510 Tel: 972-3-9180-180 , Fax: 972-3-190-9180 ; e-mail:[email protected], web:www.dekolink.com

Hi Glen. I would like to confirm that I have a copy of section 90.219 & 22.383 for in-building/booster operation and our boosters comply with these rules. Best Regards, David Levy, Technical Support Manager Dekolink Wireless Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180179 Fax-972-3-9180190

Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR: MW-DBDA-SMR-50W85-PS9 FCC ID: OIWDBDAPS950W90 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams, parts list, photos of circuits and amplifiers block diagram and component description, tune up, required to be submitted be withheld from public review. The documents are company proprietary information that could never get into the possession of our competition. Please contact me if there is any information you may need. Sincerely, October, 27, 2004 David Levy, Technical Support Manager Dekolink Wireless Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180179 Fax-972-3-9180190

FCC ID FOR MW-DBDA-SMR-50W90-PS9: OIWDBDAPS950W90

Prediction of MPE limit at a given distance MW-DBDA-SMR-50W85-PS9, Outdoor Donar Antenna Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 28.00 (dBm) Maximum peak output power at antenna input terminal: 630.9573445 (mW) Antenna gain(typical): 20 (dBi) Maximum antenna gain: 100 (numeric) Prediction distance: 100 (cm) Prediction frequency: 899 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.6 (mW/cm^2) Power density at prediction frequency: 0.502100 (mW/cm^2) Maximum allowable antenna gain: 20.77361114 (dBi) Margin of Compliance: 0.773611144 Note: 2dB cable and jumper loss has been included in the MPE calculation as specified by the 2 4 R PG S π =

Prediction of MPE limit at a given distance MW-DBDA-SMR-50W85-PS9, Outdoor Mobile Antenna Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 38.00 (dBm) Maximum peak output power at antenna input terminal: 6309.573445 (mW) Antenna gain(typical): 10 (dBi) Maximum antenna gain: 10 (numeric) Prediction distance: 100 (cm) Prediction frequency: 938 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.6 (mW/cm^2) Power density at prediction frequency: 0.502100 (mW/cm^2) Maximum allowable antenna gain: 10.77361114 (dBi) Margin of Compliance: 0.773611144 Note: 2dB cable and jumper loss has been included in the MPE calculation as specified by the 2 4 R PG S π =

Prediction of MPE limit at a given distance 50W85, Indoor Mobile Antenna Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 33.00 (dBm) Maximum peak output power at antenna input terminal: 1995.262315 (mW) Antenna gain(typical): 2 (dBi) Maximum antenna gain: 1.584893192 (numeric) Prediction distance: 20 (cm) Prediction frequency: 935 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.623333333 (mW/cm^2) Power density at prediction frequency: 0.629115 (mW/cm^2) Maximum allowable antenna gain: 1.959902072 (dBi) Margin of Compliance: -0.040097928 NOTE: The power feed to the antenna will be further reduced by the 2 4 R PG S π =

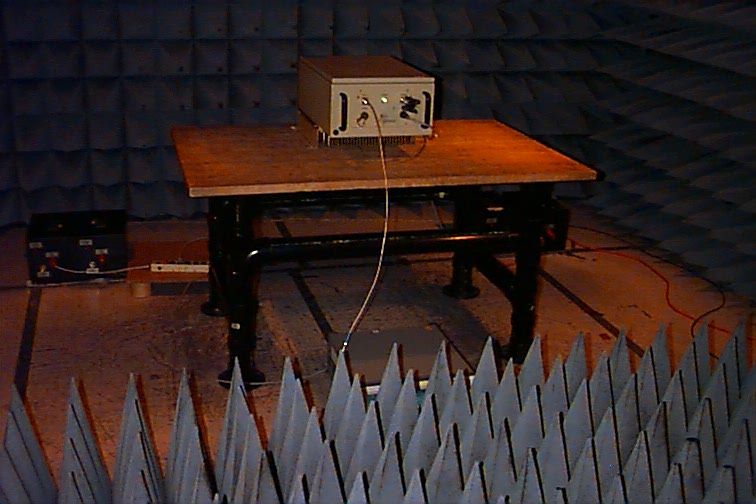

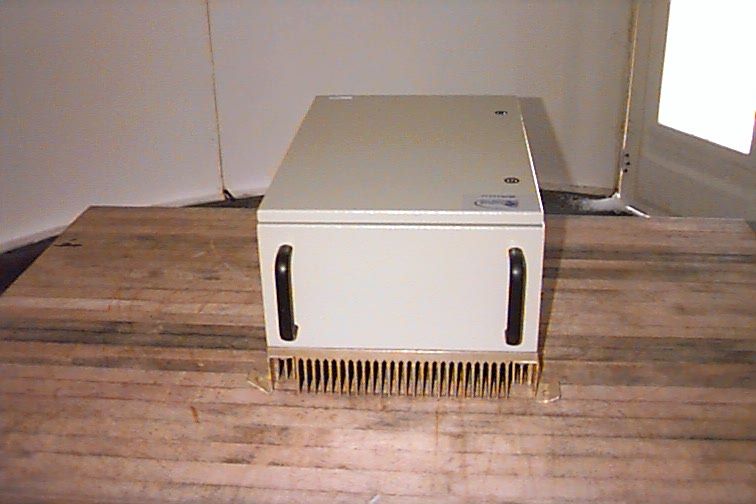

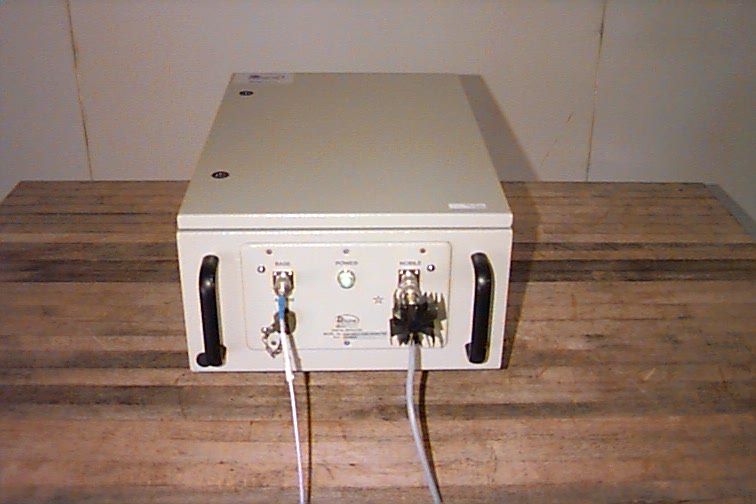

Master: PT90PLMR Date: February 25, 2001 Test Report: 4W32611 Issue 2 Applicant: Dekolink Wireless Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel 49510 Equipment Under Test: MW-DBDA-SMR-50W85-PS9 (EUT) FCC ID: OIWDBDAPS950W90 In Accordance With: FCC Part 90, Subpart I Private Land Mobile Repeater Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Glen Westwell, Wireless Specialist Date: 7 January 2005 Total Number of Pages: 25 Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 4W32611 Issue 2 EQUIPMENT: MW-DBDA-SMR-50W85-PS9 FCC ID: OIWDBDAPS950W90 Page 2 of 25 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. General Equipment Specification......................................................................5 Section 3. RF Power Output ................................................................................................6 Section 4. Occupied Bandwidth ..........................................................................................7 Section 5. Spurious Emissions at Antenna Terminals ....................................................10 Section 6. Field Strength of Spurious Emissions .............................................................14 Section 7. Out of Band Rejection .......................................................................................17 Section 8. Test Equipment List .........................................................................................22 Appendix A Test Diagrams ......................................................................................................23 Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 4W32611 Issue 2 EQUIPMENT: MW-DBDA-SMR-50W85-PS9 FCC ID: OIWDBDAPS950W90 Page 3 of 25 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New Submission Production Unit Class II Permissive Change Pre-Production Unit T N B Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: _____________________________________ DATE: 7 January 2005 Jason Nixon, Telecom Specialist Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 4W32611 Issue 2 EQUIPMENT: MW-DBDA-SMR-50W85-PS9 FCC ID: OIWDBDAPS950W90 Page 4 of 25 Summary Of Test Data Name Of Test Para. No. Result RF Power Output 2.1046 Complies Audio Frequency Response TIA EIA-603.3.2.6 N/A (1) Audio Low-Pass Filter Response TIA EIA-603.3.2.6 N/A (1) Modulation Limiting TIA EIA-603.3.2.6 N/A (1) Occupied Bandwidth 2.1049 Complies Spurious Emissions at Antenna Terminals 2.1051 Complies Field Strength of Spurious Emissions 2.1053 Complies Frequency Stability 2.1055 Complies (2) Transient Frequency Behavior —— Footnotes: 1) The apparatus does not modulate or demodulate the carrier and therefore does not contain any modulation circuitry. 2) This equipment uses the same LO for frequency conversion, therefore the transmitted signal is identical in frequency to the received signal. This was verified with frequency counter phase locked to a signal generator and measuring the transmitted signal frequency. The frequency drift was 0 Hz. Indoor Temperature: 24°C Humidity: 22% Outdoor Temperature: 7°C Humidity: 57% Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 4W32611 Issue 2 EQUIPMENT: MW-DBDA-SMR-50W85-PS9 FCC ID: OIWDBDAPS950W90 Page 5 of 25 Section 2. General Equipment Specification Manufacturer: Dekolink Wireless Ltd. Model No.: MW-DBDA-SMR-50W85-PS9 Serial No.: 04108066 Date Received In Laboratory: November 5, 2004 Nemko Identification No.: 1 Supply Voltage Input: 90 to 260 Vac Frequency Range: UpLink: 896-902 MHz DownLink: 935-941 MHz Type(s) of Modulation: iDEN RF Power Output (rated): UpLink: 1Watts, +30dBm DownLink: 10Watts, +40dBm Channel Spacing(s): Programmable via client software Operator Selection of Operating Frequency: Programmable via client software Emission Designator G7W (iDEN) Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 4W32611 Issue 2 EQUIPMENT: MW-DBDA-SMR-50W85-PS9 FCC ID: OIWDBDAPS950W90 Page 6 of 25 Section 3. RF Power Output Para. No.: 2.1046 Test Performed By: Jason Nixon Date of Test: November 29, 2004 Minimum Standard: Para. No. 90.205(a). Test Results: Complies Measurement Data: The power levels were measured at maximum input drive and gain. This device uses AGC to prevent saturation or over modulation. UpLink Channel Frequency (MHz) Measured Power (dBm) Rated Power (dBm) 896 28.22 30 899 28.03 30 902 27.73 30 DownLink Channel Frequency (MHz) Measured Power (dBm) Rated Power (dBm) 935 38.99 40 938 39.24 40 941 39.87 40 Nemko Canada Inc. FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER PROJECT NO.: 4W32611 Issue 2 EQUIPMENT: MW-DBDA-SMR-50W85-PS9 FCC ID: OIWDBDAPS950W90 Page 7 of 25 Section 4. Occupied Bandwidth Para. No.: 2.1049 Test Perfor…
