OIWDR80050W90BiDEN Digital Extender

Page 1 of 21 IDEN Digital Repeater Installation Manual DekoLink WireLess Proprietary and Confidential Information. Copying, Distribution, and Disclosure are Prohibited without Express Authorization from DekoLink WireLess Company. IDEN Digital Repeater Installation Manual MW-DR-800-50W90B Page 2 of 21 IDEN Digital Repeater Installation Manual 1 Table of Contents 1 Table of Contents 2 2 Table Of Figures. 3 3 Introduction. 4 3.1 Computer Program. ................................................................................................. 4 3.2 Programmable Modules .......................................................................................... 4 4 Electrical Specifications 5 5 RF Block Diagram 7 6 System Components description. 8 7 Repeater Monitor And Control 10 7.1 REPEATER MONITOR AND CONTROL SET-UP ........................................... 10 8 Installation of the Repeater in Lab. 11 9 REPEATER (BDA) OPERATION 12 9.1 AGC (ALC) FUNCTION...................................................................................... 12 9.2 RF GAIN SETTING ............................................................................................. 12 10 BDA INSTALLTION 13 10.1 BASE / DONOR ANTENNA INSTALLTION .................................................... 13 10.2 REMOTE / MOBILE ANTENNA INSTALLTION............................................. 13 10.3 ANTENNA ISOLATION ..................................................................................... 14 11 INSTALLATION STEPS 15 12 RF EXPOSURE WARNING 16 13 BDA MONITORING AND ALARMS 17 13.1 LINK ALARMS (up link & down link)................................................................ 17 13.2 GENERAL ALARMS........................................................................................... 17 13.3 Measurements........................................................................................................ 17 14 Repeater Mechanical Outline. 18 14.1 Repeater Case. ....................................................................................................... 18 14.2 Repeater Cover. ..................................................................................................... 19 15 External Alarm Cable. 20 16 Dekolink Wireless Limited Warranty. 21 Page 3 of 21 IDEN Digital Repeater Installation Manual 2 Table Of Figures. Figure 1: Digital Repeater RF Block Diagram............................................................................... 7 Figure 2: Digital Repeater Layout.................................................................................................. 8 Figure 3: Remote Alarm and Control unit – zoom-out................................................................. 10 Figure 4: Local Mode Figure 5: Remote Mode...................................................................... 10 Figure 6: Repeater Downlink rout RF performance test set up. ................................................... 11 Figure 7: Repeater Uplink rout RF performance test set up ......................................................... 11 Figure 8: Digital Repeater Mechanical Outline - Case................................................................ 18 Figure 9: Digital Repeater Mechanical Outline - Cover.............................................................. 19 Figure 10: External Alarm Connector.......................................................................................... 20 Page 4 of 21 IDEN Digital Repeater Installation Manual 3 Introduction. Dekolink Wireless channel selective repeaters employ digital processing techniques to attain versatile programmable filter array. The input RF signal is sampled and converted to digital signals. The digital signal is filtered using fast parallel logic. Using digital processing techniques the system generates up to 8 (12 optional) separate, programmable and independent filters. The filter parameters can be easily modified and tailored to meet specific customer requirements. 3.1 Computer Program. Repeater Management Software (RMA) supplied with the repeater and provide full access to all control setting and monitoring capabilities. The RMA software can be installed on Windows 95, Windows 98, Windows 2000 & Windows XP operation systems. Dekolink's Repeater Management Application software (RMA) is used to manage and control the repeater by local connection via RS232 or remotely by Modem. 3.2 Programmable Modules All Repeater settings made trough Controller unit (CB-04), This unit controls the active components in the repeater, and communicate with two DDF (Dekolink Digital Filter) units Up& Downlink trough RS232 Communication. The controller controls RF Gain, Power On/Off, AGC On/Off & provides Alarms Report . The controller also set DDF parameters to each DDF units (Uplink & downlink) it sets Center Frequency, Bandwidth & Enable/Disable each one of the 8 channels separately of the Uplink/ Downlink path. It allows independence shaping of several filters, by controlling frequency, frequency bandwidth and type. Page 5 of 21 IDEN Digital Repeater Installation Manual 4 Electrical Specifications Frequency Range Downlink 851-866 MHz Uplink 806-821 MHz Pass band Gain @Min attenuation. Up to 100 dB Channel Bandwidth See Sample from Table Channel Setting Resolution 0.5 kHz Passband Ripple ± 2.5 dB max Channel Ripple ± 0.5 dB max Delay Ripple ± 250 nSec max Noise Figure @max gain 5.0 dB max 3rd Order Output Intercept Point +62 dBm typical +50 dBm typical IMD @ 4 tone 48 dBc typical @ 2.5 Watt/tone 48 dBc typical @ 0.25 Watt/tone IMD @ 8 tone 45 dBc typical @ 1.25 Watt/tone 45 dBc typical @ 0.125 Watt/tone Power Output @1 dB Gain Compression 50 Watt 10 Watt Composite Output Power +40dBm +30 dBm Automatic Gain Control (user enable) 15 dB attenuation Range Impedance Level 50 ohms V.S.W.R In/Out 1.5: 1 max Spurious Outputs -13dBm max Power Supply 90 to 260 VAC Digital Gain Control 0-31dB@1dB/step Size 400X600X300 cm (15.7x23.6x12 inch) RF Connectors N-ty…

Text truncated - open the document above for the full version.

RF Block Diagram (MW-DR-800-50W90B digital repeater) 50 Watt AGC Downlink Uplink DuplexerDuplexer Digital Attenuator LNA Attenuator Power Monitor HPA AGC Up/Down Converter Digital Repeater Card Attenuator LNA Attenuator Power Monitor HPA AGC Up/Down Converter Digital Repeater Card 11.0592Mhz Micro Controller Controller C o n t r o l B u s s ADC 14bits DAC 14bits IF In IF out data data D a t a & c l k Receive Signal Process Transmit Signal Process Clock osc 65Mhz WATCH DOG RS232 OSC 16MHZ Microprocessor XCM916 EPLD RAM D a t a & A d d r e s s D a t a & A d d r e s s Power Supply Connector DB9pin Connector DB50pin Digital Repeater Card Block Diagram Up/Down Converter VCO Amplifier Amplifier RF InputRF Output 22 MHz DL: 836MHz/UL:791MHz 22 MHz DL: 836MHz/UL:791MHz IF OutputIF Input

Page 1 of 1 50W rev 2 - 09/02 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-- e-mail: [email protected] web www.decolink.com August 10, 2003 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 USA Subject: Request for confidentiality of a digital repeater, FCC ID:OIWDR80050W90B Dear Gentlemen, We apply to you with request to withhold Decolink Wireless Ltd. trade secrets in Application for Certification for a digital repeater, model MW-DR-800-50W90B, FCC ID:OIWDR80050W90B. These trade secrets can be found in the repeater schematic diagrams, files Schematic_CHANNLER_15557(7 pages) and Schematic_LNA_15557 (2 pages) of this Application. Many thanks in advance. Sincerely yours, Moshe Minkin Quality Assurance director Decolink Wireless Ltd

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 28, 2003 RE: Dekolink Wireless Ltd. FCC ID: OIWDR80050W90B After a review of the submitted information, I have a few comments on the above referenced Application. 1) The FRN Number provided (0009032668) appears to be invalid from checking on the FCC website. Please provide a correct FRN number for Dekolink Wireless Ltd. 2) Clear Top and Bottom Photographs are required for all components in the RF path (Filters, Amplifiers, Channler, Diplexers, etc.). Additionally, most photographs provided are not clear enough (when possible these should be focused, not too dark, with no glare spots) or show adequate detail. Please provide clearer and/or higher resolution photographs. 3) Due to the fonts style uses on the label, the letter "S" and Number "5" and the letter "B" and Number "8" can not be adequately distinguished. Please provide an updated label that utilizes a different font. 4) Parts lists should be provide for all components given in the RF path. The information provided shows that the high power amplifiers are OEM equipment. Are the LNAs, Channler, ALC circuits, diplexers, Digital Filters, etc. designed and/or built by Dekolink? If so, please provide internal parts lists for all components in the RF path manufactured by Dekolink. Otherwise, please provide a parts list that shows the vendor of each of these components used. 5) It appears that the schematics provided are only for certain components in the RF path. Schematics should be provided for all aspects of the RF path manufactured by Dekolink, unless they are listed as OEM equipment in the parts list. Please provide any missing schematics. 6) For purposes of the FCC grant, please confirm that this devices retransmits the same frequencies received. If not, please provide further explanation of the EUT. 7) Please provide a Tune up procedure over power range. 8) Note: FYI, because this is a licensed device, RF exposure issues are addressed at the time of licensing for the end user of this device. Therefore the RF exposure exhibit has not been evaluated. It is suggested that the RF exposure section also be removed from the test report. 9) This device contains ALC/AGC circuitry. Please explain the derivation of the input drive level provided into the EUT in order to obtain the maximum power output. 10) Since the device contains AGC circuitry, please provide data/tables showing the measured output power vs. input level from the lowest expected input to the maximum rated input power allowed (approx -51 dBm to +10 dBm, etc.) 11) The maximum output rating for the downlink in the test report is 9.55 Watts. The operational description states a 10 Watt rating. Note that the FCC expects the unit to be adjusted for worse case conditions expected while following the tune up procedure performed by the factory. The worse case condition will be shown on the grant and it is expected all manufactured units will be equal to or less than this value. Please verify the worse case output power and if necessary have the manufacture adjust for worse case conditions following their tune up procedures and remeasure. 12) Please comment on if this device is designed for single carrier or multi-carrier use. Has the output power been checked for multi-carrier conditions? 13) Please comment on if the input signals supplied to the unit are considered a typical expected input signal (level and modulation). Additionally, please provide a list of expected modulations for use with this device (731 form listed D7W). Note that certain tests must be performed for all expected modulation types. 14) Please provide justification for the use of D7W emissions. -- Continued on Next Page -- z Page 2September 2, 2003 15) Radiated spurious emissions are not necessary to be performed for 3 carriers but instead with a narrow band CW signal. Note that a single channel creates a higher power level which usually creates higher level spurious emissions. Please provide additional radiated spurious emissions for a single carrier configuration. For future applications it is necessary to only perform this test using the single carrier method. 16) It appears as if plot 58 and 59 are identical and that a plot may have been left out. Please verify. 17) Conducted measurements were made using 2 carrier signals. Since the ALC circuit is based on composite power, and a single carrier will contain higher power with possible higher sidebands, please provide additional plots using a single carrier. 18) Section 4.5 (radiated emissions) should be performed using the substitution method. It does not appear that this occurred. Please explain. 19) FYI...An easy way to deal with limits for antenna conducted is that 43 + 10 log (P) equals a limit of -13 dBm. 20) FYI...The FCC just released basic checklist to TCB's regarding this type of device. Although not considered complete, it gives a basic idea of some of the FCC's expectations. I have enclosed this in an attachment for future reference. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 28, 2003 RE: Dekolink Wireless Ltd. FCC ID: OIWDR80050W90B After a review of the submitted information, I have a few comments on the above referenced Application. 1) The internal photographs appear appropriate, but are too low of a resolution to adequately see the detail. It appears that the conversion settings for PDF may need to adjust the resolution settings. Please increase the resolution of the exhibit provided. 2) When multiple inputs were applied during testing, please explain if the maximum/minimum input values used (uplink = -33 to -60 dBm, downlink = -23 to -50 dBm) were based on a per channel input power or composite input power. If the input values used are based on a per channel value, all spurious/emission mask tests have been provided. If the input value is based on composite power of all channels, additional emission mask bandedge plots using lowest/highest channels should also be provided for a single carrier. This is due to the fact that the single channel will now contain higher power at a specific frequency than in a multi-channel configuration. Note that our previous correspondence regarding testing methods was before we realized the device actually contained AGC circuitry. Please note that multi-carrier and AGC types of amplifiers sometimes require some additional information. 3) Please provide a curve or equivalent data that shows the measured output power vs. input level from the lowest expected input to the maximum rated input power allowed (approx -51 dBm to +10 dBm, etc.). This may be provided by the manufacturer if this is something they already have performed. This information is used to check the characteristics of the AGC circuitry and ensure that use of the minimum/maximum levels is considered sufficient for all levels expected. 4) To ensure that the AGC works properly, please provide an additional output power measurement using multi-carriers (2 measurements, both carriers with minimum levels, the other with maximum levels should be sufficient). Currently we know the output value for a single channel configuration. Assuming the maximum output power is composite power, we want to ensure that the multi-carrier value is equal to or less than the single channel value and that the AGC works appropriately. This also helps to verify that the power is composite power and not strictly a per-channel power requirement. 5) FYI...Due to the results of radiated being < 20 dB below the limit, we will accept the current radiated data. However, to help make future applications simplier, this test is only necessary to only performed using a single carrier method. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2October 8, 2003 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

HERMON LABORATORIES September 22, 2003 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 Attn: Mr. T. Johnson, Examining Engineer RE: your e-mail dated September 2, 2003; Dekolink Wireless Ltd. FCC ID: OIWDR80050W90B, ATCB000675 Dear Mr. Johnson, Please find below the answers to your questions. 1) The correct FRN is 0009 0323 68. The changed “ATCB_Form 731_15557_rev1” was uploaded on September 22, 2003 2) Component photographs “Internal_photos_15557_rev1” were uploaded on September 22, 2003. 3) A revised label “Label_15557_rev1” was uploaded on September 22, 2003 via Label Location folder. 4) Part list was uploaded on September 22, 2003 via Part List folder. 5) The schematics files “schematic_dig_filter_15557” and “schematic_monitor_card_15557” were uploaded on September 22, 2003 via Schematics folder. 6) We confirm, that this device retransmits the same frequencies (received). 7) The “Tune_up_procedure_15557” file was uploaded on September 22, 2003 via Additional information. 8) This section was removed from the test report, refer to DECRAD_FCC.15557_rev2, uploaded on September 22, 2003 via Test Reports folder. 9) Min input level corresponds to the maximum gain of the amplifier and vice versa. Max and min input signal levels, max and min gain values were claimed by the manufacturer, as you suggested in your e-mail dated June 10, 2003 10) The test suite was confirmed by you in e-mail dated June 10, 2003, items a, b, c, d. Upon this the amplitude characteristic test was not supposed to be performed. 11) The maximum measured output power for downlink was 39.8 dBm (see our test report DEKRAD_FCC.15557, page 6), i.e. 9.55 watt. We confirm that it was the worst case, the output power in any case is equal or less than 9.55 W, refer to Tune-up_procedure_15557. 12) This device is designed for multi-carrier use. Output power test was performed for the single middle channel: one in uplink band and one in downlink band. HERMON LABORATORIES 13) Dekolink designed Digital Repeater to use IDEN technology. The iDEN signal is a typical expected input signal, containing 4 channels with 16QAM modulation, multi-carrier. In downlink mode: max level of input signal is –23 dBm (minimum gain), min level is –50 dBm (maximum gain) to reach allowable ALC level, in uplink mode: max level of input signal is –33 dBm (minimum gain), min level is –60 dBm (maximum gain). 14) D7W emission designation – refer to item 13. 15) The test was done according to the test suite confirmed by you on June 10, 2003. 16) The plots 58 and 59 are identical, but markers show peak spurious emission at different frequencies. 17) The test was done according to the test suite confirmed by you on June 10, 2003. 18) The test was not performed by the substitution method, because no spurious emissions were found. 19), 20) – OK. Many thanks for your help and patience. Sincerely, Marina Cherniavsky, certification engineer Hermon Laboratories

HERMON LABORATORIES October 23, 2003 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 Attn: Mr. T. Johnson, Examining Engineer RE: your e-mail dated October 8, 2003; Dekolink Wireless Ltd. FCC ID: OIWDR80050W90B, ATCB000675 Dear Mr. Johnson, Please find below the response to your questions. 1) The other version of “Internal_photos_15557” in WORD was uploaded. 2) We confirm that a single channel power was used for mask tests. 3) Measured output power vs input level was provided by Dekolink. File “Additional_output_power_measurement_15557” was uploaded on October 23, 2003 via Additional Information folder. 4) For multi-carrier measurements please refer to file “Additional_output_power_measurement_15557”. Many thanks for your support and patience. Sincerely, Marina Cherniavsky, certification engineer Hermon Laboratories

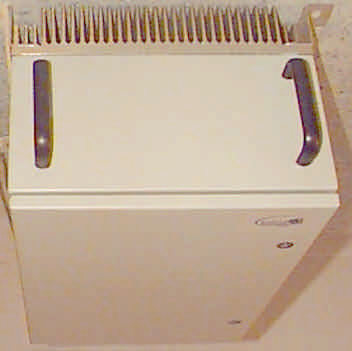

FCC ID:OIWDR80050W90B Date: August 2003 Page 1 of 3 EXTERNAL PHOTOGRAPHS This document contains 2 photographs FCC ID:OIWDR80050W90B Date: August 2003 Page 2 of 3 Photograph No.1 MW-DR-800-50W90B high power repeater General view FCC ID:OIWDR80050W90B Date: August 2003 Page 3 of 3 Photograph No.2 MW-DR-800-50W90B high power repeater Rear side view

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Page 1 of 1 label_15557_rev1 DATE: 17/9/03 V1 LABEL for MW-DR-800-50W90B

FCC ID:OIWDR80050W90B Date: August 2003 INTERNAL PHOTOGRAPHS Page 9 of 9 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolink comweb www decolink com MECHANICAL LAYOUT 9 15 10 11 1 2 5 4 14 3 7 6 8 13 12 Page 10 of 10 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolink comweb www decolink com 1. Digital Filter Module for Downlink (include operation indication LED ) 2. Digital Filter Module for Uplink (include operation indication LED ) 3. Channler ( Dual Up/down Converter for Uplink & Downlink Paths). 4. Diplexer to donor Antenna. 5. Diplexer to mobile Antenna (High Power). 6. Coupler for Modem Antenna. 7. Isolator for Uplink Amplifier. 8. Connections Box (include Repeater ON/Off switch). 9. BDA Monitor unit. (include alarm test button) 10. Controller Unit. (include operation status indication LED). 11. iDEN Modem Unit. 12. Door plate. 13. Door Alarm Switch. 14. Power Supply. 15. Controller Backup Battery. Page 12 of 12 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolink comweb www decolink com Digital Repeater Component Photos Channler Page 13 of 13 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolink comweb www decolink com Connection box Controller Page 14 of 14 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolink comweb www decolink com Digital filter Down link diplexer Page 15 of 15 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolink comweb www decolink com Power supply Up link diplexer Page 16 of 16 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolink comweb www decolink com Up link Power Amplifier Page 17 of 17 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolink comweb www decolink com Down link Power Amplifier

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Page 1 of 5 365392.DOC Digital Repeater Component Photos 1 Channeler Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Page 2 of 5 365392.DOC Connection box Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Page 3 of 5 365392.DOC Controller Digital filter Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Page 4 of 5 365392.DOC Down link diplexer Up link diplexer Power supply Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail: [email protected] web www.dekolink.com Page 5 of 5 365392.DOC Down link Power Amplifier Up link Power Amplifier

Page 1 of 1 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolink comweb www decolink com PRODUCT DESCRIPTION FOR HIGH POWER DIGITAL SELECTIVE REPEATER MODEL: M M W W - - D D R R - - 8 8 0 0 0 0 - - 5 5 0 0 W W 9 9 0 0 B B Page 2 of 2 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolink comweb www decolink com TABLE OF CONTENTS PARAGRAPH PAGE No GENERAL DESCRIPTION 3 BLOCK DIAGRAM DESCRIPTION 3 DIGITAL REPEATER CONNECTION 4 COMPONENT DESCRIPTION 5 DIGITAL REPEATER MONITOR 7 DIGITAL REPEATER MONITOR FUNCTIONS 7 LIST OF DRAWINGS DRAWING PAGE No DIGITAL REPEATER RF BLOCK DIAGRAM 4 DIGITAL REPEATER MONITOR 8 DIGITAL REPEATER MONITOR BLOCK DIAGRAM 8 MECHANICAL LAYOUT 9 MECHANICAL OUTLINE 11 DIGITAL REPEATER COMPONENT PHOTOS 12 Page 3 of 3 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolink comweb www decolink com General Description The unit is based on a modular configuration. Each module is build-up of a duplexer dual-path. Each path is down-converted to an Intermediate Frequency (IF); filtered by digital processing techniques to attain versatile programmable filter array and up-converted back. The power amplifiers have power-monitoring circuits (Automatic Level Control - ALC) for output power limitation. The unit is housed in a compact box for wall mounted easy installation. BLOCK DIAGRAM DESCRIPTION: BASE ANT Uplink Downlink Down- Converter Down- Converter Up- Converter AGC AGC AGC AGC AGC AMP AGC AMP AGC LNA AGC LNA Up- Converter Power Monitor PA Power Monitor PA Digital Filters Digital Filters Duplexer MOBILE ANT Duplexer Micro controller Controller Power Supply Interface Box Dekolink Wireless channel selective repeaters employ digital processing techniques to attain versatile programmable filter arrays in both the uplink & Page 4 of 4 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolink comweb www decolink com downlink paths. The RF signal entering the repeater, is filtered by a duplexer, amplified, down converted & sampled to digital signals. The digital signal is filtered using fast parallel logic. Using digital processing techniques, the system generates up to 8 separate, programmable and independent filters. After filtration is accomplished, the digital signals are up-converted to an RF signal, amplified by a High Power Amplifier & combined by a duplexer to the output port. REPEATER CONNECTION: The RF connection is made via two type “N” female connectors. The RF connector labeled “Base” is connected to the antenna pointing to the base station, usually a rooftop antenna; this is a directional antenna such as Yagi or Dish antenna of 14 to 18 dBi gain. This antenna is pointed to the base station to get maximum input power. The RF connection labeled “Mobile” must be connected to the antenna pointing into the area to be covered by the Repeater. The remote antenna is usually a directional antenna designated for the coverage requirements. For indoor applications covering a large building, the RF signals are split using power dividers and distributed to many antennas, usually omni antenna, each covering a floor or a small area. such as inside a building or outdoor shaded area. Page 5 of 5 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9180 e-mail:marketing@decolink comweb www decolink com COMPONENTS DESCRIPTION Channler Channler is complicate and most important component in repeater complex Channler include: 1. Uplink and Downlink LNA Blocks with level control (ALC).LNA with ALC supplied constant signal level to Digital Filter units 2. Uplink and Downlink Conversion blocks. Conversion blocks receive RF signal ,through LNA block, filtering and down convert frequency (by down mixer and synthesizer) to IF. In IF section the signal is amplified and supplied to Digital Filter. After digital processing and filtering, digital signal up converted the IF frequency (by up mixer and synthesizer) to RF. The RF signal is filtering and supply to Preamplifier block. 3. Uplink and Downlink Preamplifier blocks with gain control (AGC). RF signal from Conversion block amplified and supplied constant level (by gain control) to Channler output. 4. Microcontroller block. Microcontroller receive alarms from all Channler blocks, process the data and through to external controller. Microcontroller receive from external Controller settings controls (Frequency, ALC , AGC, Power) and through to the all Channlers blocks. Page 6 of 6 50W rev 2  07/03 Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 4…
