OIWIBDBSMR8916W40Bi-Directional Booster

Nemko Canada Inc. I would like to confirm that I have a copy of section 90.219 & 22.383 for in-building/booster operation and our boosters comply with these rules. Best Regards, David Levy, Technical Support Manager Dekolink Wireless Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180179 Fax-972-3-9180190

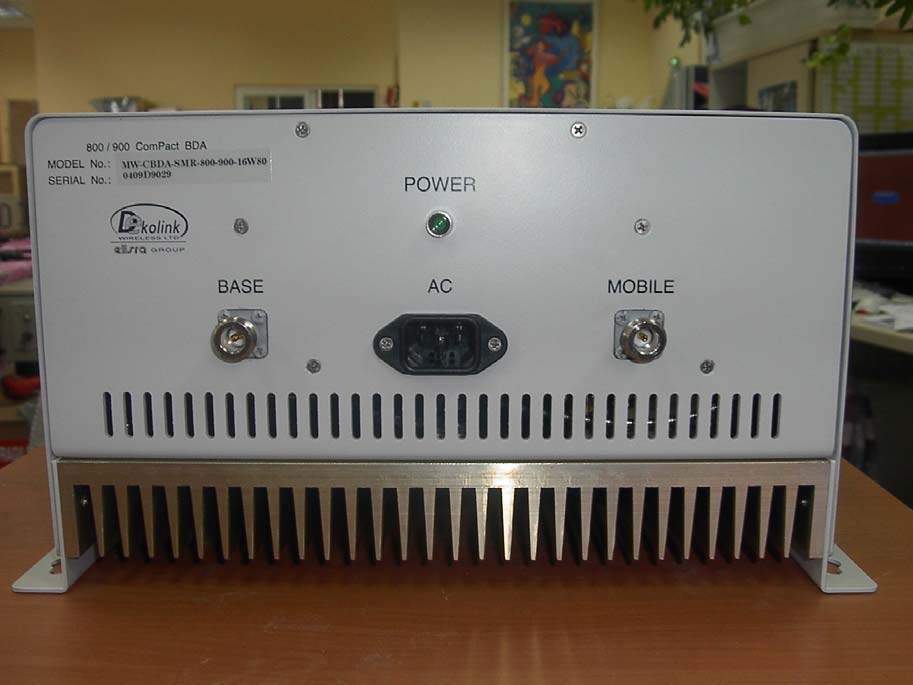

MW-IBDB-SMR-800-900_16W40 Pictures

Operational Description This equipment is a bi-directional repeater designed for operation in the 800 – 900 MHz SMR bands. It is used for in-building signal enhancement. For a detailed technical and operational description please refer to the installation and operating instructions.

Dekolink Wireless Ltd. 16 Bazel St. Qiryat-Arieh, Petah-Tikva , Israel 49510 Tel.: 972-3-9180180 Fax: 972-3-9180190 Company Number: 513109868 Part Number: 300HC70000 Part Description: Main Parts Printing Date: 13.07.06 Part List For:IBDB-SMR-800-900-16W40 - Main Parts Line Part Name Part Des. Qty. Unit Sup. Part Locations 1 300HC76000 AMP 1W-AGC 1.00 EA 300DA47000 2 1510992864 AMP 800-960MHz G=48dB 16W MANUAL CONTROL 1.00 EA CD16W0960-MN 3 300QB51250 HEAT SINK 1.00 EA 300QB51250 4 300HC77000 Pre Amp DL 800+900 2.00 EA 300HC77100 5 300HC79000 Pre AmpUL 800+900 2.00 EA 300HC79100 6 1513000631 DUPLEX RX-806/896 TX851/935 BW-15/6M 30W 2.00 EA SGC-D858.5+93815+6NS-KSR-A 7 1541003755 PWR SUP AC/DC OUT:24V 6.3A 150W 1.00 EA ZWS-150AF-24/J 8 1027011604 RES PWR 51 OHM 10W 10% WIREWOUND 2.00 EA PW-10-51R0-OHM-10% 9 CC050B0B36 CABLE ASSY SMA\M\STR-SMA\M\STR .141 36CM 1.00 EA SM141-11SMA(X2)-36CM 10 CC050C0B28 CABLE ASSY SMA/M/RA-SMA/M/STR .141 28cm 2.00 EA SM141-16SMA-11SMA-28cm 11 CC050C0B24 CABLE ASSY SMA/M/RA-SMA/M/STR .141 24cm 1.00 EA SM141-16SMA-11SMA-24cm 12 CC050B0B32 CABLE ASSY SMA-SMA MALE SEMI 0.141 32 1.00 EA SM141-11SMA(X2)-32cm 13 CC050B0B50 CABLE ASSY SMA-SMA MALE SEMI 0.141 50CM 1.00 EA SM141-11SMA(X2)-50CM 14 CC050B0B20 CABLE ASSY SMA-SMA MALE SEMI 0.141 20CM 1.00 EA SM141-11SMA(X2)-20cm 15 300QB55000 PCB ASSY - ALARM CIRCUIT 1.00 EA 300QB55000

Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9190 e-mail: [email protected] web www.dekolink.com 13.07.06 AGC tune up procedure for IBDB-SMR-800-900-16W40 1. Required test equipment: a. Spectrum Analyzer – HP 8563E or equivalent b. Signal Generator - Agilent E4432B or equivalent c. Power Meter – HP E4419B or equivalent 2. Test setup EUT SIGNAL GENERATOR DIRECTIONAL COUPLER POWER METER AC BASE MOBILE SPECTRUM ANALYZER -30dB 3. Downlink AGC tuning: a. Set downlink GAIN to maximum (ATTN. at position “0”). b. Set downlink AGC switch to OFF. c. Turn AC power ON. d. Set signal generator to (-)10 dBm at 858 MHz , two tone, 300KHz separation. e. Increase input signal to get (+)35 dBm at output. f. Set downlink AGC switch ON. g. Adjust AGC trimmer to get (+)31 dBm reading on the power meter. h. Decrease input power by 3 dB, then increase the input power by 15dB in 1dB steps. Make sure that output power is within ± 1dB of the nominal value. Page 1 of 2 AGC tune up procedure for CBDA16W40.doc Dekolink WIRELESS Ltd. 16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510 Tel- 972-3-9180-180 Fax-972-3-190-9190 e-mail: [email protected] web www.dekolink.com i. Turn power OFF 4. Uplink AGC tuning: a. Exchange MOBILE and BASE ports connections. b. Set uplink GAIN to maximum (ATTN. at position “0”). c. Set uplink AGC switch to OFF. d. Turn AC power ON. e. Set signal generator to (-)20 dBm at 813 MHz, two tone, 300KHz separation. f. Increase input signal to get (+)22 dBm at output. g. Set Uplink AGC switch ON. h. Adjust AGC trimmer to get (+)21 dBm reading on the power meter. i. Decrease input power by 3 dB, then increase the input power by 20 dB in 1dB steps. Make sure that output power is within ±1dB of the nominal value. j. Turn power OFF. Page 2 of 2 AGC tune up procedure for CBDA16W40.doc

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 32.00 (dBm) Maximum peak output power at antenna input terminal: 1584.893192 (mW) Antenna gain(typical): 2 (dBi) Maximum antenna gain: 1.584893192 (numeric) Prediction distance: 20 (cm) Prediction frequency: 851 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.567333333 (mW/cm^2) Power density at prediction frequency: 0.499724 (mW/cm^2) Maximum allowable antenna gain: 2.551081564 (dBi) Margin of Compliance: 0.551081564 (dB) 2 4 R PG S π =

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 22.00 (dBm) Maximum peak output power at antenna input terminal: 158.4893192 (mW) Antenna gain(typical): 10 (dBi) Maximum antenna gain: 10 (numeric) Prediction distance: 50 (cm) Prediction frequency: 806 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 0.537333333 (mW/cm^2) Power density at prediction frequency: 0.050449 (mW/cm^2) Maximum allowable antenna gain: 20.27393655 (dBi) Margin of Compliance: 10.27393655 (dB) 2 4 R PG S π =

FCC Part 90 Boosters : May 2005 Test Report: 6W70331 Applicant: Dekolink Wireless Ltd 16 Bazel St, Qiryat-Arieh, Petah-Tikva, 49510 Israel Apparatus: IBDB-SMR-800-900-16W40 Bi-Directional Dual Band Booster FCC ID: OIWIBDBSMR8916W40 In Accordance With: FCC Part 90, Boosters Private Land Mobile Radio Services Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jason Nixon, Telecom Specialist Date: August 29, 2006 Total Number of Pages: 40 Nemko Canada Inc. REPORT SUMMARY Report Number: 6W70331 FCC ID: OIWCCSRSMR1W80 Specification: FCC Part 90 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 90. Conducted measurements were performed in accordance with ANSI TIA-603-B-2002. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: IBDB-SMR-800-900-16W40 Bi-Directional Dual Band Booster Specification: FCC Part 90 Private Land Mobile Radio Services Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Xu Jin, Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Page 2 of 40 Nemko Canada Inc. REPORT SUMMARY Report Number: 6W70331 FCC ID: OIWCCSRSMR1W80 Specification: FCC Part 90 TABLE OF CONTENTS Report Summary.........................................................................................................................................2 Section 1: Equipment Under Test..............................................................................................................4 1.1 Product Identification.................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.4 Technical Specifications of the EUT..........................................................................................................5 Section 2: Test Conditions..........................................................................................................................6 2.1 Specifications.............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment.......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3: Observations..............................................................................................................................7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements...............................................................................................................7 3.3 EUT Parameters Affecting Compliance.....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 3.5 Additional Observations.............................................................................................................................7 Section 4: Results Summary......................................................................................................................8 4.1 FCC Part 90: Test Results..........................................................................................................................9 Appendix A: Test Results.........................................................................................................................10 Appendix B: Setup Photographs.............................................................................................................39 Appendix C : Block Diagram of Test Setups..........................................................................................40 Page 3 of 40 Nemko Canada Inc. SECTION 1: EQUIPMENT UNDER TEST Report Number: 6W70331 FCC ID: OIWCCSRSMR1W80 Specification: FCC Part 90 Section 1: Equipment Under Test 1.1 Product Identification The Equipment Under Test was identified as follows: IBDB-SMR-800-900-16W40 Bi-Directional Dual Band Booster 1.2 Samples Submitted for Assessment The following samples of the apparatus have been submitted for type assessment: Sample No. Description Serial No. 1 Dual Band Compact Bi-Directional Booster Model IBDB-SMR-800-900-16W40 S/N: 06059303 The first samples were received on: July 13, 2006 Page 4 of 40 Nemko Canada Inc. SECTION 2: TEST CONDITIONS Report Number: 6W70331 FCC ID: OIWCCSRSMR1W80 Spe…

Text truncated - open the document above for the full version.

Radiated Spurious Emissions Set up
